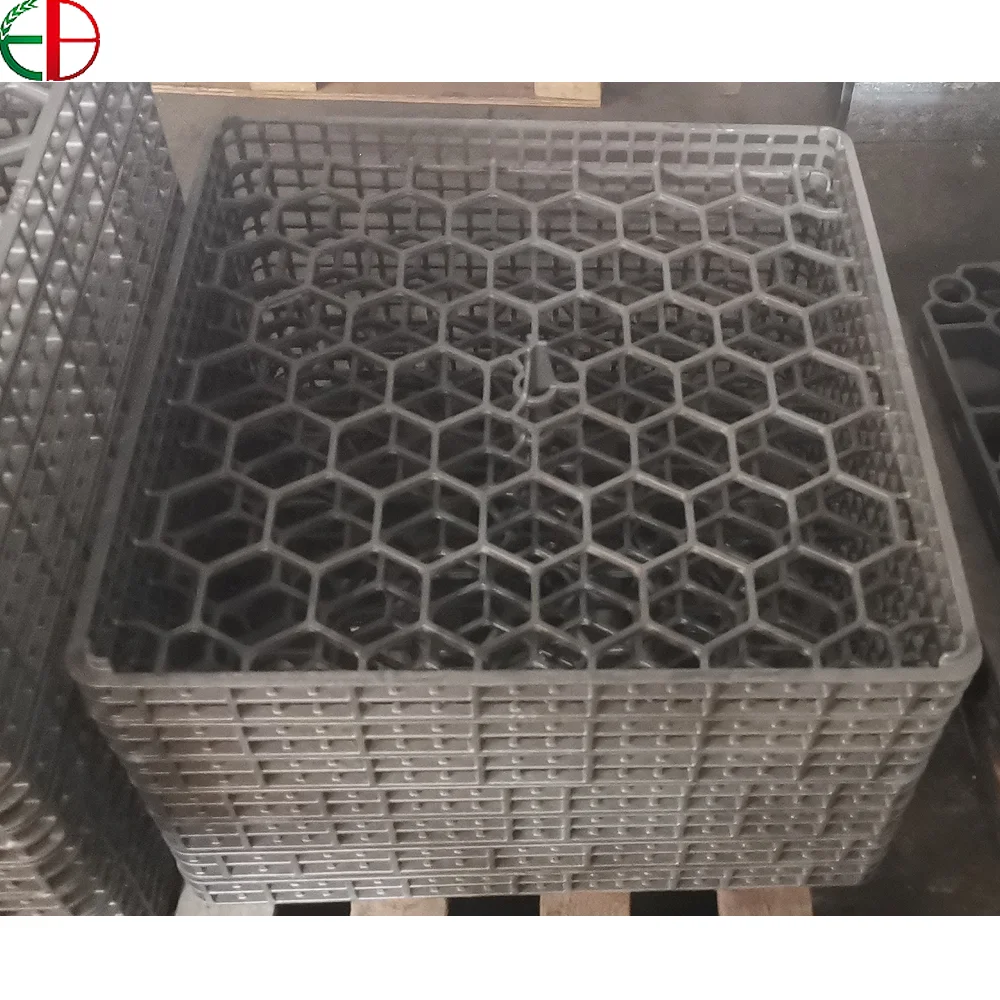

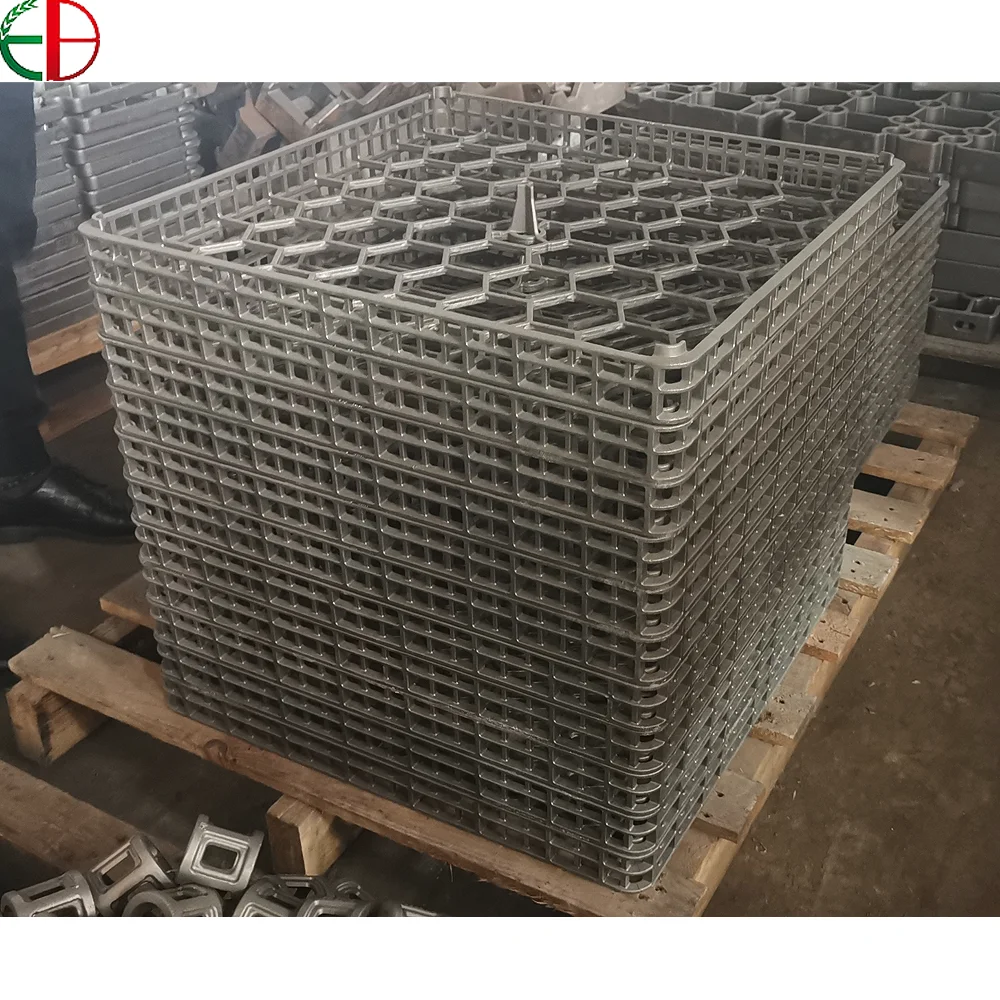

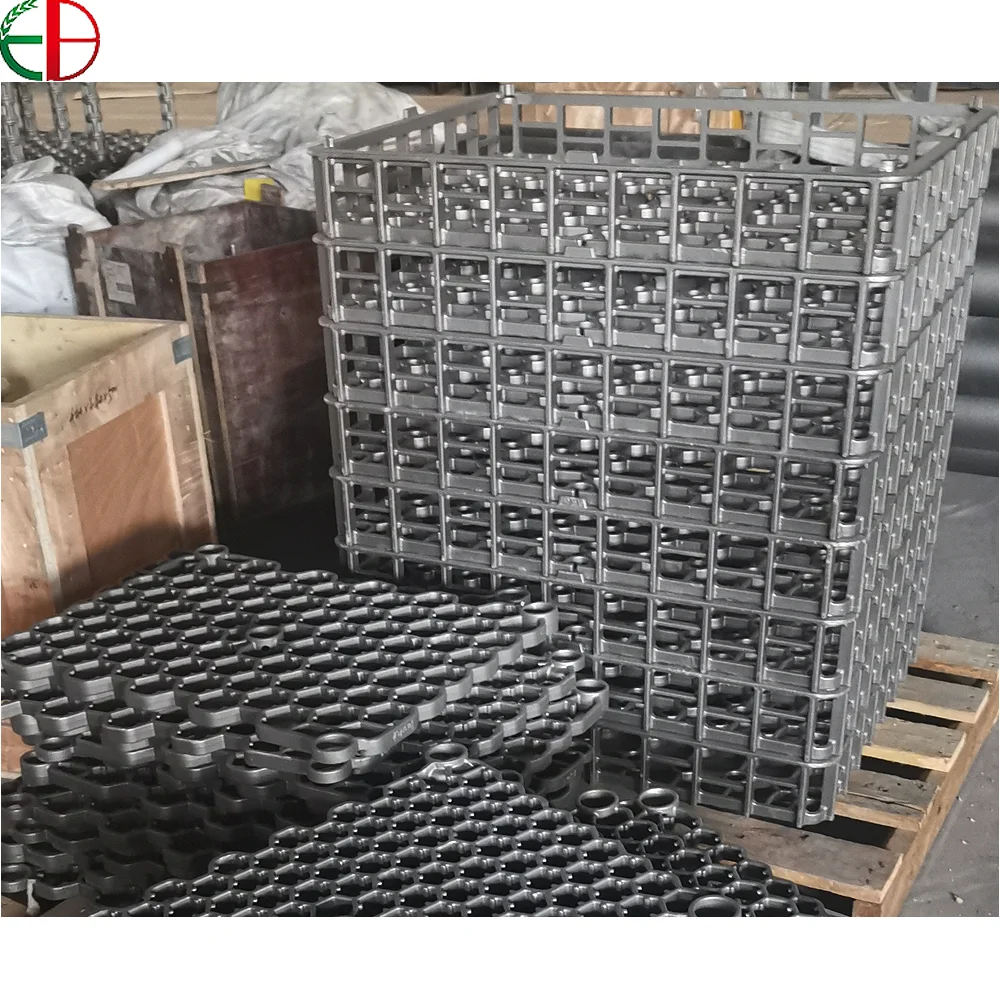

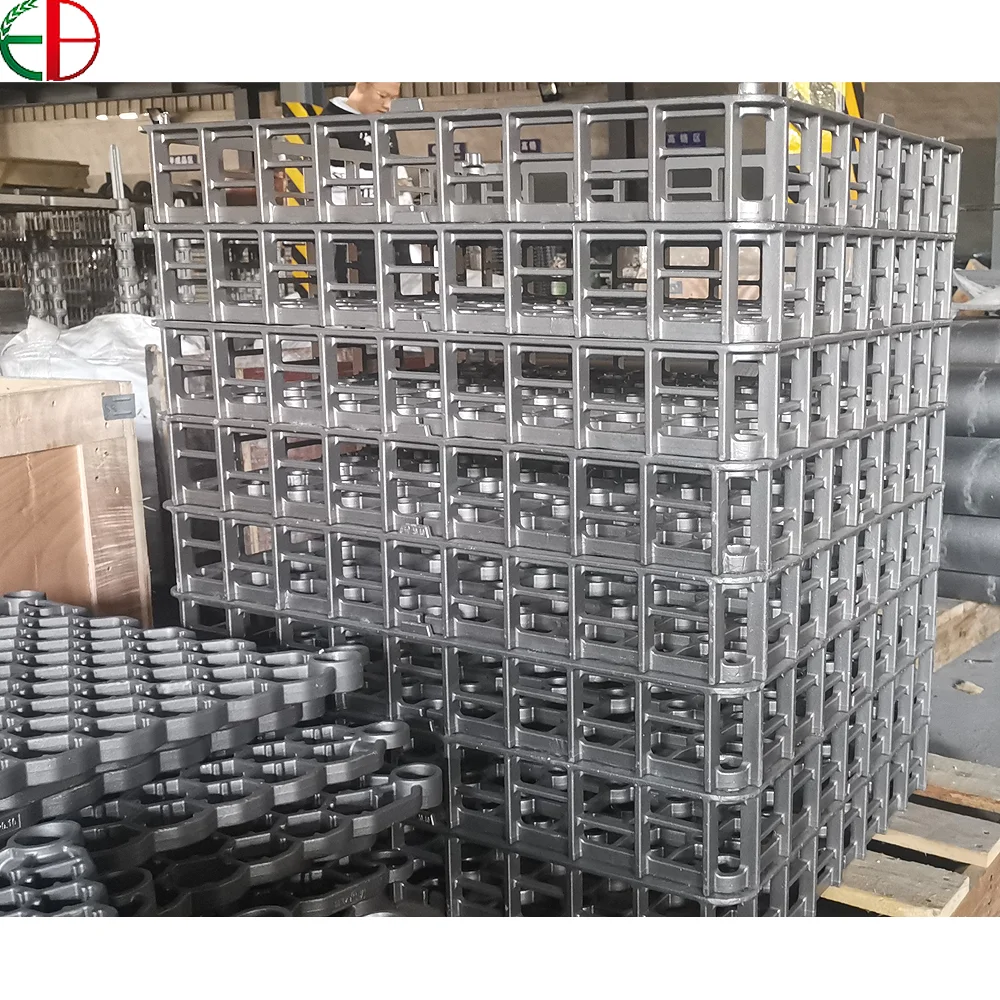

Industrial Heat treatment Furnace Tray with Heat Treatment Tooling Tray Frame for Casting Services
- Category: >>>
- Supplier: Wuxi Eternal Bliss Alloy Casting & Forging Co. Ltd.
Share on (1601274769873):
Product Overview
Description
Product Description
Introduction: heat treating baskets
Lost Foam Casting: material tray, material frame, pit furnace, furnace floor;
Precision Casting: Precision castings such as material trays, material baskets, multi-purpose furnace tooling, mixing blades, etc.
Application Areas: long-term supply of steel castings for electric furnaces, heat treatment plants, chemical equipment plants and cement plants. Materials include 06Cr19Ni10, Ni7N, 0Cr23Ni13, Cr25Ni20, etc., industrial furnace castings (furnace floor, furnace tube, furnace seat, material tray, material Basket, material frame seat, box, fan blade, fan shaft, etc.).
1. Production Proces:wax lost process,investment process, EPC process & sand process.
2. We make heat-resistant steel parts, such as furnace grates, furnace bed plates for cement works, steel mills.
3. We supply finished heat castings with heat-treated and machined condition if necessary.
4. We can produce heat steel castings as per GB/T20878, DIN17440. DIN17224, AISI, ASTM, JIS SUH35, NF A35 - 572/584, BS970, BS 1449,150683/13.
2. We make heat-resistant steel parts, such as furnace grates, furnace bed plates for cement works, steel mills.
3. We supply finished heat castings with heat-treated and machined condition if necessary.
4. We can produce heat steel castings as per GB/T20878, DIN17440. DIN17224, AISI, ASTM, JIS SUH35, NF A35 - 572/584, BS970, BS 1449,150683/13.
Application:Auto,Precision Gear,Heat-treating industries.
Features:
1.Resistance to high temperature:Up to 1300℃;
2.A large number of Existing Patterns of fixture for Standard.Famous Brand Heat-treatment Furnaces.
3.Rich experience in design of Trays&Baskets to suit the secific work condition.
4.More production process available:Wax lost cast process,EPC cast process,Sand cast process.
Quality Level: As per National Standard & International Standards.
Material Grade: | ||||||||||||||
Composition (%) | C | Si | Mn Max. | Cr | Ni | S Max. | P Max. | |||||||
1.4823 GX40CrNiSi27-4 | 0.35~0.50 | 1.0~2.5 | 1.50 | 25.0-28.0 | 3.5-5.5 | 0.03 | 0.035 | |||||||
1.4825 GX25CrNiSi18-9 | 0.15-0.30 | 1.0~2.5 | 1.50 | 17.0-19.0 | 8.0-10.0 | 0.03 | 0.035 | |||||||
1.4826 GX40CrNiSi22-9 | 0.30-0.50 | 1.0~2.5 | 1.50 | 21.0-23.0 | 9.0-11.0 | 0.03 | 0.035 | |||||||
1.4832 GX25CrNiSi20-14 | 0.15-0.30 | 1.0~2.5 | 1.50 | 19.0-21.0 | 13.0-15.0 | 0.03 | 0.035 | |||||||
1.4837 GX40CrNiSi25-12 | 0.30-0.50 | 1.0~2.5 | 1.50 | 24.0-26.0 | 11.0-14.0 | 0.03 | 0.035 | |||||||
1.4848 GX40CrNiSi25-20 | 0.30-0.50 | 1.0~2.5 | 1.50 | 24.0-26.0 | 19.0-21.0 | 0.03 | 0.035 | |||||||
1.4865 GX40CrNiSi38-18 | 0.30-0.50 | 1.0~2.5 | 1.50 | 17.0-19.0 | 36.0-39.0 | 0.03 | 0.035 | |||||||
1.4857 GX40CrNiSi35-25 | 0.30-0.50 | 1.0~2.5 | 1.50 | 24.0-26.0 | 34.0-36.0 | 0.03 | 0.035 | |||||||
1.4855 GX30CrNiSiNb24-24 | 0.30-0.40 | 0.5-2.0 | 1.50 | 23.0-25.0 | 23.0-25.0 | 0.03 | 0.035 | |||||||
1.4849 GX40CrNiSiNb38-18 | 0.30-0.50 | 1.0~2.5 | 1.50 | 17.0-19.0 | 36.0-39.0 | 0.03 | 0.035 | |||||||
1.4852 GX40CrNiSiNb35-25 | 0.35-0.45 | 1.0~2.5 | 1.50 | 24.0-26.0 | 33.0-35.0 | 0.03 | 0.035 | |||||||
G-CoCr28 | 0.10-0.20 | 1.0~2.5 | 1.50 | 27.0-30.0 | - | 0.03 | 0.035 | |||||||
G-CoCr28W | 0.35-0.50 | 0.5-2.0 | 1.50 | 27.0-30.0 | 47.0-50.0 | 0.03 | 0.035 | |||||||
Industrial multi-purpose furnace quenching tray material frame | ||
Heat treatment trays, frames, vertical poles, beams and other casting tooling are mainly used in heat treatment box furnaces,multi-purpose furnaces, push rod furnaces and continuous furnaces. | ||
304 | 500℃-800℃ , Normally around 600℃ | |
309 (2213) | 800℃-900℃ | |
316 | 500℃-800℃ | |
2520 | About 1100℃ | |
2535 | About 1100℃ | |
2848 | About 1200℃ | |
Why Choose Us
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock.Or it is 45 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment. irrevocable LC at sight.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock.Or it is 45 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment. irrevocable LC at sight.
