Professional CNC Machine Automatic EDM Drilling machine
- Category: >>>
- Supplier: Zhengzhou Timeway Machine Tool Co. Ltd.
Share on (1601274772709):
Product Overview
Description
Products Description

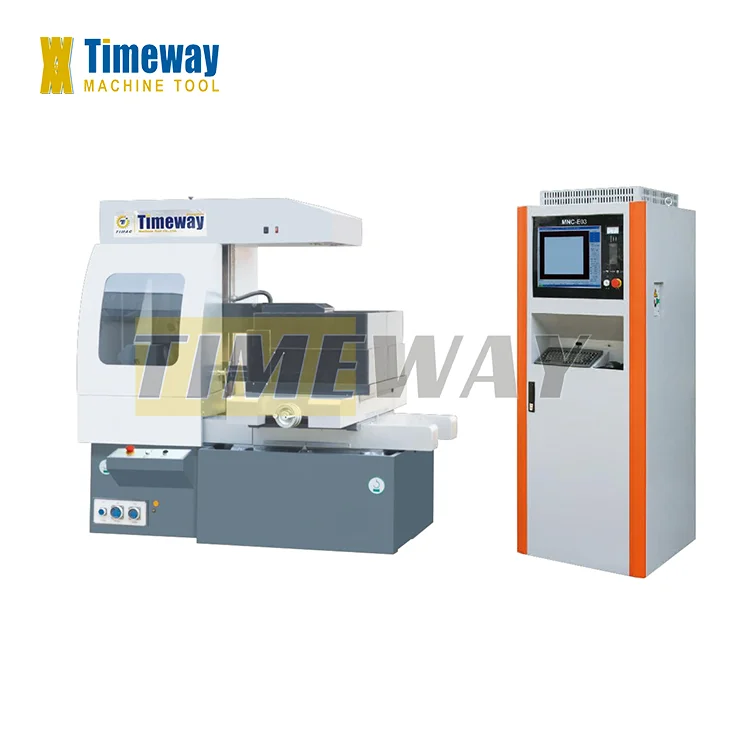

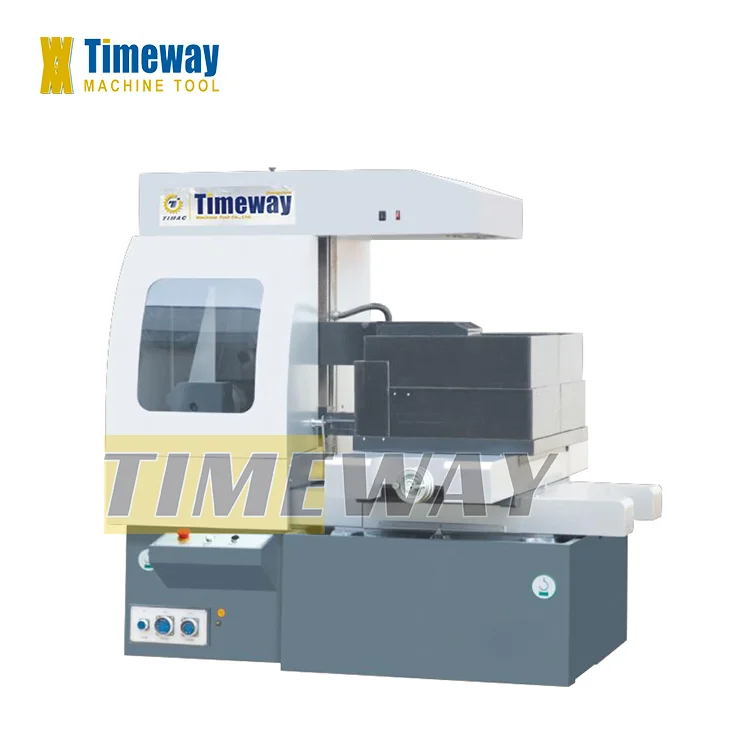

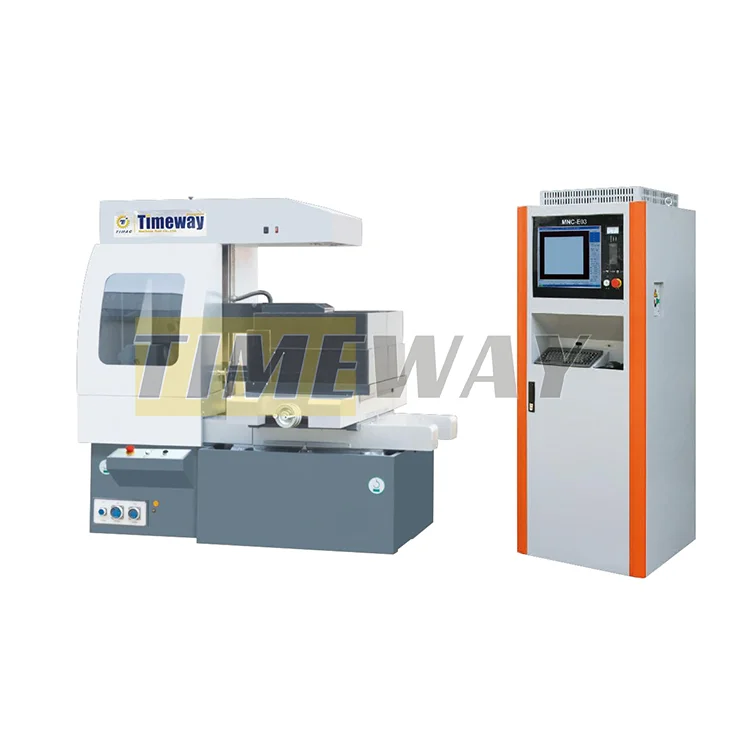

EDM Wire Cut
Features:
The castings are cast in resin sand and tempered twice to effectively control the deformation of the machine.
The double-nut ball screw produced by domestic military enterprises is used to maintain mechanical precision for a long time.
The wire storage tube adopts frequency conversion speed regulation, and the electric wire is tightly tightened for convenient operation.
Standard stepper motor, optional two-axis or four-axis hybrid subdivision motor.
With cut-repair-function.

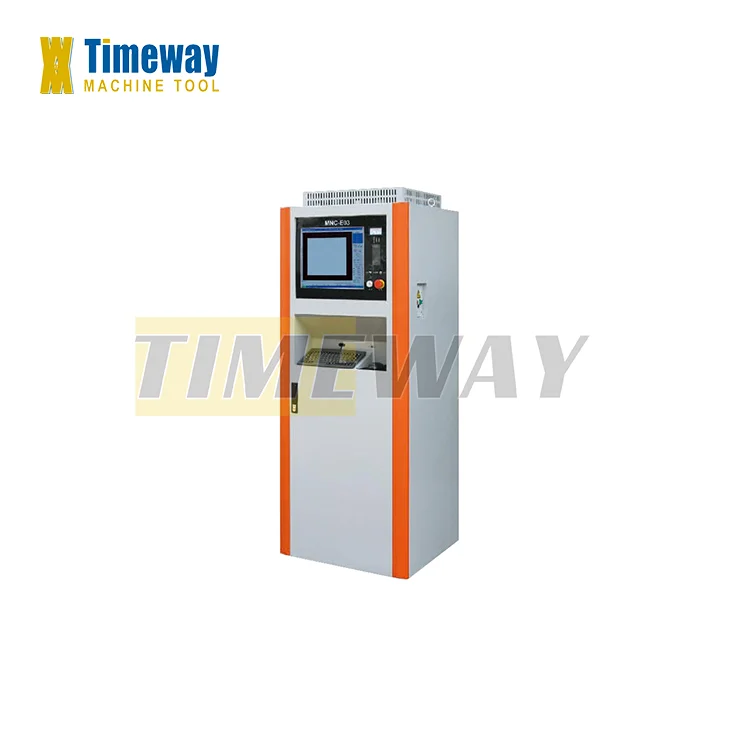

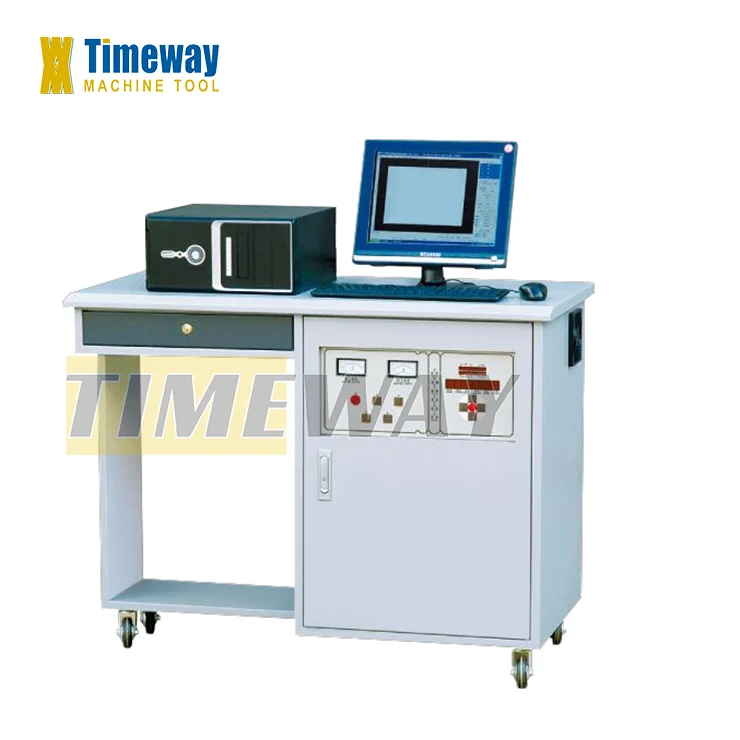

There are two types of electric cabinets for the cabinet and the vertical cabinet (only one cabinet controlled by the single board machine).
The castings are cast in resin sand and tempered twice to effectively control the deformation of the machine.
The double-nut ball screw produced by domestic military enterprises is used to maintain mechanical precision for a long time.
The wire storage tube adopts frequency conversion speed regulation, and the electric wire is tightly tightened for convenient operation.
Standard stepper motor, optional two-axis or four-axis hybrid subdivision motor.
With cut-repair-function.
There are two types of electric cabinets for the cabinet and the vertical cabinet (only one cabinet controlled by the single board machine).
Parameter | Unit | DK-320ZG | DK-400ZG | DK-500ZG | ||
Table size (WxL) | mm | 740×460 | 840×540 | 1020×640 | ||
Table travel (X/Y) | mm | 400×320 | 500×400 | 630×500 | ||
Max. cutting size | mm | 820×500 | 900×600 | 1000×700 | ||
Max. thickness of workpiece | mm | 300 | 300 | 350 | ||
Loading capacity | kg | 600 | 1000 | 1600 | ||
X/Y-axis feed unit | mm | 0.001 | 0.001 | 0.001 | ||
Z-axis vertical travel | mm | 250 | 250 | 300 | ||
U/V-axis travel | mm | ±30×±30 | ||||
Taper angle/thickness | °/mm | ±3°/80 | ||||
U/V-axis min. feed unit | mm | 0.001 | ||||
Motor type | - | X/Y/U/V-axis servo motor/directly contact | ||||
Z-axis lifting type | - | motorized lifting (optional: CNC lifting) | ||||
Axis controlled | - | X/Y/U/V-axis linkage (optional: 5-axis linkage) | ||||
Wire cylinder travel | mm | 200 | ||||
Molybdenum wire diameter | mm | φ0.10-φ0.25 (φ0.18) | ||||
Wire feed speed | m/s | 1～11.4, 8steps (stepless) | ||||
Max. lay aside wire length | m | 250 | ||||
Working accuracy | - | ≤0.01 | ||||
Max. machining speed | mm²/min | ≥250 | ||||
Three knife average cutting efficiency | mm²/min | 70 | ||||
Surface roughness | μm | One: Ra＜2.5，Two: Ra＜1.6, Three: Ra＜0.8，Four: Ra＜0.6 | ||||
Working liquid | - | DIC | ||||
Tank capacity | L | 90 | ||||
Filtering type | - | Paper filter/Italy pump | ||||
Power supply | - | 3PH-380V/50Hz | ||||
Total power | kw | 2.2 (stepper)/6(mixing/servo) | ||||
Max. working current | A | 6 | ||||
Machine noise | db | ≤70 | ||||
Machine weight | kg | 2200 | 2600 | 3200 | ||
Machine dimensions (LxWxH) | cm | 180×130×203 | 190×140×206 | 221×165×225 | ||
Packing size (LxWxH) | cm | 200x140x240 | 200x150x240 | 250x170x260 | ||
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
