Wan Cartoon Rfid waist Tripod Turnstile Compact Barrier Gate Disabled Card Reader Barcode Scanner Solenoid Tourniquet Sheath
- Category: >>>
- Supplier: Shenzhen Wan Cartoon Technology Co. Ltd.
Share on (1601274774819):
Product Overview
Description

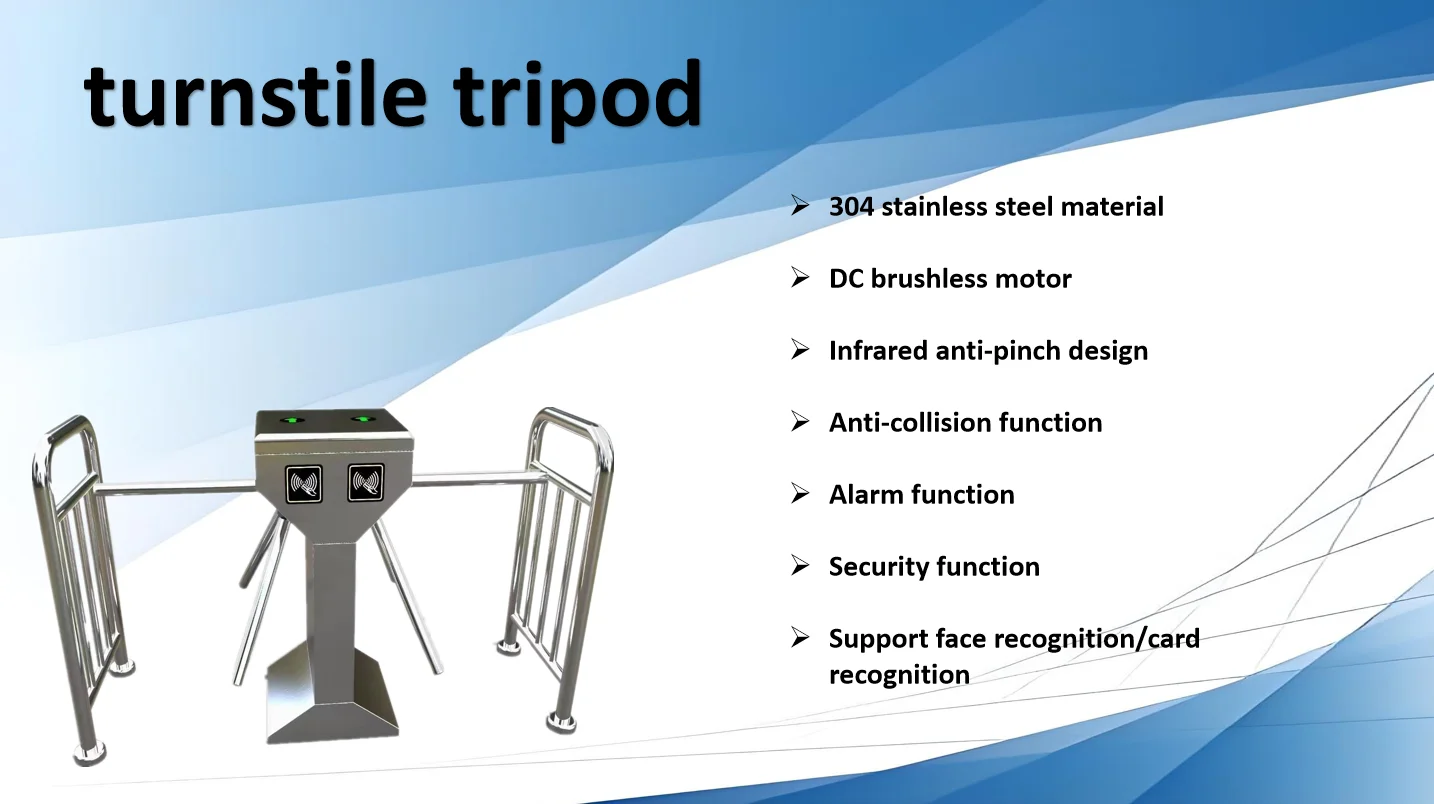

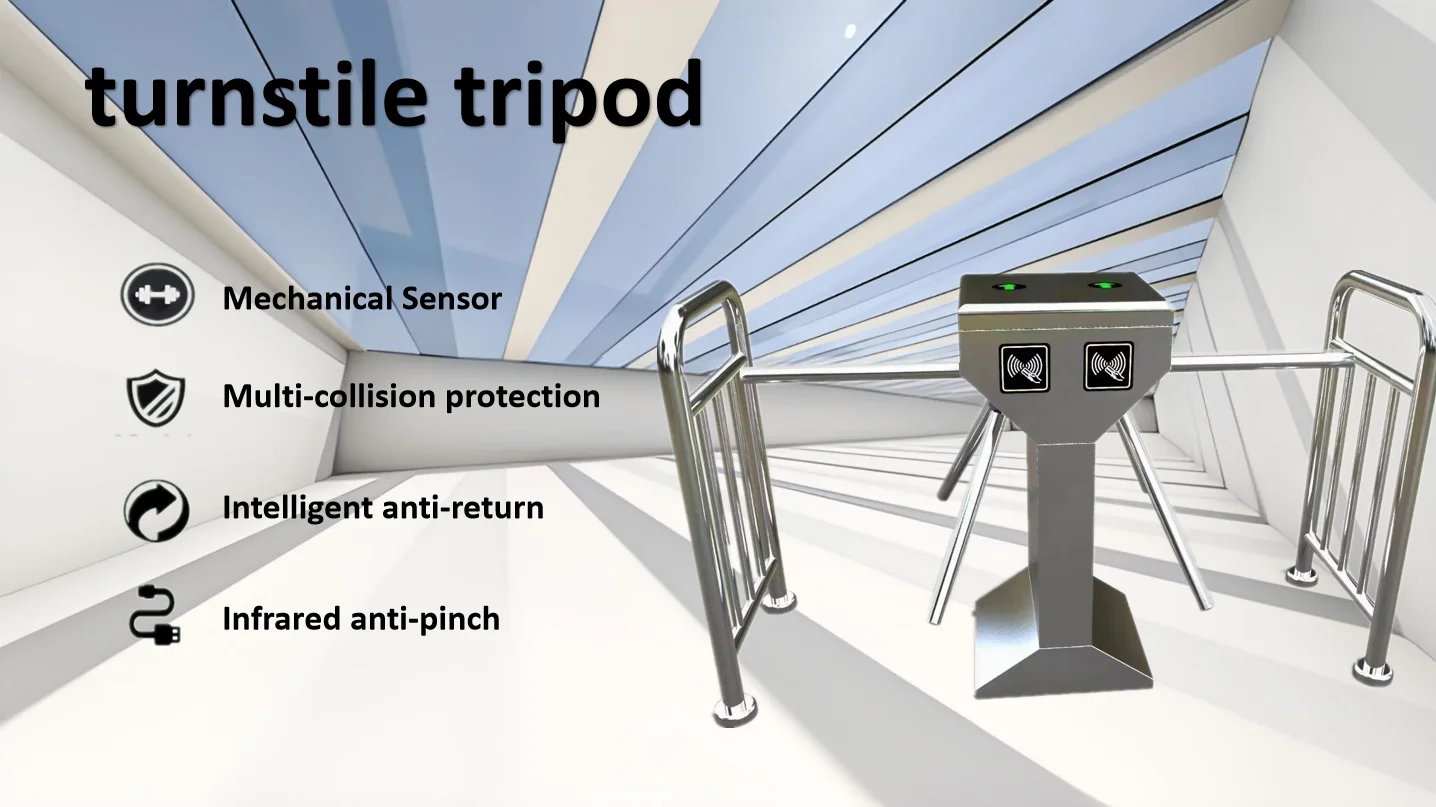

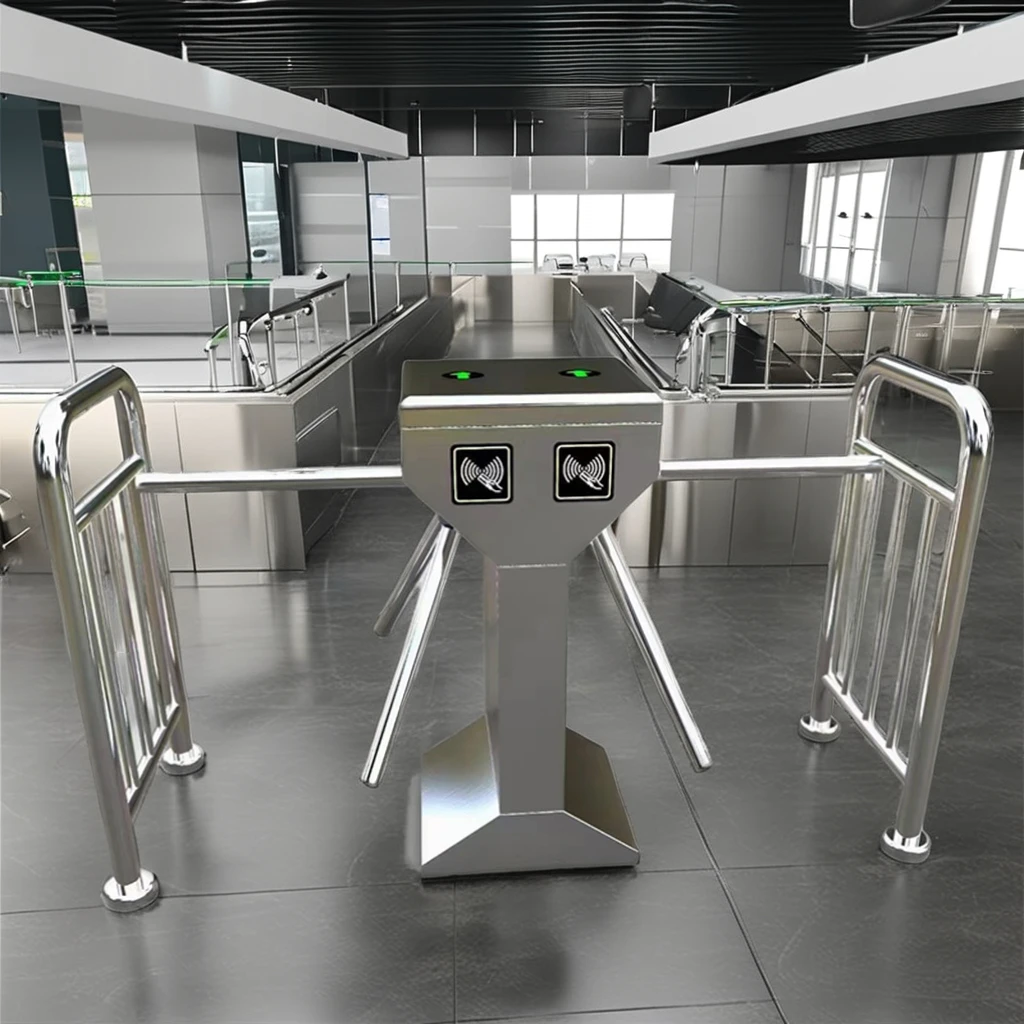

Turnstile Tripod
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full height turnstile gate or have any questions, please contact us
SGZ series tripod turnstile WKT-LSSGZSJX is a kind of access control management equipment used to control and manage pedestrians. Tripod Turnstile pedestrian turnstile gate offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The tripod turnstile gate’s casing material is 304 stainless steel.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.
SGZ series tripod turnstile WKT-LSSGZSJX is a kind of access control management equipment used to control and manage pedestrians. Tripod Turnstile pedestrian turnstile gate offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The tripod turnstile gate’s casing material is 304 stainless steel.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.
Function&Features | ||||||||
Functions and features | full-auto | semi-auto | manual | |||||
1,Malfunction self-check and alarm reminder, ease of maitenance and use | √ | √ | × | |||||
2,Running method can be set through small buttons on the control panel | √ | √ | × | |||||
3,How arm reacts in emergency | drop automatically | drop automatically | no movement | |||||
4,How arm reacts when power on | go up automatically | go up by hand | no movement | |||||
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable) | √ | √ | × | |||||
6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on | √ | √ | × | |||||
7,Unique positioning, self reset, one arm always in the horizontal level | √ | √ | × | |||||
8,LED lamp indicator | √ | √ | × | |||||
9,when open signal is given, arm rotate to a certain degree | √ | × | × | |||||
10,how arm reacts when people passing | rotate automatically | push by hand | push by hand | |||||
11,one direction or bi-direction flow control | √ | √ | adjust by hand | |||||
12,work directly with PC for remote control and management | √ | √ | × | |||||
Features:
1.Tripod turnstile pedestrian turnstiles are compact and cost-effective entrance solutions.
2.The pedestrian turnstile tripod turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
3.Tripod turnstiles pedestrian turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
4.It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e. RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
5.This pedestrian turnstile tripod turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
6.The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
7.Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
2.The pedestrian turnstile tripod turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
3.Tripod turnstiles pedestrian turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
4.It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e. RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
5.This pedestrian turnstile tripod turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
6.The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
7.Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
8.The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added
9.The design of the pedestrian turnstile tripod turnstile makes only one person pass at one time.
10.Single-directional or Bi-directional is an option.
11.LED directional indicator light on top
12.Solenoid valve: DC24V ±5％
13.Arm length: 510 mm
14.Mold Mechanism with hydraulic damper for shock absorbing
15.Reliability of the mechanism: 3 million, no-fault
16.Direction of rotation: Bidirectional
17.Method of arm dropping: drop automatically when the electricity is cut off.
10.Single-directional or Bi-directional is an option.
11.LED directional indicator light on top
12.Solenoid valve: DC24V ±5％
13.Arm length: 510 mm
14.Mold Mechanism with hydraulic damper for shock absorbing
15.Reliability of the mechanism: 3 million, no-fault
16.Direction of rotation: Bidirectional
17.Method of arm dropping: drop automatically when the electricity is cut off.
18.Operational voltage: DC 24V ±5%
19.Voltage of indicator light: DC12V ±5％(standard)
20.Working temperature: -30℃～60℃
21.Humidity: 5%～90%
22.Waterproof: IP44
23.Time needed for opening: 0.2 s
24.Working environment: Indoor
25.Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
26.When power is off, tripod turnstile arms will drop down automatically to allow free passage, which complies with fire safety requirements.
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution.
19.Voltage of indicator light: DC12V ±5％(standard)
20.Working temperature: -30℃～60℃
21.Humidity: 5%～90%
22.Waterproof: IP44
23.Time needed for opening: 0.2 s
24.Working environment: Indoor
25.Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
26.When power is off, tripod turnstile arms will drop down automatically to allow free passage, which complies with fire safety requirements.
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution.
Playgrounds
Gyms
bus stations
Hotels
Malls
Schools
Product Process Material List | ||||||||
Products | Full height gate, Waist Height Turnstile, turnstile tripod, swing barrier turnstile, High Speed Gate，Sliding Turnstile，Flap Barrier Turnstile | |||||||
Material | Iron with powder coated、201 stainless steel, 304 stainless steel, 316 stainless steel, aluminum alloy coating | |||||||
Production process | CNC Laser Cutting,Grooving,Welding,Grinding,Assembly | |||||||
Supports versatile customized solutions | Face Recognition，Fingerprint Recognition，Swipe ID card，Scanning QR code | |||||||
System Docking | ID card reader, code scanning gun, LED control card, face module, fingerprint module, IC/ID card reader (to be customized please contact customer service for details) | |||||||
Usage Scenarios | Office buildings, shopping malls, schools, libraries, scenic spots, swimming pools, gyms, construction sites, prisons, stations, etc. | |||||||
We have the capability to design, develop, produce and deliver your PO in accordance with your drawings, samples or merely an idea
We can provide OEM and ODM services.
We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
Different application scenarios have different requirements for channel gates, and we can provide suitable products according to customer requirements.
Committed to product innovation and quality upgrading, always close to the majority of consumers real consumer demand, so that the better quality and more tasteful packaging into the tens of thousands of households!

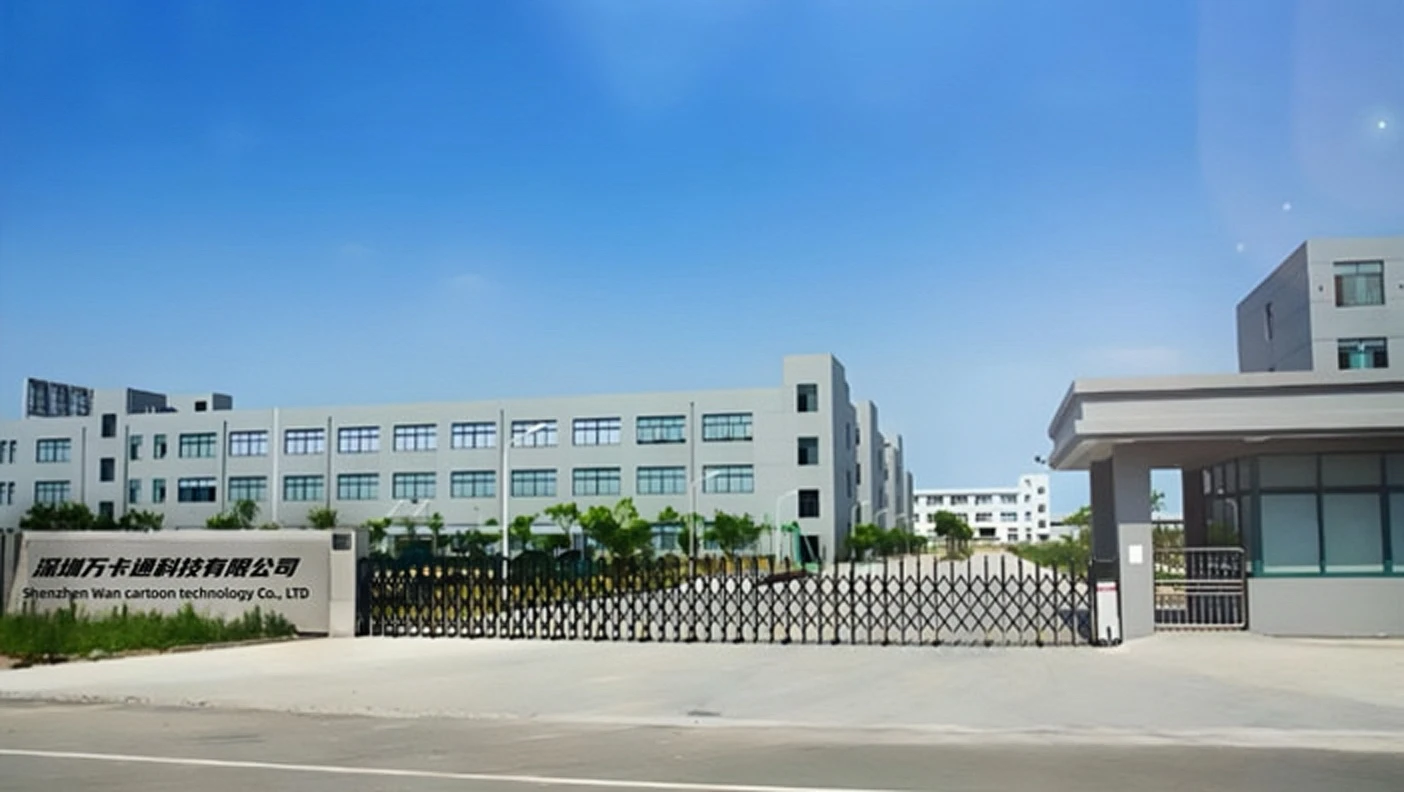

Company Profile
China's Turnstile Production Base
Responsibility and Mission
The company was founded in 2014 and has 12 years of R & D and production experience. It possesses 5 laser machines and 4 bending machines. There are over 100 employees under the company, each holding different positions and fulfilling their duties. We meticulously create each product with the most advanced equipment and the most professional team.
Focus on design, research and development, production, sales, and after-sales service, it is one of the high-tech enterprises. Dedicated to pedestrian access gates as the leading products, including intelligent pedestrian gates, full-height gates, waist-height turnstiles, turnstile tripods, swing barrier turnstiles, high-speed gates, sliding turnstiles, flap barrier turnstiles, drop arm swing turnstiles, RFID card swipe systems, ticket systems, boom barrier gates, RFID parking systems, license plate recognition parking systems (LPR), hydraulic bollards, etc. as well as RFID access control attendance, QR codes, face recognition, fingerprints, iris recognition and a series of intelligent identification products and management system integration and application.
Since its establishment in 2014, with excellent technical strength, we have been developing various new products to meet the needs of domestic and foreign markets and customers.
The company's R&D team has 12 years of pedestrian gate equipment management technology. In the face of different venues and different customer requirements, they are able to provide superb technical services and strictly control product quality to ensure that every product satisfies consumers.
All series of products of the company have obtained a number of patents and certificates.
Since its establishment in 2014, with excellent technical strength, we have been developing various new products to meet the needs of domestic and foreign markets and customers.
The company's R&D team has 12 years of pedestrian gate equipment management technology. In the face of different venues and different customer requirements, they are able to provide superb technical services and strictly control product quality to ensure that every product satisfies consumers.
All series of products of the company have obtained a number of patents and certificates.

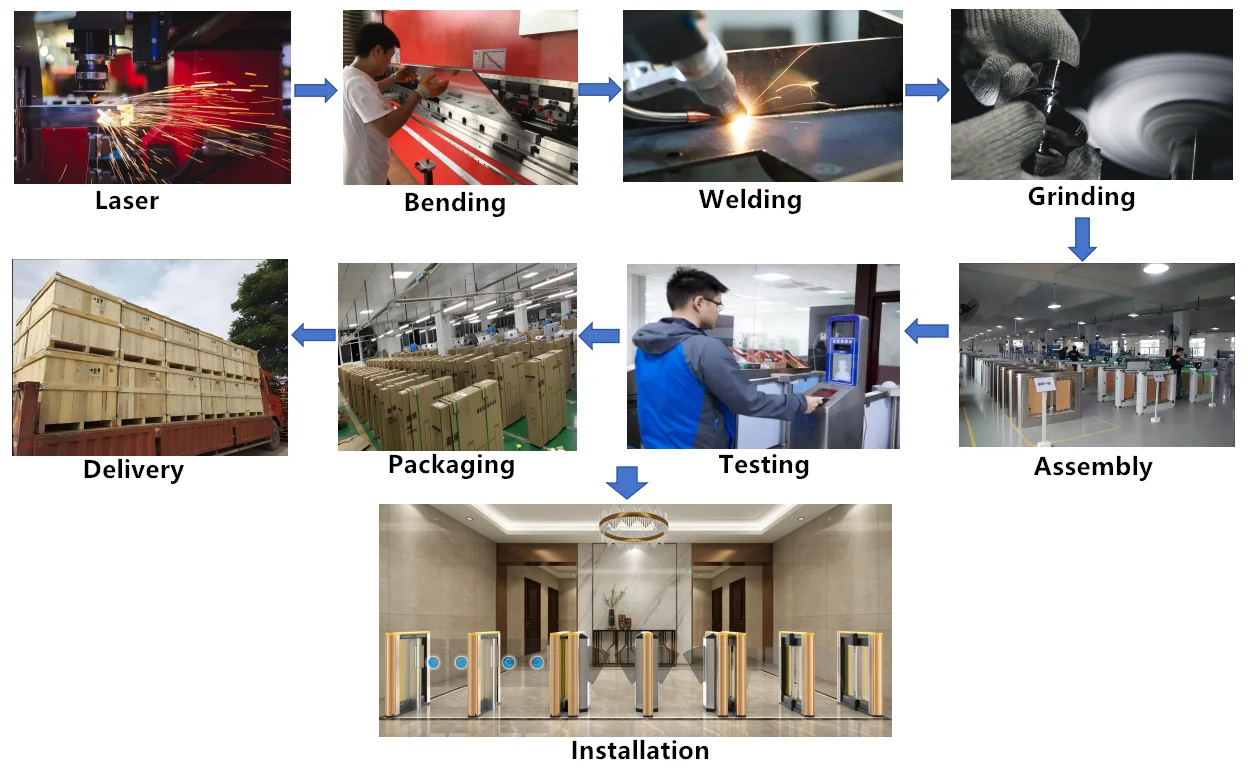

Processing Flow
Our Main Businesses
Contact Us

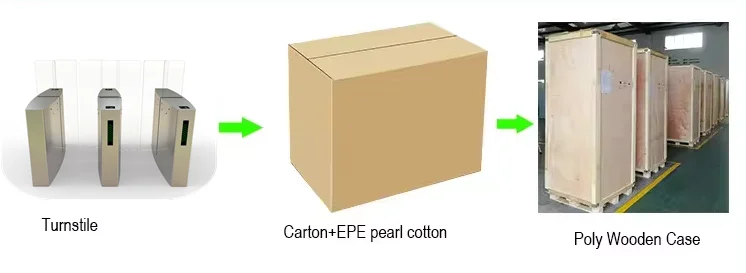

Product packaging
Delivery & Transportation
FAQ
1.Who are we?
We are headquartered in Shenzhen, Guangdong, China.Since 2014, we have been selling to the domestic market(95.00%) and abroad (5.00%).
We are headquartered in Shenzhen, Guangdong, China.Since 2014, we have been selling to the domestic market(95.00%) and abroad (5.00%).
2. How can quality be assured?
In the product must be produced before the production of a layer of gatekeeper a post test; in the shipment before the final inspection must be carried out;
In the product must be produced before the production of a layer of gatekeeper a post test; in the shipment before the final inspection must be carried out;

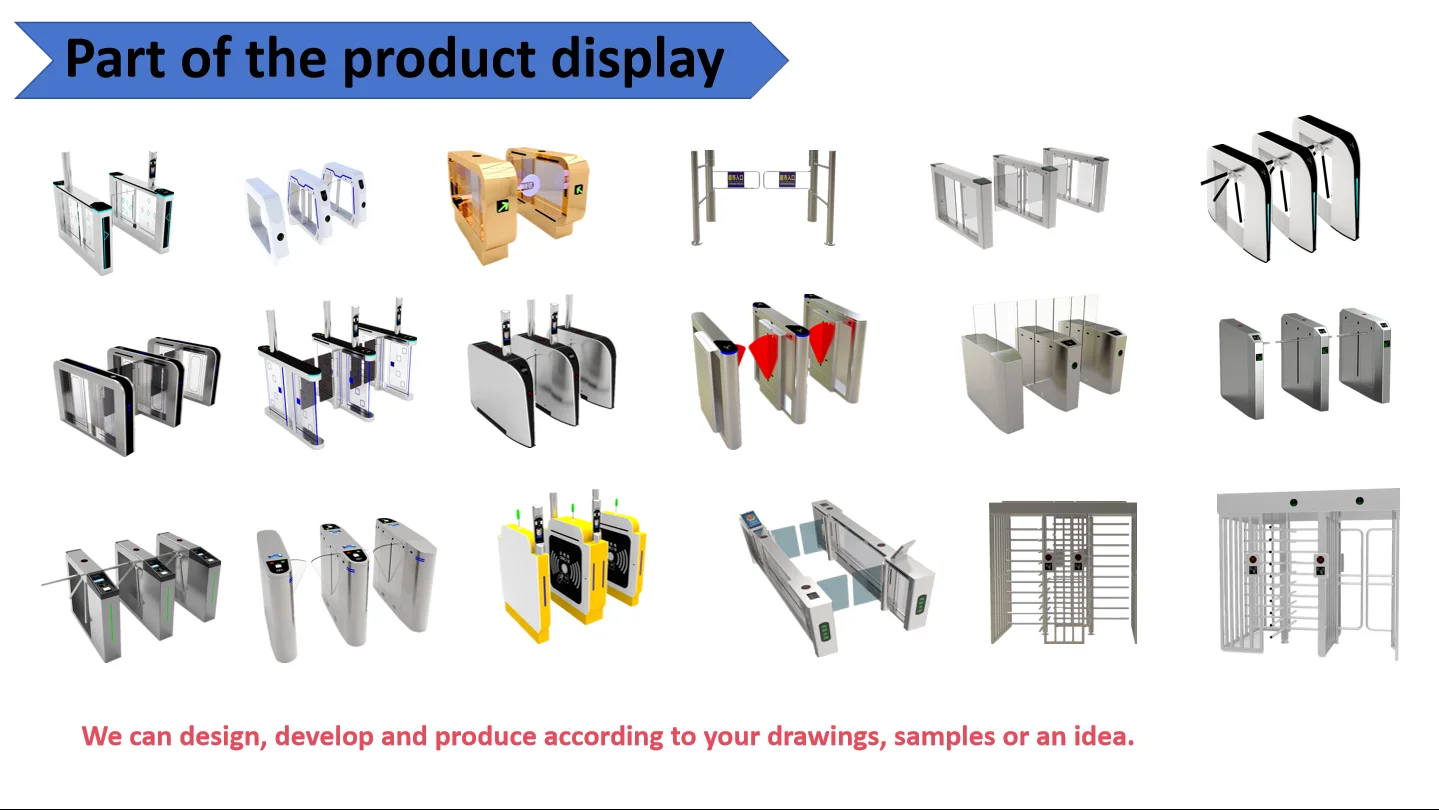

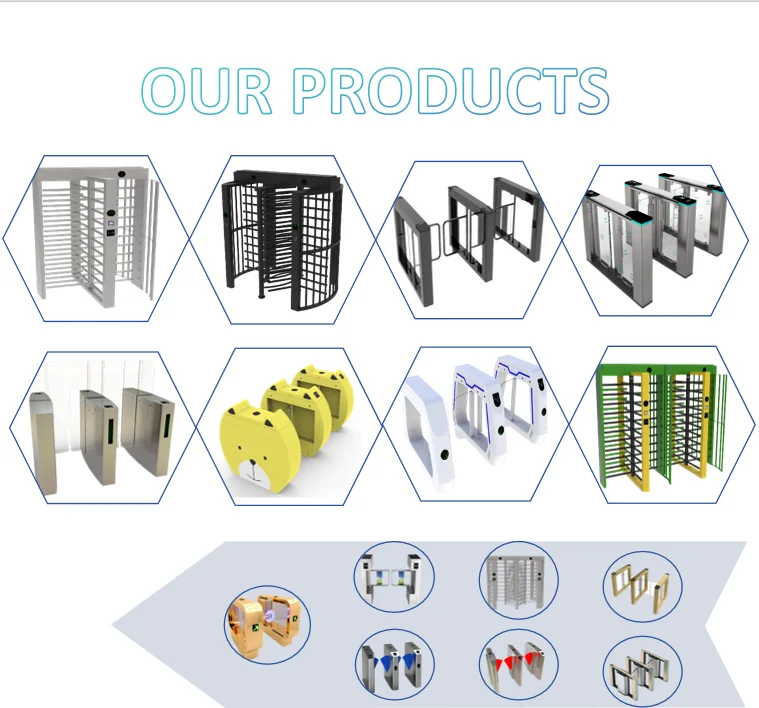

3.What you can buy from us?
Intelligent channel Turnstiles, Full height turnstile，Swing gate, Flag barrier turnstiles, hight speed turnstiles, a word gate, ticketing system, site labor system, intelligent license plate recognition, and so on. Integration of electronic tickets, access control attendance, fingerprint, face recognition, iris recognition,etc.
Intelligent channel Turnstiles, Full height turnstile，Swing gate, Flag barrier turnstiles, hight speed turnstiles, a word gate, ticketing system, site labor system, intelligent license plate recognition, and so on. Integration of electronic tickets, access control attendance, fingerprint, face recognition, iris recognition,etc.
4.Why should you buy from us instead of other suppliers?
We are the source factory to support customization, the factory covers an area of 7800 square meters, equipped with high precision CNC machine tools, also has a superb technical research and development team to ensure product quality.24 hours customer service online service.
5. What services can we provide?
Generally recognized delivery terms.
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF.
Generally recognized payment methods: full payment for shipment, letter of credit, remittance, money transfer, credit card, PayPal, Western Union, cash, escrow.
We are the source factory to support customization, the factory covers an area of 7800 square meters, equipped with high precision CNC machine tools, also has a superb technical research and development team to ensure product quality.24 hours customer service online service.
5. What services can we provide?
Generally recognized delivery terms.
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted payment currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF.
Generally recognized payment methods: full payment for shipment, letter of credit, remittance, money transfer, credit card, PayPal, Western Union, cash, escrow.
