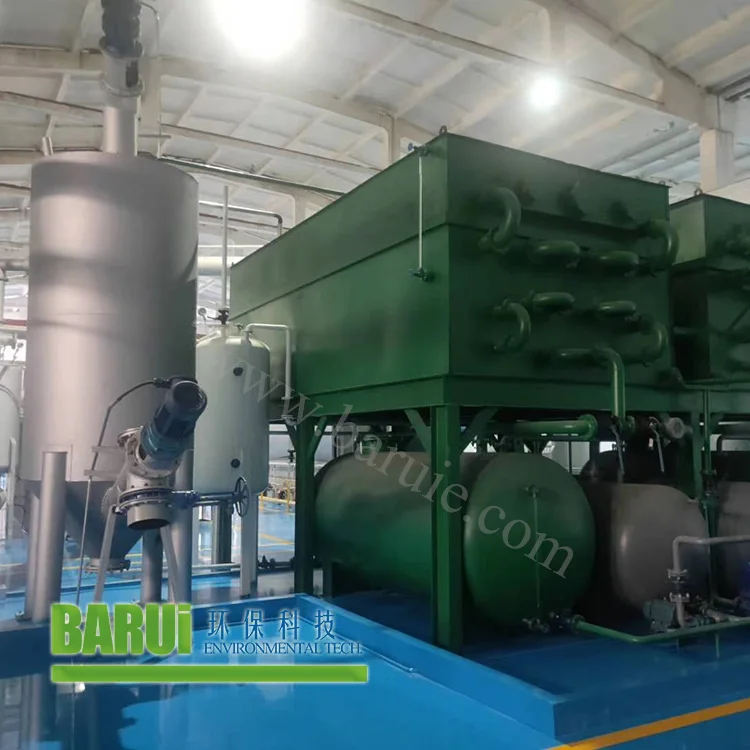

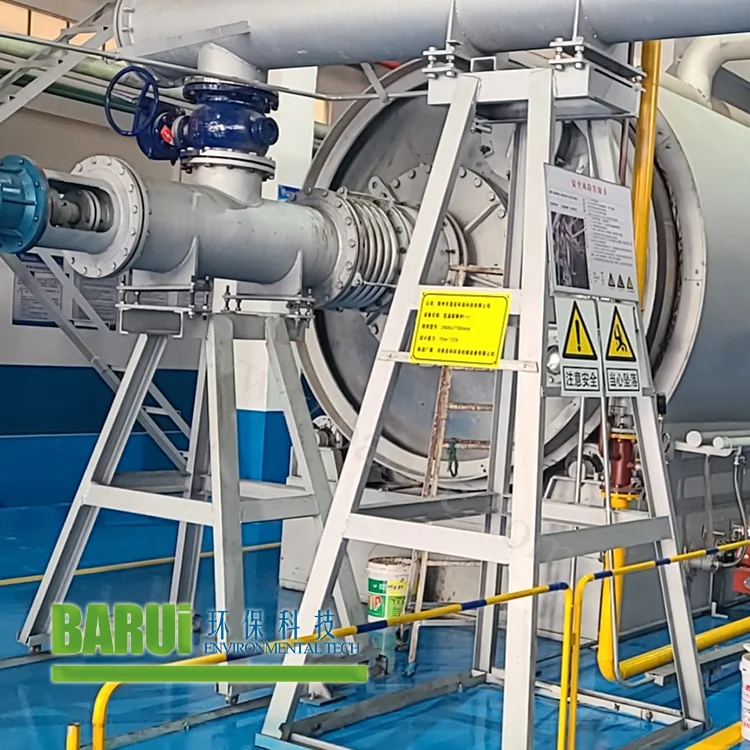

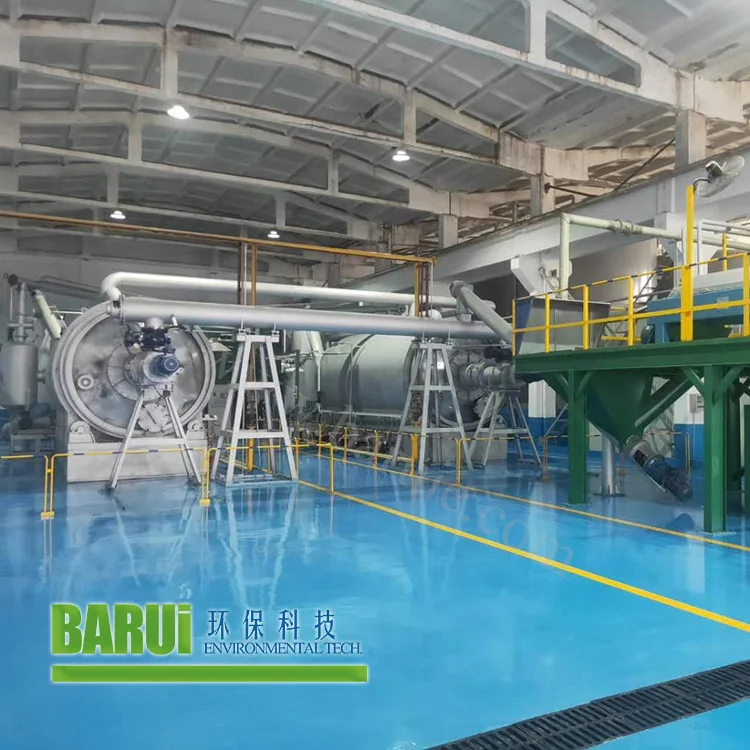

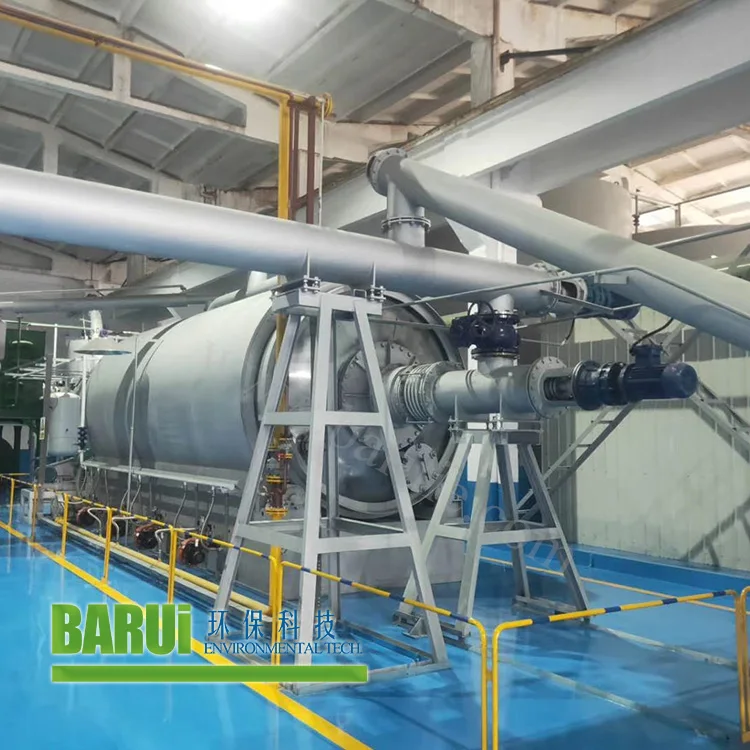

PLC oil sludge small scale recycling machine plastic pyrolysis to pyrolysis oil

Raw material reference picture

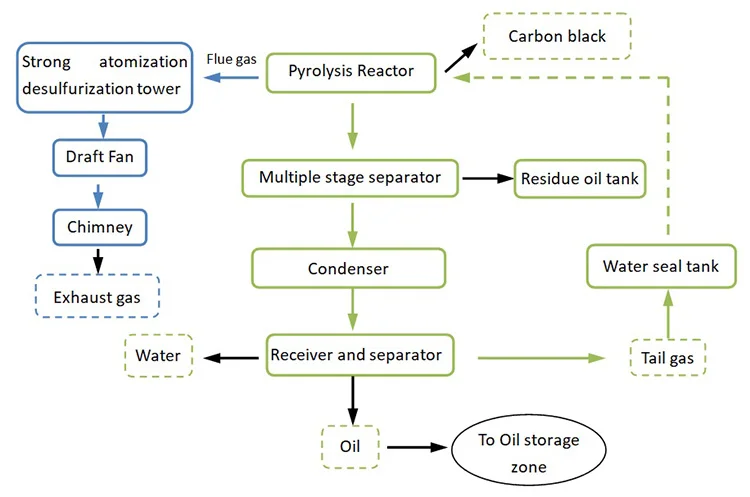

Process flow

Reaction: the raw materials are feeded to the reactor, then the reactor is heated to make the raw materials undergo thermal cracking reaction in the reactor and generate oil gas, which is then cooled to oil by the condenser and collected in the oil tank.

Tail gas recovery: not all oil gas becomes liquid after cooling, some gas (tail gas) cannot become liquid through the condensers, will automatically go into the burning room, which is under the reactor, for hearing the reactor.

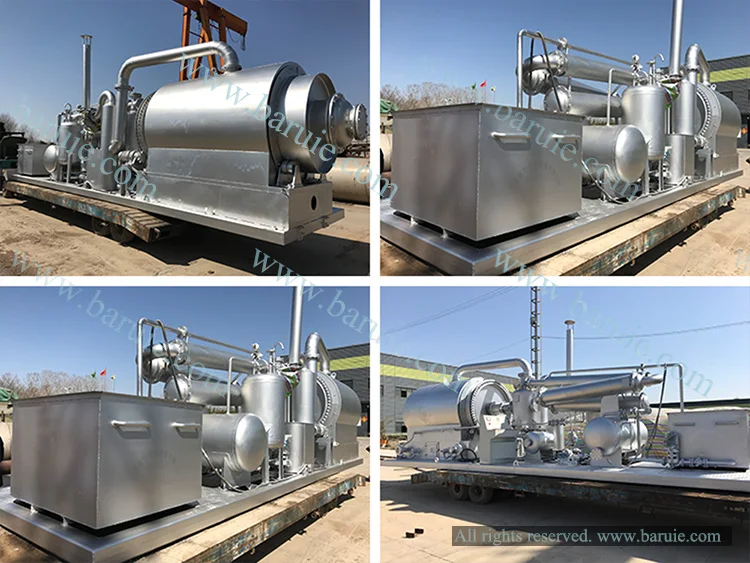

Capacity: 2 ton per batch

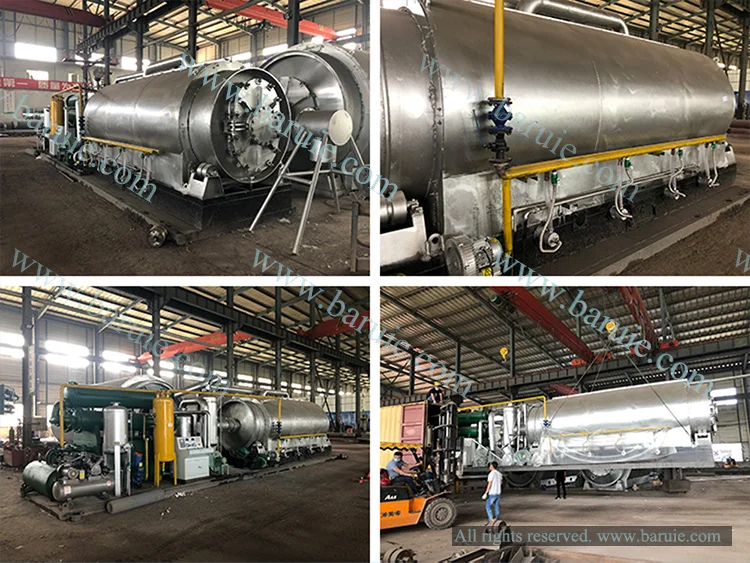

Capacity: 3 ton per batch

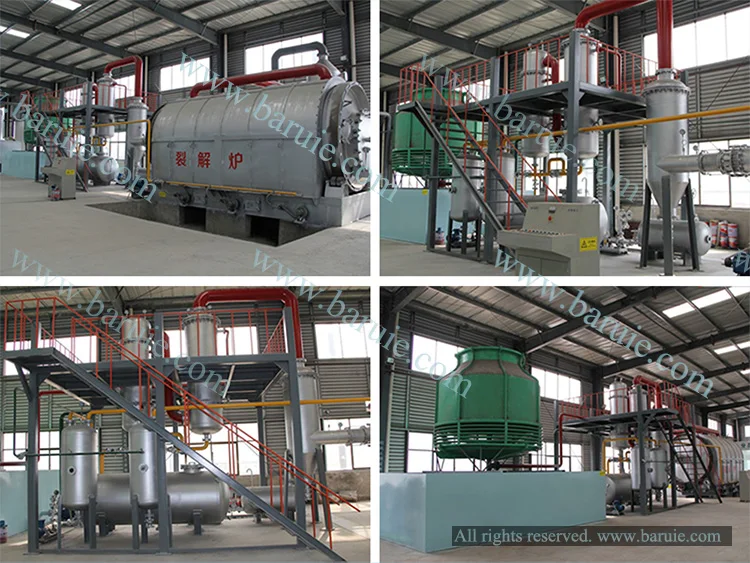

Capacity: 10 ton per batch

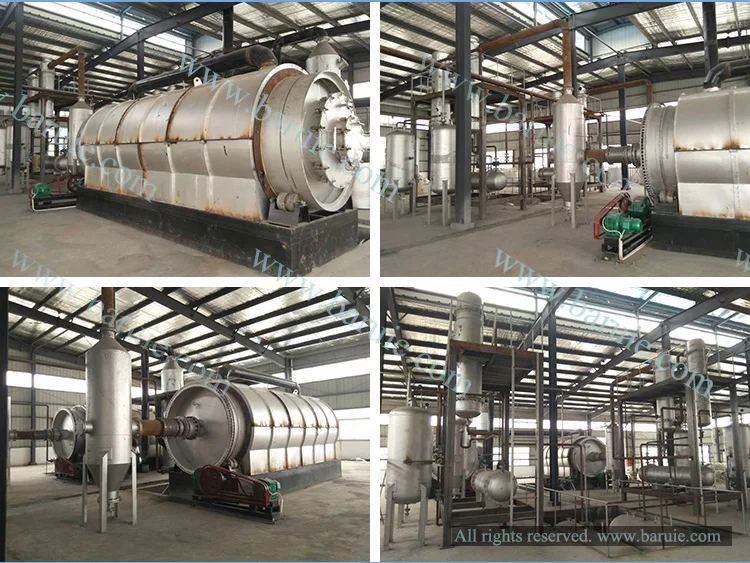

Capacity: 20 ton per batch

1) In the design of the key device of the cracking furnace, uneven heating at the bottom, easy fracture, low yield, short service life and other unfavorable factors of the vertical flat bottom cracking furnace has been overcome.

2) Using the rotary cracking furnace, the material is heated evenly, the cracking speed is fast, the oil yield is high, the gas is not overflowing.

3) The gas (No liquefaction at normal atmospheric and temperature) generated during the cracking process. The gas can be injected into the pyrolysis furnace through a specially designed exhaust gas purification system and a gas recovery system, so as to greatly save energy and greatly improve production efficiency.

4) The powerful atomizing dust treatment system can ensure the discharge of the flue outlet reaches the national emission standard.

5) Specially designed exports can effectively prevent uncracked materials from entering the back of the recovery system.

6) Company has independent intellectual property rights of gas-liquid multistage separator, which can further prevent droplets into the cooling system, effectively solved the difficult problem of condensation system often blocked, make solid waste pyrolysis process of safety production into a higher realm.

What is the warranty of the machine?

12 months free service and lifelong standard payment service.

What are the raw materials of your machine?

Carbon steel and boiler steel.

When can I get the price?

Within 24 hours, in case of emergency, please contact us directly.

Can we visit the oil plant of case factory?

Yes, of course! We have many factory visits at home and abroad.

How long does it take for my product?

Usually, we need 15-30 days to build the machine, and it takes 3-7 days to get to the loading port.

Can you install the production line and train our stuff for free?

Yes, we can. We will send engineers to help you install the equipment and train your workers freely.

Please feel free to contact us, if there is any idea. Looking forward to cooperating with you.
