Brick baler with polyester fiber tape PET strapping for brick manufacturer
- Category: >>>
- Supplier: Quanzhou City Xingxin Machinery Manufacturing Co. Ltd
Share on (1601274779930):
Product Overview
Description
Products Description

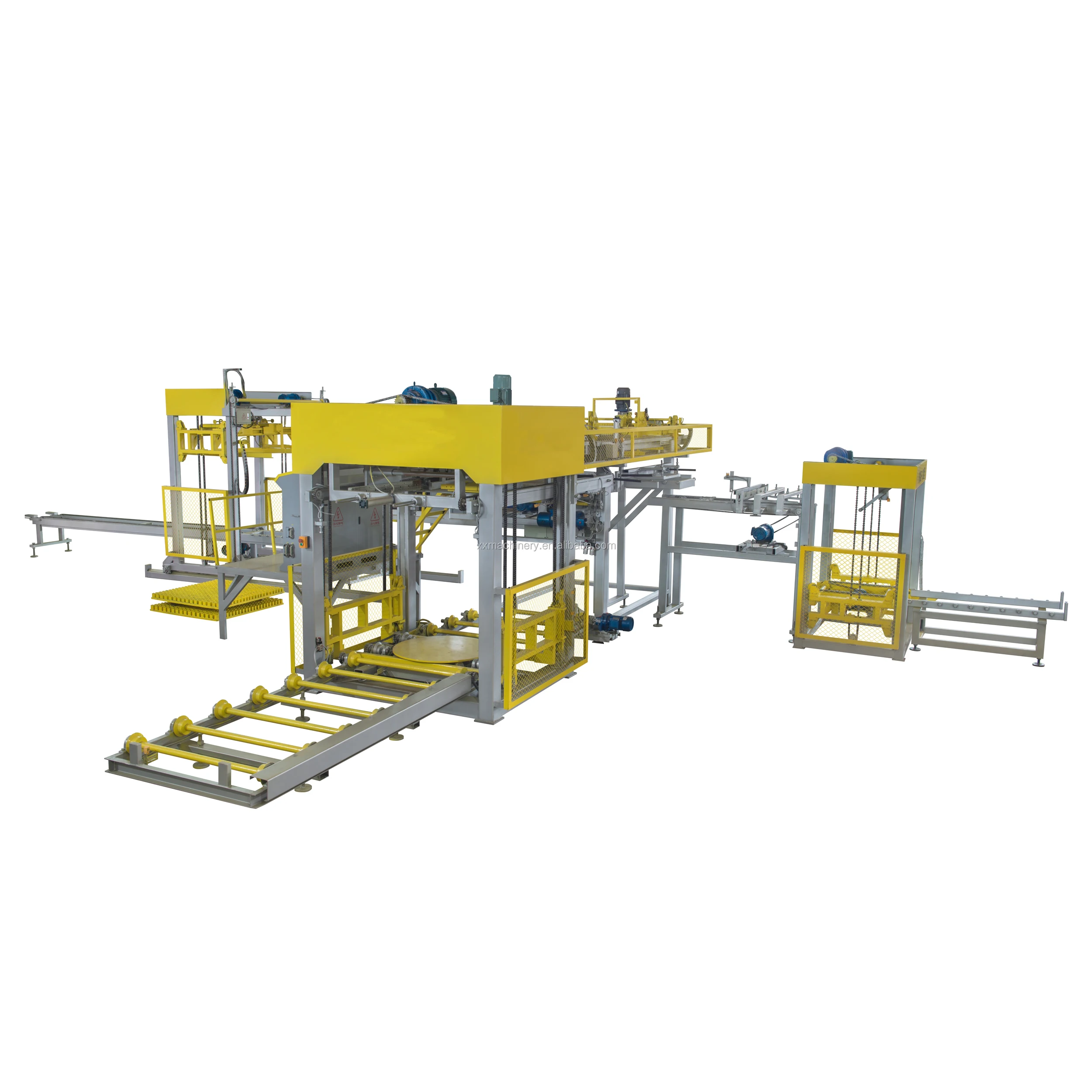

About XXDW-1200 block cuber :
XXDW- 1200 reserved forklift-holes dry block packing system is suitable for palletizing of dry finished blocks of simple block making production line, belonging to semi-automatic palletizing production line, which is independently set up near the finished block maintenance yard, and can also be connected with block making production line to implement on-line palletizing.

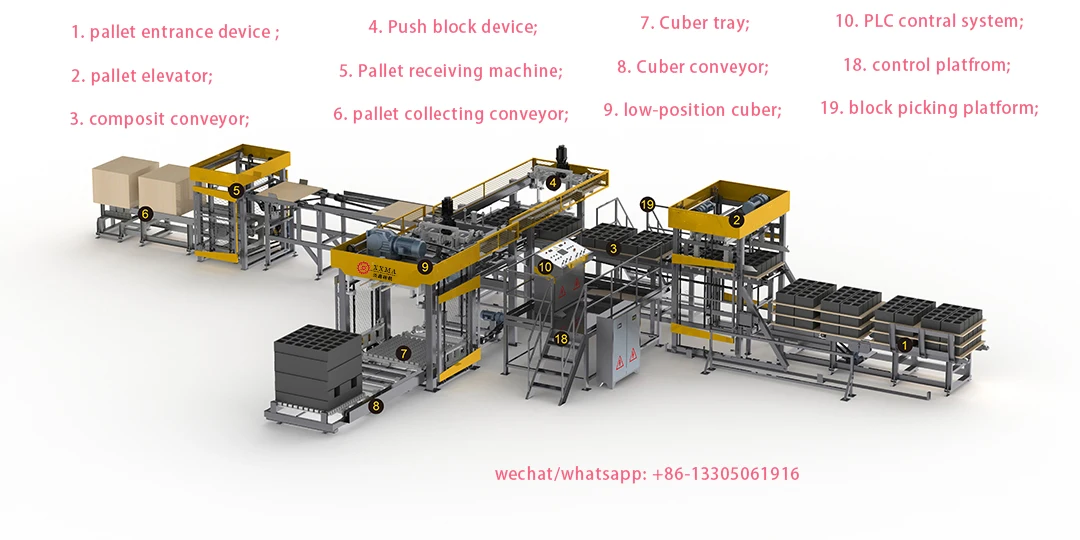

Working process:
The automatic preformed-holes dry block packing system can separate the bricks of different types and specifications produced by different types of brick machines, reassemble the blocks, and finally form a square stack of about one meter height. Cross block stacking is carried out, and the forklift-holes position can be generated automatically according to the need. The block stacking height can be up to 1400mm.
After the palletizing is completed, block stacking can be sent to the heavy chain conveyor, which can be packed manually or equipped with an automatic baling machine. Each node on the whole production line has a preformed position to save the forklift running time.
Inspection and maintenance:
The whole system adopts PLC and touch screen control, cooperate with laser induction and intelligent sensor to realize unmanned automatic operation, and automatically stop the alarm and display the fault location when a fault occurs, which can be easily eliminated without professional and technical personnel. Just 2-3 workers needed to operate the whole production line, save a lot of labor cost.
Equipped with remote control systems and cloud data equipment manufacturers can solve all problems in the office all the time.
Working principle:
The operation of the equipment is controlled by electricity, gas and liquid respectively, which does not interfere with each other and acts coherently.

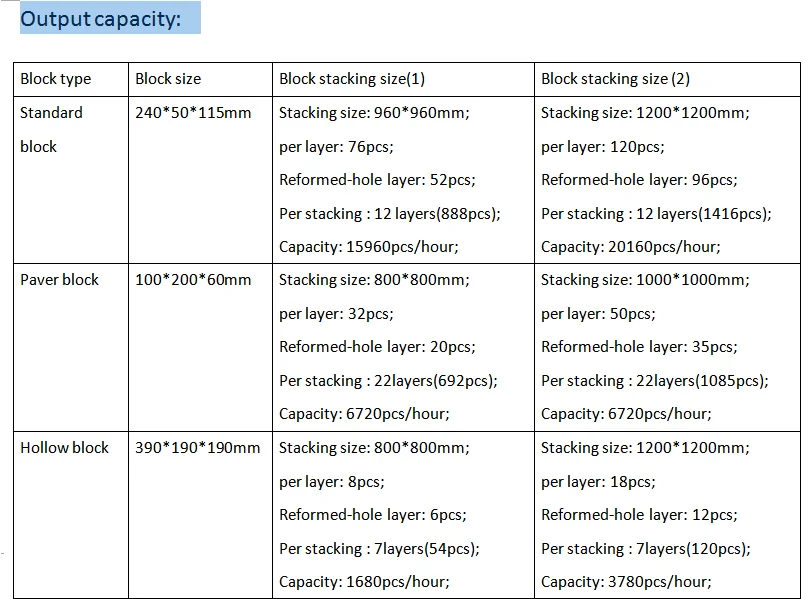

Capacity:
The cycle time is about 15 seconds for one layer blocks, and the output capacity is about 2000~2500 molds/8hours.
Lifespan:
Usually, motor can work 5-7 years, air compressor is 3-5 years. Low maintains cost.
XXDW- 1200 reserved forklift-holes dry block packing system is suitable for palletizing of dry finished blocks of simple block making production line, belonging to semi-automatic palletizing production line, which is independently set up near the finished block maintenance yard, and can also be connected with block making production line to implement on-line palletizing.
Working process:
The automatic preformed-holes dry block packing system can separate the bricks of different types and specifications produced by different types of brick machines, reassemble the blocks, and finally form a square stack of about one meter height. Cross block stacking is carried out, and the forklift-holes position can be generated automatically according to the need. The block stacking height can be up to 1400mm.
After the palletizing is completed, block stacking can be sent to the heavy chain conveyor, which can be packed manually or equipped with an automatic baling machine. Each node on the whole production line has a preformed position to save the forklift running time.
Inspection and maintenance:
The whole system adopts PLC and touch screen control, cooperate with laser induction and intelligent sensor to realize unmanned automatic operation, and automatically stop the alarm and display the fault location when a fault occurs, which can be easily eliminated without professional and technical personnel. Just 2-3 workers needed to operate the whole production line, save a lot of labor cost.
Equipped with remote control systems and cloud data equipment manufacturers can solve all problems in the office all the time.
Working principle:
The operation of the equipment is controlled by electricity, gas and liquid respectively, which does not interfere with each other and acts coherently.
Capacity:
The cycle time is about 15 seconds for one layer blocks, and the output capacity is about 2000~2500 molds/8hours.
Lifespan:
Usually, motor can work 5-7 years, air compressor is 3-5 years. Low maintains cost.

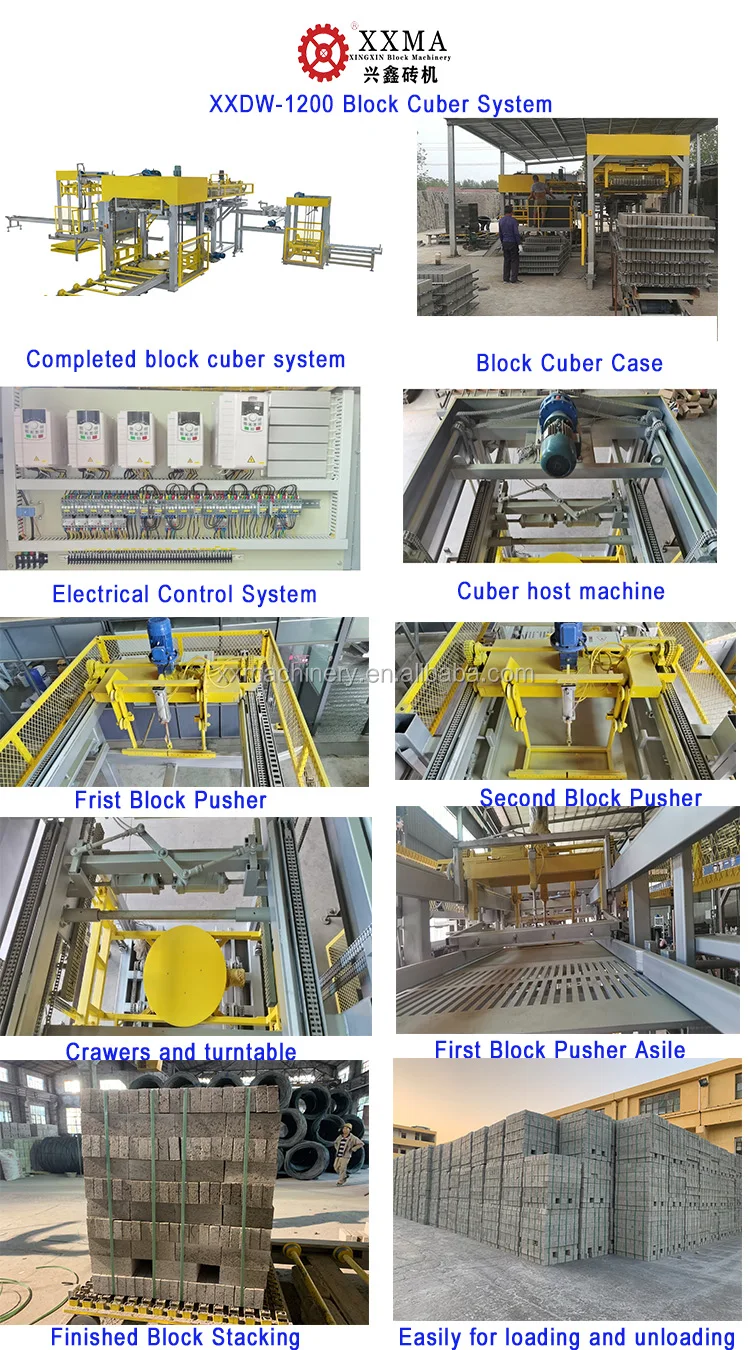

Details Images
Product Paramenters
Total Power | 29.5 KW |
Max. Block Stacking size | 1200*1200*1400 mm |
Average cycle time | 15s |
Total machine weight | 11000 KGS |
Block type | Most of common blocks can be used |
Pallet size | Fit for QT4-15 to QT15-15 block machines |
Why recommendation :
1. Wide applicability: Whatever which model block machine you have includes from QT4-15 to QT15-15, it can be used.
2. Block type: It can be used for most of common blocks.
3. Long lifespan and low maintenance cost.
4. It can be independently set up near the finished block maintenance yard, and can also be connected with the block making production line to implement on-line palletizing.
5. The Max. block stacking size: 1200*1200*1400mm.

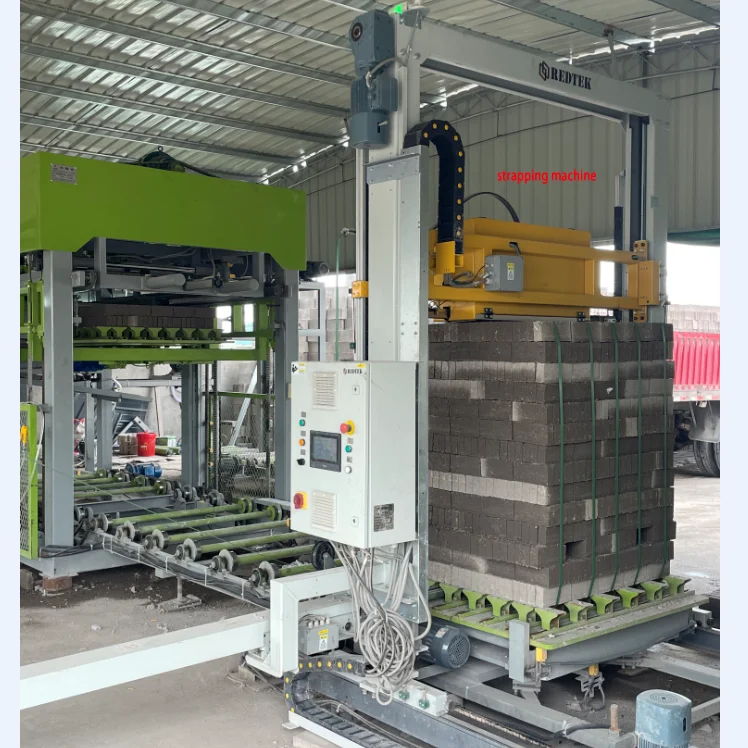

About brick baler
After the palletizer separates the bricks from the pallet and reorganizes and packs them into brick stacks of specified size , the automatic brick baler can replace manual to automatically pack the brick stacks with PET belts, saving time and effort, further
saving costs and improving the efficiency of the brick factory.
saving costs and improving the efficiency of the brick factory.
It is equipped with a moving track that runs smoothly and has precise positioning. It can automatically repeat the feeding of straps, as fast as 1 strapping every 20 seconds, greatly improving production efficiency. It can also automatically change and feed straps, thread straps at any height, and the tension coefficient can be adjusted. The adjustment is simple and accurate to ensure the strapping effect.

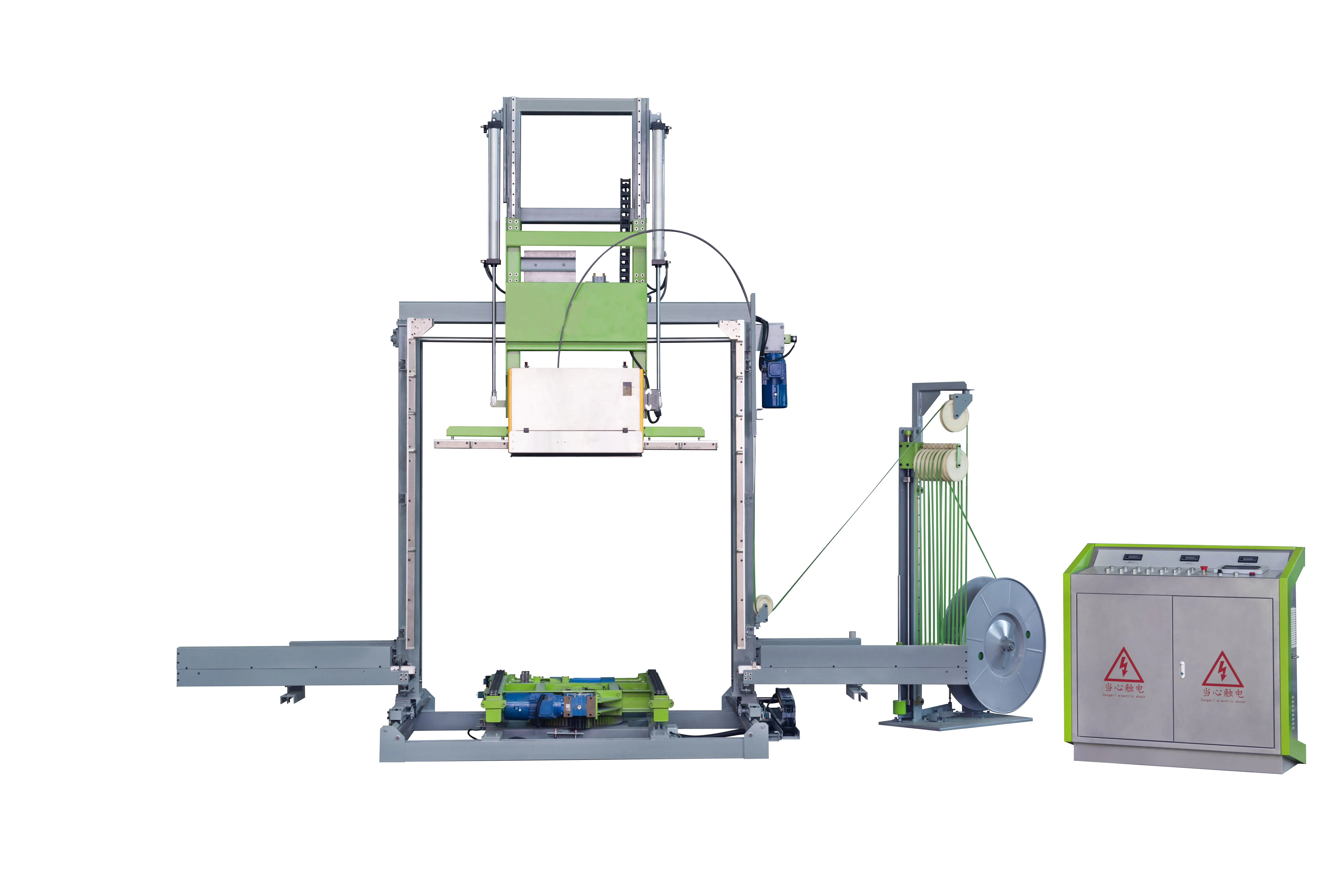

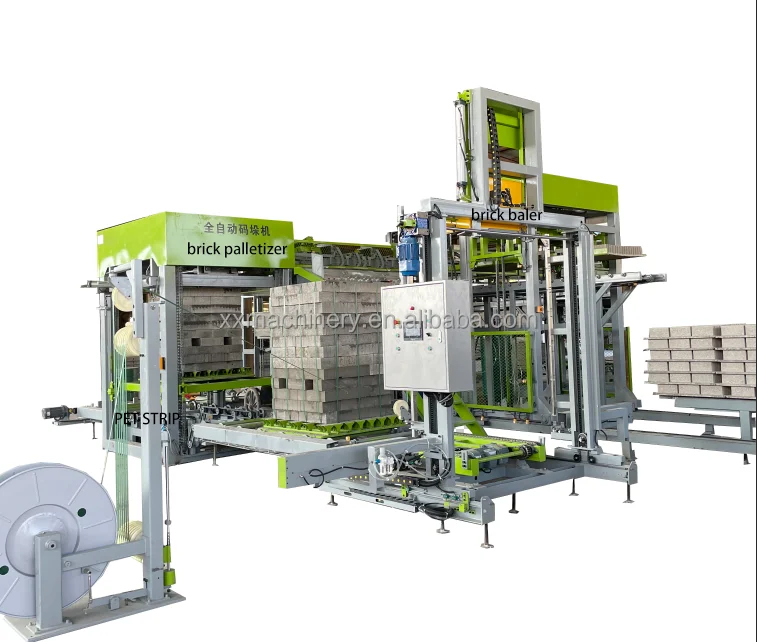

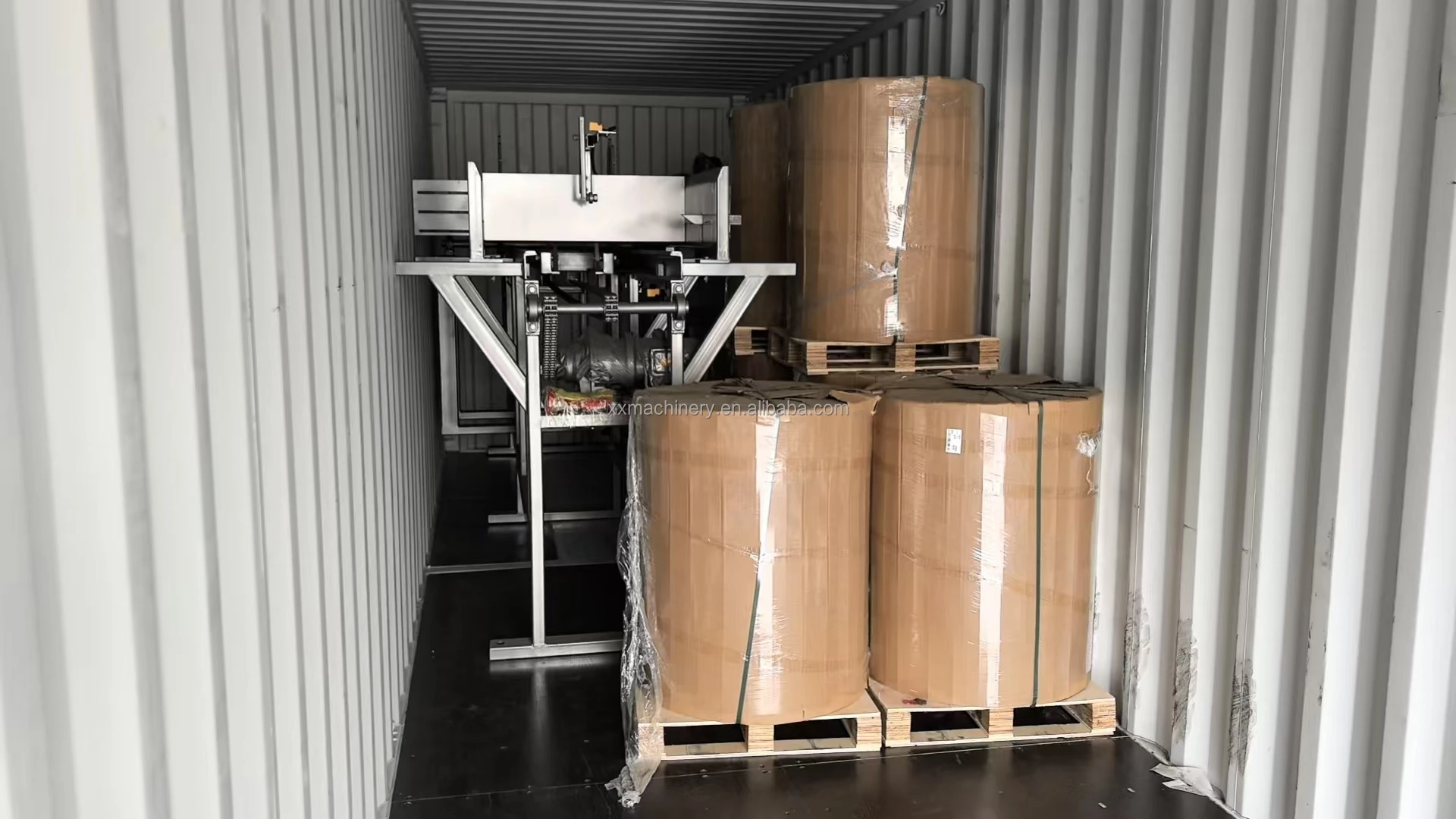

1 whole set brick baler system showed
includes main machine + PLC control system+ turntable for storage PET strip + tray etc

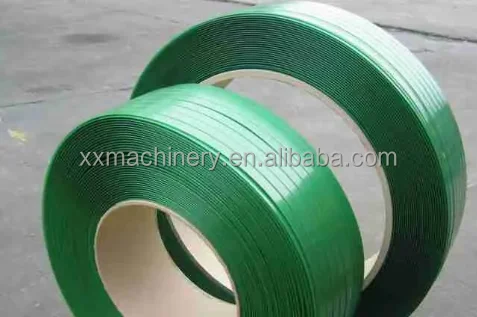

About PET STRIPS
PET straps are an excellent substitute for the traditional steel and polypropylene straps, which have been used in the past. PET straps come in various lengths and widths, to accommodate different packaging needs. So not only for brick package, if you need for other using, kindly contact with us. It can be customized as buyer's needs.
