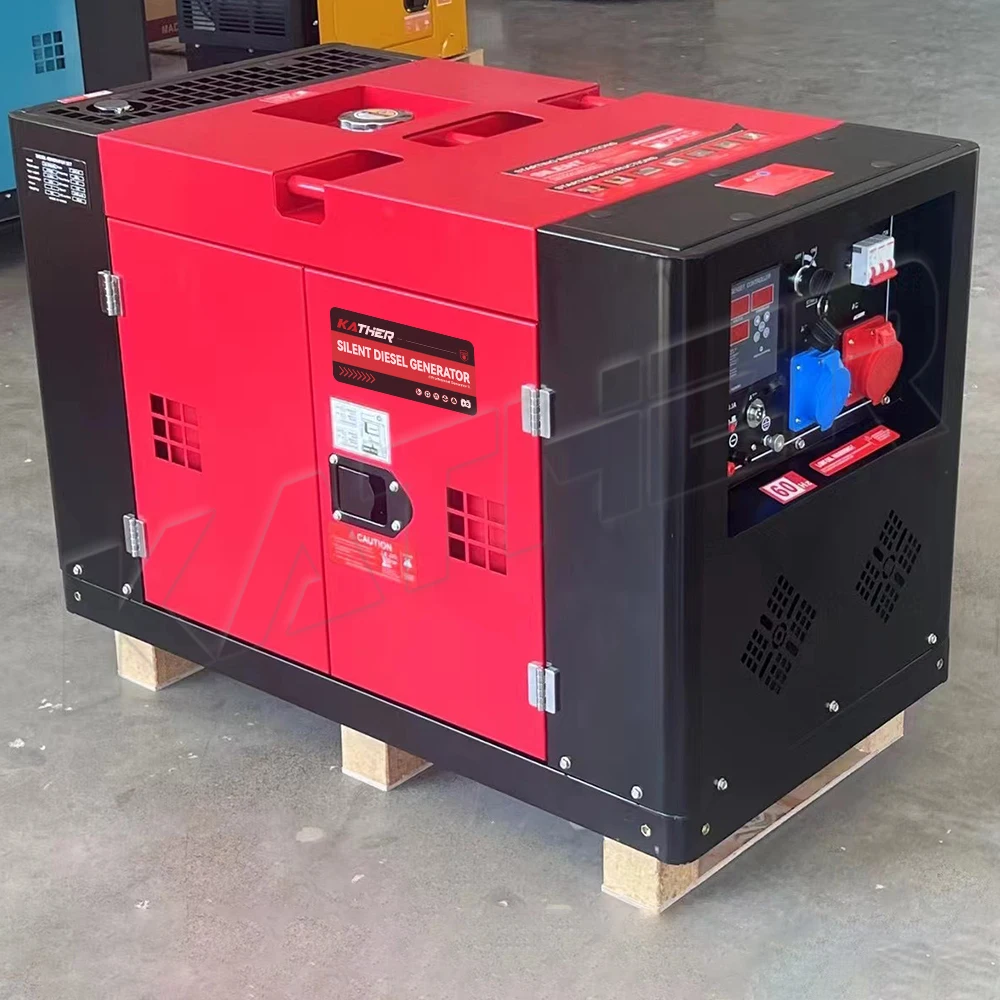

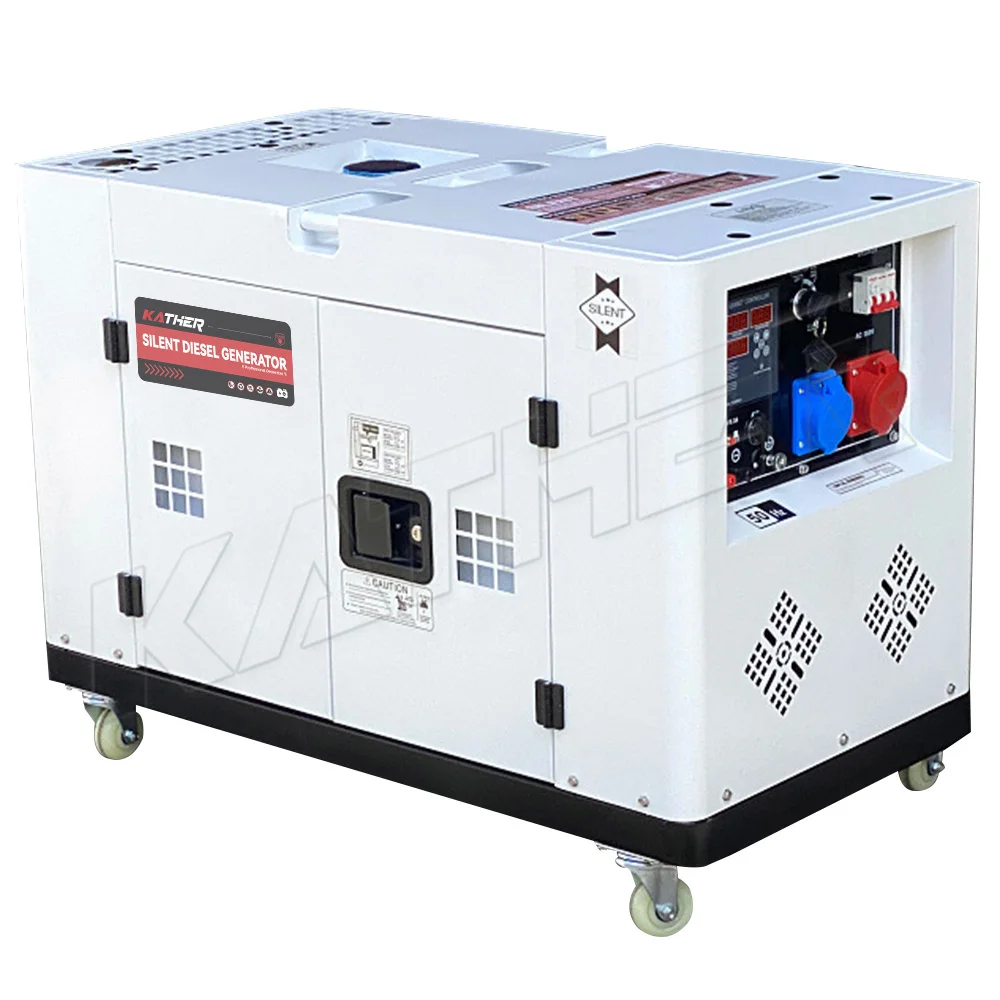

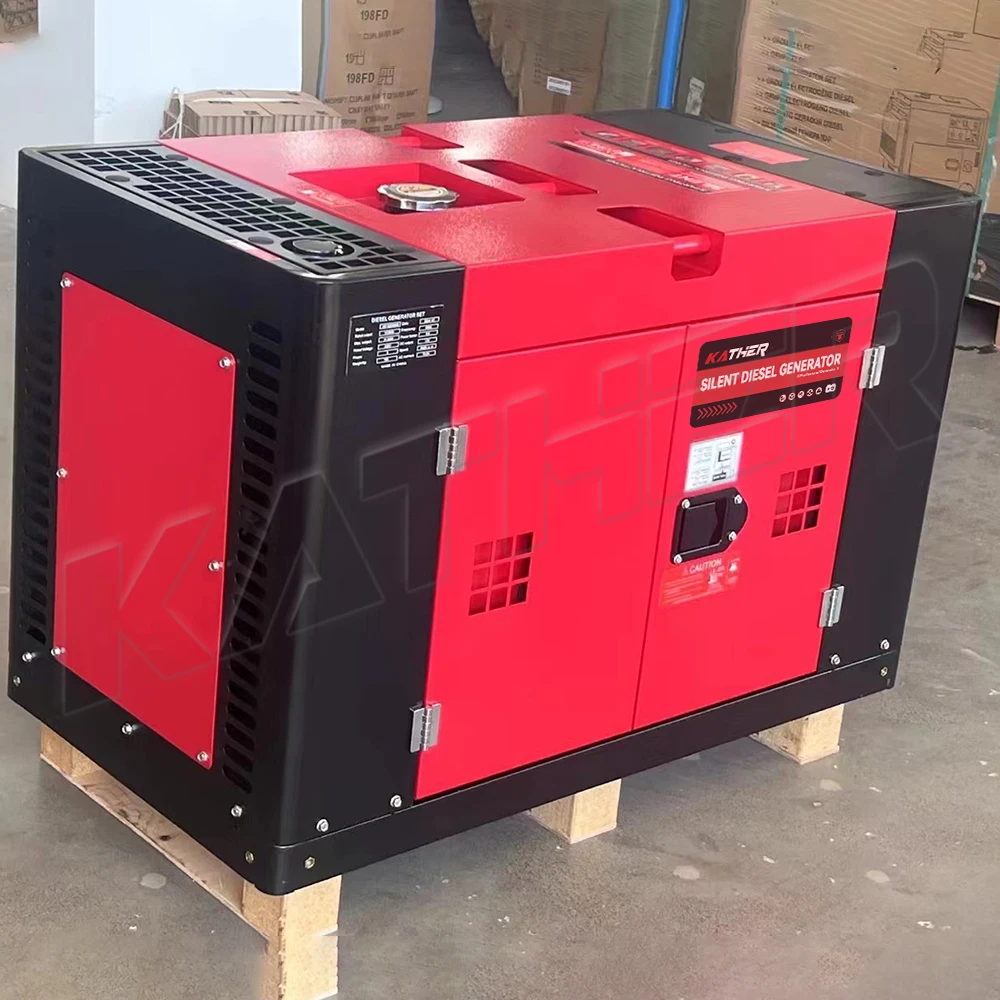

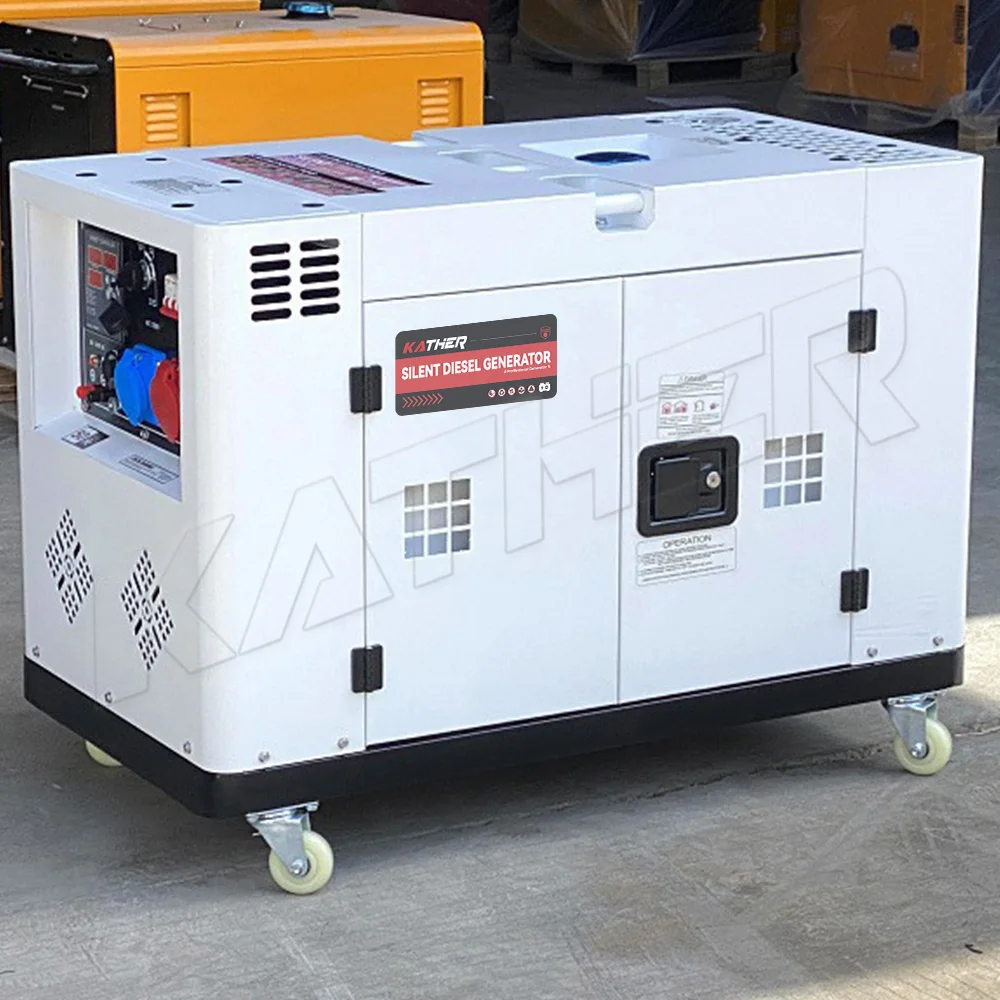

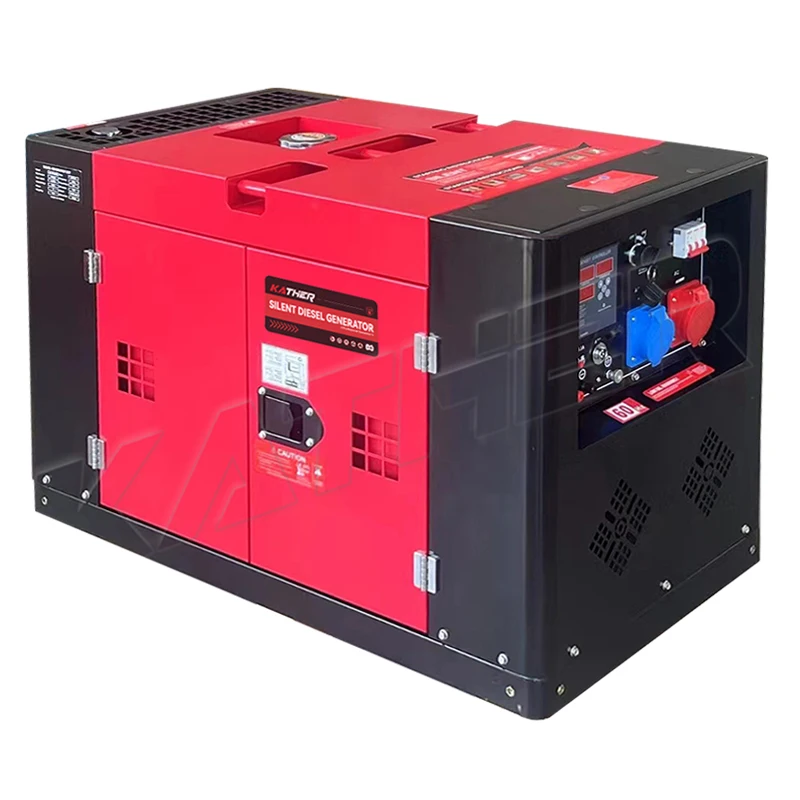

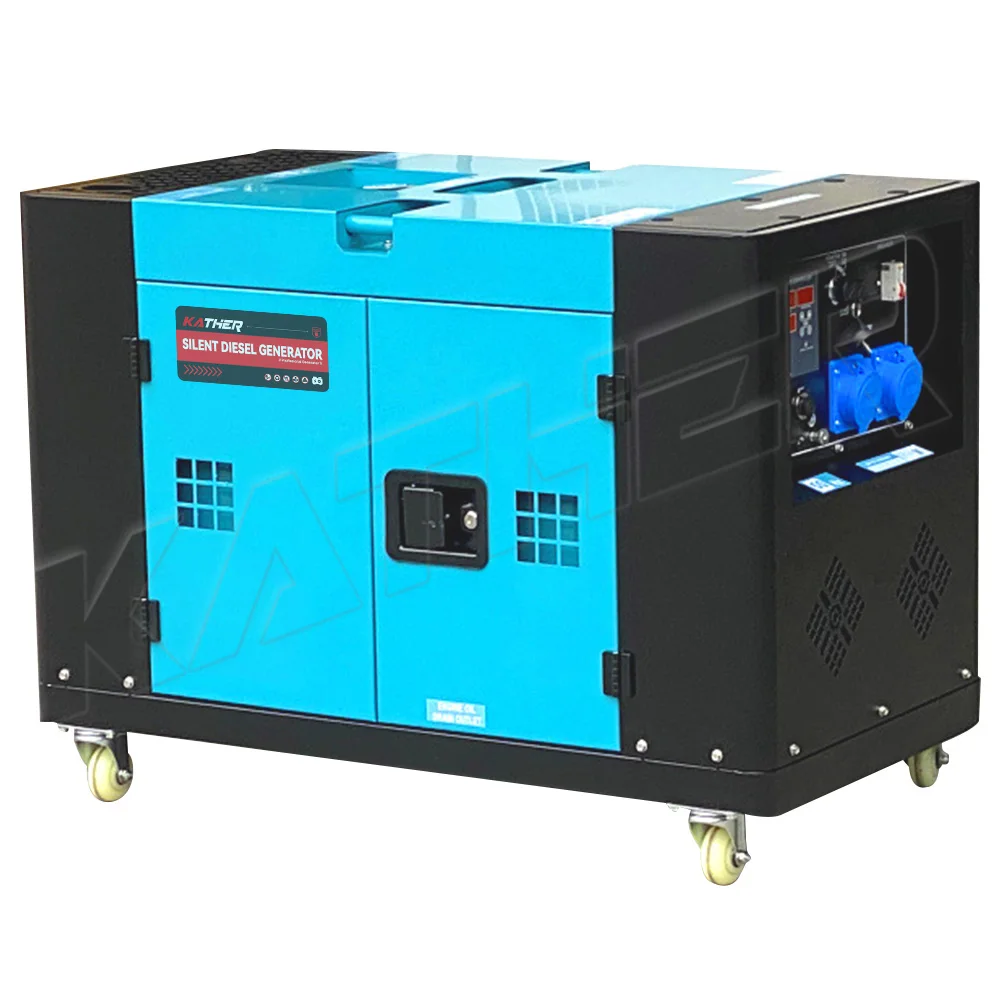

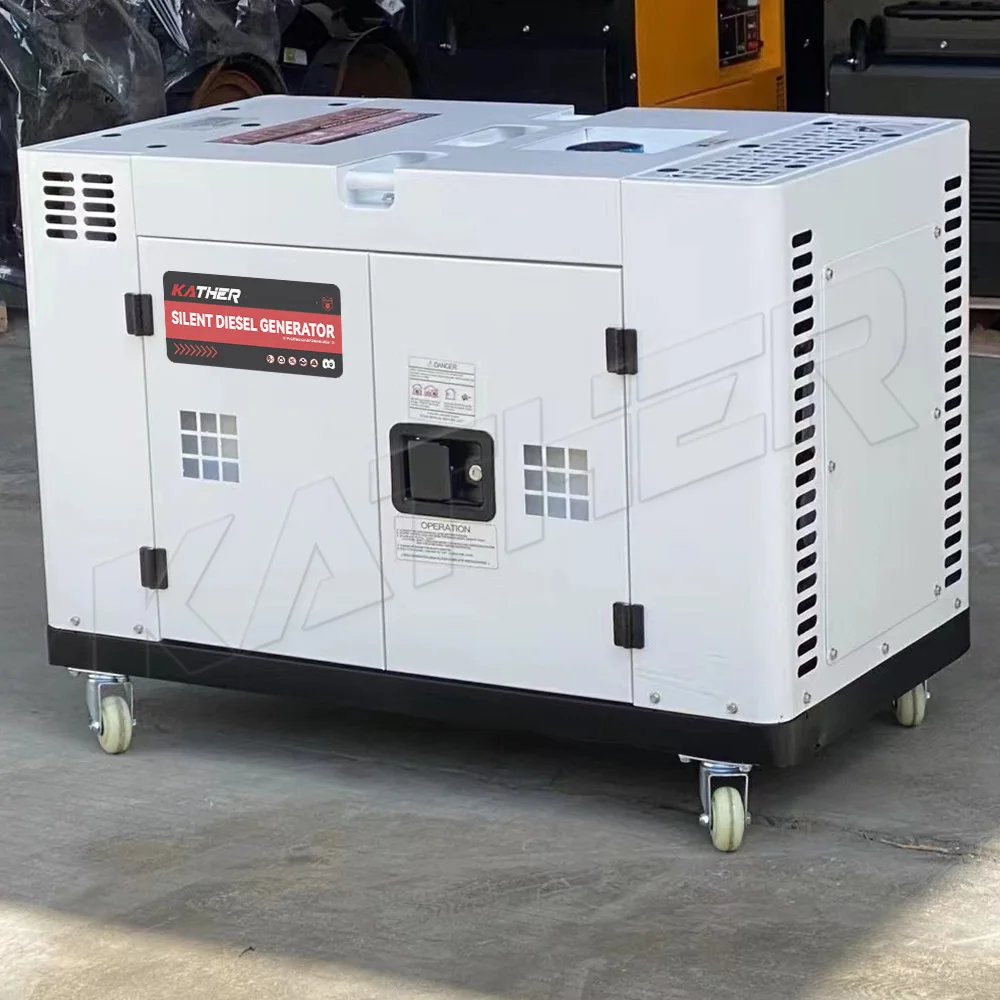

8kva 10kva 12kva 15kva 20kw Electric Power Plant Diesel Generator Generator 10kva Silent Factory Low Noise Diesel Generator 15kw
- Category: >>>
- Supplier: Chongqing Meicheng Machinery Parts Co. Ltd.
Share on (1601274822993):
Product Overview
Description
Product Name | MCD6500I | MCD8500I | MCD9500I | MCD10500I | MCD12500I | MCD15000I | MCD2000I | ||||||
Rated Output额定输出(KW) | 5kw | 6kw | 8kw | 10kw | 12kw | 15kw | 20kw | ||||||
Rated AC Voltage 额定电压 (V) | 110v/220v/380V | 110v/220v/380V | 110v/220v/380V | 110v/220v/380V | |||||||||
Frequency频率(HZ) | 50hz/60hz | ||||||||||||
Engine Speed 转速(R.P.M) | 3000rpm | 3000rpm | 3000rpm | ||||||||||
DC Output 直流输出(V/A) | 12v/8.3A | 12v/8.3A | 12v/8.3A | ||||||||||
Starting System 启动系统 | Auto Start, Recoil Start, Remote Start, Electric Start | Auto Start, Recoil Start, Remote Start, Electric Start | Auto Start, Recoil Start, Remote Start,Electric Start | ||||||||||
Noise Level(dB at 7m)7米处噪音 | 70-75dB | 80-85 dB | 80-85 dB | ||||||||||
Continuous Work 持续工作小时(hr) | 15 | 10 | 9 | 8 | 7 | 6.3 | 5 | ||||||

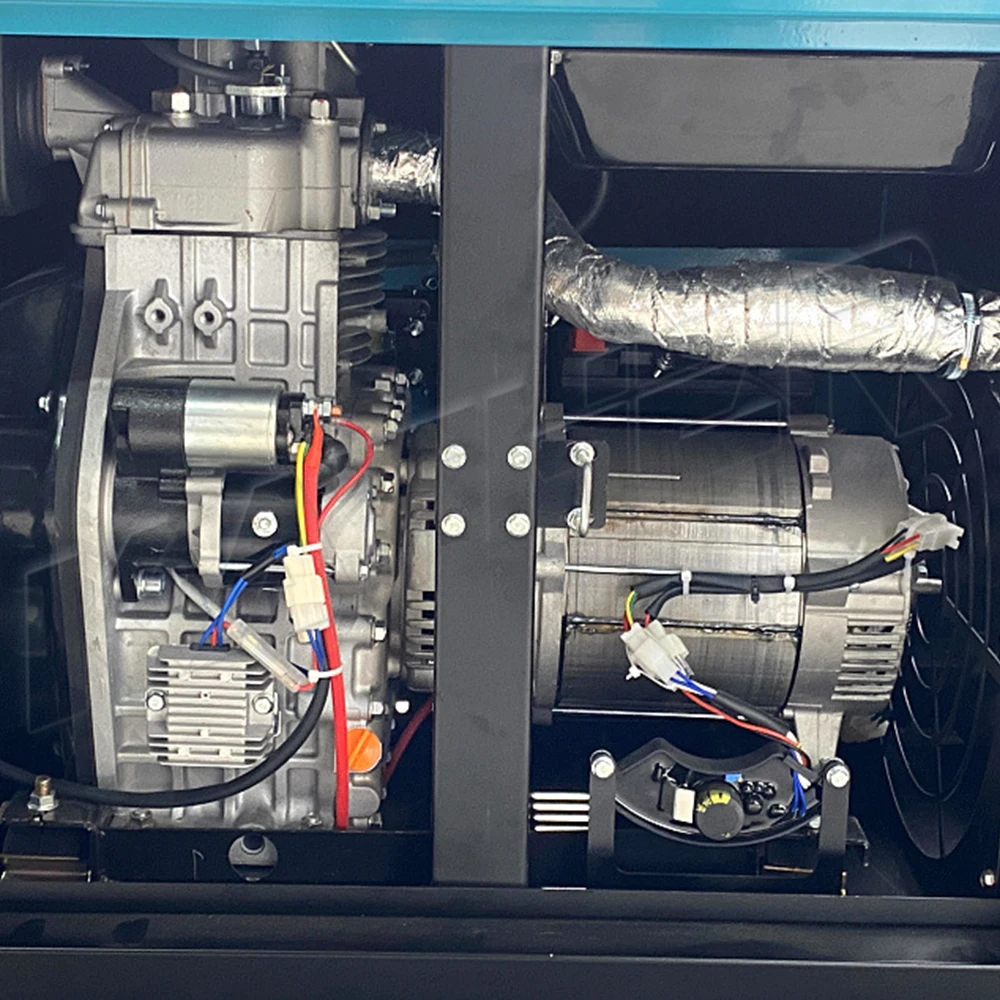

Engine Type 动力形式 | Single-cyiinder, vertical,4-stroke air-cooled diesel engine单缸,直立,四冲程,风冷柴油机 | Single-cyiinder, vertical,4-stroke air-cooled diesel engine单缸,直立,四冲程,风冷柴油机 | Single-cyiinder, vertical,4-stroke air-cooled diesel engine单缸,直立,四冲程,风冷柴油机 | ||||||||||
Displacement 排量(cc) | 418cc | 456cc | 490cc | 530cc | 736cc | 997cc | 1247cc | ||||||
BorexStroke缸径x行程(mm) | 88x72mm | 90x75mm | 92X75mm | 95X75mm | 105X85mm | 92x75mm | 95x88mm | ||||||
Fuel Type 燃油 | 0# or -10# light diesel oil 0# 或者-10#清洁柴油 | 0# or -10# light diesel oil 0# 或者-10#清洁柴油 | 0# or -10# light diesel oil 0# 或者-10#清洁柴油 | ||||||||||
Lubrication Oil Volume润滑油容量(L) | 1.65L | 1.65L | 1.65L | 2 | 3.8L | 3.8L | |||||||
Combustion System 燃烧系统 | Direct Injection 直喷式 | Direct Injection 直喷式 | Direct Injection 直喷式 | ||||||||||
Standard Features 标准配置 | Voltmeter, AC Output Socket AC Circuit Breaker, Oil Alert电压表,交流插座,交流断路器,机油报警 | Voltmeter, AC Output Socket AC Circuit Breaker, Oil Alert电压表,交流插座,交流断路器,机油报警 | Voltmeter, AC Output Socket AC Circuit Breaker, Oil Alert电压表,交流插座,交流断路器,机油报警 | ||||||||||
Optional Features 选配 | Four Sides Wheels, Digital Meter, ATS, Remote Control万向轮，数控表，ATS,遥控启 | Four Sides Wheels, Digital Meter, ATS, Remote Control万向轮，数控表，ATS,遥控启 | Four Sides Wheels, Digital Meter, ATS, Remote Control万向轮，数控表，ATS,遥控启 | ||||||||||
Dimention 包装尺寸(LxWxH)(mm) | 1100*600*800 mm | 740*620*710 mm | 740*620*710 mm | 1090*640*850mm | 1300*700*1120mm | ||||||||
Gross Weight 毛重(kgs) | 160kg | 165kg | 170kg | 165kg | 210kg | 295kg | 300kg | ||||||
Q1:Are you a factory or a trading company?
A:We are a factory.
Q2:What is the main products of your factory?
A:We are a factory.
Q3:Where is your factory located?
A:Agricultural railcar,Tiller&Cultivator,Generator,Water pump,Engine,Lawn Mower,Snow Blower,Rotary Tiller,Chainsaw,Garden Machinery,etc.
Q4:Do you support customization?What's the MOQ?
A:Of course, We have 15 years of production customization experience in OEM/ODM. 1 set
Q5:How can i order and make payment?
A:Once clear your requirement which product is ideal for you.We will send proformainvoice to you.You can pay via Trade Assurance,T/TBank,WesernUnion,Credit Card or Paypal as you like.
Q6:What are your payment terms?
A:T/T 30% deposit, 70% balance to be paid when the goods are ready. If you have special payment needs, please discuss with our sales staff first.
Q7:How long is your warranty?
A:1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
