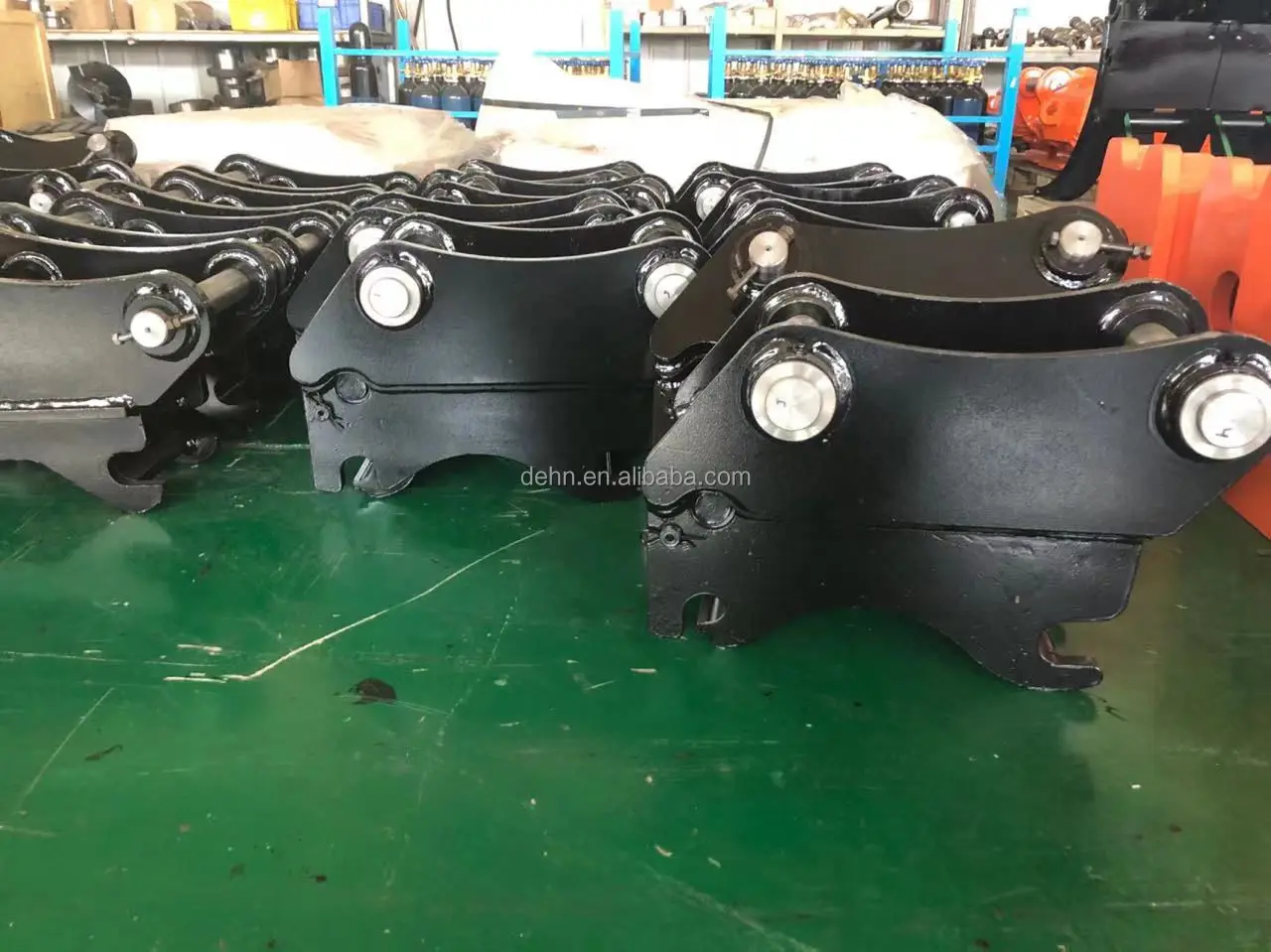

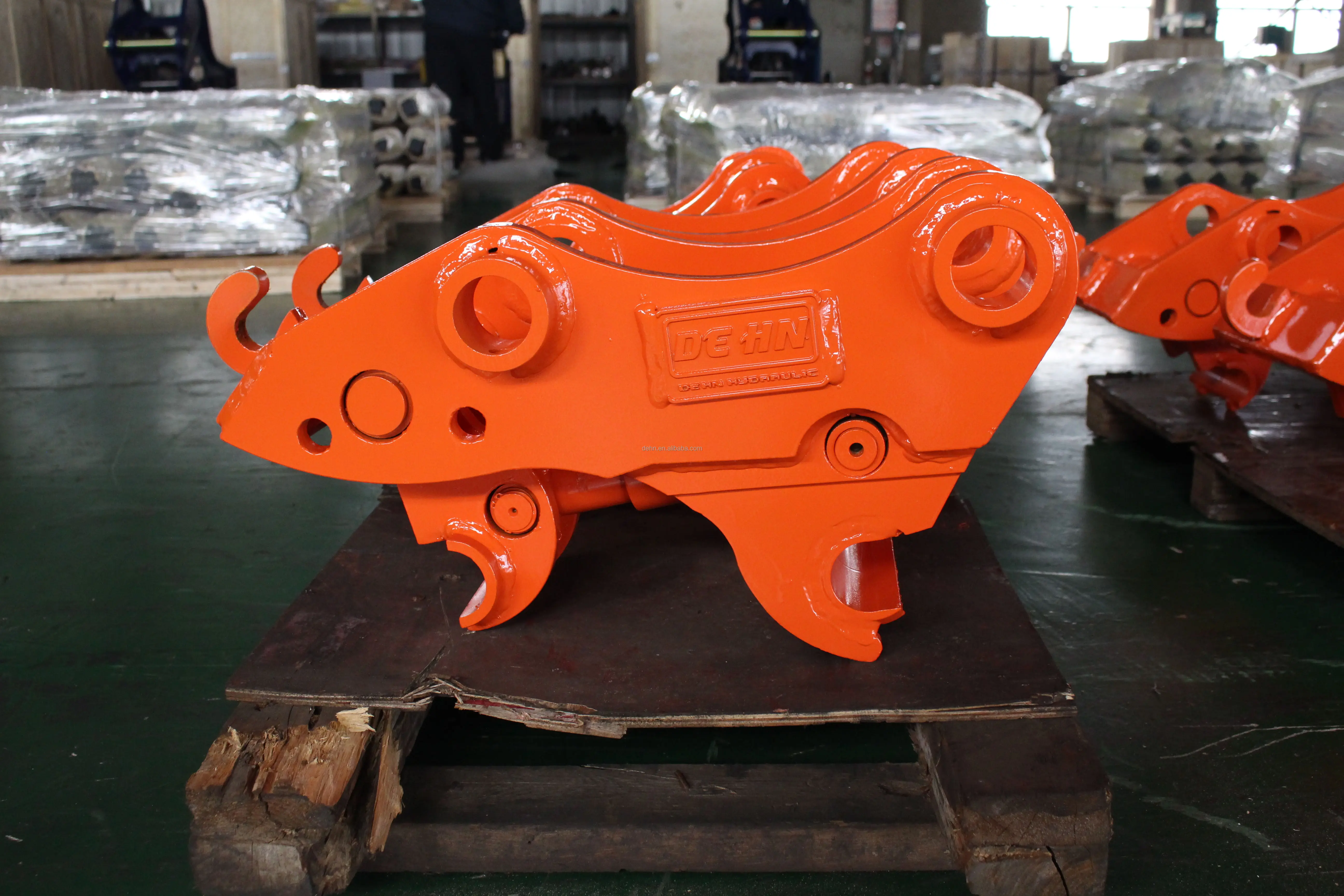

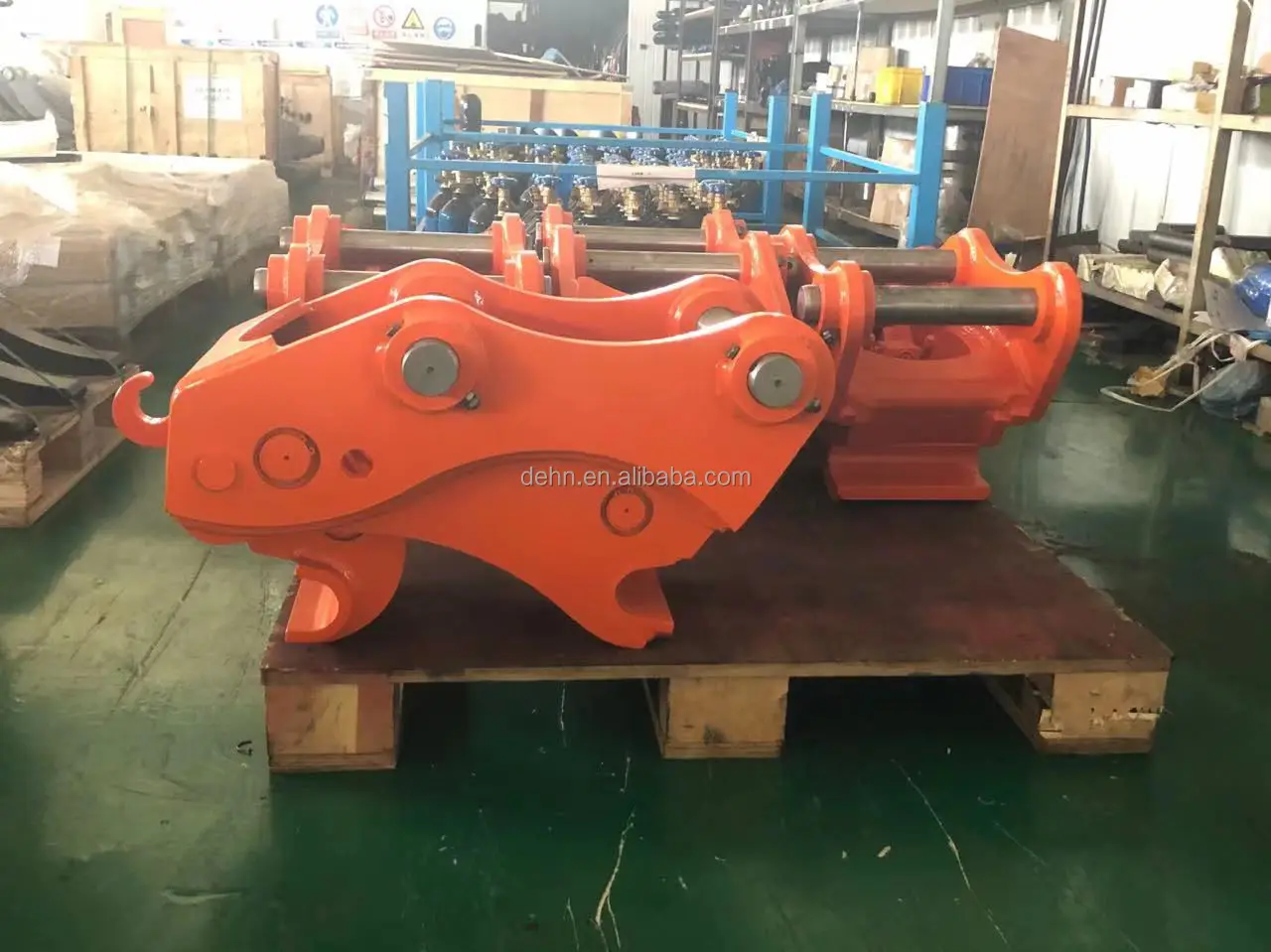

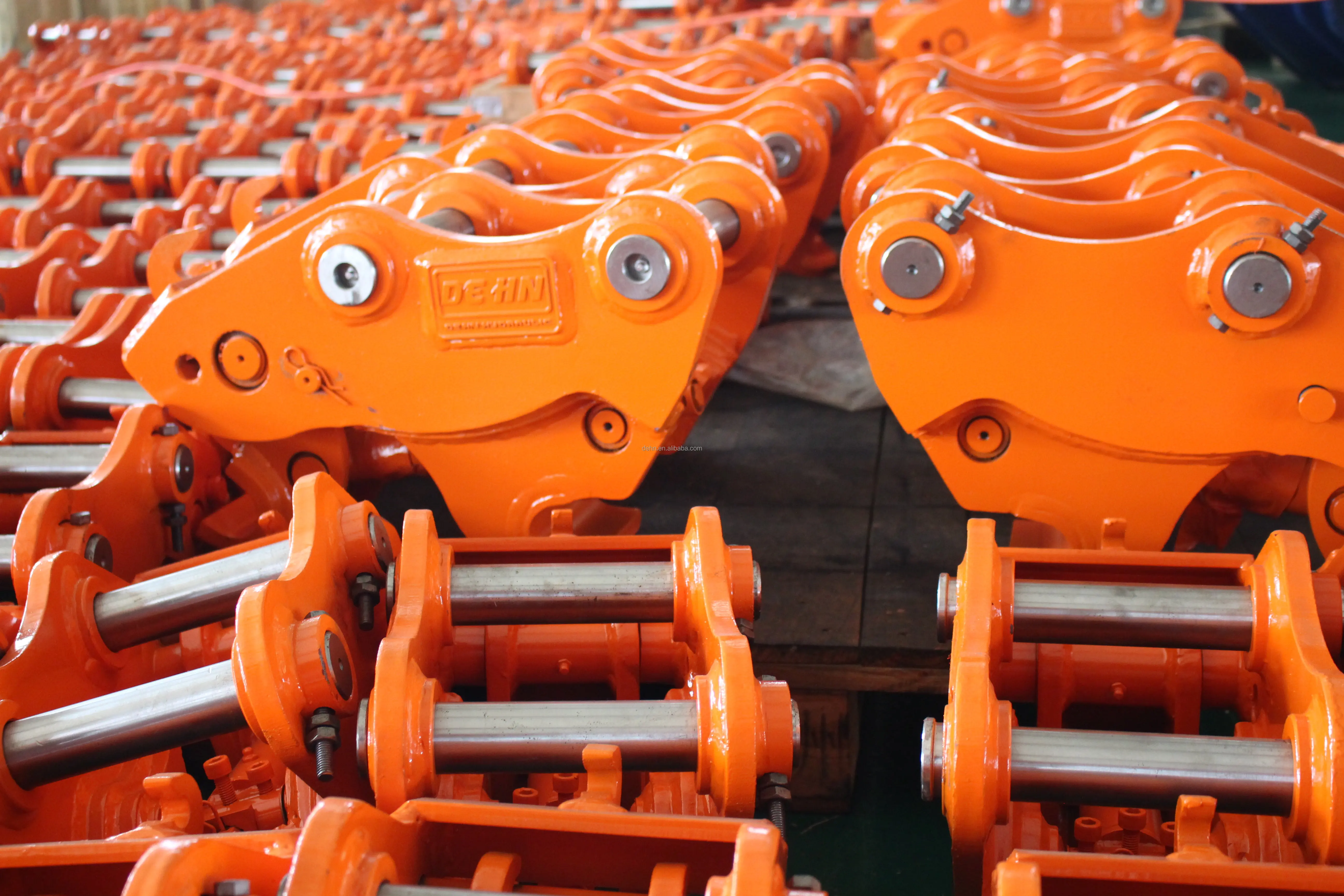

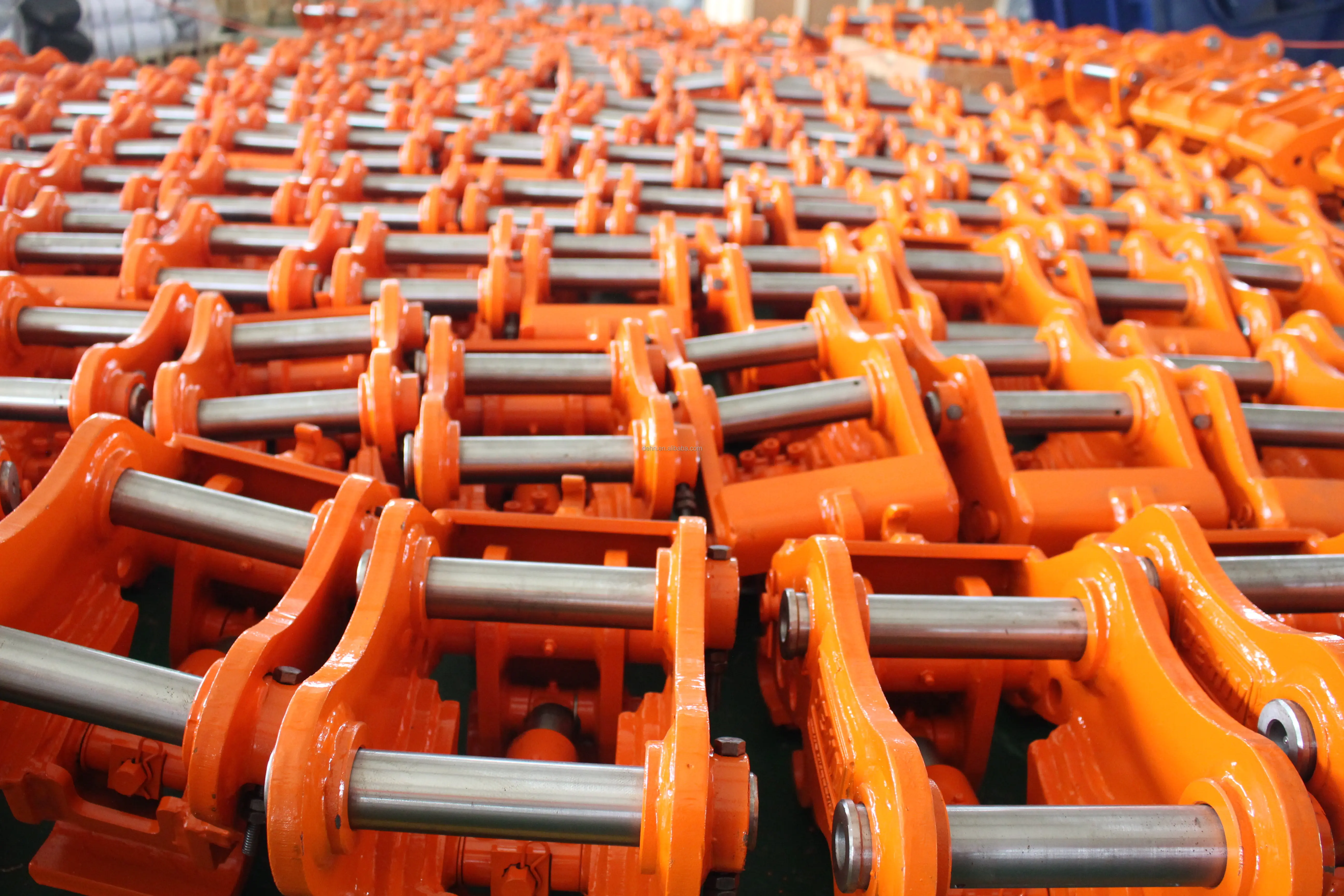

2 Ton Mini Excavator Hydraulic Quick Hitch Construction Industry Compatible Excavator Rotating Quick Coupler
- Category: >>>
- Supplier: Yantai Shijin Machinery Co. Ltd.
Share on (1601274848154):
Product Overview
Description
Product Description
We ALWAYS work hard to produce machines of consistent quality and competitive price!
Model | DEHN MINI |
weight | 280-290kg |
pin to pin center distance | 460-480mm |
top to bottom pin distance | 275mm |
pin diameter | 70-80mm |
suitable excavator | 17-23ton |
OTHER MODEL YOU MAY NEED:
Model | Unit | DEHN MINI | DEHN 02 | DEHN 04 | DEHN 06 | DEHN 08 | DEHN 10 | DEHN 17 |
Overall Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
Overall Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Overall Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 46-480 | 473-540 | 550-620 |
Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-590 | 413-590 | 520-590 |
Top to Bottom pin Disatnce | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Weight | kg | 25-30 | 50-60 | 80-90 | 120-130 | 280-290 | 450-530 | 450-580 |
Working Pressure | kg/cm^2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Required Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Suitable Excavator | ton | 1.5-4 | 4-6 | 5-9 | 9-19 | 17-23 | 23-35 | 33-45 |

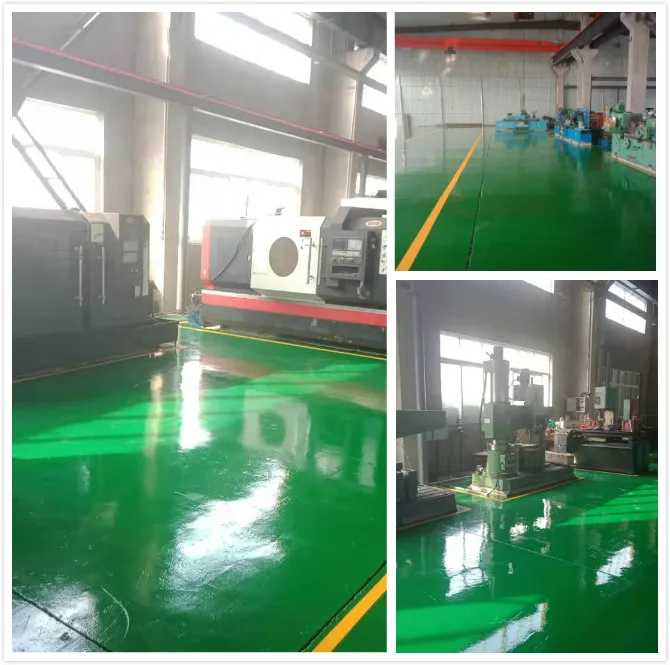

Company Introduction
Yantai Shijin Machinery Co., Ltd was established in 2010. Our company is one of the largest manufactures which is specialized in the research, manufacture and sales of hydraulic breaker for many years. We DEHN have always regarded Product Quality as Soul of the company, sticking to the principle of Service, Innovation and Sustainable Development to be the top brand in engineering machinery industry. We will provide you with top-ranking technical support, best product quality, wide range accessories supply and professional after-service. Our company is specialized in manufacturing Hydraulic Breaker, Quick Coupler, Hydraulic Chisel, Excavator Ripper and Spare Parts. Our own brand "DEHN" hydraulic chisel have full series and are right to all brand hydraulic breakers.
Our Services & Strength

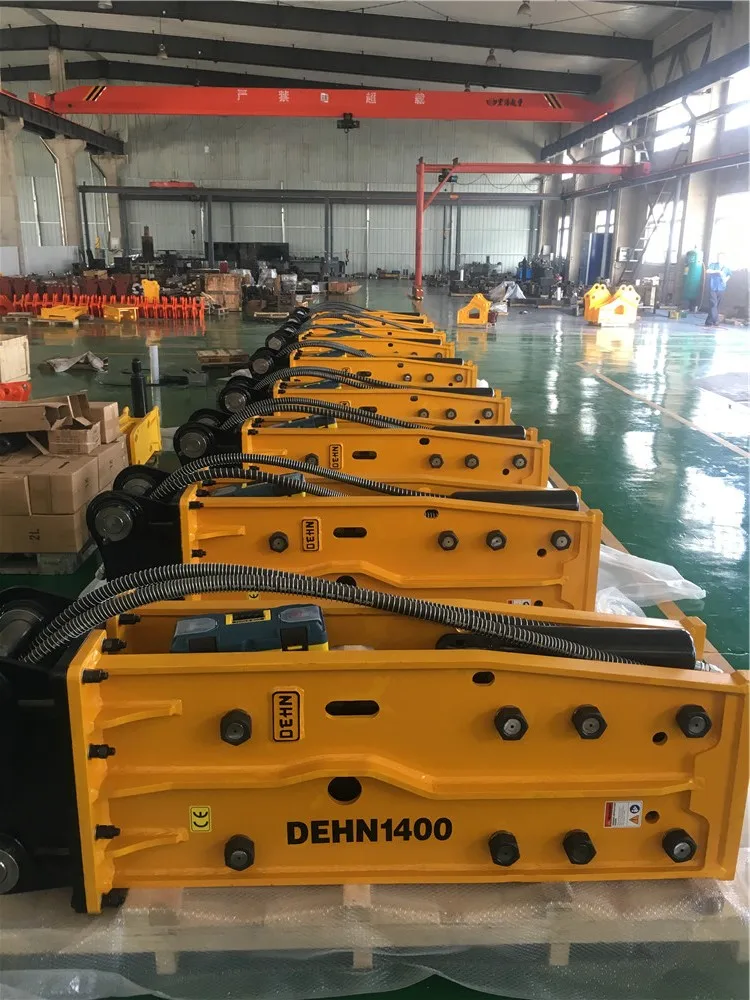

DEHN brand has approved CE certificate and 4 product patents since 2010. By using the piston recoil energy to increase performance without additional hydraulic flow input, DEHN rock breaker could achieve optimum performance at low cost, in addition to the easy body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!
Packing&Shipping
We use standard export plywood for packaging, suitable for almost all delivery methods!
FAQ
1.Is that the main body color customized?
Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products .
7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products .
7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
