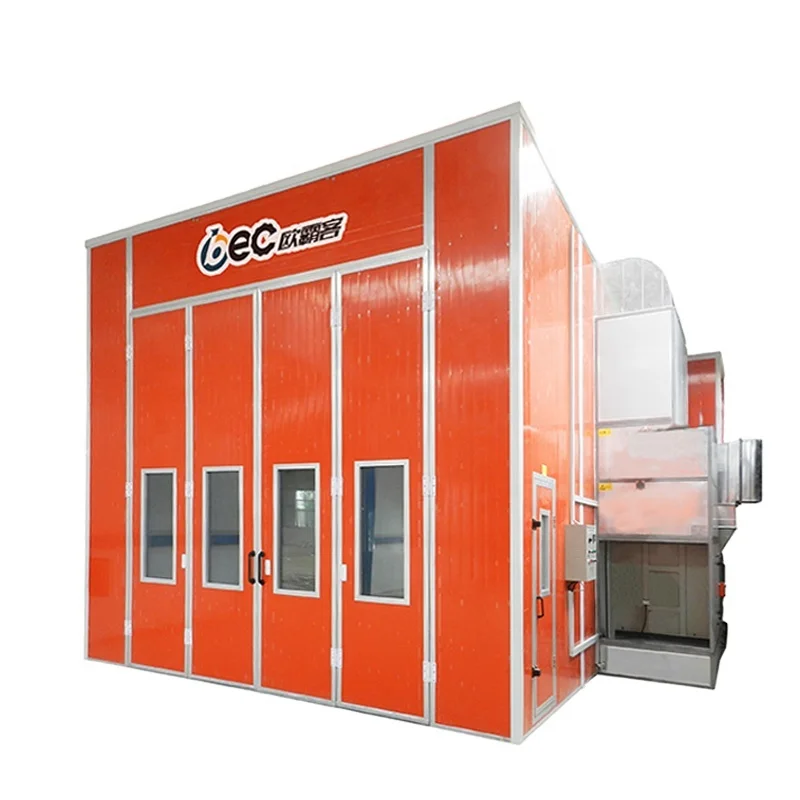

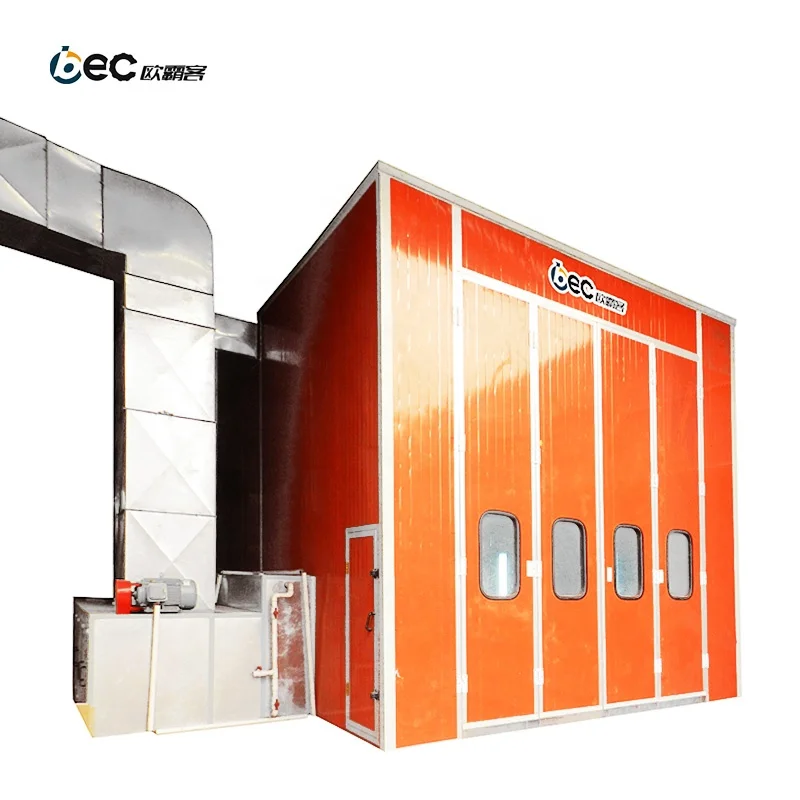

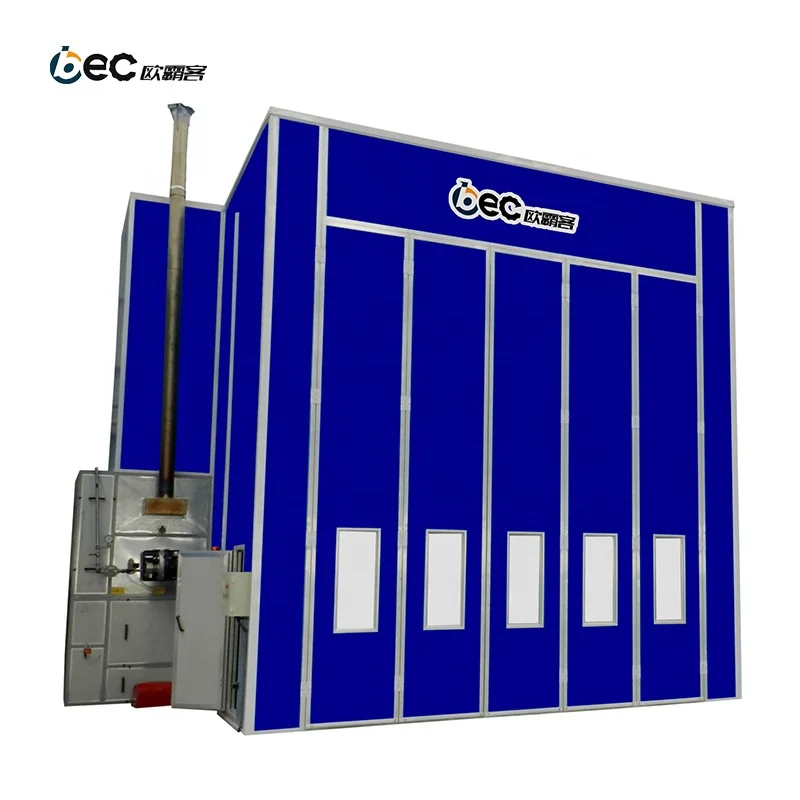

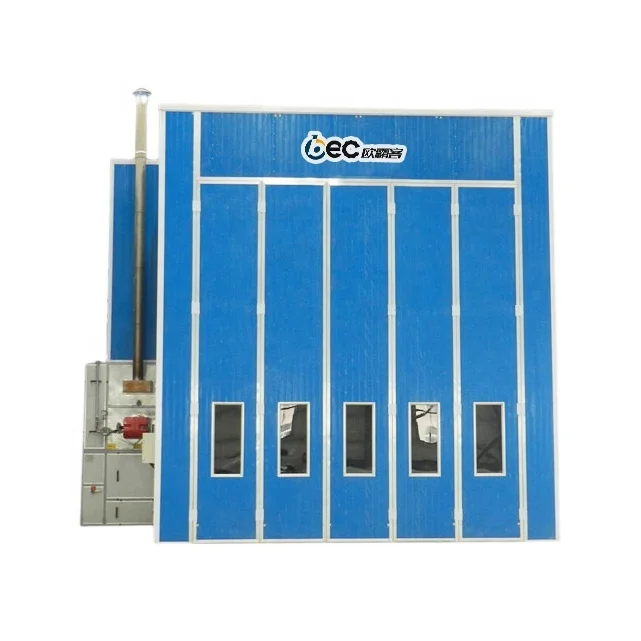

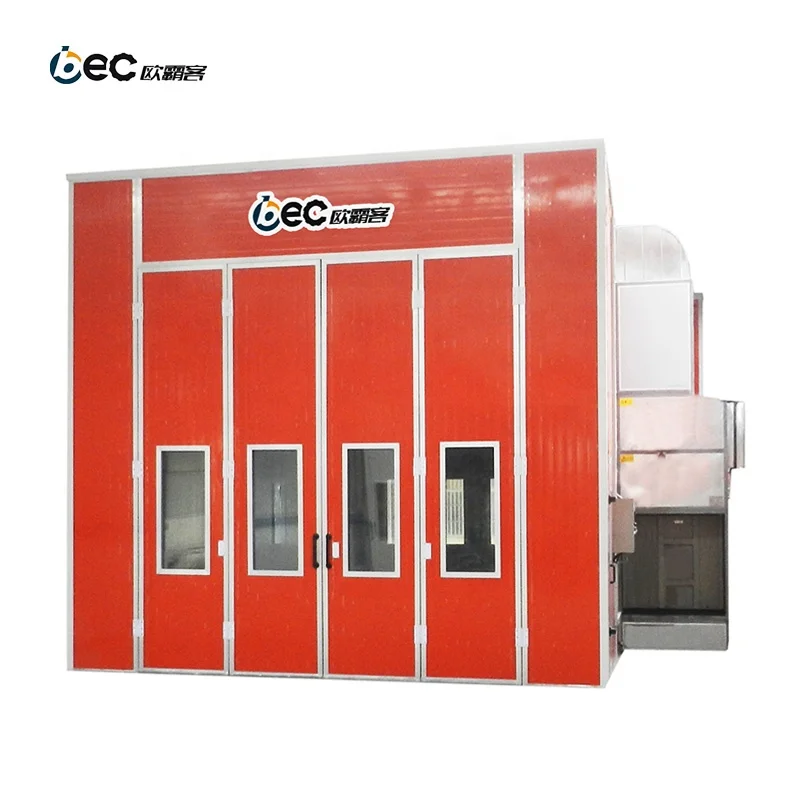

Painting cabin for trucks/planes/trains paint oven spray paint booths for bus with high quality van/trailer paint cabin
- Category: >>>
- Supplier: Yantai Lide Automotive Equipment Manufacturing Co. Ltd.
Share on (1601274876590):
Product Overview
Description
Welcome to OBEC Shop! Top 3 Mid-high Level Brand in Global Market.
OBEC support OEM & ODM--
Support customize each part to meet your need.
We can customize the most cost-effective paint booth for your venue within your budget.
Click and send us an inquiry to get more details→
Products Description
Product Paramenters
Parameters | ||||
Outside size | 9350x6396x4100mm 12150×7500×3950mm 15144*6896*5600mm customized size | |||
Inside size | 9200x4500x3500mm 12000×6000×3500mm 15000*5000*5000mm customized size | |||
Entrance door | 3 folds door, 3300*3400mm 4 folds door , 4000×3400mm or 4000*4500mm bending steel without covered frame or aluminum alloy covered frame. customized size | |||
Emergency door | 1 fold door 700*2000mm / 650×2000mm. 2 fold door 700*2000mm Equipped with Handle and Anti-Explosion Lock. customized size | |||
Main System | ||||
Cabin System | Wall Panel | Sandwich style EPS 75mm,0.45-0.5mm thick steel, socket type | ||
Basement | -THREE rows flat steel Grilles (galvanized) -TWO rows metal non-slip Diamond plates (galvanized and painted.) . -4 pieces of Ramps, each size 8000×2000mm (W×L),diamond plate construction. | |||
Cabinet | square tube steel frame , adopt powder quadrate steel frame , exhaust duct made by high quality galvanized steel and flange , Cabinet device side upward wind , after the exhaust air | |||
Ventilation system | Inlet fan | 1set 7.5KW and 1 set 11KW 4set 5.5KW 4set 7.5KW | ||
Outlet fan | 2set 7.5KW 2set 11KW | |||
Cabinet | -Cabinet for the fan*1unit -air duct:2m long*1unit -Elbow:90°*1 unit | |||
Heating system | Burner | One or two pieces RIELLO RG5S oil burner,260000kcal/h/pieces | ||
Heat Exchanger | One or two pieces stainless steel high efficiency heat exchanger,One or two pieces electric damper performs spray paint cycle | |||
Baking Temperature Max | 80 ℃ | |||
Lighting system | Ceiling lights | 12 units×4pieces =48pieces ×36W,with powder-coated light box. 18 units×4pieces =72pieces ×36W | ||
Side lights | 12 units×2pieces =24pieces ×36W 8 units×4pieces =32pieces ×36W 14 units×4pieces =56pieces ×36W | |||
Filtering system | Primary filter | The primary filter can capture granules larger than 10μm , filtering rate > 83%. | ||
Ceiling filter | Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%. | |||
Other | sub-high efficiency filtration , M-type activated carbon filtration and single-laver flat galass filtration , Full soak glue cotton.primary filtration , glass silk and cotton filtration. | |||
Control system | Control panel | Intelligent control system | ||
Fuction | temerature time setting , painting , constant temperature painting , baking , emergency stop , etc , Intellengent controlling system , Lighting switch , temperature controller , Electric control system paint , temperature rise paint , paint baking time setting , fault indicator light , power switch , emergency stop switch , accumulator | |||
Total power | 57.5kw/38kw/29.5kw | |||
Voltage/Frequency | 380V 50HZ 3PH | |||
FAQ
why choose us?
Yantai LIDE is a very professional car maintenance equipment supplier. We have rich experience in this industry for 17 years.Now about 32580 our products are serving around the world.High Quality, Competitive Price, and Fast Shipment
Do you offer any custom designs?
Yes, We are manufacturer and we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
How To order?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment
Step 4, finally we deliver the goods within the stipulated time.
When will make delivery?
About 10 work days after receipt of the payment.
After-sales Service?
1 year warranty for all kinds of products;if you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales services
What is the Package?
The polywood case which is suitable for exportation
How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on Alibaba, order through the alibaba trade assurance, will ganrantee the safe of your money and the quality of the goods.
Yantai LIDE is a very professional car maintenance equipment supplier. We have rich experience in this industry for 17 years.Now about 32580 our products are serving around the world.High Quality, Competitive Price, and Fast Shipment
Do you offer any custom designs?
Yes, We are manufacturer and we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
How To order?
Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment
Step 4, finally we deliver the goods within the stipulated time.
When will make delivery?
About 10 work days after receipt of the payment.
After-sales Service?
1 year warranty for all kinds of products;if you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales services
What is the Package?
The polywood case which is suitable for exportation
How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on Alibaba, order through the alibaba trade assurance, will ganrantee the safe of your money and the quality of the goods.
✎If you want to build your own garage, OBEC will provide you with
the most cost-effective equipment and solutions within your budget,
and a comprehensive after-sales service team to help you fill your garage.
✎If you want to start your equipment resale business,
CONGRATULATIONS!
OBEC will provide you with OEM/ODM customization.
✔20 years of professional production technology and experience
✔cost-effective and stable supply of goods
✔a variety of modes of transportation
✔one-stop service......
To provide you with the most comprehensive equipment details and training, click to get more →
Click 'Contact supplier' or 'Email Button -> Send inquiry now' to contact us!
We have different model with different specifications for your choose, you can tell us your request and what product will you painting and baking, we have professional sales staff serve you.
We have CE certification, 15 years of production experience, professional production line and raw material quality control system, accept custom OEM/ODM, colour, size, logo, heating method. Welcome to visit our company!
We have CE certification, 15 years of production experience, professional production line and raw material quality control system, accept custom OEM/ODM, colour, size, logo, heating method. Welcome to visit our company!
