15 Inch color Vet Pets Animal Use Vital Signs Monitor Portable Multi parameter Veterinary Patient Monitor
- Category: >>>
- Supplier: Karestar Technology (xuzhou) Co. Ltd.
Share on (1601274912027):
Product Overview
Description
Product Description

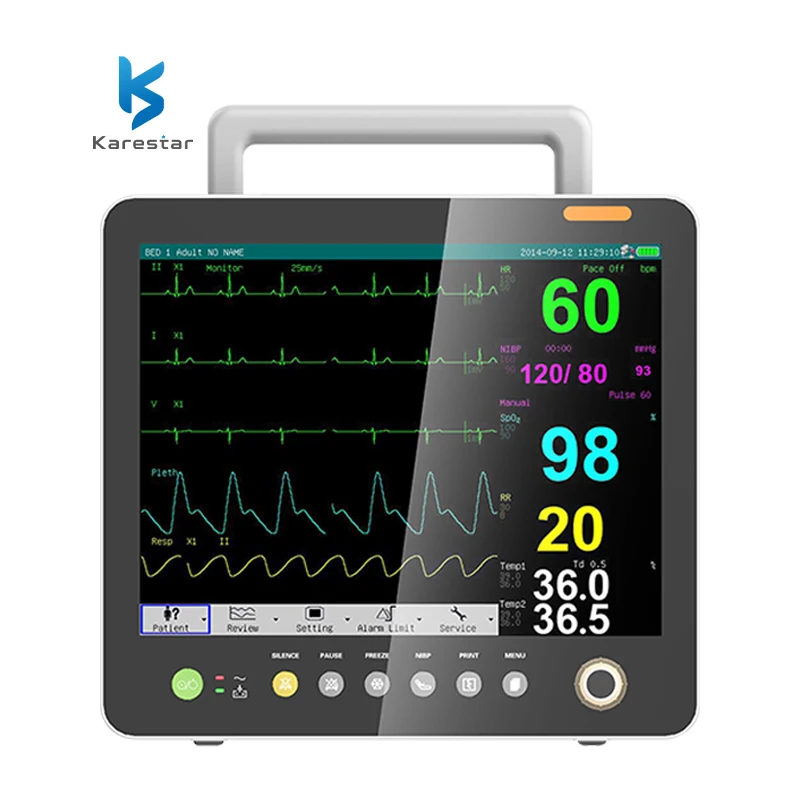

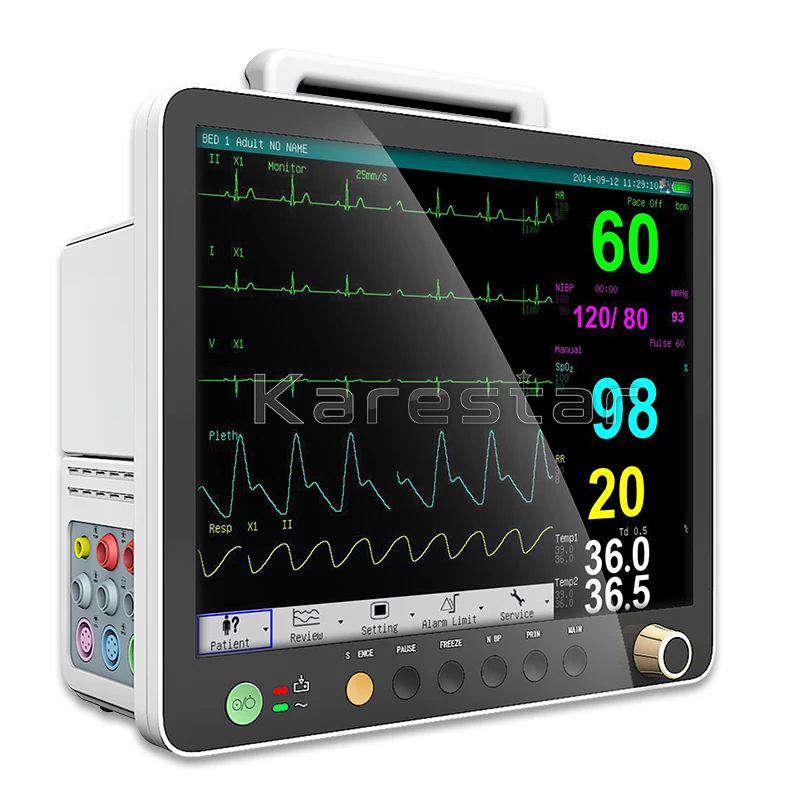

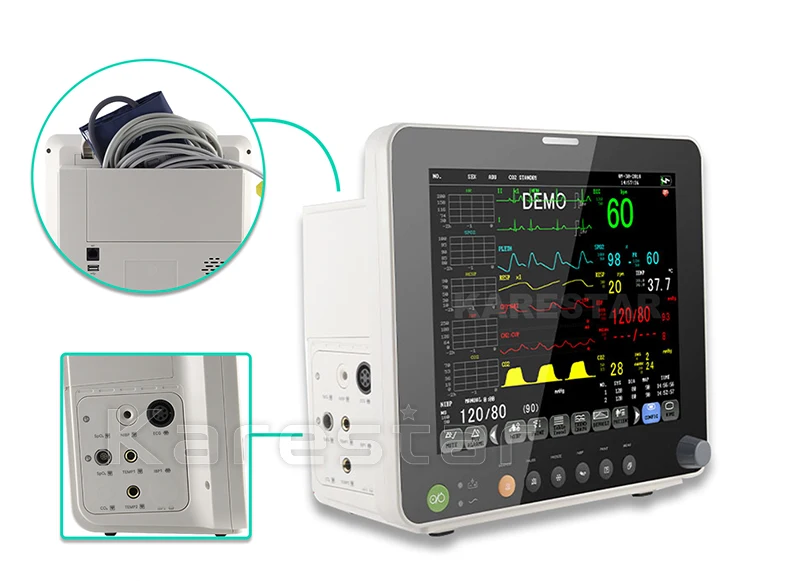

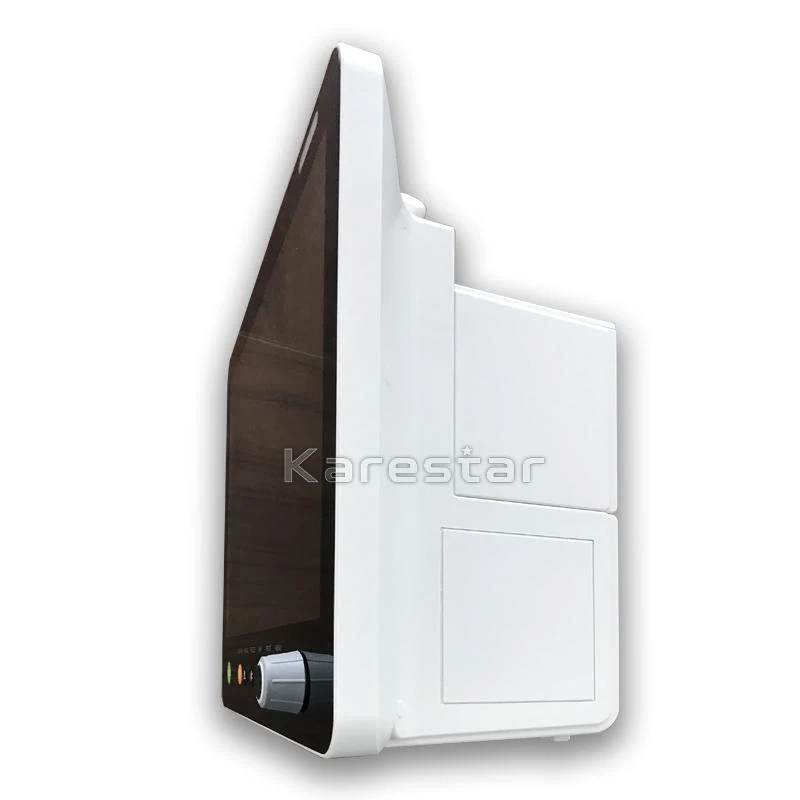

15 Inch color Vet Pets Animal Use Vital Signs Monitor Portable Multi-parameter Veterinary Patient Monitor
Quick Details: |
15 inch hig brightness color screen, (touch screen for option) |
Built-in high capacity battery |
Standard 6 parameters configuration: SPO2, ECG, TEMP, PR/HR, NIBP, RESP |
Multiple language: English, French, Spanish, Portuguese , Turkish, German,Chinese |

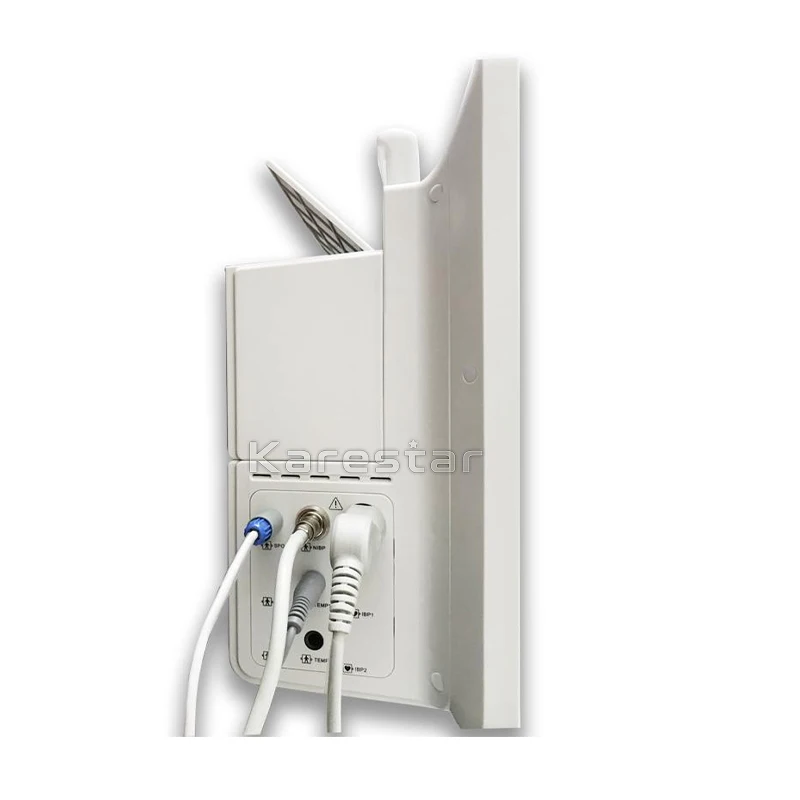

VGA, USB port |

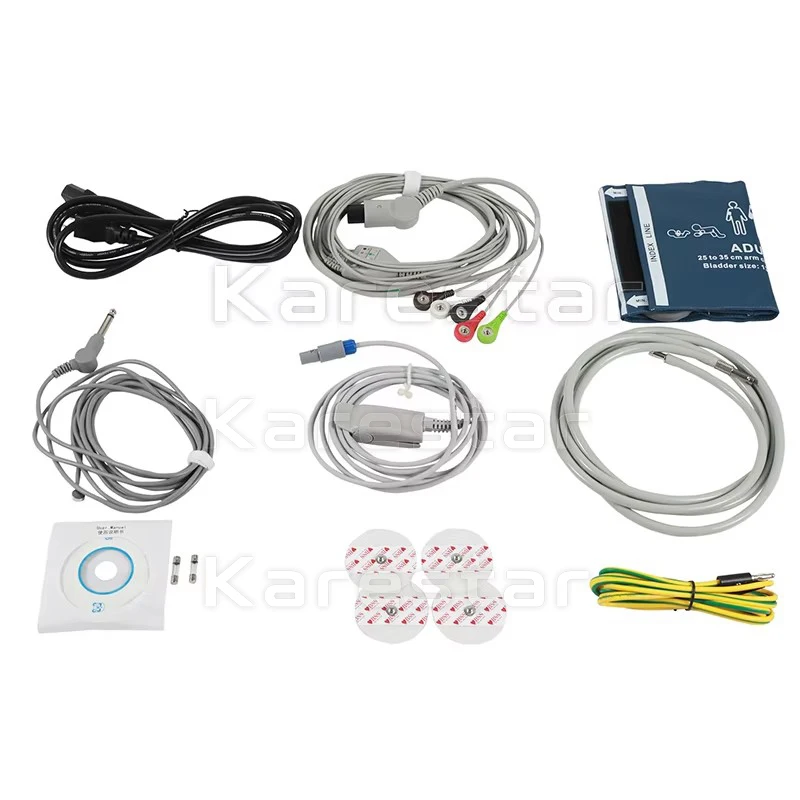

Standard Configuration | Option Configuration | ||
Main machine | 1 PC | ETCO2, Dual IBP, Nellcor/Masimo SPO2 | |
ECG lead wire | 1 PC | Suntech NIBP, Anesthetic gas module, Printer | |
SPO2 sensor and wire | 1 PC | Touch screen function | |

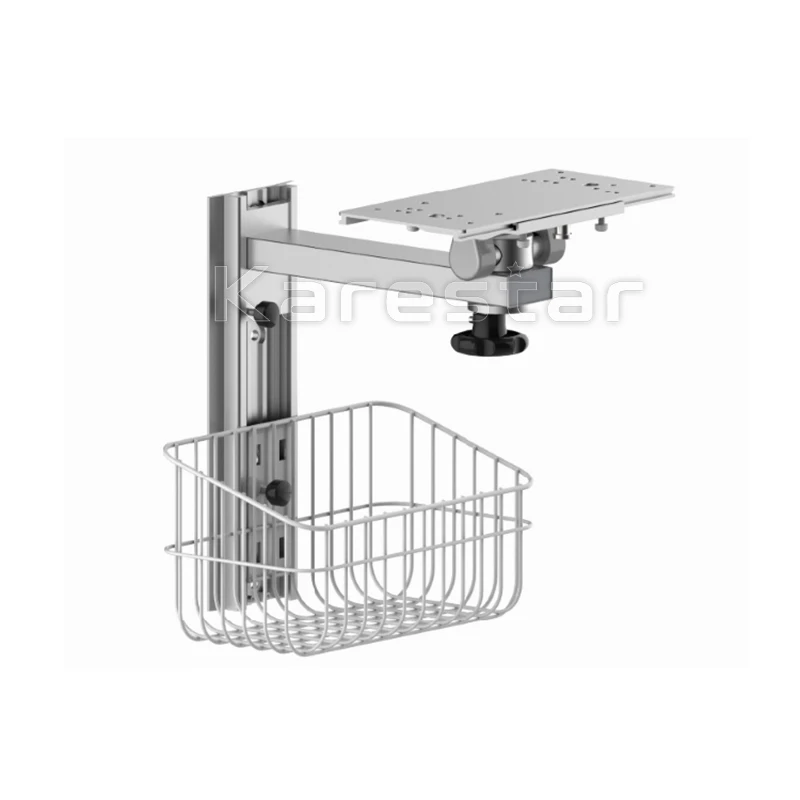

BP cuff | 1 PC | Trolley, Wall mount | |
ECG electrodes | 1 PC | Center monitoring system | |
BP extension cord | 1 PC | 12 lead ECG | |
Power cord | 1 PC | ||
Temperature probe | 1 PC | ||
Specification
ECG | SPO2 | NIBP |
v Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V) | Measuring Range: 0 ~ 100 % | Method: Oscillometry |
Gain: 2.5mm/mV, ´5.0mm/mV, 10mm/mV, ´20mm/mV | Resolution: 1% | Measure mode: Manual, Auto, STAT |
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal) Resolution: 1 BPM Accuracy: ±1% Sensitivity >200 uV(Peak to peak) | Accuracy: 70% ~ 100% (±2 %) | Unit: mmHg, kPa |
ST measurement range: -2.0 ~ +2.0 mV Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater Other Range: unspecified | Pulse Rate: 20-250 BPM | Measure and alarm range: Adult Mode: *SYS 40 ~ 280 mmHg * DIA 10 ~ 225 mmHg * MEAN 20 ~ 240 mmHg Pediatric Mode: * SYS 40 ~ 220 mmHg * DIA 10 ~ 160 mmHg * MEAN 20 ~ 170 mmHg Neonatal Mode: * SYS 40 ~ 135 mmHg * DIA 10 ~ 100 mmHg * MEAN 20 ~ 110 mmHg |
Bandwidth: * Diagnostic: 0.05~130 Hz * Monitor: 0.5~40 Hz * Surgery: 1~20 Hz | Resolution: 1 BPM | Resolution: 1mmHg |
Accuracy: ±3 BPM | Accuracy: ±5mmHg |
RESP | TEMP |
Method: Impedance between RA-LL or RALA | Measure and Alarm Range: 0 ~ 50 °C |
Measurement Range: *Adult: 10 ~ 120 BrPM *Neonatal / Pediatric: 7 ~ 150 BrPM | Resolution: 0.1°C |
Resolution: 1 BrPM | Accuracy: ±0.1°C |
Accuracy: ±2 BrPM |
Scanning Video
Ultrasound Workshop
Recommend Products
Other Information
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory which has over 7 years' manufacturing experience.
Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?
A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.
Q3: What's the MOQ?
A: The MOQ is 1 Set, and samples can be sent for your evaluation.
Q4: How can get the shipping cost?
Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.
Q5: How long is your delivery time?
A: Usually 3-30 days after order confirmed. Based on the item and quantity.
Q6: Can you do OEM/Private logo/label?
A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.
Q7: What is your terms of payment?
A: We accept T/T, Alibaba trade assurance order, L/C, Western union, Paypal and more. Please suggest your preferred payment method.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9: How to deal with the faulty?
A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.
Secondly, our after-sales department will periodically follow up customers.
