shanglishi ISO certified high strength semi immersion mineral dredging vertical slurry pump
- Category: >>>
- Supplier: Shijiazhuang Shanglishi Pump Co. Ltd.
Share on (1601274924202):
Product Overview
Description
Product Overview

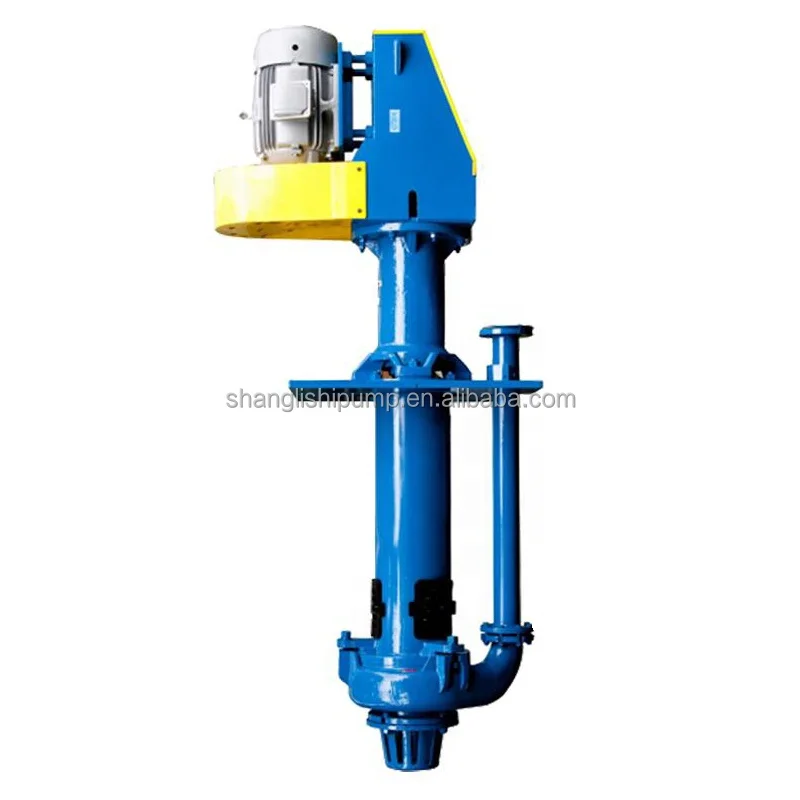

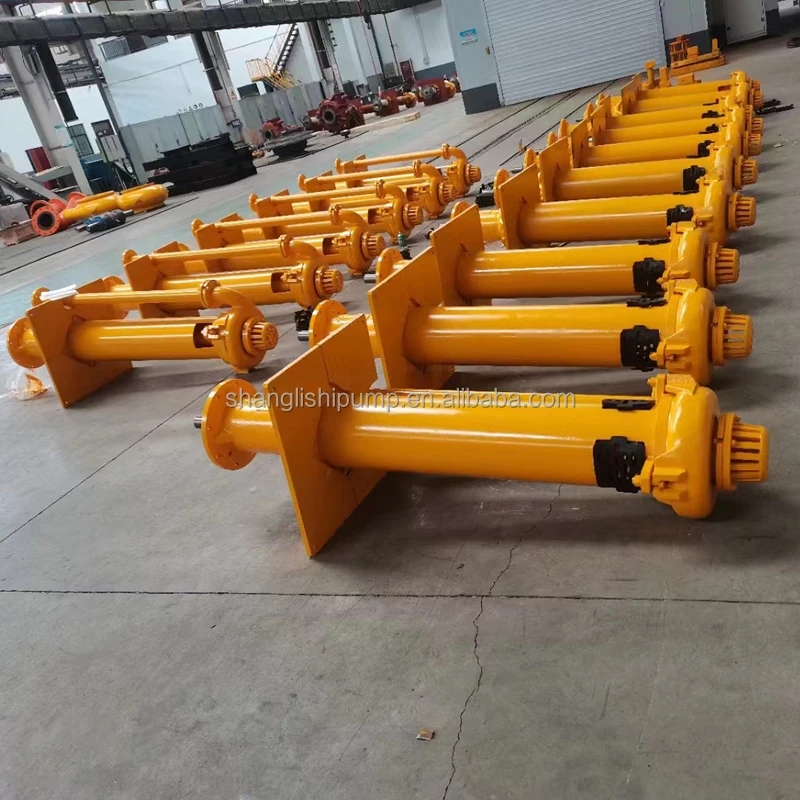

Shanglishi® SP(R) Vertical Sump Pump
SP Series vertical slurry pumps are no submerged bearings or seals cantilevered pumps, which ideal for a variety of submerged suction pumping applications.
These pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.

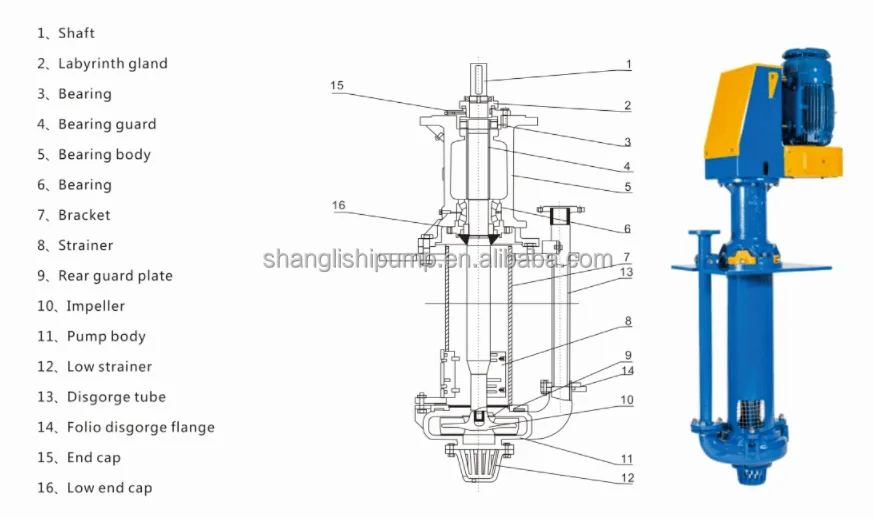

Wetted Parts：
Liners – Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.
Impeller – Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Throat bush – Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
PRODUCT SPECIFICATIONS
Commodity: | SP(R) Vertical Sump Pump |
Modle: | SP |
Production brand： | Shanglishi |
Size: | Suction DN80-DN350，Discharge DN40-DN300 |
Capacity: | 7.6-1492m³/h |
Head: | 4-36m |
Speed: | 800-1550rpm |
NPSHr: | 4-10m |
Eff.: | 55%-92% |
Power: | Max.2800kw |
Seal arrangement: | Packing seal |
Expeller seal | |
Mechanical seal | |
Materials: | High chrome alloy,Rubber,Stainless steel etc |
H.S. Code: | 8413709990 |
Main Project Cases
Company Profile
Company Profile
Shanglishi Pump Group was first established in 1990. It is a large pump manufacturer in the world. It is the vice director unit of China Pump Industry Association and the vice president unit of Hebei Pump Industry Association. There are 4 production bases under Shanglishi Pump Group: slurry pump production base, Clean water pump production base, Submersible sewage pump production base, and Chemical pump production base. More than 40 offices around the world, our pumps are sold to more than 100 countries and regions such as the United States, Australia, Brazil, Russia, Indonesia, Zimbabwe, Uganda, and the Middle East.
Casting Frunace
Casting Line
Casting Line
Machining Center
Machining Center
Machining Center
Assembly Center
Assembly Center
Assembly Center
National Testing Center
National Testing Center
National Testing Center
Why Choose Us
Company's ability:
* More than 1200 professional staff
* 300,000 square meters of production base, 200,000 square meters of workshop area
* The foundry has 8 intermediate frequency electric furnaces with a total tonnage of 35 tons and an annual output of 18,000 tons of castings
* The machining workshop is equipped with: fully automated, digital and intelligent machining center system, CNC lathes
* Equipped with advanced 3D scanning detection, 3D whitemould engraving, 3D printing and other technologies, to provide customers with high-precision, high-efficiency and high-quality OEM product customization services.
Quality control:
* Shanglishi has the most advanced TPA-3A national level pump testing system. The flow range is 0-50000m3/h, the lift range is 0-40-160-1000m, the power low voltage can be tested to 355kW, and the 10kV high voltage can be tested to 2000kW. And Shanglishi had obtained the pump product test system verification certificate issued by the Machinery Industry Drainage and Irrigation Machinery Product Quality Inspection Center (Shijiazhuang) and the National Pump and System Engineering Technology Research Center.
* Shanglishi have the most advanced digital inspection platform, professional processing and inspection team. The workshop is equipped with desktop spectrum detectors, handheld spectrum detectors, hardness detectors, 3D scanning detection, flaw detection and other high-precision testing equipment to ensure that every product that leaves the factory is a high-quality and qualified product.
Technical skills
* Shanglishi PumpGroup is the main member of Shijiazhuang Slurry Pump Industry Research Institute, participating in the
re-formulation of China's anti-corrosion and wear-resistant slurry pump industry standards.
* 5 invention patents and 25 utility model technology patents
* Committed to the research and development of abrasion mechanism, corrosion-resistant and wear-resistant materials and new products, with advanced development and design methods such as CFD fluid mechanics analysis, CAE finite element theoretical calculation, CAE computer simulation casting and CIMATRON three-dimensional CAD design.
* More than 1200 professional staff
* 300,000 square meters of production base, 200,000 square meters of workshop area
* The foundry has 8 intermediate frequency electric furnaces with a total tonnage of 35 tons and an annual output of 18,000 tons of castings
* The machining workshop is equipped with: fully automated, digital and intelligent machining center system, CNC lathes
* Equipped with advanced 3D scanning detection, 3D whitemould engraving, 3D printing and other technologies, to provide customers with high-precision, high-efficiency and high-quality OEM product customization services.
Quality control:
* Shanglishi has the most advanced TPA-3A national level pump testing system. The flow range is 0-50000m3/h, the lift range is 0-40-160-1000m, the power low voltage can be tested to 355kW, and the 10kV high voltage can be tested to 2000kW. And Shanglishi had obtained the pump product test system verification certificate issued by the Machinery Industry Drainage and Irrigation Machinery Product Quality Inspection Center (Shijiazhuang) and the National Pump and System Engineering Technology Research Center.
* Shanglishi have the most advanced digital inspection platform, professional processing and inspection team. The workshop is equipped with desktop spectrum detectors, handheld spectrum detectors, hardness detectors, 3D scanning detection, flaw detection and other high-precision testing equipment to ensure that every product that leaves the factory is a high-quality and qualified product.
Technical skills
* Shanglishi PumpGroup is the main member of Shijiazhuang Slurry Pump Industry Research Institute, participating in the
re-formulation of China's anti-corrosion and wear-resistant slurry pump industry standards.
* 5 invention patents and 25 utility model technology patents
* Committed to the research and development of abrasion mechanism, corrosion-resistant and wear-resistant materials and new products, with advanced development and design methods such as CFD fluid mechanics analysis, CAE finite element theoretical calculation, CAE computer simulation casting and CIMATRON three-dimensional CAD design.
