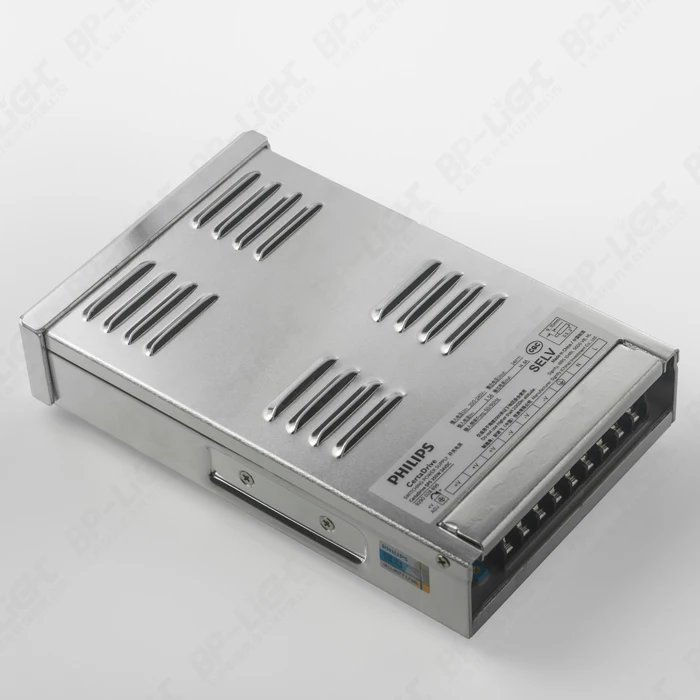

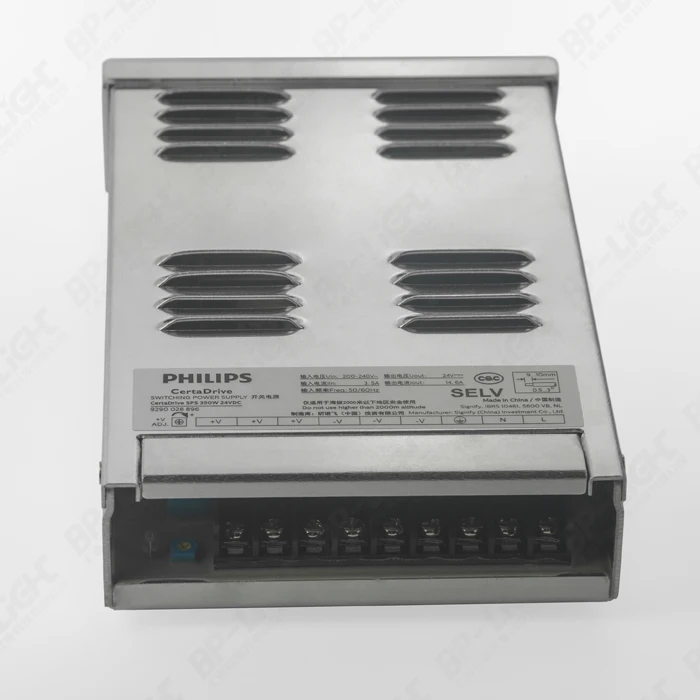

CertaDrive SPS 200W 24VDC
929002889580


CertaDrive switch power supply is single output type AC/DC power supply. It uses semi-potted aluminum case which protecting rain splash and dust. This product has CQC/CB/SELV certifications which is suitable for wide applications.



Benefits.

• 30,000 hours lifetime with 3 years warranty
• Design against rain splash
• Cooling by free air convection
• SELV isolation



Features.

• Over voltage protection
• S hort circuit protection
• O ver power protection
• O ver temperature protection



Application.

• Area and flood lighting
• LED strip lighting









Datasheet


Electrical Input data



Specification item
Value
Unit
Condition
Rated input voltage range
220...240
Vac
Performance range
Rated input voltage
230
Vac
Rated input frequency range
50...60
Hz
Performance range
Rated input current
2
A
At rated output power at rated input voltage
Rated input power
225
W
At rated output power at rated input voltage
Power factor
≥ 0.65
At rated output power at rated input voltage
Total harmonic distortion
≤ 10
%
At rated output power at rated input voltage
EPciency
≤ 89
%
At rated output power at rated input voltage
Input voltage AC range
180...264
Vac
Safety operational range
Input frequency AC range
47...63
Hz
Operational range
Isolation Input to Output
SELV


Electrical Output data



Specification item
Value
Unit
Condition
Regulation method
Constant Voltage
Output voltage
24
Vdc
Output voltage max
21.6 ... 26.4
V
Peak voltage at open load
Output current
8.3
A
Full output current setting
Output current tolerance
± 5
%
Output current ripple LF
≤ 4
%
Ripple = peak/average at ≤1KHz
Output current ripple HF
≤ 15
%
Output power
200
W
Full output


Electrical Data Control Input



Specification item
Value
Unit
Condition


Operational temperatures and humidity



Specification item
Value
Unit
Condition
Ambient Temperature
-30... +60
°C
Higher ambient temperature allowed as long


Lifetime



Specification item
Value
Unit
Condition
Driver lifetime
30,000
hours
Measured temperature at Tcase-point is Tcase-max.


Features



Specification item
Value
Remark
Condition
Open load protection
Yes
Automatic recovering
Short circuit protection
Yes
Automatic recovering
Over power protection
Yes
Automatic recovering
Hot wiring
No
Over temperature protection driver
Yes
Automatic recovering
Overheating protection
Yes
Automatic recovering
Input over-voltage
Yes
320Vac at 48hrs


Packing & Delivery


Packaging
Size
36*21.5*20 cm
Weight
18 kg



Packaging Details
Led Drivers and modules: Philips original carton packing with MOQ.(20 pcs in one carton.)

Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.
