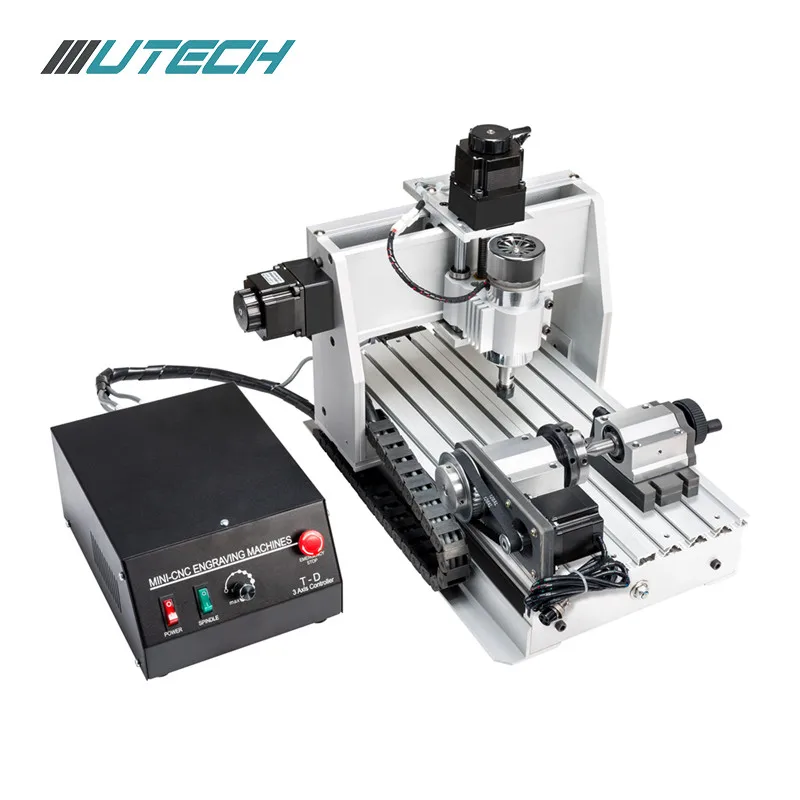

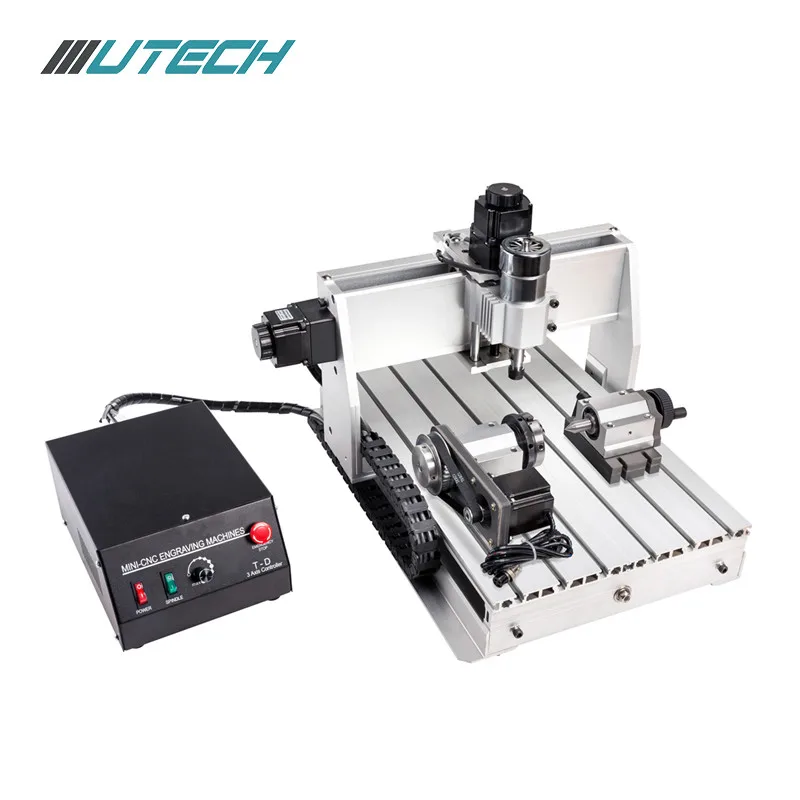

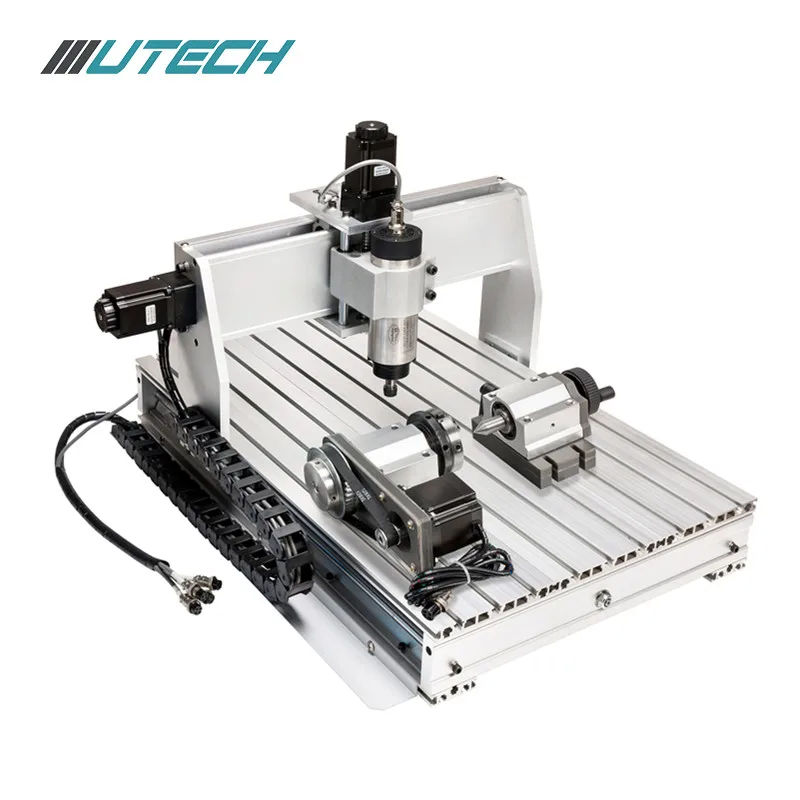

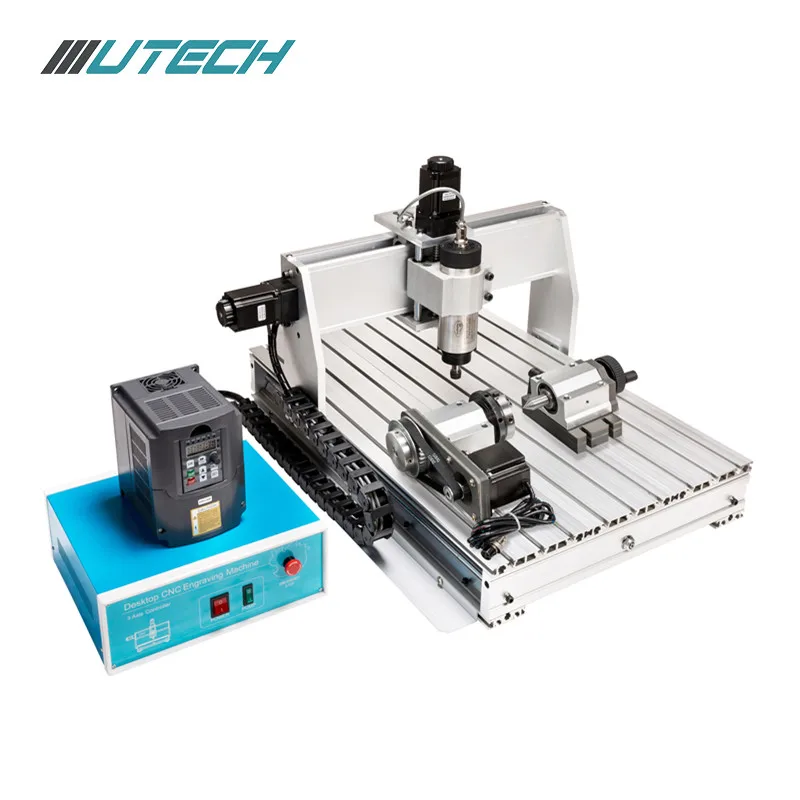

table use and suitable for customers who want to carve small crafts
- Category: >>>
- Supplier: Shandong U-May Cnc Technology Co. Ltd.
Share on (1601274982291):
Product Overview
Description
Hot sale air cooled mini cnc cutting machine 6040 1325 mach3 USB router cnc
mini cnc cutting machine 6040 mach3 USB router cnc
Type | 6040 | 3040 | 3020 |
Max working travel | XYZ=400*570*75mm | XYZ=290*380*60mm | XYZ=210*300*60mm |
Machinable material thickness | ≤100mm | ≤70mm | ≤70mm |
Dimensions | 750*570*390mm | 525*400*290mm | 440*310*290mm |
Frame material | 6061-T5 aluminium alloy | 6061-T5 aluminium alloy | 6061-T5 aluminium alloy |
Track type | Chrome-plated + linear bearing | Chrome-plated + linear bearing | Chrome-plated + linear bearing |
Spiral type | Ball screw, diameter of 16mm, Thread pitch 5mm | T-screw, diameter of 12mm, Thread pitch 2mm | T-screw, diameter of 12mm, Thread pitch 2mm |
Ball screw, diameter of 12mm, Thread pitch 4mm | Ball screw, diameter of 12mm, Thread pitch 4mm | ||
Mechanical resolution | XYZ axis:0.0025mm/step | XYZ axis:0.0025mm/step | XYZ axis:0.0025mm/step |
Positional accuracy | 0.05mm | 0.05mm | 0.05mm |
Spindle motor | Frequency conversion spindle, 0.8kw | 2-300W DC spindle | 2-300W DC spindle |
Revolving speed | 24000rpm/min | 11000rpm/min | 11000rpm/min |
Holder | ER11(3.175mm,6mm) | ER11(3.175mm,6mm) | ER11(3.175mm,6mm) |
XYZ motor | Stepper motor JK57HS76-4204B-01AF | Stepper motor JK57HS41-2004XB-01AF | Stepper motor JK57HS41-2004XB-01AF |
Stepper driver | High performance, independent of each axis | High performance, independent of each axis | High performance, independent of each axis |
Feed rate | 2000mm/min | 1500mm/min | 1500mm/min |
Communication Interface | USB2.0 | USB2.0 | USB2.0 |
System requirement | WIN-XP or WIN-7 | WIN-XP or WIN-7 | WIN-XP or WIN-7 |
Instruction code | G code/.nc/.ncc/ .tab/.txt | G code/.nc/.ncc/ .tab/.txt | G code/.nc/.ncc/ .tab/.txt |
Voltage | Input 85V-240VAC(400HZ) | Input 85V-240VAC(400HZ) | Input 85V-240VAC(400HZ) |
Operating environment | Temperature: 5℃-40℃; Humidity: 35%-80% | Temperature: 5℃-40℃; Humidity: 35%-80% | Temperature: 5℃-40℃; Humidity: 35%-80% |
Packaging size | 45.8kg (86*62*48mm) | 25.5kg(61.5*48.5*38.5 mm) | 22kg(51*40*38.5mm) |
Product Description:
1. Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves .
2. UTECH 3040 3axis 800W - is a professional mini- size machine with working area 300 x 400 mm (30 x 40 cm). Has the most powerful ruler in the spindle: XYZ. The spindle has a water cooling - it provides reliability and long service life.
3. Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.
4. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of
cutting (letters and labels , signs , models ) , drilling.
How to use:
A picture shows the process of Cnc Router.
| Step | Graphic Design | Tool Path Design | Controlling Software |
| Software | JDPaint, PS, CDR, CAD, UG, 3Dmax | JDPaint, Artcam | Mach3/Nc-studio |
| Carry Out | Plane anaglyph: Grayscale, JDPaint picture… Fruit pit carving: stl. Drill slot milling: DXF, dwg, plt | Set the parameters of knife road, material, cutter and motor, and export G code. | Export G code to control software, automatic processing. |
Please see the English user manual to see how to set up the software and how to use this machine.
1. Assembling and locating the CNC machine on steady desk well.
2. Make sure that your computer has a on-board parallel port output.
3. Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.
4. Connecting the control box with the CNC machine and you computer.
5. Fllowing our manual or guideline to set uo the software.
6. You can enjoy making you dream with using our CNC machine now.
Accessories show
Product use:
A. Used in PVC, acrylic, organic glass, double color board, engineering plastic electric wood, solid wood and other soft metal materials.
B. Graphite electrode processing, carving PCB circuit board, wood model mold crafts.
C. 3d sculpture of aluminum alloy, copper and other metal materials according to the feed rate.
D. Can be used as a simple three-dimensional numerical control platform, such as numerical control point glue, numerical control positioning, metal marking.
The main types of treatment:
Etching
Cutting
3d- milling
Boring
Milling and engraving on a rotating axis.
Allows you to handle:
Wood
Plastic
Chipboard, MDF , plywood
Light metals (copper, aluminum , brass)
Main areas of application:
Advertising industry
Creative workshops
Jewelry / designer items
Merchandise
Interior and decor elements
Production process
Packing list:
1× CNC 3040 Engravine machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors

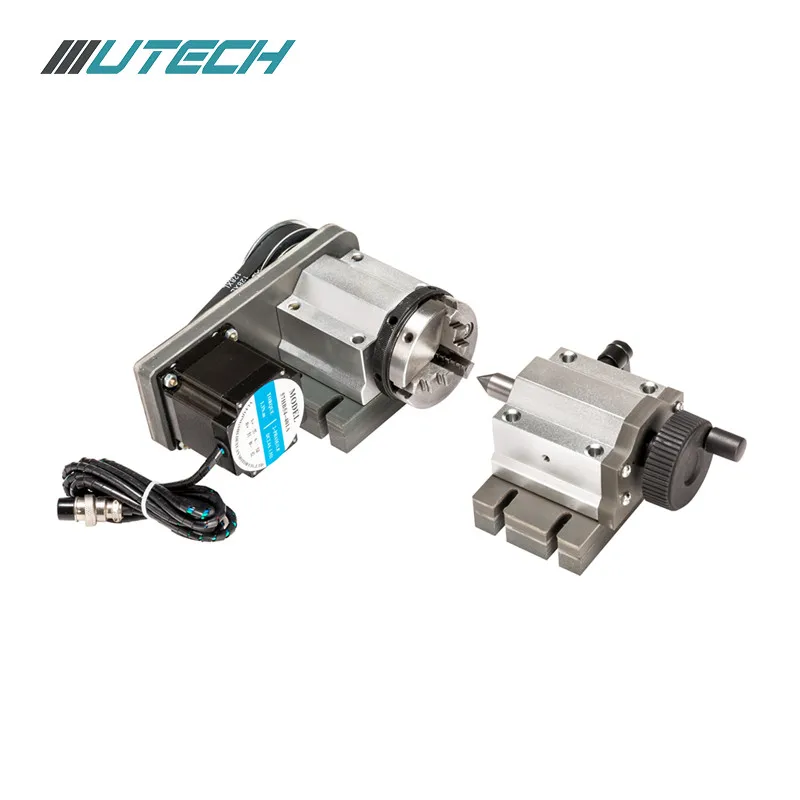

1× Rotation axis(optional)
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us).
FAQ
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ trademanager online service.
2) If machine have any problem after I receive it, how can I do?
Free parts send to you in machine warranty period.
3) MOQ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? (Very easy and flexible! )
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price, shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F. Send your order by air or by sea.
Company Information
Shandong U-MAY CNC Technology CO., LTD. Specializes in the research, development, production of CNC MACHINE. Our brand “WIN” has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising, craft gifts, packaging and printing, logo and etc. Our products have been exported to many countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy “Integrity-based, constantly innovation, effective communication, quality services” and the goal of “Technical service customer”,but also great attention to product design, manufacture, installation, adjustment. We will still try our best to maintain one-stop professional service.
FAQ
1. Are you manufacturer?
Yes, We have rich experience in developing, manufacturing and selling CNC router, we sell directly and provide after sale service.
2. How long is the warranty period ?
24 Months
- Any technical questions can be answered by email / call / social software within 12 hours.
- components can be replaced by express delivery.
- our engineer can come to your factory to repair the machine if you need.
3. What about the training?
- We provide English instruction and video about how to use the machine.
- Your workers can come our factory to receive training.
4. Why your machines are much more expensive than other supplier?
We provide high quality CNC Machines only, our machine seldom need to be repaired and we have many heavy customers in both China and abroad , so we never offer cheap item to ruin our reputation.
5. Can I have a sample to check?
Sure, you can send the drawing of your product to us, and processed samples sent to you by express delivery.
