Automatic Intelligent Fiber Fusion Splice For IPG MAX Raycus JPT Laser Source 10um 400um Fiber Laser Cable Repair Testing
- Category: >>>
- Supplier: Demark (Wuhan) Technology Co. Ltd.
Share on (1601275064075):
Product Overview
Description
Product Description
Title goes here.

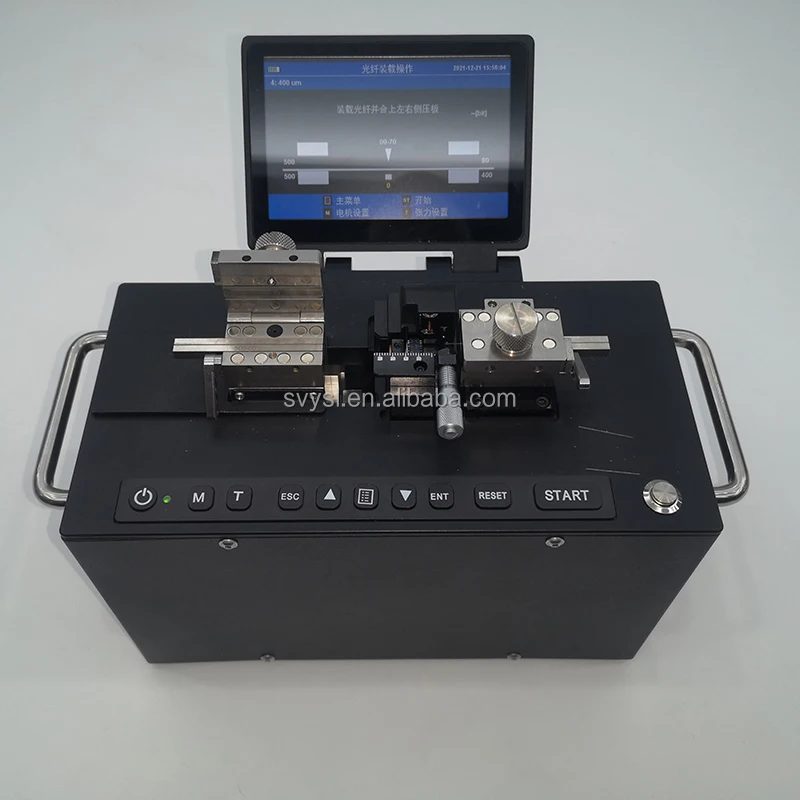

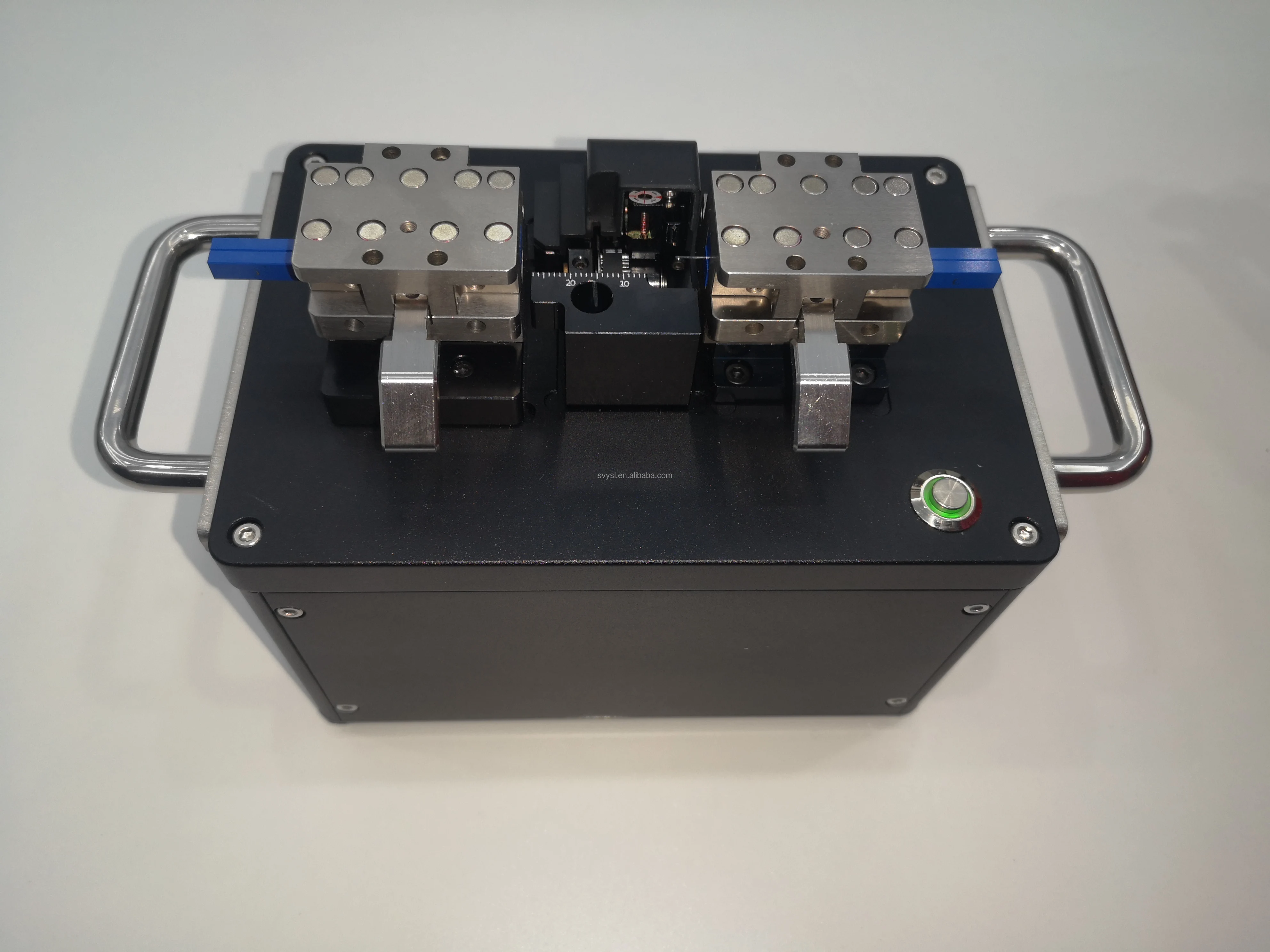

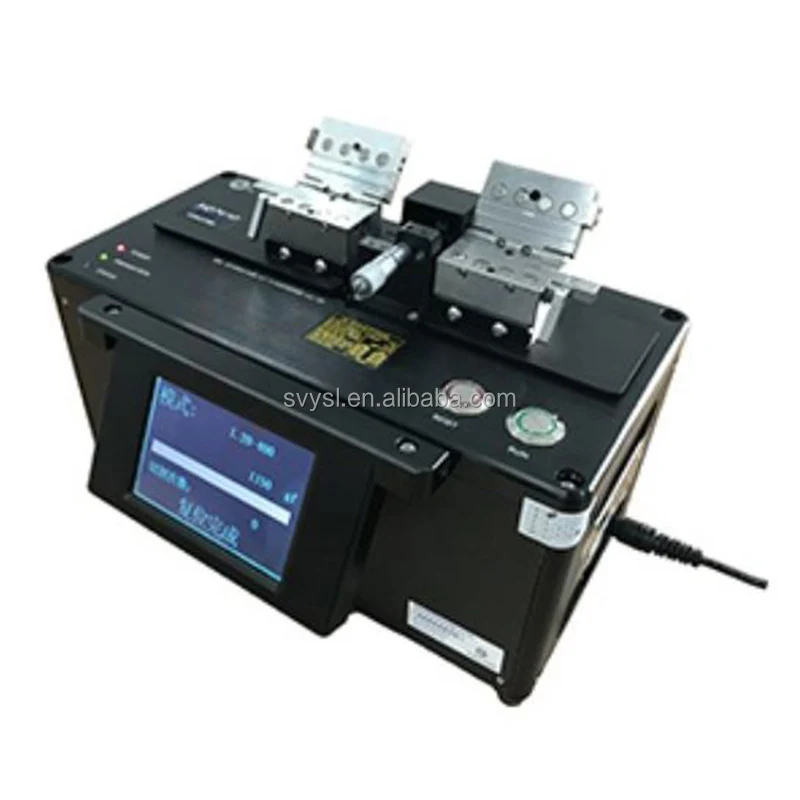

Optical Fiber Fusion Splicer
The heat source of the two-electrode polarization-maintaining fiber fusion splicer is a two-electrode arc. It can splice quartz
fiber, polarization-maintaining fiber, large-core fiber, and special fiber. It has the function of fiber end face imaging
observation, which can more conveniently observe the fiber cutting quality and polarization-maintaining fiber axial alignment. At
the same time, it can replace fiber clamps of different specifications to meet the requirements of splicing of fibers with
different core diameters.
The heat source of the two-electrode polarization-maintaining fiber fusion splicer is a two-electrode arc. It can splice quartz
fiber, polarization-maintaining fiber, large-core fiber, and special fiber. It has the function of fiber end face imaging
observation, which can more conveniently observe the fiber cutting quality and polarization-maintaining fiber axial alignment. At
the same time, it can replace fiber clamps of different specifications to meet the requirements of splicing of fibers with
different core diameters.
Specification
Applicable fiber | Single mode/multimode/polarization-maintaining |
Left/right clamp movement length | 0-3mm |
Fiber coating diameter | ＜1200um(customizable) |
Fiber cladding diameter | ＜400um(customizable) |
Polarization-maintaining fiber cladding diameter | ＜200um(customizable) |
Fusion time | 15-40S typical |
Fiber fusion loss | Ordinary fiber ≤0.03dB, polarization-maintaining fiber ≤0.05dB |
Heating stage length | ≤60mm |
Heating stage temperature | ≤250° (adjustable) |
Fusion mode | Manual fusion/automatic fusion |
Display size | 7.0-inch high-resolution color LCD display |
Fiber image magnification | 7.45 times |
CCD field of view | 644x483 (customizable) |
Alignment method | Cladding alignment |
Polarization-maintaining fiber imaging | Left/right side end face imaging |
Polarization-maintaining fiber alignment mode | 0°/45°/90° |
Extinction ratio | -30dB |
Fusion procedure | MAX: 100 editing parameters |
Working environment | Temperature: 0-40℃/Humidity: 5-95%RH |
Power supply | 12V power adapter |
