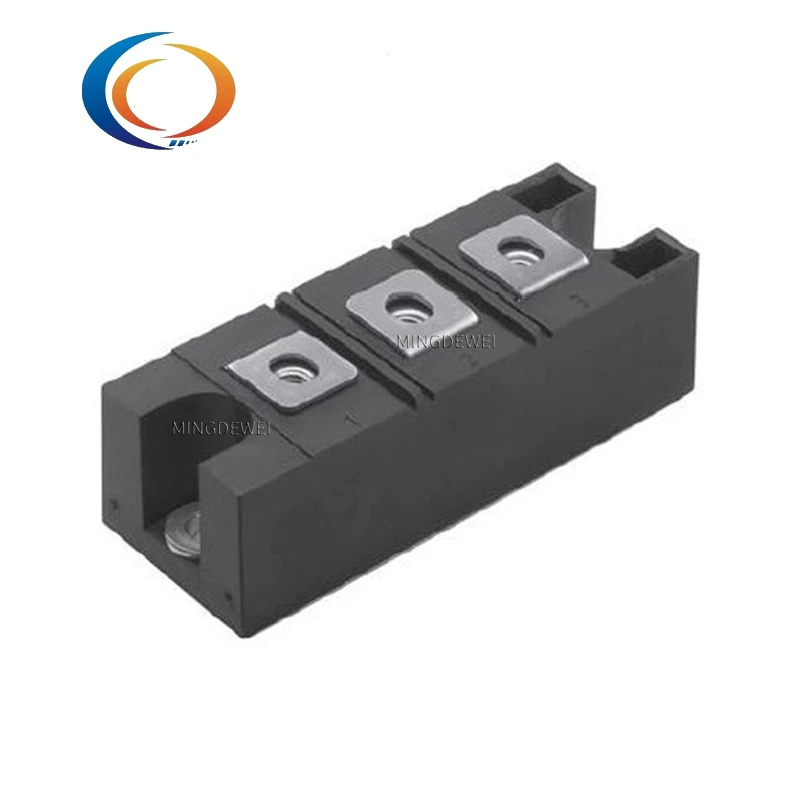

VS VSKL300 08PBF module MODULE THYRISTOR 300A INT A PAK IGBT

Product Overview

Description

Packaging	Bulk
Part Status	Active
Structure	Series Connection - SCR/Diode
Number of SCRs, Diodes	1 SCR, 1 Diode
Voltage - Off State	800 V
Current - On State (It (AV)) (Max)	300 A
Current - On State (It (RMS)) (Max)	116 A
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	6500A, 6900A
Current - Hold (Ih) (Max)	600 mA
Operating Temperature	-40°C ~ 140°C (TJ)
Mounting Type	Chassis Mount
Package / Case	INT-A-Pak
Base Product Number	VSKL300
