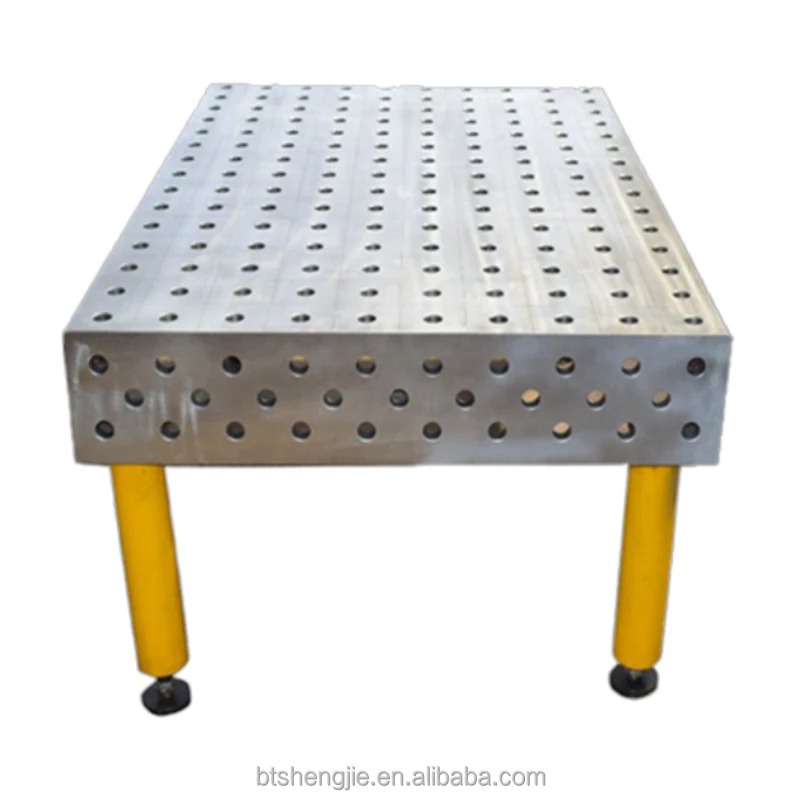

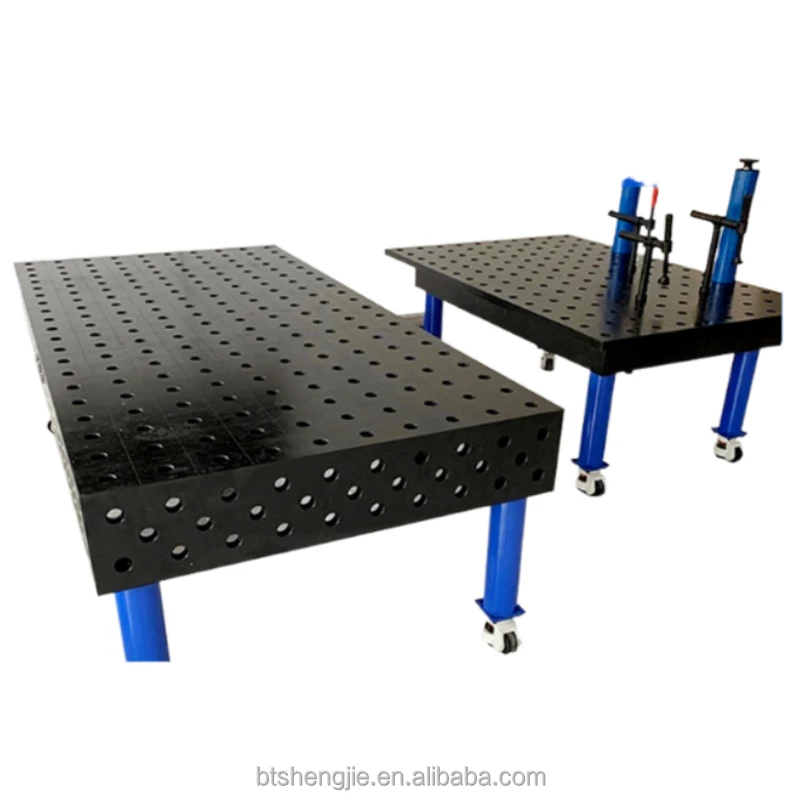

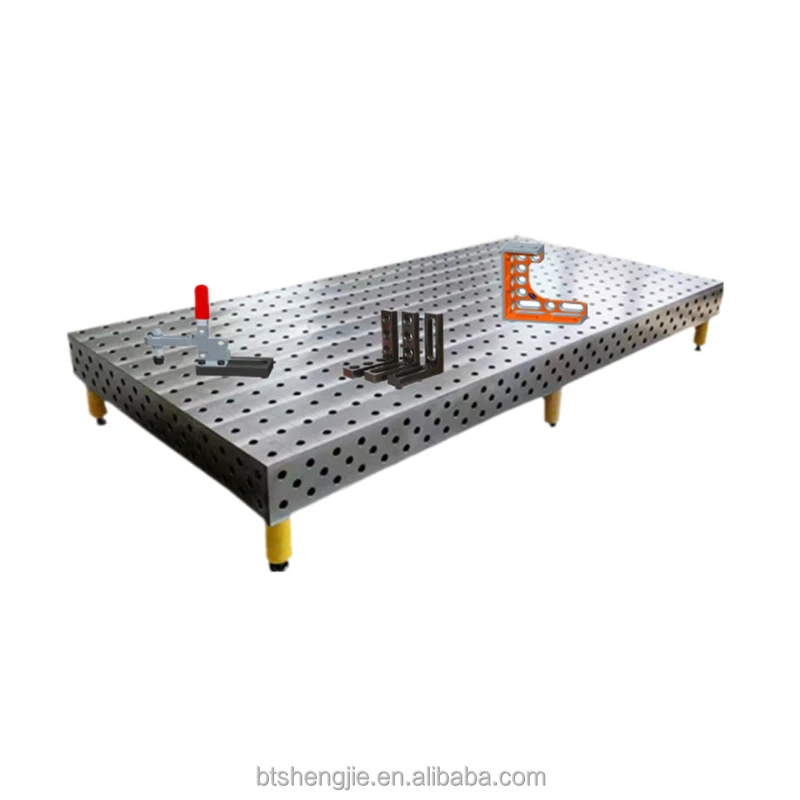

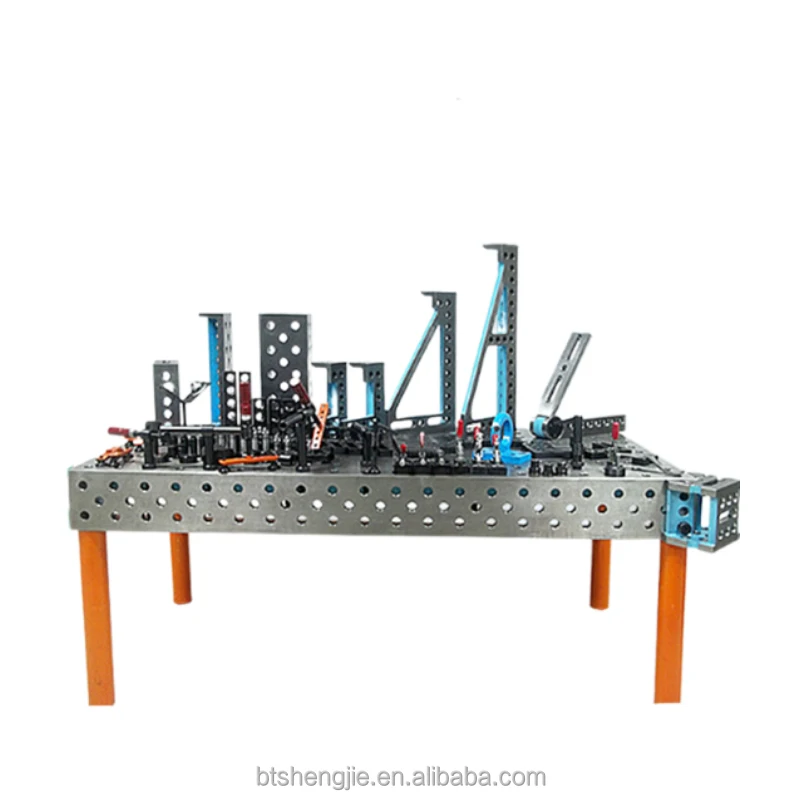

Cast Steel Iron Welding Table Reusable Fixture Rotating 3D Welding Table on Wheels
- Category: >>>
- Supplier: Botou Shengjie Machinery Manufacturing Co. Ltd.Botou Ltd.
Share on (1601275148593):
Product Overview
Description
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
No | Size (length * width * height) | Hole diameter | Hole spacing | Material thickness |
1 | 1000*1000*200mm | 28mm | 100mm | approx.23mm |
2 | 1000*1500*200mm | 28mm | 100mm | approx.23mm |
3 | 1000*2000*200mm | 28mm | 100mm | approx.23mm |
4 | 1200*2400*200mm | 28mm | 100mm | approx.23mm |
5 | 1500*2000*200mm | 28mm | 100mm | approx.23mm |
6 | 1500*3000*200mm | 28mm | 100mm | approx.23mm |
7 | 2000*3000*200mm | 28mm | 100mm | approx.23mm |
8 | 2000*4000*200mm | 28mm | 100mm | approx.23mm |
Product Overview
Product Overview

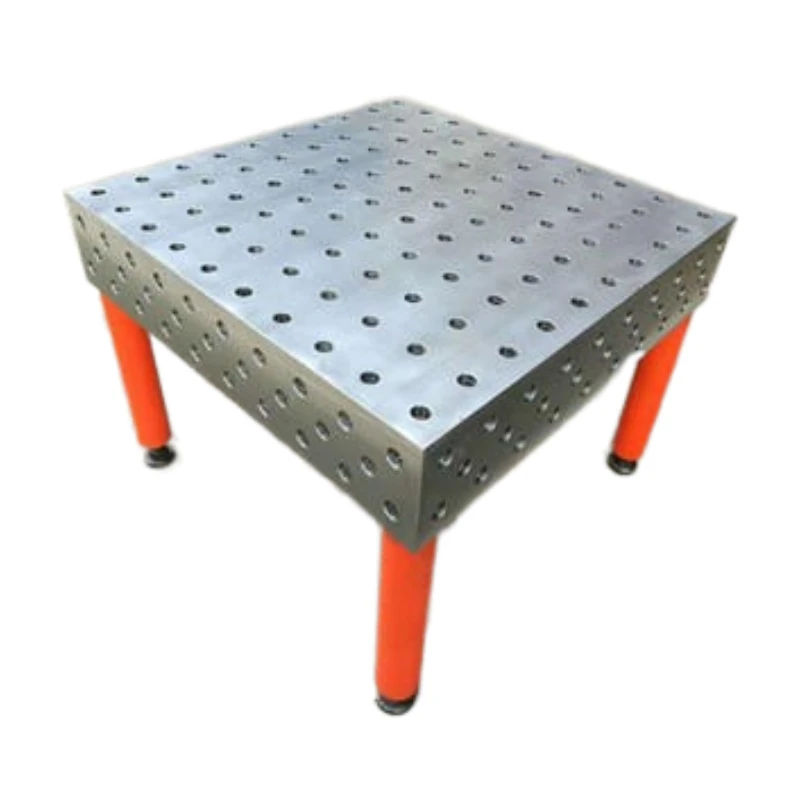

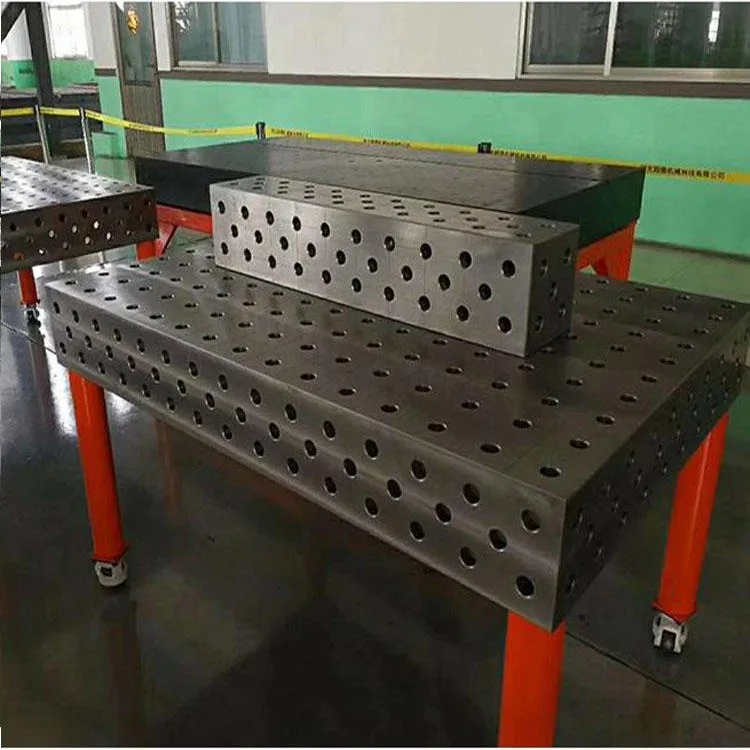

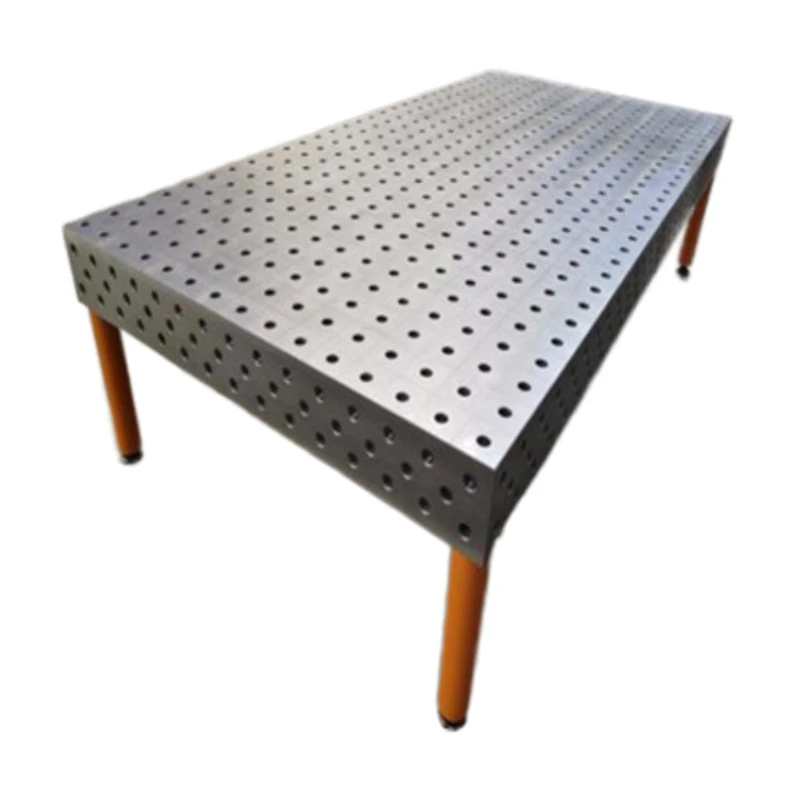

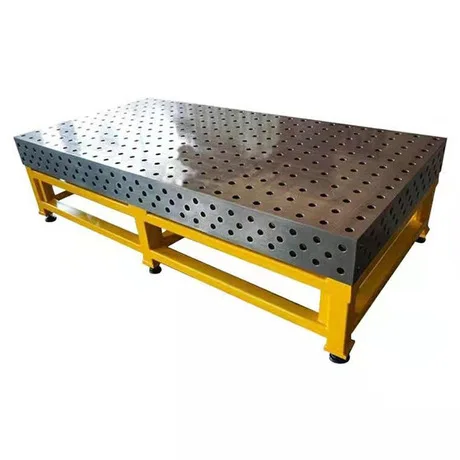

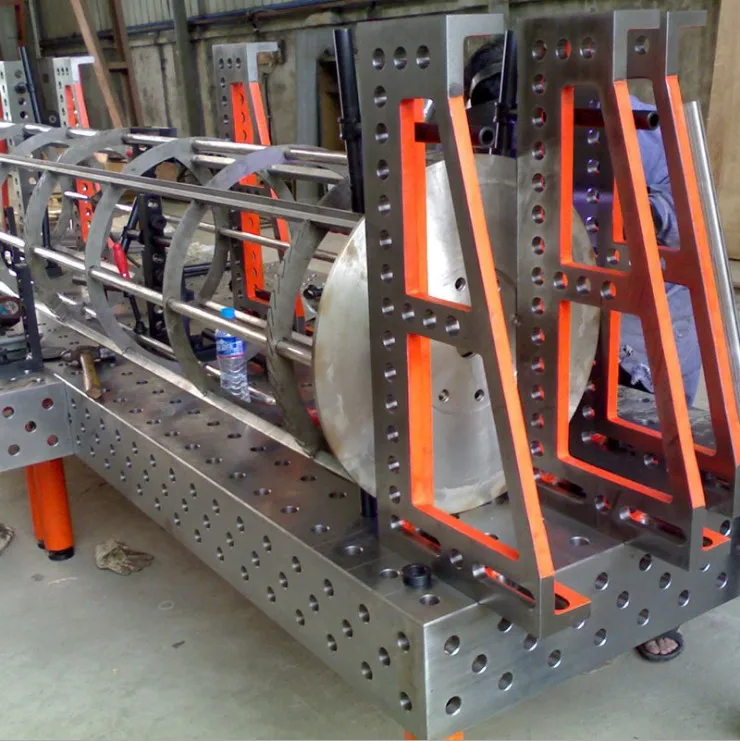

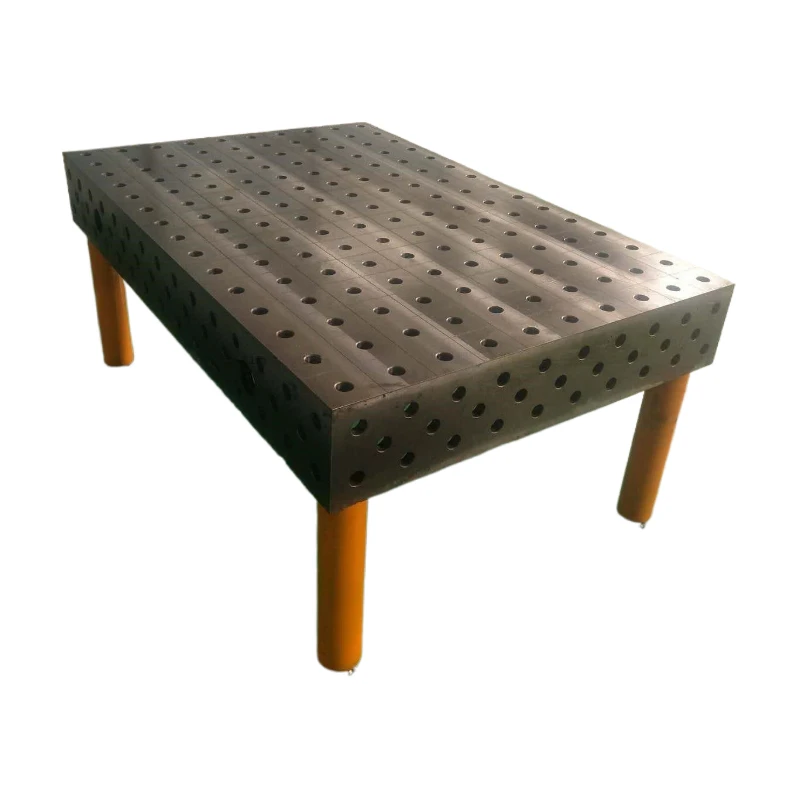

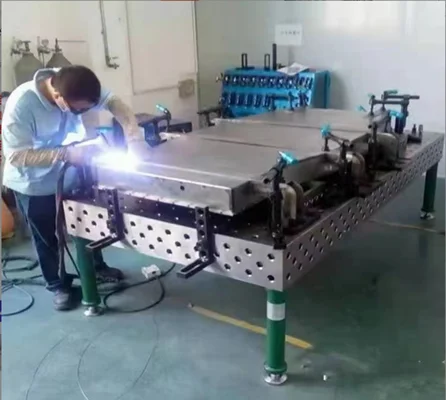

Three-dimensional flexible welding platform

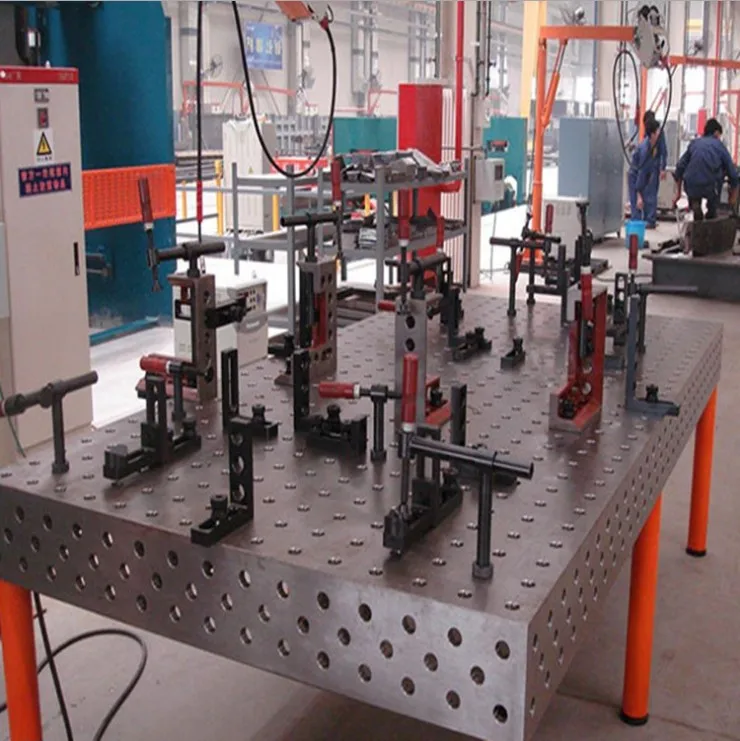

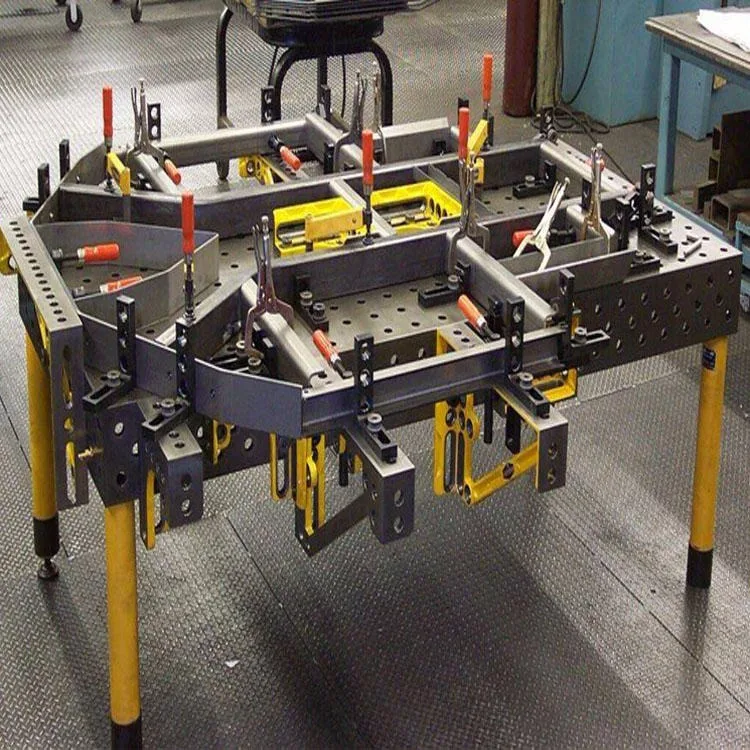

Three-dimensional flexible combination welding platform is a set of flexible tooling which is composed of the main part hole
system platform and various accessories, and can be used to complete the clamping of various specifications of products. Its
advantages are recyclable, positioning clamping, in the three-dimensional space can be extended to expand the working area.
system platform and various accessories, and can be used to complete the clamping of various specifications of products. Its
advantages are recyclable, positioning clamping, in the three-dimensional space can be extended to expand the working area.
Universal 2D, 3D tooling platform (Φ16, Φ28 hole system)
1. Flatness of the tooling platform: ≤0.15mm/1000mm 2.3D platform plane and side perpendicularity: ≤0.1mm/1000mm 3.Material:HT300,
subjected to integral step heat treatment to eliminate internal stress 4.Pitch position tolerance: Within ±0.05mm
subjected to integral step heat treatment to eliminate internal stress 4.Pitch position tolerance: Within ±0.05mm

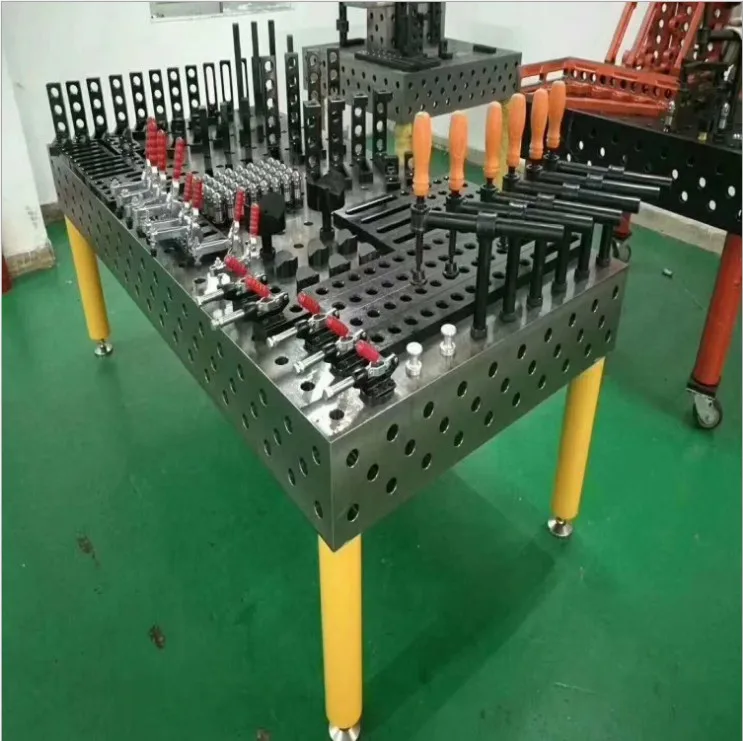

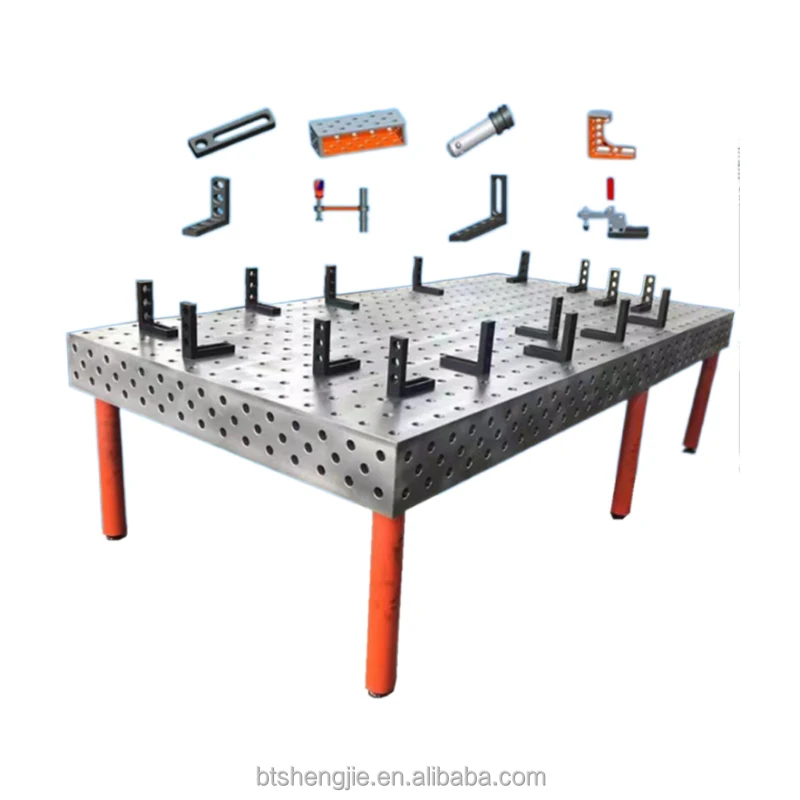

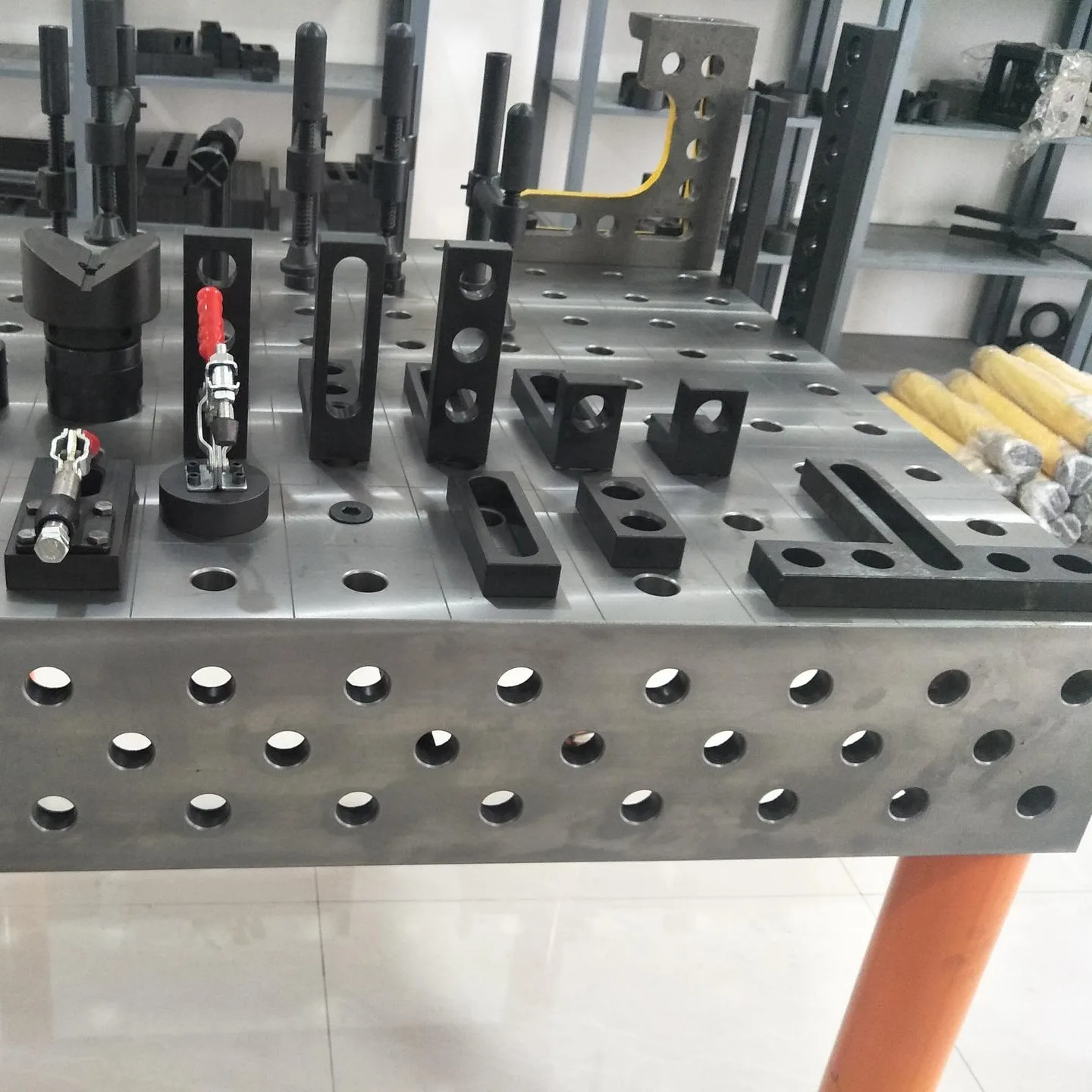

PRODUCT CONFIGURATION
PRODUCT CONFIGURATION
Positioning square square
Clamping device
Quick lock pin
