Full Hydraulic Heavy duty Single Drum Vibratory Roller SWR226H For sale
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (1601275217693):
Product Overview
Description
Products Description
SINOWAY SWR226H powered by a robust WEICHAI engine and equipped with a versatile padfoot shell. Engineered for optimal performance in challenging compaction tasks, this road roller is ideal for large-scale construction projects, including road building, embankment compaction, and landfills. Its combination of powerful vibration, reliable engine performance, and specialized padfoot shell design ensures superior compaction efficiency and operational reliability.
Product Paramenters
Engine | |
Engine | CUMMINS / WEICHAI / SDEC |
Type | Water-cooled, six-cylinder, four-stroke, turbocharged, electronically controlled, high pressure common rail diesel engine |
Rated power | 154kW/2200rpm |
Max. torque | 920N.m/1300~1500rpm |
Displacement | 6.5L |
Average fuel consumptions | 210g/kW.h |
Transmission System | |
Type | Hydrostatic |
Grade ability | 45% |
Travelling speed | |
1st gear (Forward/Reverse) | 0~4.0km/h |
2nd gear (Forward/Reverse) | 0~5.5km/h |
3rd gear (Forward/Reverse) | 0~6.0km/h |
4th gear (Forward/Reverse) | 0~10km/h |
Travelling pump | Piston pump |
Travelling motor | Piston pump |
Main Specification | |
Operating weight | 26000kg |
Type | Hydrostatic vibration |
Frequency | 28/32Hz |
Amplitude (High/Low) | 2.0/1.0mm |
Static linear load | 768kg/mm |
Drum shell thickness | 40mm |
Centrifugal force(high ampl.) | 480KN |
Centrifugal force(low ampl.) | 375KN |
Working pressure( Driving system ) | 38MPa |
Working pressue ( Vibrating system ) | 38MPa |
Service Capacities | |
Fuel tank volume | 280L |
Hydraulic oil tank volume | 170L |
Engine oil volume | 16L |
Liquid coolant volume | 40L |
Rear axle oil volume | 29L |
Reducer oil volume | 4.5L |
Dimensions | |
Overall length | 6450mm |
Overall width | 2520mm |
Overall height | 3255mm |
Drum width | 2170mm |
Wheel base | 3250mm |
Drum Dia. | 1600mm |
Tyre size | 23.5-25-16PR |

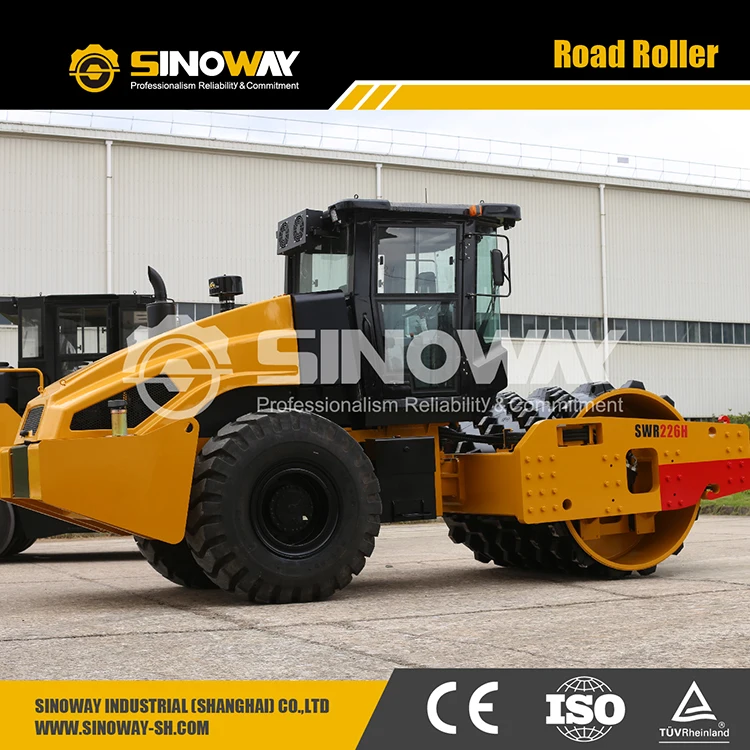

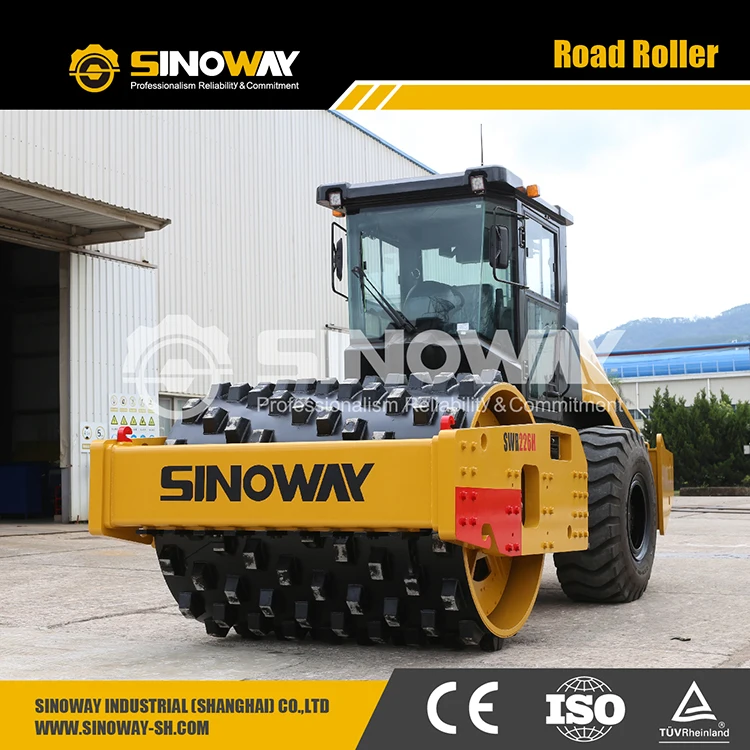

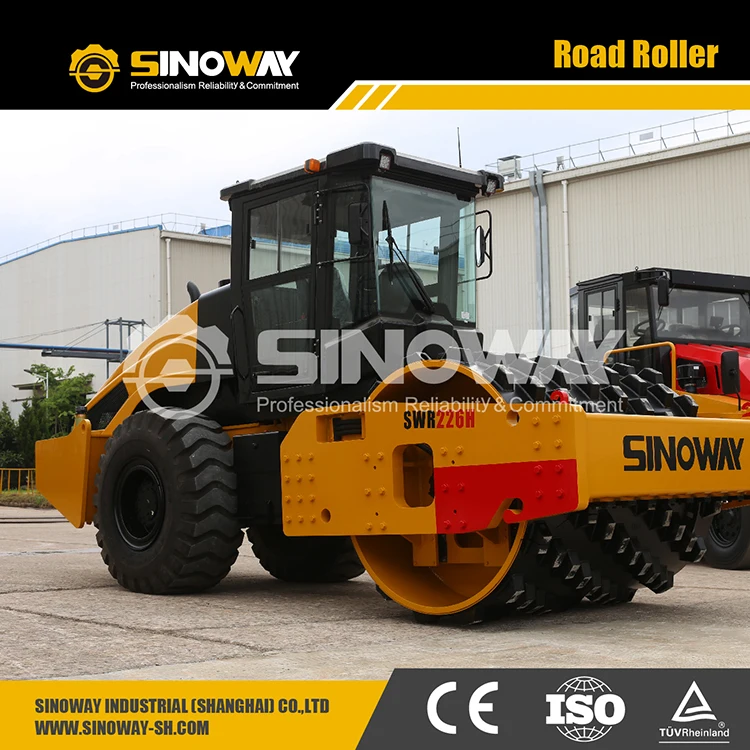

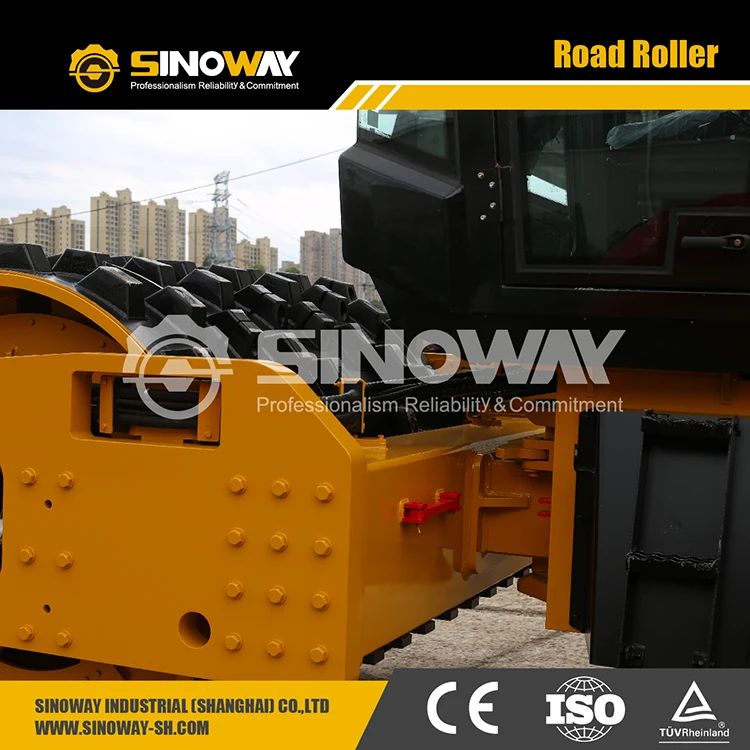

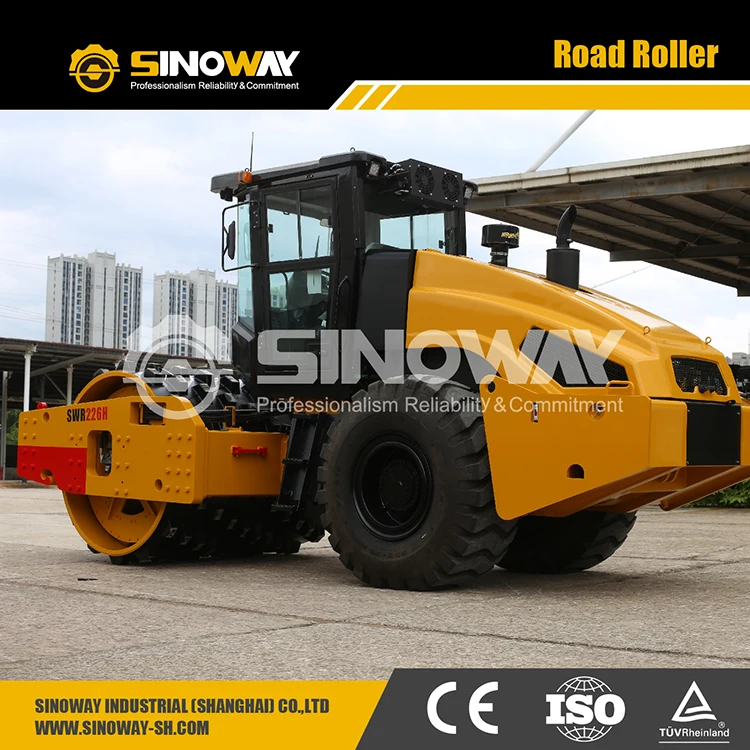

Machine Show
Why Choose us
We Recommend

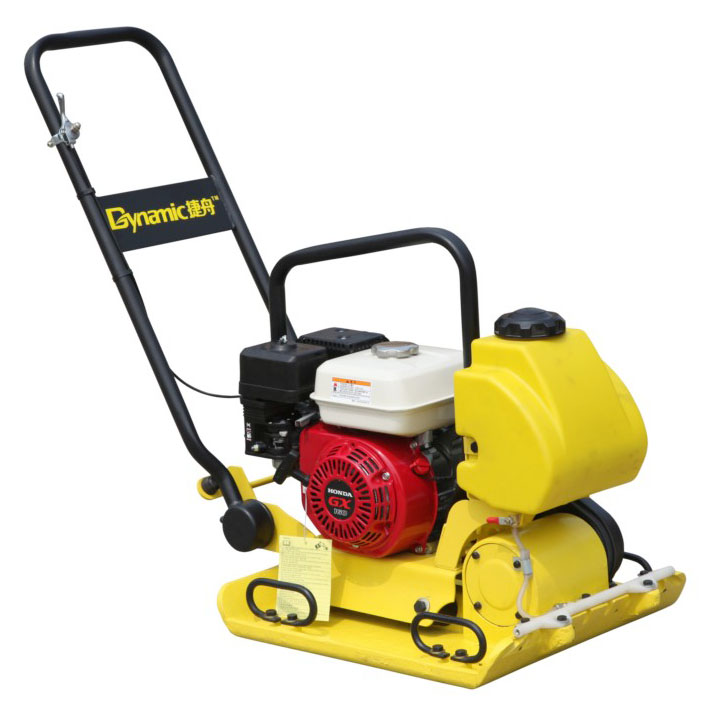

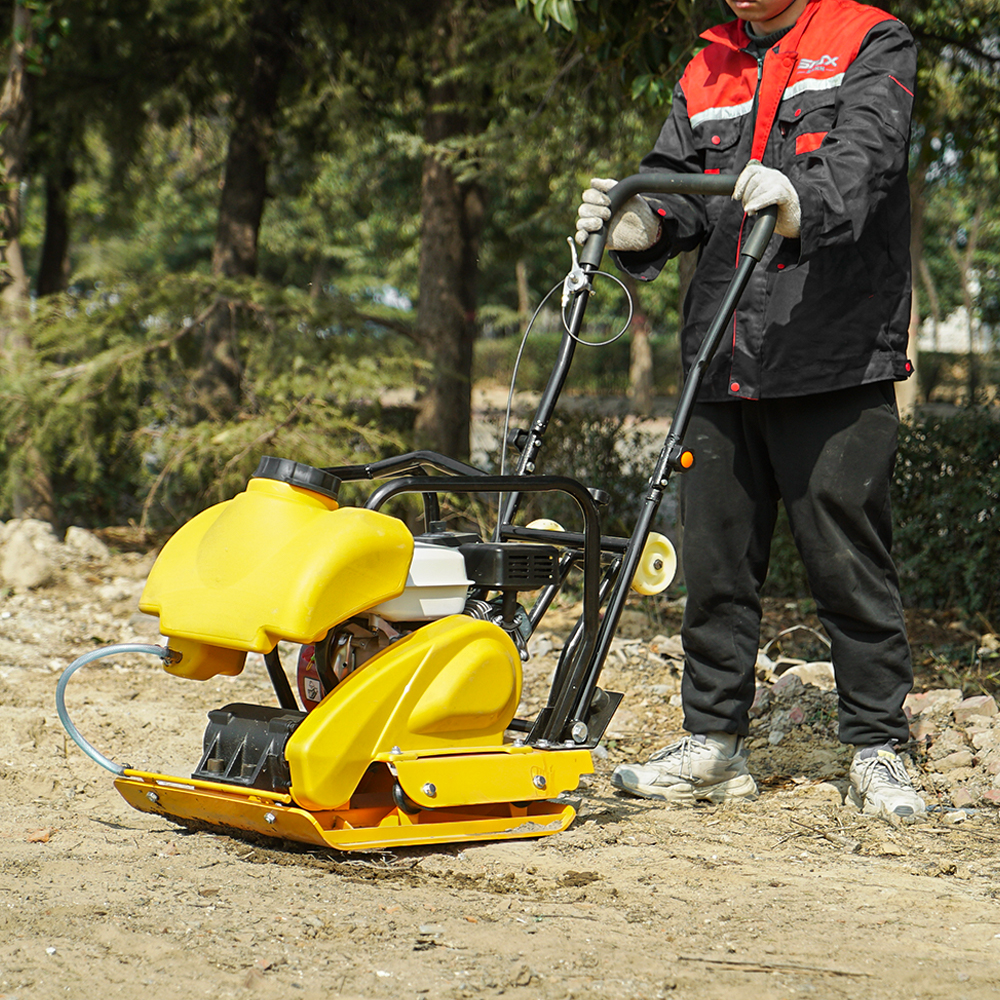

C90T petrol plate compactor machine price
US $99.00-$110.00

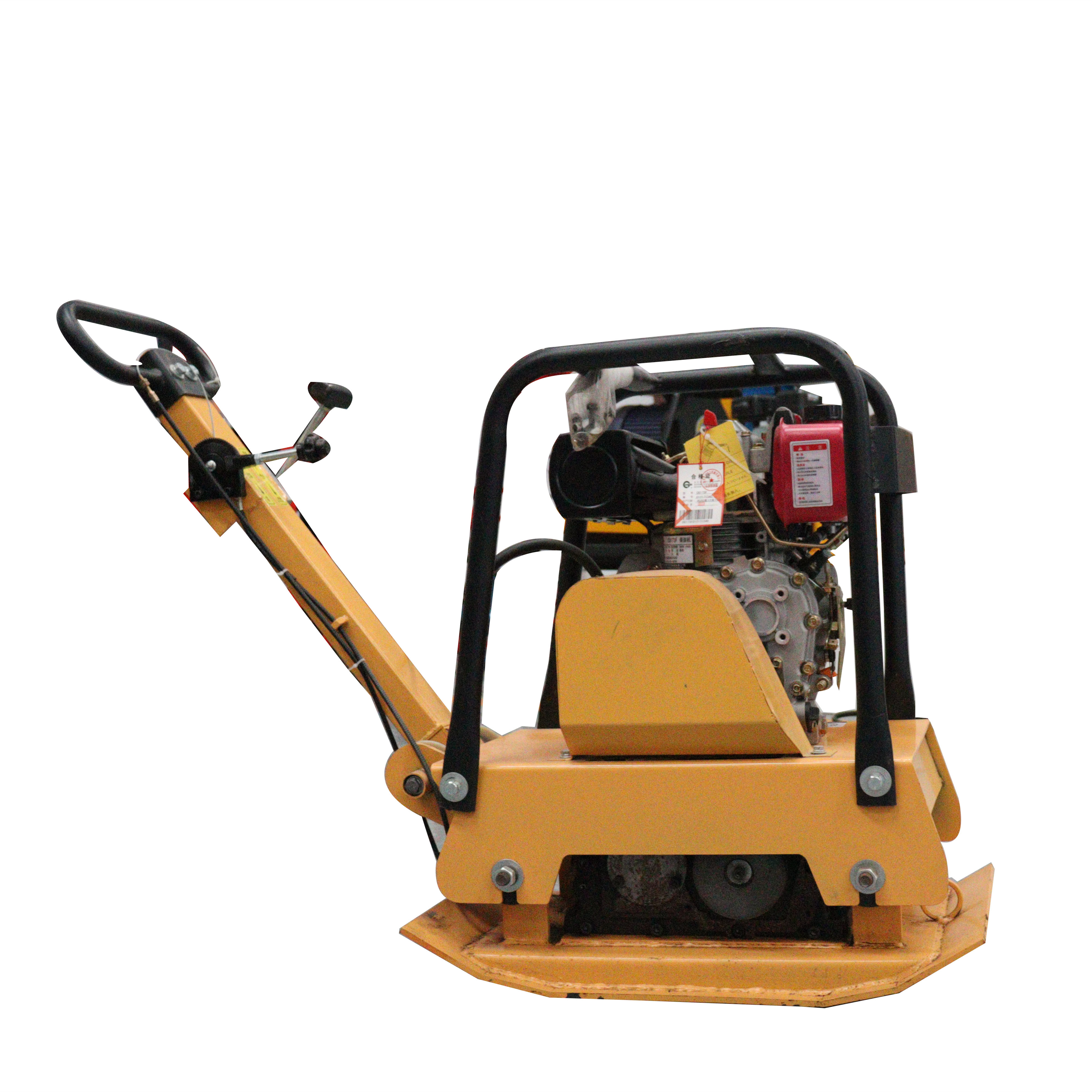

HZR-90 Factory Price Electrical/Gasoline Hand Vibratory Plate Compactor
