ropp capper, automatic bottle sealing machine screw cap cappingi machine for wine bottle

Share on (1601275319177):


Price:

Quantity:


Product Overview

Description



ropp capper, automatic bottle sealing machine
This capping machine sealer is adapt for ROPP cap,stelvin cap,sleeve closure,aluminum screw cap,lid.closure
It requires the clearance between inner diameter of bottle cap and outer diameter of bottle mouth is 0.10-0.15mm; the height from inner cushion of the bottle cap to bottle mouth is greater by 0.3-0.5mm than one of bottle mouth.
Features:
This series of capping machines are specially designed for the sealing of twist-off aluminum anti-theft caps and bottle mouths.
Tight sealing: no gaps, no scratches, and tight bottom sealing
Wide adaptability: The capping head can choose a German flat pendulum head or a four-wheel balance lever head.
The bottle cap damage rate is small: the bottle mouth positioning device is adopted, the bottle mouth and the sealing head are positioned more accurately, and the utilization rate of the bottle cap is improved.
High degree of automation: It is equipped with automatic lid sorting and automatic lid hanging functions, and can be equipped with an automatic lidding device to realize fully automatic functions.
Long service life: the sealing wheel is made of special material, wear-resistant.

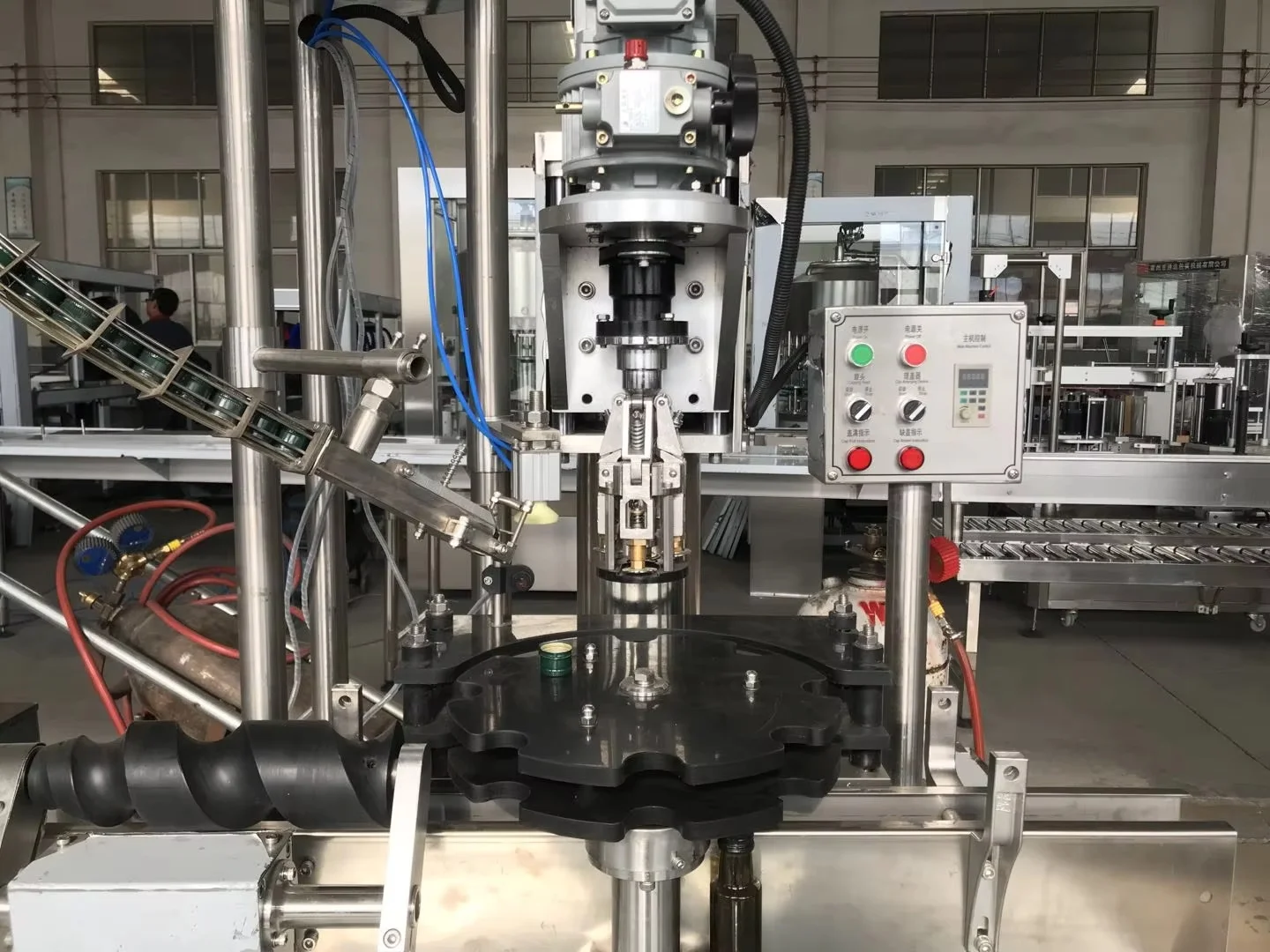

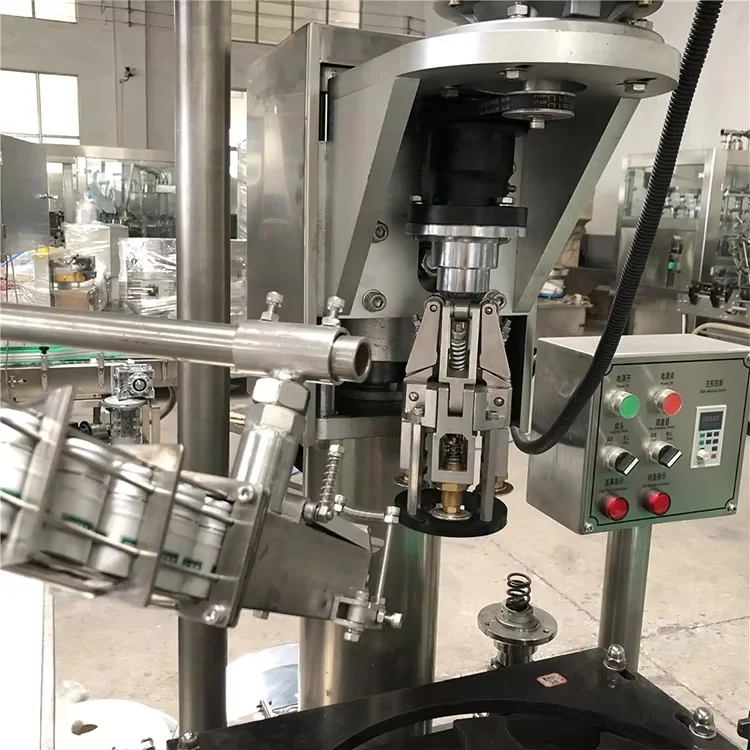

one nozzle aluminum lid closure
one nozzle aluminum caps sealing machine,above type with press/plug head,this cap with inner caps,it can be application for glass bottled oil....

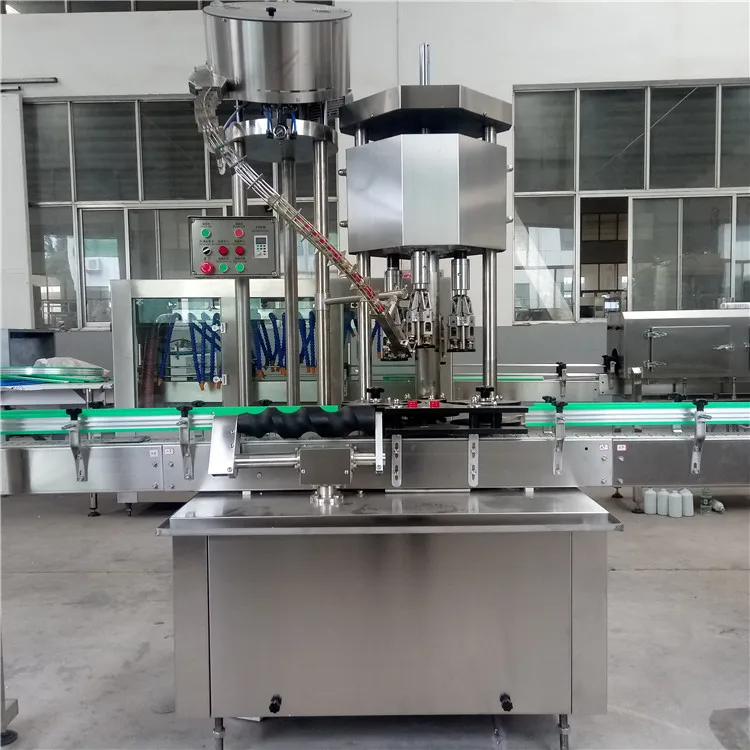

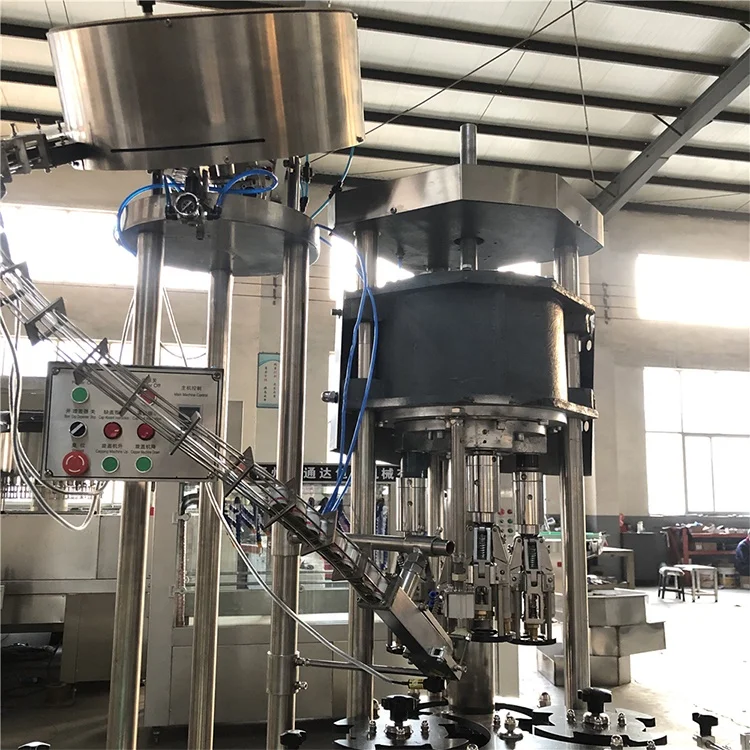

4nozzles aluminum lid closure machine
the capability can reach 4000-4500bottles per hour

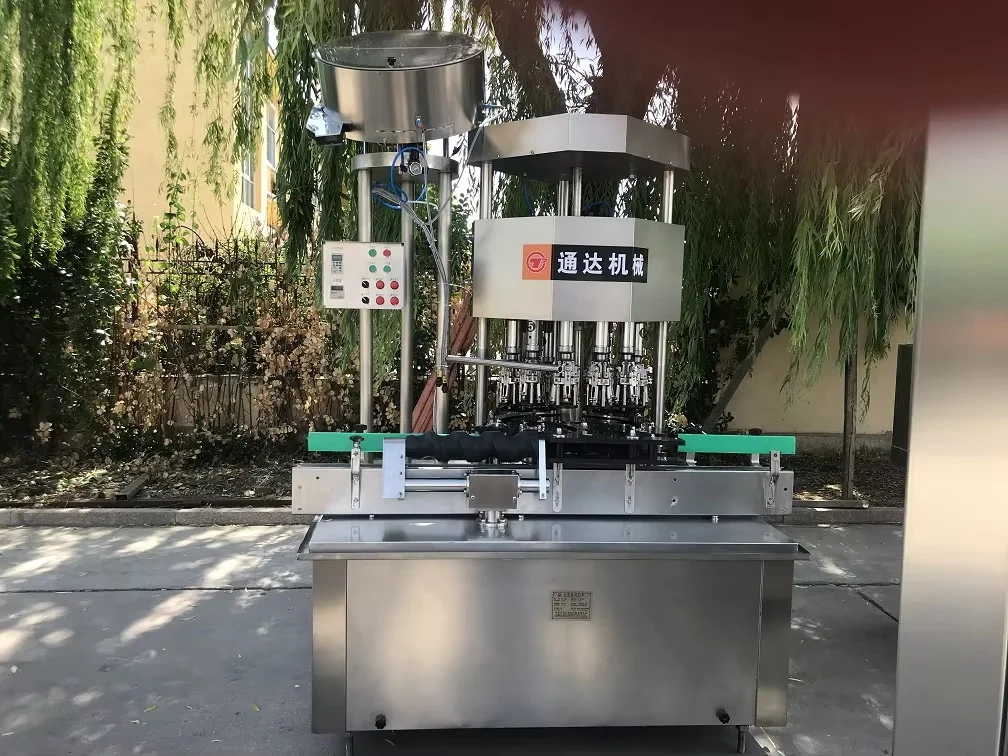

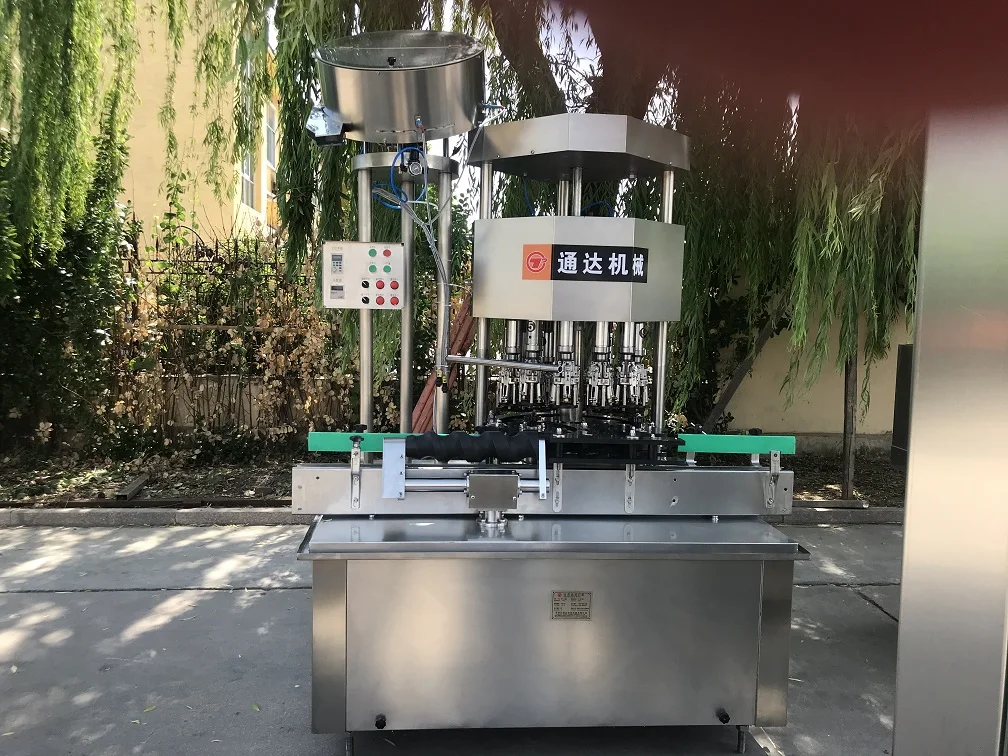

6heads aluminum caps sealing machine,the capability can reach 6000-6500bottles per hour

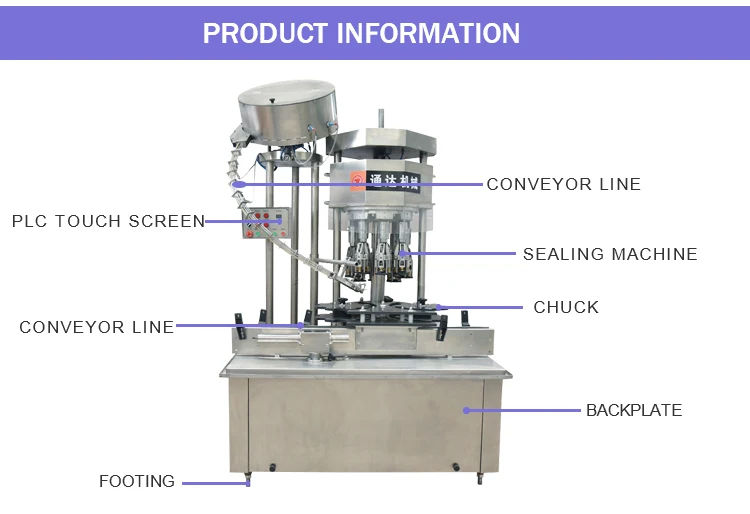

Detailed Images

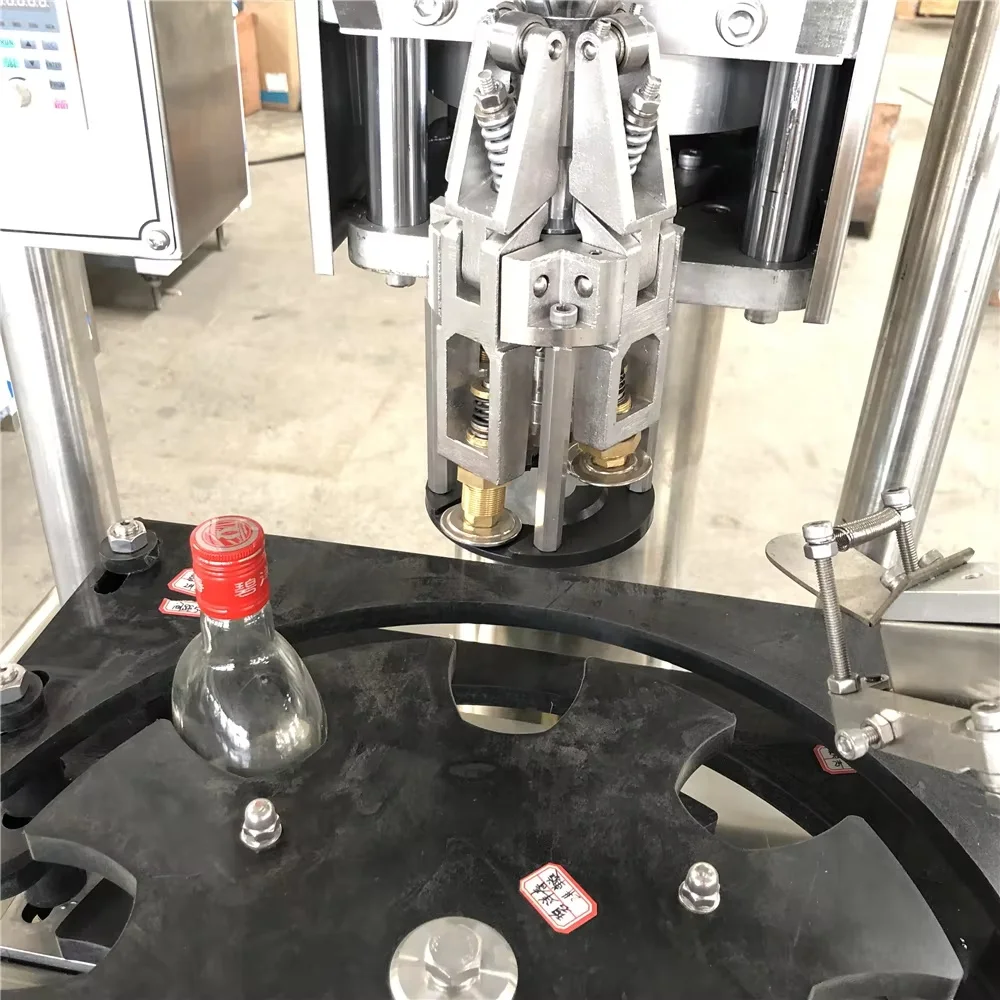

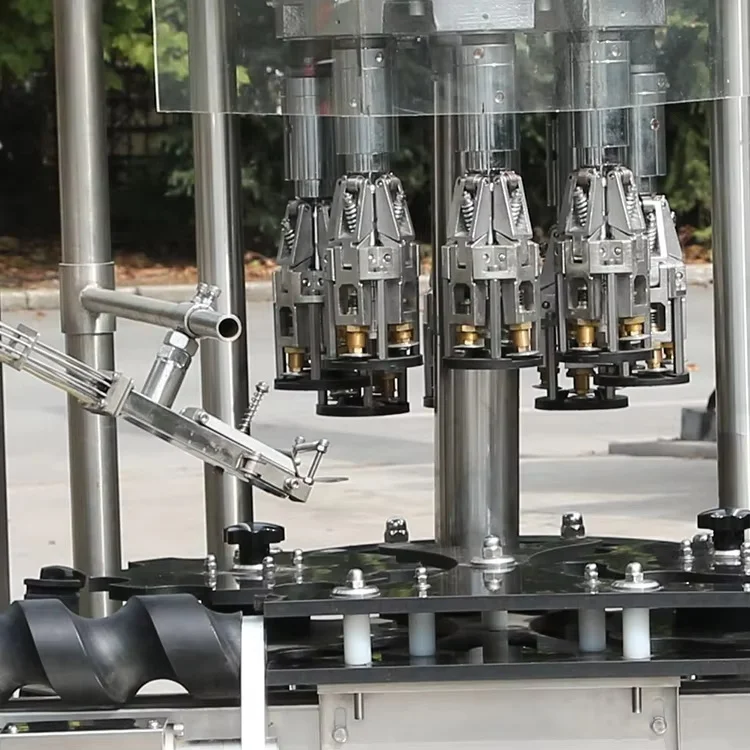

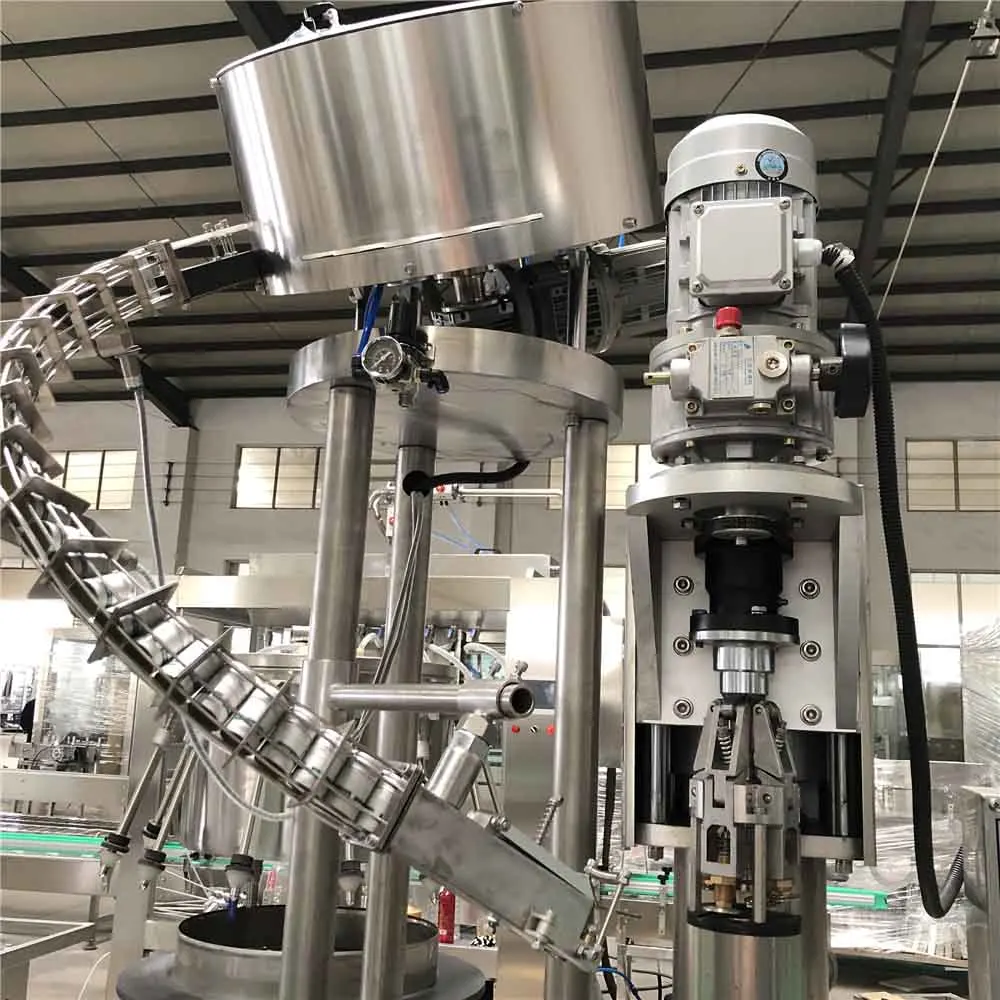

aluminun lids sealing heads
The advantages are: first, the four-jaw balanced head is adopted in the structure, and the force is evenly applied during sealing; the second is the sealing function of first deforming the bottle cap according to the shape of the bottle mouth, and then rolling the thread and flanging.


hopper
storage the caps
once can put several hundreds caps,auto drop
and put caps.there are lots probes on the chute,it sense the caps lack or full.
auto drop caps or stop


chute
caps feeder aisle,the chute width and height depend on outer diameter of cap and height,
generally,difference 1mm with cap diameter.
when you have various types caps,pls tell us your every cap'outer diameter and height.
we would custom matched chute for you.


hand wheel
adjust the capping heads height,to adapt for the bottle's height


screw
the screw is nylon materials,durable,dial bottles entering into below capping heads


star wheel
the star wheel dial the bottles turing,materials:nylon,food grade

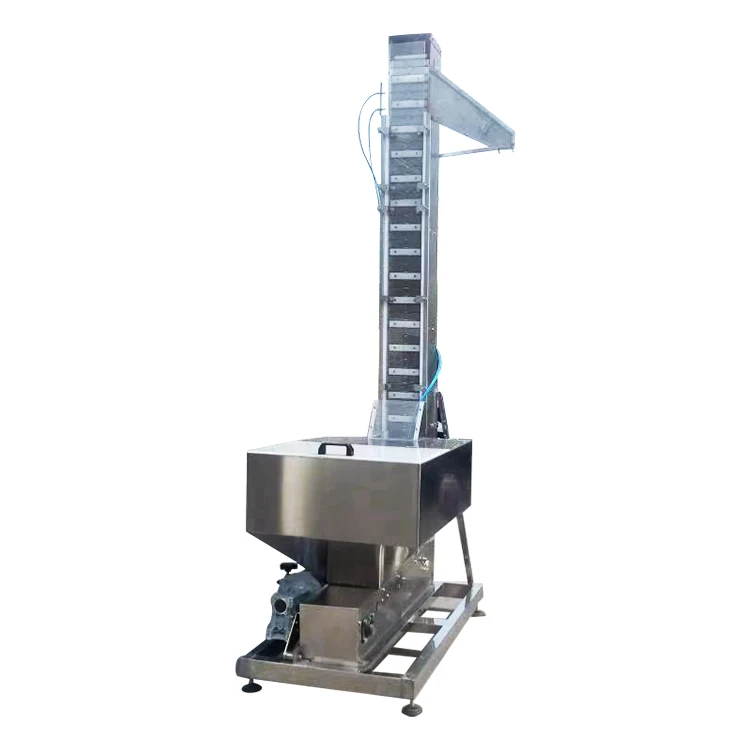

elevator
auto lift the caps into hopper,
once can put thousand caps,and convenyor belt to transfer to top.


model
output
power
adapt bottle diameter
adapt bottle mouth diameter
bottle height
dimension
TY-A
2000b/h
0.75kw
30-90mm
20-32mm
100-330mm
L1000*W1100*H1700mm
HYF-4
4500b/h
1.5kw
30-90mm
20-32mm
100-330mm
L1300*W986*H1925mm
HYF-6
6000b/h
1.5kw
30-90mm
20-32mm
100-330mm
L1500*W1000*H1925mm
HYF-8
8000b/h
2.2kw
30-90mm
20-32mm
100-330mm
L1700*W1100*H2000mm
HYF-12
10000-12000b/h
3.6kw
30-90mm
20-32mm
100-330mm
L2000*W1200*H2000mm

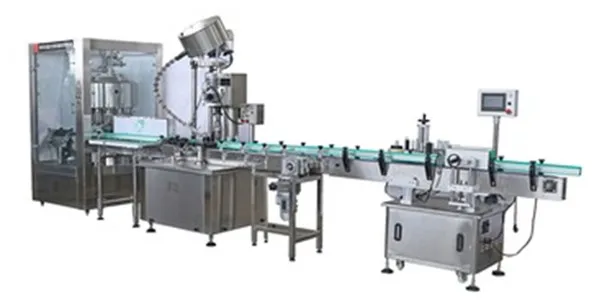

ALUMINUM CAPS/LID IN THE FILLING LINE
the aluminum lid capping machine have seceral kinds,according to different caps need

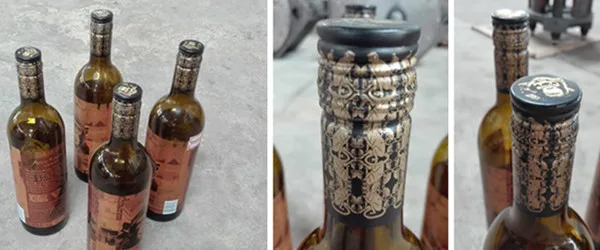

CAP APPLICATION




No.1 Cap Application


The capper is suitable for aluminum screw caps with short sleeve.



No.2 Cap Application

The capper is suitable for aluminum screw caps with long sleeve.



No.3 Cap Application

The capper is suitable for Oil Cap with plastic insert part.


About us

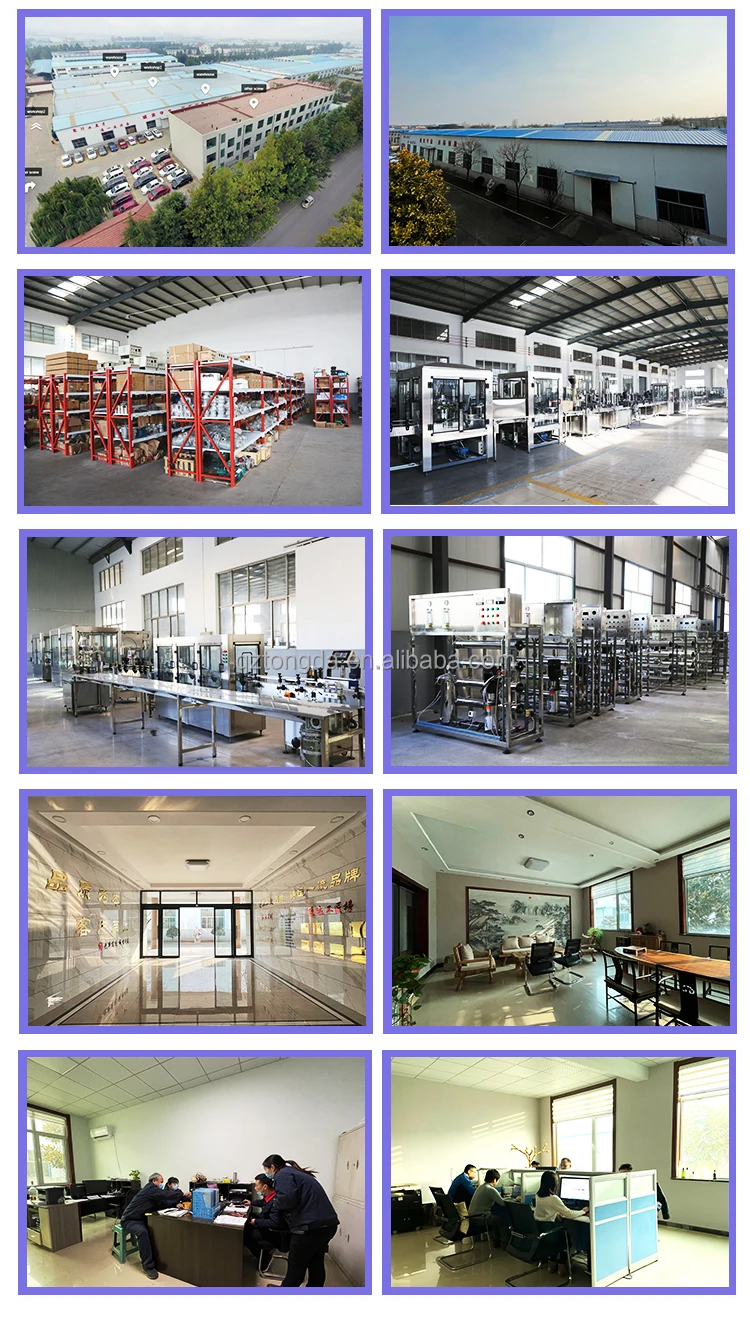

OUR COMPANY OVERVIEW
We are confident about our product quality because of the professional technical team and advanced production workshop and the the quality Assurance system.our workshop is tidy and clean,implement 5S management system,the workers are divided into different teams,like bottle washing/cleaning team,filling fill machine team,sealing clourse team,testing team,pasteurization team.....they have own themselves professional.




clinets visits
our featured machine is wine,including spirits,grape wine filling machine line.
paste liquid including sauce,liquid fertilizer filling machine line,juice containing particulates filling machine line, small bottled pharmaceuticals filling machine line.We make our machinery cover all over the overseas market with the scientific progressive conception and first-class quality products.welcome you to visit us.




we are a professional manufacturer of non-carbonated liquid bottling line equipment, we have more than 15 years' manufacturer experience in this field. We mainly manufacture non-carbonated liquid bottling line, our bottling equipment are mainly used for white spirit, grape wine, fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil……our bottling equipment mainly include bottle loading unscrambler table, bottle washing machine,bottle filling machine, bottle capping sealing closure machine, bottle sterilization pasteurization machine, bottle drying machine, bottle labeling machine,inkjet printer, laser coder, tape carton sealing machine,water treatment equipment……


MACHINE PACKAGING
our machine' volume and weight is big,for advoding damage the machine,we would package with PE film wrapped,then put into wood cartons to ship.the wood carton is fixed and thickness.




OUR SERVICES
we have professional technician team and study staffer.continuously design new machine for every clients provide customed solution.help clients save cost and height operation convenient.
Make your life easier in your day to day business, and help you to improve your line and maintain its performance.
During the production: we will cooperate with buyer and update the manufacturing process
and status to buyers, and we will invite buyer come to test the machine when the goods finishes in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer could inspect the machine.
1.If your bottle supplier in China, you can arrange the bottle supplier to send the bottle sample to me.I will pre-debug the
equipment according to your bottle sample, and shoot video and send it to you for verification.
If your bottle supplier is overseas, you can send the bottle to me at first . I will finish the equipment debugging and shoot video to you if necessary.
Please contact me, I will show you a good TEST Video and give you a very satisfied answer.


about us
We mainly manufacture non-carbonated liquid bottling line, our bottling equipments are mainly used for white spirit, grape wine,
fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil……our bottling equipments mainly include bottle loading table, bottle washing machine, bottle filling machine,
bottle capping machine, bottle sterilization machine, bottle drying machine, bottle labeling machine, inkjet printer, laser coder, tape carton sealing machine……
More information, welcome to contact me:
Mobile/wechat/whatsapp: +8617667188660
E-mail: alexding@tongda-jixie.com


Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.



7/24hours service
1-Machine running video
2-Watch our factory online
3-professional technician team
Customized service
1-the technician do solution as your different bottles and caps.
2-design the drawing layout as your workshop'layout


installation/commissioning/training
1.we would dispatch professional technicians to install and debugging the machine for you.
2.help training the workers till they can operate skillfully
After-sale service
1-After inspection, we provide a 12-month quality guarantee, free wearing parts, and other parts at the lowest price
2. Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.


FAQ


1. What is your sample service?
We can send you the video of the finished machine or you can welcome to visit our company and see the machine running in the factory.
Or if we get the permission of the customer who has brought the machines from us,we can tell you our customers'contact information,you can go to visit their factory.
2. What is your after sale service?
We will send technicians overseas,commissions and operator training.Our warranty period is 12 months,in this period,we provide free parts for buyer as well as the necessary technical support.Out of warranty period,we offer free technical support and the cost of spare parts.
3. How about the spare parts?
After we finish all the things,we will offer you a spare parts list for your reference.
4. What services are there during the production?
We will cooperate with buyers and update the manufacturing process and status to buyers and we will invite buyer come to test the machine when the goods finished in our factory, if the buyer think it is ok,we will arrange shipping or we can make the testing video and send it to buyer.
5. How to customize the service?
We can design the machines according your requirements (material,power,filling type,the kinds of the bottles and so on),at the same time we will give you our professional suggestion.
We can offer free technical support and consultation,draw the factory layout.
