DFBD 40 Ft 20Ft Portable Expandable Container House 2 Bedroom Luxury Prefabricated Villa Granny Flat 40Ft Prefab Mobile Home
- Category: >>>
- Supplier: Tangshan Dongfang Baode Trading Co. Ltd.
Share on (1601275333514):
Product Overview
Description
Main material | Galvanized steel structure with sandwich wall panel and doors, windows, etc. |
Color | White blue, grey, brown, customized color, or adding colorful cladding |
Steel structure | 2.5 mm hot galvanized steel structure with 4mm corner casts and (1) Floor: 18mm MgO board in the middle and 15mm laminate board onboth sides; (2) Adding 2mm PVC flooring; (3) 75mm rock wool ,eps sandwich panel (4) Galvanized steel base plate. |
Columns | 2.5 mm hot galvanized steel structure |
Wall | 75mm EPS/rock woll sandwich panel, or customized PU sandwich panel |
Roof | 3-4mm Hot galvanized steel structure with 4 corner casts and (1) Galvanized steel roof covering; (2) 50mm eps sandwich panel sandwich panel. |
Door | (1) Steel door (2) Aluminum double glass door (3) Cut-bridge aluminum double glass door |
Window | 920*920mm, double glass (1) Plastic steel window (2) Aluminum double glass window (3) Cut-bridge aluminum double glass window |
Connection kits | PVC Connection kits for ceiling, floor and walls |
Electricity | 3C/CE/CL/SAA Standard,with breaker, lights, switch, sockets, etc. |
Optional Accessories | Furniture, kitchen (including cabinet and sink, bathroom (including toilet, washing basin, mirror, shower room), electrical appliance, roof, terrace, decorative material, etc. |
Advantage | (1) Fast installation: 2 hours/set, save labor cost; (2) Anti-rust: all material use hot glavanized steel; (3) Waterproof structural waterproof design; (4) Fireproof: fire rating A grade; (5) Simple foundation; (6) Wind-resistant(10 grade) and anti-seismic(10 grade) (7) Pre-installed (8) Suitable for living |

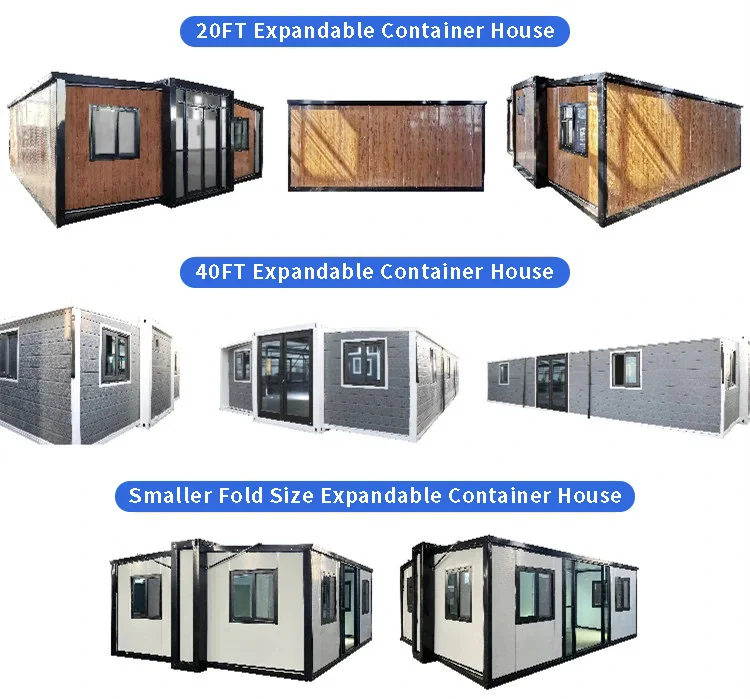

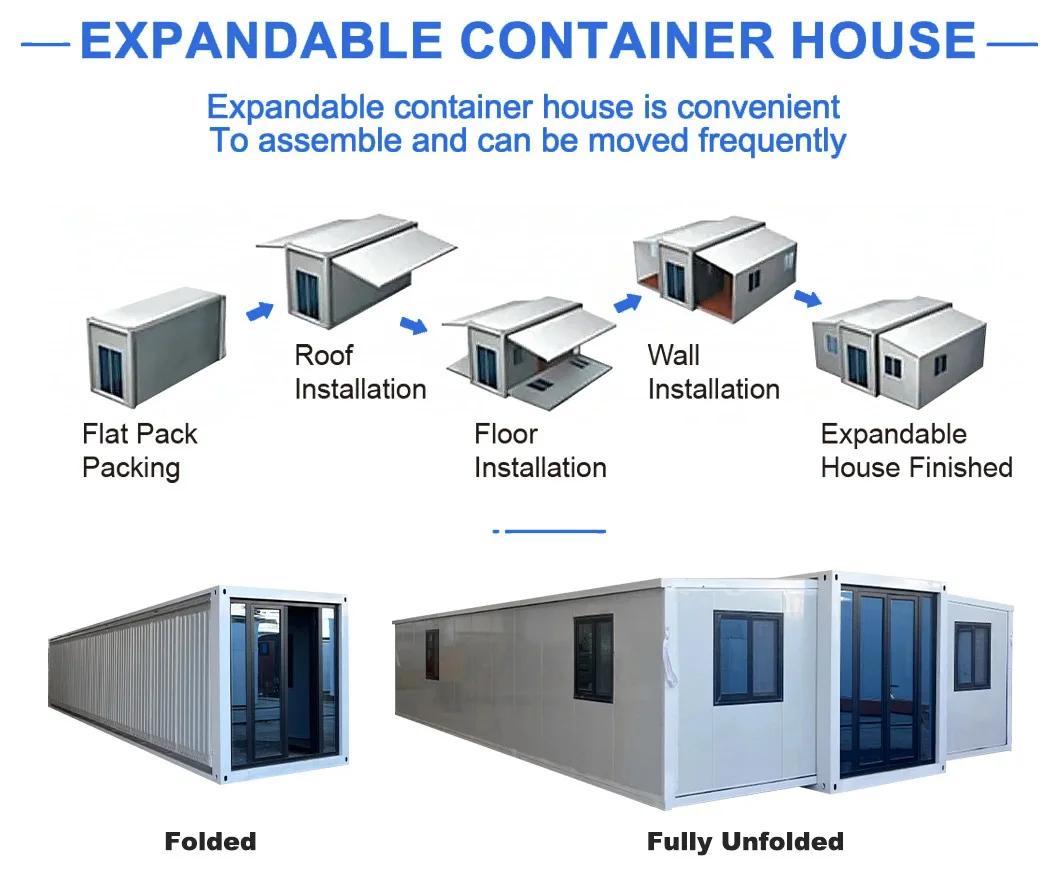

20Feet Expandable Container House | ||
External dimension (mm) | W6320 * L5900 * H2480 (side 2270) | |
Internal dimension (mm) | W6160 * L5660 * H2240 (side 2100) | |

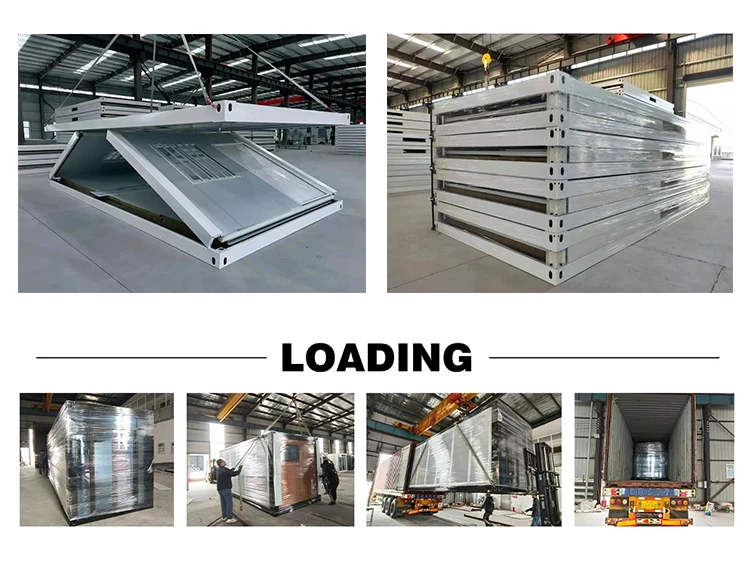

Folded state (mm) | W2200 * L5900 * H2480 (2 units in 40 HQ) | |
Total Area (㎡) | 36.54 | |
Total mass (kg) | 2500 | |
30Feet Expandable Container House | ||
External dimension (mm) | W6240 * L9000 * H2480 (side 2180) | |
Internal dimension (mm) | W6080 * L8660 * H2200 (side 2060) | |
Folded state (mm) | W2200 * L9000 * H2480 (one in 40 HQ) | |
Total Area (㎡) | 56.7 | |
Total mass (kg) | 3750 | |
40Feet Expandable Container House | ||
External dimension (mm) | W6240 * L9000 * H2480 (side 2180) | |
Internal dimension (mm) | W6080 * L8660 * H2200 (side 2060) | |
Folded state (mm) | W2200 * L9000 * H2480 (one in 40 HQ) | |
Total Area (㎡) | 56.7 | |
Total mass (kg) | 3750 | |
About US
Tangshan Dongfang Baode Trading Co,ltd. is an international trading company of Tangshan Fuhaixin lron and Steel Group. Now mainly working in container housesthe procesing service and supply of stel products at home and abroad. The group has 4 factories,mainly producing Container houses,U channel. Angle stel, H stel beametc of steel structure raw materials products,directly providing Dongfang Baode Trading Co ltd, with standard raw materials and fast feed sanices,. nsurin qualiad oroductshe orocessina serthe combination.the first timecustomerspowerful backing support
Now ,Dongfang Baode can accept customers' drawings, samples and other customized processing services. The products include: container houses;,prefab houses;capsulehouses,power cross arm hoop accesories;stelstructure:.Road Guardrail and fences and other procesing products. trive to ensure that drawings are confrmed within 3 dayssamples are confirmed within 7 days,and finished goods are delvered about 15-30 days.We have won the favor of lot of customer in America, Africa;the Middle EastAustraliand European.
For Service:
1.Can you please guide the installation?
Yes, our company has a professional installation team to guide. What is the approximate quantity you purchased this time? If the quantity is more than 300 sets, we can guide the installation for free, you only need to be responsible for the engineer's visa,air tickets and room and board expenses.
2.How do you guarantee quality?
Answer: Every step of our production is checked by quality inspectors. We will use vernier calipers to measure the thickness of materials. We will also check whether the paint surface of the materials is in good condition before packing, and the wearing parts and spare materials will be shipped together. Before delivery, we will also take photos and videos for customers to confirm.
3.If our losses are caused by your reasons, will we be compensated?
Of course, we will compensate for our mistakes, and the compensation plan is also reached by a double-issue agreement, or compensation according to the requirements of the contract.
Yes, our company has a professional installation team to guide. What is the approximate quantity you purchased this time? If the quantity is more than 300 sets, we can guide the installation for free, you only need to be responsible for the engineer's visa,air tickets and room and board expenses.
2.How do you guarantee quality?
Answer: Every step of our production is checked by quality inspectors. We will use vernier calipers to measure the thickness of materials. We will also check whether the paint surface of the materials is in good condition before packing, and the wearing parts and spare materials will be shipped together. Before delivery, we will also take photos and videos for customers to confirm.
3.If our losses are caused by your reasons, will we be compensated?
Of course, we will compensate for our mistakes, and the compensation plan is also reached by a double-issue agreement, or compensation according to the requirements of the contract.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
1.How much manpower and time does it take to install the container?
2 hours + 4 workers=1 unit
2.What tools and equipment do I need to prepare for the installation of container?
Crane, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife, hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.
3.How many days is your fastest lead time?
This depends on the quantity. If it is a regular size, our lead time is generally 7-30 days after receiving the deposit

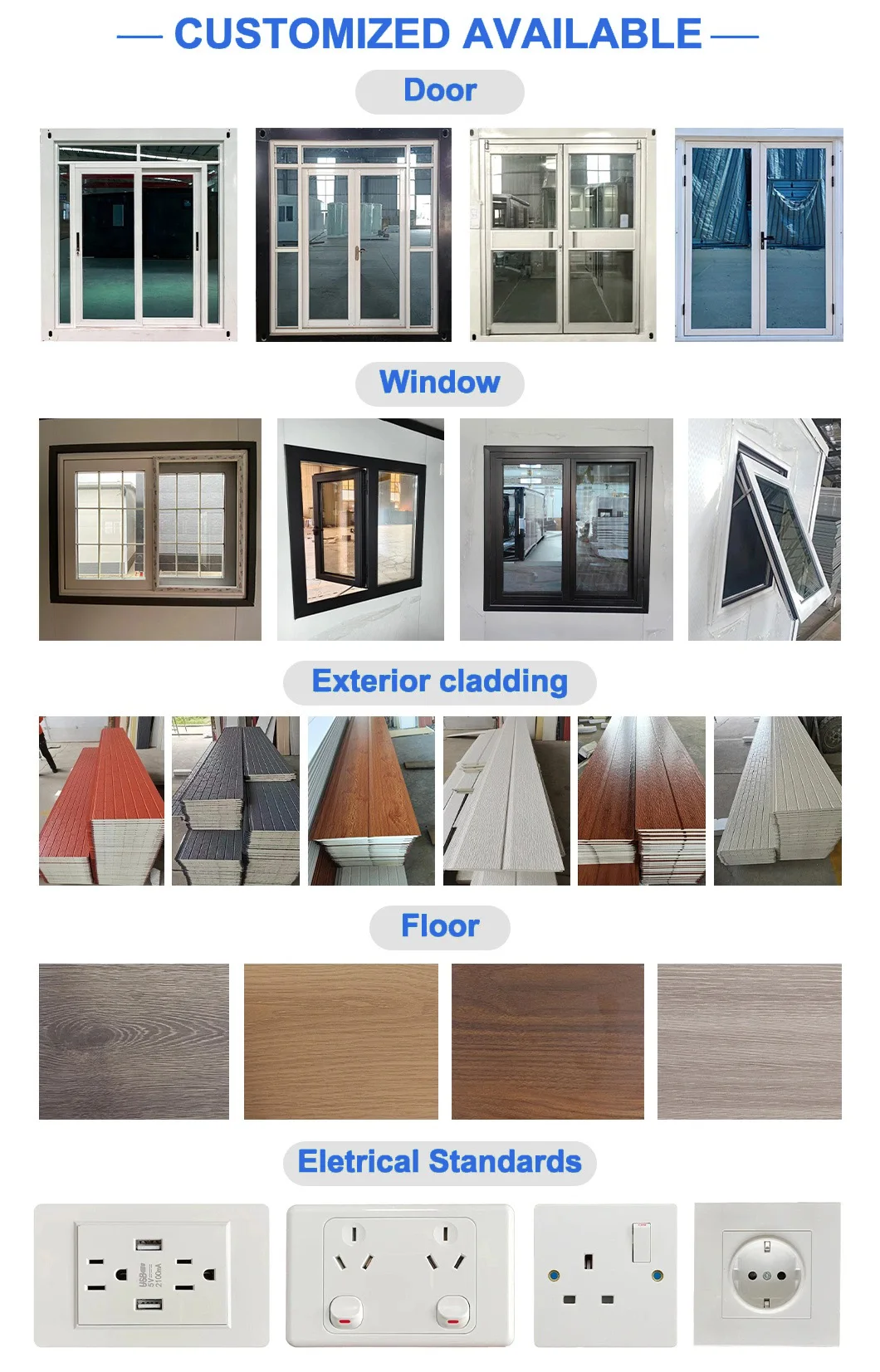

4.Can you customize colors?
We are happy to accept color customization. The regular color of our boxes is white, which is popular and well received by customers all over the world. You can also provide the color card number for our reference. What color do you like?
5.What is the largest size that can be made?
The maximum can be 4m*8m, and the 8m surface is equipped with wind-resistant columns to support the top and bottom beams. What kind of functions and requirements are you based on?
6.What is your payment method?
Our payment method is generally TT (wire transfer), 30% deposit, and the remaining 70% paid before shipment.
7.Does your product leak water?
There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box. So far, our company has never experienced water leakage problems in overseas orders.
8.Do you need a foundation?
If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy container from us, we will give you complete foundation drawings and we will have video instructions for installation.
9.Can I add an extra roof please?
Roofs can be added, and we can send you some pictures of roofing cases we have done before for your selection and reference. Do you want to add a roof based on wind resistance requirements, thermal insulation requirements or aesthetic requirements?
10.Can the floor be covered with insulation?
Yes, no problem.
2 hours + 4 workers=1 unit
2.What tools and equipment do I need to prepare for the installation of container?
Crane, hand saw, hand drill, hexagonal screwdriver, rubber hammer, utility knife, hole saw, non-slip gloves, glass glue gun, tape measure, medical box, marker, foot ladder, spirit level.
3.How many days is your fastest lead time?
This depends on the quantity. If it is a regular size, our lead time is generally 7-30 days after receiving the deposit
4.Can you customize colors?
We are happy to accept color customization. The regular color of our boxes is white, which is popular and well received by customers all over the world. You can also provide the color card number for our reference. What color do you like?
5.What is the largest size that can be made?
The maximum can be 4m*8m, and the 8m surface is equipped with wind-resistant columns to support the top and bottom beams. What kind of functions and requirements are you based on?
6.What is your payment method?
Our payment method is generally TT (wire transfer), 30% deposit, and the remaining 70% paid before shipment.
7.Does your product leak water?
There are quite a number of domestic manufacturers, due to lack of professionalism and irresponsibility for quality, which leads to the problem of water leakage in the box. So far, our company has never experienced water leakage problems in overseas orders.
8.Do you need a foundation?
If the land will not subside, there is basically no need to lay foundations. According to different geological conditions, our company will provide guidance and suggestions. If you buy container from us, we will give you complete foundation drawings and we will have video instructions for installation.
9.Can I add an extra roof please?
Roofs can be added, and we can send you some pictures of roofing cases we have done before for your selection and reference. Do you want to add a roof based on wind resistance requirements, thermal insulation requirements or aesthetic requirements?
10.Can the floor be covered with insulation?
Yes, no problem.
