Hybrid Off Grid Solar Inverter 12v 230v 8kw Single Phase 12k 3600w 10kw Hybrid Mppt Pv Inverter 10kw 8000 Watt app type
- Category: >>>
- Supplier: Famlink (beijing) International Trading Co. Ltd.
Share on (1601275380488):
Product Overview
Description
Split Phase Low Frequency Inverter / Solar Inverterr 8KW-40KW
TECHNICAL PARAMETER | ||||||||
The rated power | 8KW | 10KW | 12KW | 15KW | ||||
Voltage | 96/192VDC | 192VDC | ||||||
Max AC charging current | 0A~40A | 0A~20A | ||||||
(Depending on the model,The maximum charging power is 1/4 of the rated power) | ||||||||
Installation Method | Tower | |||||||
INPUT | ||||||||
DC Input Voltage Range | 10.5-15vDC(Single battery voltage) | |||||||
AC Input Voltage | 110V/120AC(L1-N)0r 220VAC/240AC(L1-L2) | 96V/192V:110W/120AC(L1-N)Or 220MAC/240AC(L1-L2) | 220VAC/240AC (L1-L2) | 110V/120AC(L1-N)or220VAC/240AC(L1-L2) | ||||
AC Input Voltage Range | 92VAC-128VAC(110VAC)/102VAC-138VAC(120VAC)/185VAC-255VAC(220VAC)/205VAC-275VAC(240VAC) | |||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz) | |||||||
AC charging method | Three-stage (constant current, constant voltage, foating charge) | |||||||
OUTPUT | ||||||||
Efficiency(Battery Mode) | ＞85% | |||||||
Output Voltage(Battery Mode) | L1-N/L2-N:110VACOr120VAC;L1-L2:220VAC 0r240AC | |||||||
Output Frequency(Battery Mode) | 50Hz+1% or 60Hz±1% | |||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||
Efficiency(AC Mode) | > 99% | |||||||
Output voltage(AC Mode) | L1-N/L2-N:110VACor120VAC;L1-L2:220VACor240AC | |||||||
Output Frequency(AC Mode) | Follow input | |||||||
Output waveform distortion(Battery Mode) | ≤3%(Linear load) | |||||||
No load loss (Battery Mode) | ≤1% rated power | |||||||
No load loss (AC Mode) | ≤2% rated power(charger does not work in AC mode | |||||||
No load loss (Energy saving Mode) | ≤10W | |||||||
BATTERY | ||||||||
VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage) | |||||||
Customize battery | Charging and discharging parameters of diferent types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||||||
Built-in Controller MPPT(optional) | ||||||||
Charging Mode | MPPT | |||||||
Charging Current | 96V/192V: 50A or 100A | 96V:50A or 100A; 192V:50A | 96V:50A or 100A; 192V:50A | 50A or 100A | ||||
PV Input Voltage Range | 120V-240V(96V system);240V-360V(192V system);300V-400V(240V system); 480V-640V(384V system) | |||||||
Max PV Input Voltage(Voc)(At the lowest temperature) | 96V system:300V;192V system:450V; 240V system:500V; 384V system:800V | |||||||
PV Array Maximum Power | 96V system: 5.6KW(50A)/11.2KW(100A); 192V system: 11.2KW(50A)11.2KW*2(100A); 240V system: 14KW*2(100A); 384V system:22.4KW*2(100A) | |||||||
Standby loss | ≤3W | |||||||
Maximum conversion efficiency | >95% | |||||||
PHYSICAL | ||||||||
Products Dimension, D*W*H(mm) | 540*350*695mm | 593*370*820mm | ||||||
Packing size, D*W*H(mm) | 600*410*810mm | 656*420*937mm | ||||||
Net Weight (kgs) | 66KG | 70KG | 77KG | 110KG | ||||
G.W. kg | 77KG | 81KG | 88KG | 124KG | ||||

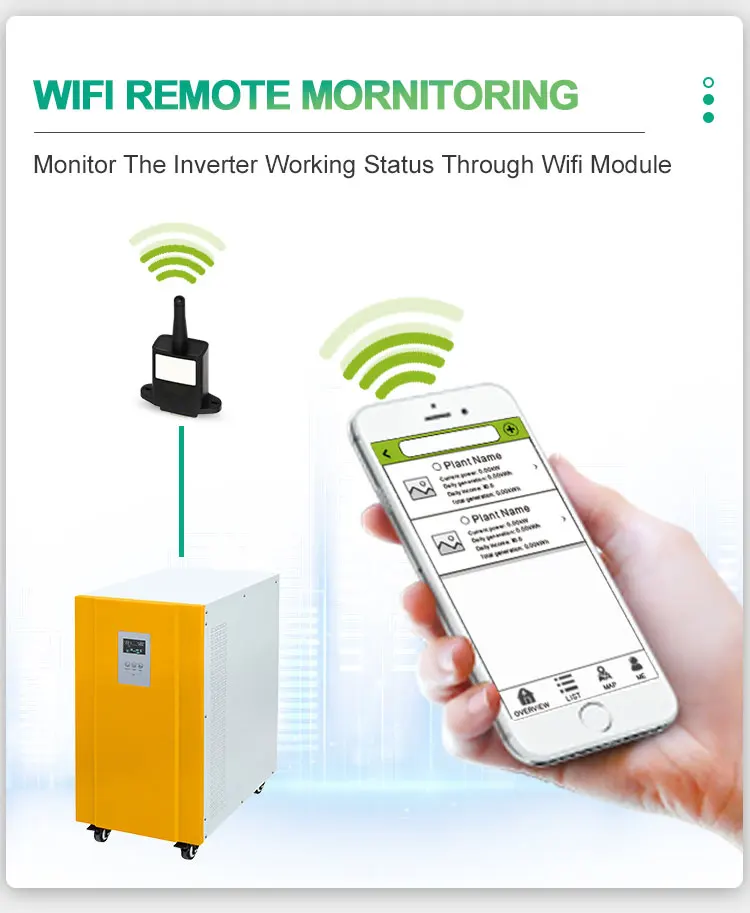

Communication Interface | RS485/APP(WIFl monitoring or GPRS monitoring) | |||||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 0%~95%,No condensation | |||||||
Operation Temperature | -10°℃~40°C | |||||||
FAQ
Q1:Do you have MOQ ?
Q3: How about warranty?
A: No limited. More quantity has better price, we will check the best price for you.
Q2:Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How about warranty?
A:12 months warranty.
Q4:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
