High quality HZS25 concrete batching plant Portable Mobile Ready concrete plant price for sale
- Category: >>>
- Supplier: Henan Qichen Machinery Import And Export Co. Ltd.Henan Ltd.
Share on (1601275382715):
Product Overview
Description

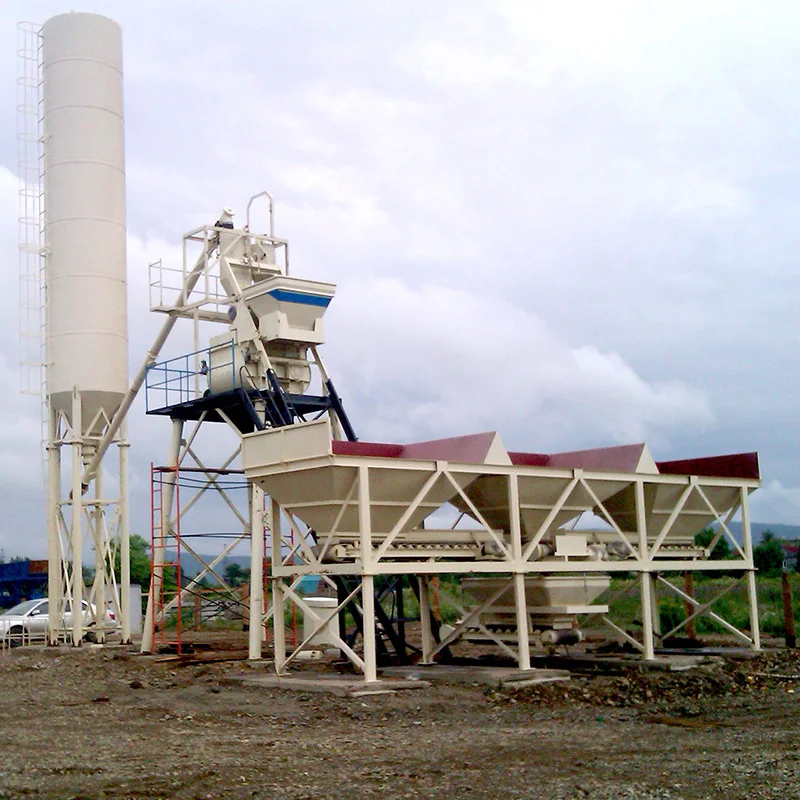

High quality HZS25 concrete batching plant Portable Mobile Ready concrete plant price for sale
This batching plant is a small concrete batching plant, suitable for small and medium-sized construction projects, prefabricated parts factories and commercial concrete production plants.
1.High quality concrete mixer,twin shaft type or planetary typeB.Aggregate batcher can be customized
2.Cement silo is optional
3. Aggregate feeding system can adopt skip hopper or belt conveyor
2.Cement silo is optional
3. Aggregate feeding system can adopt skip hopper or belt conveyor
Model | HZS25-30 | HZS35-40 | HZS50-60 | HZS75-85 | HZS90-100 | ||||
Capacity | 25-30m3/h | 35-40m3/h | 50-60m3/h | 75-85m3/h | 90-100m3/h | ||||
Mixing system | Twin shaft concrete mixer | ||||||||
Aggregate feeder | Belt conveyor | ||||||||
After-sale service | Erection & commissioning, operator training | ||||||||
Warranty | 12 months after erection | ||||||||
Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | ||||
Discharging volume | 500L | 750L | 1000L | 1500L | 2000L | ||||
Mixing circle | 72s | ||||||||
Max. mixing size | 80/60mm | ||||||||
Aggregate Bins | 4x4m3 | 4x5m3 | 4x6m3 | 4x7m3 | 4x8m3 | ||||
Weighing system | Water, Cement, Additive | ||||||||
Control System | SIEMNS PLC+PC | ||||||||
Weighing precision | ±1% | ||||||||
Air system | Air compressor, etc | ||||||||
Control system type | Computer auto-control module (PLC can be optional item) | ||||||||
