China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale
China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale

China Cheap Price New 25 Ton Foldable Arm Truck QY25K Mounted Boom Lift Car Crane with Basket Lorry Mounted Crane for Sale

Share on (1601275423900):


Price:$49,000.00-50,000.00

Quantity:


Product Overview

Description



Contact Way


Sales Manager
Lisa Guo
Whatsapp/wechat: +86 19713226265
Email: Lisa at tewrex.com
Address: Suite 705, Building 2, Tiandu Plaza, No.211 Changjiang Road, National Hi-Tech District, Jiangsu, China


Products Description


Lifting Crane for Construction 25 Ton Truck Crane QY25K-II

QY25K-II: QY25K-II is the most popular model of China 25t truck crane, QY25K-II is improved all round, and leads in the same kind
of product.

QY25K-II is technology crystallization which our company applies for many years manufacturing experience, bases on the mature technology.Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the
product; classic K series appearance; full hydraulic drive, easy to operate, flexible.


Product Paramenters


Dimension
Unit
QY25K-II
Overall length
mm
12650
Overall width
mm
2500
Overall height
mm
3380/3290
Weight
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Power
Engine model
WD
Engine rated power
kW/(r/min)
213/2200206/2200
Engine rated torque
N.m/(r/min)
1160/1100-16001112/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
mm
21500
Min. ground clearance
mm
275
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
30
Fuel consumption for 100km
L
37
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
m
3
Turning radius at turntable tail
mm
3065
Max. lifting torque
KN.m
961
Base boom
m
10.8
Fully extended boom
m
34.2
Fully extended boom+jib
m
42.3

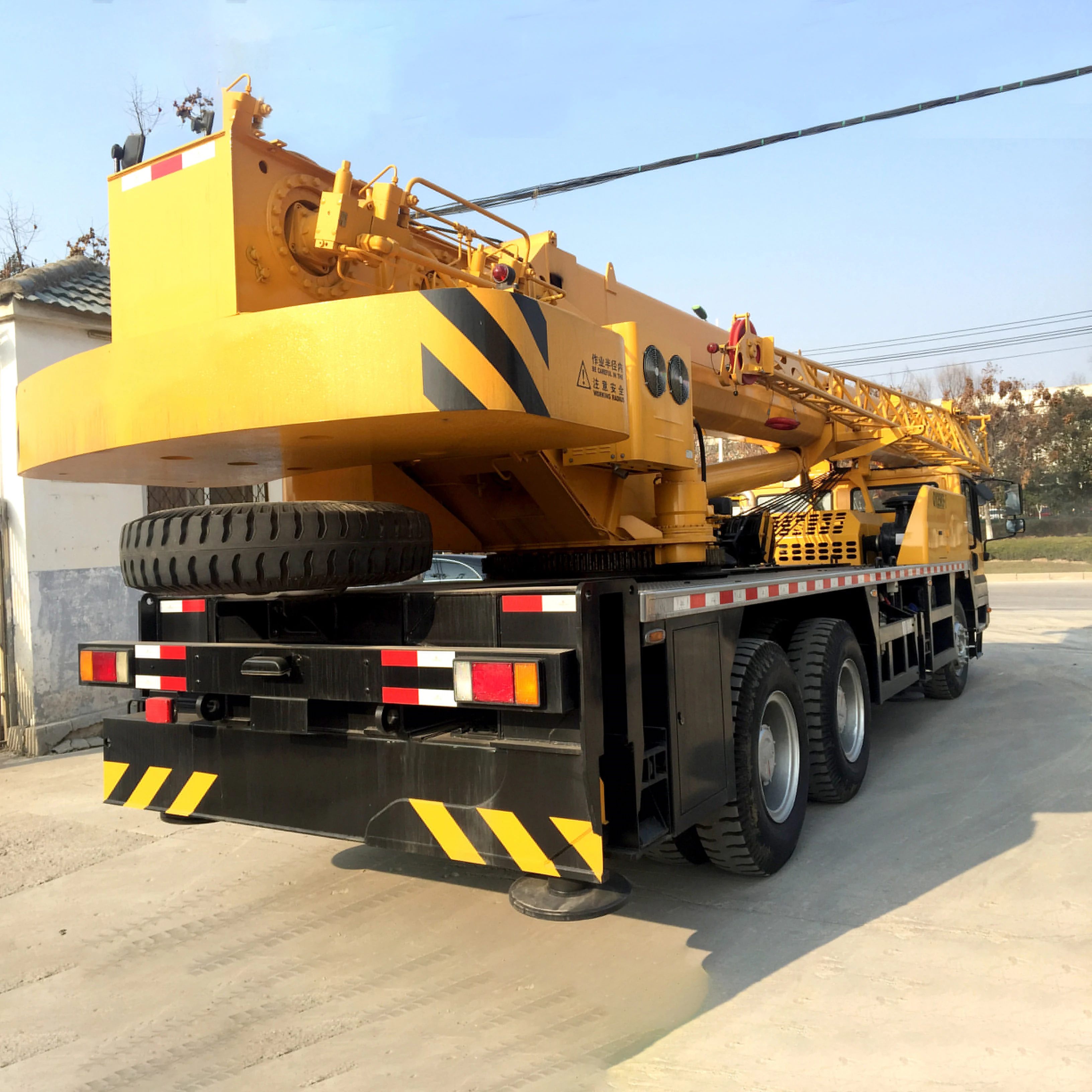

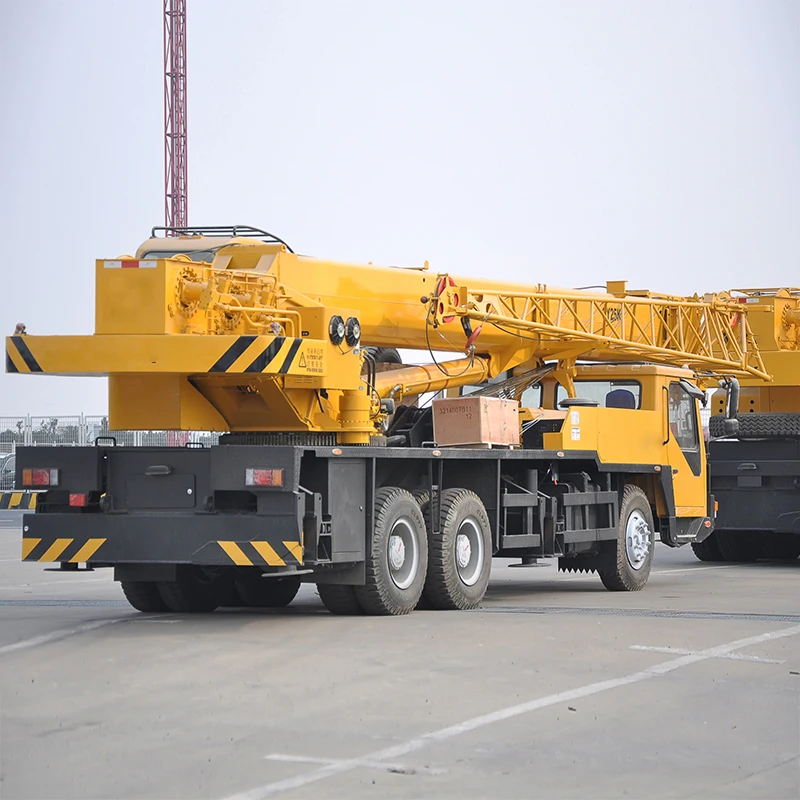

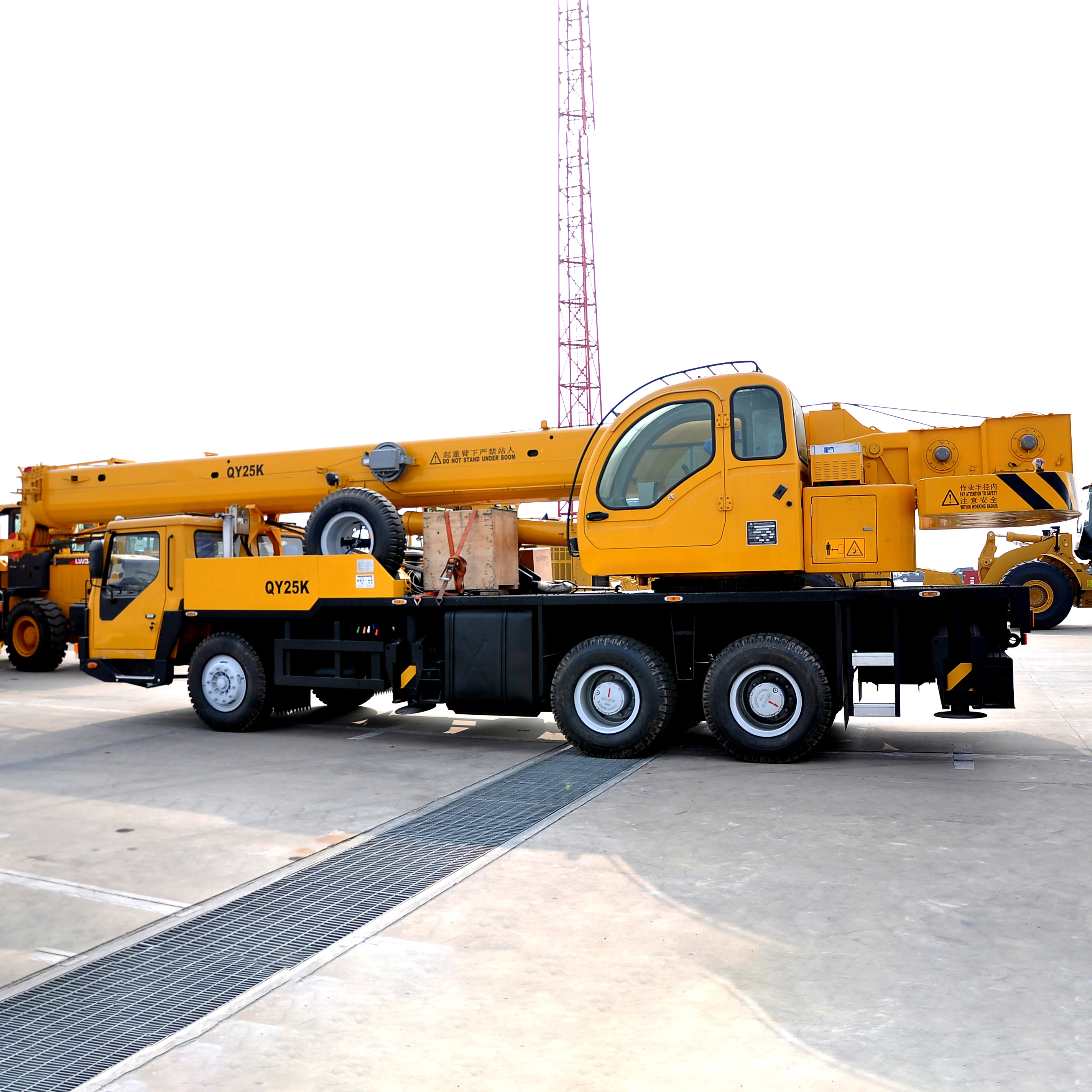

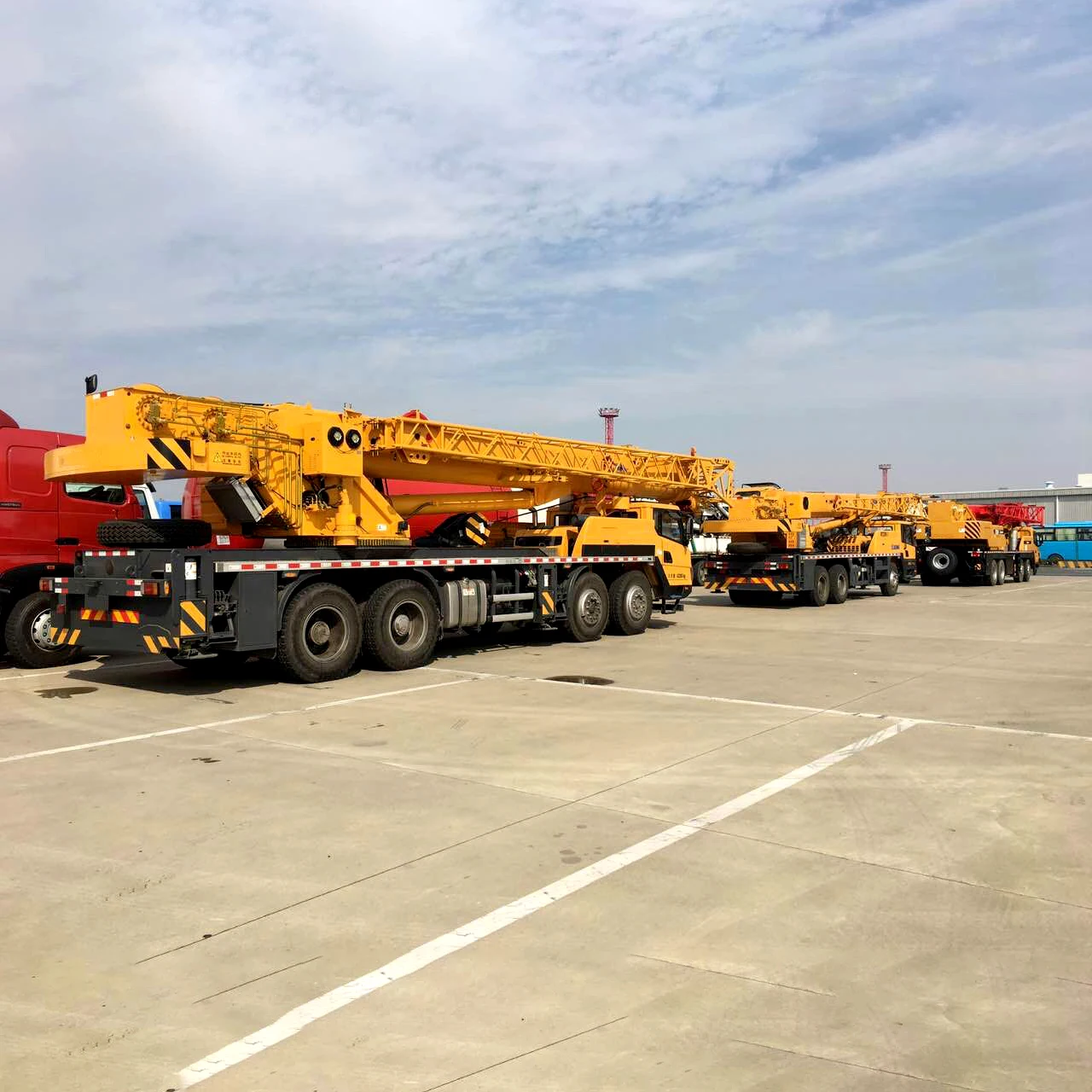

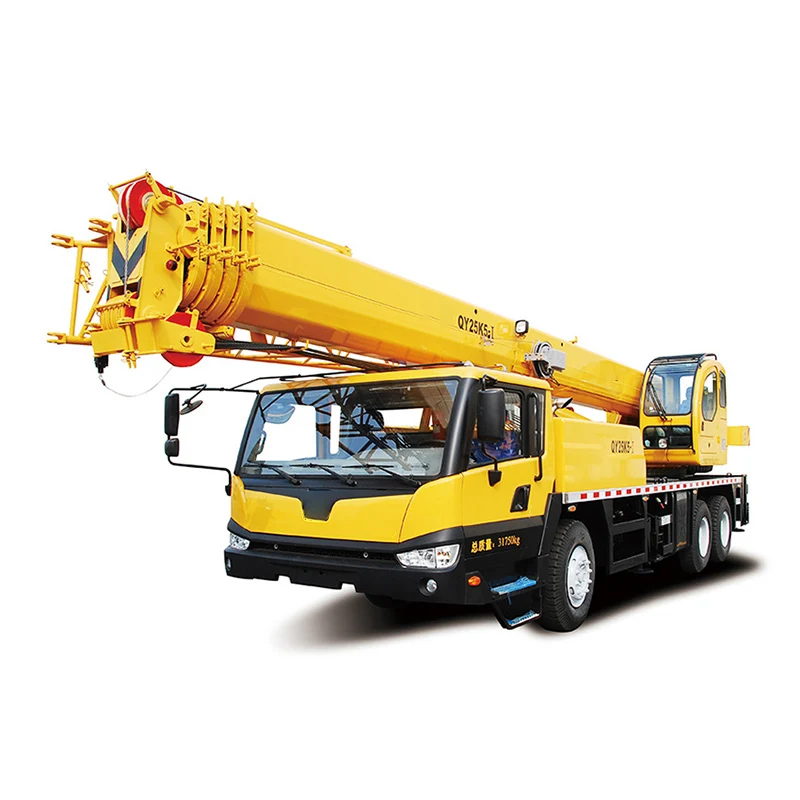

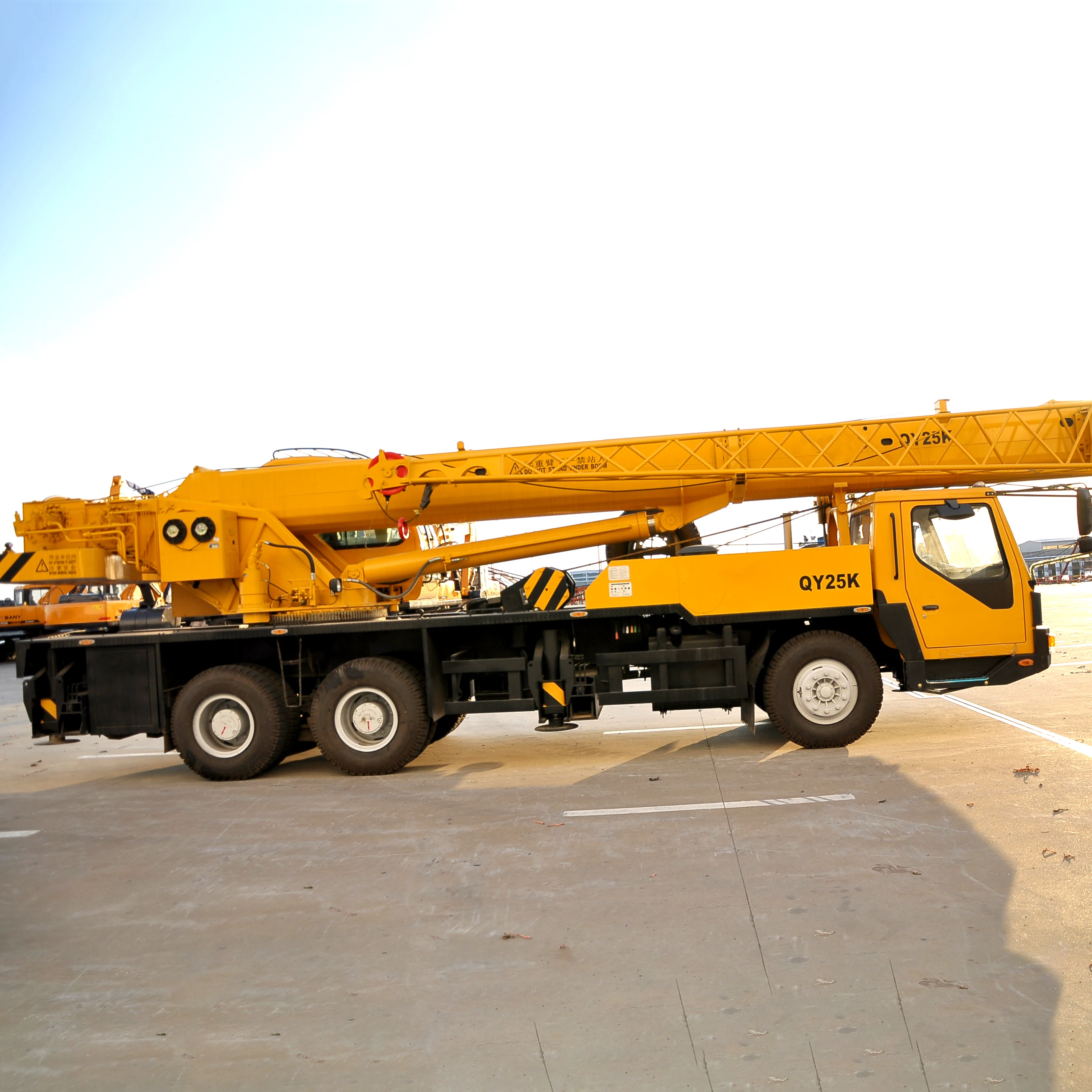

Details Images
