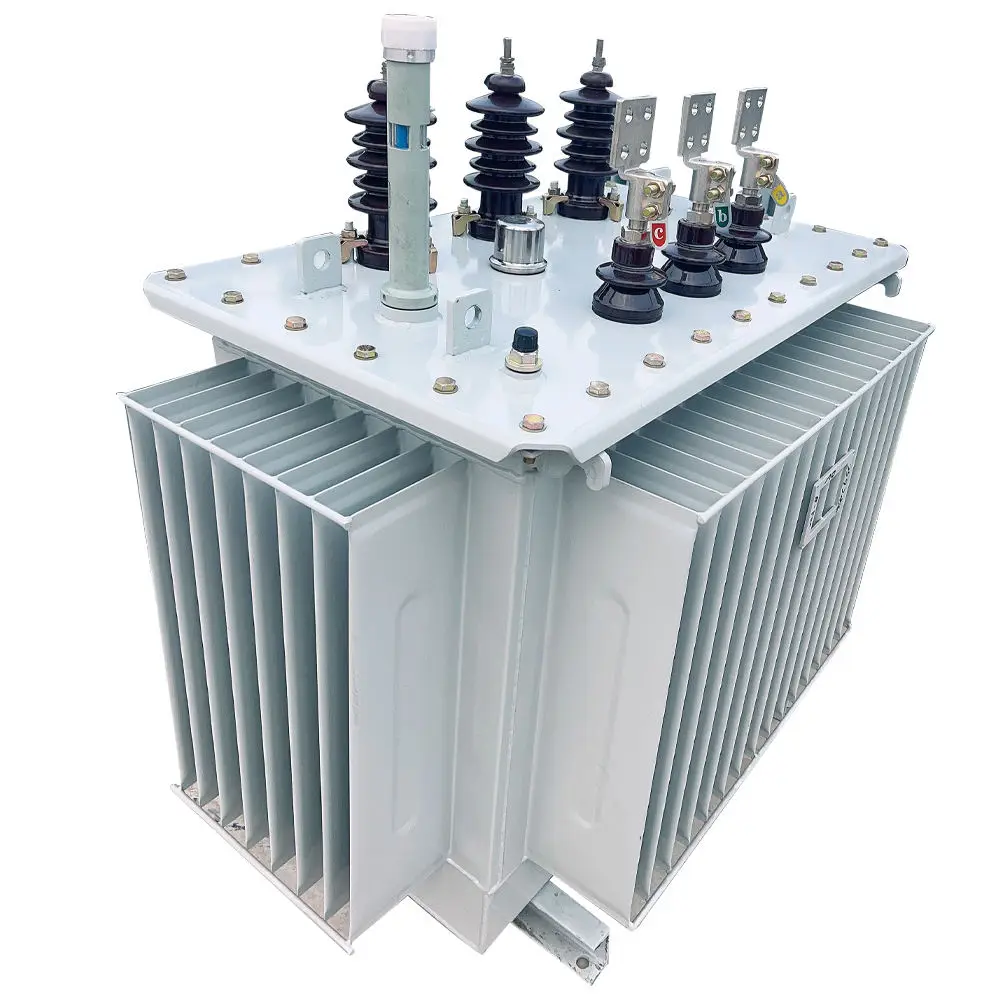

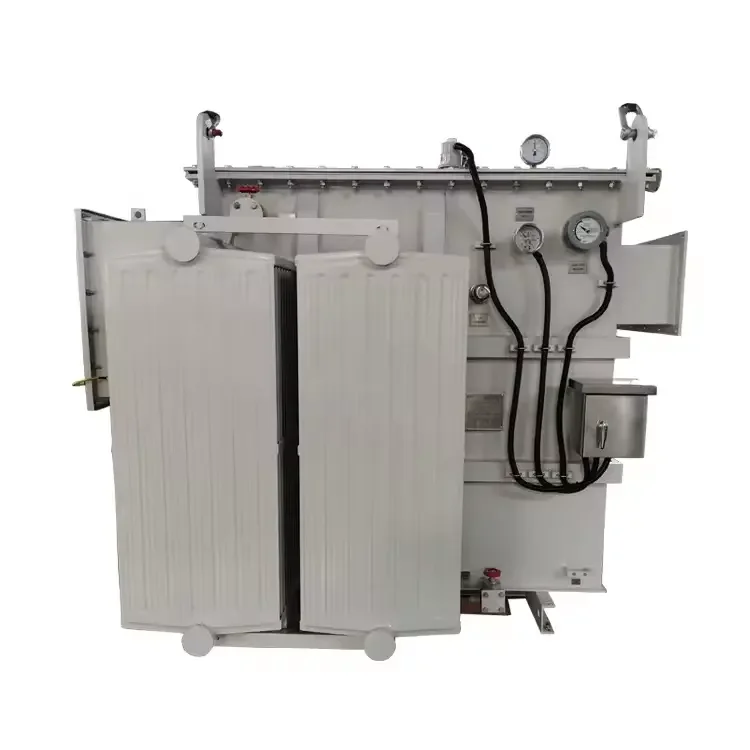

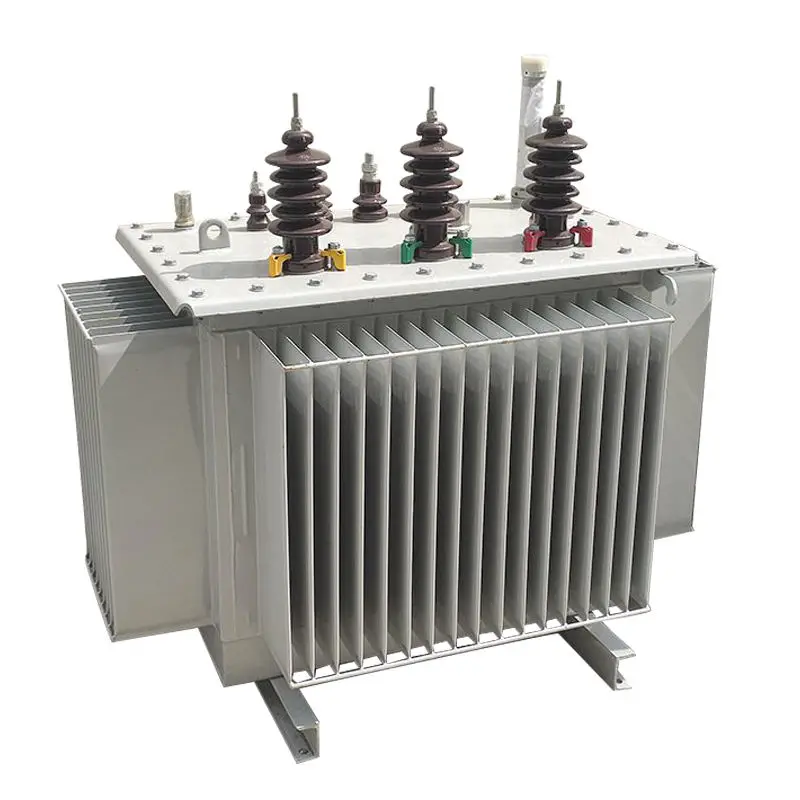

S11 125KVA power transformer 10KV to 0.4KV three phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer
S11-125KVA power transformer 10KV to 0.4KV three-phase ac to ac transformer din rail 1000kva transformer

S11 125KVA power transformer 10KV to 0.4KV three phase ac to ac transformer din rail 1000kva transformer

Share on (1601275437703):


Price:$1,800.00 - $2,000.00

Quantity:


Product Overview

Description

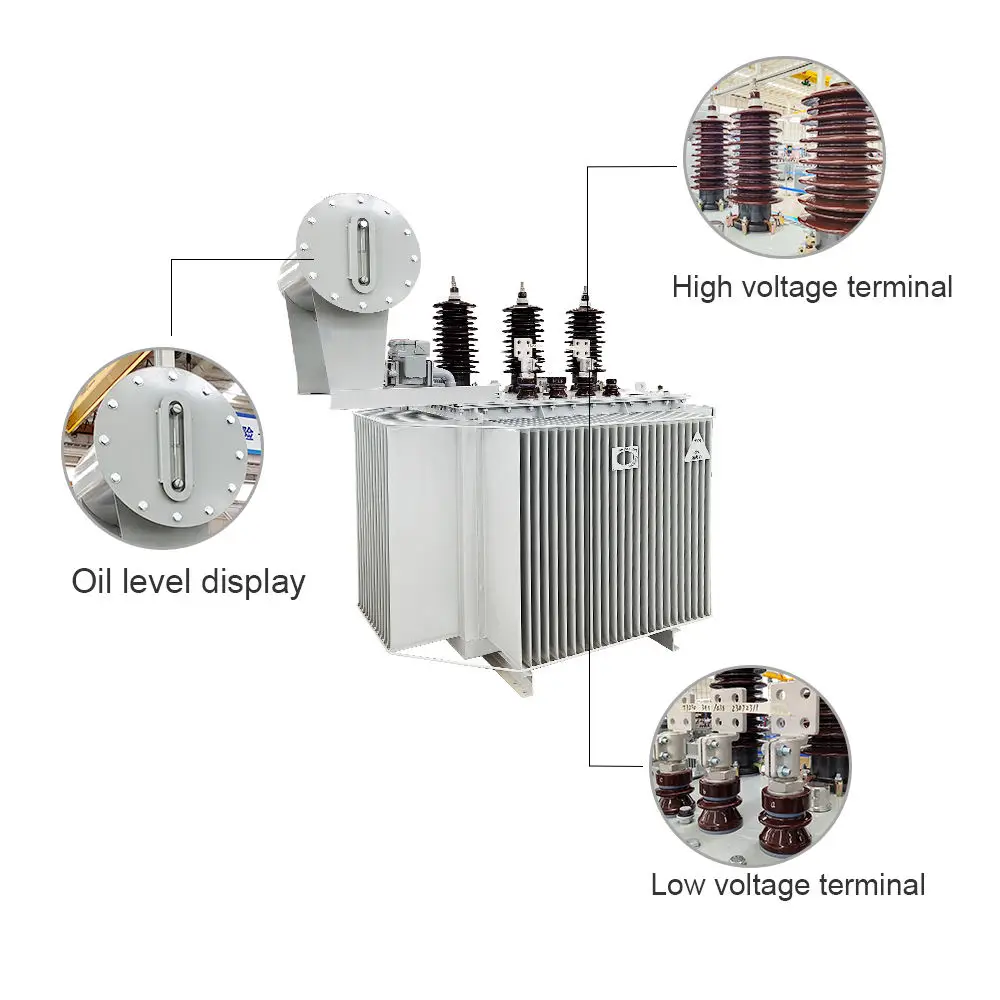

Details Images




Product Paramenters



1. iron core
Silicon steel sheet with high magnetic conductivity particle orientation: silicon steel sheet with core type. Full inclined joint selective product core. The iron core column is the national section of multistage steps, and the iron light and iron rod are equal sections.


2.winding
The system uses tile oil channel, non-immersion paint process, tightening belt practice tie: windings are concentric line diagram:
high voltage windings should be connected to the voltage requirements of the tap. Lead to tap switch, which is mounted on the box cover. After the power supply is cut off, 10kV and 20kV voltage can be transferred, and the tap voltage can be changed.

3.Safety protection device
30-2000kVA transformer equipped with pressure release reading;
Gas relay with alarm and jump terminal can be installed according to the user number;

4.Oil temperature measuring device
The tube seat of the glass thermometer is installed on the top of the tank and 120+-10mm is stopped in the tank.
1000-2000kVA transformer equipped with outdoor signal thermomet：


Products Description


Overview
S11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.
1. Primary Voltage: 10kV. 20kV. 35kV
2. Second Voktage: 0.4kv
3. Tapping Range: ± 5%, ± 2× 2.5%
4. Frequency: 50Hz; 60Hz
5. Connection Sign: Yyn0, Dyn11 or others

Functional Characteristics
Our oil immersed transformers with the following features:
* New insulating structure to improve the anti-short circuit ability
* High-quality cold-rolled silicon steel iron core
* Selected high-quality oxygen-free copper wire
* Multi-layer cylindrical structure high-voltage winding
* Special anti-loose treatment for all of the fasteners

















FAQ


Q:Could I get the sample to check your quality?
A:Samples and shipping cost is prepaid by buyers,and will be refund to buyers whenmass production order confirmed in the near future.
Q:When can I get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please tell us in your email so that we will regard you inquiry priority.
Q:What about the lead time for the mass production？
A:Honestly,it depends on the order quantity and the you place the order.
Q:What is the term of delivery?
A:We accept EXW, FOB Shanghai.You can choose the one which is the most convenient or cost effective for you.
