  • Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h
Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h

Crushing Station Jaw Crusher Hydraulic Impact Crusher Crushing Machines Motor Mining Can Be Selected T/h

Share on (1601275439863):


Price:$57,000.00-59,000.00

Quantity:


Product Overview

Description



Recommend Products


Jaw Crusher
Jaw crusher is suitable for 350 MPa material crushing in mining, rock, chemical, and other industries Primary crushing of large materials to small size.
Steel frame version jaw crusher
The small jaw crusher can be designed as a steel frame version, free of concrete foundation.
Available with electric motor or diesel engine as power source
Various models with capacities from 1-60 tons per hour
Mobile Jaw Crusher
Customizable mobile version of many types of jaw crusher
1-350 tons per hour capacity
Mobile jaw crusher with tire version
Crawler Jaw Crusher
Mobile Jaw Crusher with Frame
With feeder, conveyor, or complete production line


Product Paramenters


Title goes here.
Jaw crusher is suitable for applying to the fields of mining, metallurgy, building materials, etc. It is able to deal with medium size crushing of all kinds of ores and large materials.
When the jaw crusher is working, the power source drives the pulley and eccentric shaft to reciprocate, and the jaws are spaced apart to extrude the crushing operation.






model number
Motor power
Material mouth
hourly rate
External dimensions
weight

kw
Feed inlet
Discharge port

t/h

mm

kg
mm
mm
PE60*100
1.5
60*100
3-10
0.01-0.02
370×210×270
35
PE100*250
2.2
100*250
5-30
0.3-0.8
580×440×510
470
PE150*250
5.5
150*250
10-30
0.5-1.2
720×660×850
710
PE200*300
7.5
200*300
10-40
0.8-1.6
910×750×990
830
PE200*350
11
200*350
20-40
2-5
1000×870×990
1280
PE250*400
15
250*400
20-40
8-20
1300×1090×1270
1600
PE300*500
22
300*500
30-60
15-30
1530×1630×1430
3200
PE400*600
30
400*600
40-100
20-50
1730×1730×1630
5500
PE500*750
55
500*750
50-120
35-90
1980×2080×1870
8800
PE600*900
75
600*900
60-165
75-150
2190×2206×2300
14500
PE750*1060
110
750*1060
80-190
110-280
2660×2430×2800
23000
PE870*1060
132
870*1060
90-220
160-380
2720×2640×2950
35000
PE900*1200
160
900*1200
95-230
250-450
3380×2870×3330
42000
PE1000*1200
200
1000*1200
100-250
300-580
3520×2960×3450
57000
PE1200*1500
220
1200*1500
120-330
450-900
4200×3300×3500
88000
PE1500*1800
280
1500*1800
160-420
600-1300
51603660×4248
138000
Fine Jaw Crusher
PEX100*600
7.5
100*600
10-30
2-8
760×1130×630
800
PEX150*750
15
150*750
20-40
5-20
1200×1530×1060
1700
PEX250*1000
30
250*1000
25-65
15-40
1560×1950×1390
4600
PEX250*1200
37
250*1200
25-65
20-60
2140×1660×1500
7500
PEX300*1300
55
300*1300
35-80
40-100
2320×1950×1600
8600
PEX500*1500
110
500*1500
55-150
50-150
2450×2070×1880
13800


Details Images

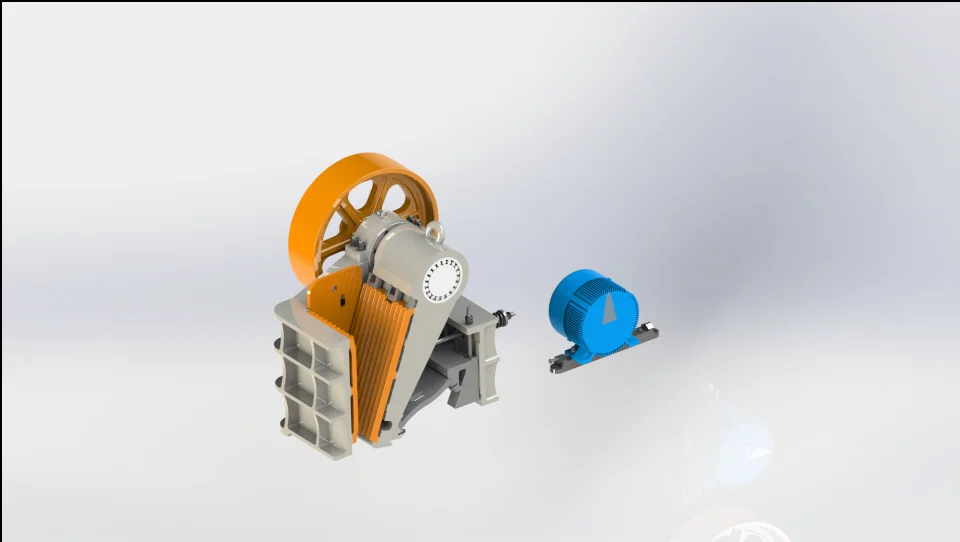

Jaw crusher sectional structure diagram

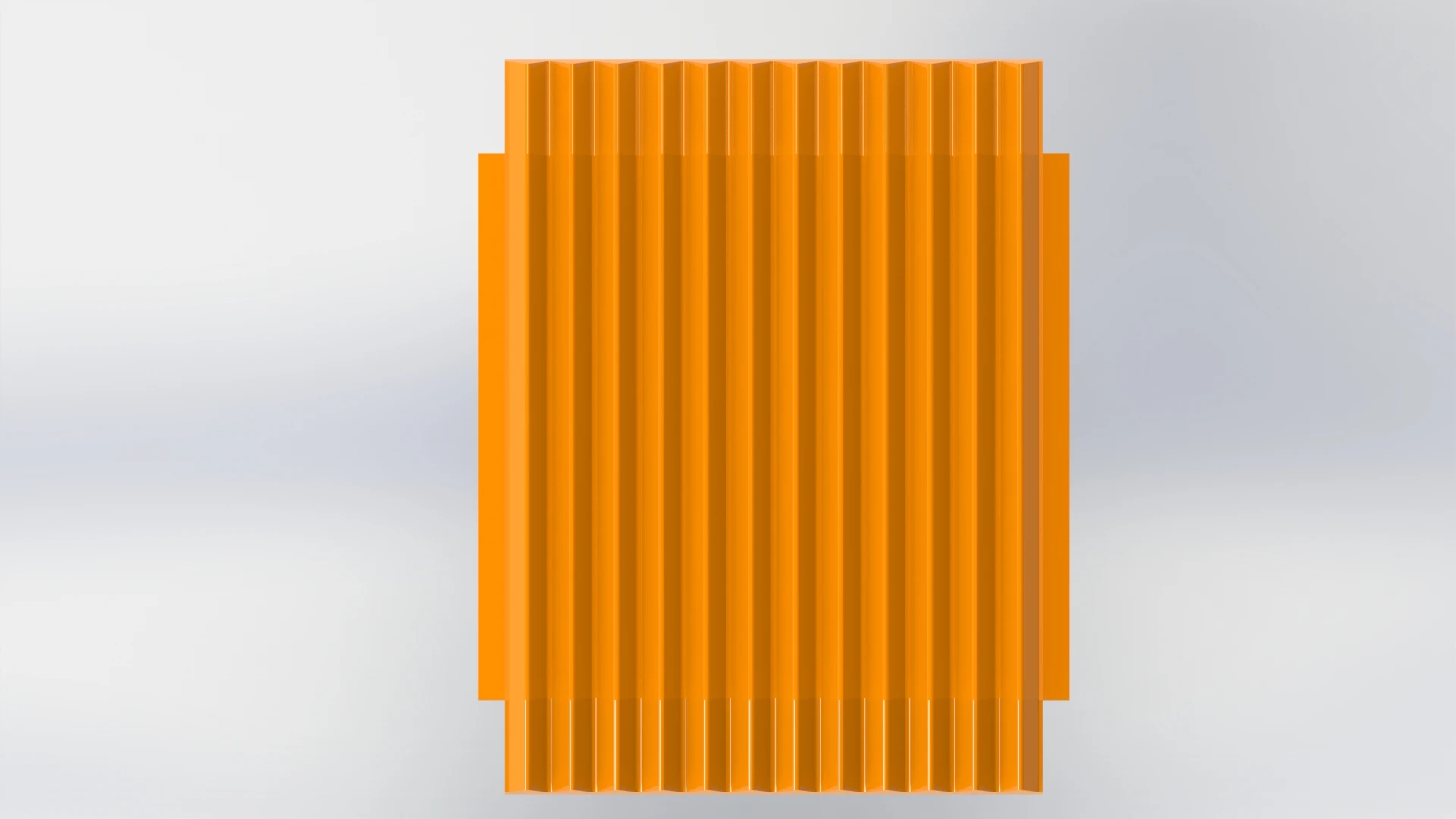

Casting high manganese steel wear-resistant tooth plate

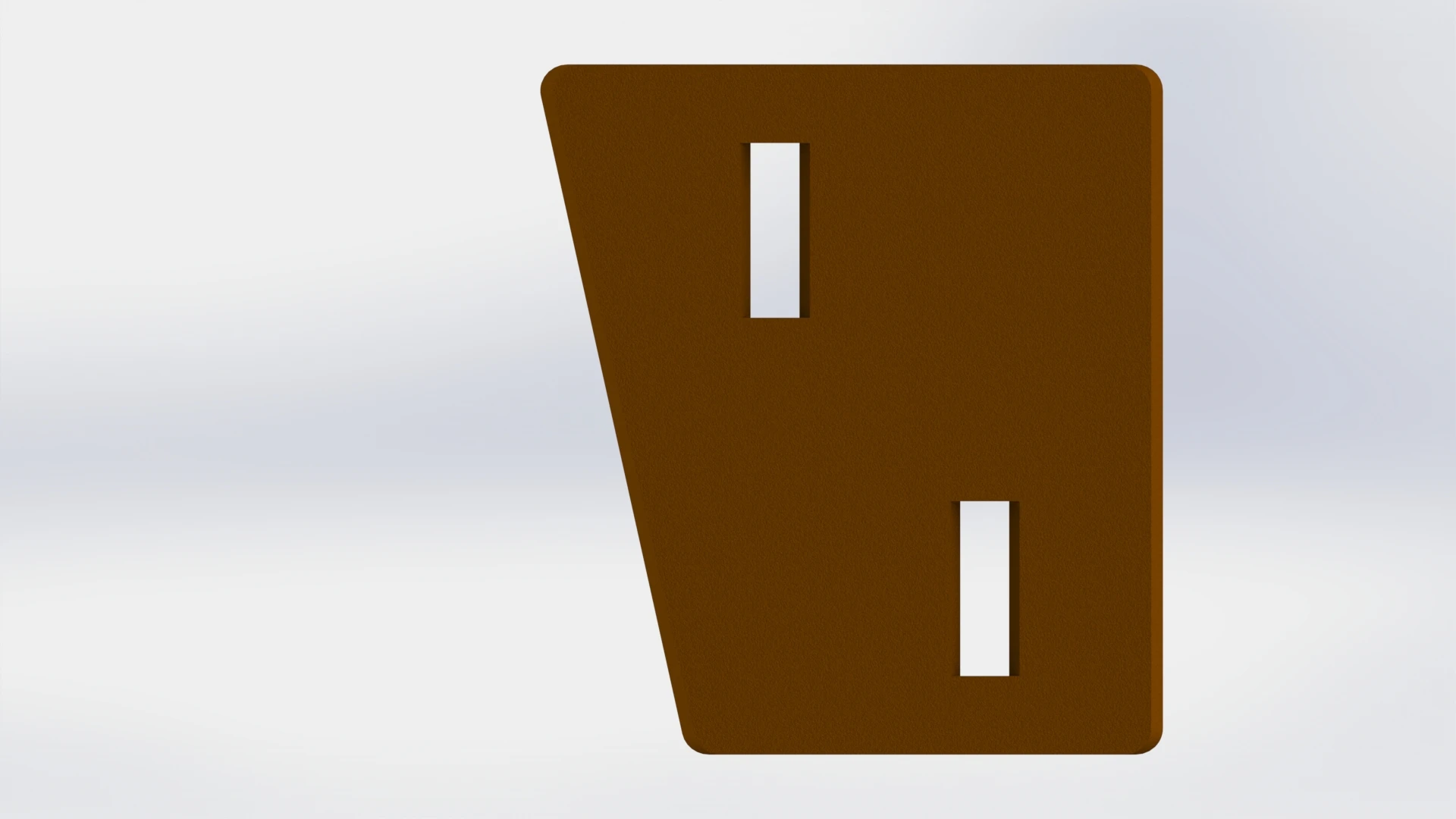

.Casting high manganese steel wear-resistant liner


Product packaging


According to the selected jaw crusher model corresponding to the size of the corresponding board packing or direct container and spare parts list, accessory list with the payment.
Different jaw crusher combinations of different models or configurations correspond to corresponding sizes and packaging


Why Choose Us

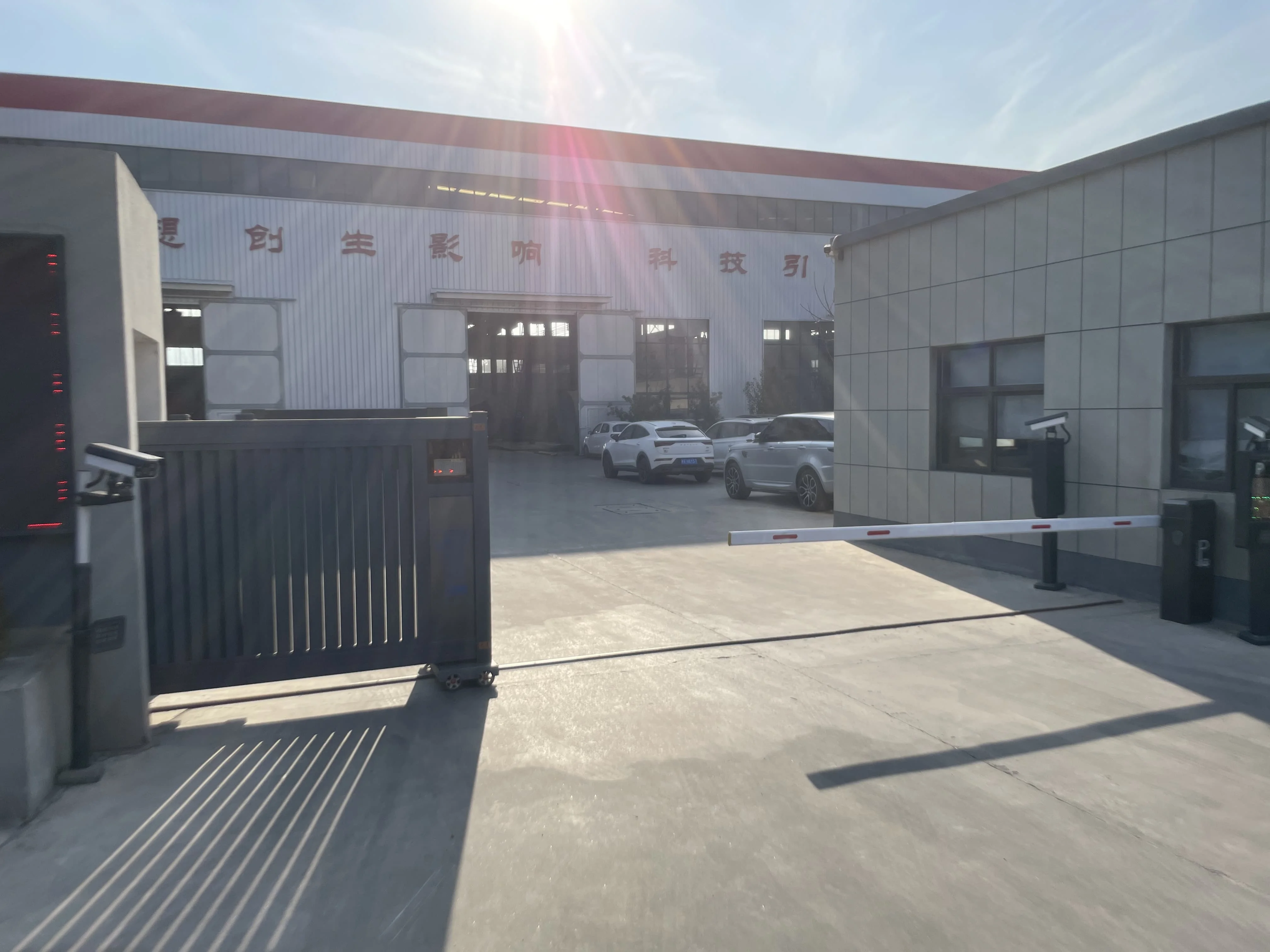

Company Profile


Henan Xuefu Machinery Equipment Co.
Engaged in building materials processing production equipment industry for many years, the main products are
Building Material Processing Machinery: Jaw Crusher, Impact Crusher, Cone Crusher, Vibrating Feeder, Mobile Crusher, Vibrating Screen, Ball Mill, Hammer Sand Making Machine, Grinding Mill, etc.
Building material processing machinery: block molding machine, free-burning brick machine
Edible Oil Processing Machinery: Screw Oil Press Hydraulic Oil Press Olive Oil Press Rapeseed Oil Press Peanut Oil Press Refining Oil Production Line
Manufacturing of machined parts

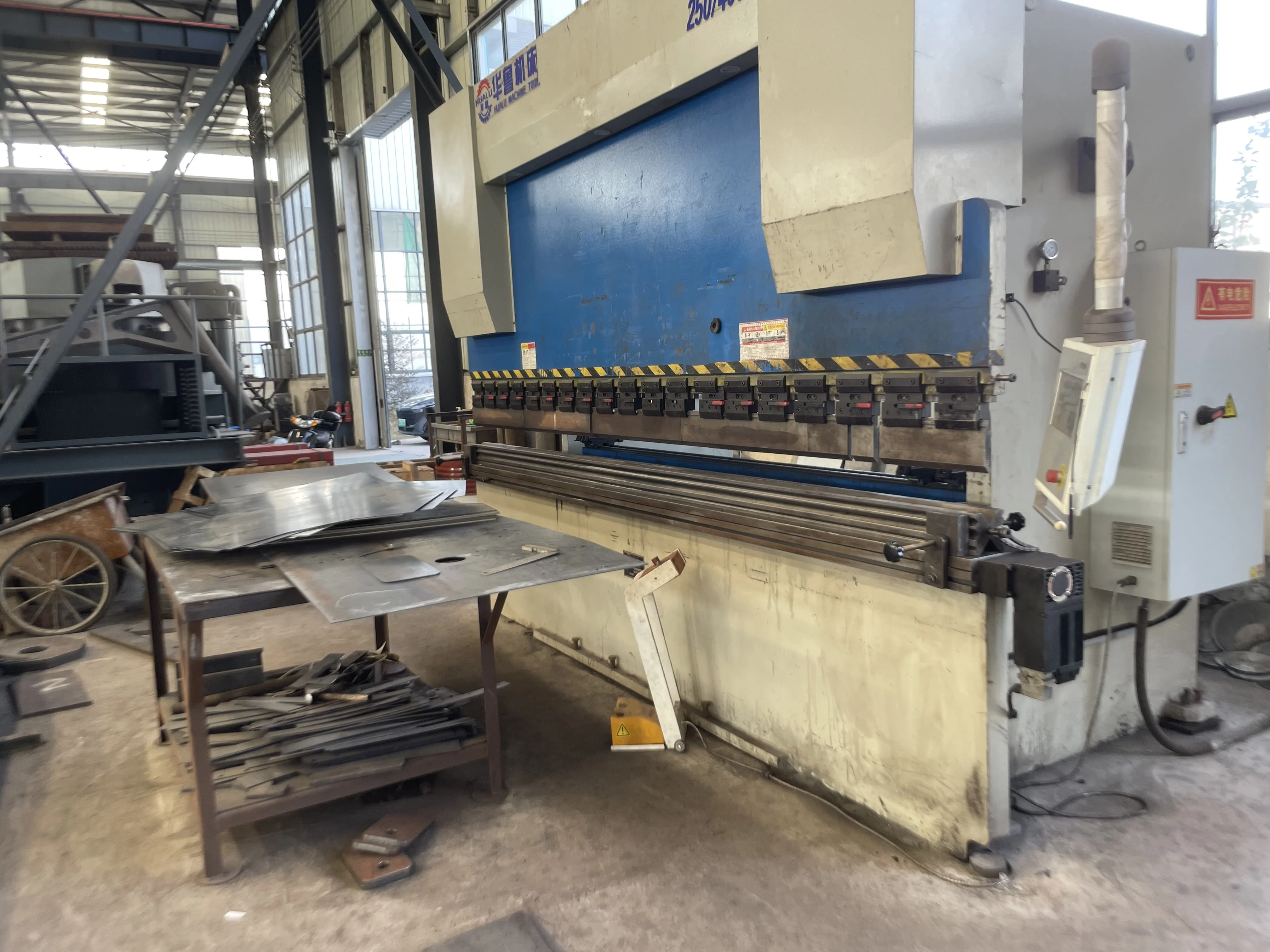

Manufacturing Technique




FAQ


Title goes here.
Jaw crusher can crush granite with hardness in how much
The jaw crusher can crush granite basalt basalt pyrophyllite limestone calcite feldspar iron ore copper ore and other stones up to 350 MPa.


What kind of mobile form can the jaw crusher be made into?
The jaw crusher can be customized according to the customer's needs or the site or the production capacity
Jaw crusher in frame version without foundation
Mobile Jaw Crusher with Tires
Crawler Jaw Crusher
or a mobile jaw crusher with cone crusher and screen.

How big are all the jaw crusher mass production? What are the spare parts? How to realize the solution to the problem of off-site replacement parts?
The smallest jaw crusher is PE60*100, which is a small one for laboratory use with an hourly output of several dozens of kilograms.
The smallest jaw crusher is PE60*100, which is a laboratory jaw crusher with a capacity of several tens of kilograms per hour, with a capacity of 1-800 tons per hour for rock crushing in mines.
The regular spare parts of jaw crusher are manganese steel plates and liners and bearings are the main parts of jaw crusher.
Communicate with us online, we will show you the replacement of each part in 3D or video.
