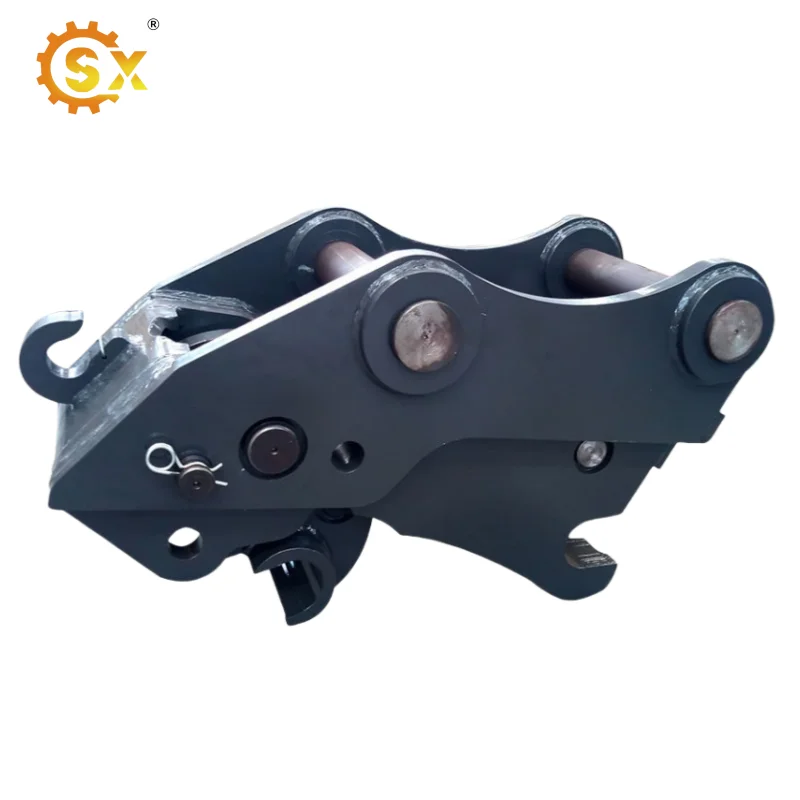

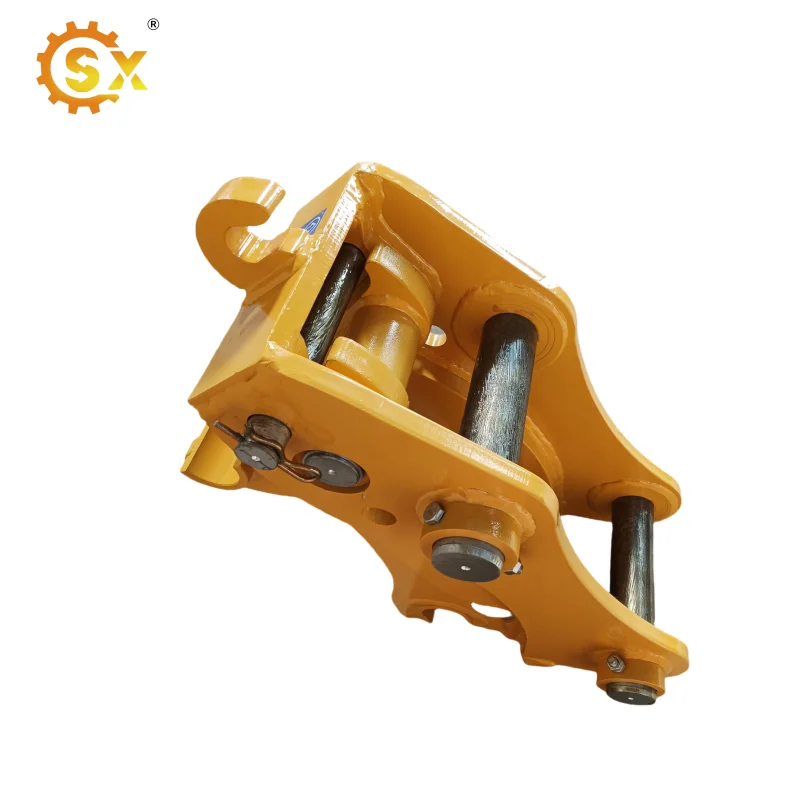

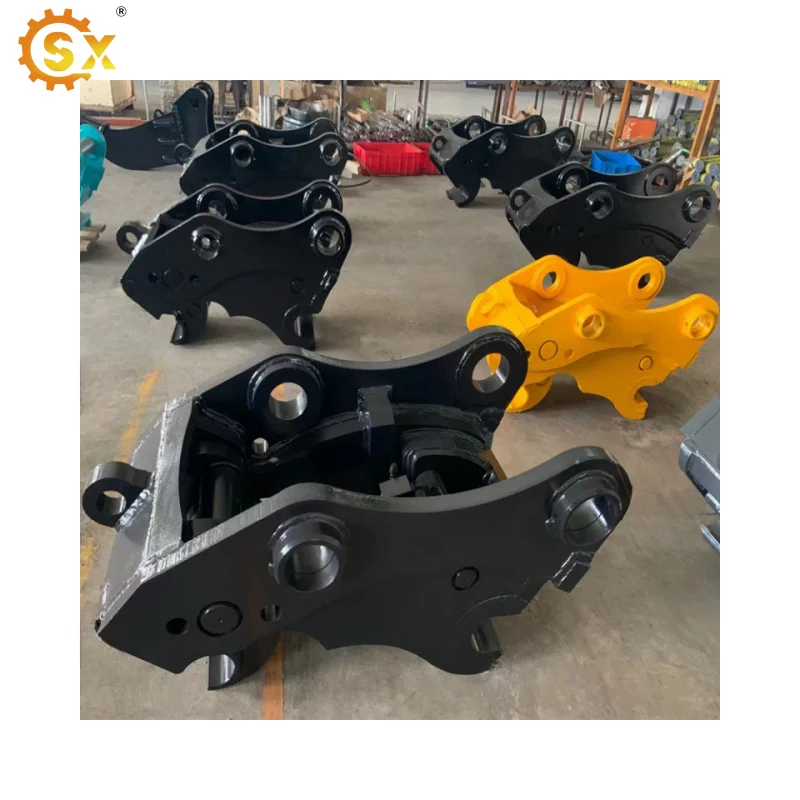

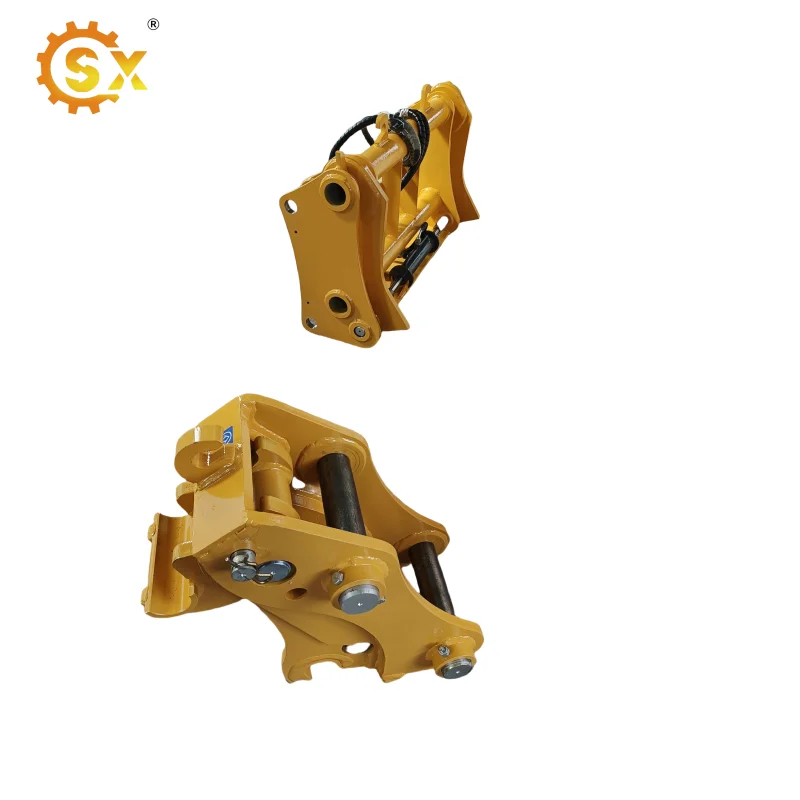

High Quality Factory Price Hydraulic Quick Coupler Mechanical Quick Couple Customizable For 4 40 Tons Excavator
- Category: >>>
- Supplier: Xuzhou Sanxian Machinery Technology Co. Ltd.
Share on (1601275455331):
Product Overview
Description
Products Description
Excavator configuration (tons) | Product model | Length (mm) | width (mm) | Height (mm) | Installation distance (mm) | Disassembly distance (mm) | wheelbase distance (mm) | Installation width (mm) | Shaft diameter (Φ) |
≥40 ton | SX450 | 1100 | 632 | 560 | 540-560 | 500-600 | 335 | 385-452 | 90 |
30-40 ton | SX385 | 1020 | 580 | 545 | 510-540 | 500-590 | 327.4 | 330-385 | 90 |
20-30 ton | SX330 | 968 | 510 | 485 | 390-460 | 390-480 | 289 | 265-332 | 80 |
10-20 ton | SX265 | 806 | 388 | 402 | 370-420 | 360-440 | 232 | 210-265 | 60 |
6-10 ton | SX210 | 680 | 343 | 335 | 290-315 | 280-350 | 202 | 170-212 | 50 |
≤6 ton | SX170 | 510 | 293 | 289 | 230 | 230 | 177 | 145-170 | 45 |
1 Purpose and characteristics

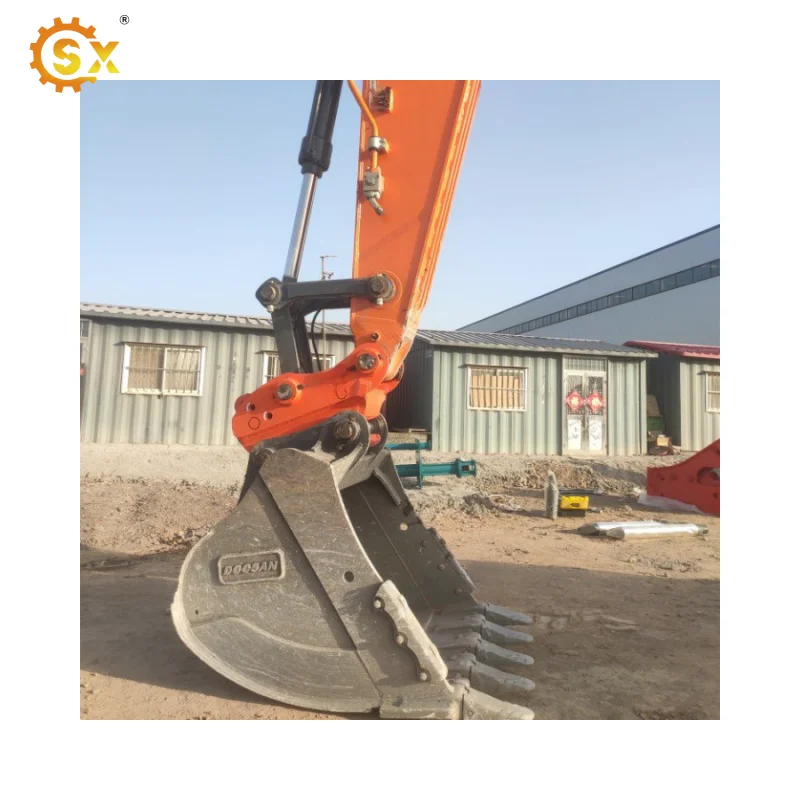

Due to the different working conditions of excavators, frequent replacement of working devices, such as buckets, breakers, and wood grabbers, is often required. Our company has developed a device that can quickly replace the working device, which is called a quick connector, also called a quick-change joint, which can quickly disengage and install the working device, and can lock the working device stably and effectively. It improves the replacement efficiency of excavators to replace buckets, breakers, rippers and other working devices.
The hydraulic excavator quick-change joint produced by our company is driven by a hydraulic cylinder, The hydraulic control one-way valve is locked, and the electromagnetic reversing valve controls the release and clamping;
at the same time, the hydraulic cylinder controls the length of the distance.
so that the clamping can be adjusted steplessly. which can adapt to different working devices. The quick connector is very efficient, practical and convenient to use, and the excavator driver does not need to leave the cab, and directly controls the quick connector through the pilot valve to replace the excavator working device.
Due to the different working conditions of excavators, frequent replacement of working devices, such as buckets, breakers, and wood grabbers, is often required. Our company has developed a device that can quickly replace the working device, which is called a quick connector, also called a quick-change joint, which can quickly disengage and install the working device, and can lock the working device stably and effectively. It improves the replacement efficiency of excavators to replace buckets, breakers, rippers and other working devices.
The hydraulic excavator quick-change joint produced by our company is driven by a hydraulic cylinder, The hydraulic control one-way valve is locked, and the electromagnetic reversing valve controls the release and clamping;
at the same time, the hydraulic cylinder controls the length of the distance.
so that the clamping can be adjusted steplessly. which can adapt to different working devices. The quick connector is very efficient, practical and convenient to use, and the excavator driver does not need to leave the cab, and directly controls the quick connector through the pilot valve to replace the excavator working device.
Contact us
Gina Li
Sales Manager
Xuzhou Sanxian Technology International Trade Department
Email:ginali458@gmail.com/sanxian01@xzsxjx.top
Tel(wechat,whatsapp,linkedin):+8618952178859
Sales Manager
Xuzhou Sanxian Technology International Trade Department
Email:ginali458@gmail.com/sanxian01@xzsxjx.top
Tel(wechat,whatsapp,linkedin):+8618952178859
Recommend Products
Company Profile
ABOUT US

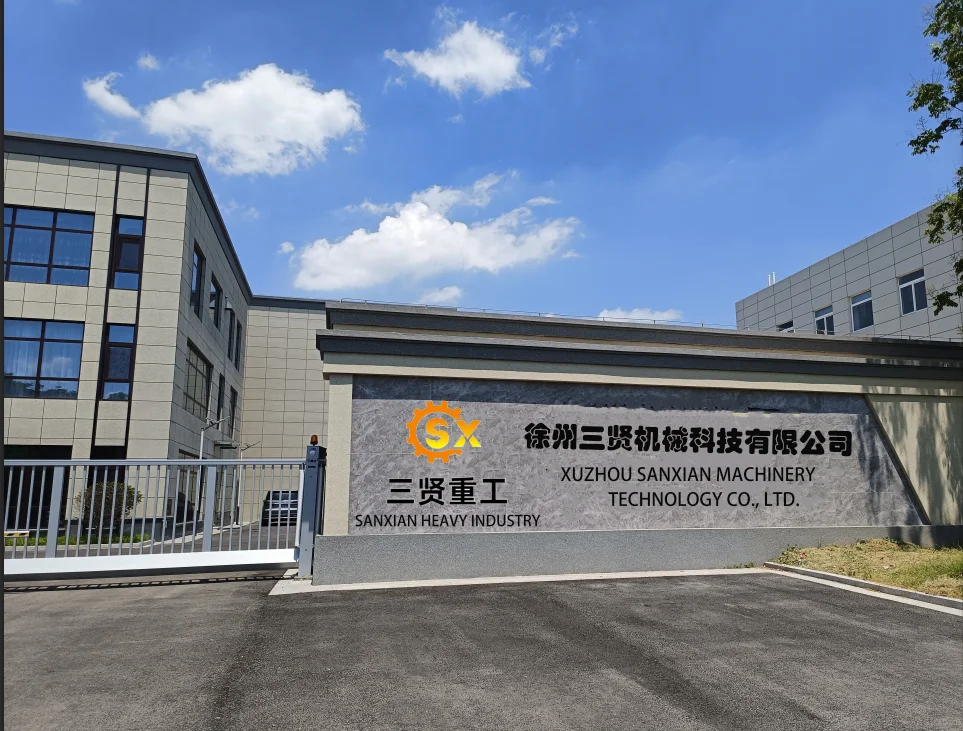

Xuzhou Sanxian Machinery Technology Co., Ltd. was established in January 2012 and is located in Xuzhou, a historical city with beautiful scenery and convenient transportation. It is a professional manufacturer of small and special construction machinery accessories. We have a complete and scientific quality management system. The production workshop covers an area of more than 5,000 square meters. We are one of the technical leaders in the domestic construction machinery industry. Our products are mainly used in excavators and skid steer loaders in municipal, logistics, gardening, construction and other enterprises, institutions and individuals, including tree transplanter , front sweeper, sweeper, hydraulic trencher, fork, forklift front sweeper, tractor snow blower,Snow Brush Broom, truck snow shovel, snow melting spreader, angle sweeper, hydraulic crushing hammer,hydraulic shears, hydraulic rammers, rippers, and timber grabs , universal joint, bucket, fork, auger, milling machine，vibratory compactor, hydraulic plate compactor, rotary tiller, lawn mower, etc. Our products are reliable in performance, reasonable in price and comprehensive in service. We look forward to sincere cooperation and common development with you.
