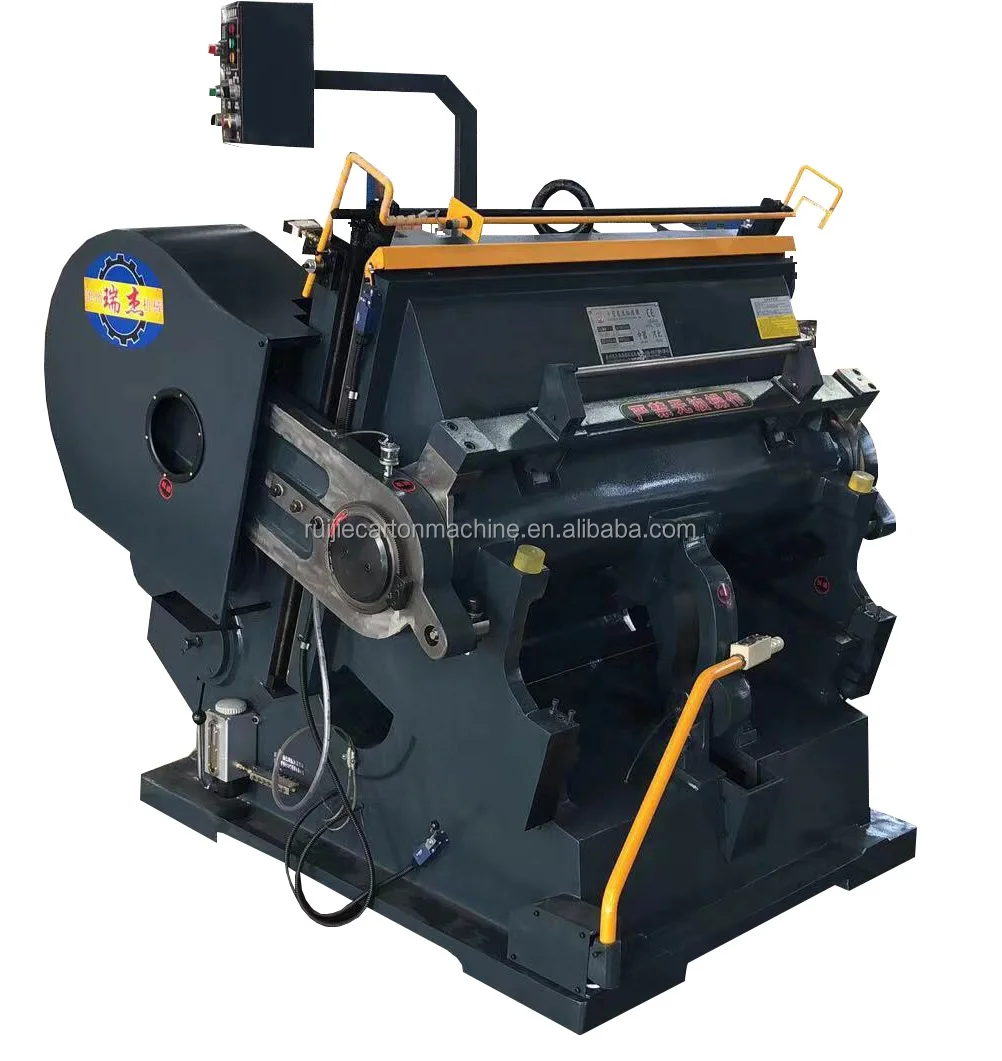

Carton box die cutter corrugated cardboard die cutting creasing rigid paper board semi automatic box making machine

Share on (1601275467201):


Price:$6,800.00 - $7,000.00

Quantity:


Product Overview

Description



Product Description

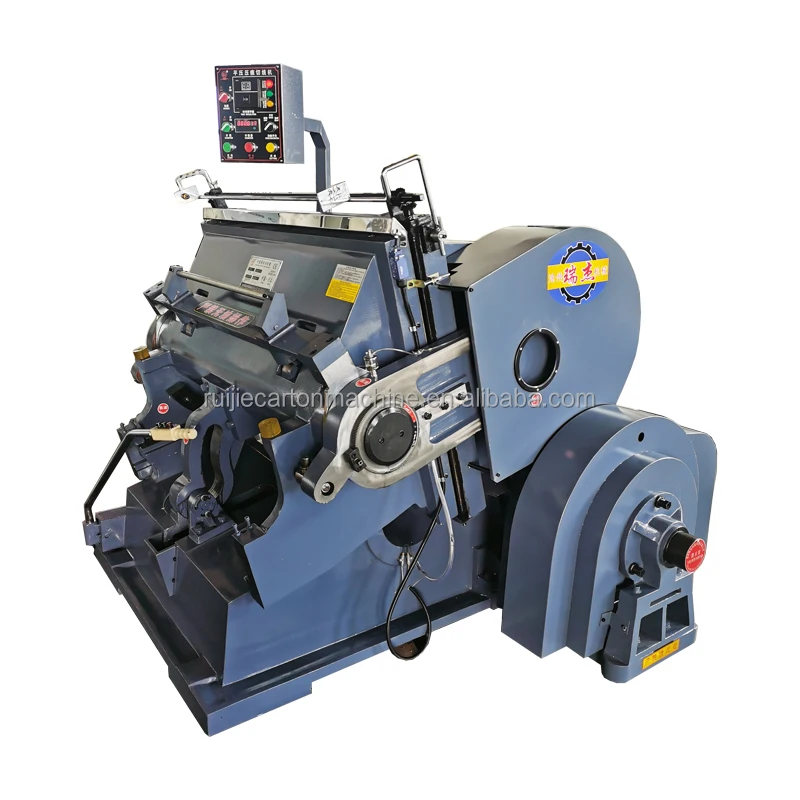

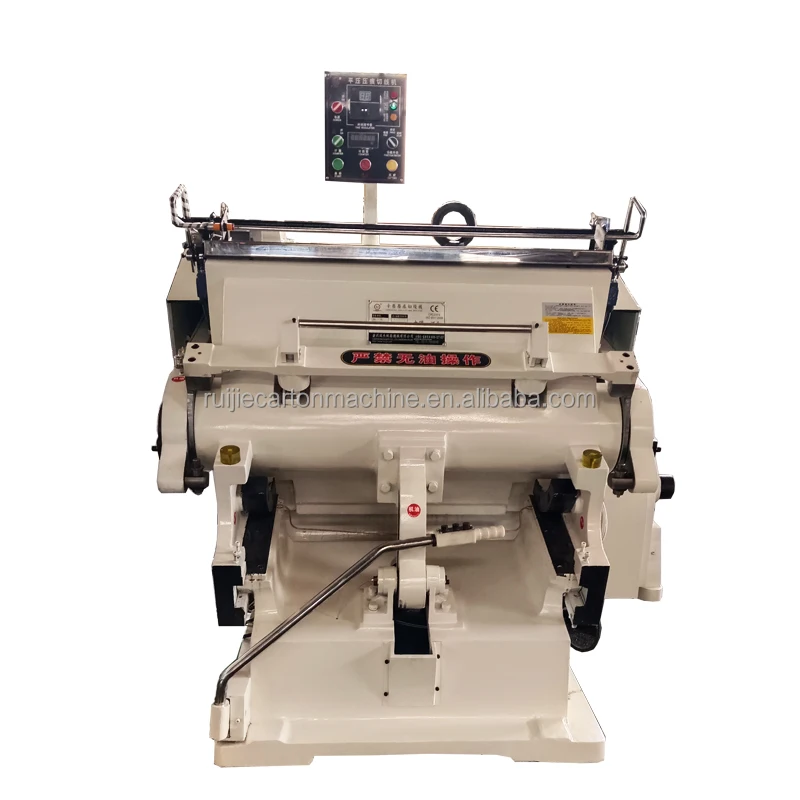

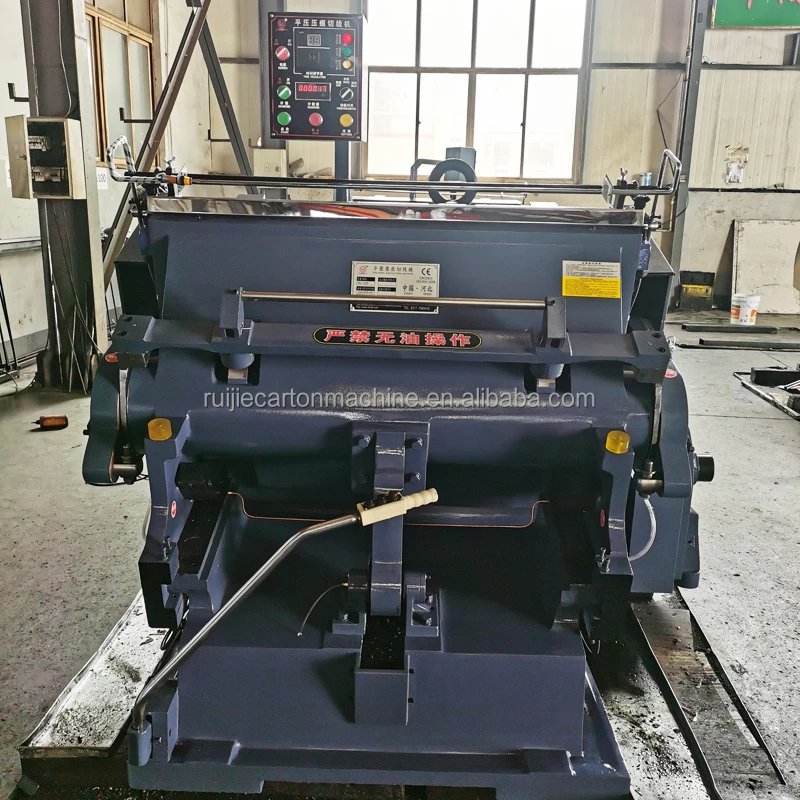

Carton box die cutter corrugated cardboard die cutting creasing rigid paper board semi automatic box making machine








Specification


Model
Inner Chase
Size(mm)
Speed
Strokes/min
Max.rule
Length(m)
Motor Power(kw)
Weight
(kgs)
Overall
Dimension(mm)
ML750
750*520
25 ±3
<15
2.2
2000
1320*15001600
ML930
930*670
23±3
<25
4.0
3000
1620*1820*1630
ML1100
1100*800
20±2
<32
5.5
4500
1920*2030*1700
ML1200
1200*820
20±2
<35
5.5
4800
2020*2030*1700
ML1300
1300*920
18±2
<40
5.5/7.5
6000
2250*2000*1800
ML1400
1400*1000
18±2
<45
5.5/7.5
6500
2400*2000*1850
ML1500
1500*1050
1500*1150
18±2
<45
5.5/7.5
7000
2500*2000*1900
2500*2000*1980
ML1600
1600*1250
16±2
<50
11
11000
2700*2200*2050
ML1800
1800*1300
16±2
<62
15
13500
2240*2800*2230
ML2000
2000*1400
16±2
<80
15
14500
2280*2900*2230
ML2200
2200*1450
16±2
<90
18
16500
2280*3000*2250
ML2500
2500*1600
13±2
<95
22
20000
3580*2400*2550


Features:
1) The sliding bearings adopt high quality cast copper alloy which is wear resistant and vibration reducing.
2) The torque of flywheel is big; the force of press and cutting is high.
3) The body of the machine adopts high strength casting iron made by resin sand casting.
4) Single plate electromagnetic clutch moves fast and reliable.
5) It has the functions of single pressing & cutting, continuous pressing & cutting and open delay pressing & cutting, delay range is adjustable from 0.1 to 9.9 seconds.
6) Operating position is reasonable arranged, moving-bed can be opened to its optimum.

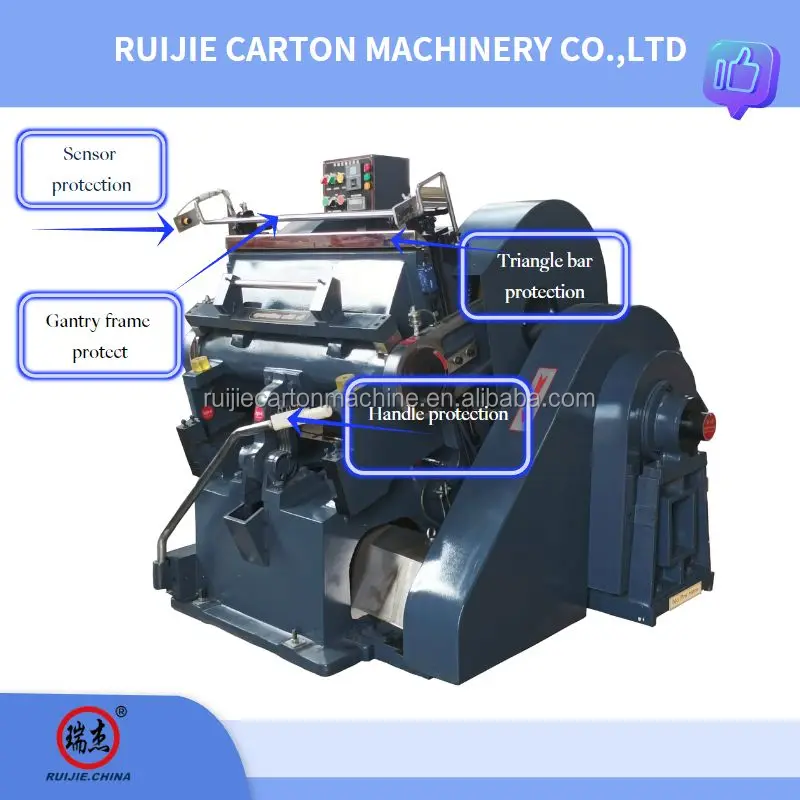

7) Reliable safe protecting system
8) It can be equipped with inner and outer movable frame and centralized lubrication device.

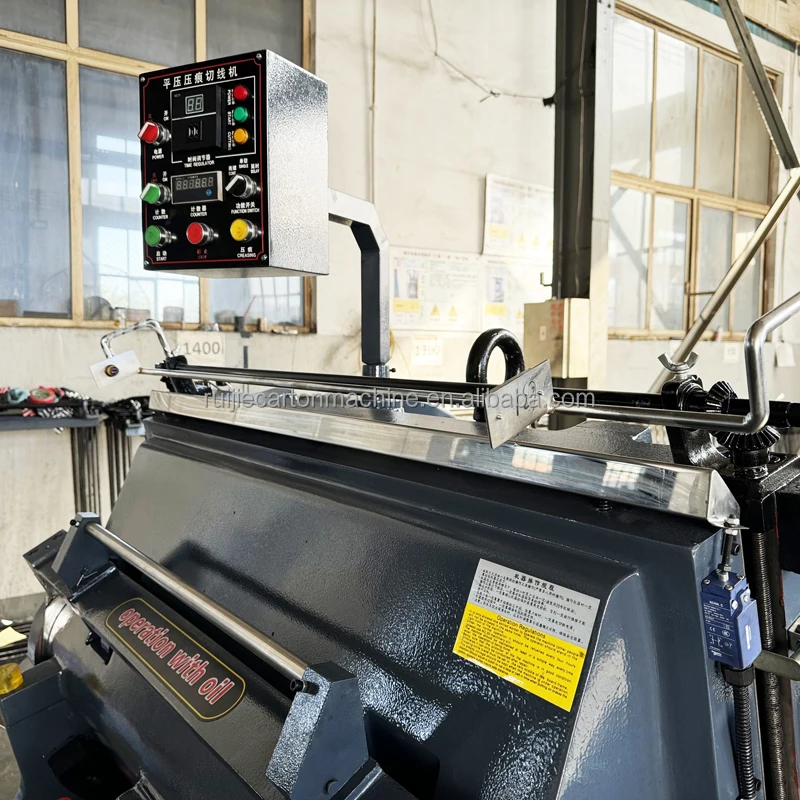

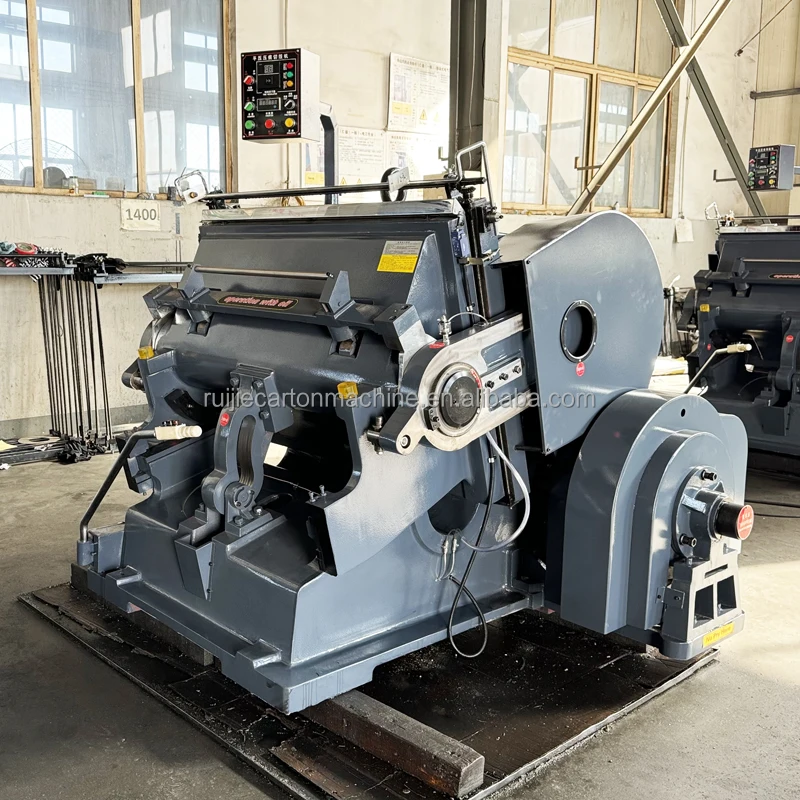

Detailed Images

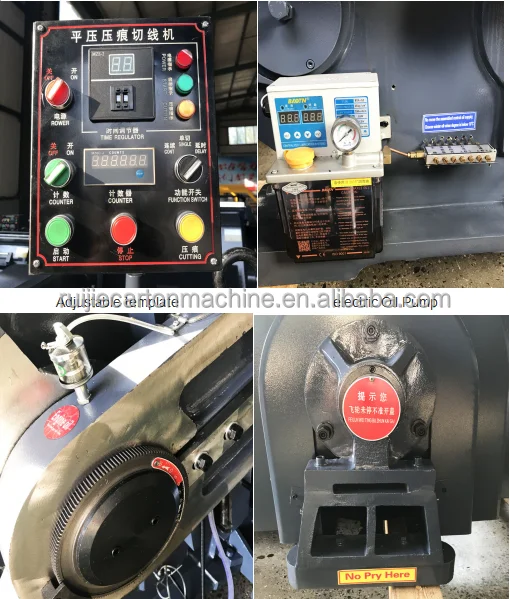

Machine Parts

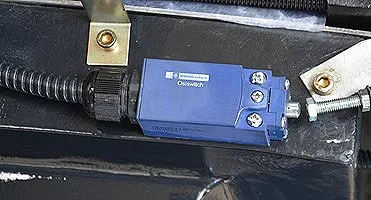

Name: Triangle Switch

Brand: Schneider

Original: France

.








Main Features

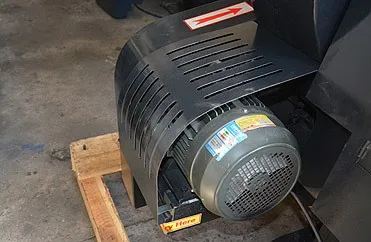

Name: Motor
Brand: Hengshui Mengniu
Original: China





Cangzhou Ruijie Carton Machinery CO,.Ltd.is a professional manufacturer of die-cutting equipment which integrates research and development,manufacturing and sales.We have modern mechanical processingequipment,adhering to the purpose of “Survive by quality,promote development by science and technology”,with advanced die-cutting technology,bring higher economic benefits to our customers.Since its establishment,the company has made great efforts in governance and innovation.The product specifications are gradually completely,the quality is continuously improved,
and the market is continuously to expend to 96 countries around the world.Ruijie has been related as Hebei Province quality inspection qualified enterprises.product quality assured enterprises.Since established,we have got the
ISO9001:2008 international quality system certification.the European Union CE certification,to guarantee the standard and
stability of the product quality,and ensure to provide efficient,low-cost,automatic,high-precision processing equipment to our customer.
Ruijie series die-cutting machine,uses”Ruijie”and:hengsheng”as the registered trademark,Face the rapidly changing market and the increasing demand of customer ,Ruijie people keep innovating to improve product quality and service,learn from
others`strenghths,design to manufacture each product carefully.and become the trusted friend of customers from the needs and interests.






Exhibition

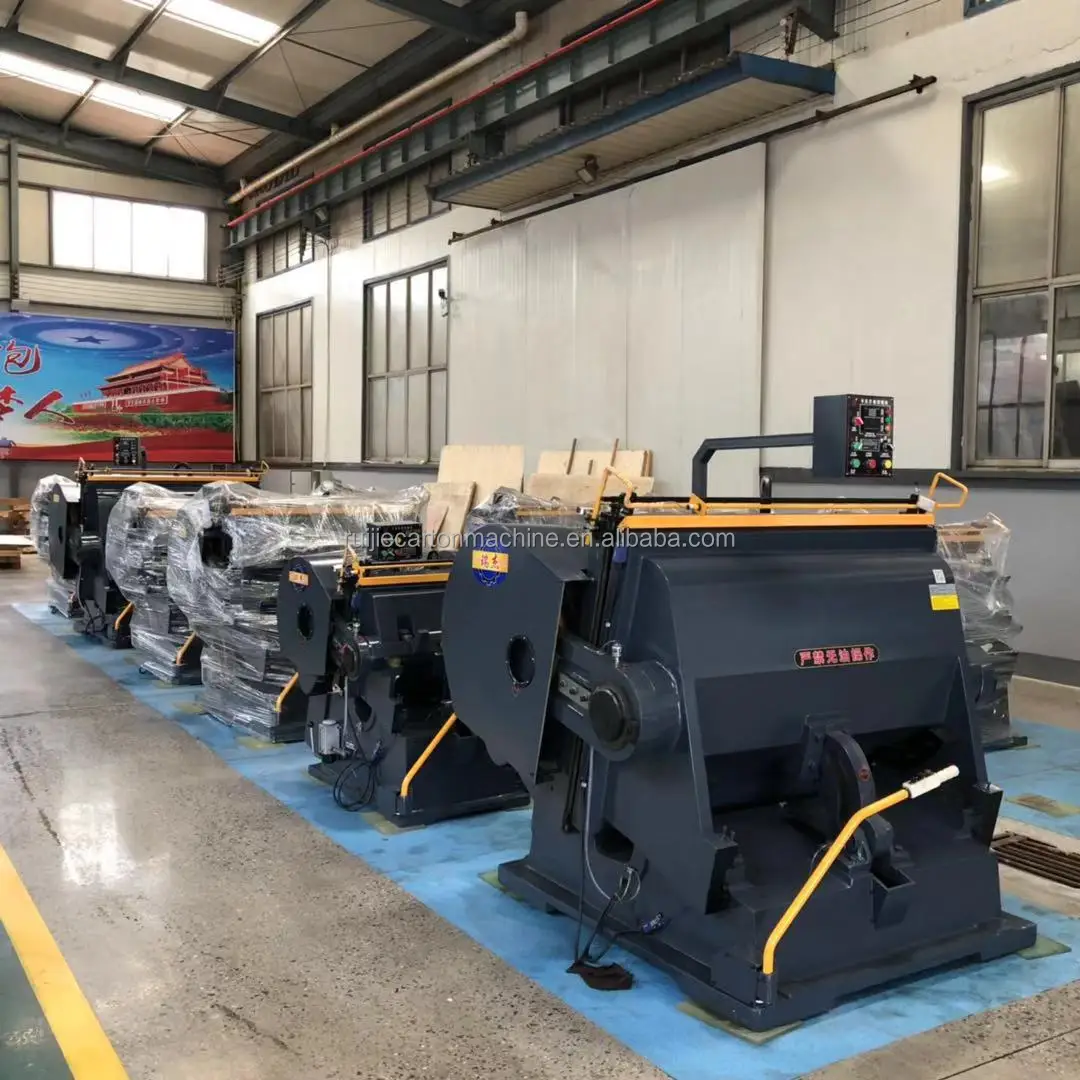

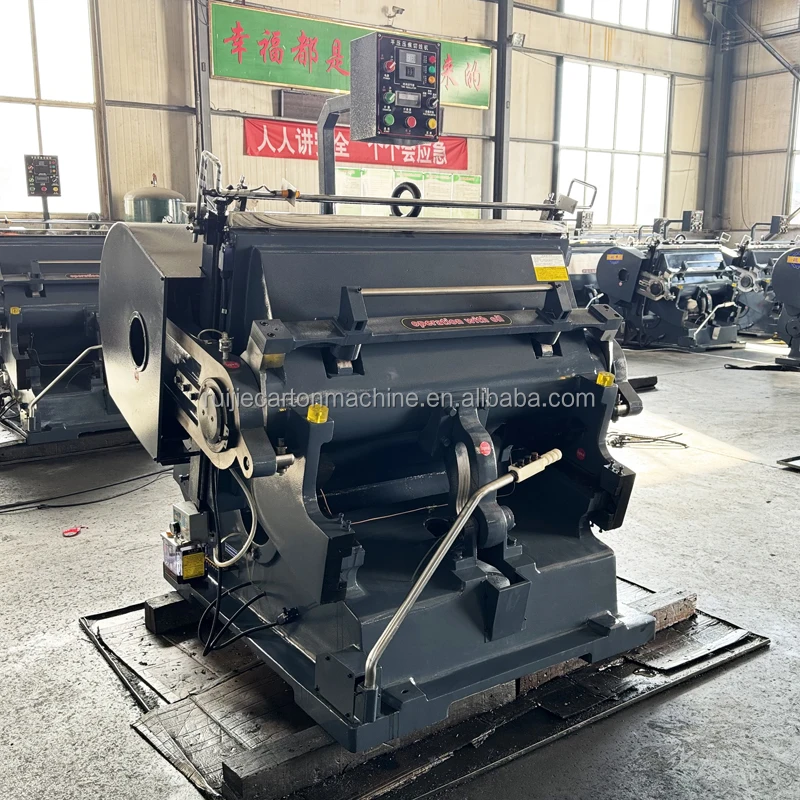

Workshop Show






Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

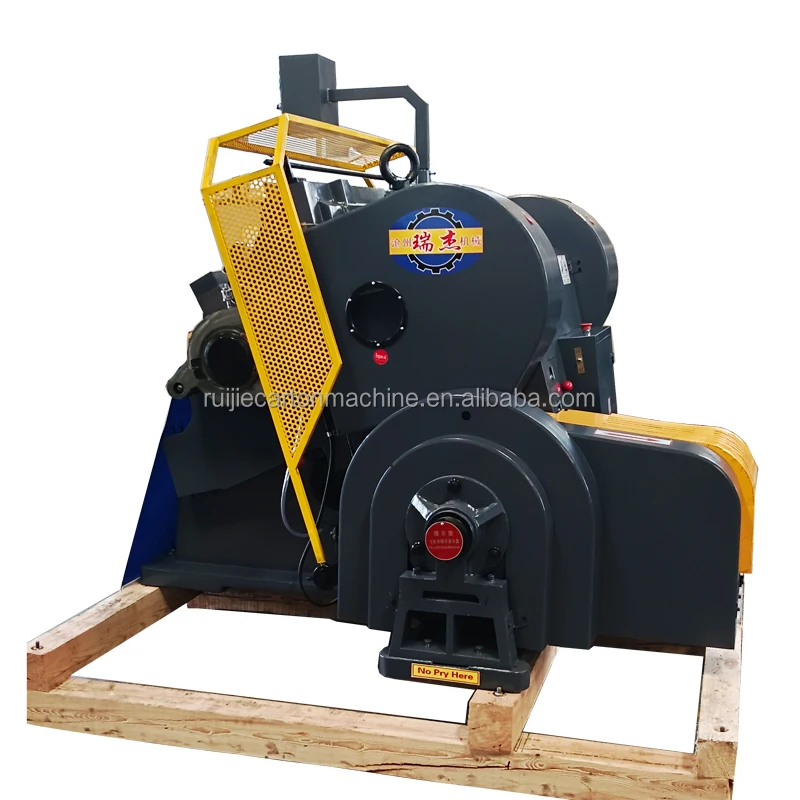

Packing & Delivery






FAQ


1. Are you a factory or trading company?

Ruijie Machinery is a factory and manufacturer in this field about 10 years since 2004.

2. What is the terms of payment you accept?

We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery, but we can also accept the L/C.

3. Where is your factory located ? How can I visit there?

Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin. You can fly to Bejing airport directly and we will pick you up there.
4. How does your factory do regarding quality control?

Quality is priority.We always regard great important to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

5. Why we choose Ruijie Machinery?

Exporting to over 20 countries such as Mexico, Russia, Turkey, we have gained a lot of experience that enable us to meet more and more customers.
