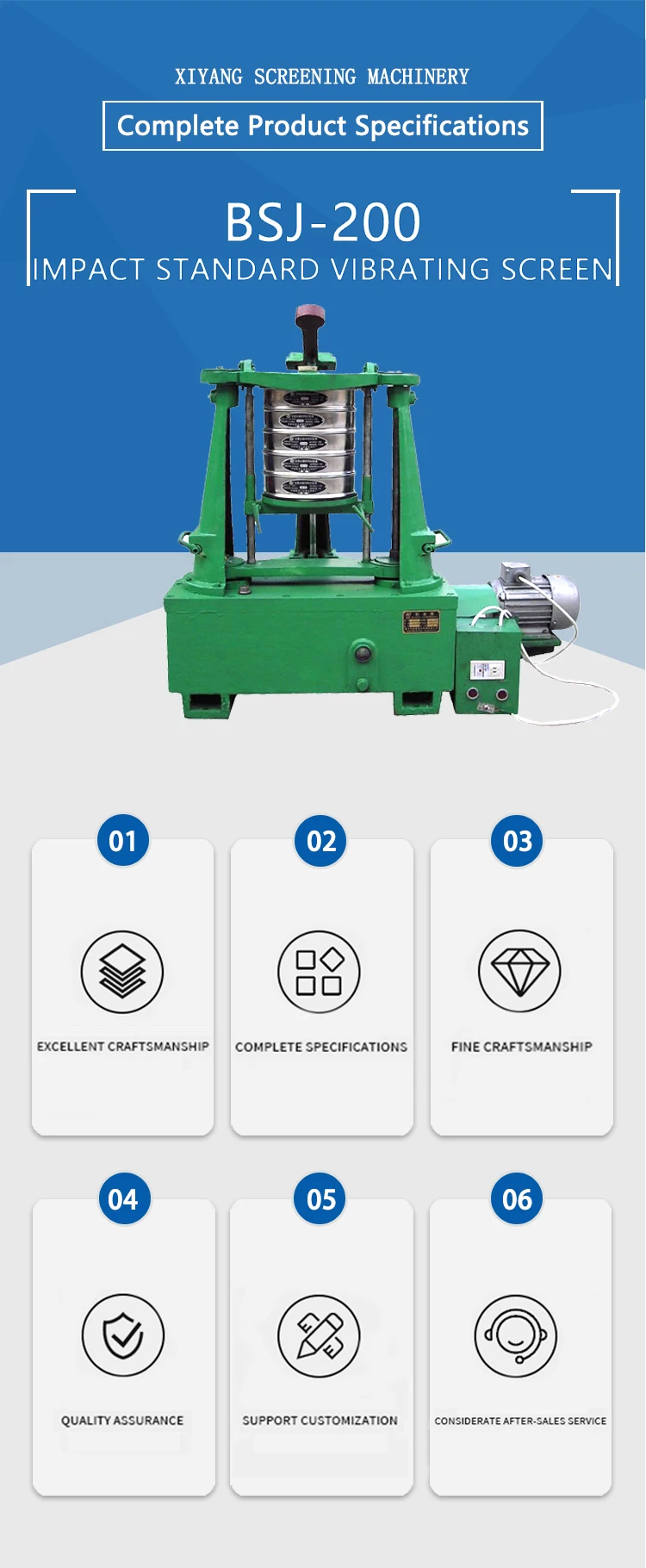

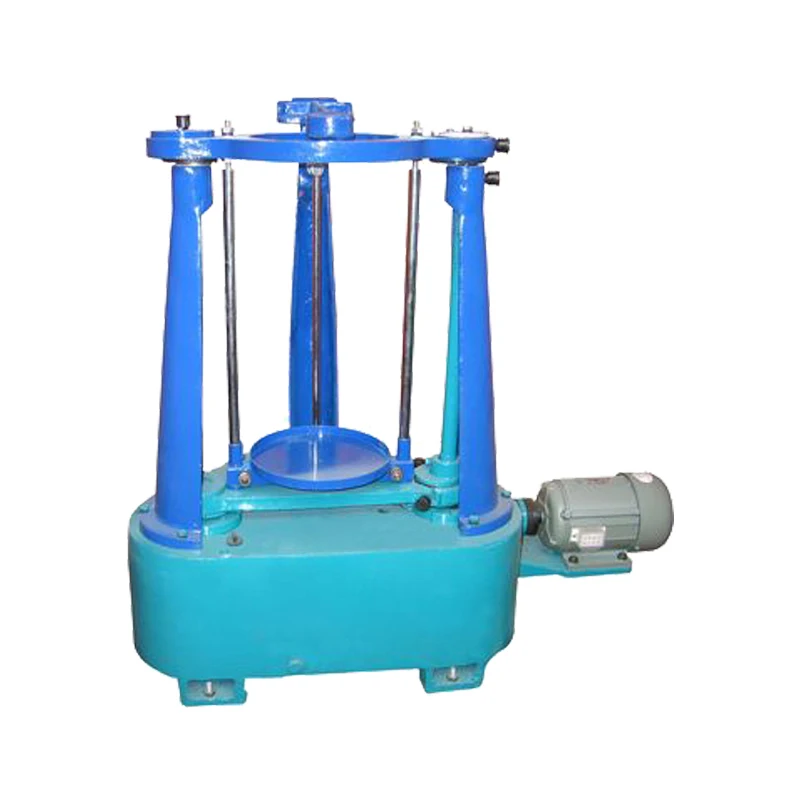

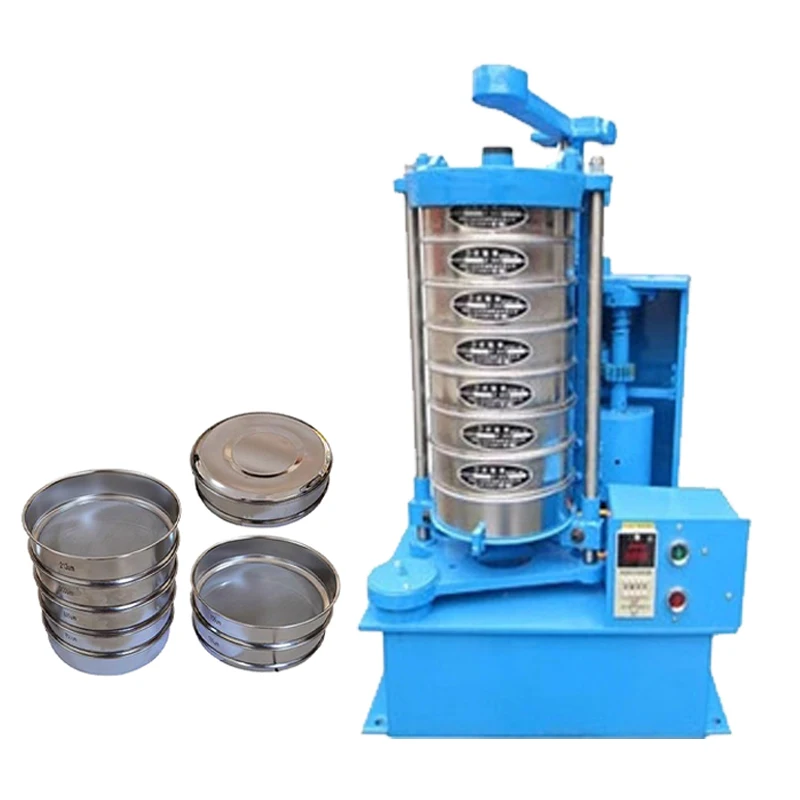

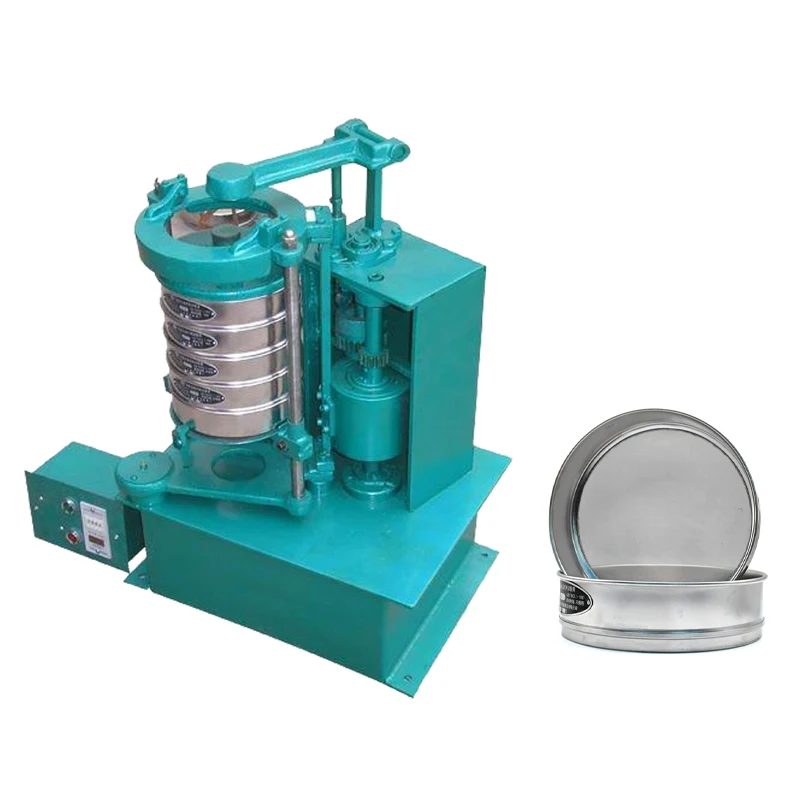

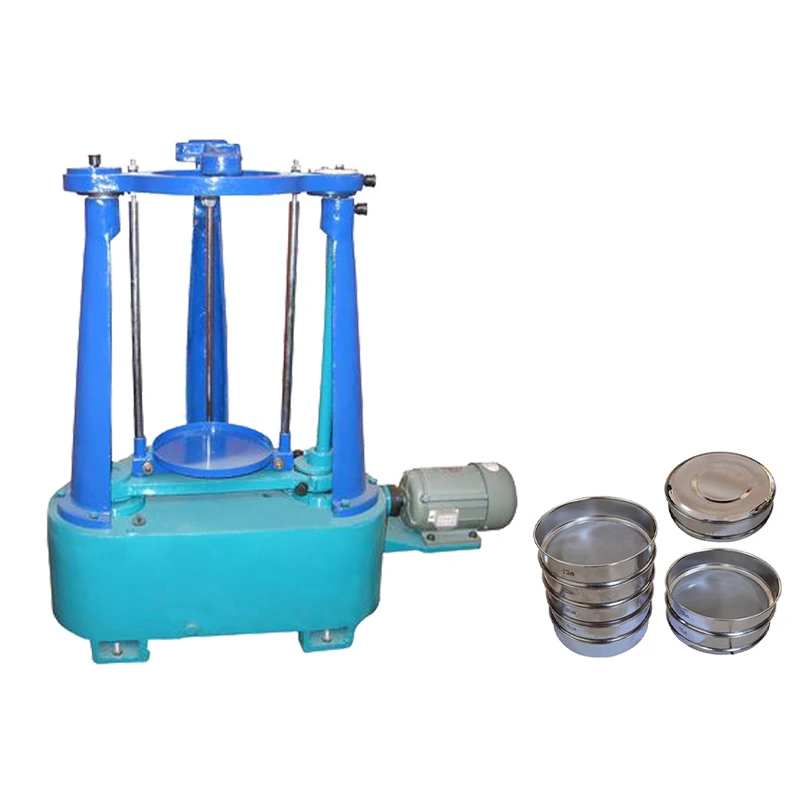

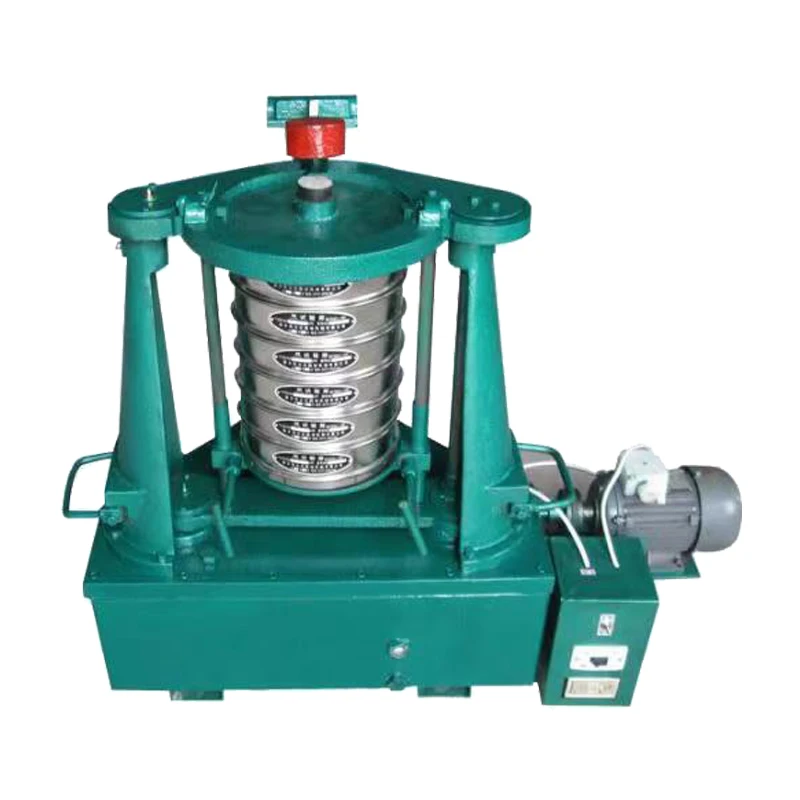

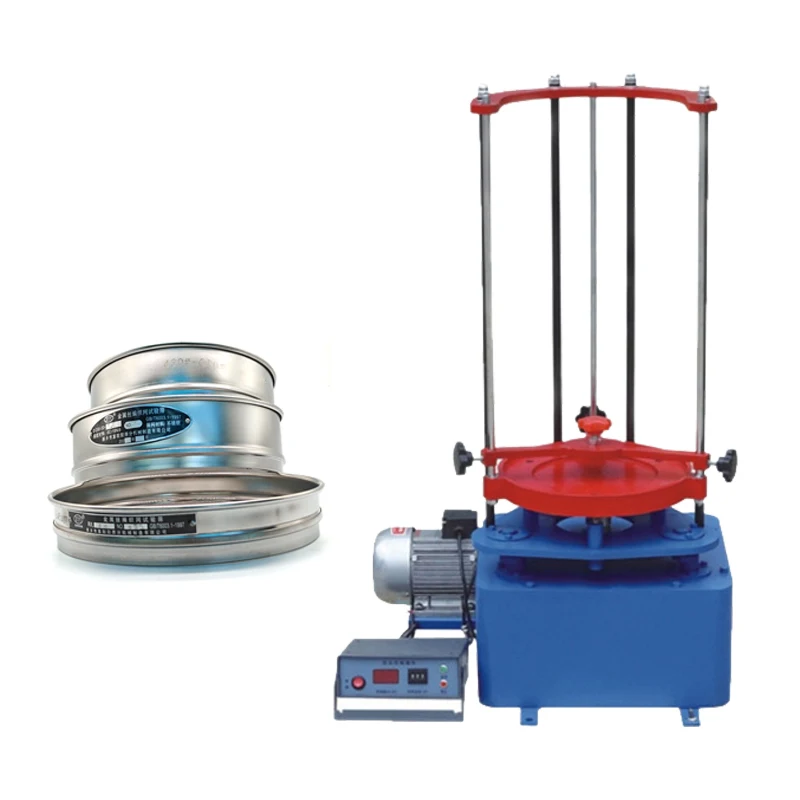

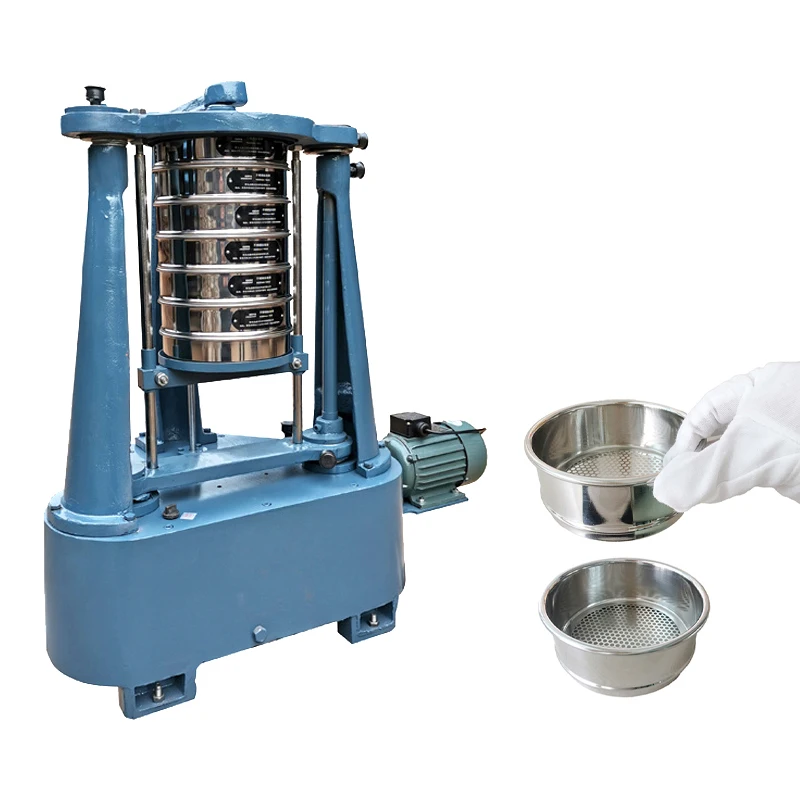

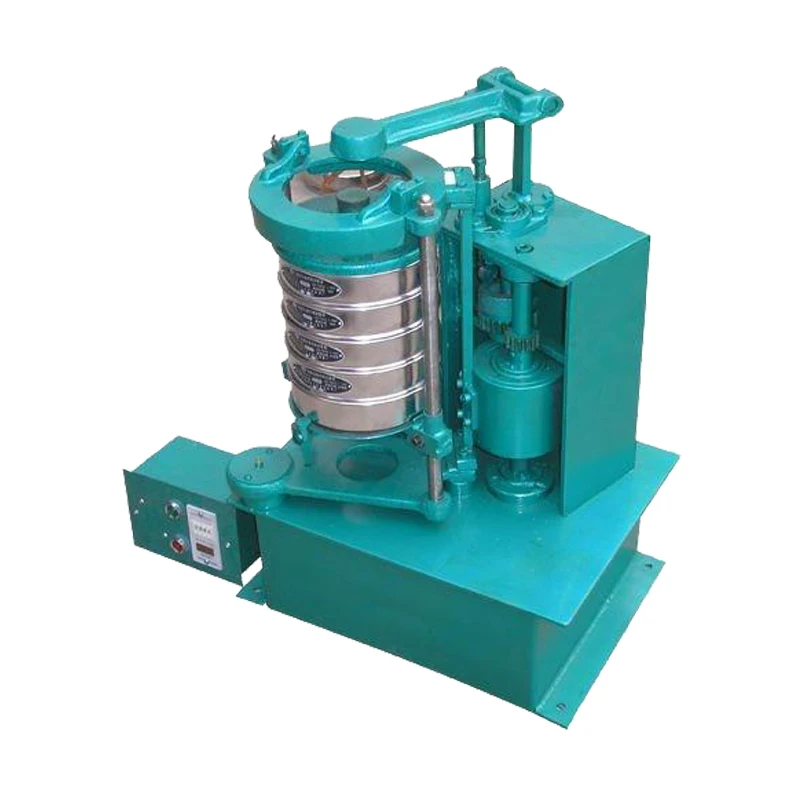

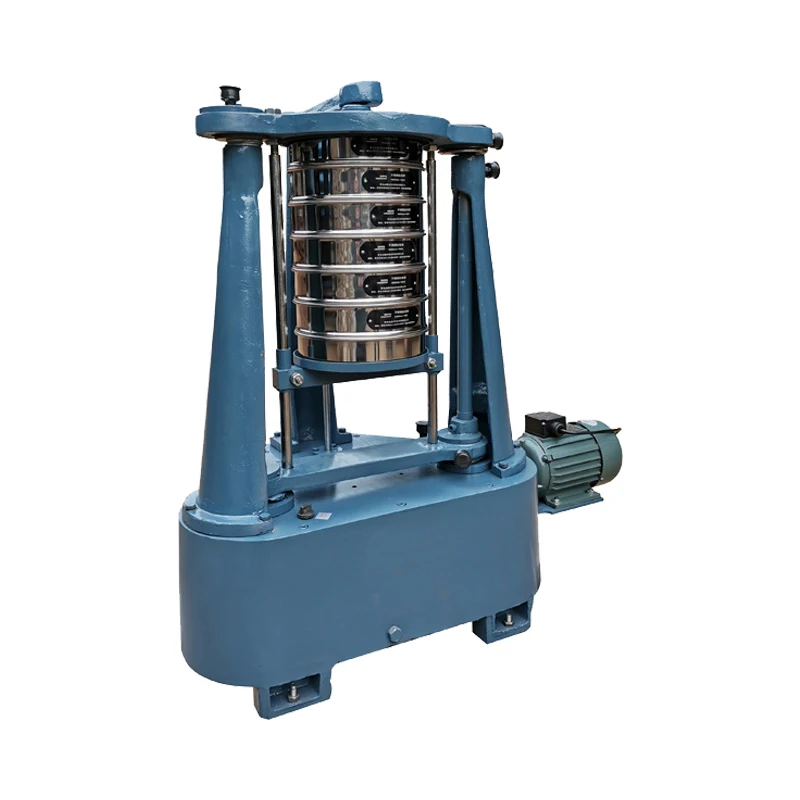

Standard Inspection Test Sieve for Rotary Vibrating Screen round Vibro Sifter Machine Industrial Equipment
- Category: >>>
- Supplier: Global champion manufacturer LLC
Share on (1601275527775):
Product Overview
Description
Company Profile
Product Paramenters
Title | Unit | Description | ||
Sieve Dia | mm | Φ200,Φ100,Φ75 | ||
Sieves Number | layers | 7 | ||
Test Sieve Φ200mm | Set | 1 | ||
Rotation | r/min | 290±6 | ||
Tapping | r/min | 156±3 | ||
Tapping Height | mm | 38±6 | ||
Levelness of the base | mm/min | ≤0.6 | ||
Rotation distance | mm | 25 | ||
Motor | Power | Kw | 0.37 | |
Motor | Rotation speed | r/min | 1400 | |
Configuration dimensions | mm | LxWxH 945x440x785 | ||
Weight | kg | 155 | ||
Details Images
Exhibition
Certifications
Why Choose Us
FAQ
What is the standard used for the test sieve?
The test sieve of the test screen strictly implements the national GB/T6003.1-1997 standard and adopts two-coordinate detection to ensure the dimensional accuracy of the mesh.
What is the material of the test sieve?
The ordinary test screen frame is 201 material, which is easy to rust for a long time. Our test sieve frame and screen are made of 304 stainless steel, strong corrosion resistance.
What is the connection between the screen frame and the screen?
Ordinary connection using glue paste, a long time to block material, but also easy to crack. Our test sieve adopts solder process to ensure that the connection between the screen frame and the screen is strong and can be tested for a long time.
What is the screen frame process?
The ordinary screen frame is easy to deform in the form of iron sheet welding, and the welding is easy to break the surface and scratch the hand. Our test sieve adopts integrated stamping technology with high circular concentricity.
How to achieve the ideal screening effect?
The test sieve needs to be matched with our standard vibrating screen machine to achieve the ideal detection effect. If you do need to test the proportion and content of the material, please buy a test screen that meets national standards to avoid wrong test results and unnecessary losses.
