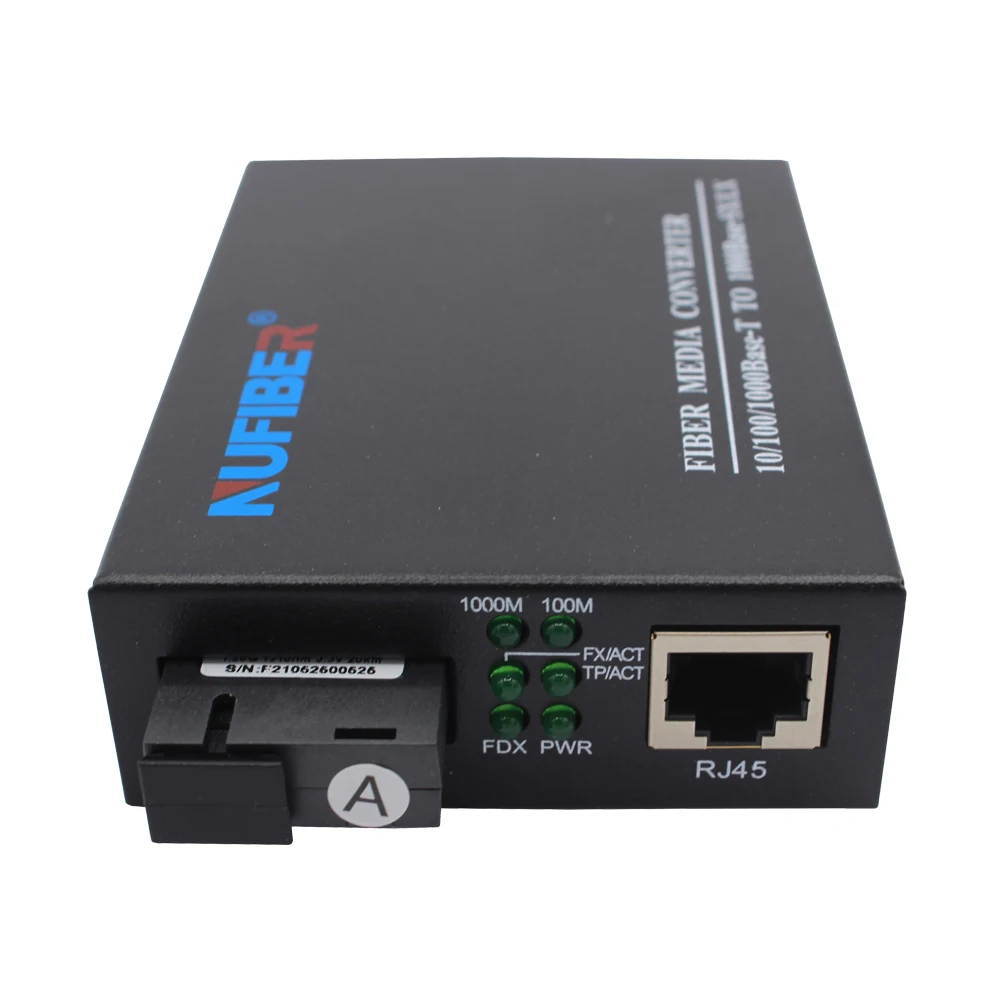

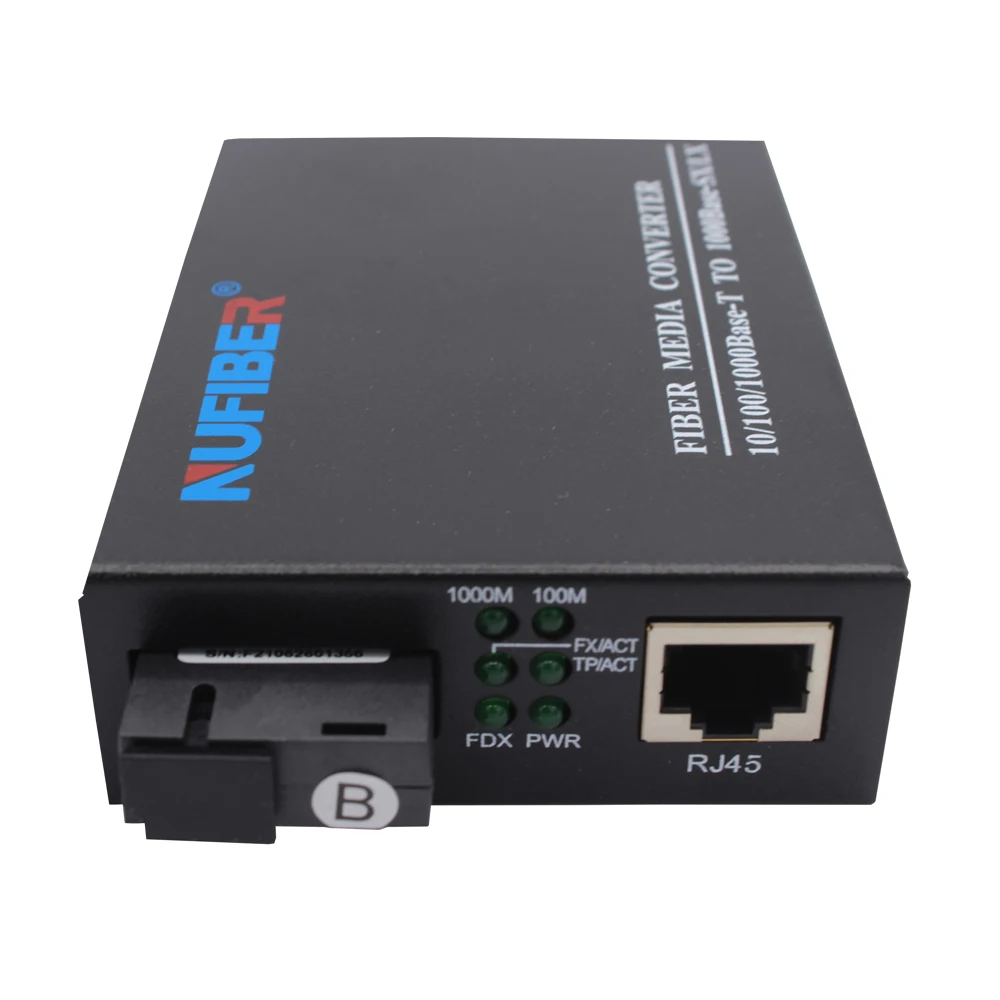

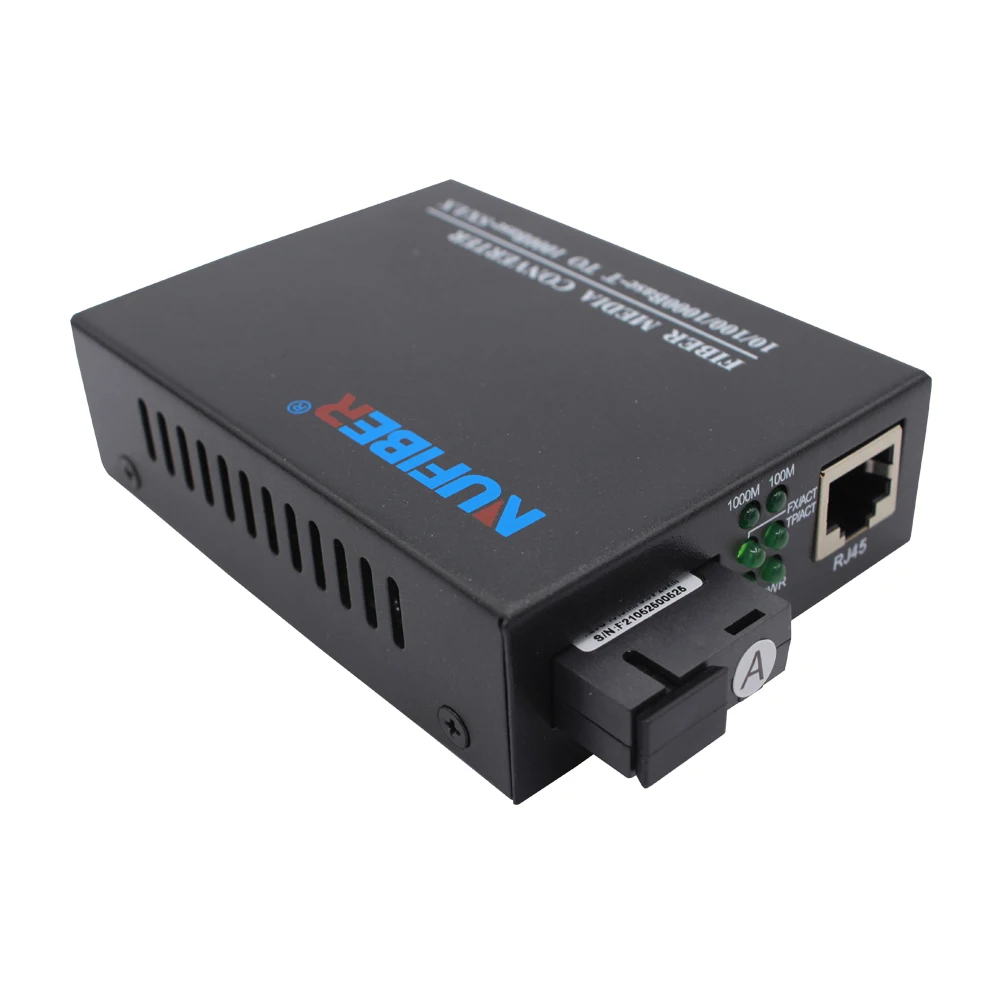

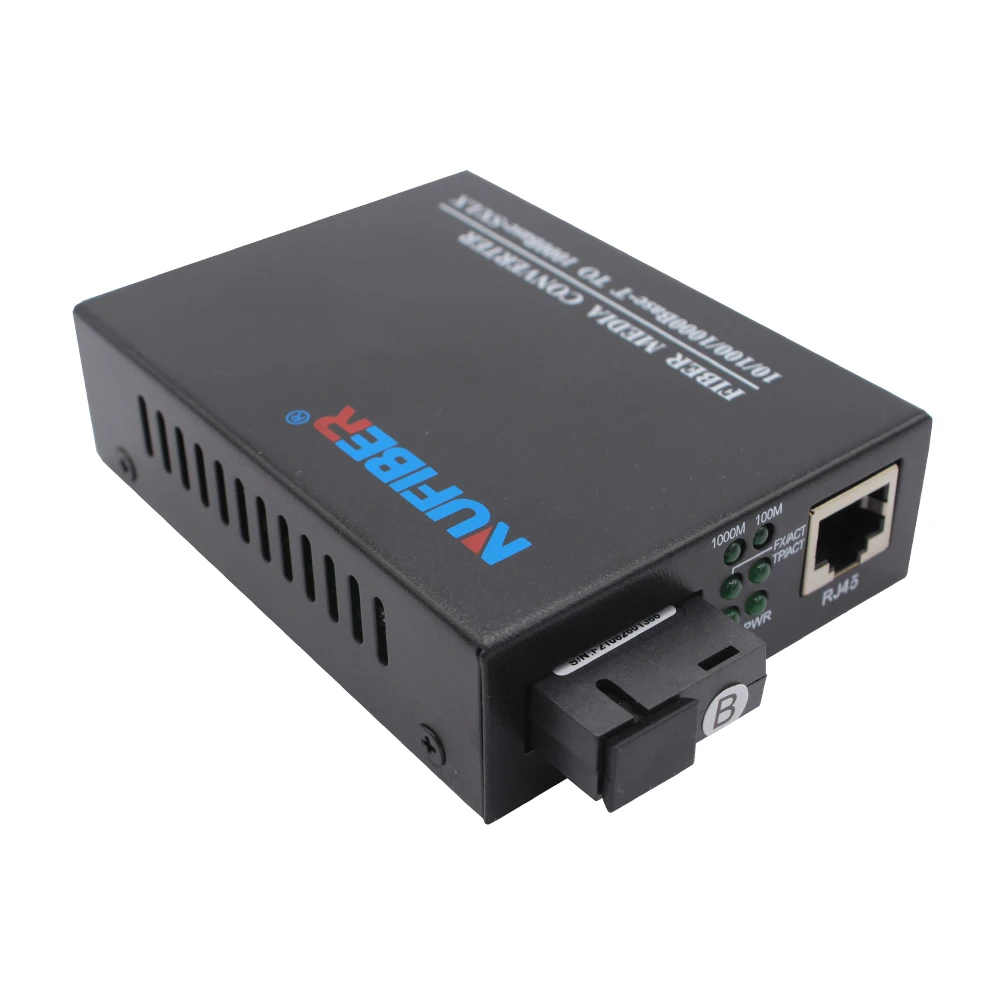

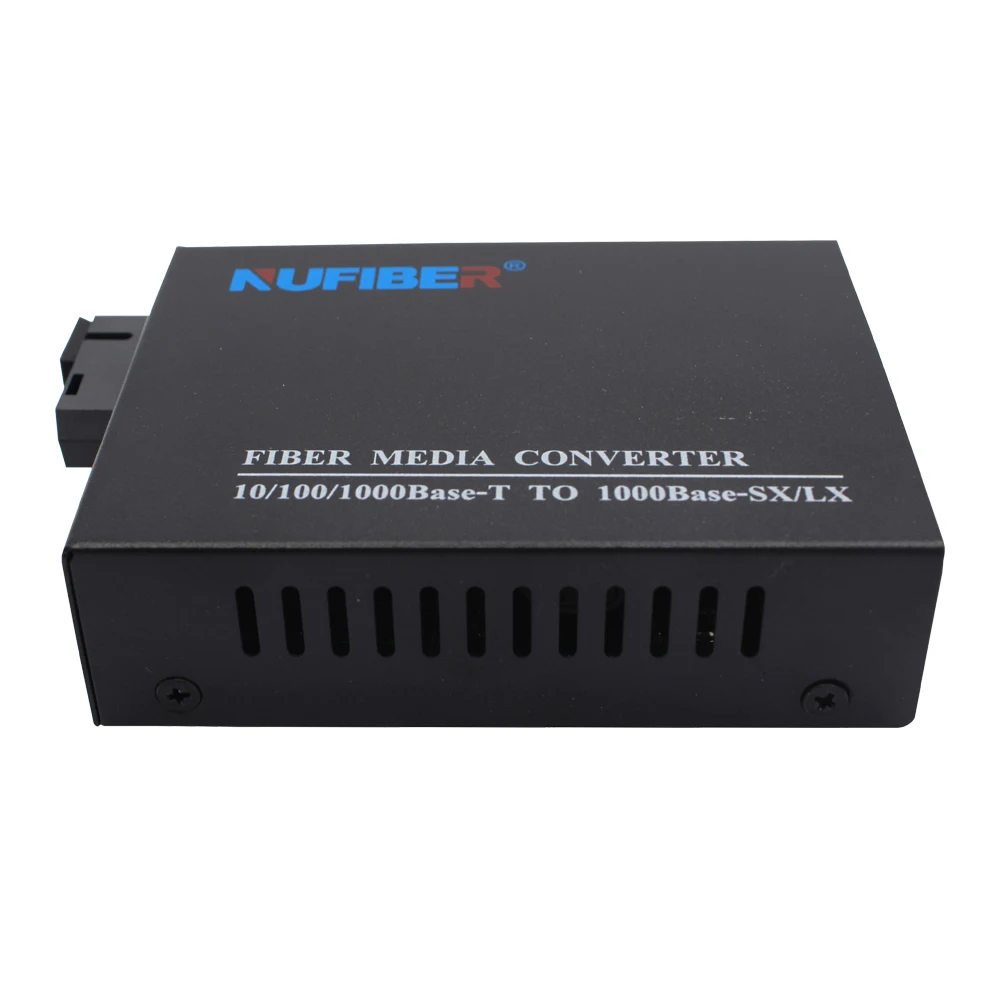

Single fiber SM Tx1550nm/Rx1310nm 20KM SC OEM 1*10/100/1000Base Tx to 1*1000Base FX Media Converter Fiber Optic Equipment
- Category: >>>
- Supplier: Shenzhen Nufiber Technology Co. Ltd.
Share on (1601275542709):
Product Overview
Description
Single fiber SM Tx1550nm/Rx1310nm 20KM SC OEM 1*10/100/1000Base-Tx to 1*1000Base-FX Media Converter Fiber Optic Equipment
Product Description
The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Key Feature
-Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
-Provides DIP switch for LFP function (Disable / Enable) setting
-10/100/1000Mbps Ethernet
-10/100/1000 BASE-T/TX electrical port
-1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 2km for Multi mode;Up to 120km for Single mode
-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
-No in-field optical adjustments required
-LED indicators for easy network diagnostics
Applications
--Access Control Systems
--Building and Environmental Control Systems
--Tamper Switch
--10/100/1000 Mbps Ethernet Media Converter
--High Speed Computer Links
Technical Parameter
Parameters | Specifications |
Standards | IEEE 802.3 10Base-T |
Optic Wavelength | NF-C2200SX: 850nm NF-C2200LX20: 1310nm NF-C2200-SFP: N/A NF-C2200LX20A:TX:1310nm/RX:1550nm NF-C2200LX20B:TX:1550nm/RX:1310nm |
Transmission Distance | Multimode: 2km Single mode:10km~120km |
Port | Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
Led Indicators | Optical Link/Data Activity Electrical Link/Data Activity |
MDI/MDI-X | Auto selection |
Mac address table | 4K |
Memory buffer | 256K |
Data
| Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
Power Supply | External : 5V DC 2A Power Consumption : ≤5W |
Operating Temperature | 0 °C to +70 °C |
Storage Temperature | -20 °C to +80 °C |
Relative Humidity | 5% to 90% (non-condensing) MTBF: >100,000 hours |
Dimensions | 95mm * 70 mm * 25mm |
Net Weight | 0.165 kg |
Emissions | FCC , Class A, RoHS, CE Mark |
Ordering Information
Part Number | Description |
NF-C2200SX | Multi-mode Dual Fiber 10/100/1000M 850nm 550M SC to RJ45 External Power Supply |
NF-C2200SX | Multi-mode Dual Fiber 10/100/1000M 1310nm 2KM SC to RJ45 External Power Supply |
NF-C2200LX20 | Single-mode Dual Fiber 10/100/1000M 1310nm 20KM SC to RJ45 External Power Supply |
NF-C2200LX40 | Single-mode Dual Fiber 10/100/1000M 1310nm 40KM SC to RJ45 External Power Supply |
NF-C2200LX60 | Single-mode Dual Fiber 10/100/1000M 1550nm 60KM SC to RJ45 External Power Supply |
NF-C2200LX60 | Single-mode Dual Fiber 10/100/1000M 1550nm 80KM SC to RJ45 External Power Supply |
NF-C2200LX120 | Single-mode Dual Fiber 10/100/1000M 1550nm 120KM SC to RJ45 External Power Supply |
NF-C2200-SFP | 1 SFP Port 1000M RJ45Port External Power Supply |

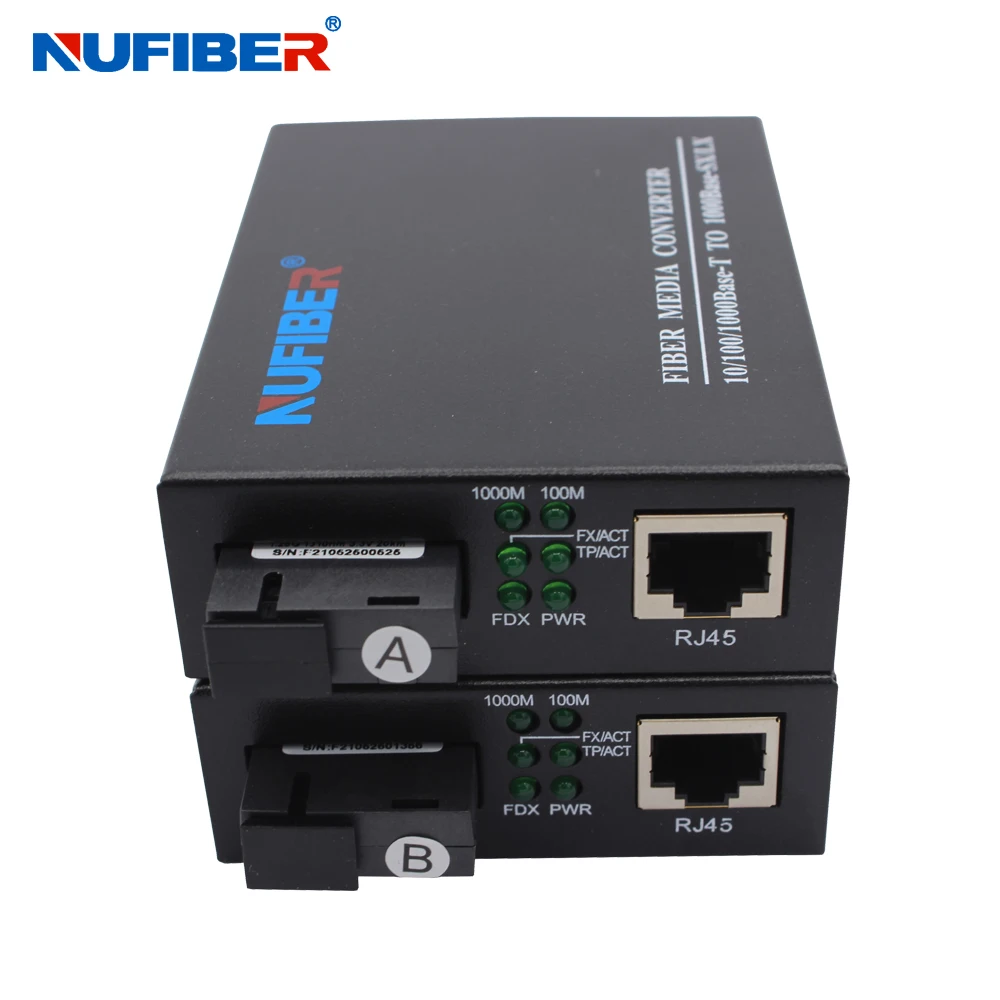

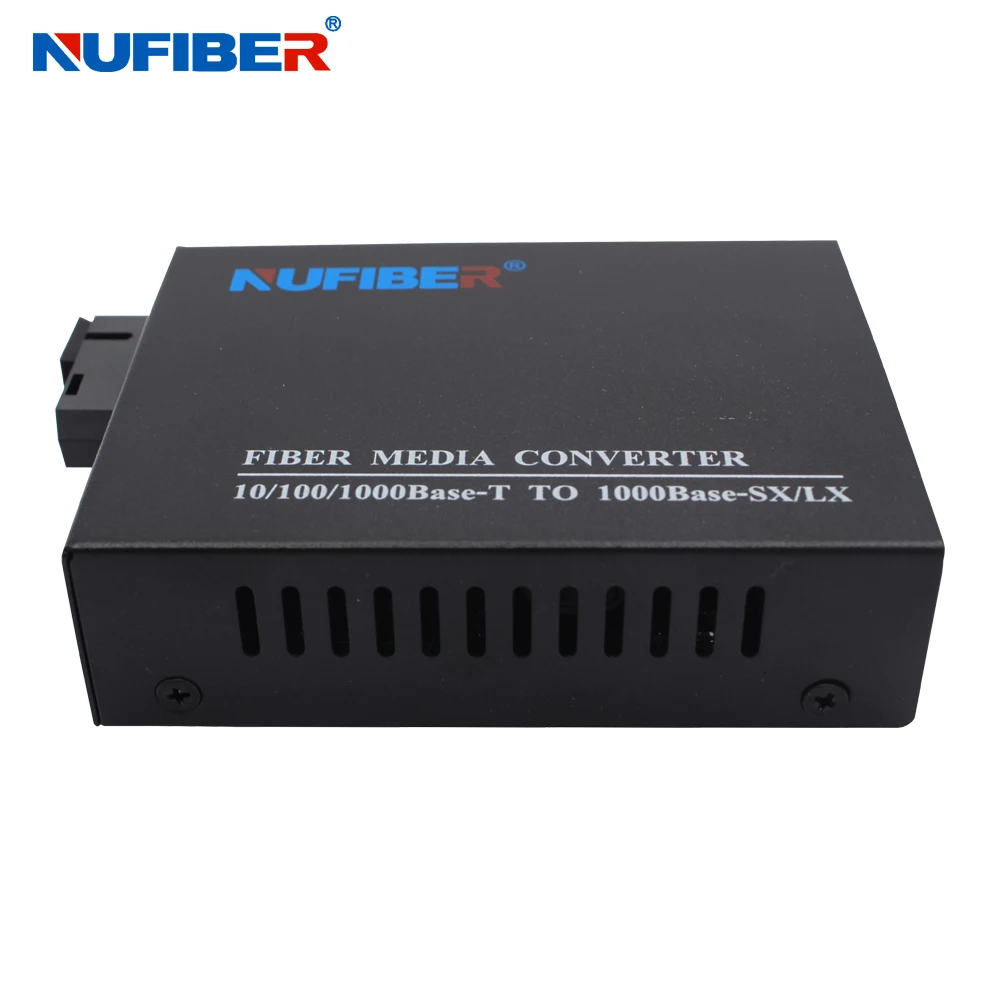

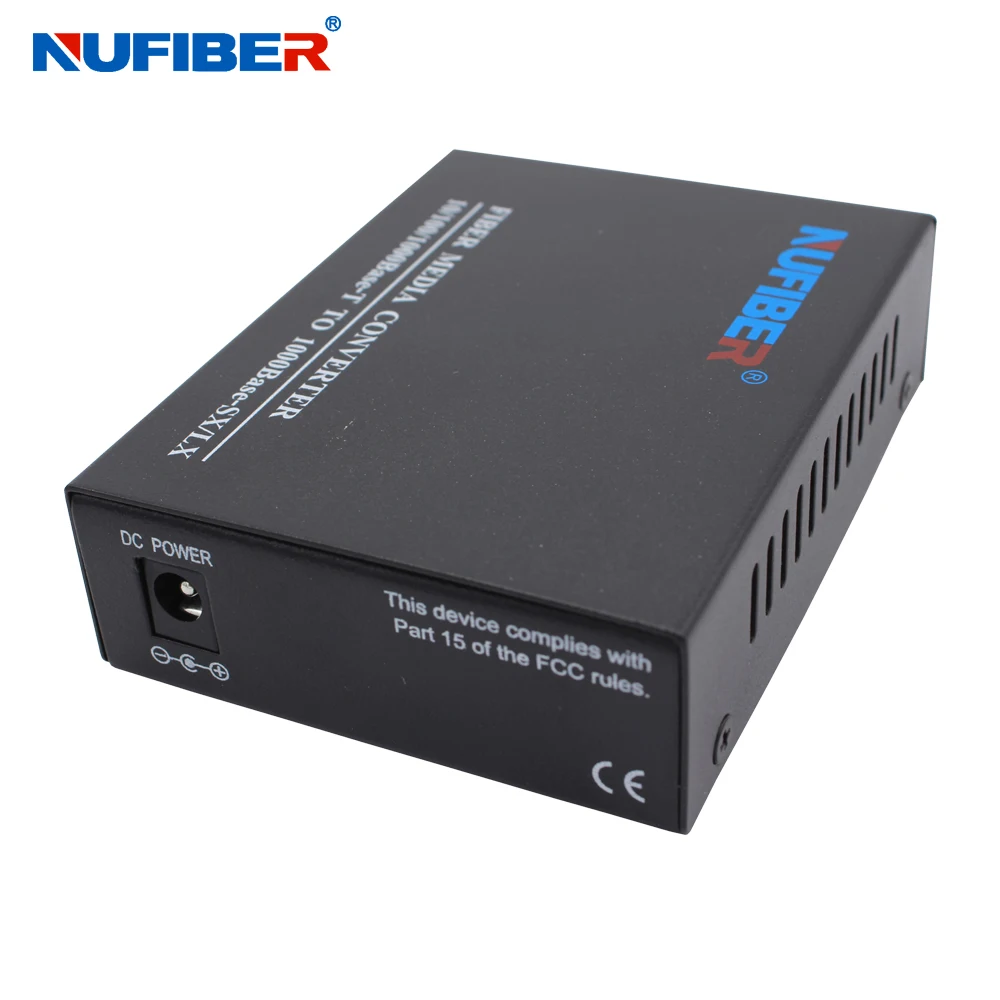

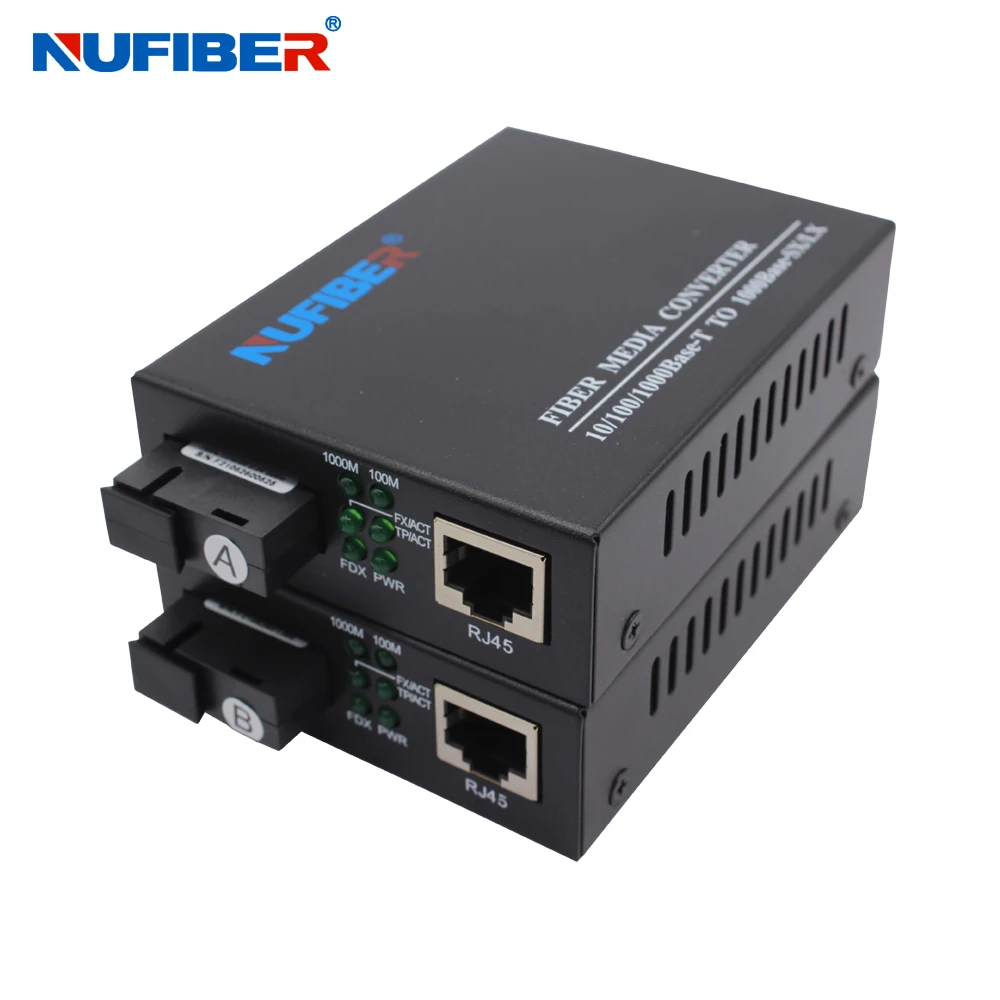

Product Show
