Product Overview
Description
PRODUCTS DESCRIPTION

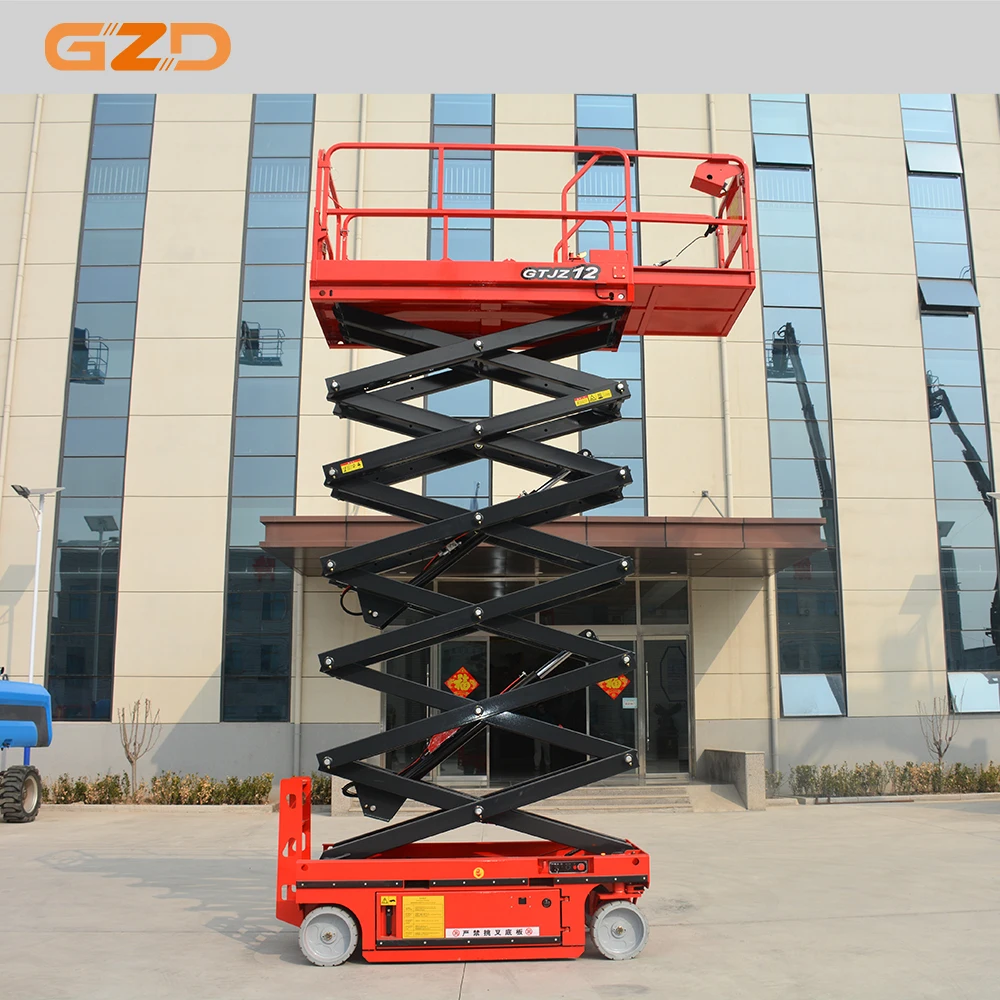

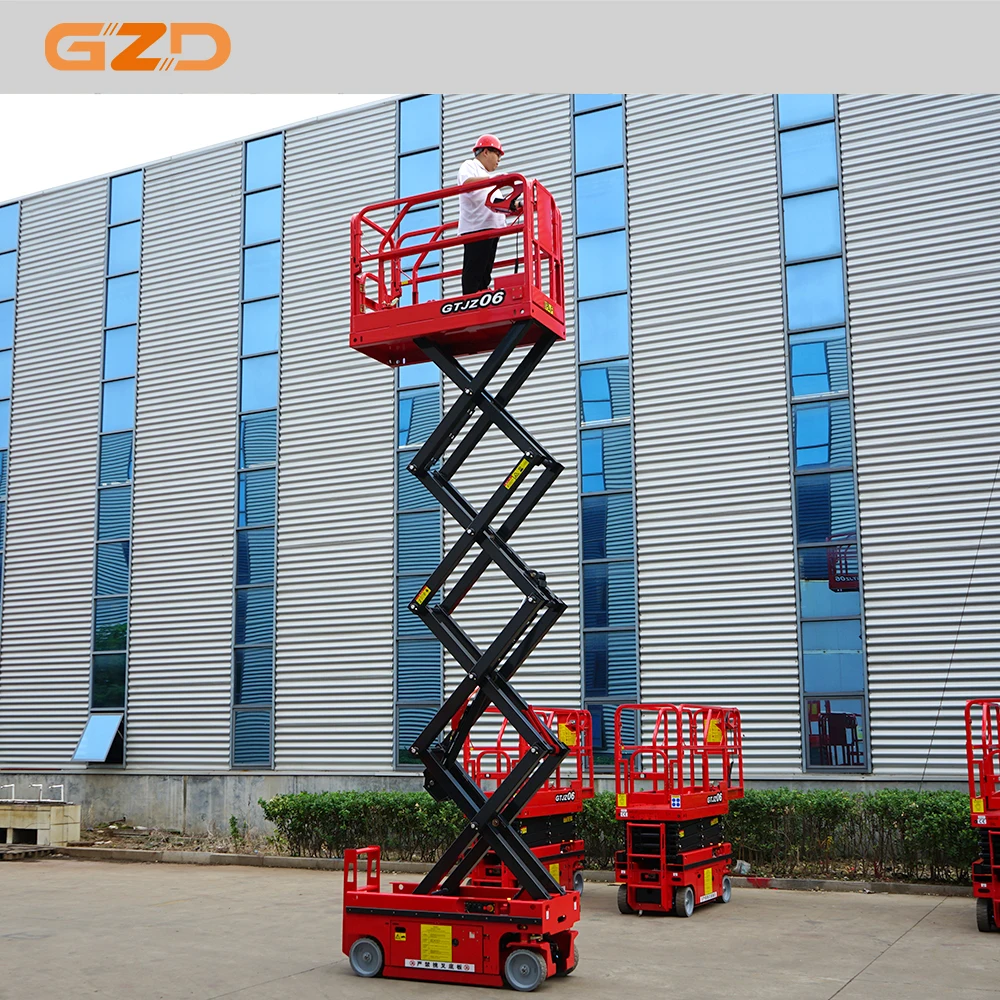

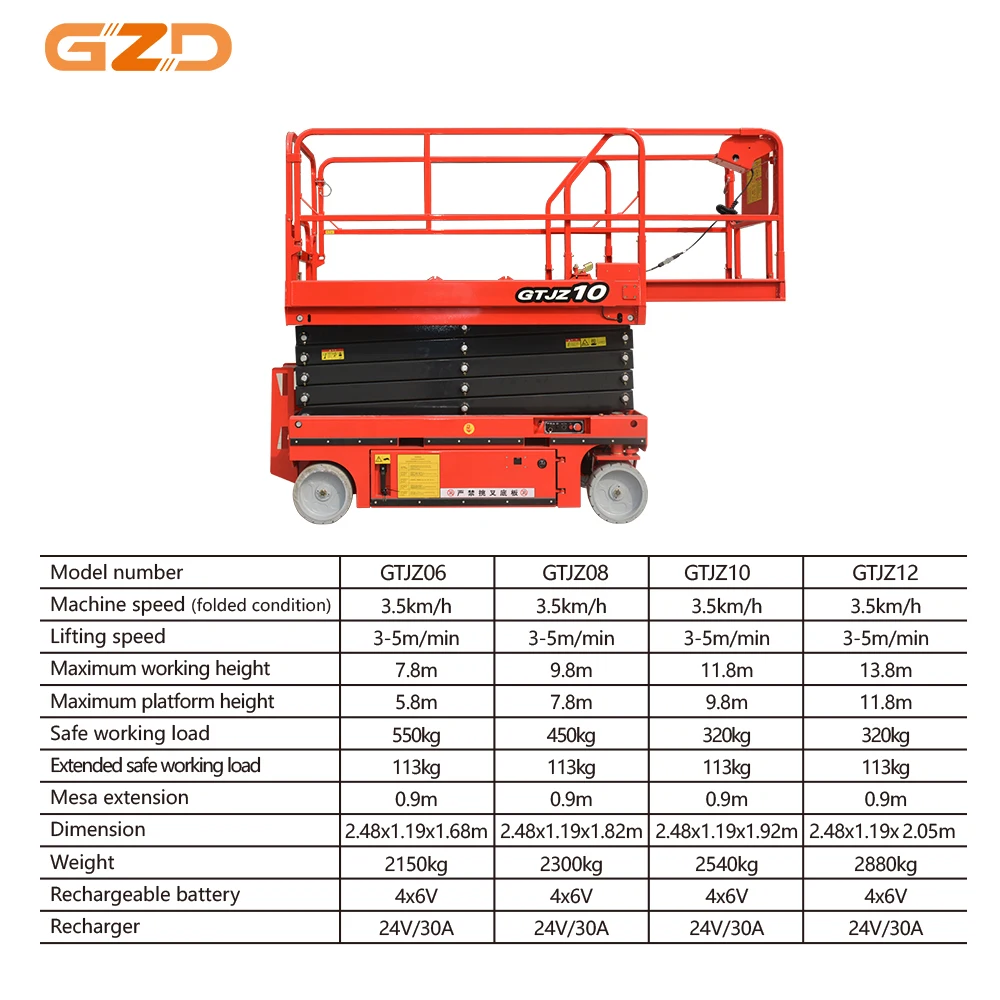

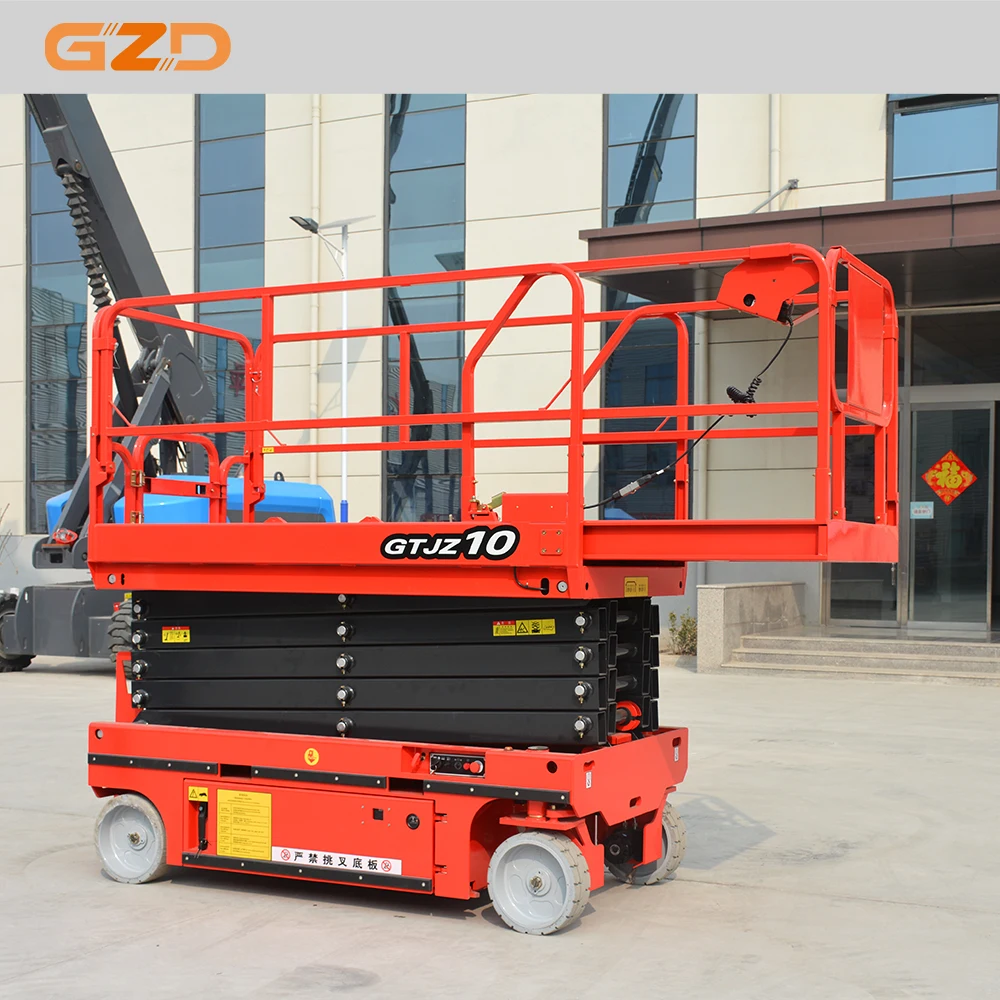

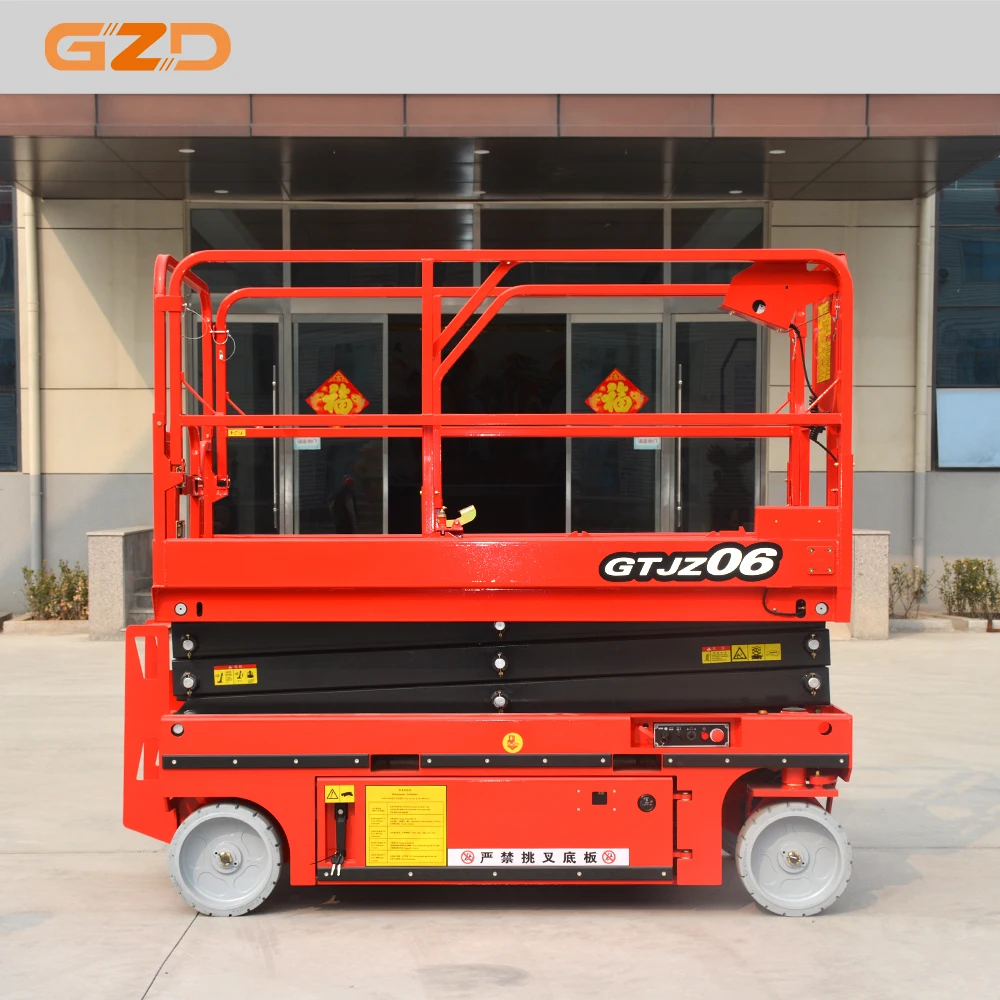

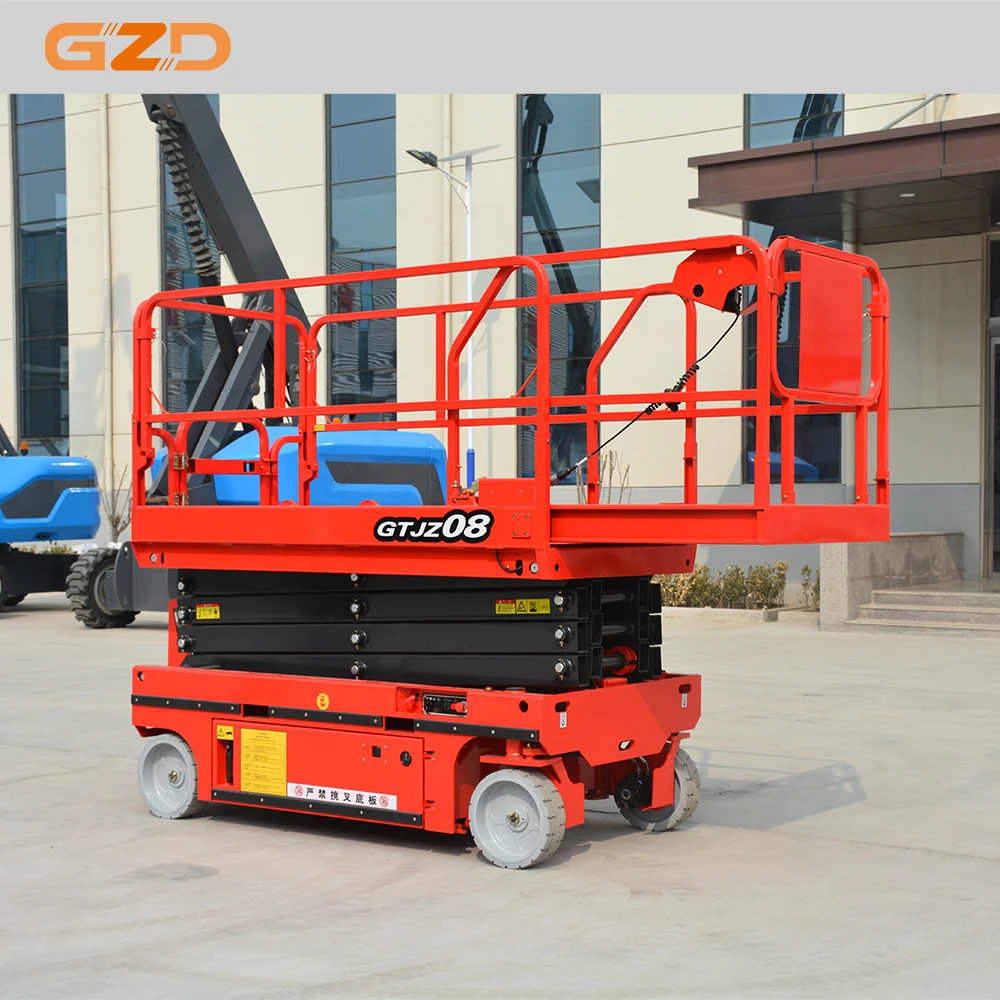

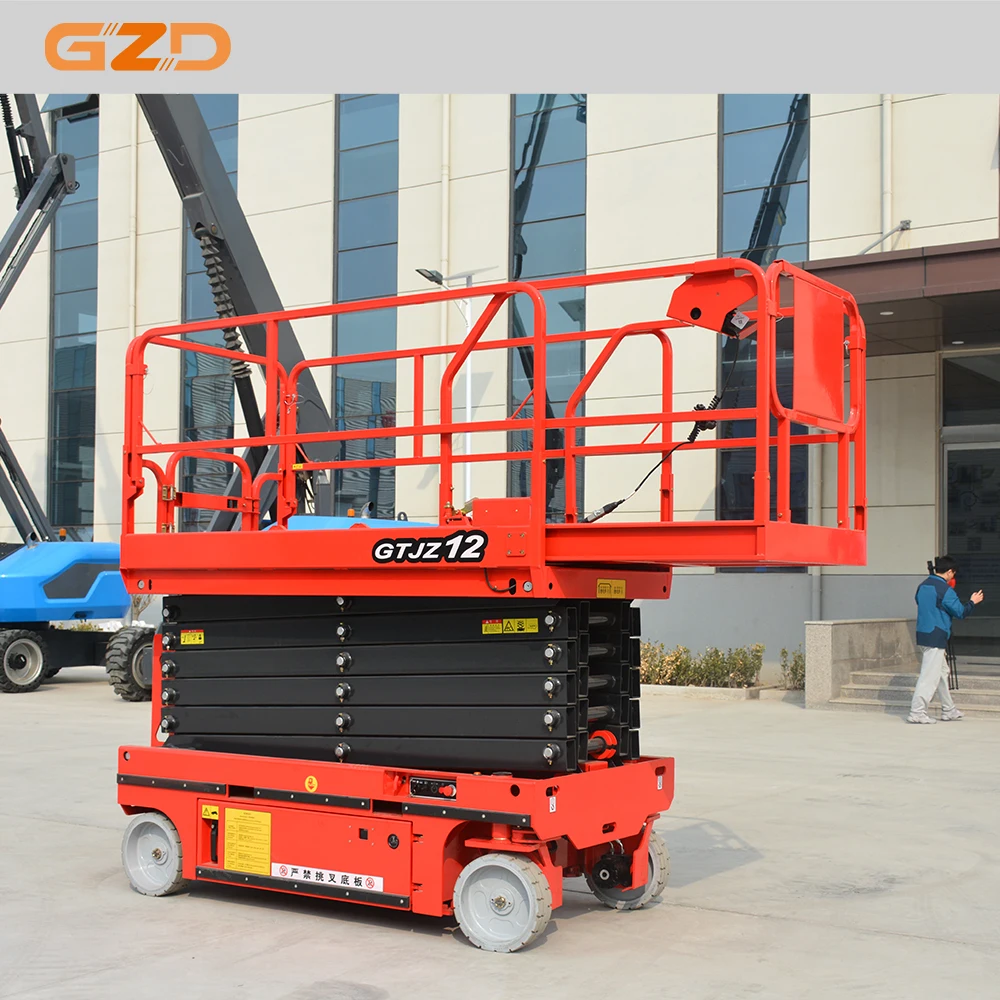

Model | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
Motor | 3.3kW | 3.3kW | 4.5kW | 4.5kW |
Lifting Speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
Max Working Height | 7.8m | 9.8m | 11.8m | 13.8m |
Max Platform Height | 5.8m | 7.8m | 9.8m | 11.8m |
Safe Working Load | 550kg | 450kg | 320kg | 320kg |
Number of works | 2 | 2 | 2 | 2 |
Folded Size | 248*119*168cm | 248*119*182cm | 248*119*192cm | 248*119*205cm |
Weight | 2150kg | 2300kg | 2540kg | 2880kg |
FACTORY DISPLAY
COMPANY PROFILE
Henan Guangzhida Industrial Co., Ltd.is specialized in the production of rebar cutting machines, bending machines, power trowel, rammers, compactors, vibration screeds, road cutters, road rollers, and other construction machinery equipment.Our company adheres to the customer first and quality first.Our production has been exported to more than 120 countries and regions in the world.
CERTIFICATES
OUR CUSTOMERS
PACKING & DELIVERY
PRODUCT CATALOG
CONCRETE MACHINERY
REBAR MACHINERY
FAQ
PACKAGE :
1.Standard seaworthy packing suitable for long-distance transportation
2. Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.
DELIVERY TIME :
1.Conventional products: 5-7working days after payment received.
2.Customized products: 10-30 days according to detail request.
MIN. ORDER :
1.We can provide customized service for a minimum order quantity of 1 set.
2.Larger quantity, price will be more favorable.
PAYMENT :
A various of payment terms are optional,guarantee 100% payment security.
Aluminium Alloy Lift
1. Suitable for single climbing operations; Improved safety and efficiency.
2. Compact shape design, so that the platform can pass through narrow channels or bottom low door.
3. The use of international advanced complete sets of original hydraulic pump station;
4. The use of design redundancy technology, so that the failure rate of the product is reduced to a minimum.
5. The patented guide wheel device, the mast guide wheel between the multi-directional gap with the use of platform lifting balance freely, and ensure that the multi-mast group lifting completely synchronized.
6. The parameters of the lifting system and hydraulic system are optimized to achieve the best lifting stability of the platform.
7. The use of stabilizer platform, its legs using double protection legs, indexable stabilizer to minimize the operational blind area of the high-altitude working platform.
8. The assembly of movable guardrail, through a platform lifting action, the use of patented support compression device locked, immediately completed.
9. All lifting mast are made of high-strength aluminum alloy profiles, the whole machine is light in weight and very portable in movement.
10. Precision level display device to ensure the leveling operation is accurate and reliable.
11. The electronic control system is responsive, easy to control, improve safety and work efficiency.
1. Suitable for single climbing operations; Improved safety and efficiency.
2. Compact shape design, so that the platform can pass through narrow channels or bottom low door.
3. The use of international advanced complete sets of original hydraulic pump station;
4. The use of design redundancy technology, so that the failure rate of the product is reduced to a minimum.
5. The patented guide wheel device, the mast guide wheel between the multi-directional gap with the use of platform lifting balance freely, and ensure that the multi-mast group lifting completely synchronized.
6. The parameters of the lifting system and hydraulic system are optimized to achieve the best lifting stability of the platform.
7. The use of stabilizer platform, its legs using double protection legs, indexable stabilizer to minimize the operational blind area of the high-altitude working platform.
8. The assembly of movable guardrail, through a platform lifting action, the use of patented support compression device locked, immediately completed.
9. All lifting mast are made of high-strength aluminum alloy profiles, the whole machine is light in weight and very portable in movement.
10. Precision level display device to ensure the leveling operation is accurate and reliable.
11. The electronic control system is responsive, easy to control, improve safety and work efficiency.
