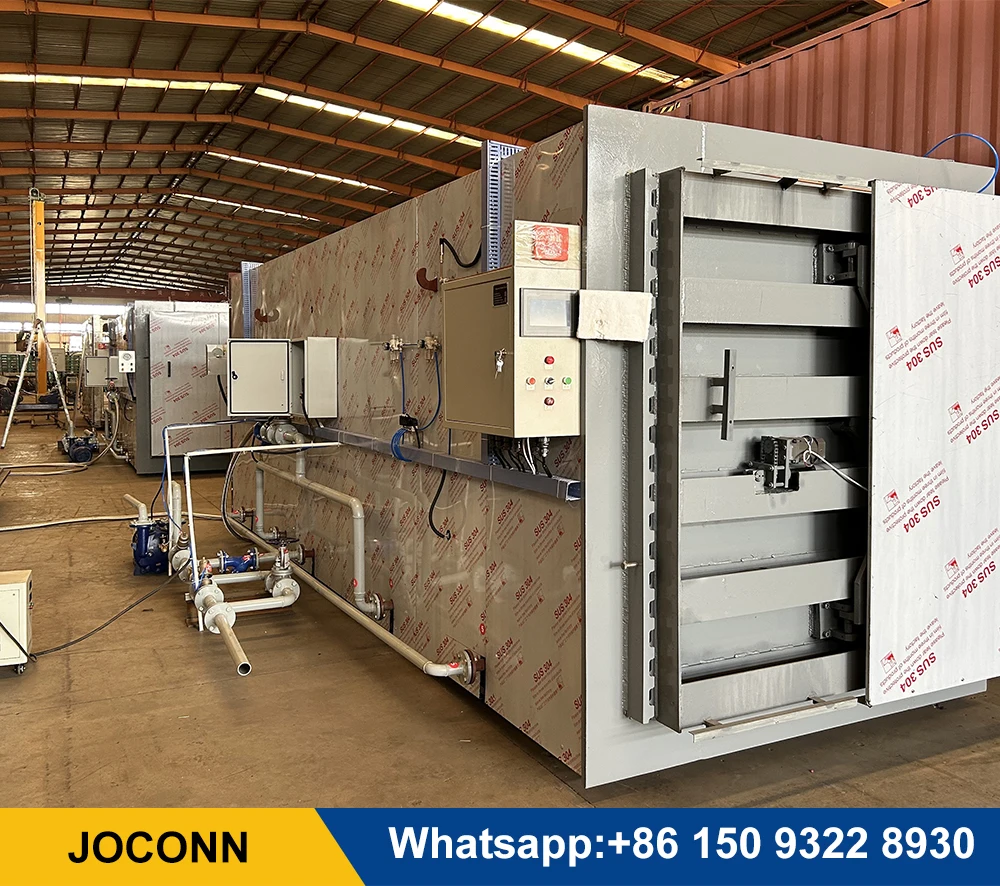

Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave
Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave

Mushroom Substrate Sterilizing Machine Cultivation Bag Sterilization Retort Machine Mushroom Spawn Bags Autoclave

Share on (1601275572240):


Price:

Quantity:


Product Overview

Description

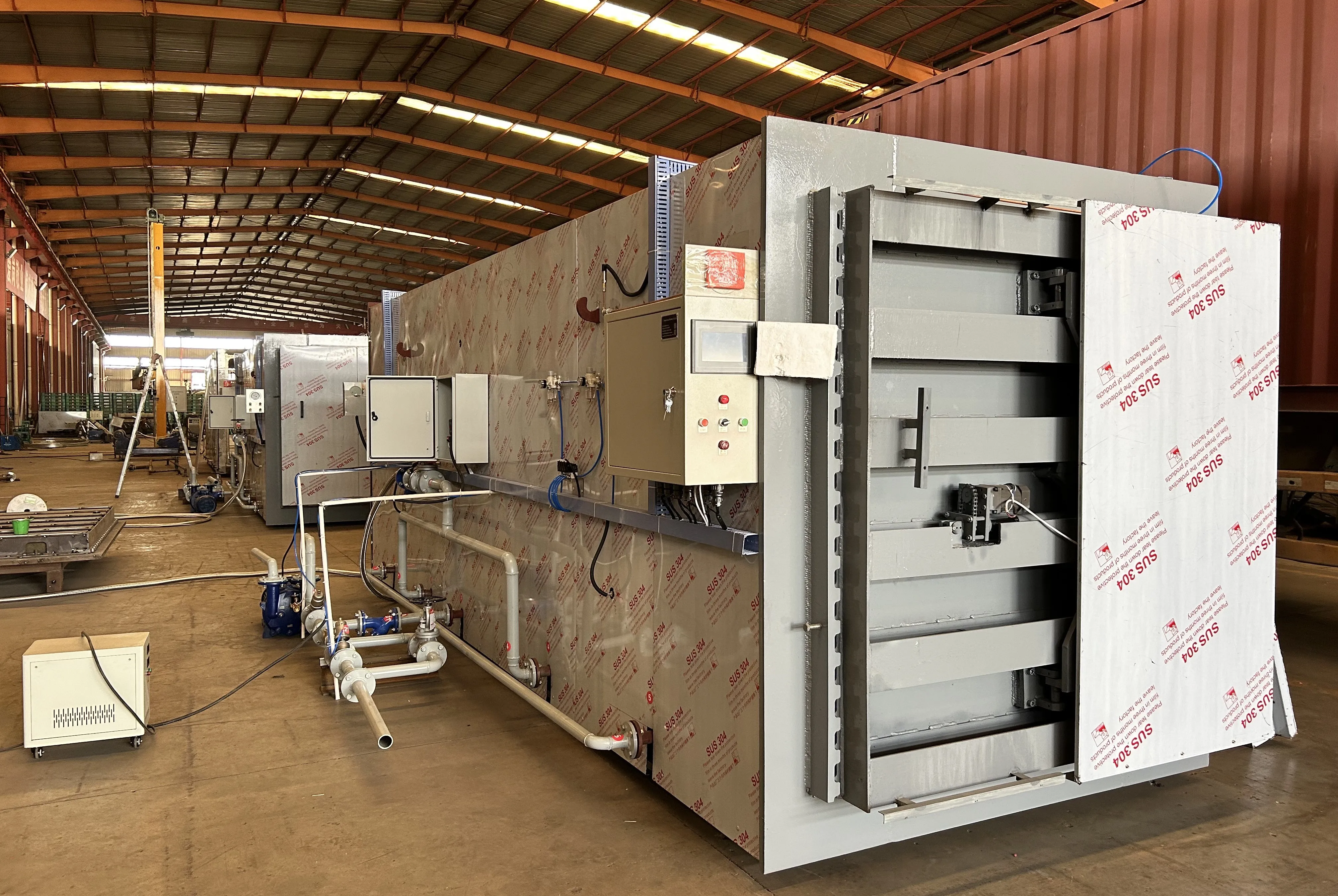

The square sterilization cabinet uses multiple vacuuming and steam inlet methods to replace indoor air, ensuring sterilization effectiveness.Selected stainless steel material, sturdy and durable, with long service life.High degree of intelligence, using computer touch screen control. Strong steam, fast heating, good sterilization effect.






Operation
PLC panel control, fully automatic sterilization
Safety
Equipped with pressure automatic safety lock, automatic safety valve and other safety protection measures
Flexibility
Sterilization data can be set according to the sterilization requirements of different types of mushrooms.
Effect
High temperature and high pressure sterilization, good sterilization effect, saving a lot of energy




Model
MJG-5F /6F
MJG-10F/ 8F
MJG-15F/18F
MJG-31F/30F
Design pressure
& working pressure
0.18Mpa
0.18Mpa
0.18Mpa
0.18Mpa
0.16Mpa
0.16Mpa
0.16Mpa
0.16Mpa
Design temperature & working temperature
131℃
131℃
131℃
131℃
126℃
126℃
126℃
126℃
Steam pressure
0.3-0.5Mpa
0.3-0.5Mpa
0.3-0.5Mpa
0.3-0.5Mpa
Compressed air pressure
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
Inner size (L*W*H)
3.5*1.2*1.5m
3.6*1.4*2m
6*1.55*1.6m
11*1.55*1.8m
Outer size(L*W*H)
4.1*1.7*2m
4.2*2*2.6m
6.6*1.95*2m
11.69*2*2.4m
Trolley size (L*W*H)
1.6*1*1.3m
1*1.4*1.2m
1.2*1.5*1.5m
1.2*1.5*1.5m
Trolley quantity
2pcs
3pcs
5pcs
9pcs
NOTE
1.Double door
2.Inner material: Carbon steel (Q345r, thickness 10mm) , Outer  material:SUS304
3. Trolley material:SUS304 or Galvanized
4. Machine needs air compressor for door opening

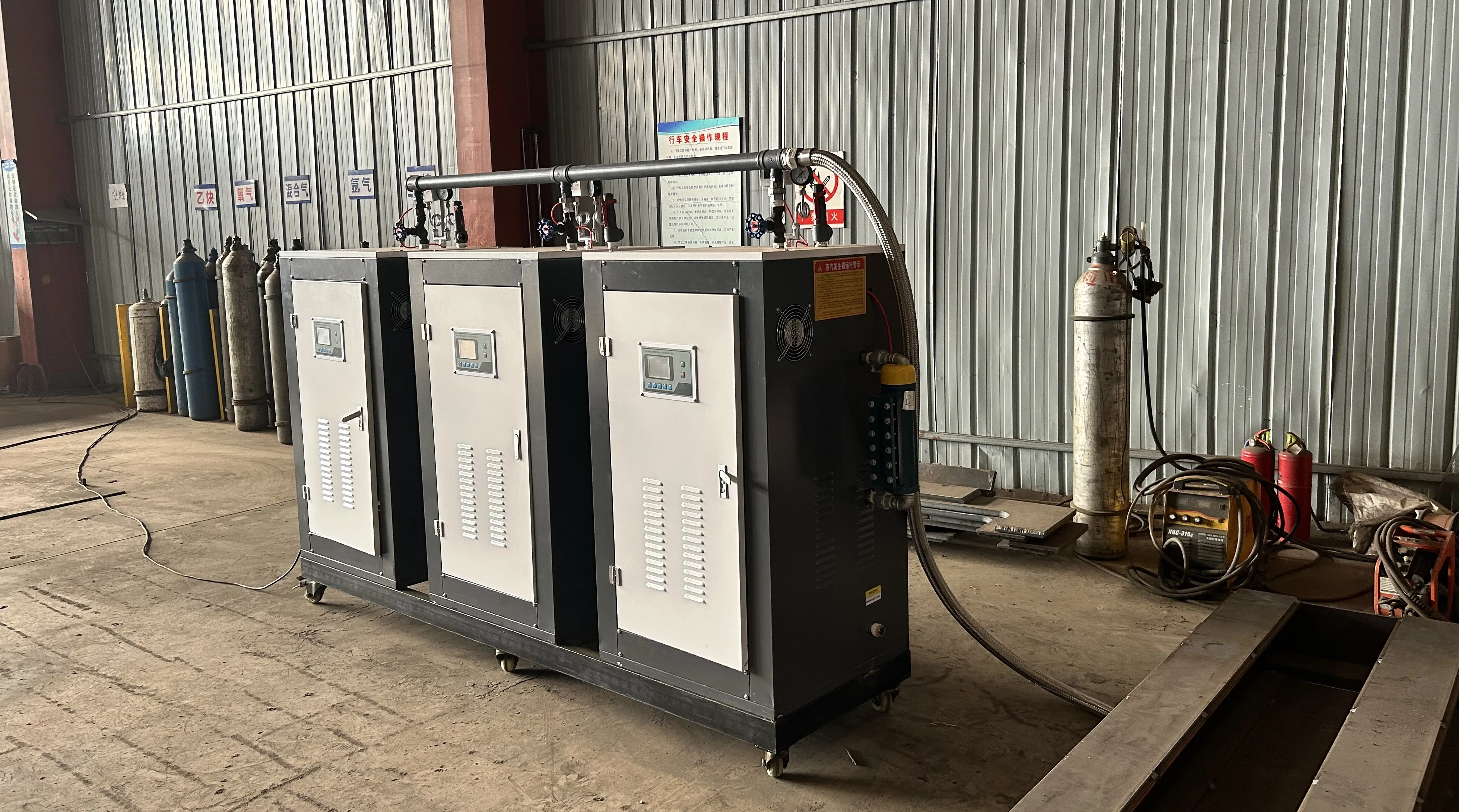

need to work with steam generator↓

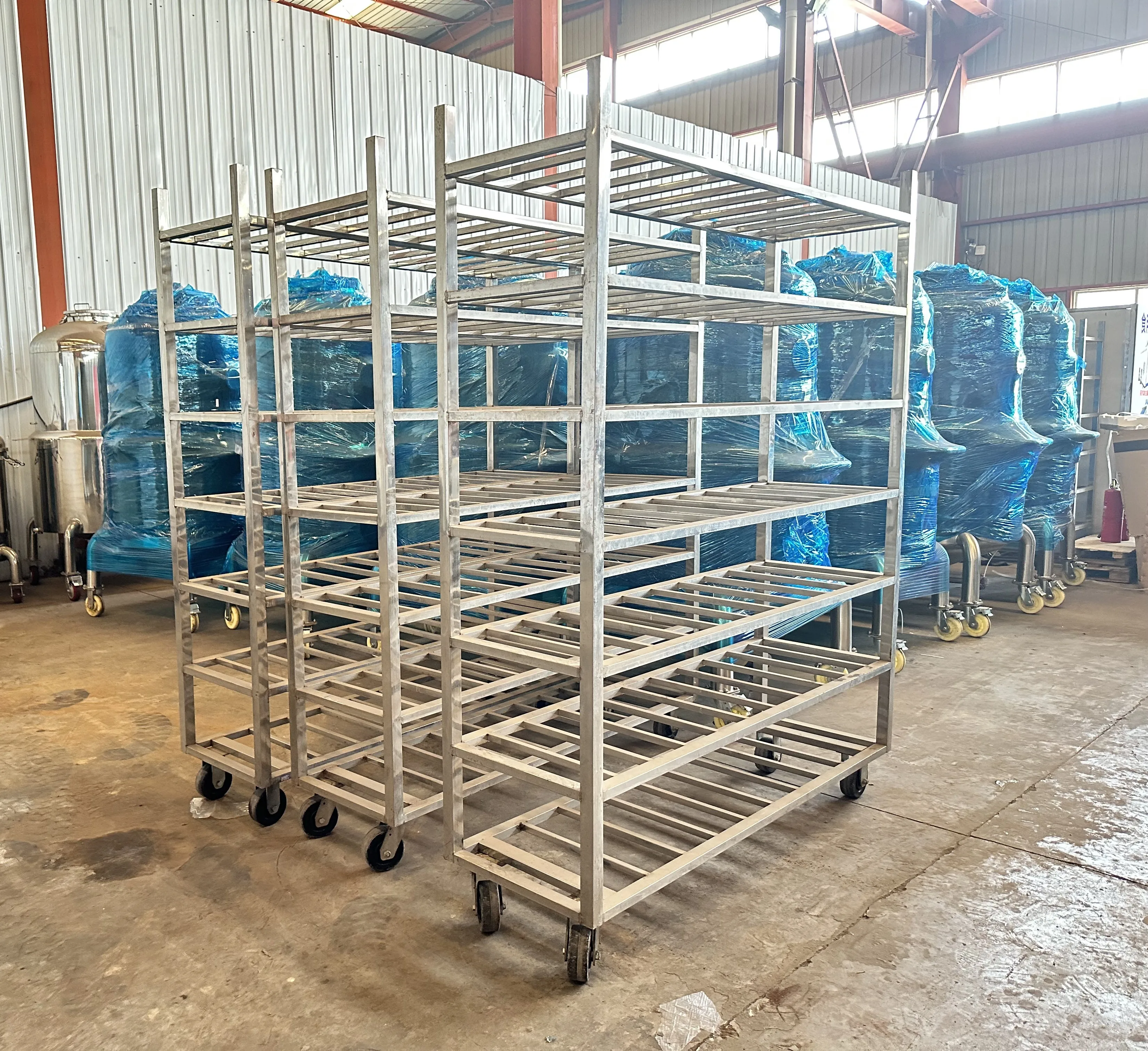

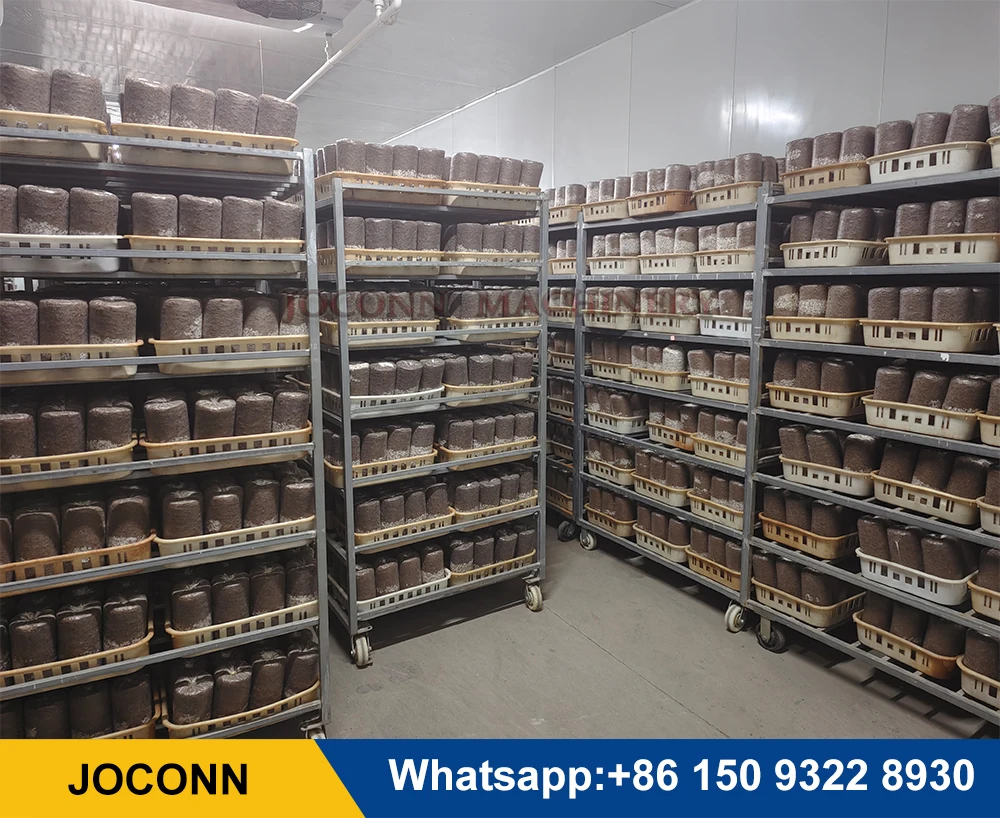

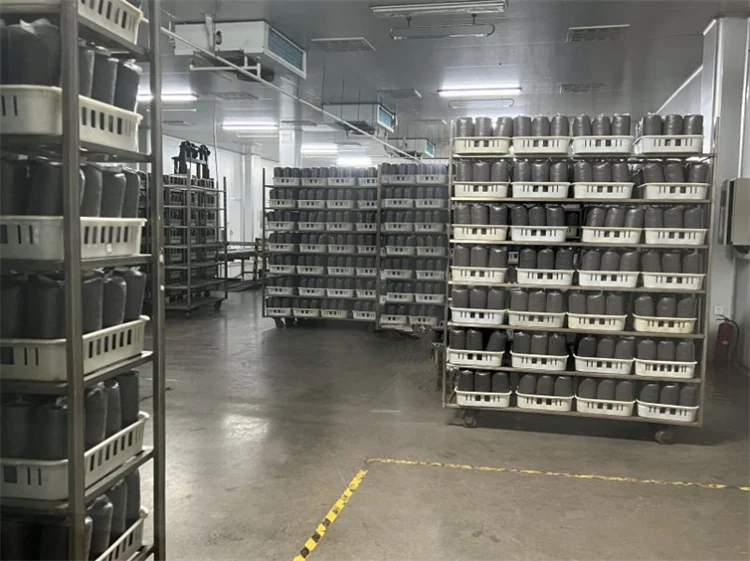

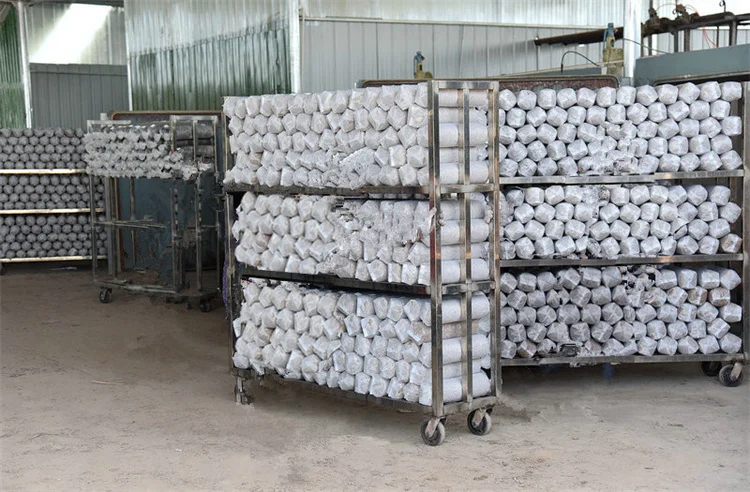

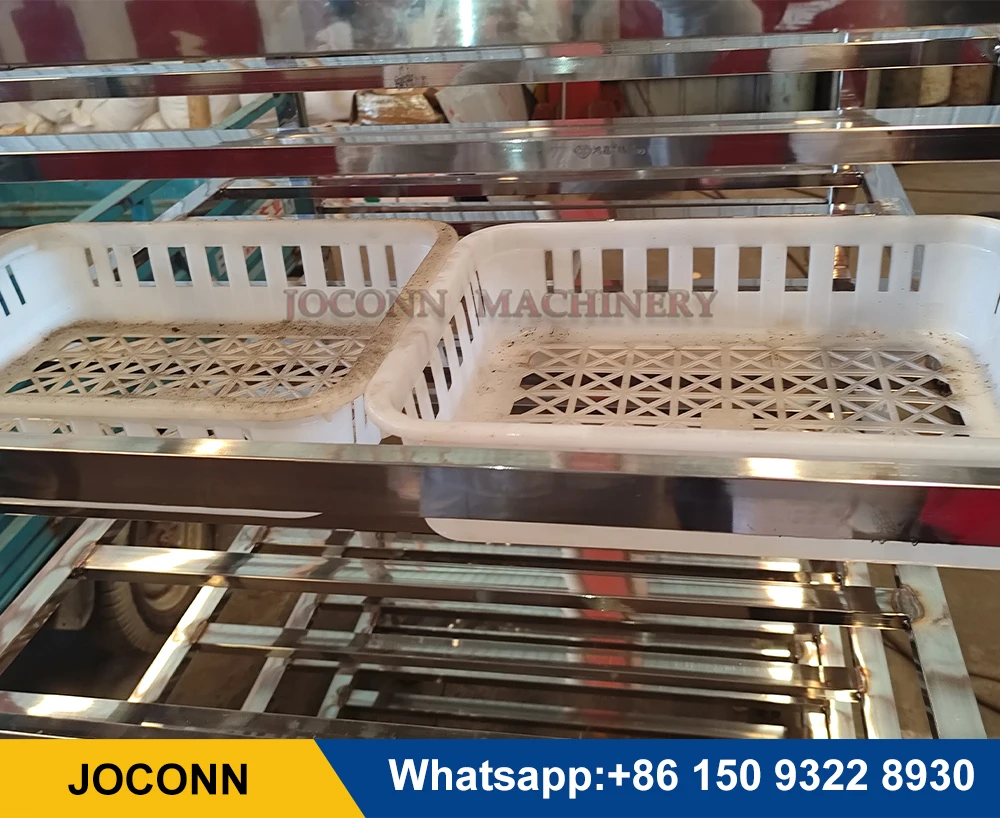

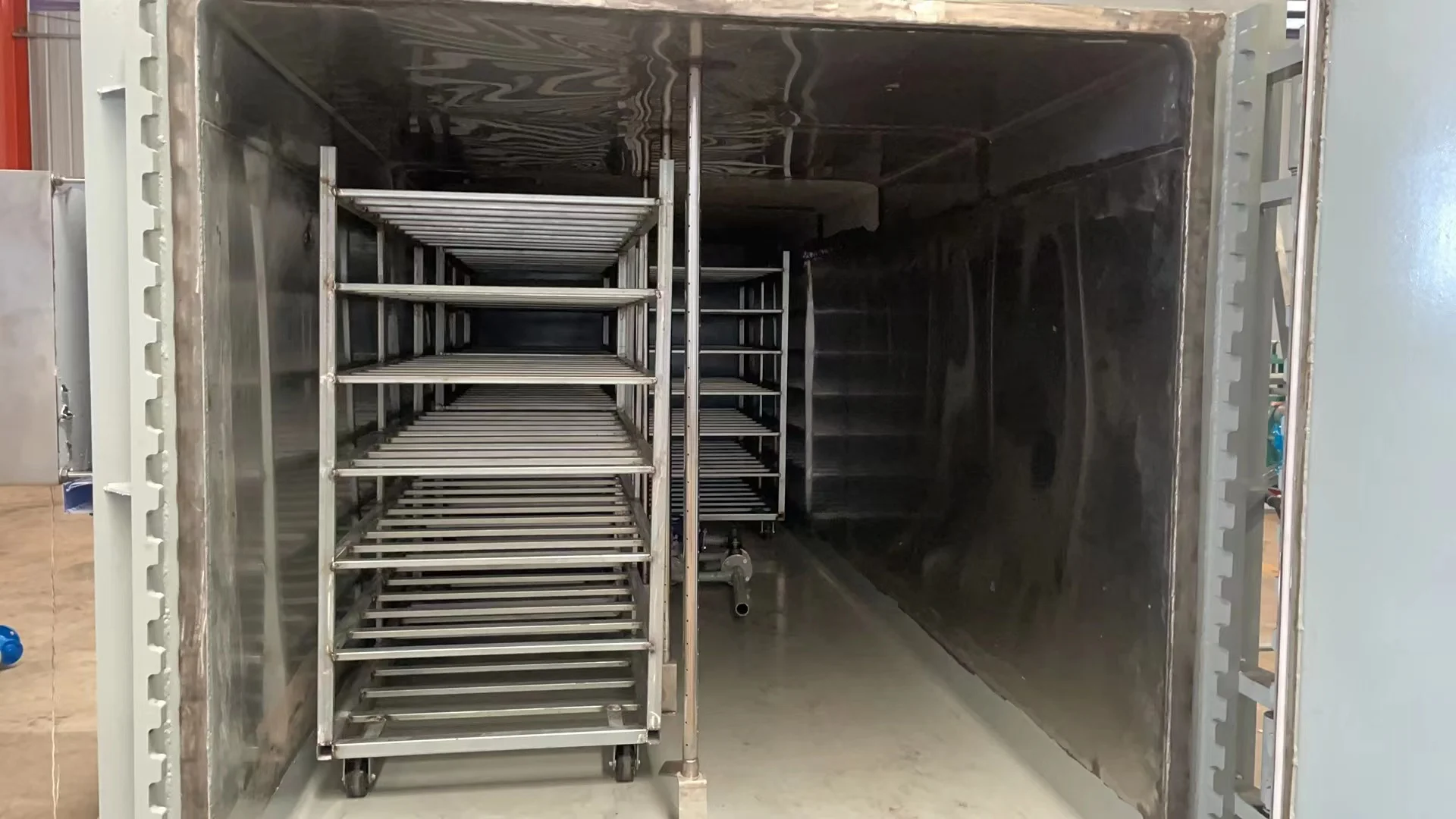

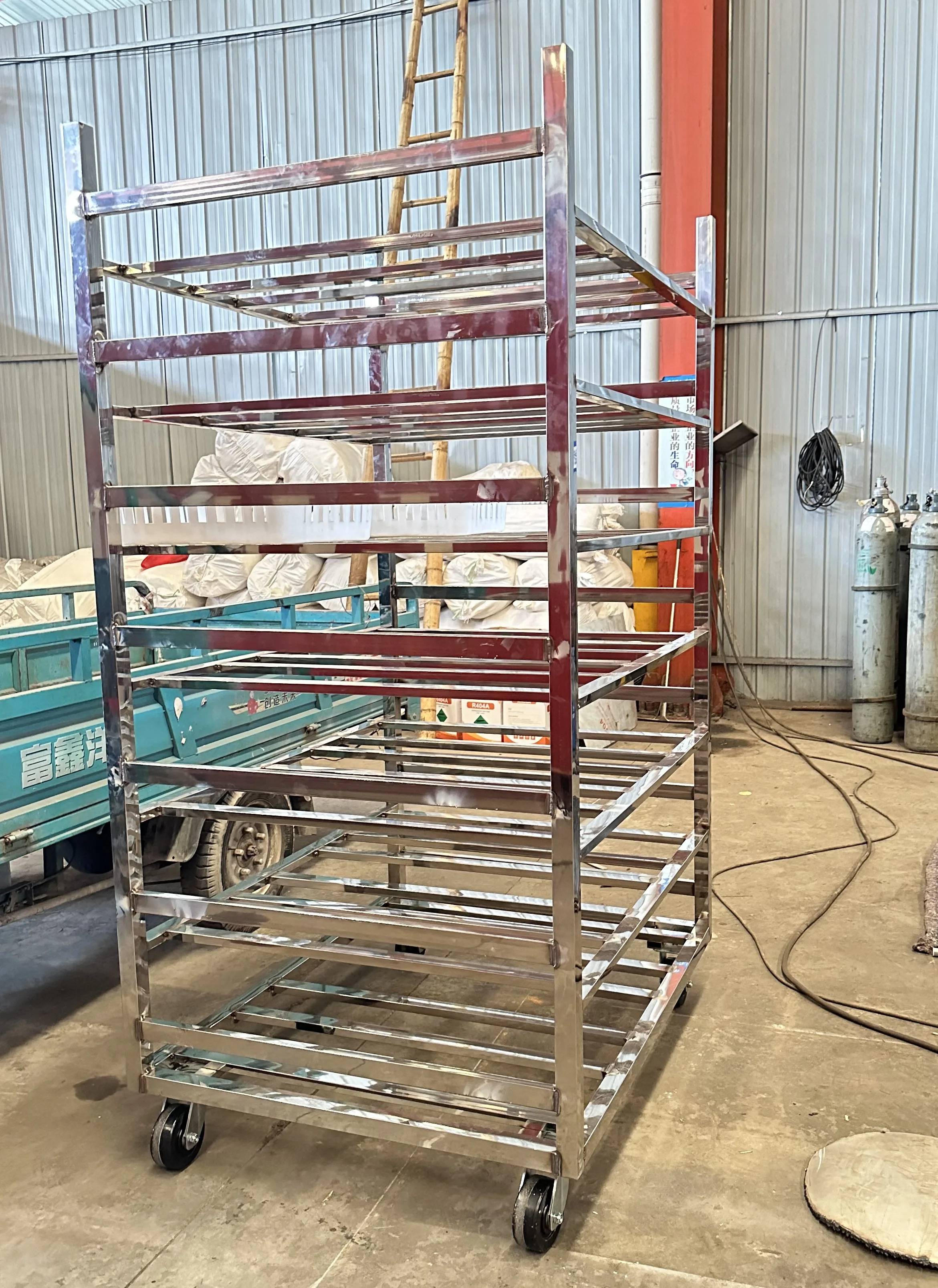

Customized trolley

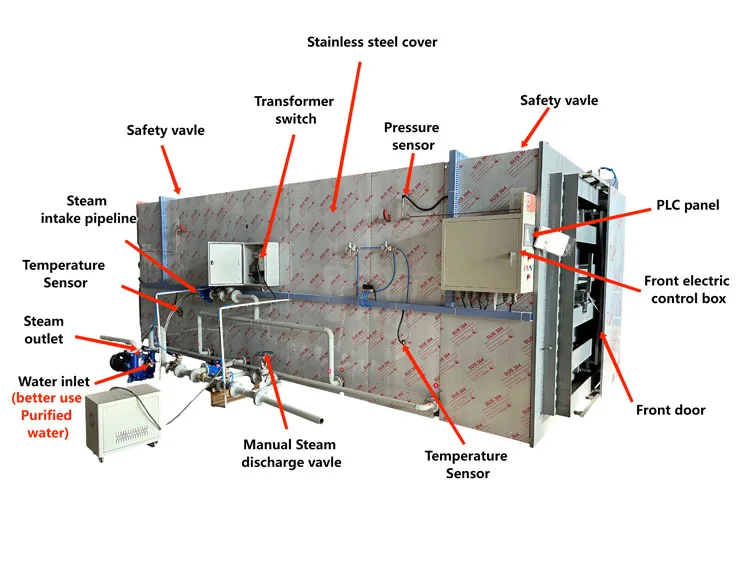

Transformer
Effectively reduce voltage loss

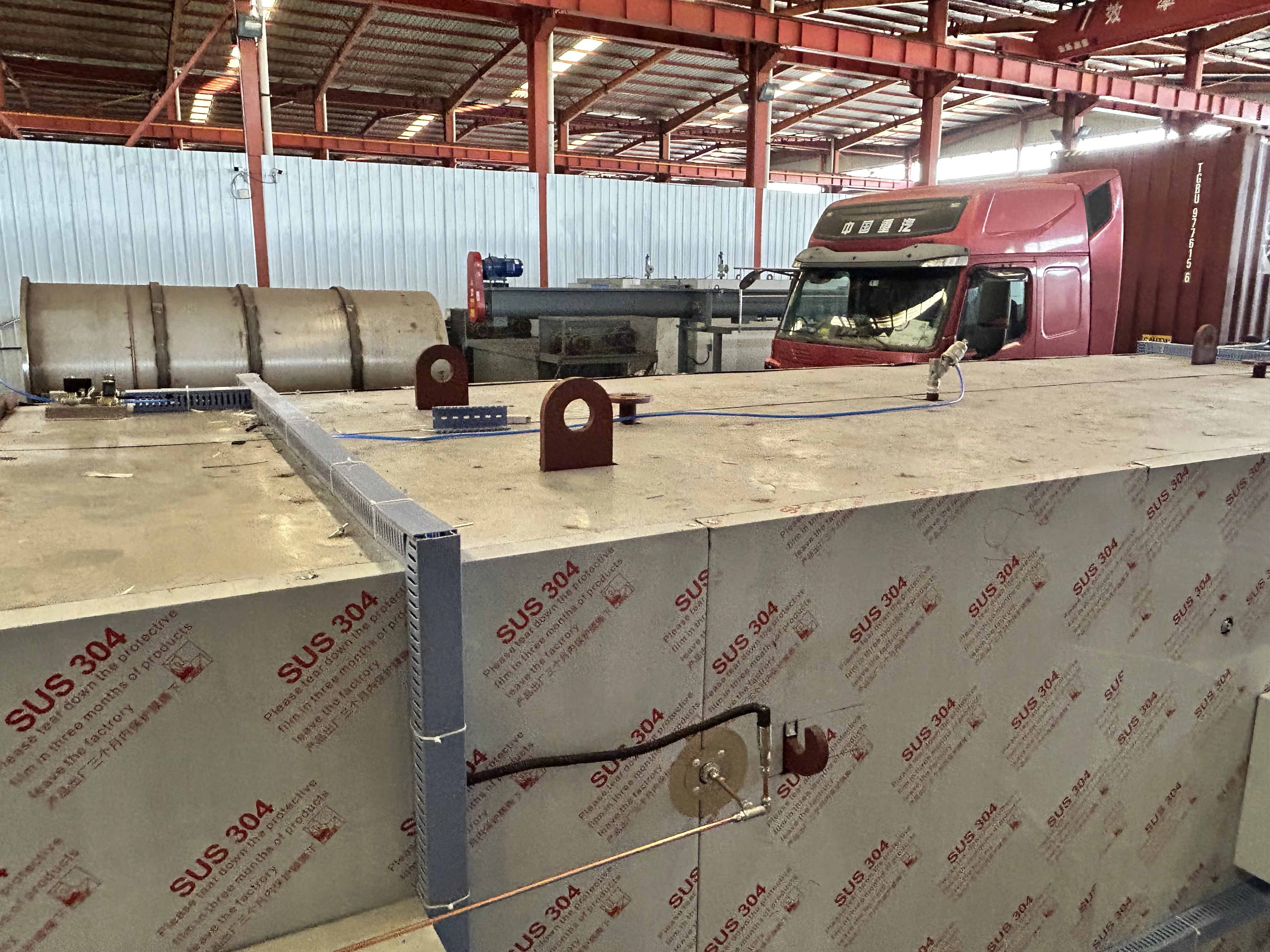

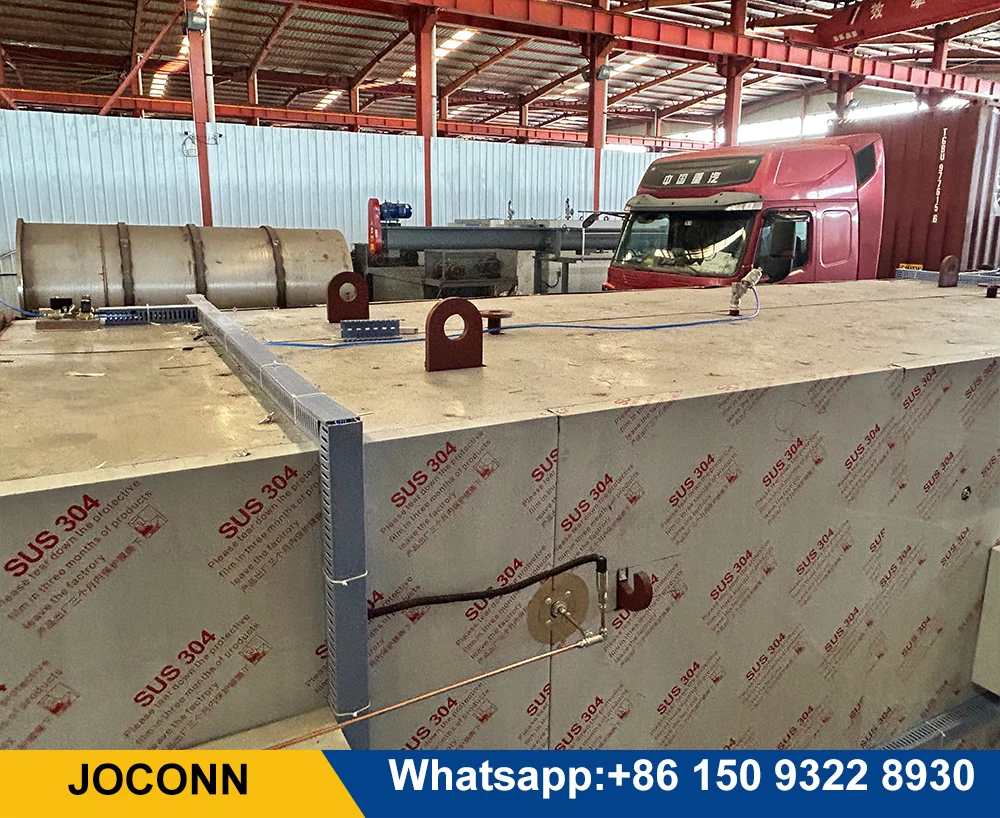

Stainless steel cover
Sturdy and durable, with long service life

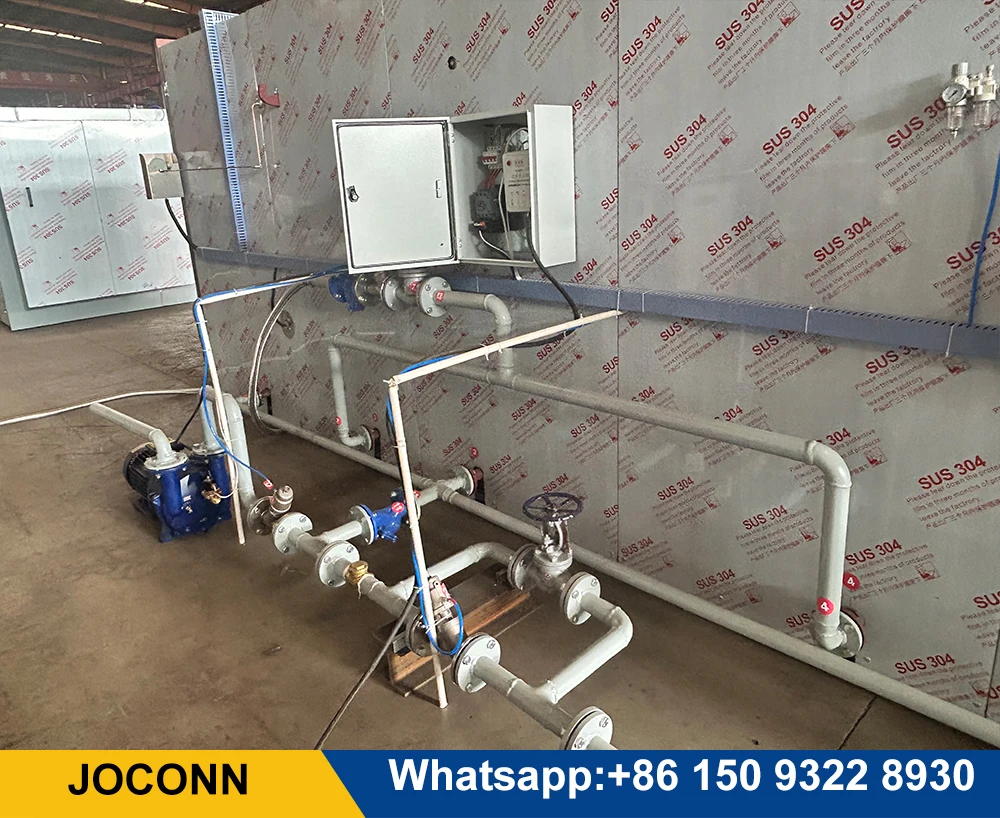

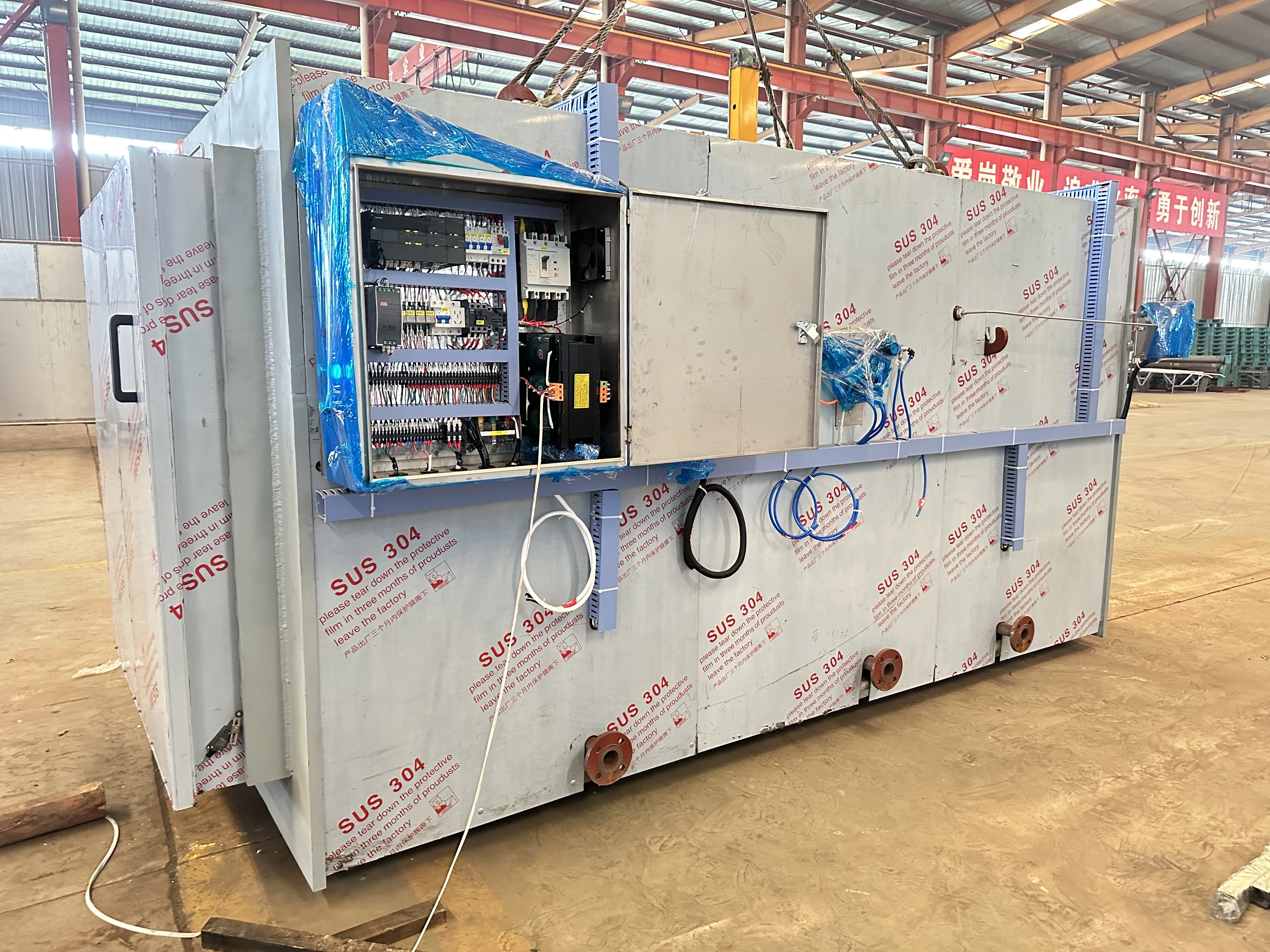

PLC panel
Set data according to different sterilization requirements
Movable universal wheels
Good quality and not easy to rust
