DIGICAST Webrtc Encoder Decoder Ultra Low latency Webrtc Decoder 4K IP TO IP Transcoder

Ø Tailored for Live video streaming application, output support the current popular protocols: RTSP/RTMP/UDP/SRT/Onvif, etc.
l Support web management.
l Support dual-stream output, the main stream can encode up to 3840*2160P30@FPS video, the sub-stream supports 1080p@60FPS video
encoding, and the output resolution can be customized.
l Support the construction of a small LAN distribution system, 5-7 display terminals to pull the stream and play
l Embedded hardware encoding, support embedded decoding
l Support private protocol transmission
l Compatible with streaming media servers such as Wowza/FMS/RED5, and can push direct current with streaming media servers to
achieve live video broadcast
Ø Provide more reliable encrypted transmission method, with multiple encryption methods available
l Support the encryption function of web browser web page network management login
l Supports adding username and password for RTMP upload, and supports enabling authentication and adding username and password
encryption for RTSP
Ø High integration, multi-stream, local monitoring function
l Embedded hardware encoding, support embedded decoding
l IE web page preview and playback, meet the needs of different platforms and system applications, XML data exchange technology,
easy docking.
l Support 2 types of code stream output, 2 different network protocols transmitted simultaneously, support multiple
resolutions/bit rates adjustable
l Support real-time video loop-out function, no-delay local live broadcast monitoring
l Synchronous acquisition of multiple video signals: simultaneous encoding of two HDMI channels, decoding of multiple IP signals
and split-screen output, support for multi-channel directing mode
l More convenient and intelligent director: support local monitoring of director screen, computer flying screen
l AAC audio encoding, 44.1K sampling, restore pure sound quality
l Support 1 channel 3.5mm independent audio acquisition input
Ø Strong bandwidth adaptability, stable transmission of high-definition, low-latency, non-stuttering audio and video signals in
low-bandwidth network environments
l Embedded chip and H.265/H.264 video encoding technology, combined with image enhancement technology processing, achieve low bit
rate encoding to ensure high-definition image quality output, and the resolution can be adjusted after encoding
l Wider adjustable bit rate, 16Kbit/s~30Mbit/s adjustable, support bit rate control CBR/VBR
l Support DHCP to automatically obtain IP (disabled by default, some computer firewalls will block it)
l Transmission mode supports TCP, UDP, 1000M (full-duplex mode)

VIDEO ENCODING

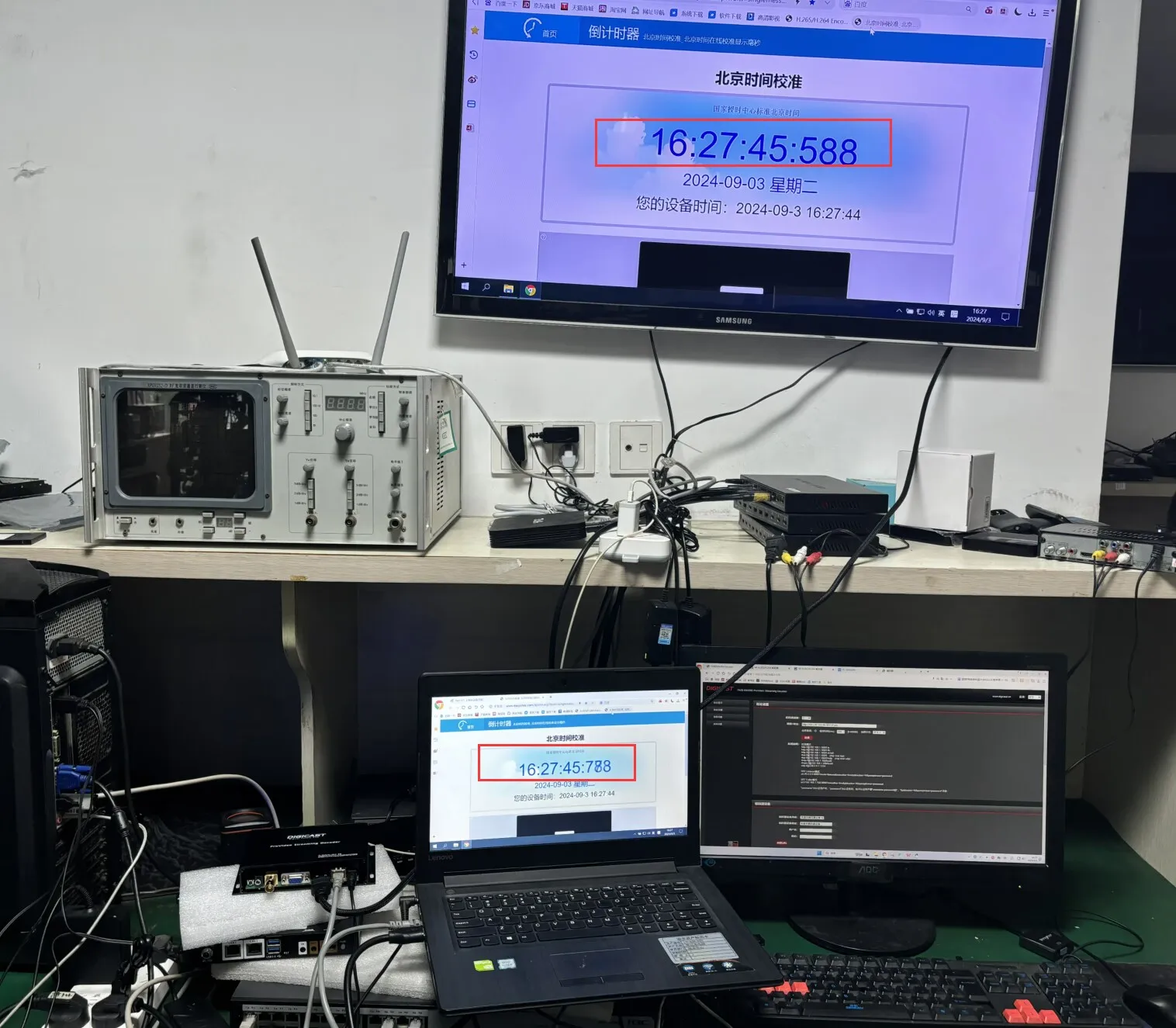

Supported by default with SNLP Private Protocols that ensure the low latency transmission over WAN, with low lantency between 100~200ms over WAN for video/audio transmission
¿ Supports simultaneous capture, encoding and output of 1-channel HDMI signals at 4K@30fps
¿ Support H.265 and H.264 encoding formats, 1 HDMI channels support dual-stream encoding, and can simultaneously encode 2 video streams with different protocols/resolutions/frame rates and other parameters for output
¿ Support HTTP, RTSP, RTMP, UDP, unicast, RTP, SRT, Onvif, SNLP, private protocols, support one-click enable/disable
¿Support RTSP authentication, suffix can be defined, UDP/TCP transmission, audio and video/pure video/pure audio output mode, G.711 switch optional
¿ RTMP supports domain name access or address access streaming, audio and video/pure video/pure audio output mode optional, supports authentication and encryption
¿ Support smart coding enable/disable
¿ Support encoding resolution list selection or custom input
¿ Supports hiding or opening TS stream PID value, and supports Buffer Mode value adjustment
¿ Supports four ID configurations: PMT, Transport, Stream, and Program, and supports SDT name customization
¿ Support Chinese and English OSD, picture overlay, XY axis, font can be set, support adding picture logo
DECODING :
Supports SNLP protocol decoding and is used with SNLP devices to achieve ultra-low latency 100~200ms cross-network audio and video transmission over the WAN
¿ Supports simultaneous decoding of 2-channel video streams, with a maximum of 1080 @60fps per channel
¿ Support HTTP, RTSP, RTMP, UDP multicast, unicast, RTP, SRT, SNLP, private protocol decoding
¿ Support H.265 and H.264 decoding
¿ Support decoding mode URL, SDK optional
¿ Support 1, 2 decoding split screen display
TRANSCODING:
Supports simultaneous transcoding of 2-channel video streams, 2-channel 1080P
¿ Support H.265 and H.264 conversion
¿ Support HTTP, RTSP, RTMP, multicast, unicast, RTP, SRT, Onvif ,NDI protocol conversion
¿ Transcoding output configuration and parameters are the same as those in the encoding mode
CONDUCTING
Supports up to 3-channel screen director switching, supports up to 3-channel screen superposition picture-in-picture director output
¿ Support 2-channel audio mixing output, each channel supports 2 channels of audio mixing superposition
¿ Screen overlay supports adjustable screen coordinates and screen size
¿ The director output configuration and parameters are the same as those in the encoding mode.
AUDIO ENCODING
l\tAudio compression: MP2、MP3、AAC（LC/HE）、AAC++、G.711（RTSP）、OPUS for option
l\tAudio bit rate: 24Kb/s~320Kb/s
l\tSampling rate: 44100、48000 for option

IP STREAMING OUTPUT
l\tTransport protocol: Support HTTP, HTTP-FLV, RTSP (ONVIF), RTMP, HLS, UDP, multicast, unicast, SRT (streaming), private protocol, NDI (optional), SNLP
l\tConnector: RJ45, 1000M

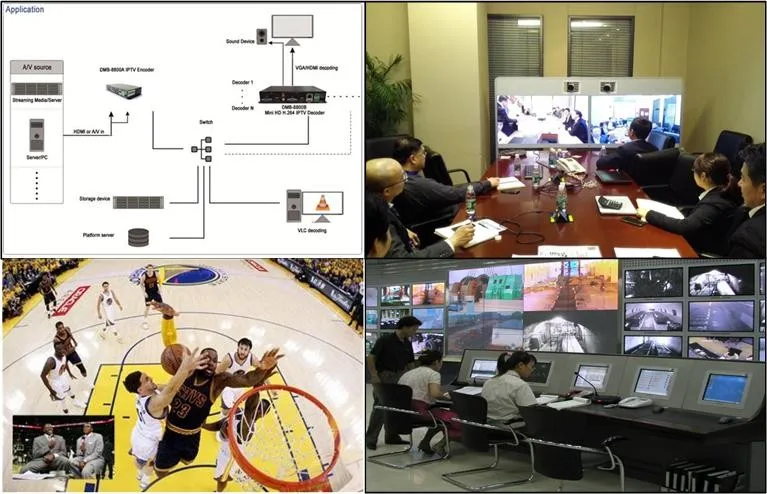

IPTV system
OTT system
Internet TV
Digital Signage Project
Remote Video Conference
Video Monitoring
