Product Overview

Description



Product Description

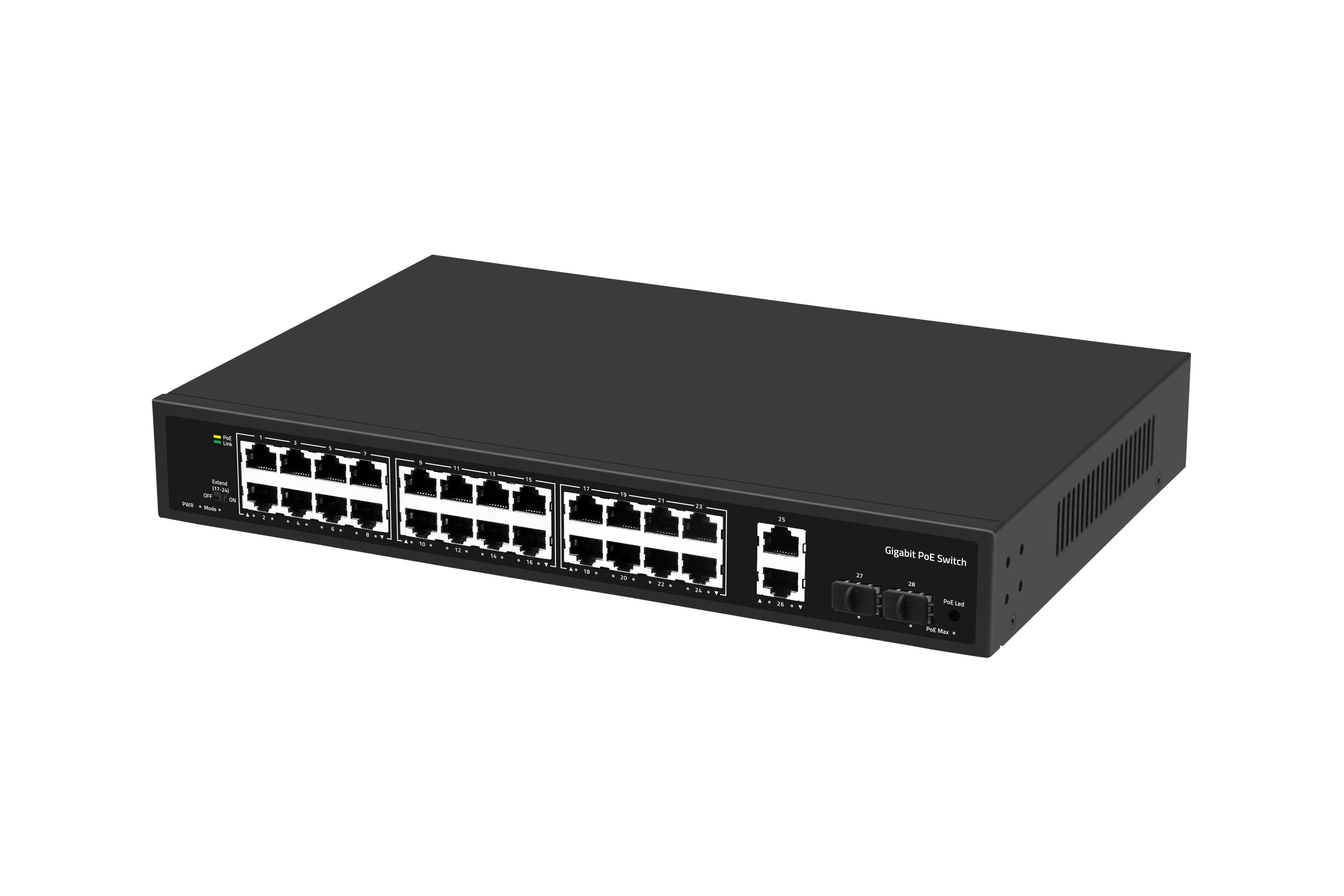

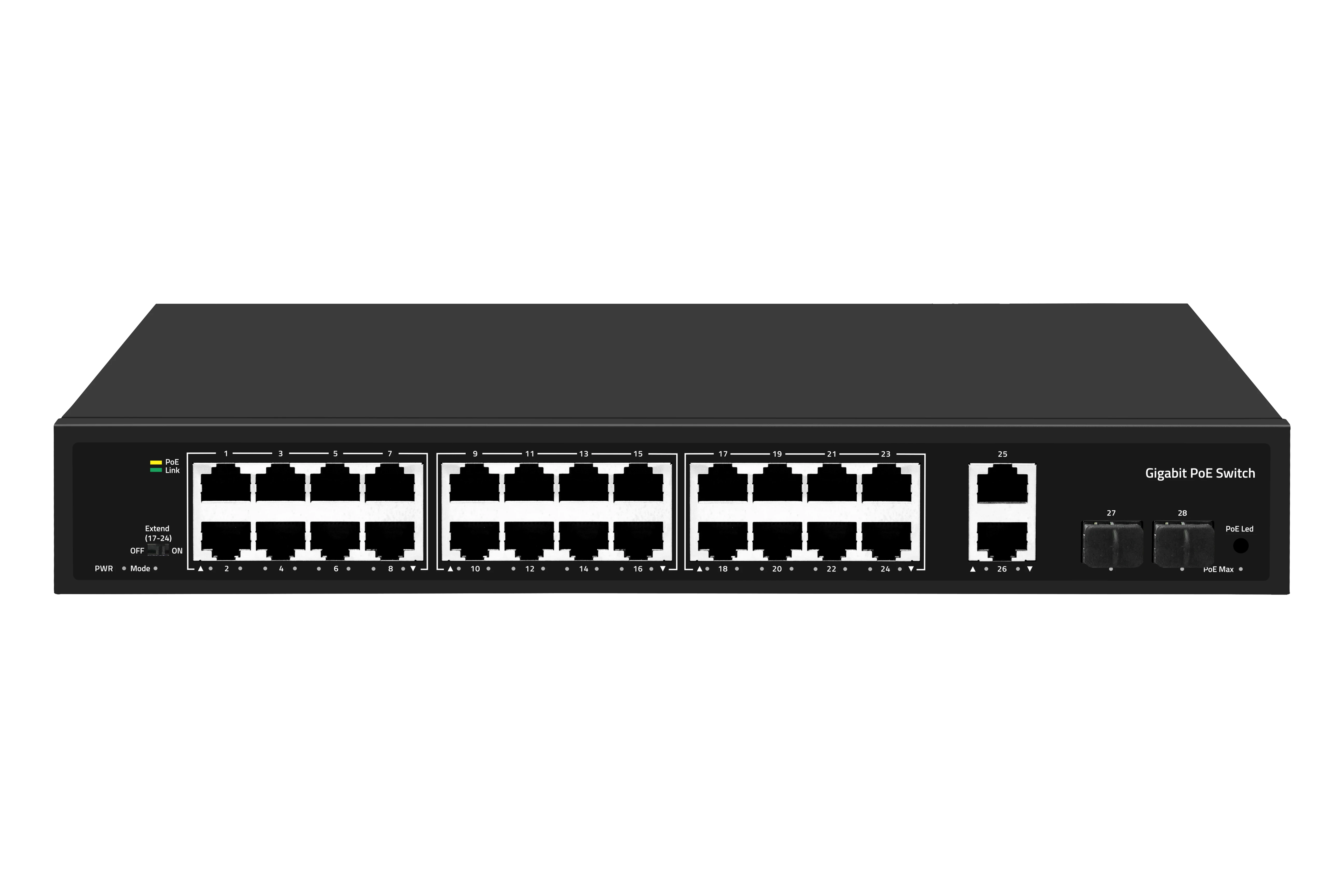

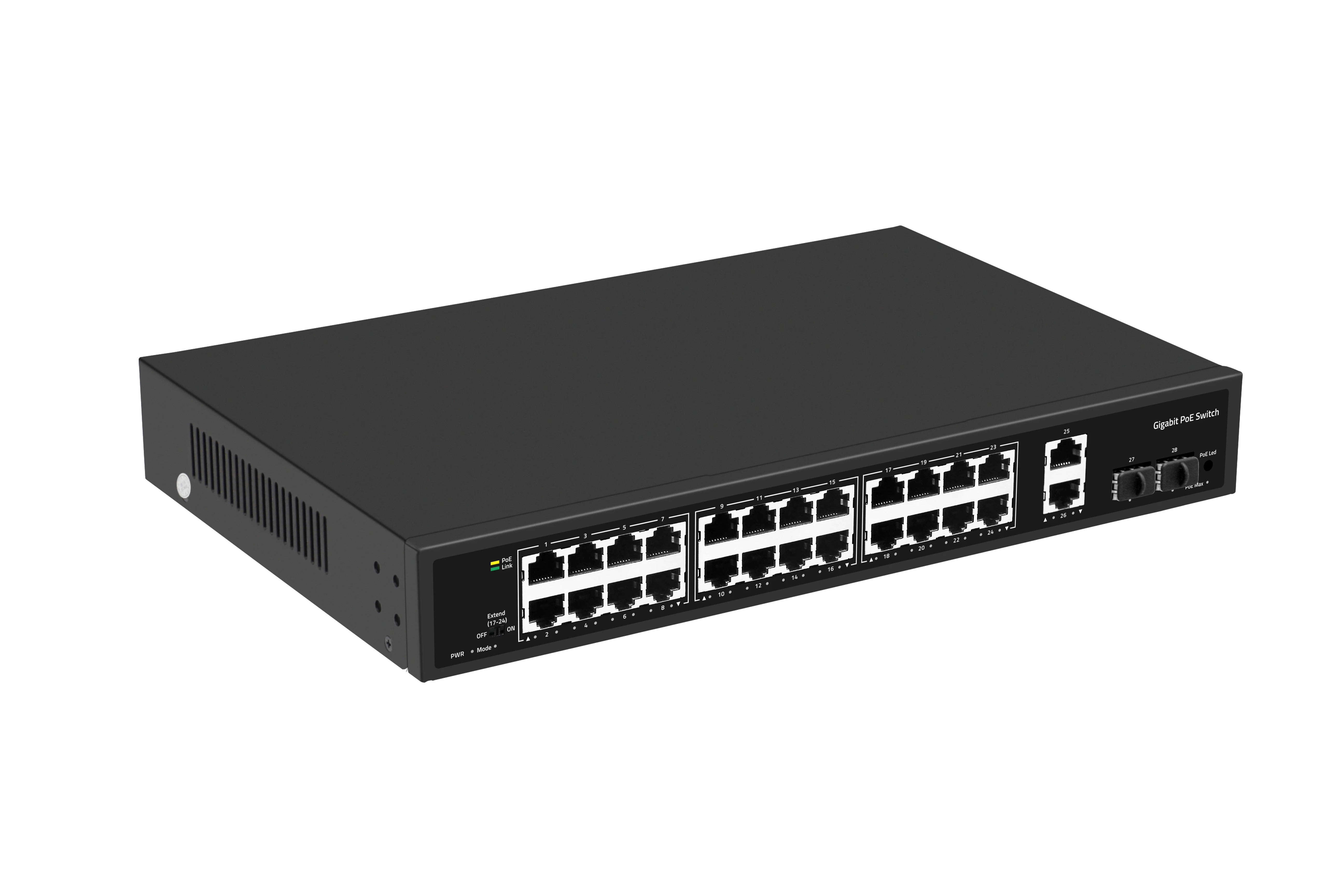

28-Port Gigabit PoE Switch 24 POE ports


Key Features
--24* 1G PoE ports+2* 1G RJ45 ports+2 *1G SFP ports;
--Compliant with IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE802.3x、IEEE802.3z standards;
--RJ45 port supports 10M/100M/1G adaptation;
--When the PoE port is in Extend mode, ports 17-24 force 10Mbps to automatically activate the PoE watchdog mode;
--PoE priority is enabled by default, priority order 1-24
--Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex;
--The panel indicator LED will monitor the working status and assist in fault analysis;
--Support Extend mode;
--1 port supports 60W



Technical Parameters


Description
Specification
Model
YC-SW2402G-300
Interface
24 *1G PoE ports
2 *1G RJ45 ports
2 *1G SFP ports
Port Standard
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3x (Flow Control)
IEEE 802.3z (Gigabit Ethernet Fiber Standard)
Bandwidth
56Gbps
Packet Forwarding Rate
41.644Mpps
Packet Buffer
3Mbit
MAC Address Table
2K
Transmission Method
Store and Forward
PoE Standard
IEEE802.3af （15.4W）
IEEE802.3at （30W）
PoE Port Output Voltage
DC 44-57V
PoE Ports
Port 2-24 PoE power output <30W,Port 1 PoE power output 60W
PoE Power Budget
285W
Power Supply
AC 100-240V 50/60Hz
DC 52V 5.76A
Mainboard Power Consumption
14.27W
Structure Information
Product Dimensions :320*207*44mm
Packaging Dimensions :370*290*85mm
Product Net Weight:1.967KG
Product Gross Weight:2.497KG
Packing Information
Carton Dimensions :445*310*390mm
Packing Quantity: 5PCS
Packing Weight: 13.485KG
Package Contents
Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs
Fan Quantity
0
Installation
Desktop
Surge Protection
Port Surge: common mode 4KV, differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Description
Specification
Operating Temperature
0~40°C
Storage Temperature
-40 °C to 70 °C
Operation Humidity
10%~90%,non condensing
Storage Humidity
5%~95%,non condensing
PWR Green LED
On: Powered on
Off: Powered off
1-28 Green LED
On: 10M/100M/1G Link normal
Off: Link blocked
Flashing: Data transmitting
1-24 Yellow LED (PoE)
On: PoE powered on
Off: PoE powered off
PoE Max Green LED
On: indicates PoE power usage is less than 90%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
Off: indicates that PoE power is used at 95%
Mode LED Green LED
Off: Extend off
Flashing: Extend on
PoE Led Button
Dual color LED selection: default green (link data), switch yellow LED (PoE)
Extend mode Button
OFF: All ports can communicate with each other, with an adaptive transmission rate of 10M/100M/1G, and port PoE watchdog mode
turned off;
ON: The 17-24 ports can extend the transmission distance by 250 meters, with a transmission rate of 10Mbps, and the PoE watchdog
mode is enable on the port;
