Medium Argon Turbine Expander 2500nm3/H Low Power Consumption
- Category: >>>
- Supplier: Hangzhou Feimeng Import And Export Co. Ltd.
Share on (1601275577672):
Product Overview
Description
Product Description

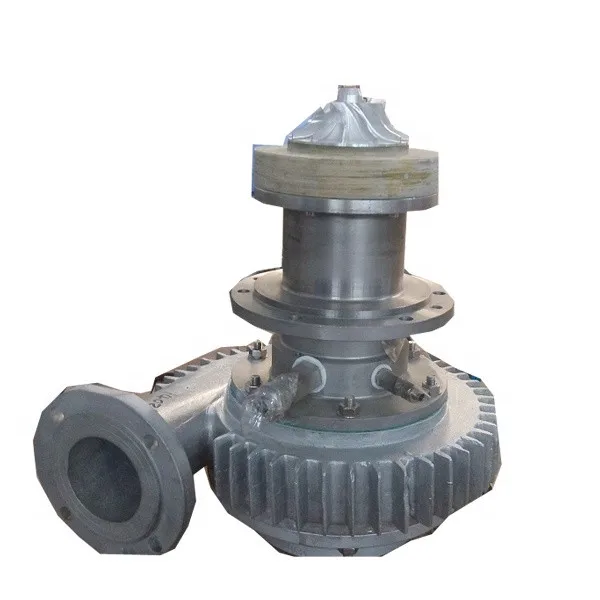

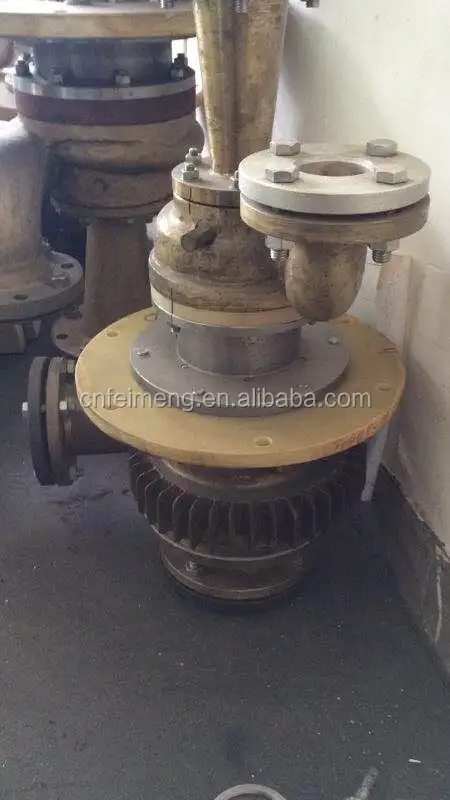

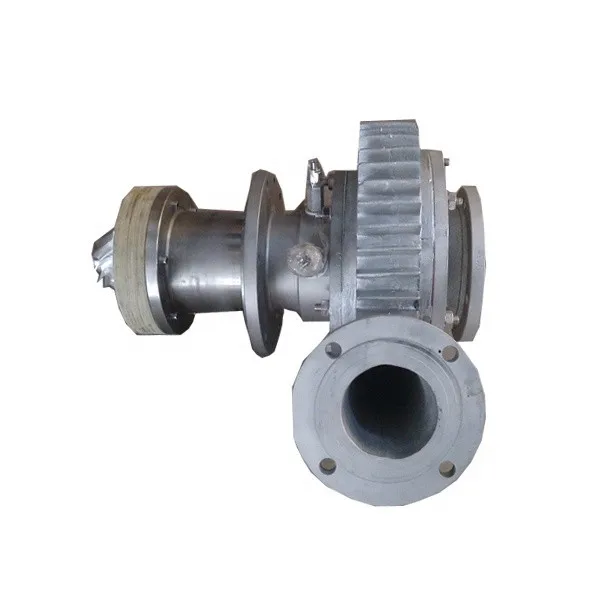

PLPK-10.6/5.7-0.47 Expansion turbine
It is to use adiabatic expansion inside the machine to create coldness in order to start up air separation units and make up the coldness loss, thus stablize the heat balance.
The expander is a mechine that when gas is expanded and depressurized, turbo outputs mechinical work in order to reduce the temperature of the gas so as to obtain the energy. . Expander is often used in cryogenic equipment, such as liquid oxygen plant, liquid nitrogen plant,etc.
Pack, ship,payment
Pack: wooden case
Ship: 3-4 months
Payment: TT 30% as deposit, the rest before shipping
We provide standard production:
| Model | Flow (Nm3/h) | Inlet pressure (MPa,G) | outlet pressure (MPa, G) | inlet temperature (k) | Efficiency | Remark |
| PLPK-6/6-0.42 | 360 | 0.6 | 0.042 | 130 | 76 | |
| PLPK-8.33/18.6-4.9 | 500 | 1.86 | 0.49 | 173 | 76 | |
| PLPK-7.1/3.6-0.3 | 425 | 0.36 | 0.03 | 118.3 | 77 | |
| PLPK-10/8-0.47 | 600 | 0.8 | 0.047 | 150 | 76 | booster |
| PLPK-18.33/7.7-0.38 | 1100 | 0.77 | 0.038 | 147 | 78 | booster |
| PLPK-25/6.25-0.45 | 1500 | 0.625 | 0.045 | 153 | 78 | booster |
| PLPK-30/5.5-0.4 | 1800 | 0.55 | 0.04 | 150 | 80 | adjustable nozzle |
| PLPK-40/13.7-0.2 | 2400 | 1.37 | 0.02 | 150 | 78 | booster |
| PLPK-46.17/13.4-0.19 | 2770 | 1.34 | 0.019 | 148 | 78 | booster |
| PLPK-43.3/4.6-0.4 | 2600 | 0.46 | 0.04 | 110 | 81 | adjustable nozzle |
| PLPK-80/9.5-5.2 | 4800 | 0.95 | 0.52 | 112 | 81 | adjustable nozzle |
