LDG SW01C model Caliper 0.02 2.0mm Enameled Ultra fine Wire Laser Scanning Handheld Offline/online testing laser Diameter Gauge
- Category: >>>
- Supplier: Shanghai Qi Pang Industrial Co. Ltd.
Share on (1601275597827):
Product Overview
Description

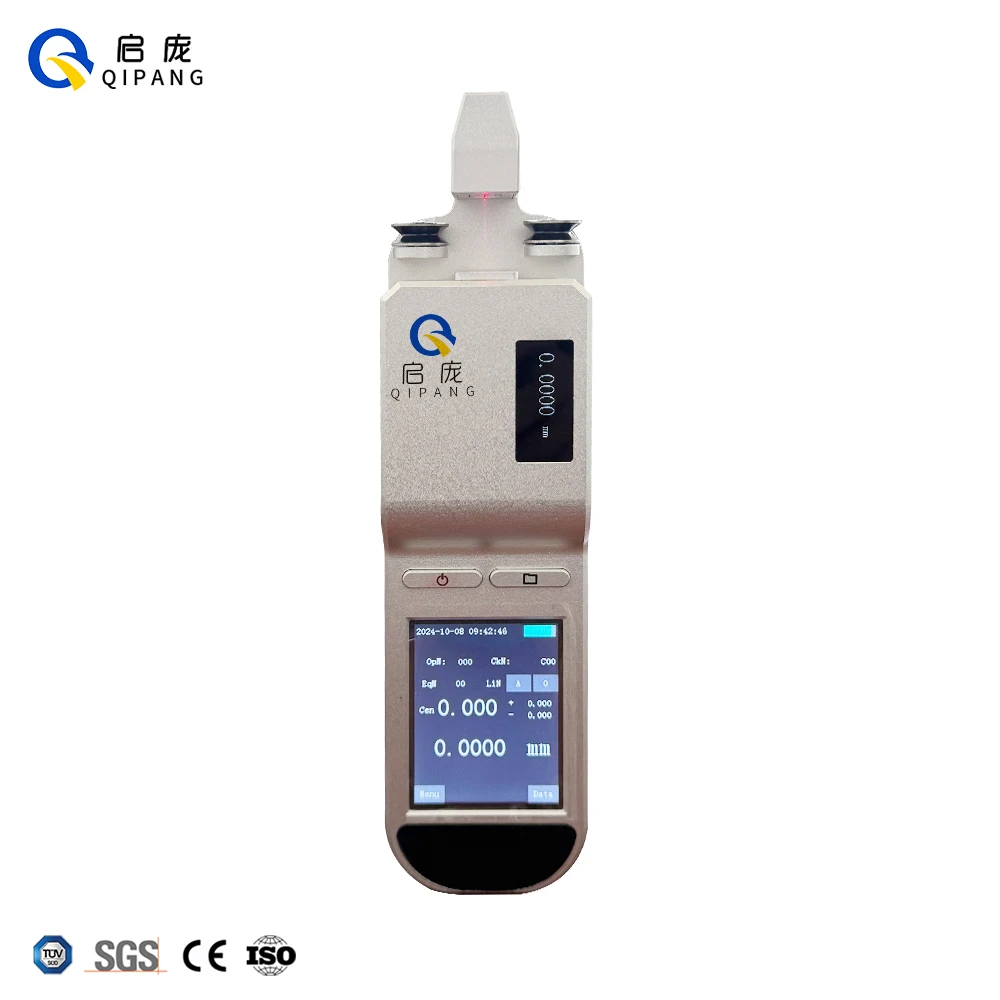

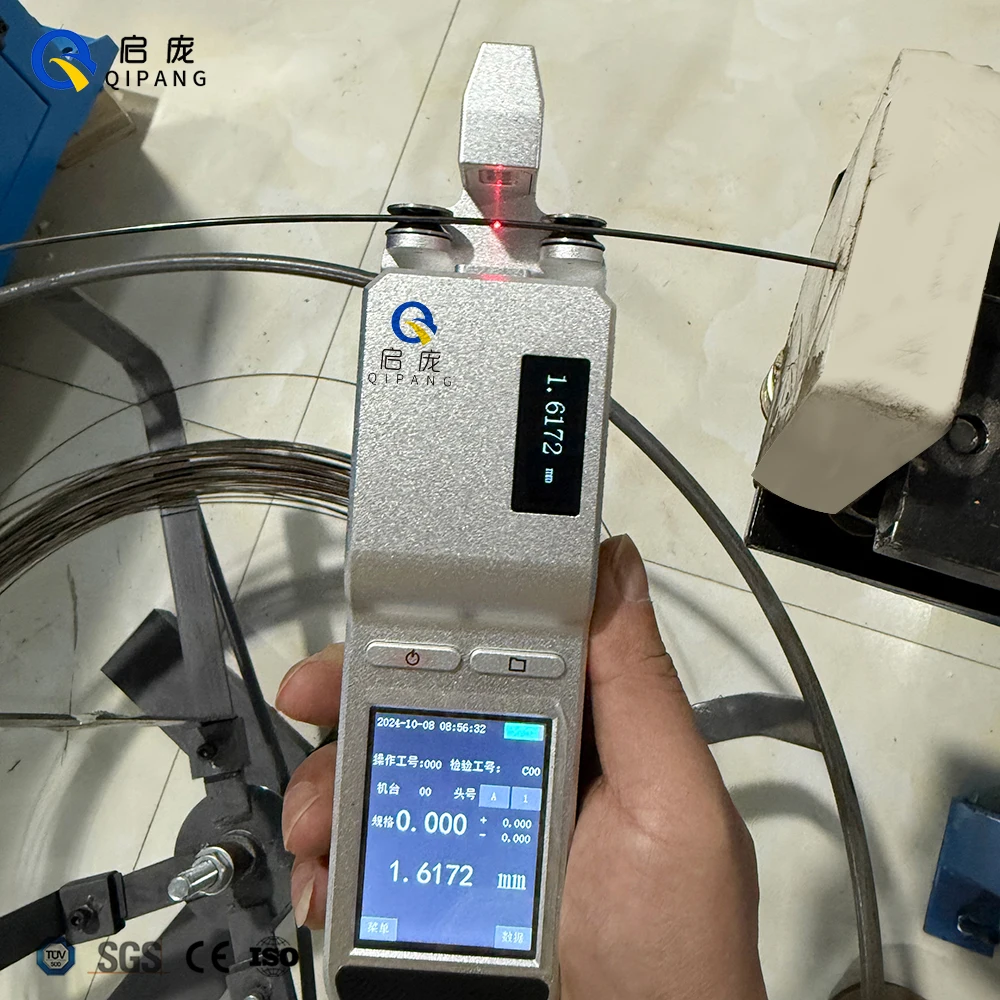

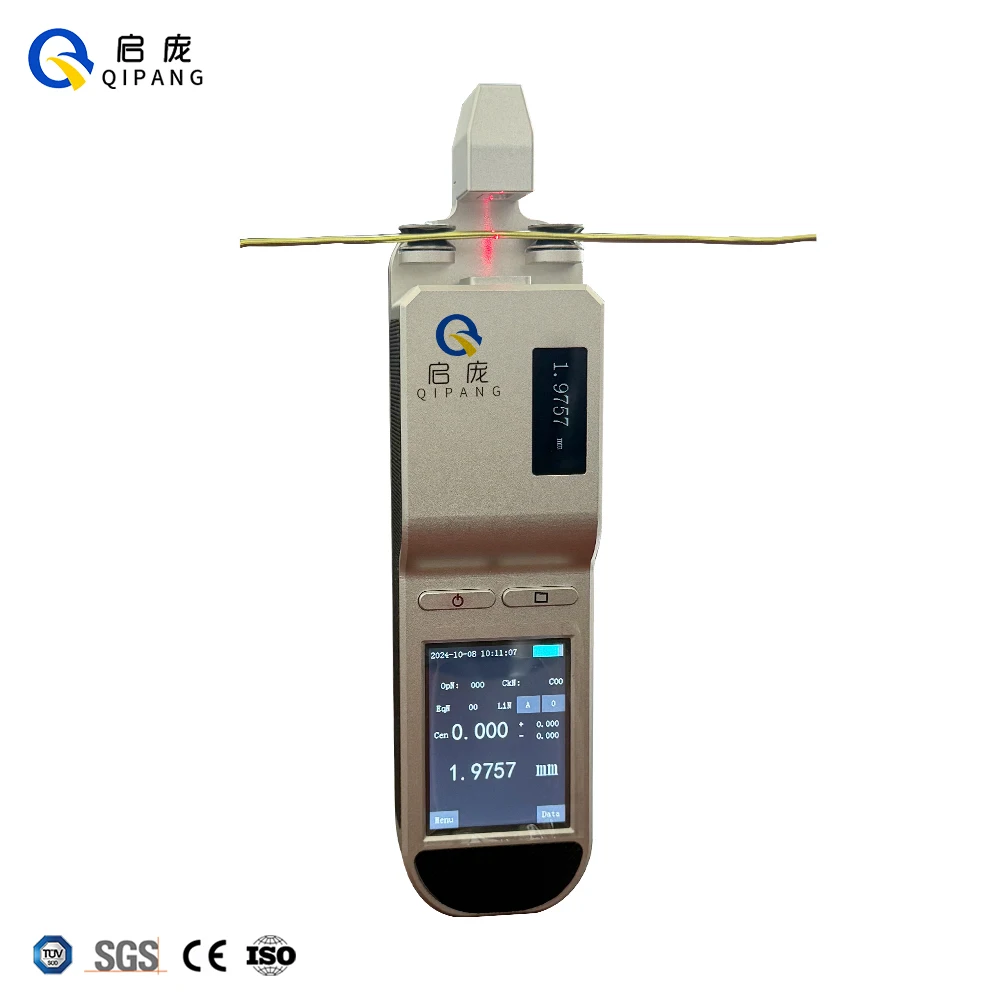

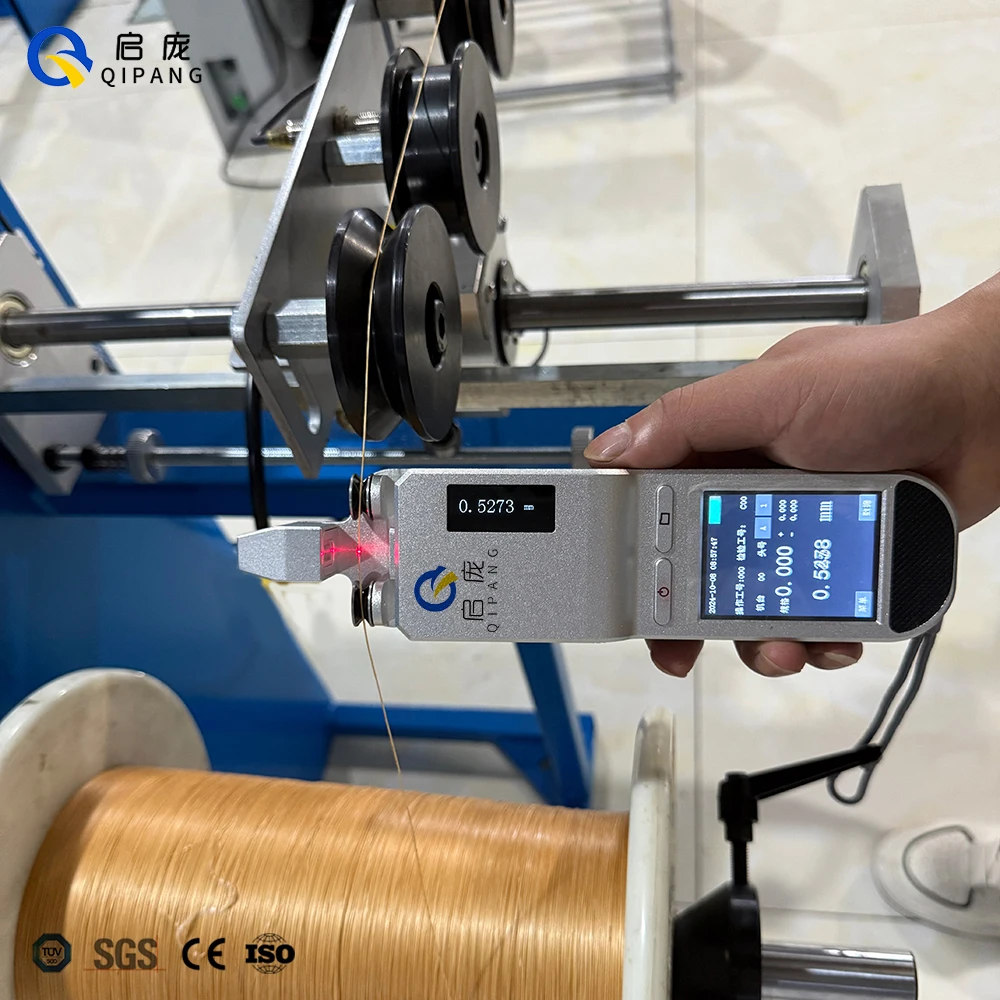

LDG-SW01C 0.02-2.0mm Enameled Ultra-fine Wire Laser Scanning Handheld Offline/online testing laser Diameter Gauge
Feature
Product use:
Applicable to the super accurate measurement of outer dimension of various fine wires such as optical fiber,enameled fine drawn wires and fibers etc.It is suitable for the patroland can be operated both in-line and off-line.
Features：
1、The built-in platform provides higher integrity,faster calculation speed and longer life-time
2、Advanced technology provides accurate measurement and control for both transparent and semitransparent wires. 3、Super large storage capacity can store more than 10 thousand data which are identified with time and date,inspector,machine umber, wire number and bobbin number etc, to facilitate management and query.
4、Accuracy is as high as 0.001%.
5、Dual-angle display is achieved with both high resolution touch screen and OLED, The main screen can be open and closed freely
6、The communication and charge interface is compatible with the same of standard USB of mobile phone and communication in both wire and wireless modes leads to high reliability.
7、Operation on touch screen and menu interface becomes easier and more convenient
8、Streamline design achieves smaller size and easier handling.
9、High efficient polymer lithium battery leads to longer standby time and more than 8 hours work duration
10、The smart mode calibration is the pioneer in the industry which makes complicated manual calibration settings and repeated calibration unneeded
11、Upper stream statistic and analysis software enables real-time wireless upload and data import afterwards
Specification
Wire Size Range | 0.02-2.00mm |
Resolutions | 0.00001mm |
Measurement accuracy | ±0.0001mm |
Work Ambient Temperature: | 0℃---+60℃ |
Sampling Speed: | 10000 times/second |
Package Size: | 350x260x150mm |
Weight: | 1.6kg |
