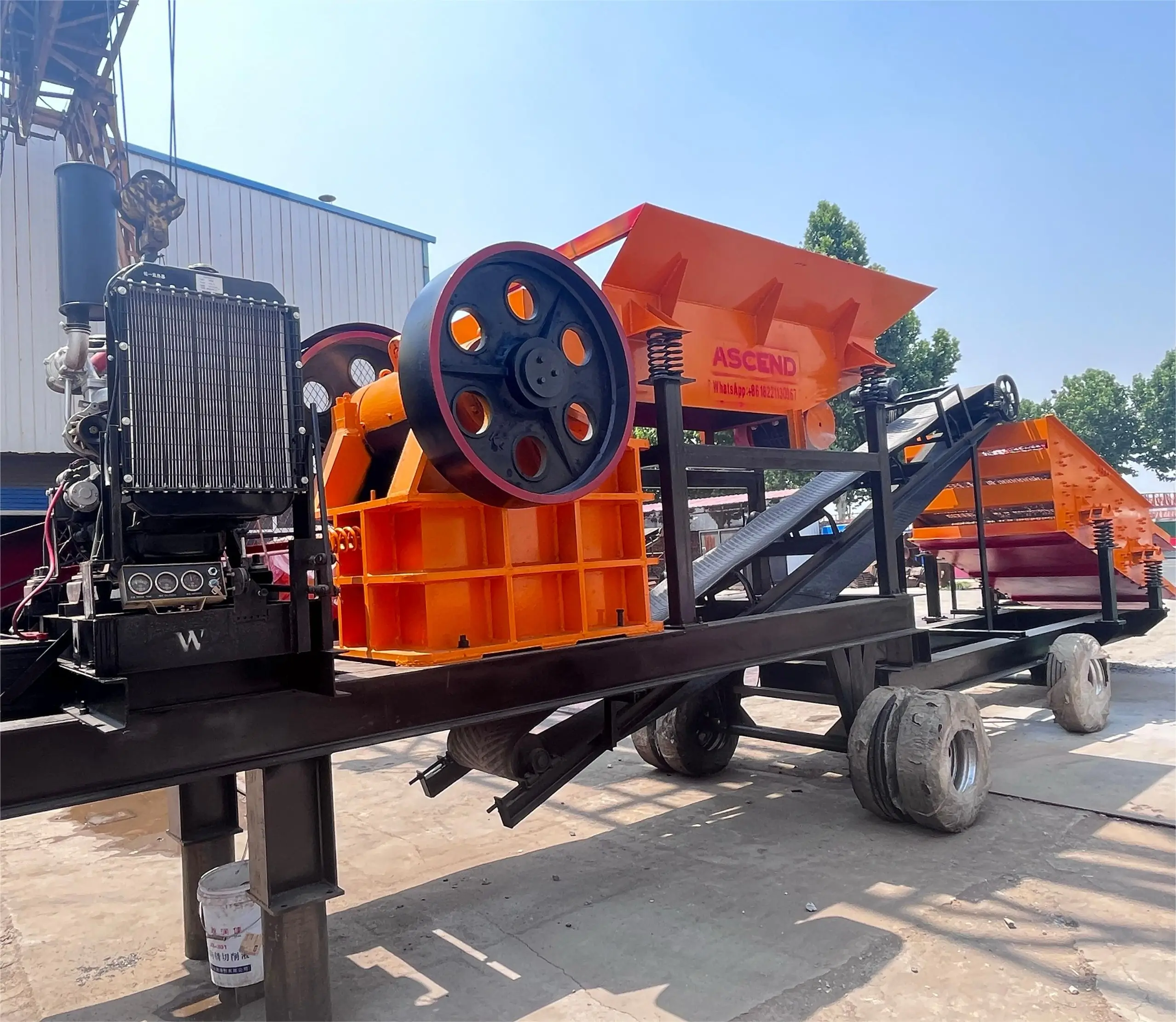

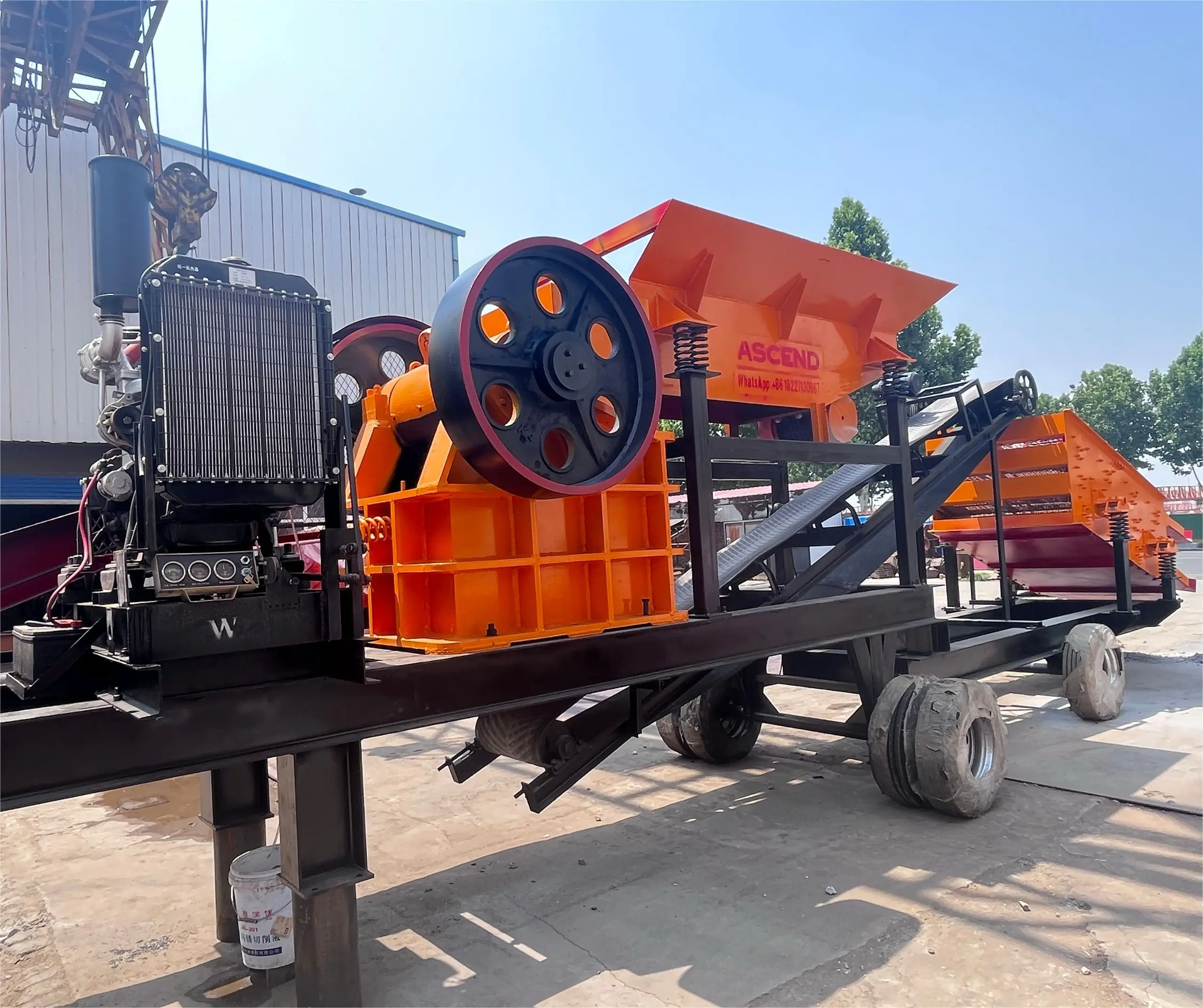

Medium hard stone breaking machine diesel engine mobile jaw crusher with 100 110 120 tons per hour capacity in African countries
- Category: >>>
- Supplier: Henan Ascend Machinery Co. Ltd.
Share on (1601275627372):
Product Overview
Description
Product Description

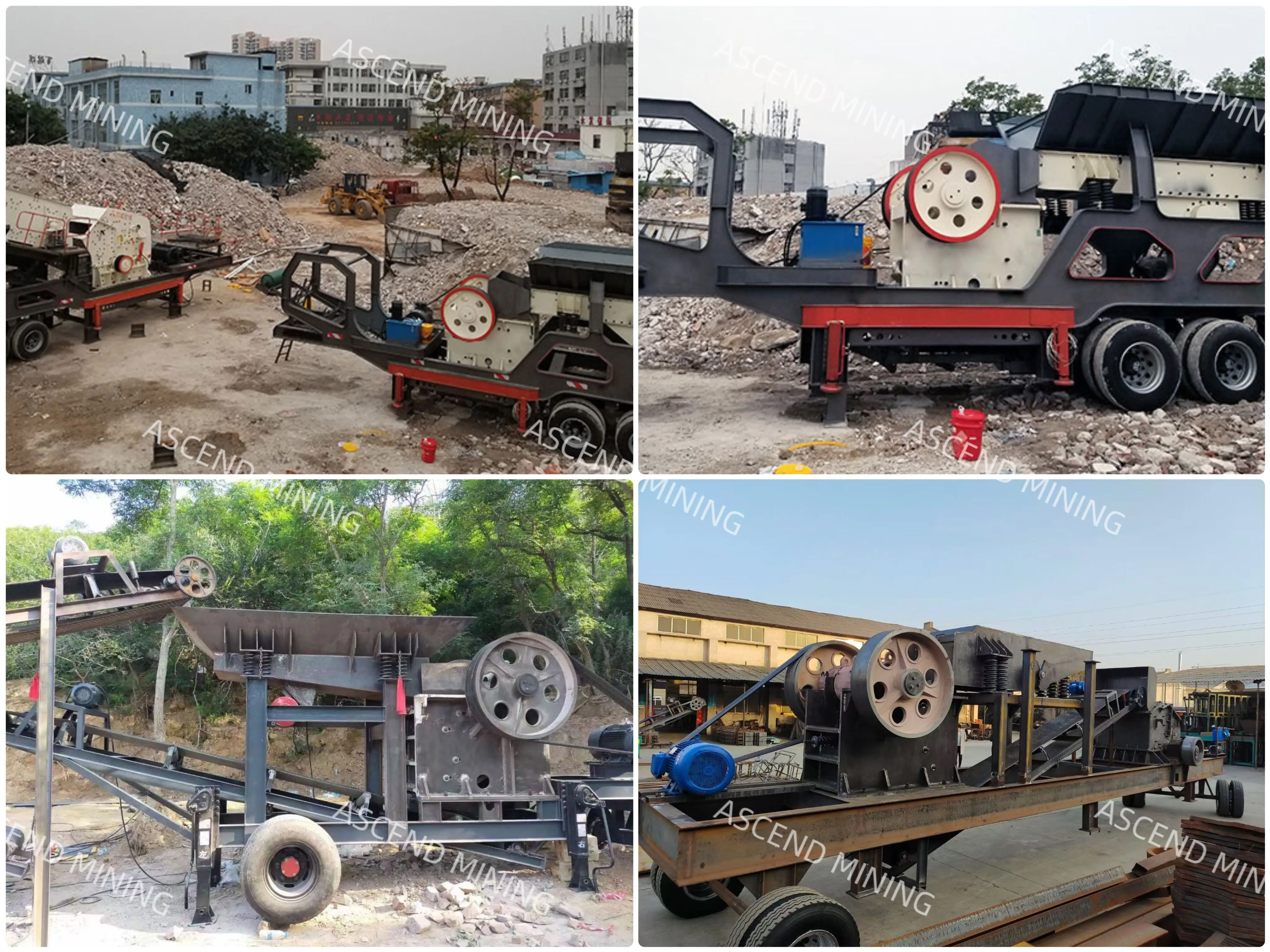

Big scale mobile stone crushers for quartz basalt dolomite gold ore crushing

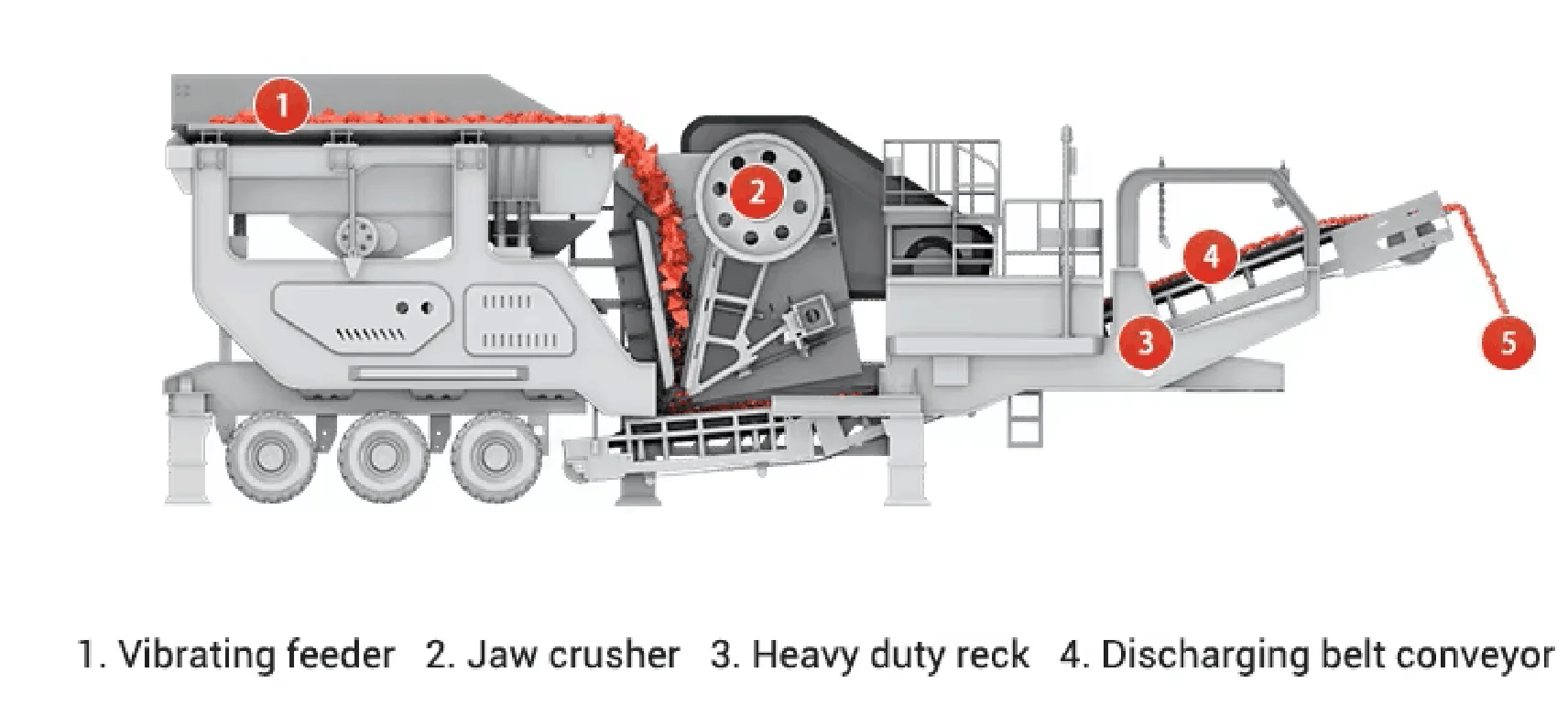

Mobile stone crusher also called mobile crusher plant, mobile stone crusher, or mobile crushing plant. This mobile crusher is an integrated machine of vibrating feeder, stone crusher, belt conveyor, vibrating screen and other auxiliary parts. So mobile crusher is a mobile stone crushing plant in fact. The mobility of mobile crusher can overcome the limited by the crushing place, and reduces high material transportation cost meanwhile. The most important is that, powder supply can be diesel engine or motor drive. If the quarry doesn't have electric, it can work with diesel engine power supply.

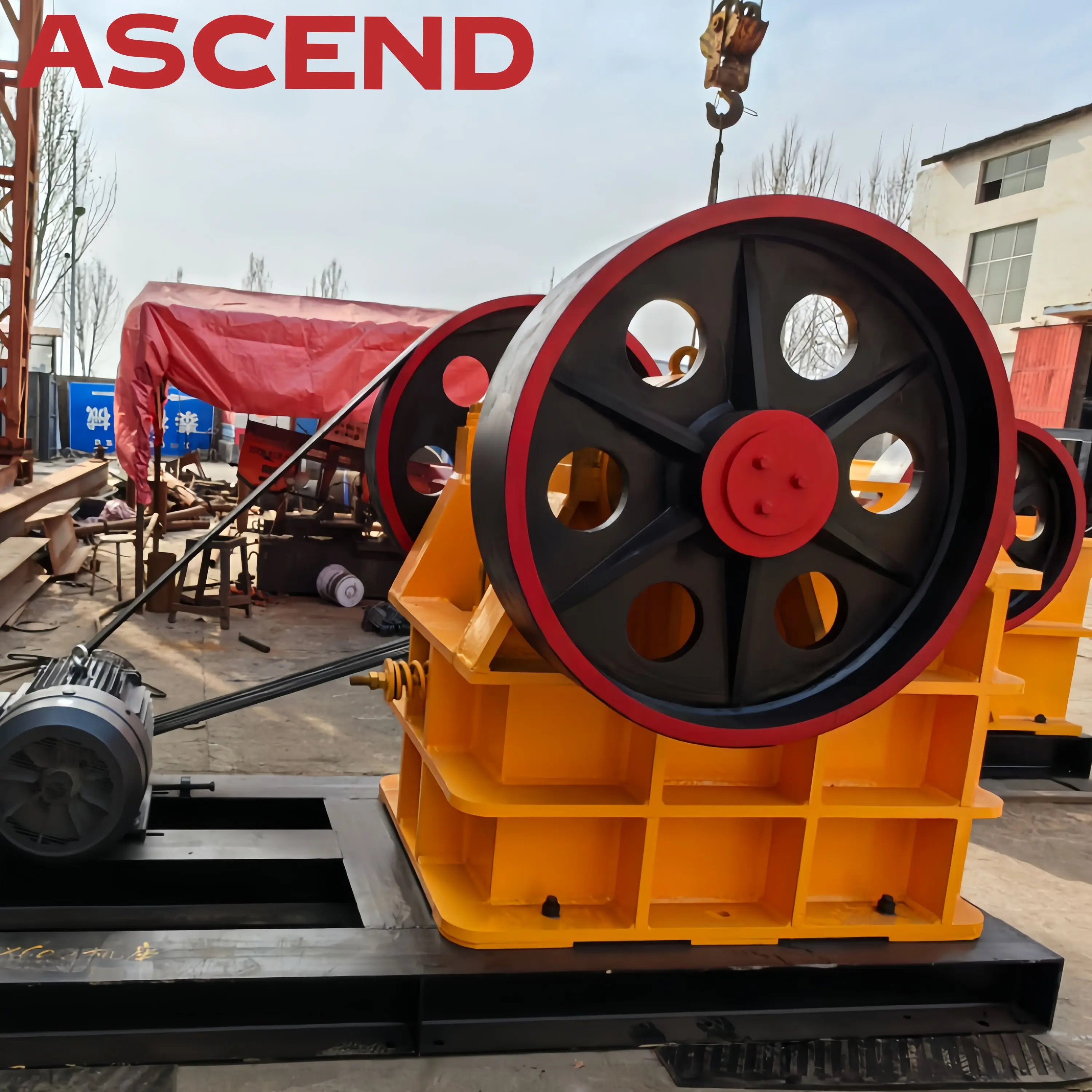

Jaw crusher
Jaw crusher is usually used at the first step in rock crushing of various ores as the primary crusher. All kinds of ores with compressive strength not higher than 320Mpa can be processed into medium size at one time. It is widely used in mining, metallurgy, chemical industry, building materials, electric power,water conservancy, transportation and other fields.

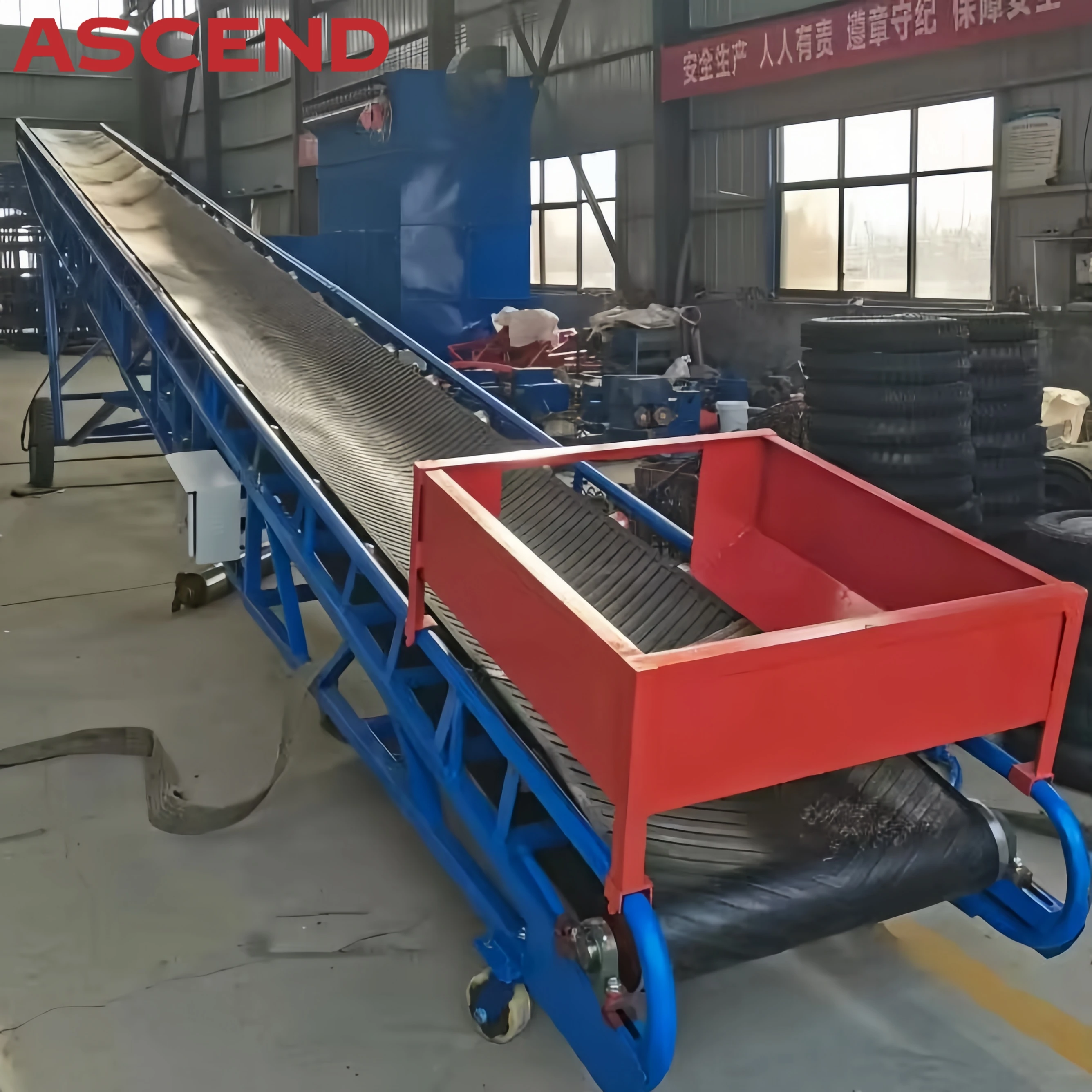

Belt conveyor
Belt conveyor is the best conveying equipment for mine continuously and efficiently. Comparing other conveyors ( such as locomotive ), belt conveyor has its advantages of long transmission distance, large capacity, continuous conveying, performing reliably, easy to realize automation and centralized control. Belt conveyor is widely used for conveying all kinds of massive,granular, powdery materials.

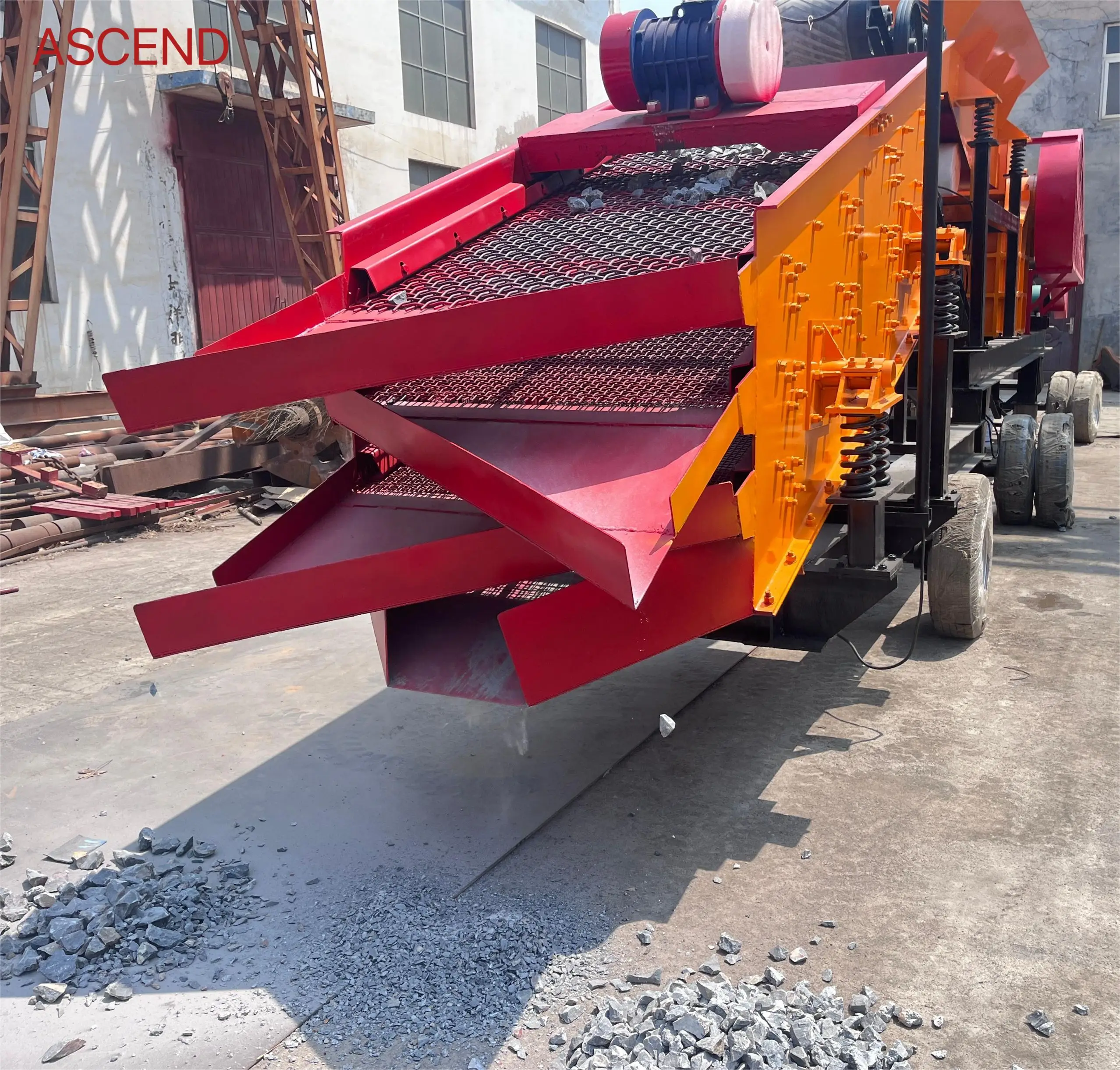

Vibrating screen
Vibrating Screen has multiple layers, it is a new high efficient screen. It has characteristics reliable structure, low consumption, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc. Our vibrating Screen is widely used for screening in mines, building material, transportation, energy sources, chemical industry, etc.
Working Principle
According to different crushing process requirements, it can be composed of "first crushing and then screening" or "first screening and then crushing" process. It can also be combined into three kinds of coarse, medium and fine crushing screening system according to the actual needs.
Features and Advantages
● Easy to move: It is not limited by the sites, can be moved based on customers' requiements.
● Power supply can be Deisel engine or Motor drive. If the quarry doesn't have electric, it can work with diesel engine power supply.
●High crushing ratio: Large stones can be quickly broken into small pieces.
● Power supply can be Deisel engine or Motor drive. If the quarry doesn't have electric, it can work with diesel engine power supply.
●High crushing ratio: Large stones can be quickly broken into small pieces.
●Hopper mouth adjustment range is large, can meet the requirements of different users.
●High capacity: It can handle 10- 200 tons per hour capacity.
●Simple structure and Simple maintenance.
●Reliable operation, low operating costs.
Specification
Model | Feed openning size(mm) | Max feeding size(mm) | Discharge range(mm) | Capacity (t/h) | Power (kw) | Weight (t) |
PE150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 |
PE250x400 | 250x400 | 210 | 20-60 | 10-20 | 15 | 2.8 |
PE400x600 | 400x600 | 340 | 40-100 | 30-50 | 30 | 7 |
PE500x750 | 500x750 | 425 | 50-180 | 35-80 | 55 | 12 |
PE600x900 | 600x900 | 500 | 50-180 | 80-150 | 75 | 17 |
PE750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 90 | 31 |
PE900x1200 | 900x1200 | 750 | 95-165 | 220-350 | 160 | 52 |
PE1200x1500 | 1200x1500 | 1020 | 150-350 | 400-800 | 220 | 100 |
PE150x750 | 150x750 | 120 | 18-48 | 10-25 | 15 | 3.8 |
PE250x750 | 250x750 | 210 | 15-60 | 15-35 | 30 | 6.5 |
PE250x1000 | 250x1000 | 210 | 15-60 | 16-52 | 37 | 7 |
PE250x1200 | 250x1200 | 210 | 15-60 | 20-60 | 45 | 9.7 |

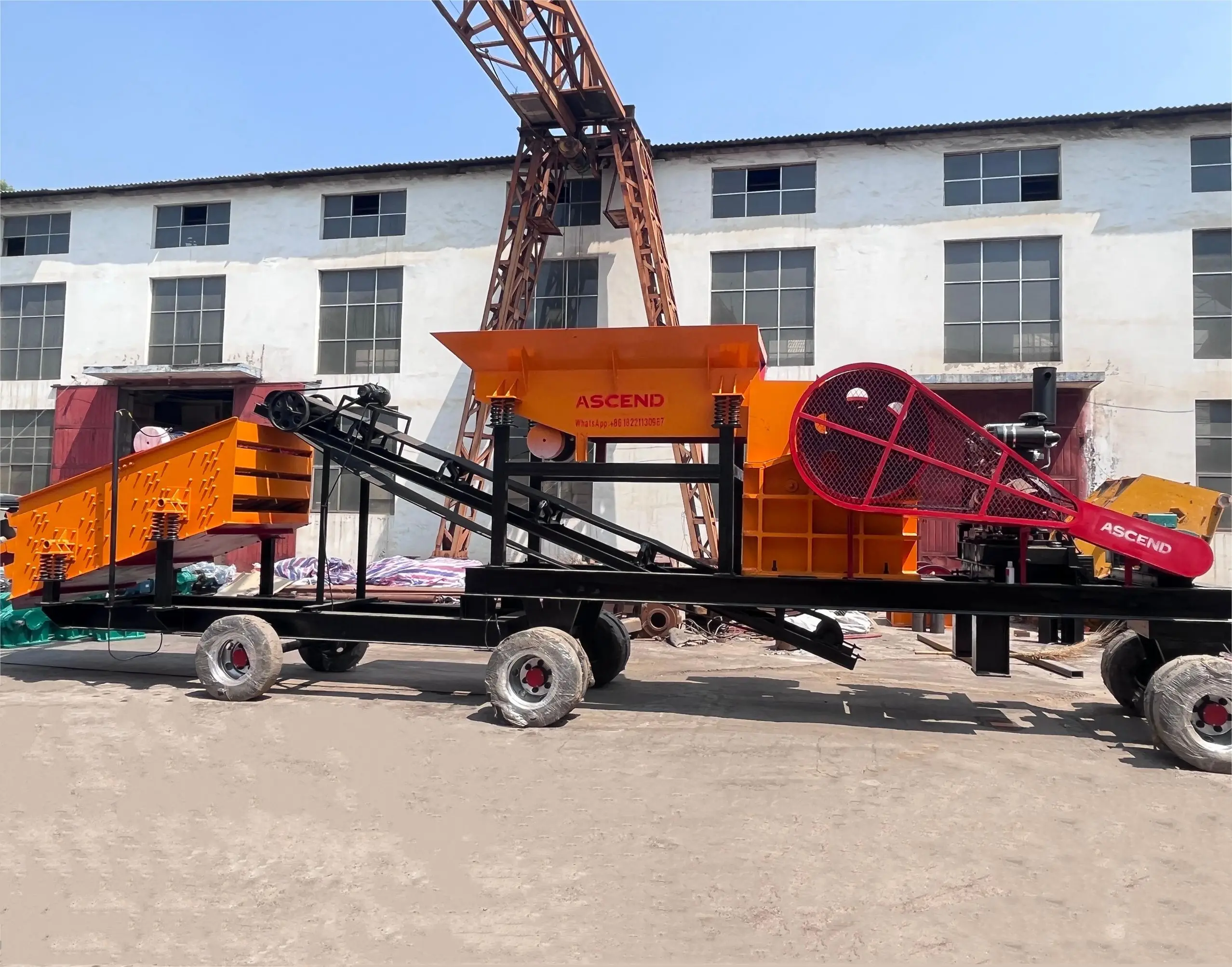

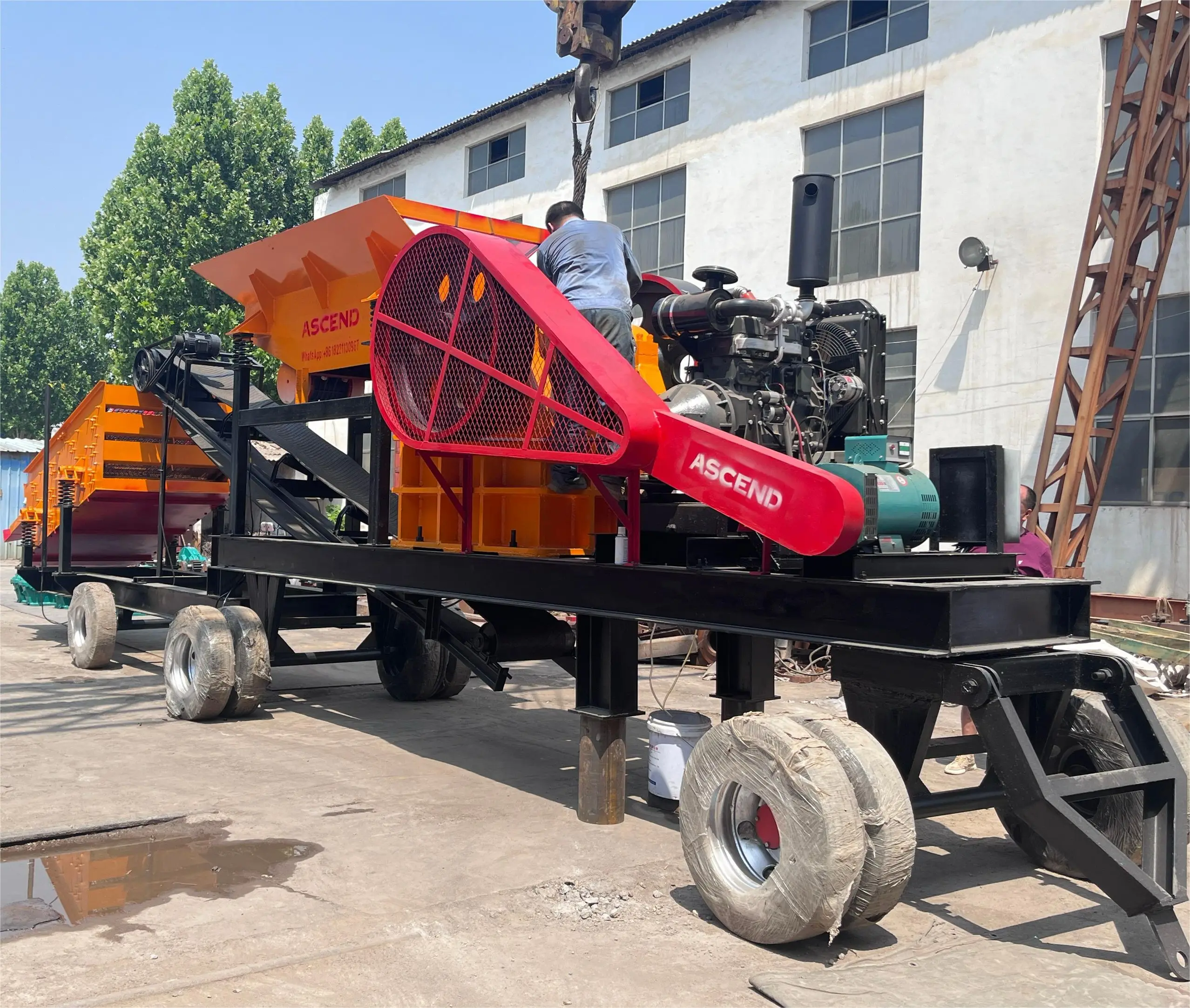

Detailed Pictures

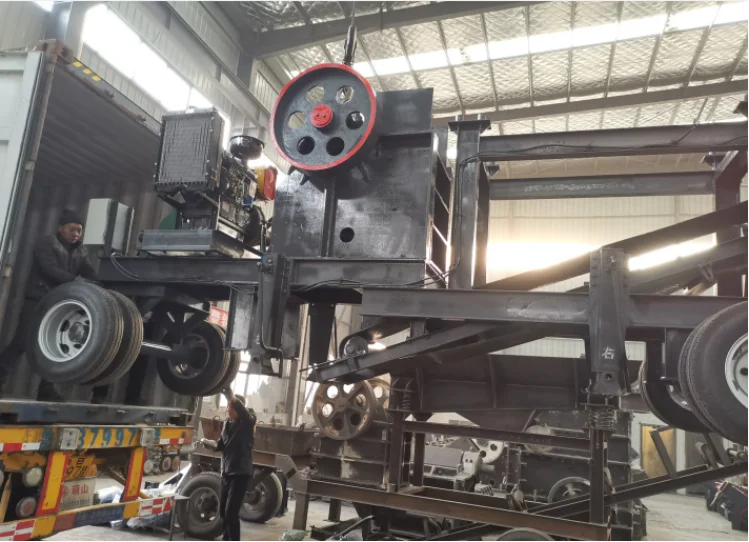

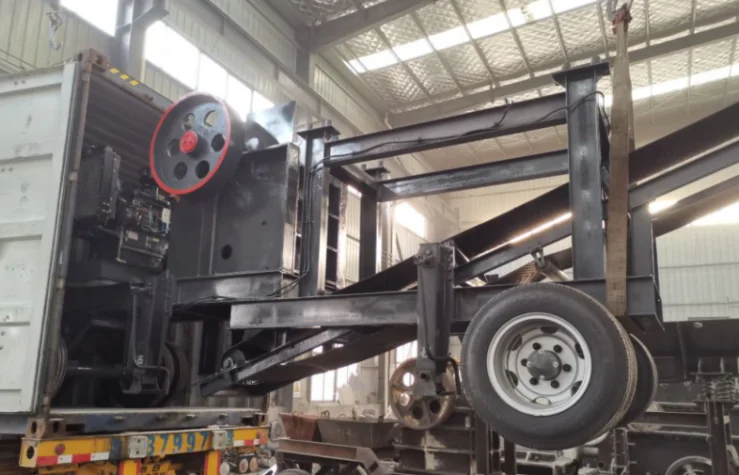

Packing & Delivery

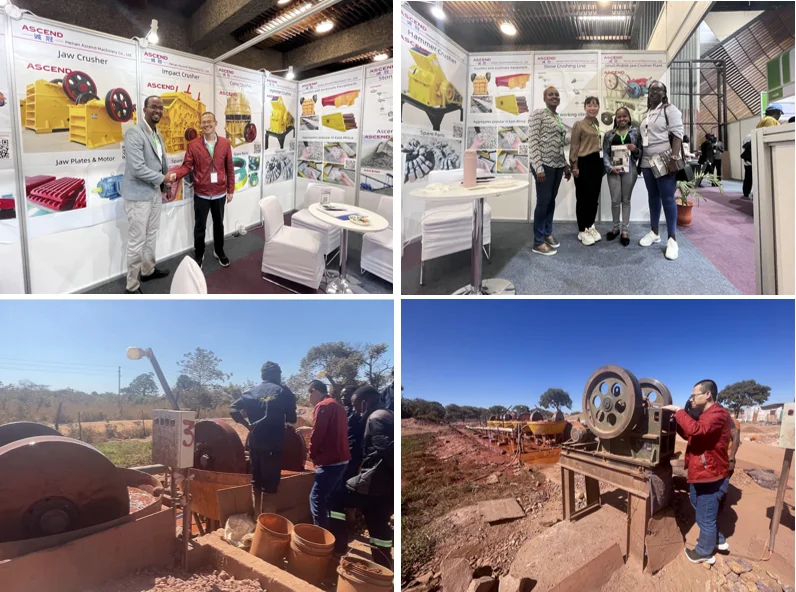

Working Sites
Company Profile
Henan Ascend Machinery
Henan Ascend Machinery & Equipment Co.,Ltd. was established in 2005 .As a joint-venture company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, milling equipment, mineral processing equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 60 Countries and regions and has won wide-spread praise and trust of international customers.
Our Core Advantages
●Near 20 Years of Experience: We have a long-standing history of excellence in the mining machinery industry.
●Comprehensive After-Sale Support: Our dedicated engineering team is available to provide reliable after-sale services.
●Complete Mineral Processing Solutions: We offer fully integrated mineral processing plants to meet all your needs.
●Free Sample Testing: Take advantage of our factory lab for complimentary sample testing services.
●Expert Mining Consultation: We provide professional consulting to help you find the best mining solutions.
●Comprehensive After-Sale Support: Our dedicated engineering team is available to provide reliable after-sale services.
●Complete Mineral Processing Solutions: We offer fully integrated mineral processing plants to meet all your needs.
●Free Sample Testing: Take advantage of our factory lab for complimentary sample testing services.
●Expert Mining Consultation: We provide professional consulting to help you find the best mining solutions.
We also supply
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every product before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●If I need the complete crushing plant can you help us to build it?
Answer: we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
●What Information should customers give us, So that we can be able to provide you suitable quotation and service.
Answer: 1.What minerals are you separating? 2.What's the maximum size of your raw minerals? 3.How much capacity do you need per hour for your project?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every product before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●If I need the complete crushing plant can you help us to build it?
Answer: we can help you combine a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
●What Information should customers give us, So that we can be able to provide you suitable quotation and service.
Answer: 1.What minerals are you separating? 2.What's the maximum size of your raw minerals? 3.How much capacity do you need per hour for your project?
