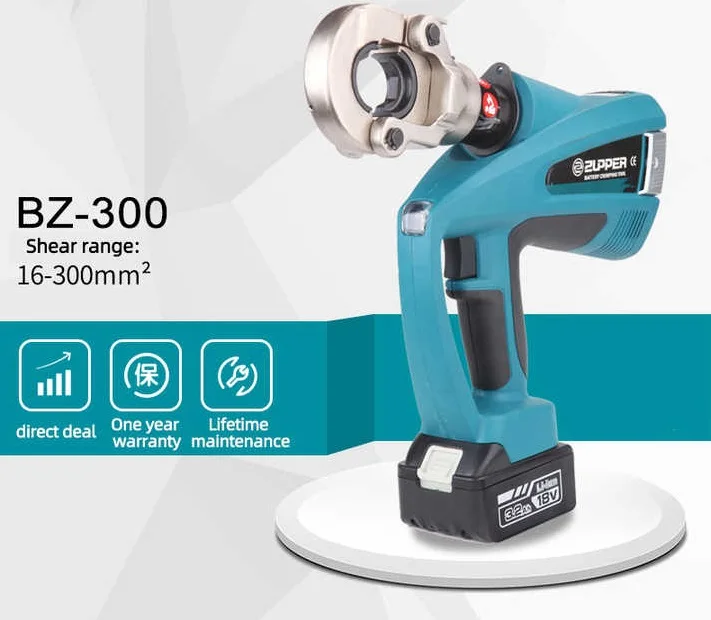

BZ 300 hydraulic crimping tool cordless cable up to 300mm2 electric hydraulic crimping tools cable lug crimping tool
- Category: >>>
- Supplier: Chengdu Jianxi Import and Export Co. LTD
Share on (1601275660198):
Product Overview
Description
Specification

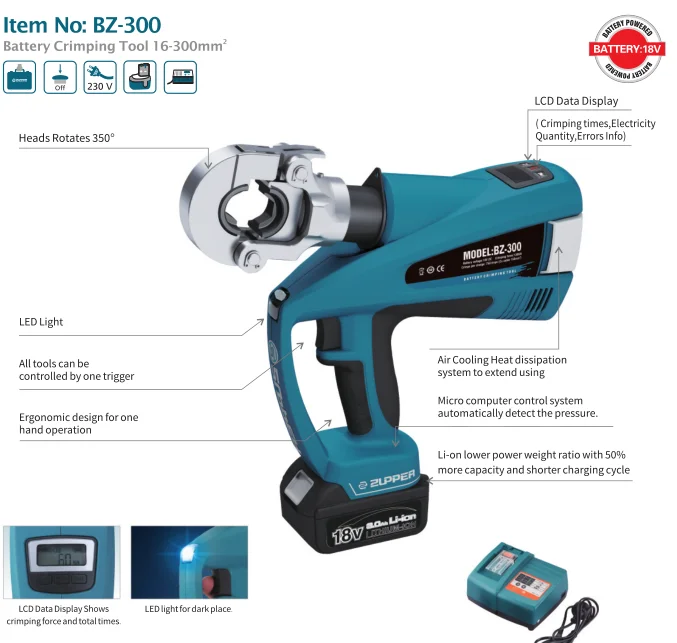

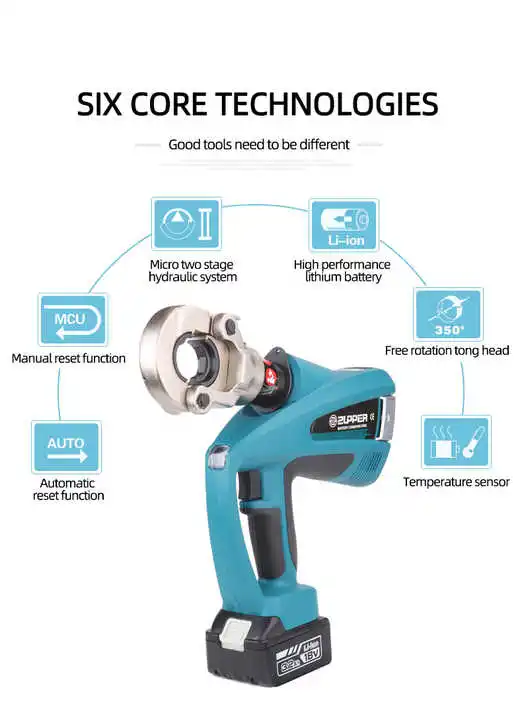

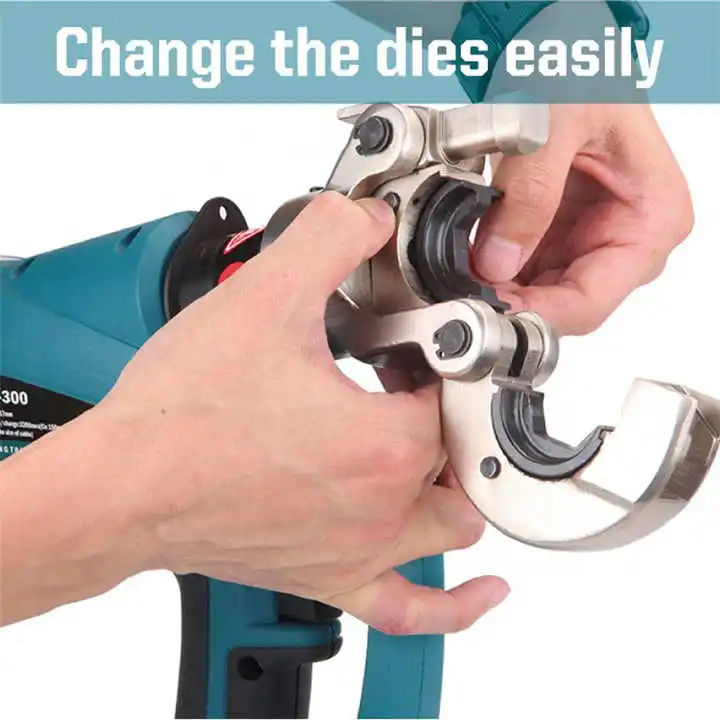

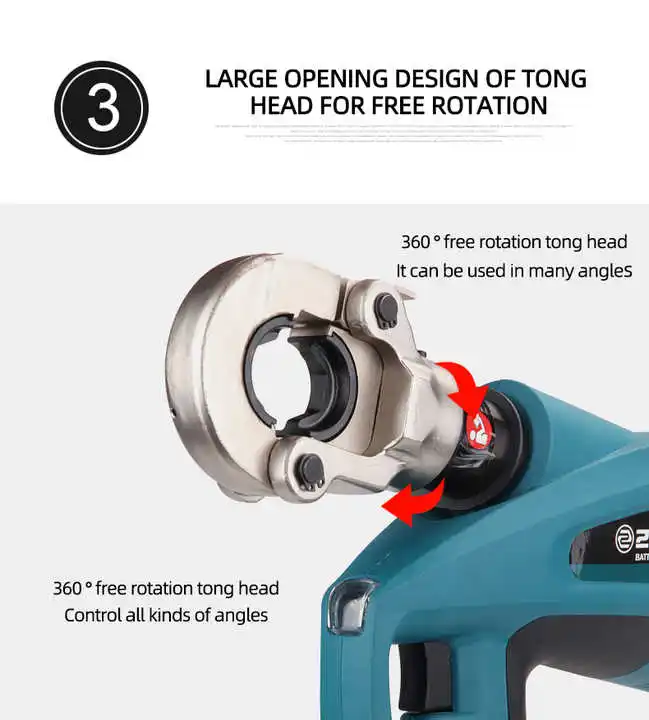

BZ-300 is a battery powered hydraulic tools, designed with hydraulic system, powerful motor, high-performance li-ion battery, scissors type removable jaws, pistol type tool body. With compatible dies, it's capable of crimping Cu / AL cable lugs and connectors onto cable up to 300mm2, can be widely used in cable connection and termination job.
Crimping force | 60KN | |
Stroke | 17mm | |
Crimp/charge | 320times (Cu 150mm²） | |

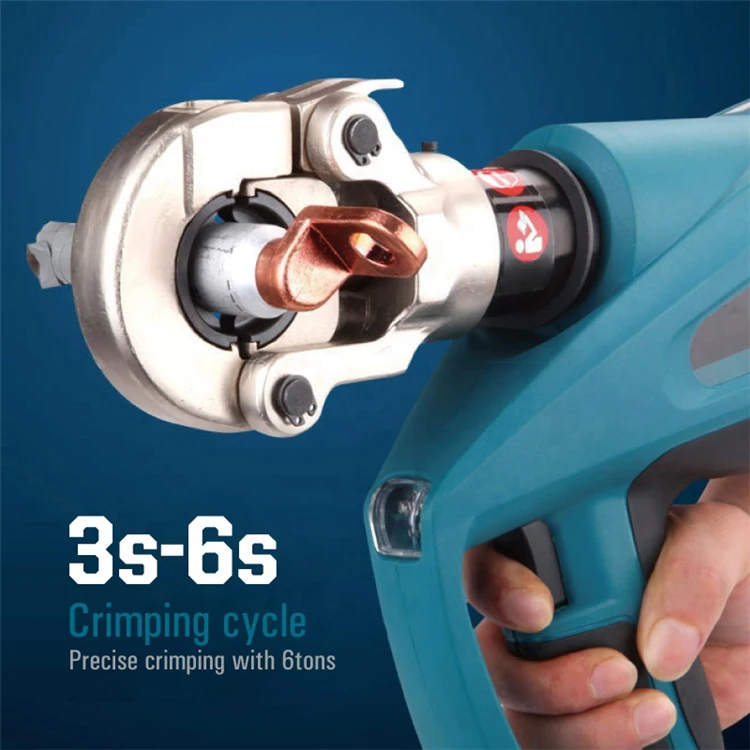

Crimping cycle | 3s-6s(depend on the size of cable) | |
Voltage/capacity | 18V/4.0Ah | |
N.weight (with battery) | 4.6kgs | |
Charging time | Approx.80mins | |

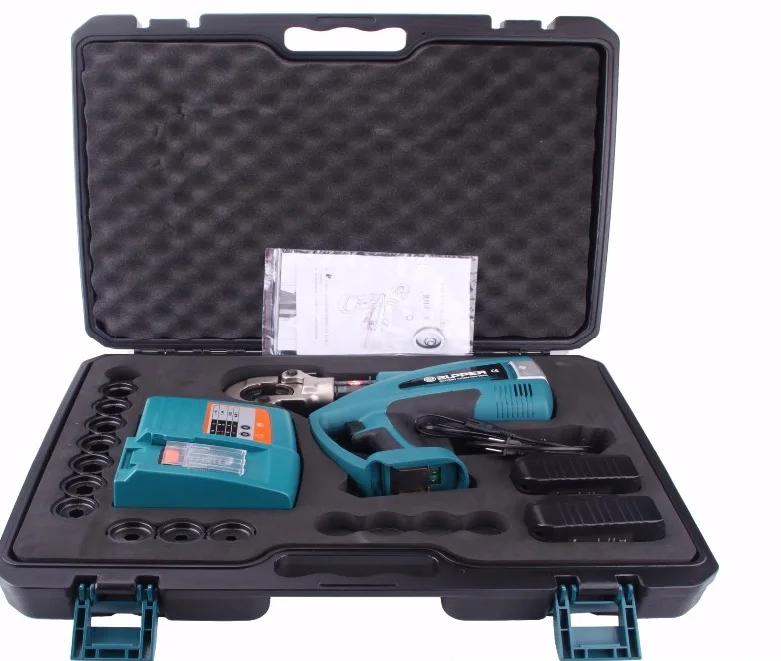

Package | plastic box | |
ACCESSORIES | ||
Crimping dies | 16,25,35,50,70,95,120,150,185,240,300mm² | |
Battery | 2pcs | |
Charger | 1pc | |
Sealing ring of cylinder | 1set | |
Sealing ring of safety valve | 1set | |
Sealing ring of cylinder | 1 set | |
Sealing ring of safety valve | 1 set | |
