Price:$2,800.00 - $3,000.00

Quantity:


Product Overview

Description



Products Description

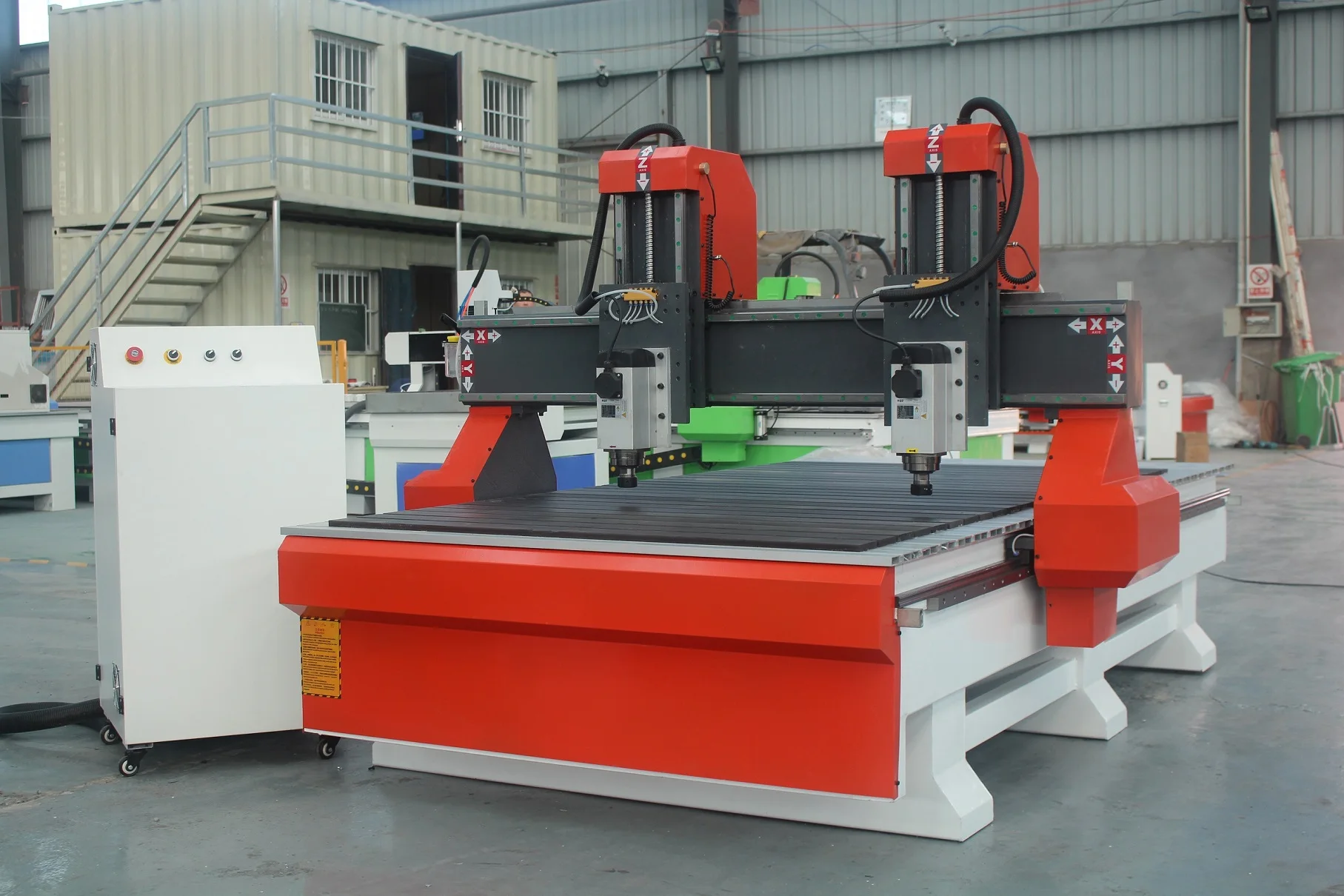

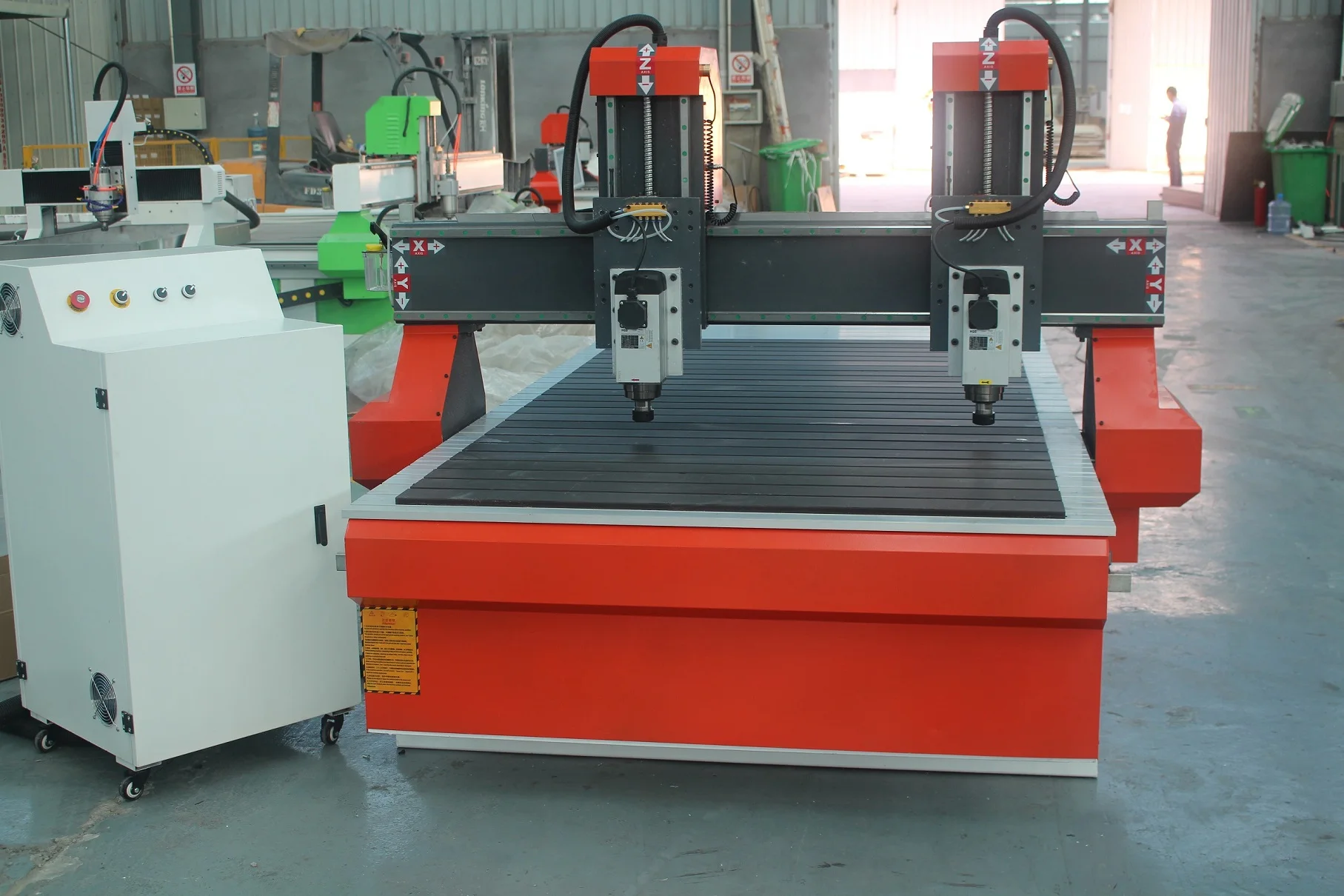

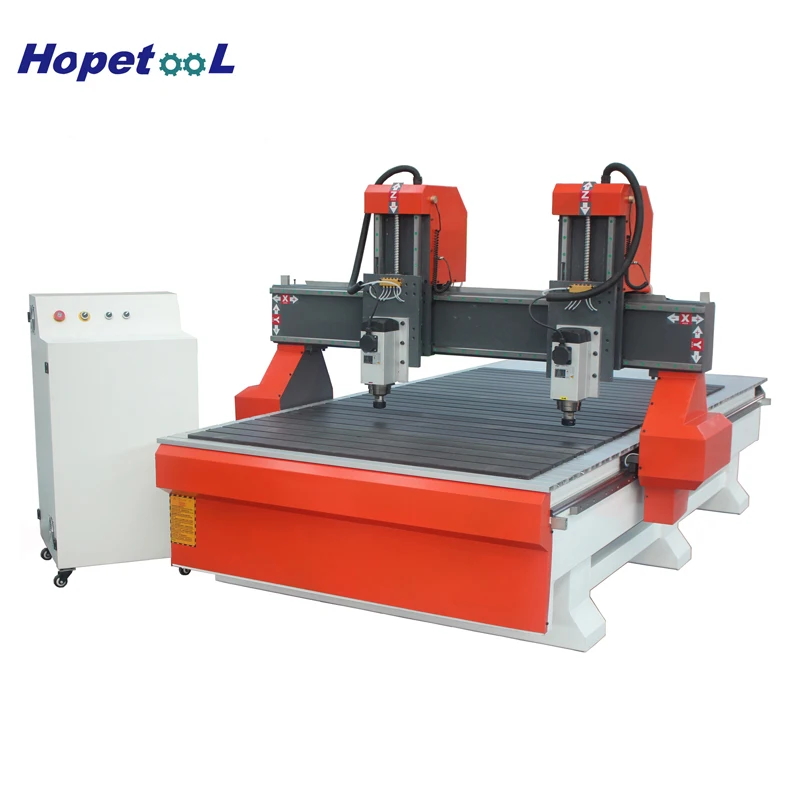

High quality 3 aixs Two spindle 1325 servo motor wood router cnc with vacuum table for wood mdf and Acrylic






Characteristic:
1.Water or air cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.seperated control system makes operation easily.
7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.
8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.

Performance parameter:


Description
parameter
XYZ working area
1300*2500*200mm
Table size
1310*3000mm
XYZ travel positioning accuracy
±0.01mm
XYZ repositioning positioning accury
±0.01mm
Table surface
Bakelite sheet
Grantry
steel
Drive system X-Y axis
rack
Drive system Z axis
Ball screw
Spindle power
3/5.5KW
Max velocity
50m/min
Max working speed
25m/min
Spindle speed
0-24000rmp
Work mode
step(optional servo)
Working voltage
AC220V/380V
Command language
G code
Interface
USB
Operating system
DSP/Mach3/Ncstudio
Flash memory
128
X-Y resolution
0.025mm
Software environment
Wentai type3 artcam
Running environment
Temperature:0-45°C
Paking size
3300*1900*1900mm
Net weight
1000 kg
Gross weight
1200 kg


Details Images









The machine bed with many tubes, it ensure the table don’t sink.

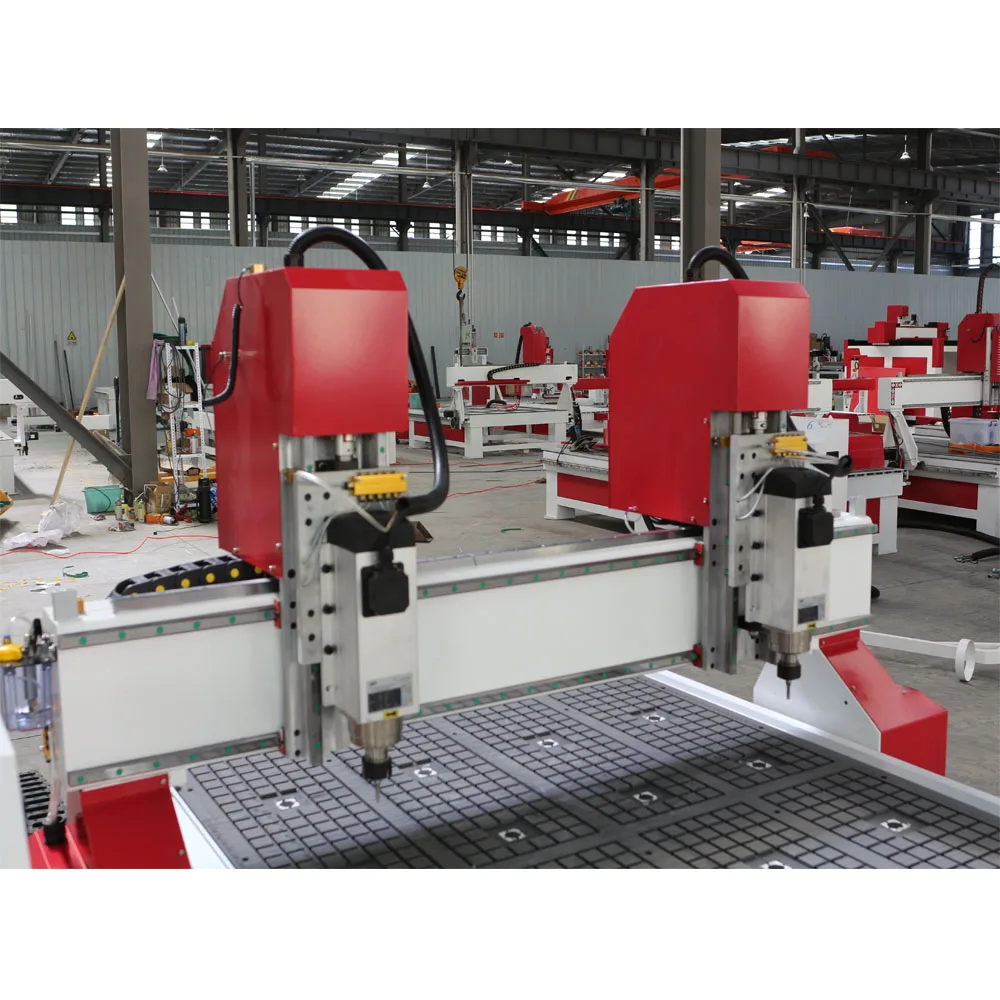

Double Water-cooled spindle

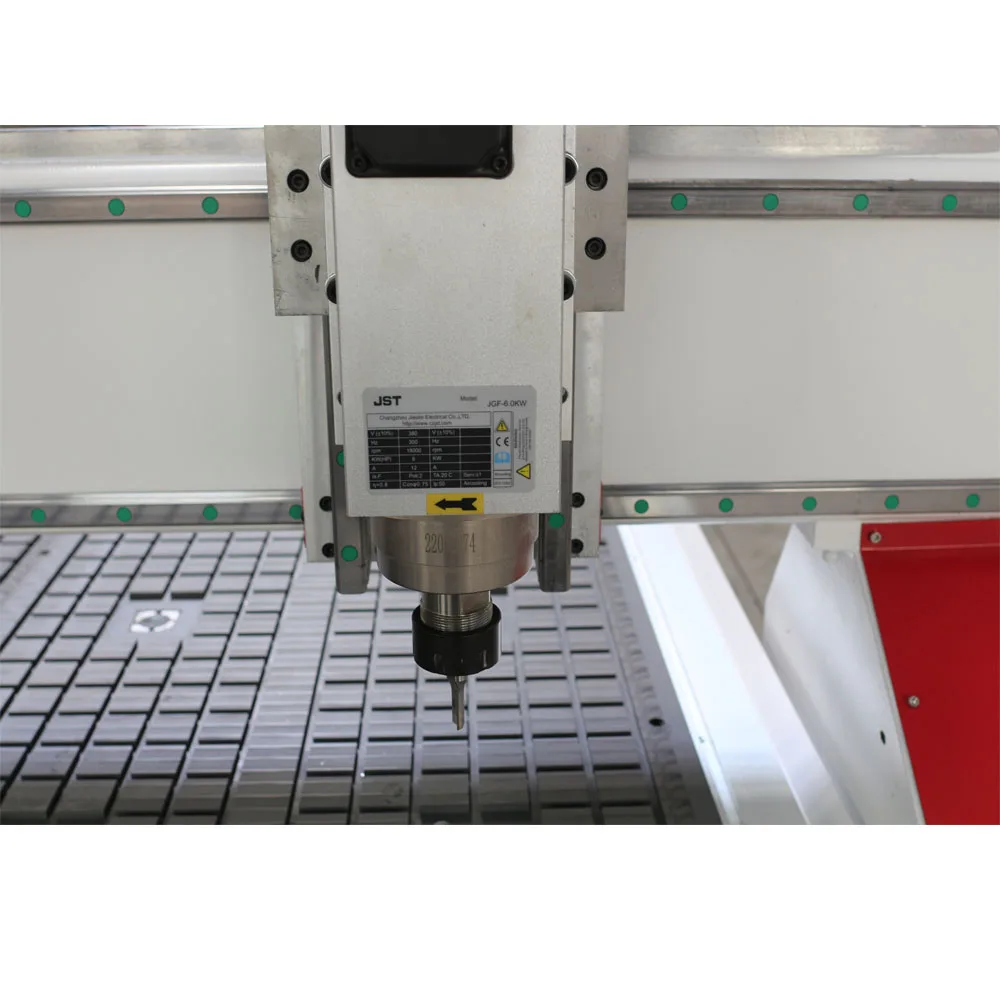

We use domestically renowned JST spindles. This machine adopts two 6KW spindles.The design allows for simultaneous processing of
two samples, increasing the efficiency of CNC engraving machines. And the spindle has a high rotational speed, but you don't have
to worry about its accuracy, it can fully meet your requirements.






The strip steel for guide with many small tripod ,it ensure the guide don’t bend.






High quality guide Hiwin brand,make sure with high accuracy.







Use famous Leashine driver,it with longtime life .






With automatic lubrication system, so it can lubricate more easily.






All connection with mark, so it is easy to maintacne the electrical parts






With filter, to reduce electronic magenic interference,so the machine with high perfomance.







With foot cushions,it can adjust the planeness easily.






Vacuum table with T solt ,It can fix material use both vacuum table and mechanical plate.


Main Parts






Working Samples




Producing Process




Recommend Products




Company Profile




Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing CNC router , co2 laser machine,fiber laser cutting machine.After 10 years’ hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries.






FAQ


Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
