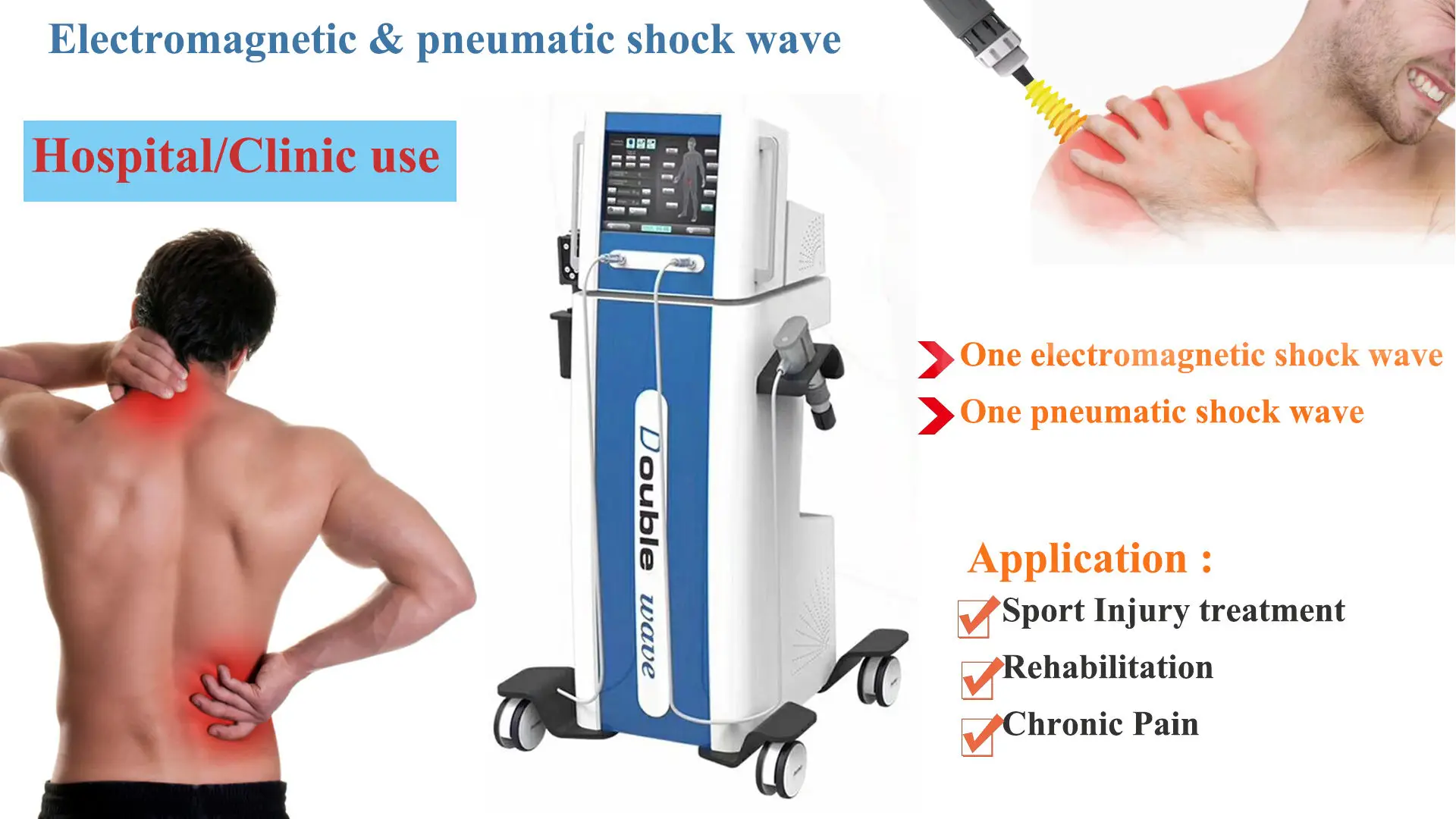

2024 double channel ED therapy electromagnetic shock wave machine extracorporeal shockwave device for physical therapy
- Category: >>>
- Supplier: GuangZhou T&B Beauty Equipment Co. Ltd.
Share on (1601275846072):
Product Overview
Description
Advantage & Function

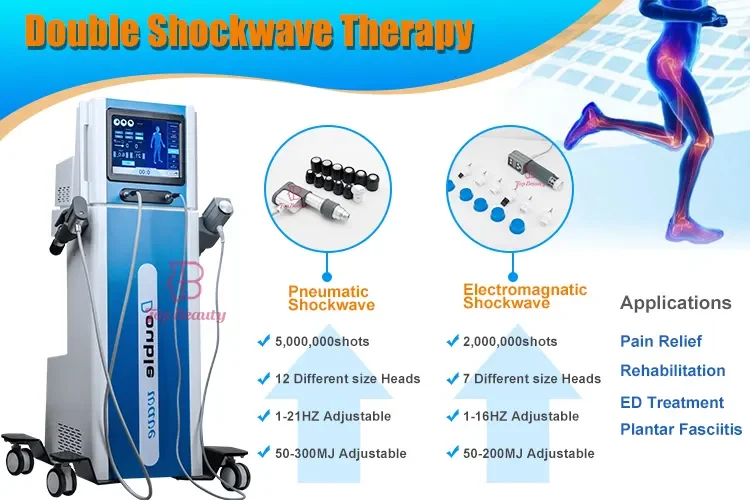

2 in 1 Shockwave Therapy Machine SL09C
The newest double wave shockwave therapy equipment SL09C combined with the electromagnetic shockwave therapy and pneumatic shockwave therapy in one machine. So the SL09C can do more works and treatment.
Shockwave Functions
1.Pain relief, pain reduce
2.Sport injuries
3.Cellulite treatment, body slimming
4.Erectile dysfunction(ED) treatment
Shockwave Advantages

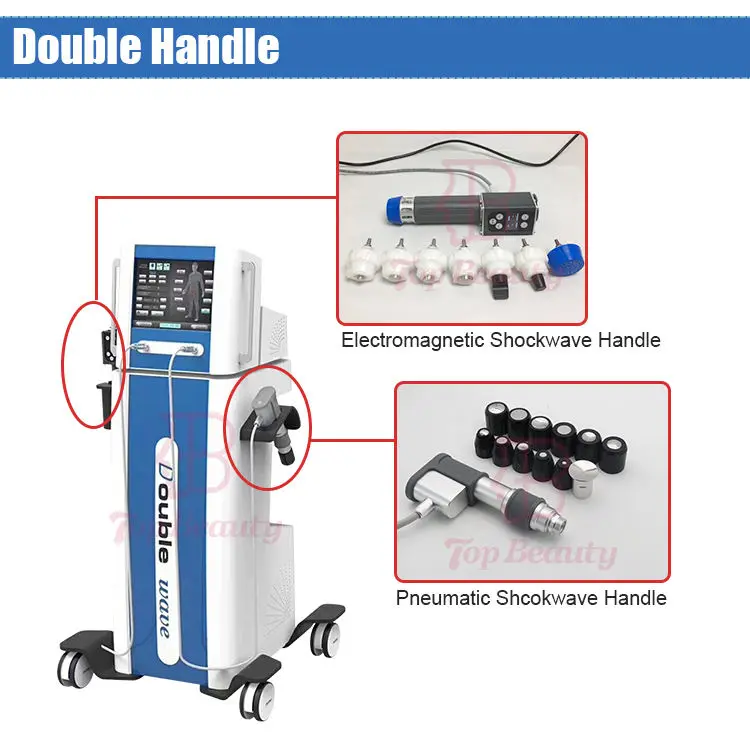

1.Pneumatic shockwave therapy & electromagnetic shockwave therapy
2. High effectiveness, fast relieve pain.
2.Noninvasive, no anesthetic, convenient and fast
3.Each nursing only 20 minutes, 5-10 nursing each session.
4.Widely applied to different soft tissue treatments.
5. Digital handle adjust the frequency and energy
6. 2 Modes: C mode and P mode for choice
7. Display real temperature and total impact counter
The newest double wave shockwave therapy equipment SL09C combined with the electromagnetic shockwave therapy and pneumatic shockwave therapy in one machine. So the SL09C can do more works and treatment.
Shockwave Functions
1.Pain relief, pain reduce
2.Sport injuries
3.Cellulite treatment, body slimming
4.Erectile dysfunction(ED) treatment
Shockwave Advantages
1.Pneumatic shockwave therapy & electromagnetic shockwave therapy
2. High effectiveness, fast relieve pain.
2.Noninvasive, no anesthetic, convenient and fast
3.Each nursing only 20 minutes, 5-10 nursing each session.
4.Widely applied to different soft tissue treatments.
5. Digital handle adjust the frequency and energy
6. 2 Modes: C mode and P mode for choice
7. Display real temperature and total impact counter
Product Description
2 In 1 Physical Therapy Pneumatic Shockwave Back Pain Relieve Shock Wave Lose Weight Machine 2 Handles Electromagnetic
You might ask for is this a pneumatic shockwave or electromagnetic shockwave?
what is the difference between them?

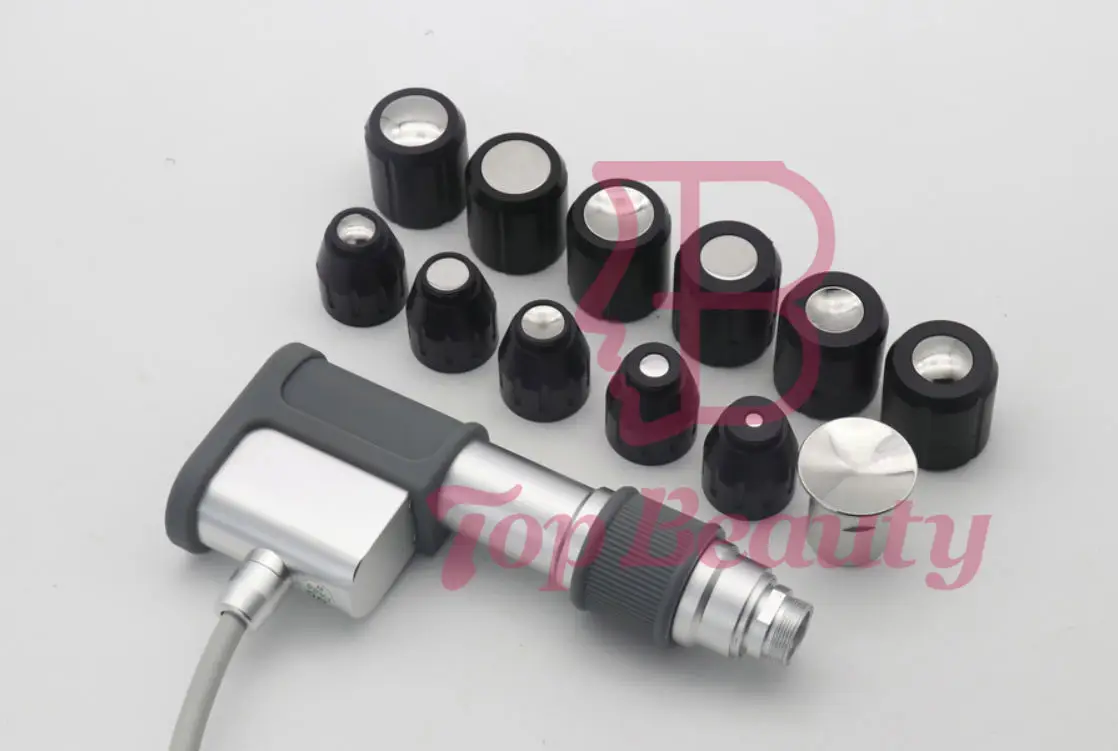

Radial pressure wave （Pneumatic shock wave ) have their greatest energy at its source and weakens the farther it travels. Radial waves are generated by means of a pneumatic system. Using compressed air, a projectile is accelerated to a high-speed then suddenly decelerated by a transmitter, which is held to the area being treated. The generated kinetic energy is than transmitted to the tissue from where it propagates outwards aspherically as a radial wave into the tissue.The transmitter surface constitutes the highest pressure and highest energy density.
1）Superficial 3-4 cm treatment depth
what is the difference between them?
Radial pressure wave （Pneumatic shock wave ) have their greatest energy at its source and weakens the farther it travels. Radial waves are generated by means of a pneumatic system. Using compressed air, a projectile is accelerated to a high-speed then suddenly decelerated by a transmitter, which is held to the area being treated. The generated kinetic energy is than transmitted to the tissue from where it propagates outwards aspherically as a radial wave into the tissue.The transmitter surface constitutes the highest pressure and highest energy density.
1）Superficial 3-4 cm treatment depth
2）Spreads to treat larger areas
3）Slow impulse
4）Low energy density Application of superficial treatment: plantar fasciitis, tennis elbow or Achilles tendon The radial shockwave comprises three parts – Ultrasonic pulse, audio acoustic pulse and the relatively slow shear wave.

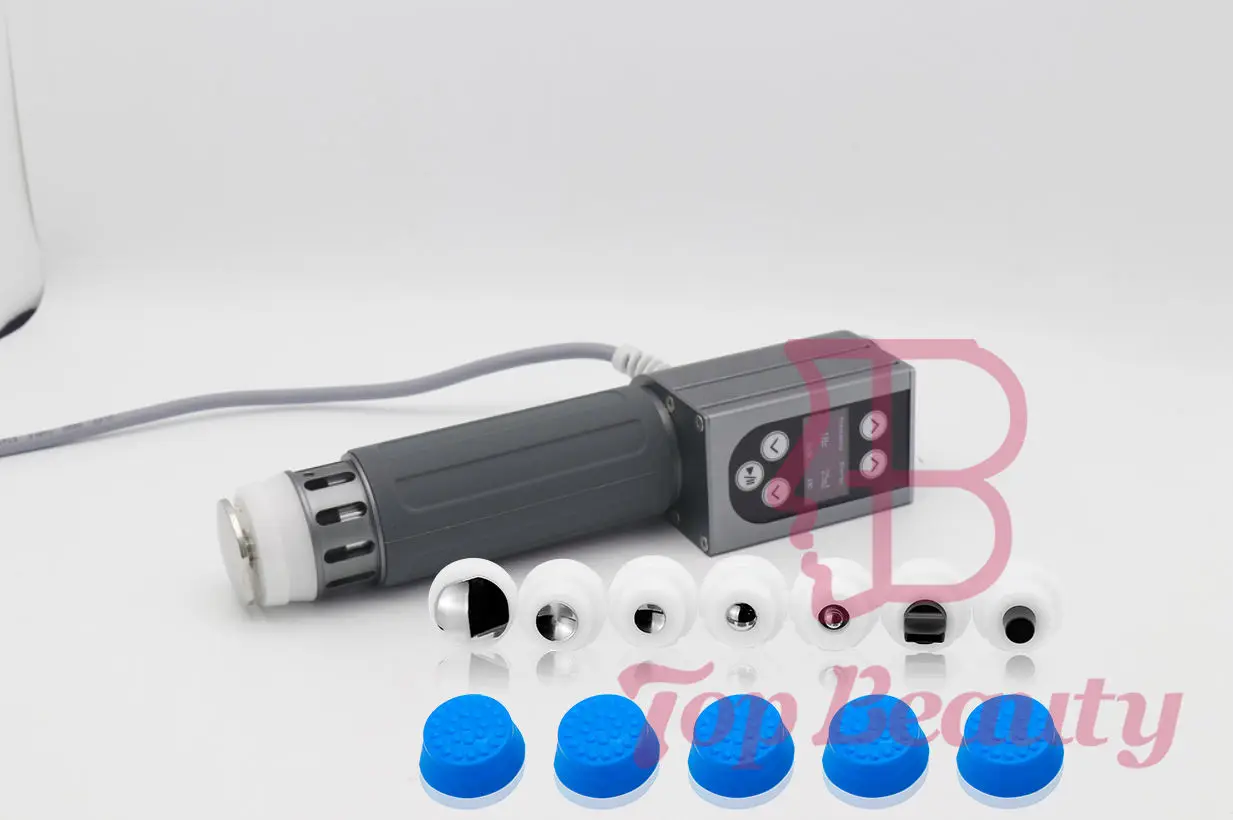

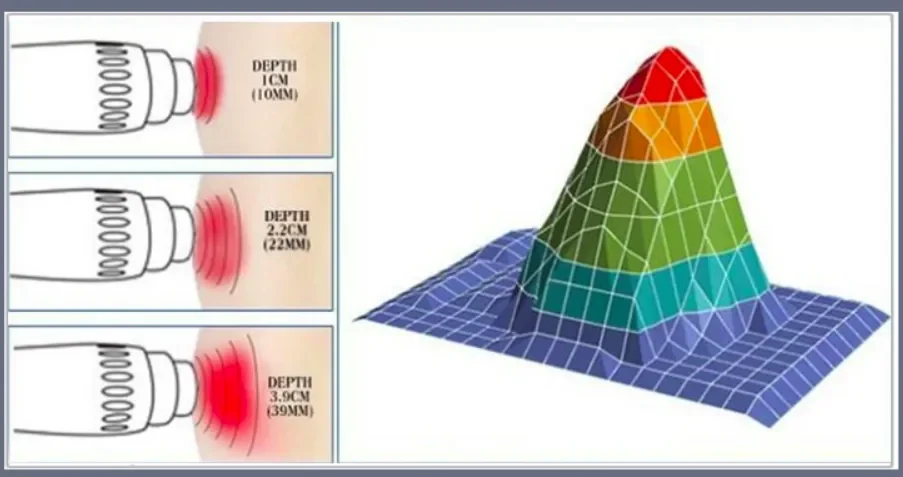

Focused shockwaves (electromagnetic shock wave ) are able to penetrate deeper into the tissues and provides all of its power at the designated depth. Focused shockwaves are generated electromagnetically through a cylindrical coil creating opposing magnetic fields when current is applied. This causes a submerged membrane to move and generate a pressure wave in the surrounding fluid medium. These propagate through the medium without any loss in energy with a small focal zone. At the site of actual wave generation the amount of energy dispersed is minimal. This limits damage at the skin and to underlying soft tissues.
1）Deep reach up to 12cm
Focused shockwaves (electromagnetic shock wave ) are able to penetrate deeper into the tissues and provides all of its power at the designated depth. Focused shockwaves are generated electromagnetically through a cylindrical coil creating opposing magnetic fields when current is applied. This causes a submerged membrane to move and generate a pressure wave in the surrounding fluid medium. These propagate through the medium without any loss in energy with a small focal zone. At the site of actual wave generation the amount of energy dispersed is minimal. This limits damage at the skin and to underlying soft tissues.
1）Deep reach up to 12cm
2）Precise energy delivery to the exact area
3）Fast impulse
4）High energy density Application of intensive treatment: acute injury
Usage place:
1) orthopedics
2) rehabilitation
3) sports medicine
Function :
1) Physiotherapy sport injury recovery
2)Rehabilitation
3) Acute injury recovery
Specification
Technology | Pneumatic & Electromagnetic shock wave therapy |
Pneumatic Frequency | 21HZ max |
Electromagnetic Energy | 6bar Max |
Electromagnetic Freqency | 16HZ Max |
Electromagnetic Energy | 200MJ(4bar) max |
Function | Pain relief/ED treatment /Rehabilitation |

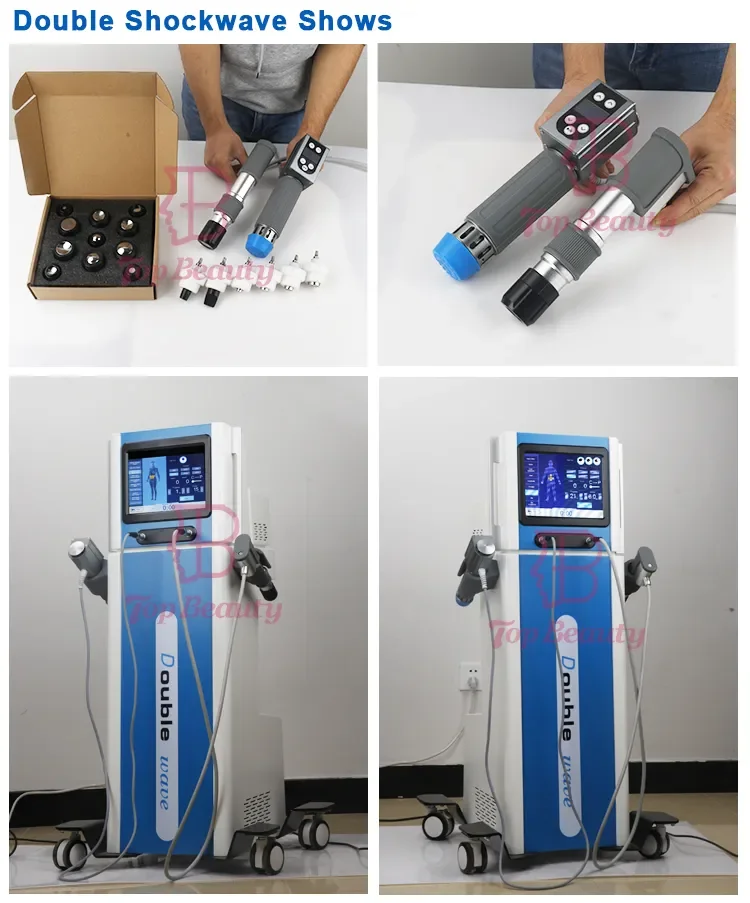

Real Image
