Auto EPS Plastic Waste Recycling Machine Styrofoam Foam Cold Pressing Compactor
$13,000.00-15,000.00
HDPE Pallet Cover Films Jumbo Bags Reusing Crushing Floating Washing Squeezing Drying Baling Plastic Recycling Machine Line
- Category: >>>
- Supplier: Zhangjiagang Regulus Machinery Co. Ltd.
Share on (1601275857859):
Product Overview
Description
Product Overview

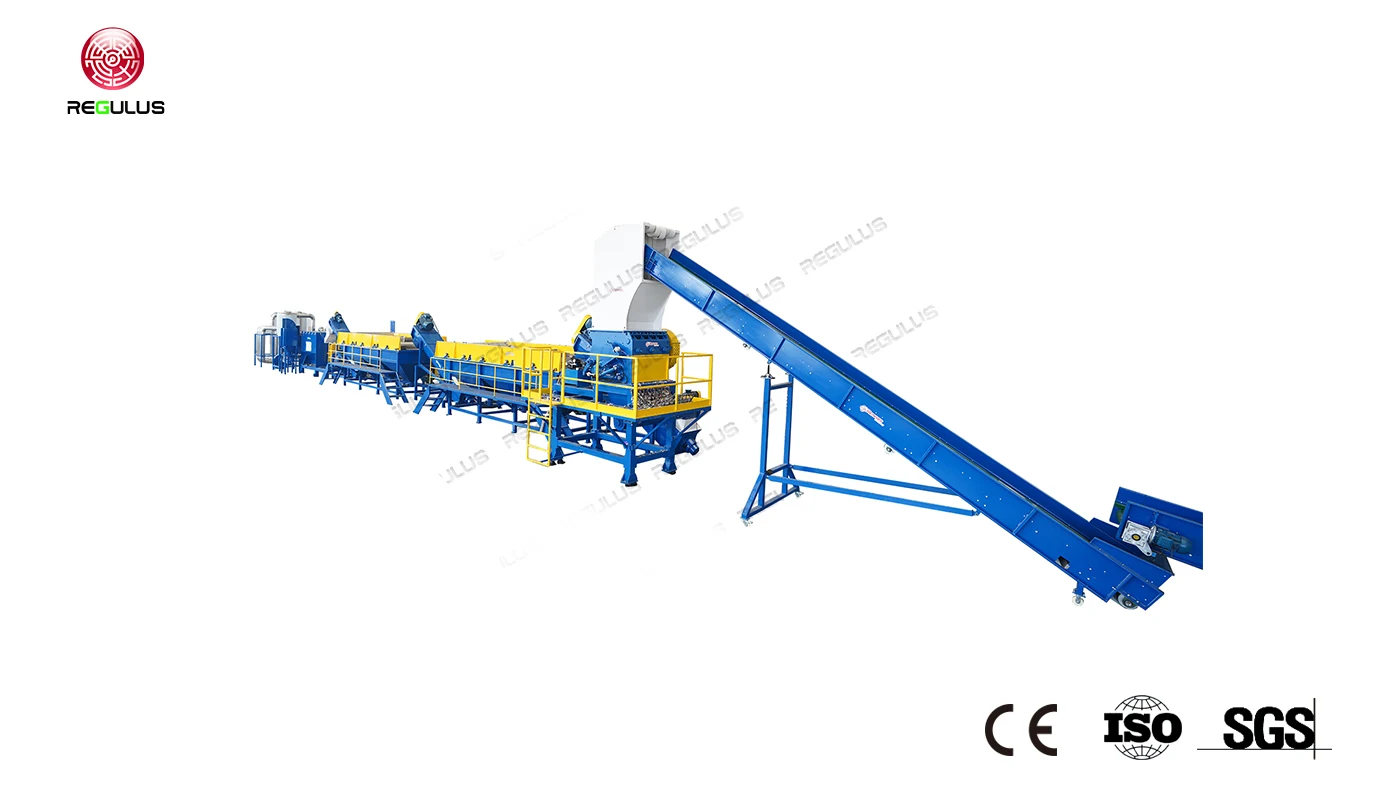

Plastic Recycling Washing Line
This production line is specially used for crushing, cleaning, dewatering and drying all kinds of waste plastics. The whole
production line is mainly composed of the following equipment: belt conveyor, crusher, friction cleaning machine, film rinsing machine, screw feeding machine, heat cleaning machine, screw feeder, dehydrator, drying system, electrical and so on. The equipment is simple, practical and high yield, which is the most effective production line for recycling waste plastics.
production line is mainly composed of the following equipment: belt conveyor, crusher, friction cleaning machine, film rinsing machine, screw feeding machine, heat cleaning machine, screw feeder, dehydrator, drying system, electrical and so on. The equipment is simple, practical and high yield, which is the most effective production line for recycling waste plastics.
What kind of plastic can be recycled?
The plastic film is a secondary resource with very good recycling value, and the recycled film can reproduce film products,
plastic bags, injection products, wood plastic products, etc., and has a wide range of uses.
The shape, size, moisture content, and impurity content of the waste film are not the same. The types of plastic films commonly found in the recycling market are:
1. Production of post-consumer films (including collected from landfills and selectively collected)
2. Commercial and post-industrial films (mainly in plastic bags and packaging films, stretch film)
3. Agricultural film (including greenhouse, mulch, greenhouse film and banana film, etc.)
plastic bags, injection products, wood plastic products, etc., and has a wide range of uses.
The shape, size, moisture content, and impurity content of the waste film are not the same. The types of plastic films commonly found in the recycling market are:
1. Production of post-consumer films (including collected from landfills and selectively collected)
2. Commercial and post-industrial films (mainly in plastic bags and packaging films, stretch film)
3. Agricultural film (including greenhouse, mulch, greenhouse film and banana film, etc.)
Besides plastic film, the washing line can also recycle plastic jumbo bags, plastic bags, woven bags, non-woven, bottles, scraps, raffia, foil and other plastic.
Mainly in Plastic PE, PP, LLDPE, HDPE, LDPE.
Mainly in Plastic PE, PP, LLDPE, HDPE, LDPE.
PRODUCT SPECIFICATIONS
Model | Product capacity | Motor power | Equipment footprint | |||
PEW-300 | 300 kg/h | 100 kw | 120 m2 | |||
PEW-500 | 500 kg/h | 150 kw | 200 m2 | |||
PEW-1000 | 1000 kg/h | 190 kw | 310 m2 | |||
PEW-1500 | 1500 kg/h | 250 kw | 500 m2 | |||
PEW-2000 | 2000 kg/h | 290 kw | 600 m2 | |||
▲ CE certification available. ▲ Larger, more powerful models available based on your request. | ||||||
PRODUCT CONFIGURATION
Main equipments of Plastic washing recycling line
The entire plastic PE PP washing line is controlled via a central electric control panel and cabinet.
The entire plastic PE PP washing line is controlled via a central electric control panel and cabinet.
This PP,PE film washing and recycling line is mainly consist of the following machines:Belt conveyor ,metal detector
,crusher,screw feeder ,high speed friction washer,floating washer,dewatering machine and drier.
Plastic Shredder Machine :
The shredder is usallyequipped for large capacity washing line, and the shredder can shred whole film bales directly.
The shredder is usallyequipped for large capacity washing line, and the shredder can shred whole film bales directly.
Wet Plastic Granulator:
The plastic granulator cuts the plastic into smaller pieces. Crush with water which can clean the dirty waste plastic before moving onto the next washing machine.
The plastic granulator cuts the plastic into smaller pieces. Crush with water which can clean the dirty waste plastic before moving onto the next washing machine.
Friction Washer:
The friction washer is high rotating speed cleaning equipment. The plastic runs against each other at high speed geeting rid of hard to remove contamination.
The friction washer is high rotating speed cleaning equipment. The plastic runs against each other at high speed geeting rid of hard to remove contamination.

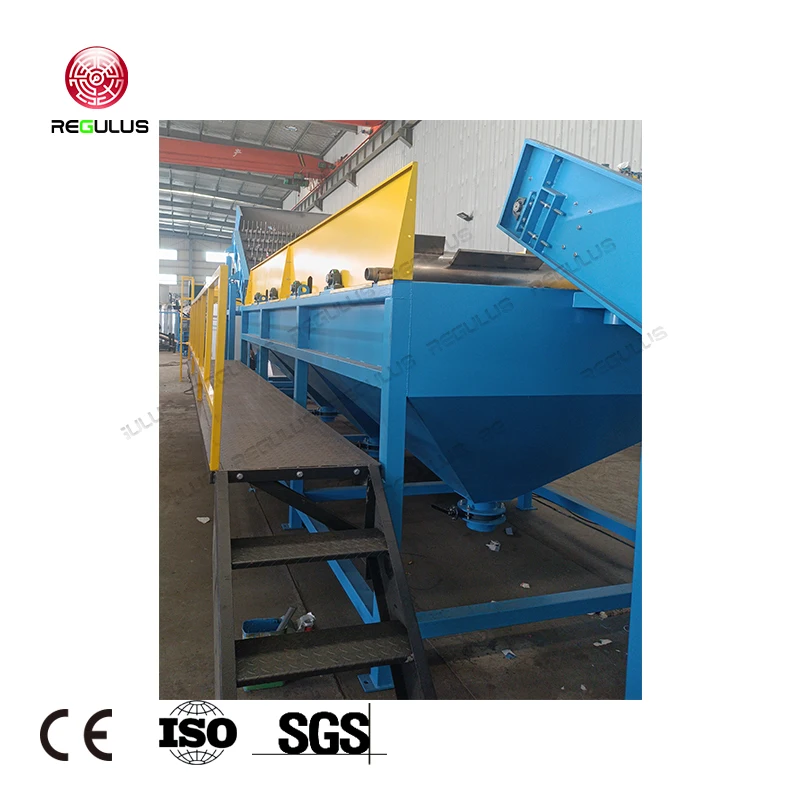

Sink Float Separation Tank:
In the washing tank, the plastic PP and PE will float, and heavier contamination such as dirt , sand , glass ,metals , other plastics will sink .
In the washing tank, the plastic PP and PE will float, and heavier contamination such as dirt , sand , glass ,metals , other plastics will sink .
Centrifugal Dewatering Machine:
The machine uses centrifugal force to remove a large portion of
water within the plastic before moving forward onto the therma dryers.
The machine uses centrifugal force to remove a large portion of
water within the plastic before moving forward onto the therma dryers.

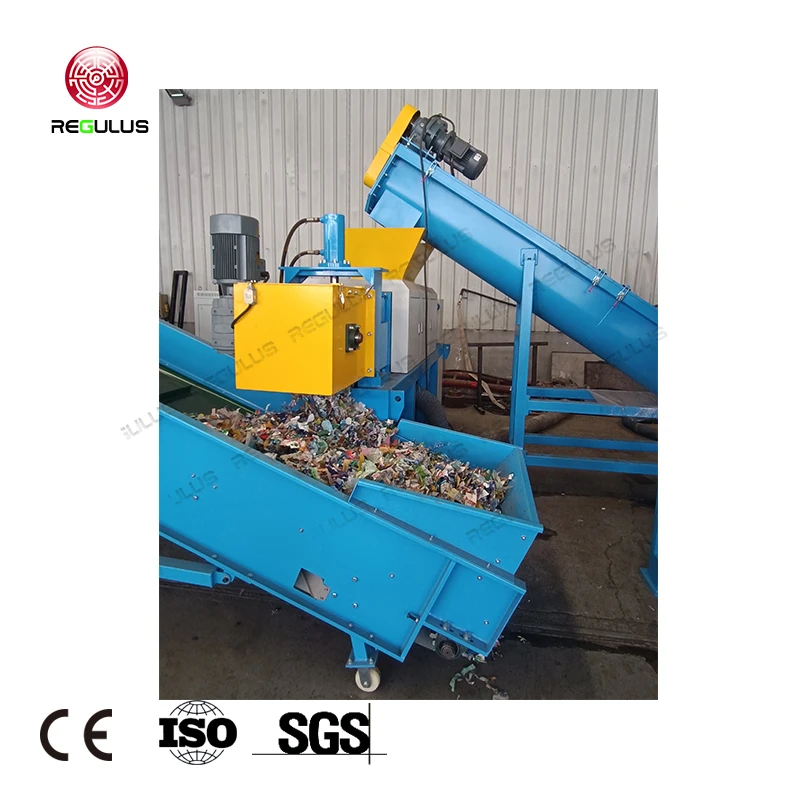

Screw Press Squeezing dryer:
Another kind of dewatering machine. the screw-press dewatering machine is a more advance version of the standard
dewatering machine. The machine screw press squeezes the water
out via high pressure.
Another kind of dewatering machine. the screw-press dewatering machine is a more advance version of the standard
dewatering machine. The machine screw press squeezes the water
out via high pressure.
Successful Project
Project in Thailand
Project in Malaysia
Project in Russia
SIMILAR PRODUCTS
https://www.recyclingplas.com/plastic-washing-recycling-machine/
https://www.recyclingplas.com/plastic-squeezing-dryer/
https://www.recyclingplas.com/plastic-shredder-and-crusher-machine/
Company Profile
REGULUS MACHINERY GROUP
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. with our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
HOW TO ENSURE THE QUALITY
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
COOPERATION BRAND
Packing and Delivery
SALES AND SERVICE NETWORK
Certifications
FAQ
Q1. Which kind of waste plastic can your machine recycle?
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
Q2：How can we know what kind recycling machine is suitable for our waste plastic?
A1：You could contact us and send us your waste plastic pictures, and tell us your requirement of product capacity. Wwe will recommend you suitable waste plastic recycling equipment.
Q3: How can we guarantee quality?
A3: All of our workers has more than 10 years experience in producing the plastic machine, and we always final Inspection before delivery.
Q4:. What kind of plastic machine can we buy from your company?
A4: Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, PET Bottle Recycling Line, Plastic pipe and plastic profile Extrusion Line, Plastic agglomerator, Plastic Squeezing dryer Machine, Plastic Shredder, crusher, plastic mixer, plastic pulverizer.
Q5: What services can your company provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
Q2：How can we know what kind recycling machine is suitable for our waste plastic?
A1：You could contact us and send us your waste plastic pictures, and tell us your requirement of product capacity. Wwe will recommend you suitable waste plastic recycling equipment.
Q3: How can we guarantee quality?
A3: All of our workers has more than 10 years experience in producing the plastic machine, and we always final Inspection before delivery.
Q4:. What kind of plastic machine can we buy from your company?
A4: Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, PET Bottle Recycling Line, Plastic pipe and plastic profile Extrusion Line, Plastic agglomerator, Plastic Squeezing dryer Machine, Plastic Shredder, crusher, plastic mixer, plastic pulverizer.
Q5: What services can your company provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C
