QYB 240 220V Durable and Corrosion resistant Industrial Red jacket Submersible Fuel Pump Transfer Oil Pump Factory Wholesale
- Category: >>>
- Supplier: Wenzhou Jiahao Petroleum Machinery Co Ltd
Share on (1601275876540):
Product Overview
Description

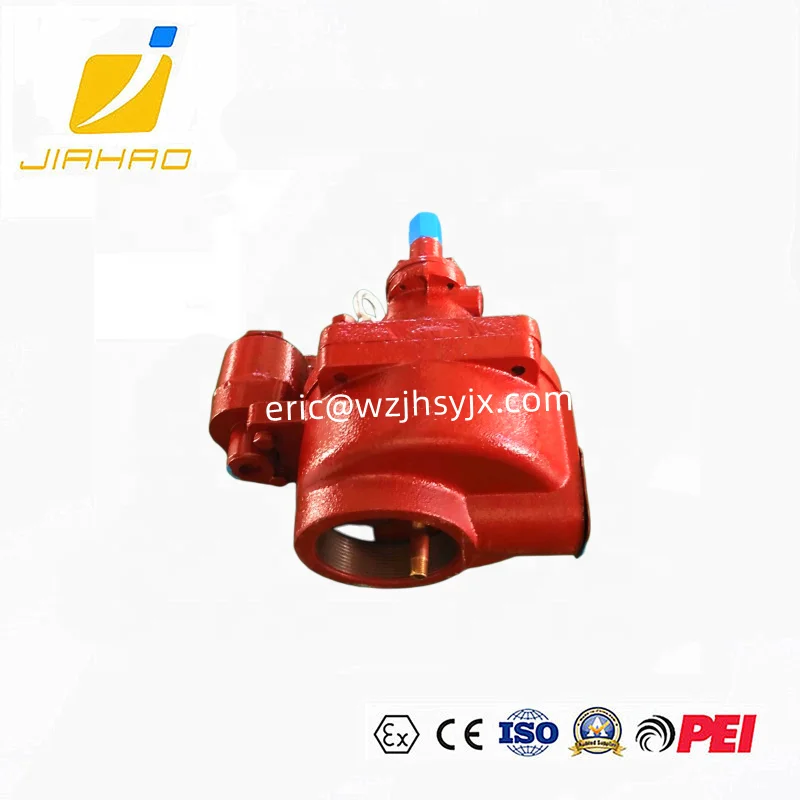

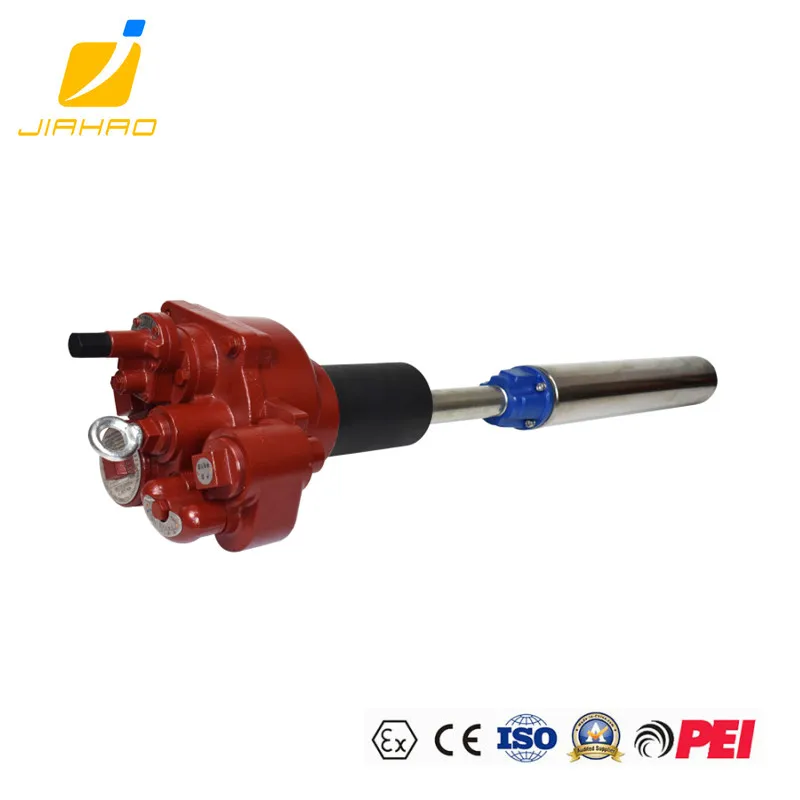

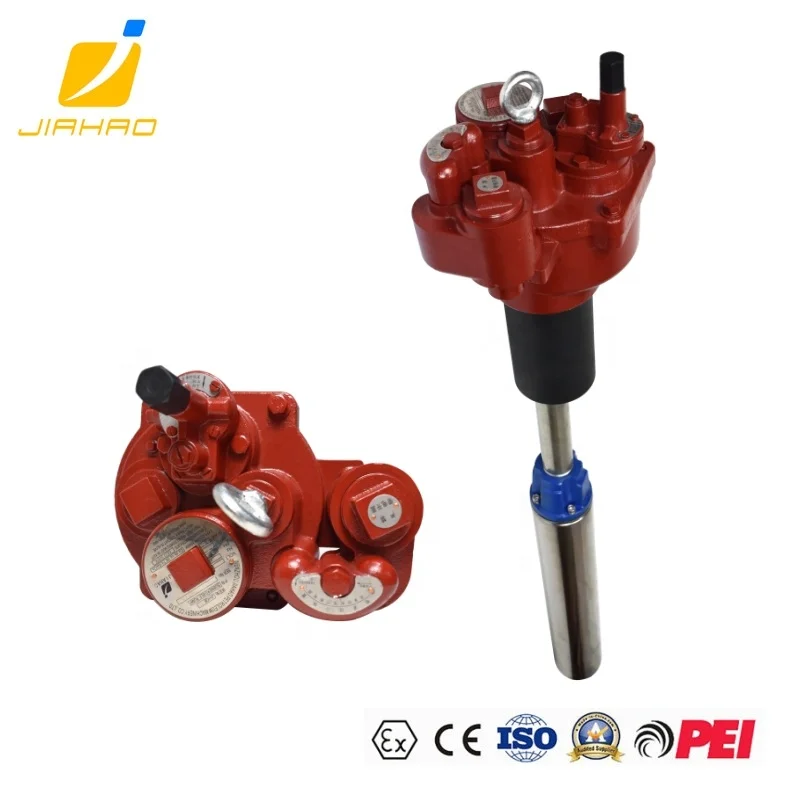

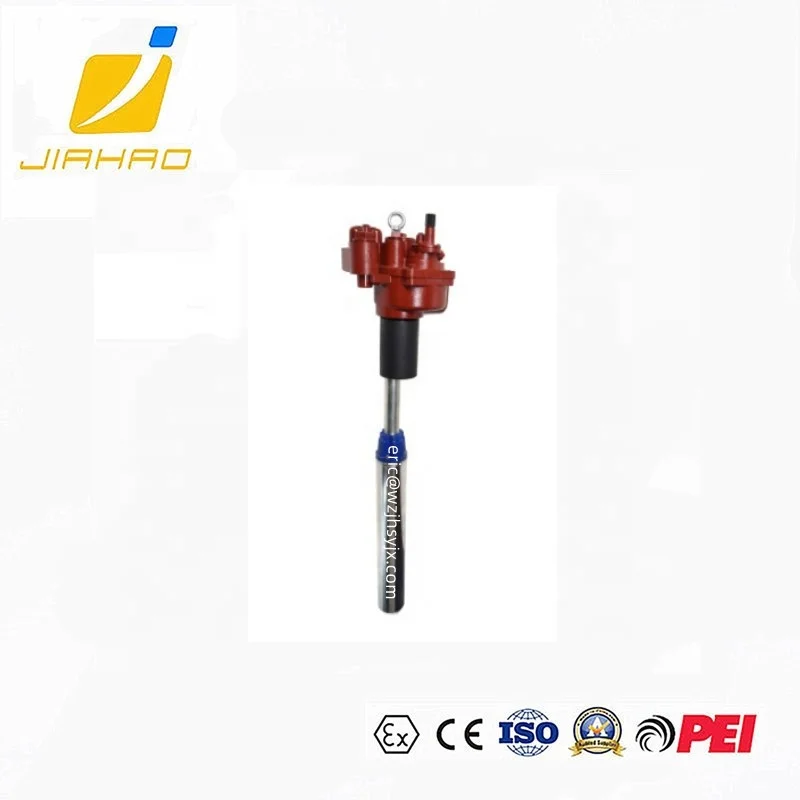

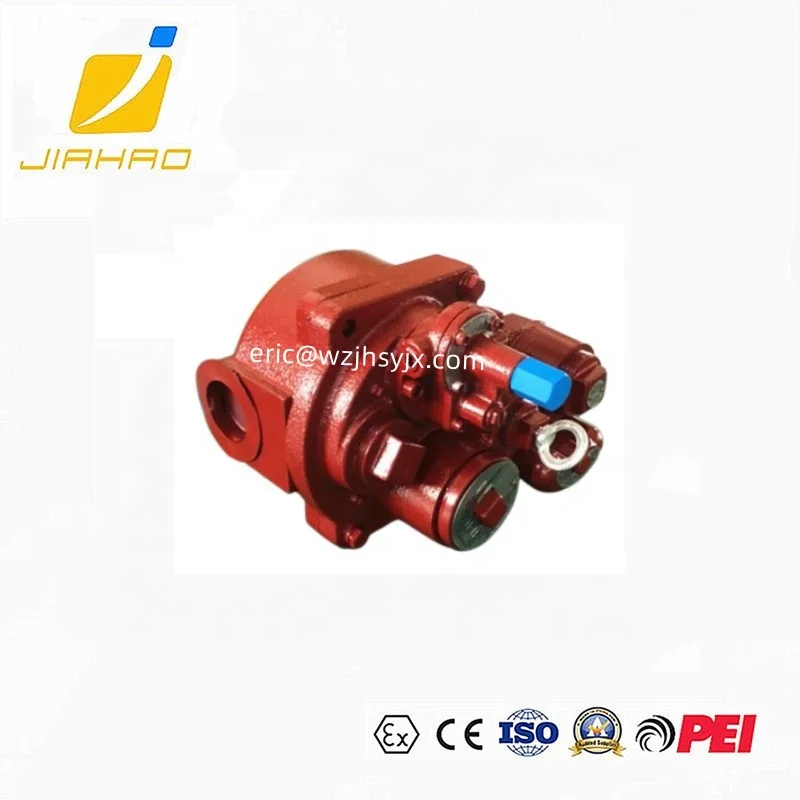

JH-QYB Submerible Turbine Pump
The JH Submersible Turbine Pump is responsible for driving fuel from the storage tank, through the pipinginfrastructure, and into the vehicle through the use of pressure energy. It is the most widely installed submersible fuel pump in the world. And that’s because Jiahao continues to deliver the highest efficiency and fuel flow, together with the lowest power consumption, in the industry.
The STP solution optimizes fuel flow and dispensing. The Jiahao’s motor performance delivers higher flow rates than comparable submersible fuel motors. The STP also features Jiahao’s advanced packer manifold design, making it the industry’s easiest and safest STP to install and service. Available in 3/4 HP to 2 HP configurations in variable Quick Set (Adjustable) lengths.
Name | JH-QYB240 Submersible turbine pump |
Rating Pressure | 0.1MPa |
Rote Speed | 2820PM |
Voltage | 220V/50Hz、380V/50Hz |
Power | 1.5HP(1.1kW) |
Ex-proof Class | Ex db sa llB T4 Gb/Ga (1Px6.) |
Inlet | NPT1 1/2 |
Oulet | NPT2 |
Max Flow Rate | 240L/min |
Fixation Thread | BSPF/NPT4" |
Package | 1PCS/2CTN |
