Six components load cell multi axis force torque sensor transducer for solar systems roof structures orthopedics biomechanical

Product Overview

Description

Model	YGX125
Type	6 axis force  torque sensor
MOQ	1pc
Packing	Carton
Lead time	5-30 days
OEM ODM	Welcome
Quality guarantee	12months
Place of Origin	Shenzhen,China
Payment	L/C, T/T,  Alipay , Western Union, Credit card etc.
Transportation	By DHL,UPS,Fedex,EMS,Air transportation,By Sea etc.



3KN 10KN 20KN 100Nm 300Nm 500Nm Six components load cell multi-axis force torque sensor transducer for solar systems roof structures orthopedics biomechanical



Features & Applications:

1) Made of high-strength and high-quality 17-4PH stainless steel, with high yield strength and overload capacity;

2) The international high level strain gauge chip is adopted, which can achieve high resolution, high response frequency and high test precision points;

3) 100% independent structural design, carefully tested before delivery, and extremely high coupling accuracy;

4) Multiple communication interface protocols can be selected, and debugging software or testing software can be provided;

5) Bending resistant high flexible cable;

6) Applicable to machine tool cutting, drilling and milling cutting force testing, rehabilitation medical equipment, aircraft lift testing, robot force control grinding, assembly, drag teaching and various scientific research;



Capacity: Fx/Fy/Fz:3KN/10KN/20KN  Mx/My/Mz:100/300/500Nm(Custom-made is available)



Specifications:

Model		YGX125-3KN	YGX125-10KN	YGX125-20KN
Capacity	Fx/Fy/Fz	3KN/3KN/3KN	10KN/10KN/10KN	20KN/20KN/20KN
	Mx/My/Mz	100Nm	300Nm	500Nm
Mechanical characteristic
Weight		About 3kg
Material		Stainless steel 17-4PH
Size		Φ125mm×67.5mm
Protection class		IP65
Overload		300%FS
Rigidity (Calculation)	Fx	1.6x107 N/m
	Fy	1.6x107 N/m
	Fz	1.3x107 N/m
	Mx	6059.99Nm/rad
	My	6059.99Nm/rad
	Mz	10056.99Nm/rad
Electrical characteristics
Input/output impedance		350Ω
Communication interface		Mv matrix
Working voltage		5-15V DC
Cable length		5m
Accuracy class
Resolution ratio		Better than 0.1% FS
Nonlinear		Better than 0.2% FS
Accuracy		Better than 0.3% FS
Repeatability		Better than 0.2% FS
Coupling accuracy		Better than 1.5% FS
Hysteresis		Better than 0.3% FS
Temperature characteristics
Temperature zero drift		0.2%FS/10℃
Zero drift		0.1%FS/30min
Storage temperature		-25°C ~70°C
Operating environment		0°C~40°C,20~80% RH
Extension interface		0±10v, /Ethercat,/Modbus-TCP,/Ethernet,/Canopen,/Modbus-RTU

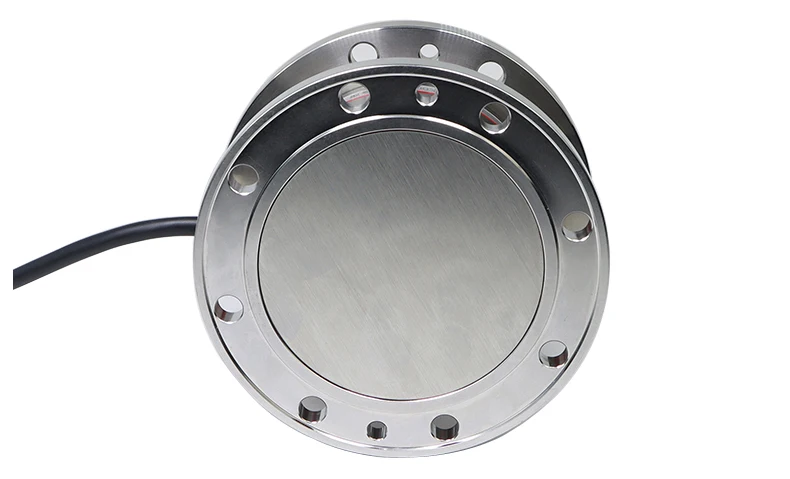

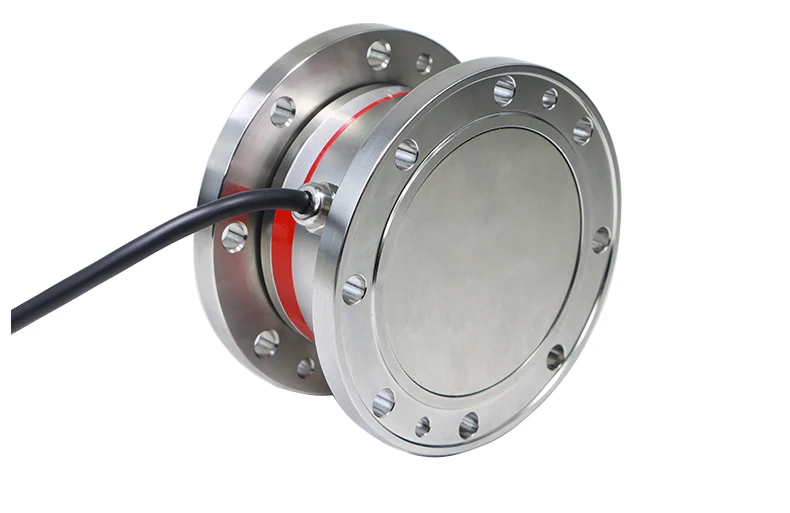

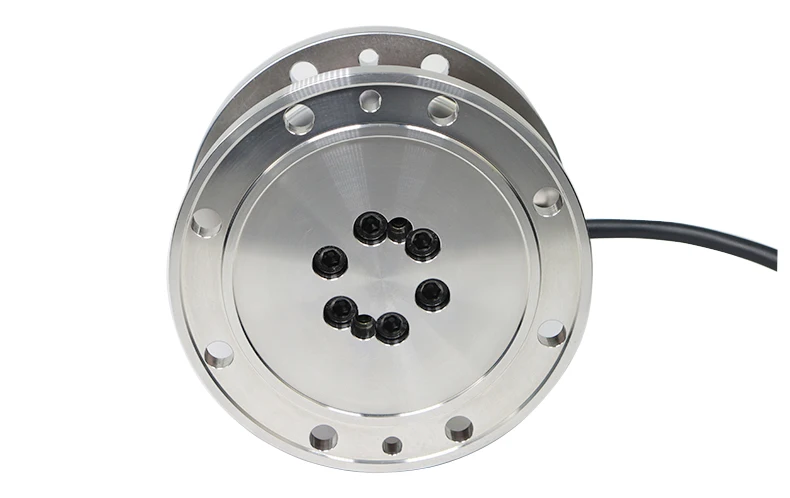

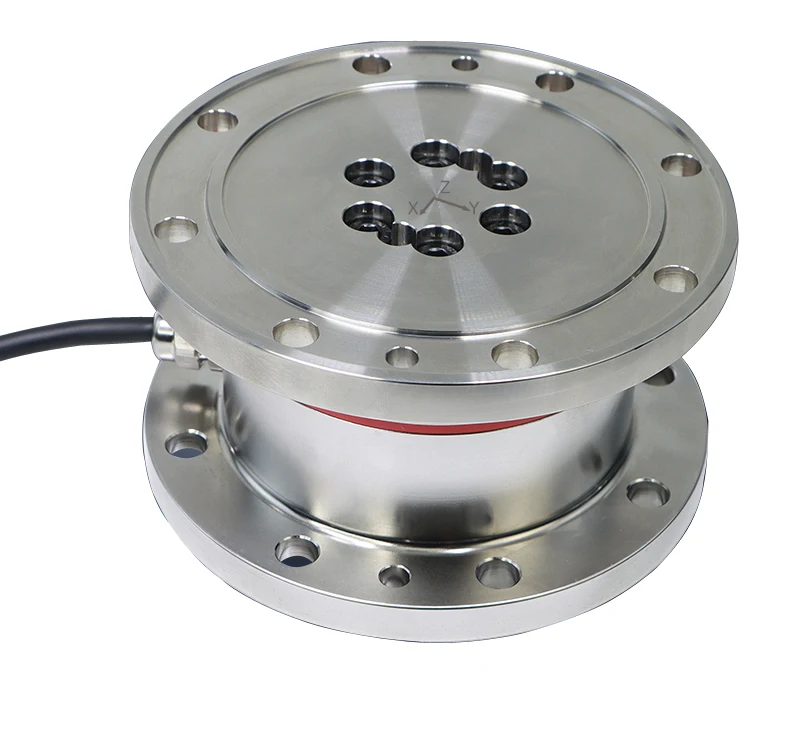

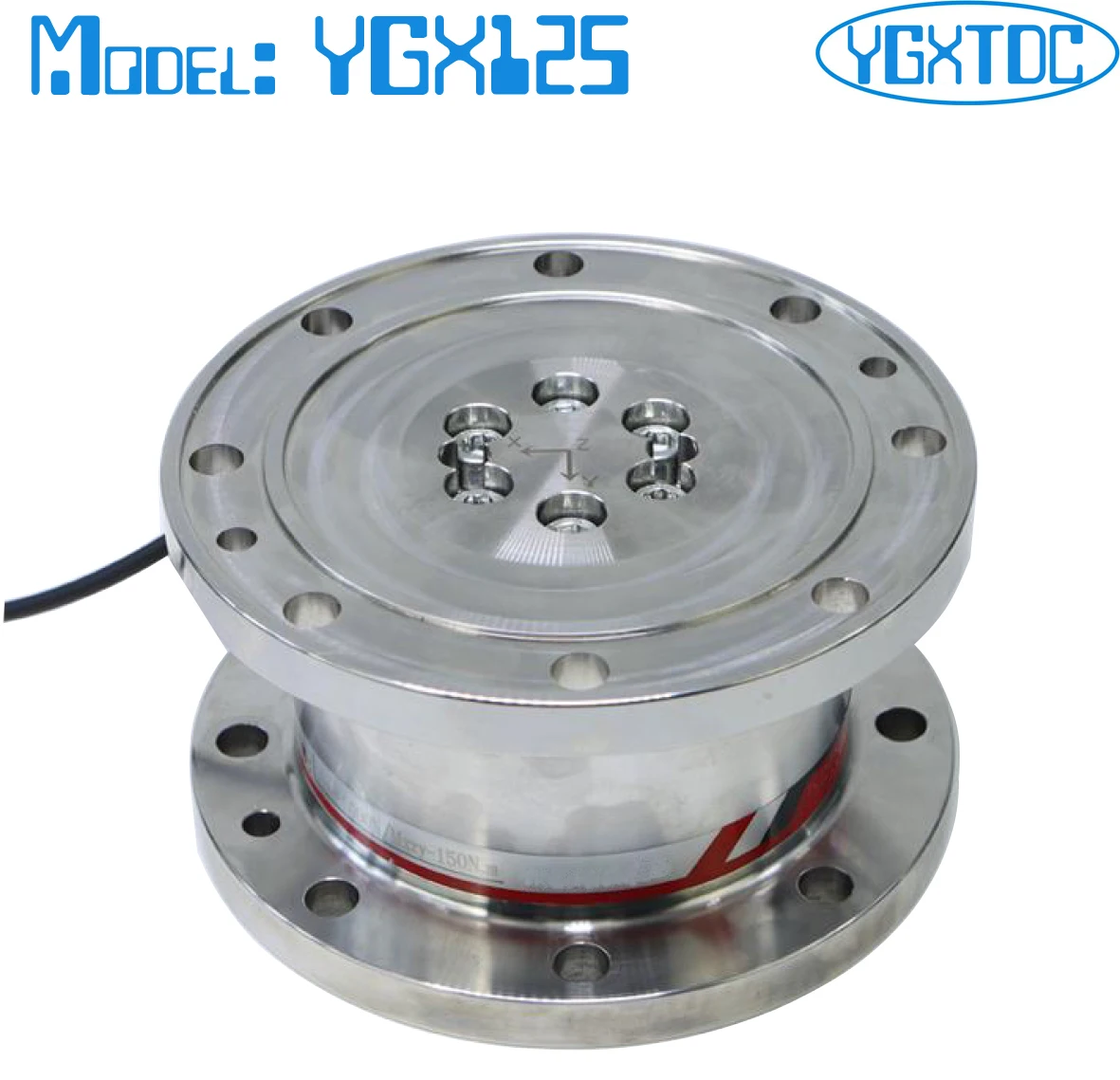

YGX125  Product picture





Dimensions(mm):





Custom made is available.

We can produce the products according your requirements.

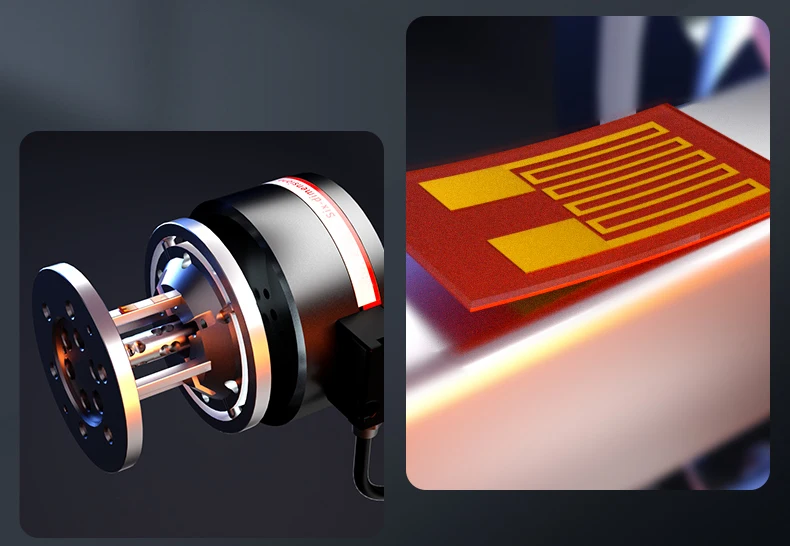

High quality strain gauge chip



Possible overload





Overload capacity introduction, which is a concern of multi-dimensional force sensor customers, and also an important reason for sensor failure (Sensor value is high, please contact our engineers for model selection)

1: The selection of measuring range shall not only consider the applied external force, but also fully consider the dead weight of fixture and workpiece and the bending moment generated by them.

2: The bending moment caused by the external force due to the force arm (the distance from the center of the sensor to the force point) shall be considered separately.

3: The overall dimension of the sensor is similar to that of the workpiece fixture.

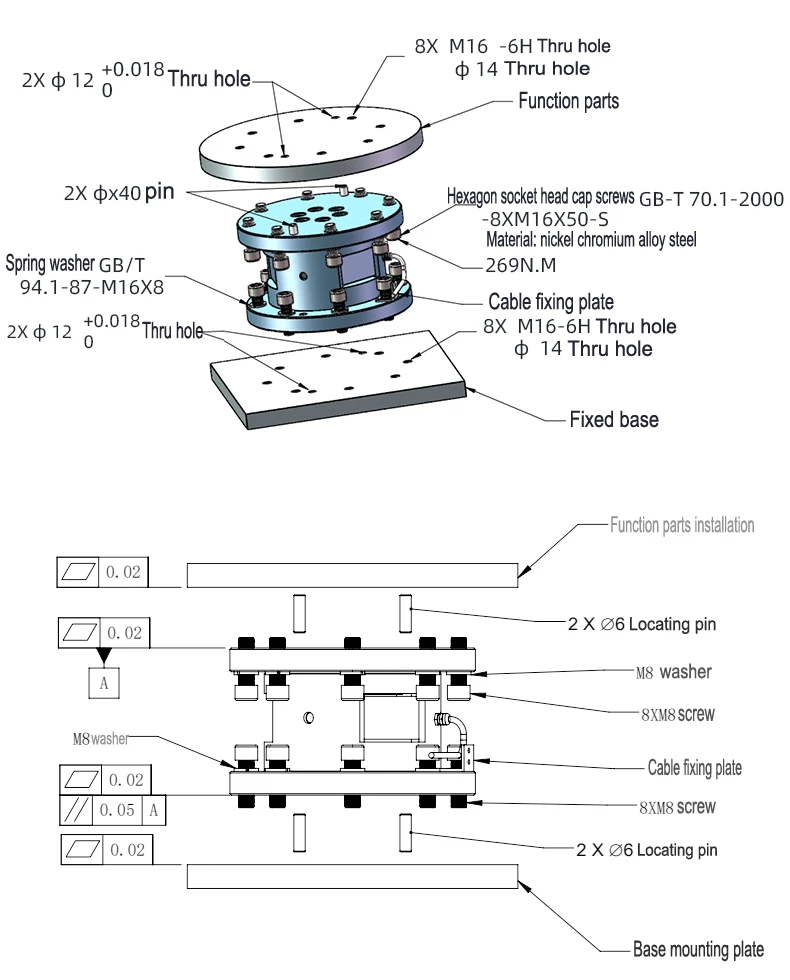

Installation diagram



The multi-component sensor has two mounting surfaces, the bottom surface is generally installed on a solid base, and the other end is installed with functional components. It is necessary to ensure that the base and connecting flange have sufficient strength and small deformation. Excessive deformation will affect the acting point and direction, as well as the response time of the system.









Application field

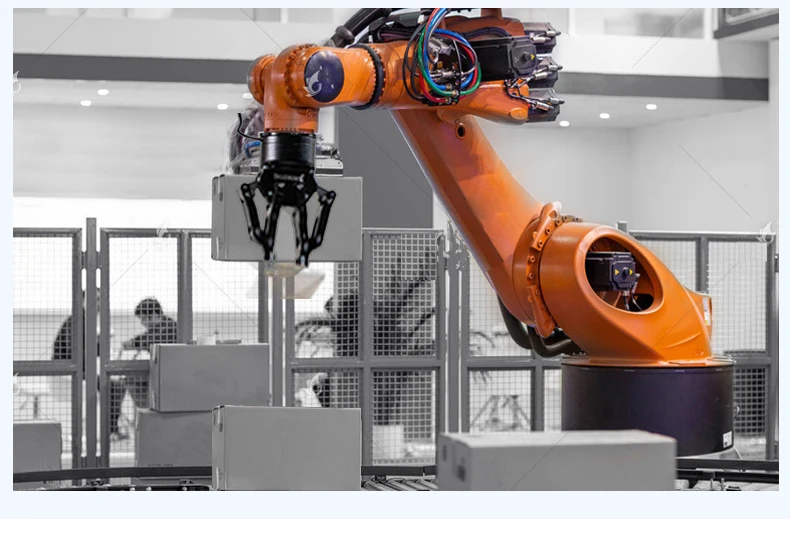

Typical application
