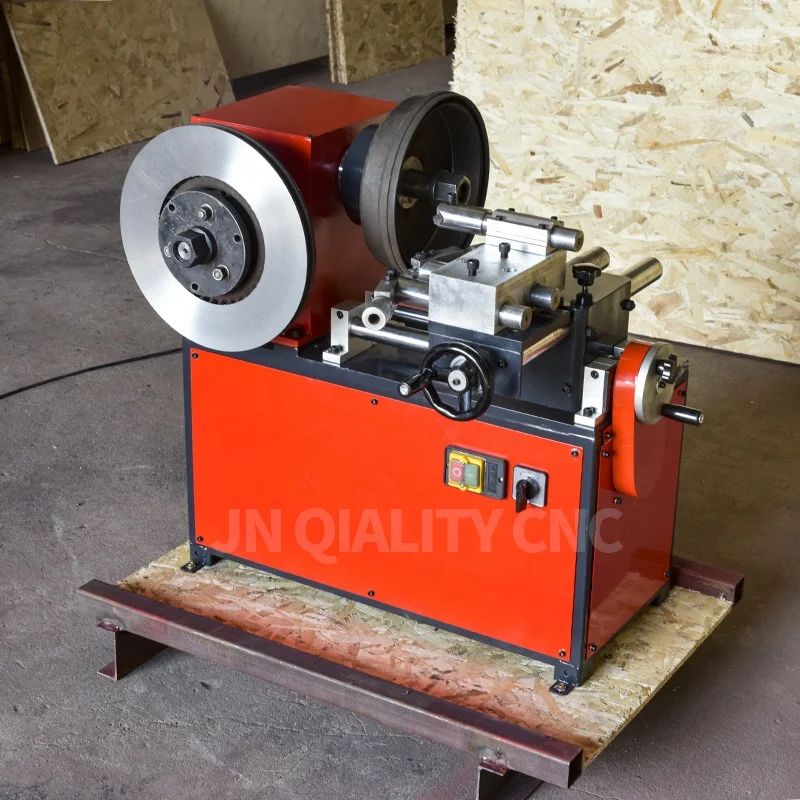

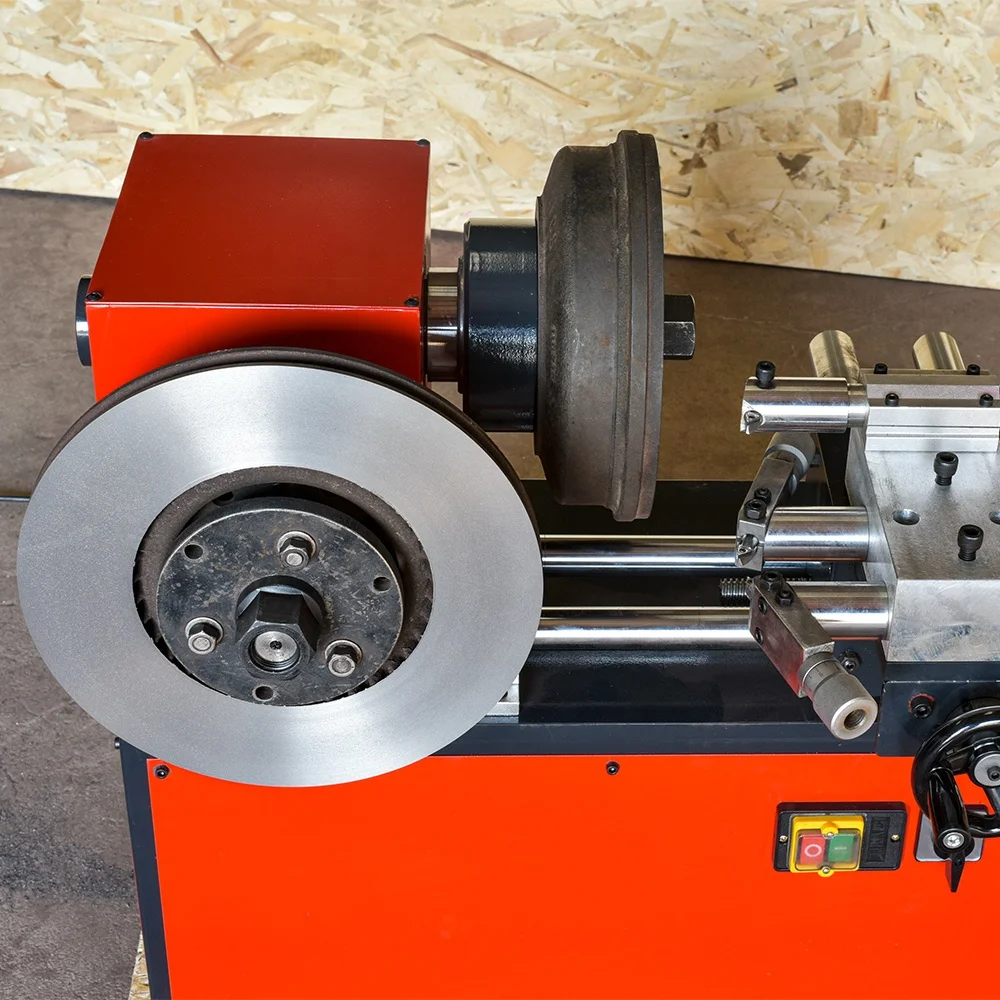

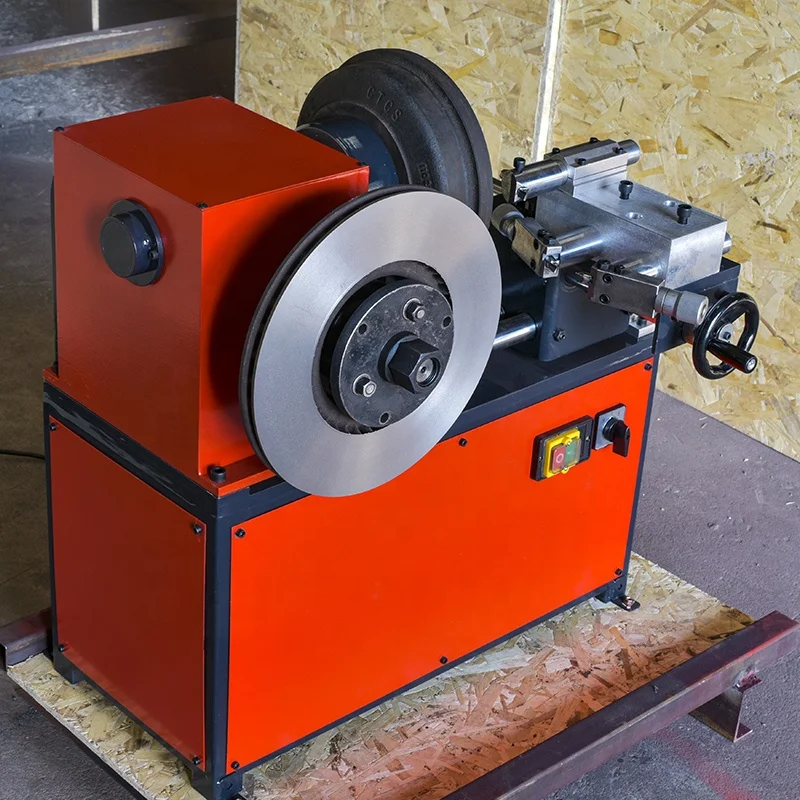

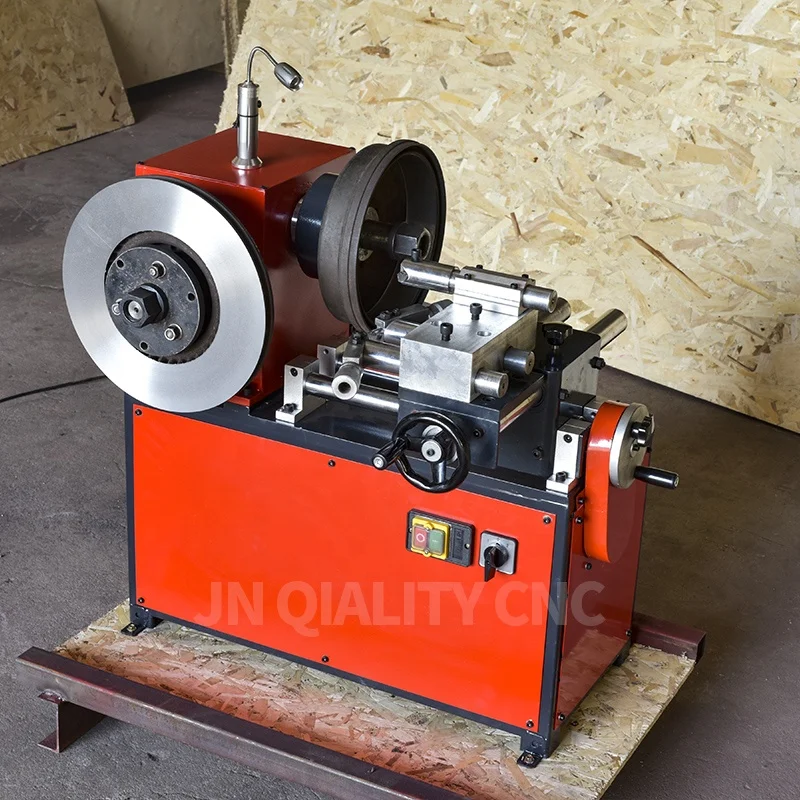

CE standard mini lathe machine for brake disc plate C9335A

General introduction of CE standard mini lathe machine for brake disc plate C9335A:

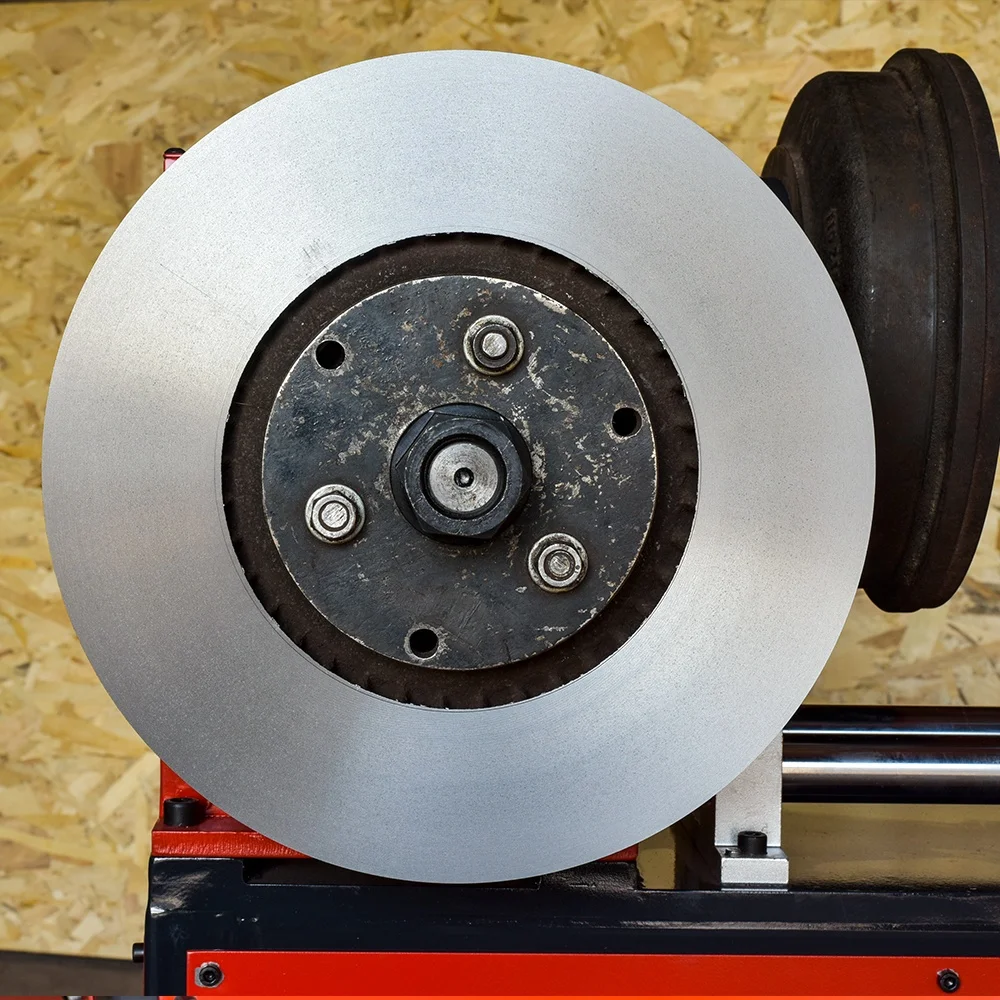

1. This brake disk and brake drum lathe machine C9335A is suitable for grinding, repairing, skimming and cutting the brake disks and brake drums for almost all cars and mini cars;
2. This brake disc and brake drum lathe machine C9335A has positive (forward) and negative (backward) automatic feeding, you choose one direction according to your cutting habit;
3.We could connect the lathe machine with the brake disc or brake drum by using the screws and fixtures directly, and it has the features of convenient installation, high processing precision and one-time molding (no second processing).

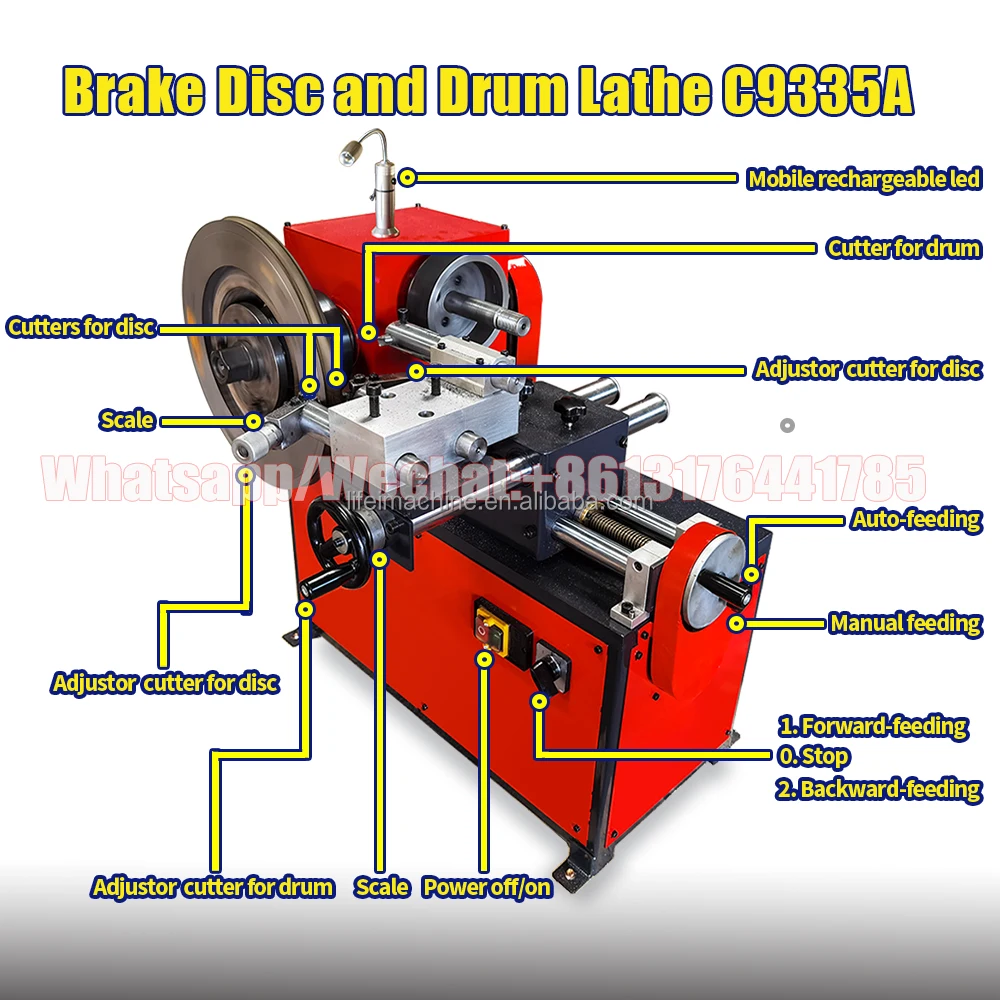

New improvements on CE standard mini lathe machine for brake disc plate C9335A:

1. Adopts double tool - feedings and self - locking device, when cutting brake disk, the 2 cutters can be adjusted to move the surface of disk respectively, easy and saving time operating, high machining efficiency and fast cutting speed;
2. Adopts professional 220v 1 ph motor 550w, more powerful and stable;
3. Adopts industrial chain transmission instead of belt transmission, more precision and stable processing, and no need to change belt timely.










1
Name
CE standard mini lathe machine for brake disc plate C9335A
2
Model
C9335A New Model
3
Range cutting diameter
Brake disk: 160mm (Min diameter) - 400mm (Max diameter);
Brake drum: 180mm (Min diameter) - 350mm (Max diameter)
4
Rotational speed
93r/min
5
Axial travel of tool (max.)
For brake disc: 130mm;
For brake drum: 100mm
6
Infinitely variable speed feed
/feeding capacity
0.075mm/r
7
Motor
550w
8
Machine / Package size (L*W*H)
775*575*770mm / 805*605*800mm
9
Net / Gross weight
160kg / 180kg
10
Electrical Voltage
220v ± 10% / single phase, 50hz/60hz
11
Producting time
7-20 days
12
Warranty
12 months (no man-made reasons)
13

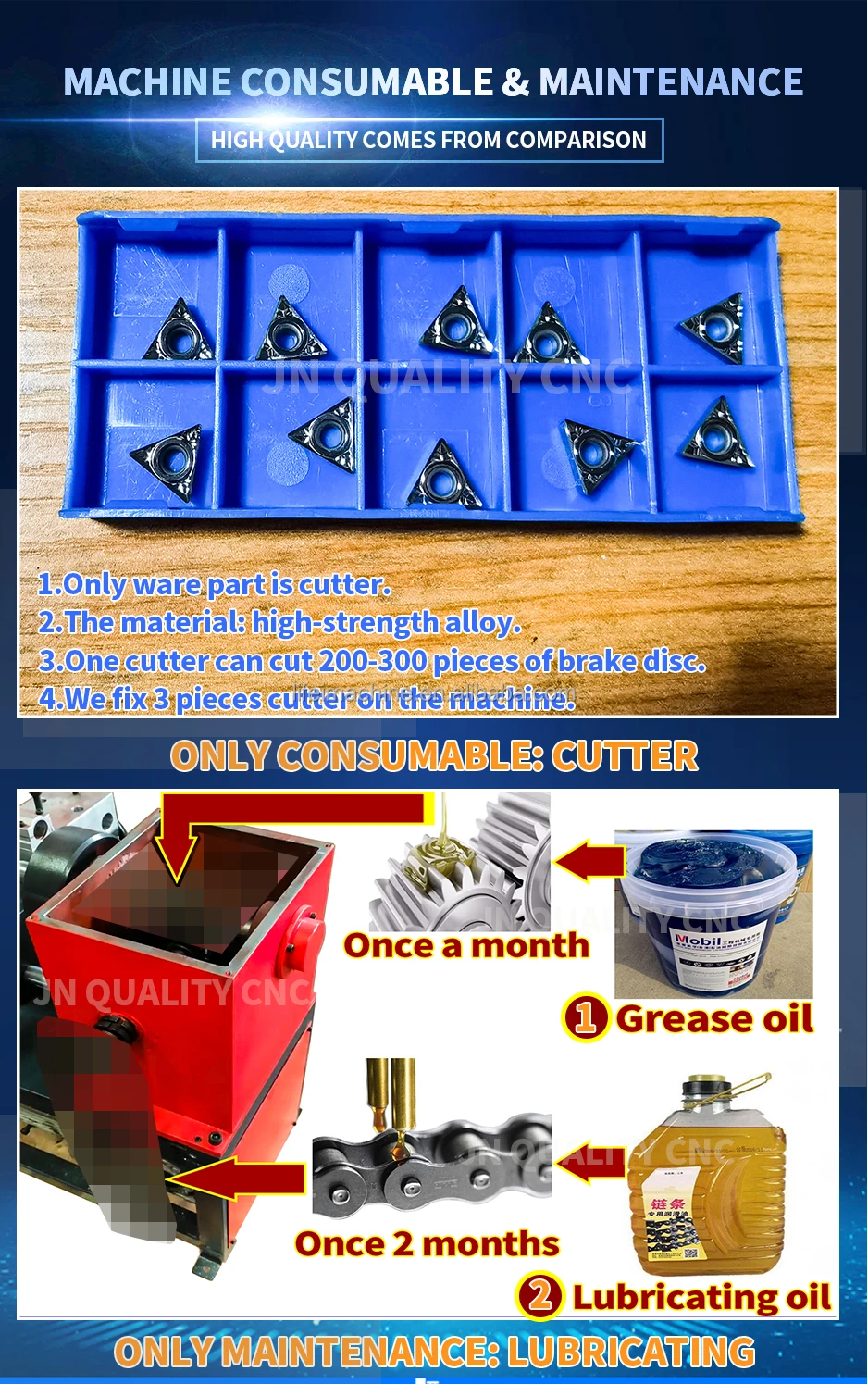

Machine consumable / wear part
Cutter (one cutter can cut 200-300 pics brake disc)
14
Machine maintenance recommended
1. Lubricating grease for main shaft gear (once every month);
2. Lubricating oil for transmission industrial chain (once every 2 months).
