Capacitor 6kV 150uF,High Voltage Capacitor 6kV 150MFD,High Energy Storage Capacitor 6kV,High Current Pulse Metal Capacitor 150uF
- Category: >>>
- Supplier: Shanghai Pluspark Electronics Co. Ltd.
Share on (1601275942989):
Product Overview
Description

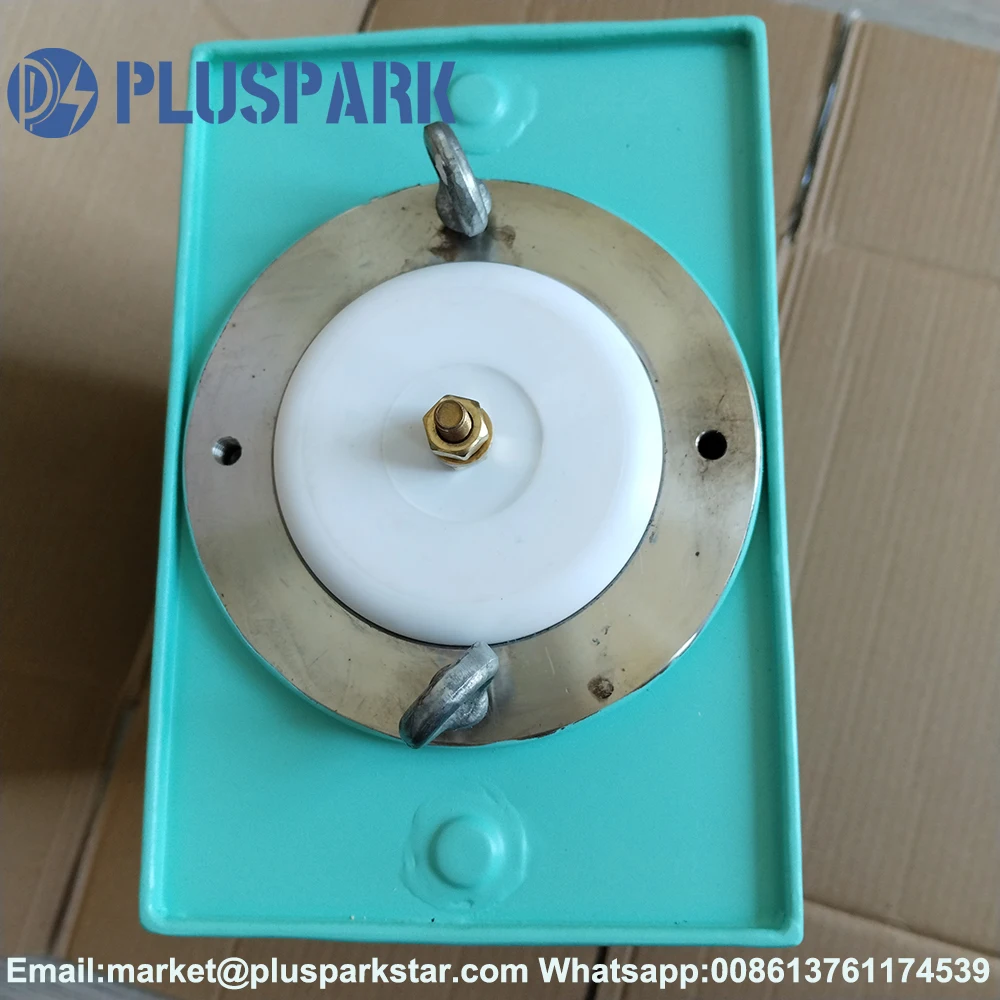

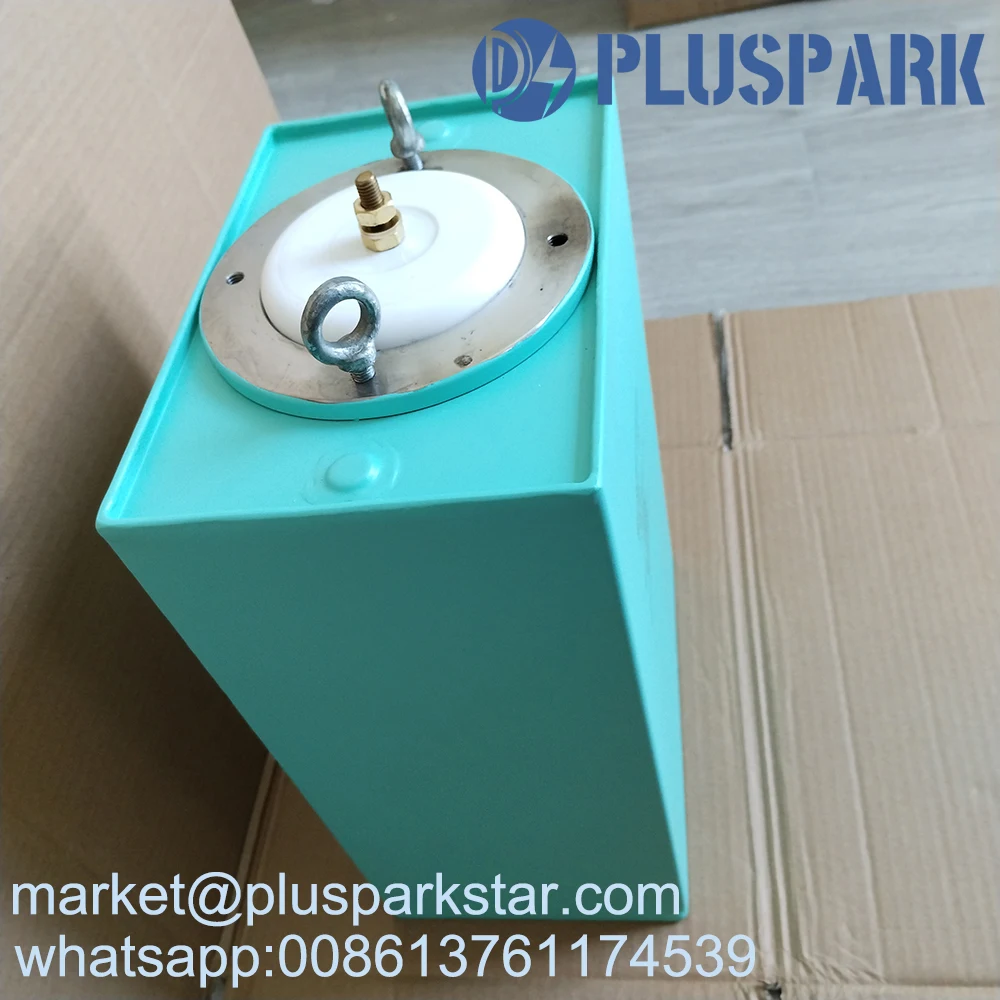

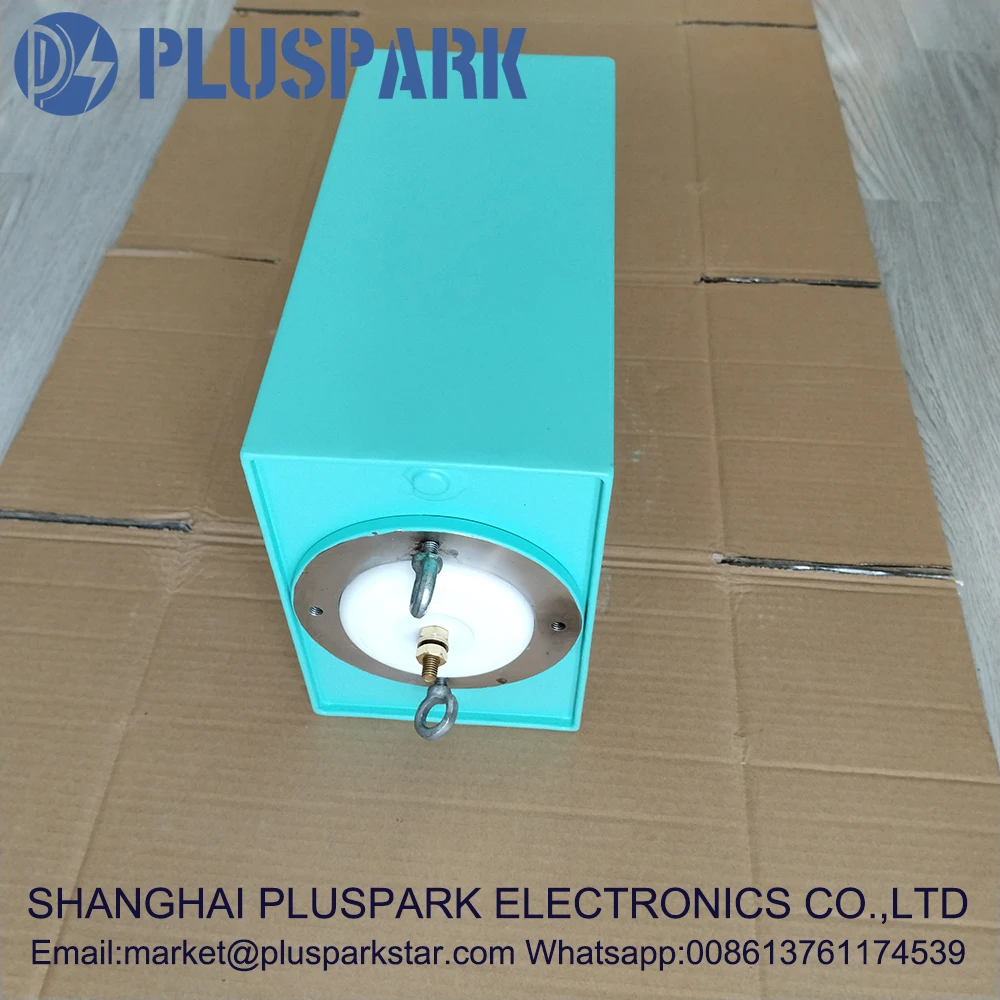

High Voltage Energy Storage Capacitor 6kV 150uF(150MFD 6000VDC)
| Specifications | ||||
| Rated Voltage | 6kV.DC | or | 6000V.DC | |
| Capacitance | 150uF | 150MFD | 150MKF | 150000nF |
| Tolerance Range | +/-10% | or | +/-5% | |
| low inductance | High Peak discharge Current | High Energy Density | ||
| Desc | High Voltage Energy Storage Pulse Capacitor 6kV 150uF 150000nF | |||
| Manufacturer | Shanghai Pluspark Electronics Co.,Ltd | |||
Heavy duty energy discharge capacitor ESC Series
| Capacitance Range | 0.01uF to 46000uF |
| Rated Voltage Range | 1kV to 200kV DC |
| Low Inductance | ~40nH |
| Pear Current | 5KA to 250KA |
| Applacations | Plasma,High Current Pulse,Marx Generator,Laser,energy experiments etc |
| Costom made available up on request | |
Rating of High Voltage impulse Capacitor 6KV 100uF~200uF
| Items | Rated Voltage | Capacitance | Part Number | |||
| kV.DC | V.DC | uF | MFD | nF | ||
| High Voltage Energy Storage Capacitor 6kV 100uF | 6kV | 6000V | 100uF | 100MFD | 100000nF | ESC1045 |
| High Voltage Energy Storage Capacitor 6kV 150uF | 6kV | 6000V | 150uF | 150MFD | 120000nF | ESC1046 |
| High Voltage Energy Storage Capacitor 6kV 180uF | 6kV | 6000V | 180uF | 180MFD | 180000nF | ESC1047 |
| High Voltage Energy Storage Capacitor 6kV 200uF | 6kV | 6000V | 200uF | 200MFD | 200000nF | ESC1048 |
Online Price is only for reference,Contact us for the real and latest price.
