Product Overview
Description

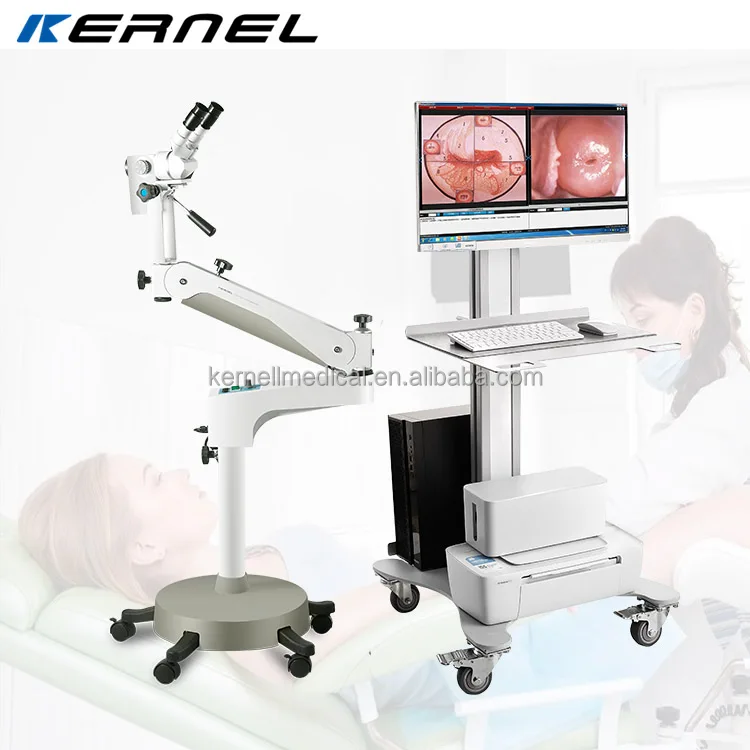

COLPOSCOPE GYNECOLOGY EXAMINATION
KN-2200BI for cervical cancer pre-screening
Sony camera, 1080P resolution, remote handle, TILT pan, adjustable height five corner trolley,
Product Features >>
*Clinical value of colposcope
Most women undergo a colposcopic examination to further investigate a cytological abnormality on their Pap smears. Other
indications for a patient to have a colposcopy include:
*Immunosuppression such as HIV infection, or an organ transplant patient
*Assessment of diethylstilbestrol (DES) exposure in utero
*As a part of a sexual assault forensic examinationdone by a Sexual Assault Nurse Examiner
*An abnormal appearance of the cervix as noted by a primary care provider

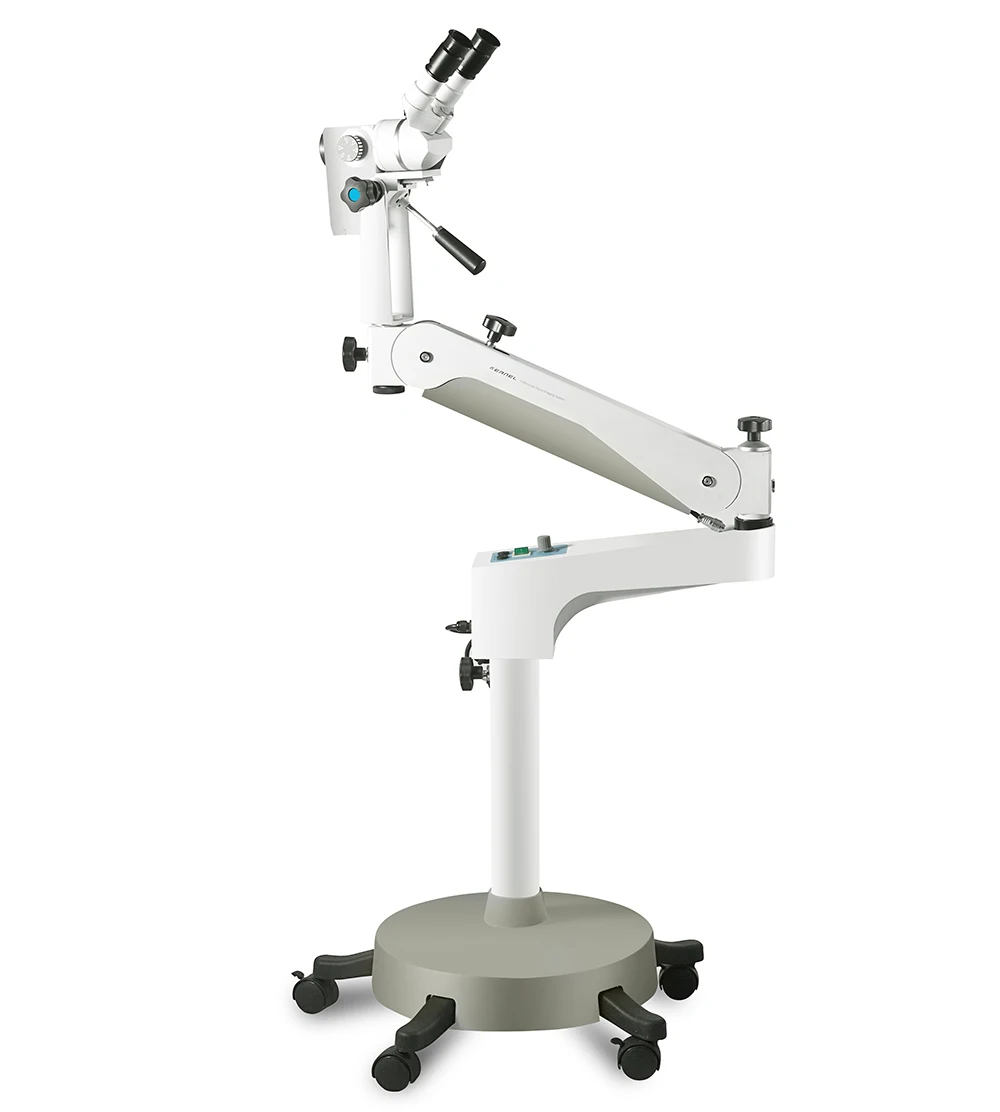

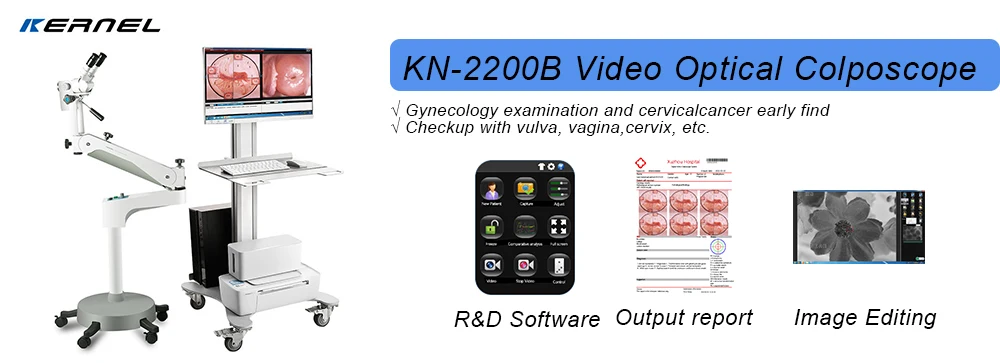

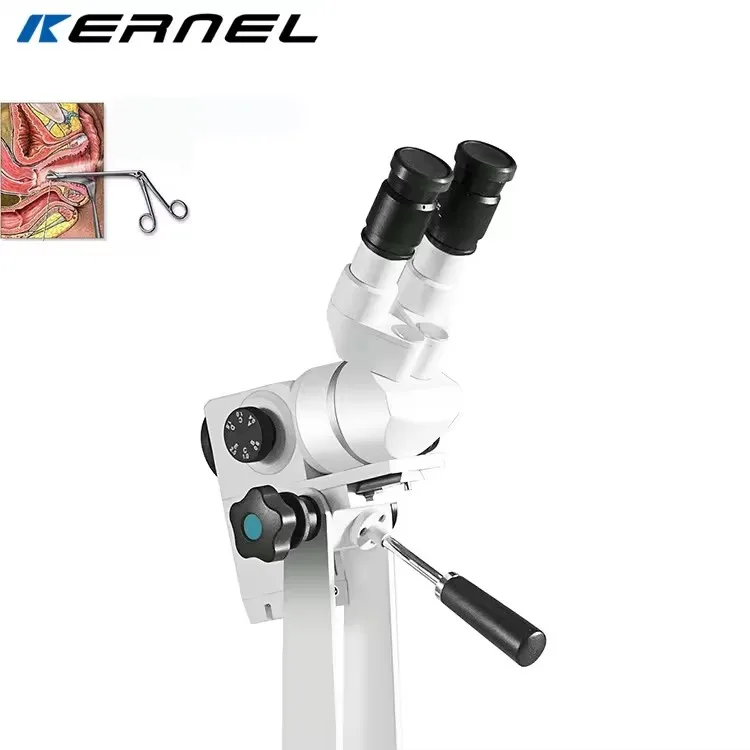

Kernel KN2200B optical Colposcopio
What makes Kernel KN-2200B SPECIAL? (Advantage & Feature)
**Smooth, 5-Step knob Magnification Changer
**Combining the advantages of microscope optical system and electronic colposcopy imaging system, it is the perfect combination of optics and electronics.
**300mm Working Distance Objective Lens (200-400mm Available)
**LED Illumination System
**Combining the advantages of microscope optical system and electronic colposcopy imaging system, it is the perfect combination of optics and electronics.
**300mm Working Distance Objective Lens (200-400mm Available)
**LED Illumination System
**Maximum height from floor to objective lens 1000mm--1350mm
**Extra long depth of field, super large field of view, super three-dimensional sense, realistic color eproduction, unique light path design, providing true 3D visual effects for pre-cancerous, pre-lesional punctiform vessels, columnar epithelium and some tiny lesions .
**Green Filter
**High eye point, wide field eyepiece, 45 degree and 0 degree eyepieces are available for different heights of the examination bed, making the clinical operation more comfortable.
**With optical magnification up to 30 times, a variety of small lesions can be clearly observed with high-quality magnification, and accurate biopsy can be performed on live lesions, which can improve the judgment of various cervical diseases and pre-cancerous screening. Accuracy, reduce missed diagnosis.

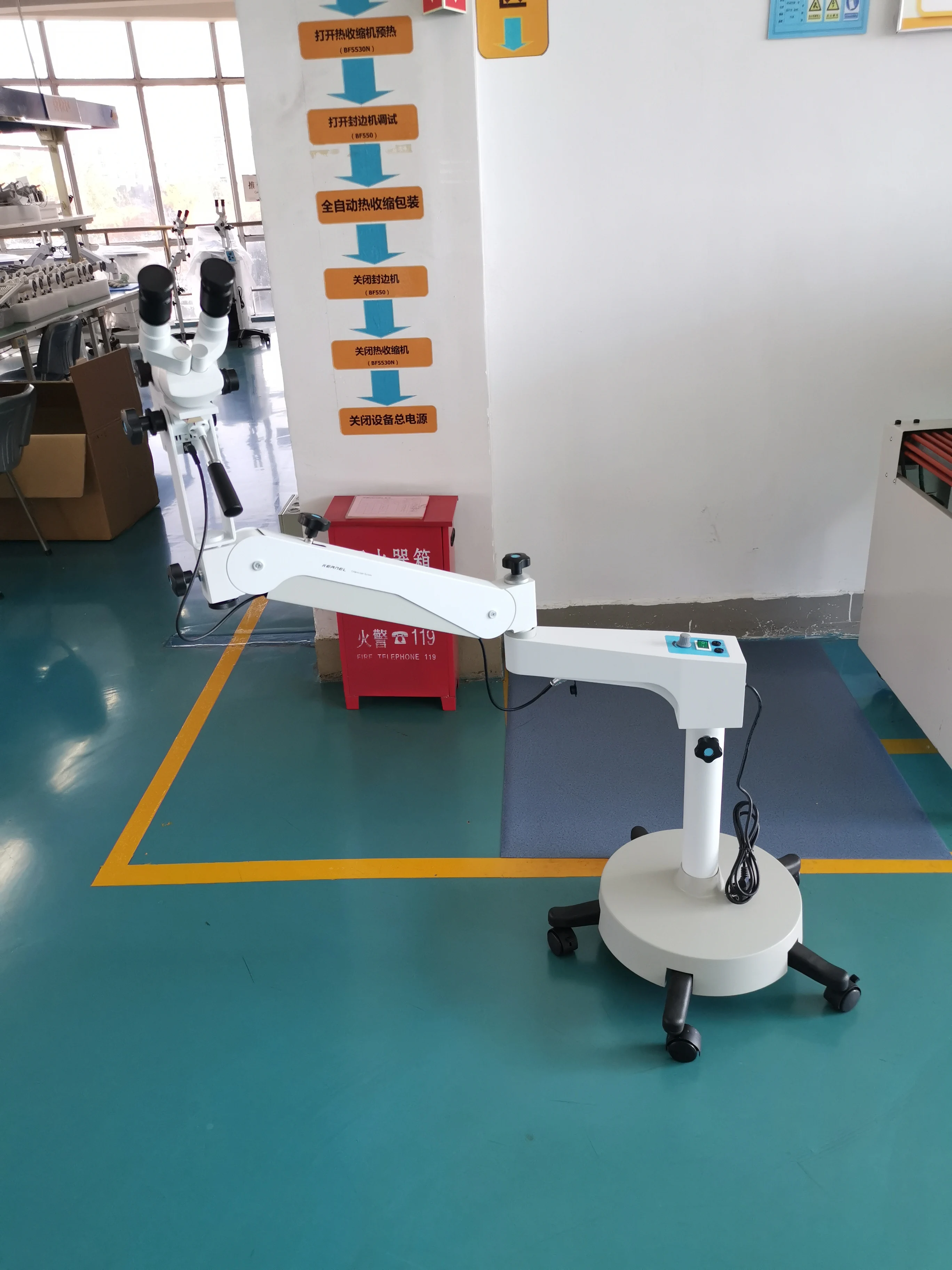

**Upright bracket for easy movement and small footprint for comfortable operation in small inspection rooms.
**Extra long depth of field, super large field of view, super three-dimensional sense, realistic color eproduction, unique light path design, providing true 3D visual effects for pre-cancerous, pre-lesional punctiform vessels, columnar epithelium and some tiny lesions .
**Green Filter
**High eye point, wide field eyepiece, 45 degree and 0 degree eyepieces are available for different heights of the examination bed, making the clinical operation more comfortable.
**With optical magnification up to 30 times, a variety of small lesions can be clearly observed with high-quality magnification, and accurate biopsy can be performed on live lesions, which can improve the judgment of various cervical diseases and pre-cancerous screening. Accuracy, reduce missed diagnosis.
**Upright bracket for easy movement and small footprint for comfortable operation in small inspection rooms.

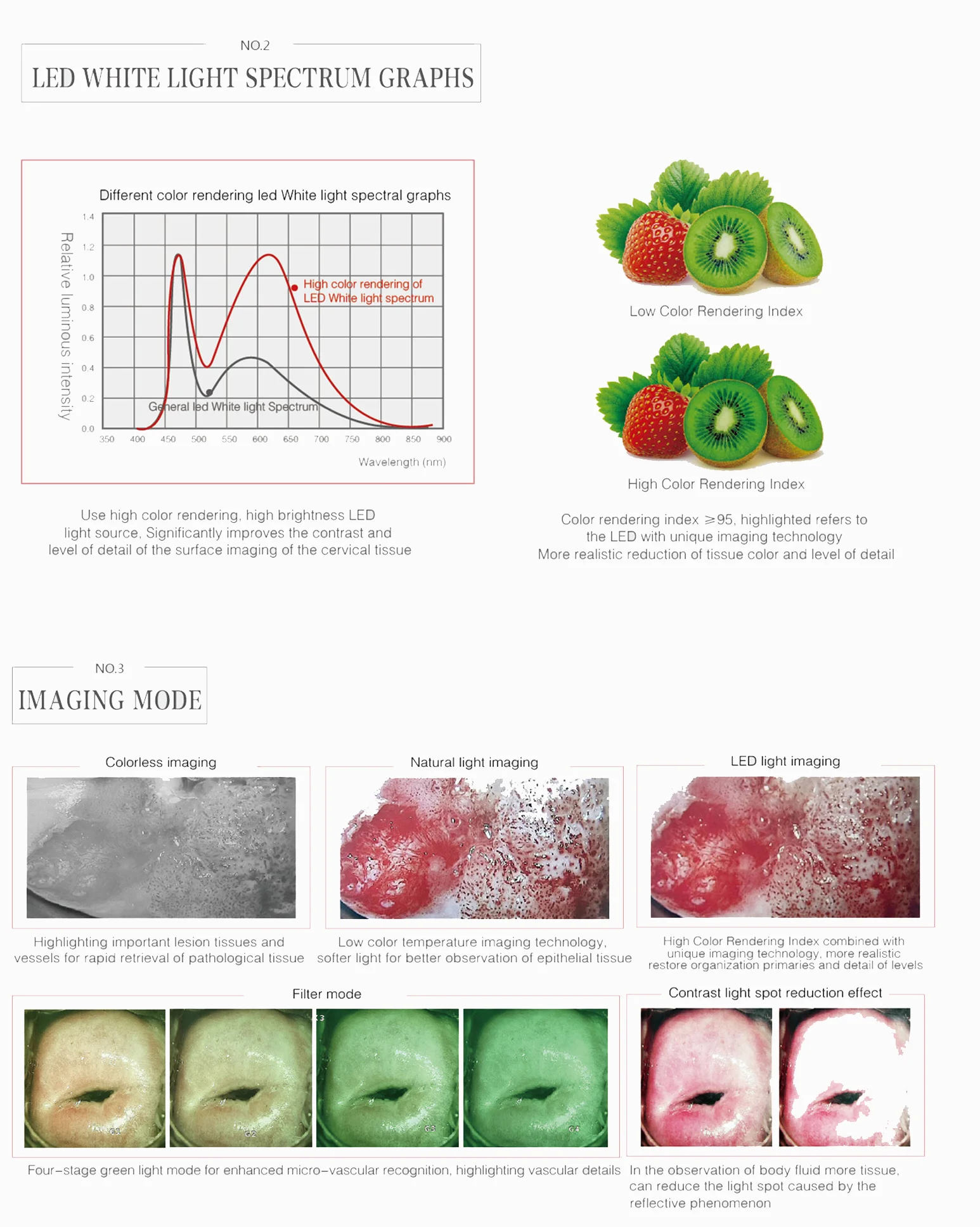

LED light and halogen light source optional
LED light is closer to the real thing
Brighter halogen light sources for more vivid colors
LED light is closer to the real thing
Brighter halogen light sources for more vivid colors

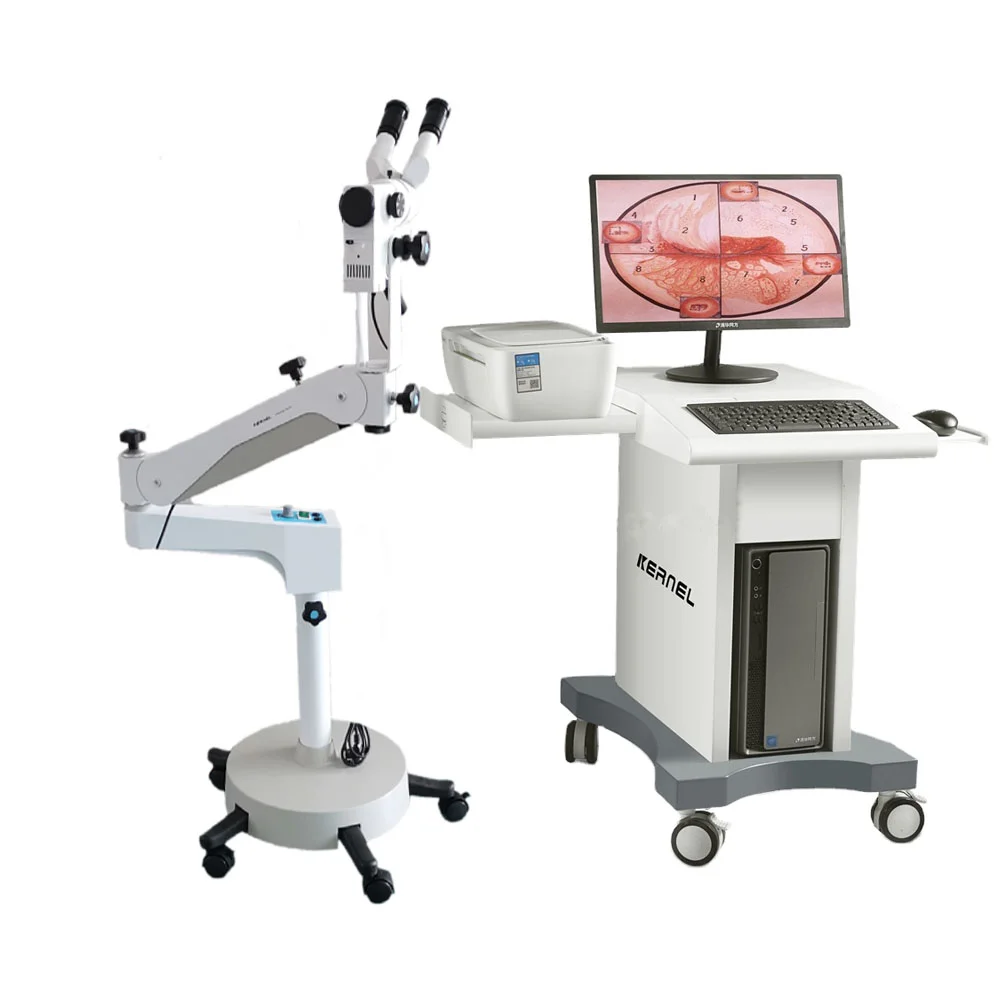

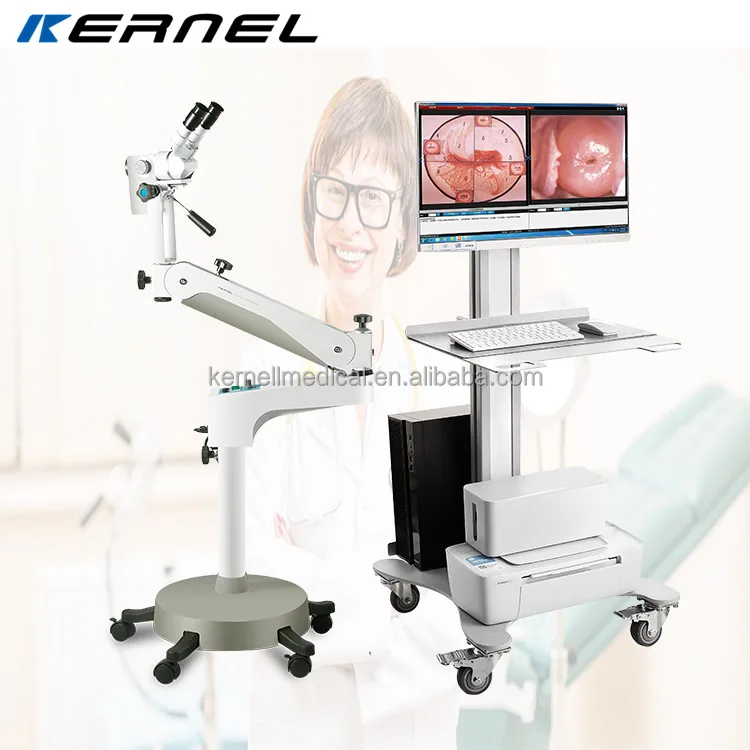

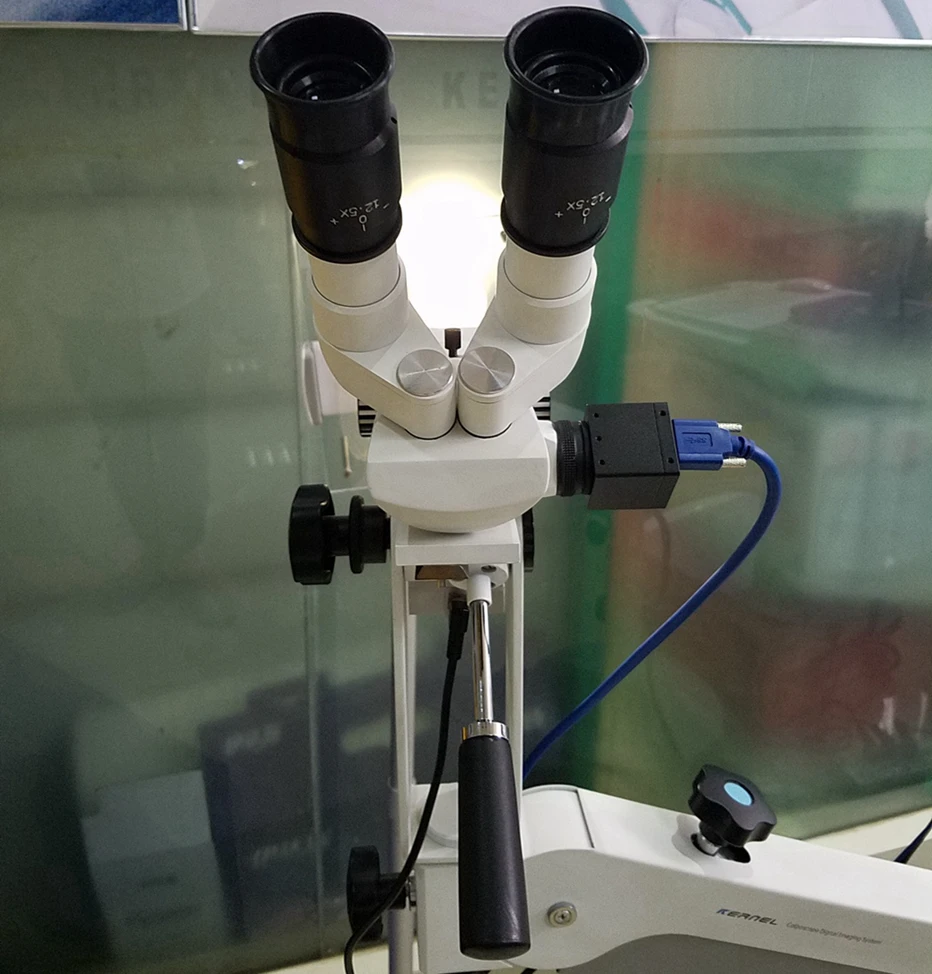

Combining the advantages of microscope optical system and electronic colposcopy imaging system
Physical filter, electronic filter, optional
Product Description
2.1 Million Pixels Colposcope High resolution Optical Video Camera For Cervical cancer pre-screening and Vagina Gynecology examination

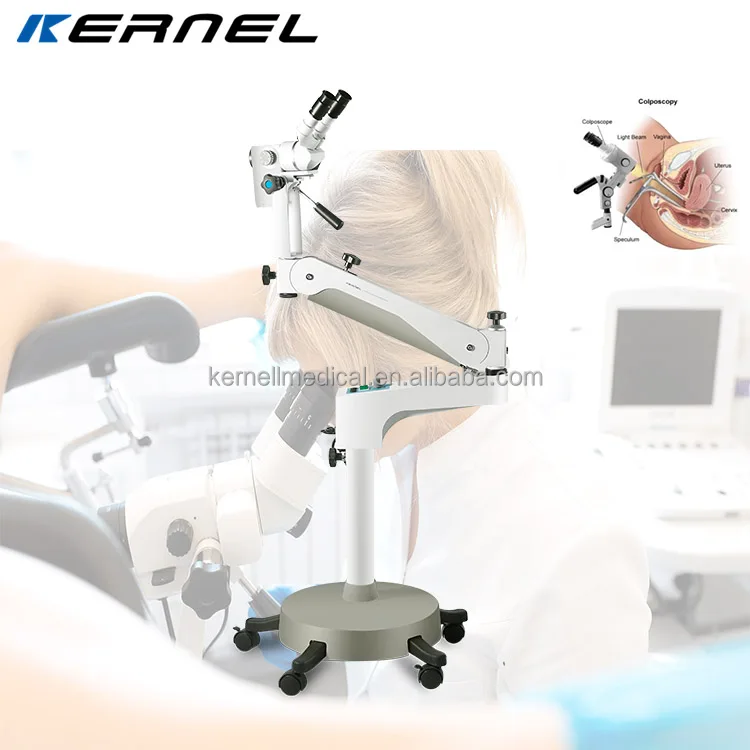

Video Colposcope is a gynecological clinical diagnostic instruments .for gynecology cervix vagina examination. For the diagnosis
of cervical disease, it can be observed 10 to 60 times magnification images, find small lesions the naked eye can not see.
Through digital video colposcope magnification, doctor can clearly see the cervix blood vessels on the skin, detection of cervical
cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective
treatment in advance, so that the cure rate of cervical cancer greatly increased.
of cervical disease, it can be observed 10 to 60 times magnification images, find small lesions the naked eye can not see.
Through digital video colposcope magnification, doctor can clearly see the cervix blood vessels on the skin, detection of cervical
cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective
treatment in advance, so that the cure rate of cervical cancer greatly increased.

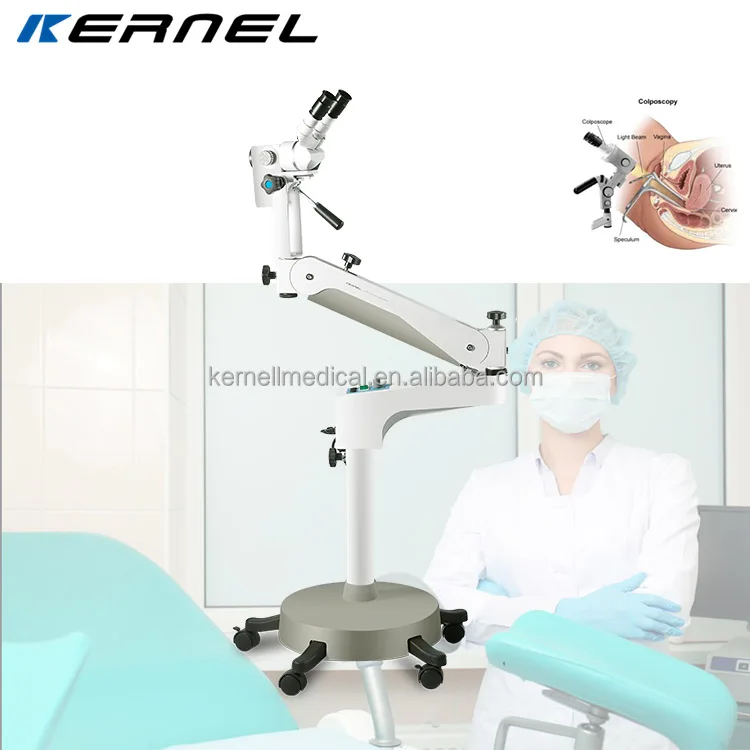

Colposcope sits on the outside of vagina and does not go inside. It can be linked up to a computer screen to see the images more clearly. The test is usually done at a colposcopy clinic in the gynaecology department of a hospital. Other indications for a patient to have a colposcopy include:
Immunosuppression such as HIV infection, or an organ transplant patient
Assessment of diethylstilbestrol (DES) exposure in utero,
As a part of a sexual assault forensic examinationdone by a Sexual Assault Nurse Examiner
An abnormal appearance of the cervix as noted by a primary care provider
Feautures

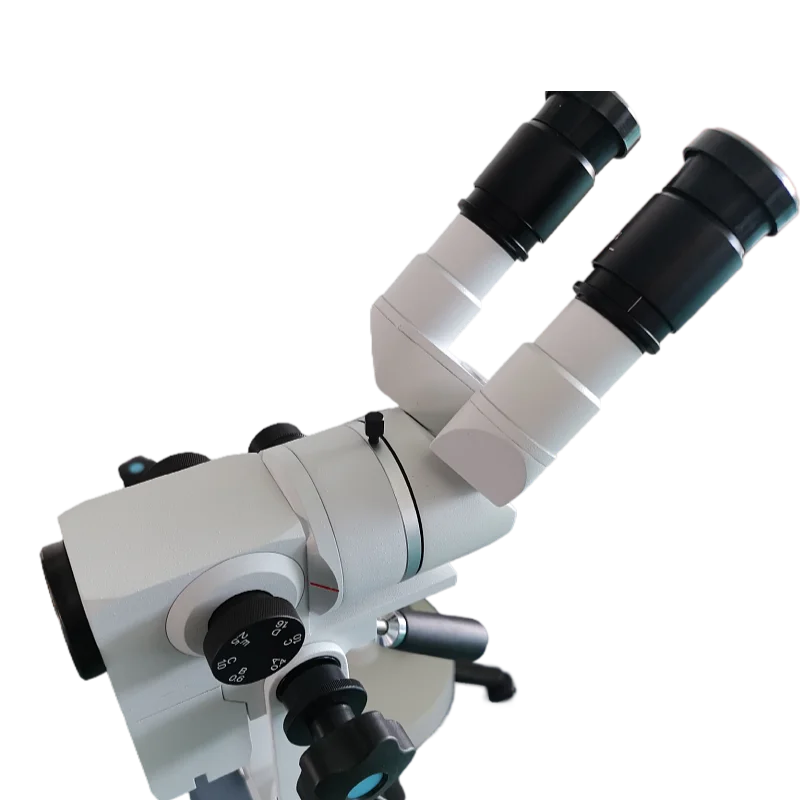

Smooth, 5-Step knob Magnification Changer
Optical magnification of up to 30 times, with high-quality magnification effect, can clearly observe various small diseased cells, and can accurately locate and biopsy the living lesion
300mm Working Distance Objective Lens (200-400mm Available)
the biopsy of the live lesion can be accurately located, which is helpful to improve the diagnosis of various cervical diseases
and precancerous screening. Accuracy to reduce missed diagnosis
and precancerous screening. Accuracy to reduce missed diagnosis
Super long depth of field, super large field of view, super three-dimensional sense, realistic color reproduction, unique optical path design, provide real 3D visual effects for precancerous and pre-lesion punctate blood vessels, columnar epithelium and some tiny lesions
High eye point, wide field eyepieces, 45 degree and 0 degree eyepiece options
Product Parameter
KN 2200B Optical Colposcope | ||||
Packing Dimension | 705mm×705mm×565mm(Trolley B) cartonx1 435mm×305mm×210mm (Imaging system) cartonx1 | 12.5x,45 Eyepiece, Optional: 12.5x,0 degree eyepiece, 20x,45 degree eyepiece, 20x,0 degree eyepiece | ||
Camera | Imaging Sensor | SONY 1/2.8” type Exmor HD CCD | ||
Scanning System | PAL; NTSC(Optional) | |||
Lense | 20x optical,f=4.7 mm to 94 mm,F1.6 to F3.5 | |||
Digital Magnification | 12x (total 240x Optical included) | |||
Horizontal Resolution | More than 1000TVL, 1080p mode：55.4º（wide angle）~2.9º （far‐end） | |||
LED Light Source | Illumination | More Than 1200LUX(Within working distance) | ||
Irradiated Surface Temperature | Lower Than 41℃ | |||
LCD Screen | 19”LCD 1024×768 Screen | |||
Working Distance | 200～400mm | |||
Software Operating Environment | WIN7 /WIN8 | |||
About Software>>
Powerful self R&D management software
**Support Chinese, English, Spanish, Russian, Vietnamese, Turkish and other languages
**It is a multi-functional management software integrating image observation, acquisition, video recording, freezing, editing, print report and storage functions.
**Dedicated software package, which can be used for marking, labeling, zooming in, zooming in and other operations. With acetic acid reaction timing function, suitable for dynamic observation of colposcopy and surgical treatment.
**Abundant case galleries (up to 175), and the addition of satisfactory case pictures to the standard library for easy clinical comparison.
** It comes with a standard case report template to facilitate editing and printing of case reports, support for multiple formats of diagnostic reports and printout of true color images. Doctors can design case reports on their own.
**The cases can be queried in three ways: case number, name, and dateof inspection. Image retrieval, data modification,preservation, review, and video playback are performed on the retrieved cases.
**Can store a large amount of image data, and has a backup function.
**One-click software installation, support WIN7 above operating system.
**It is a multi-functional management software integrating image observation, acquisition, video recording, freezing, editing, print report and storage functions.
**Dedicated software package, which can be used for marking, labeling, zooming in, zooming in and other operations. With acetic acid reaction timing function, suitable for dynamic observation of colposcopy and surgical treatment.
**Abundant case galleries (up to 175), and the addition of satisfactory case pictures to the standard library for easy clinical comparison.
** It comes with a standard case report template to facilitate editing and printing of case reports, support for multiple formats of diagnostic reports and printout of true color images. Doctors can design case reports on their own.
**The cases can be queried in three ways: case number, name, and dateof inspection. Image retrieval, data modification,preservation, review, and video playback are performed on the retrieved cases.
**Can store a large amount of image data, and has a backup function.
**One-click software installation, support WIN7 above operating system.

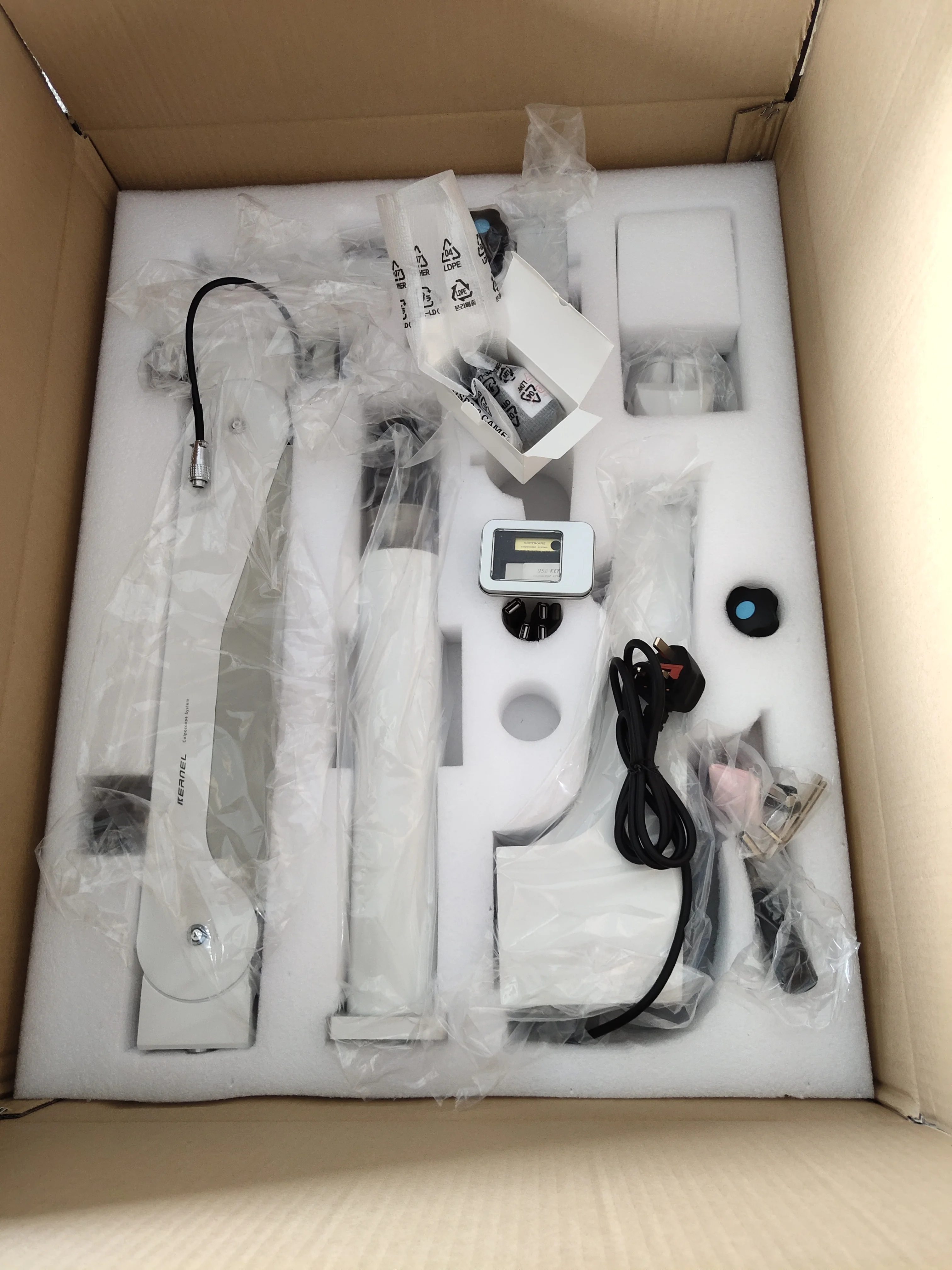

Packing & Delivery
Package: | Standard Export Packing in Carton Box for Gynecology colposcope . |
Delivery Time: | Within 7 work days after payment. |
Delivery Way: | By air (DHL/ Fedex / UPS etc.) By sea, By Land, |
Warranty: | We Provide 1 years Warranty. |
Cooperation Item: | OEM/ODM, or other item you want. |
Price Term: | EXW, FOB Price at USD |
MOQ: | 1pc as sample order. |
Exhibition Show
FAQ
Q1. Can I have a sample order for the product?
A: Yes, we welcome sample order to test and check quality.
Q2: How long will the delivery time?
A: Quantity(Units)\t1 unit, in 7 days.
Q3. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q7: Whats the warranty time?
A:The machine comes with 1 year manufacturer's warranty and life time maintenance
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send the new with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
