New Breaking Hammer Excavator Core Components Include Motor Chisel Breaker Hammer Pump Engine for Construction Mining Industries
- Category: >>>
- Supplier: Wuxi Beiyi Excavator Parts Factory
Share on (1601276100205):
Product Overview
Description
Products Description

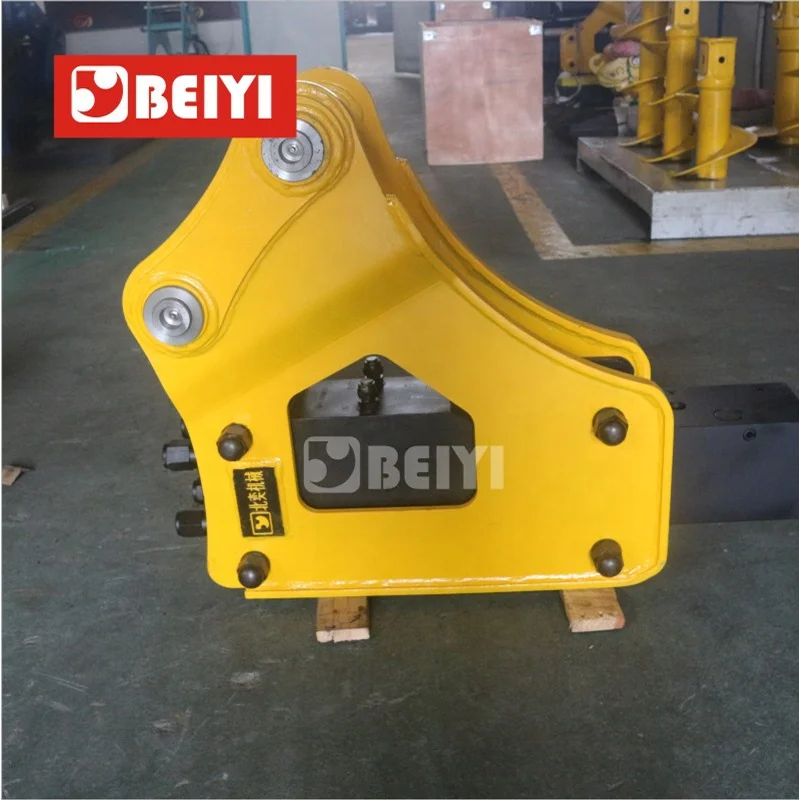

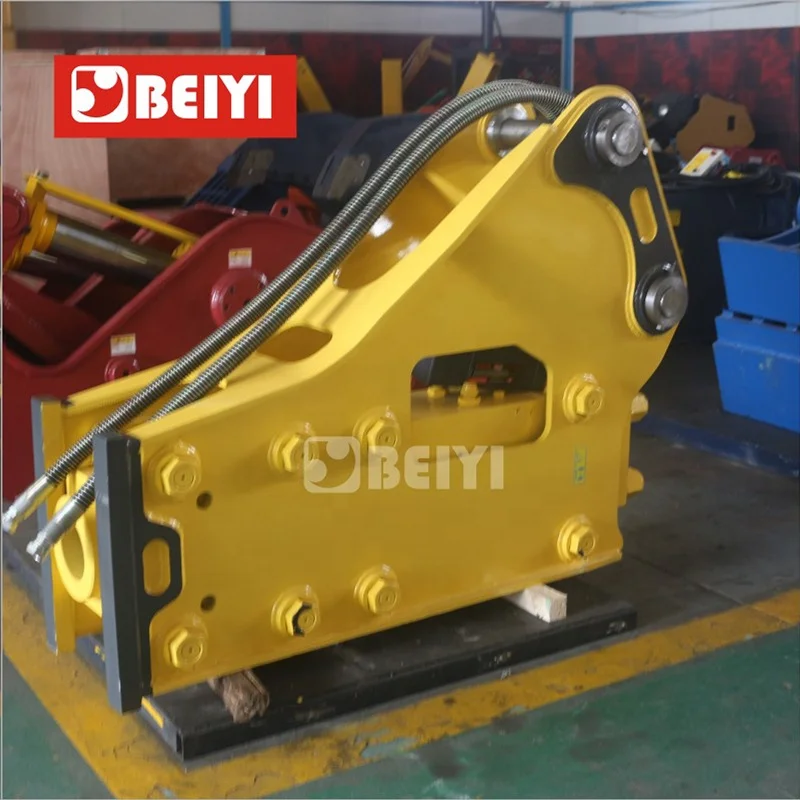

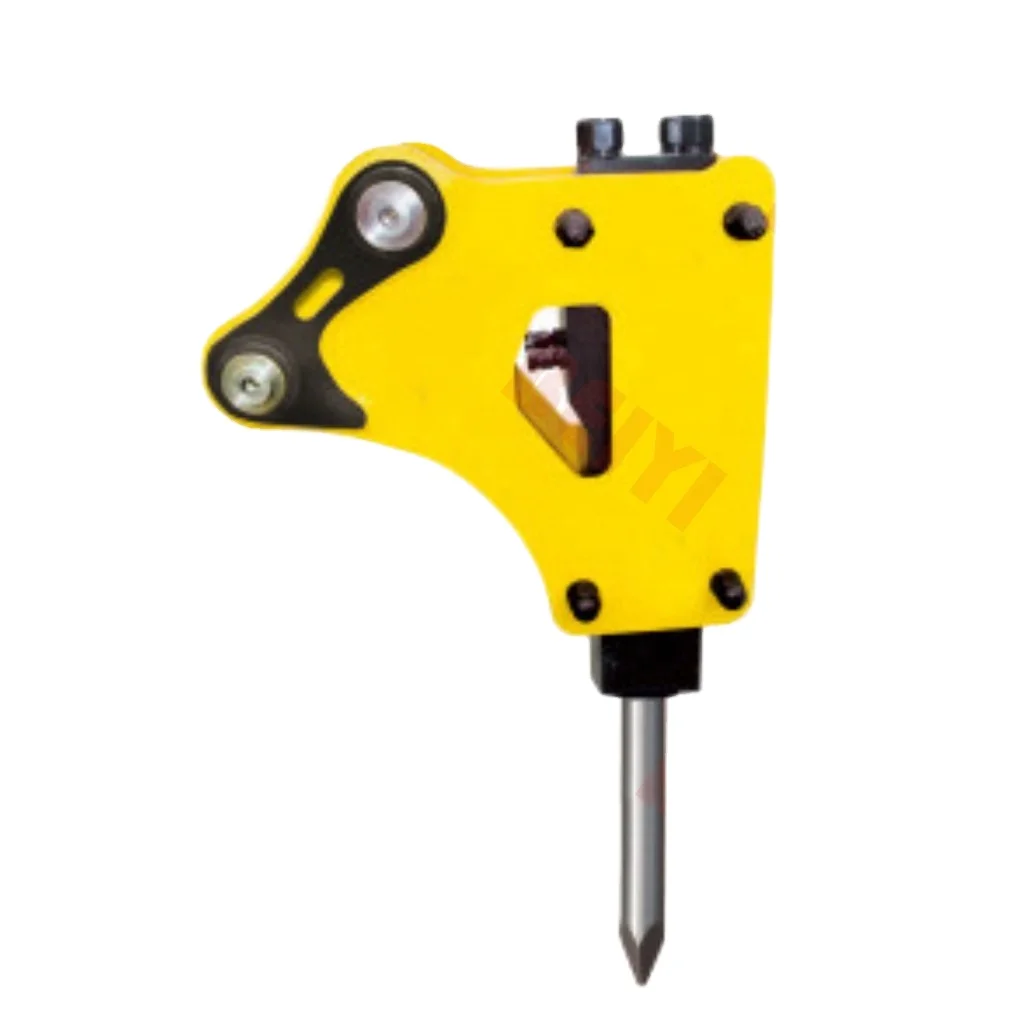

BREAKING
HAMMER
Powerful,open and close,durable,light and fast!The product improvesthe structure of the existing hydraulic concrete crushing
pliers,improvesthe construction efficiency,can cut the steel bars in the crushed concretebuilding,and solves the technical
problems that the existing hydraulicconcrete crushing pliers cannot remove the steel bars in the crushedconcrete building and the
construction efficiency is low.
pliers,improvesthe construction efficiency,can cut the steel bars in the crushed concretebuilding,and solves the technical
problems that the existing hydraulicconcrete crushing pliers cannot remove the steel bars in the crushedconcrete building and the
construction efficiency is low.
Product parameters
Model | unit | BYD45 | BYD68 | BYD75 | BYD85 | BYD100 | BYD135 |
Weight | Kg | 80 | 254 | 264 | 486 | 853 | 1679 |
Overall Length | Mm | 1100 | 1347 | 1528 | 1920 | 2260 | 2695 |
Hydraulic woiking pressure | Kg/cm2 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 | 160-180 |
Hydraulic oil flow | L/min | 15-25 | 25-45 | 30-45 | 45-85 | 80-120 | 120-160 |
Frequency | Bpm | 700-1200 | 500-900 | 500-800 | 400-700 | 400-700 | 400-700 |
Hose dlameter | Inch | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 |
Chiseldia meter | Mm | 45/53 | 68-70 | 75 | 85 | 100 | 135 |
Sultable Exavator | Ton | 1.2-3.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14 | 11-16 | 19-26 |
Model | unit | BYD140 | BYD155 | BYD165 | BYD175 | BYD185 | BYD190 | BYD210 |
Weight | Kg | 1898 | 2650 | 3753 | 3910 | 4100 | 5100 | 6100 |
Overall Length | Mm | 2810 | 3152 | 3310 | 3400 | 3400 | 3420 | 3700 |
Hydraulic woiking pressure | Kg/cm2 | 160-180 | 160-180 | 160-180 | 160-180 | 180-220 | 180-220 | 190-230 |
Hydraulic oil flow | L/min | 130-170 | 170-220 | 200-300 | 210-290 | 220-300 | 230-320 | 360-450 |
Frequency | Bpm | 400-600 | 250-400 | 250-350 | 200-350 | 200-250 | 180-200 | 120-230 |
Hose dlameter | Inch | 1 | 1 | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ |
Chiseldia meter | Mm | 140 | 155 | 165 | 175 | 185 | 190 | 210 |
Sultable Exavator | Ton | 19-26 | 28-40 | 36-45 | 40-55 | 50-60 | 55-65 | 65-100 |

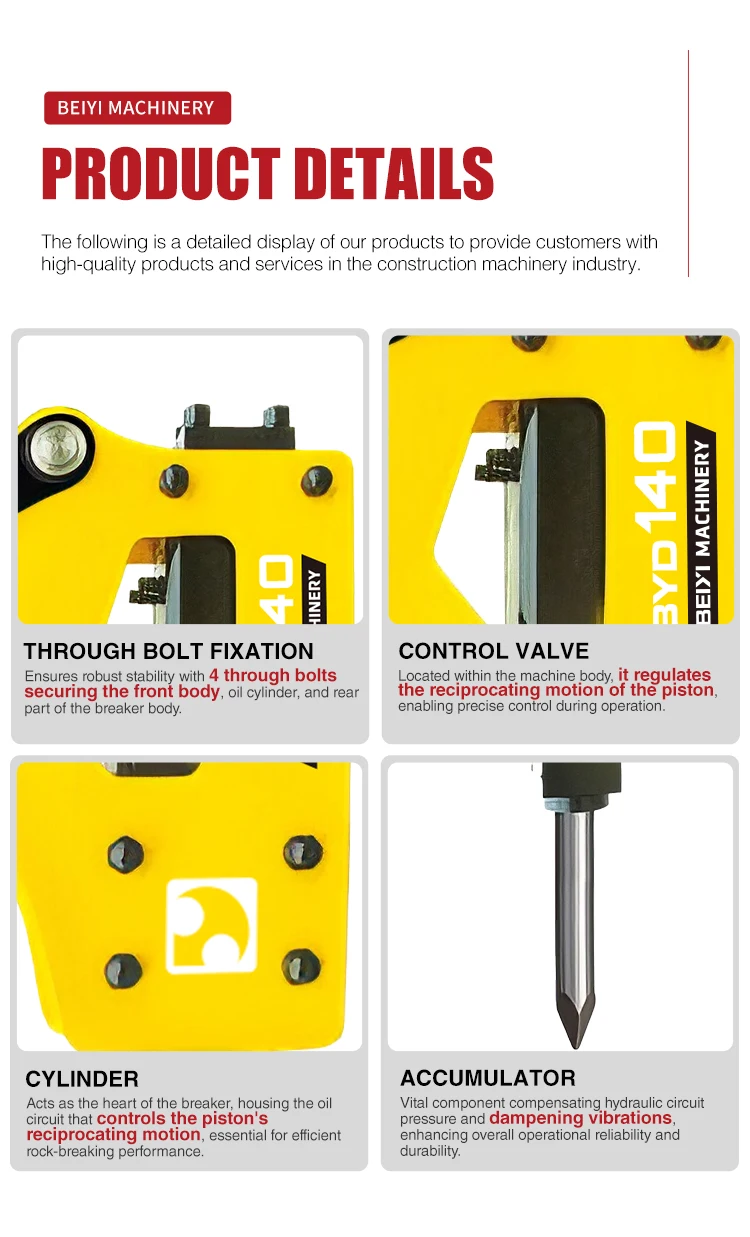

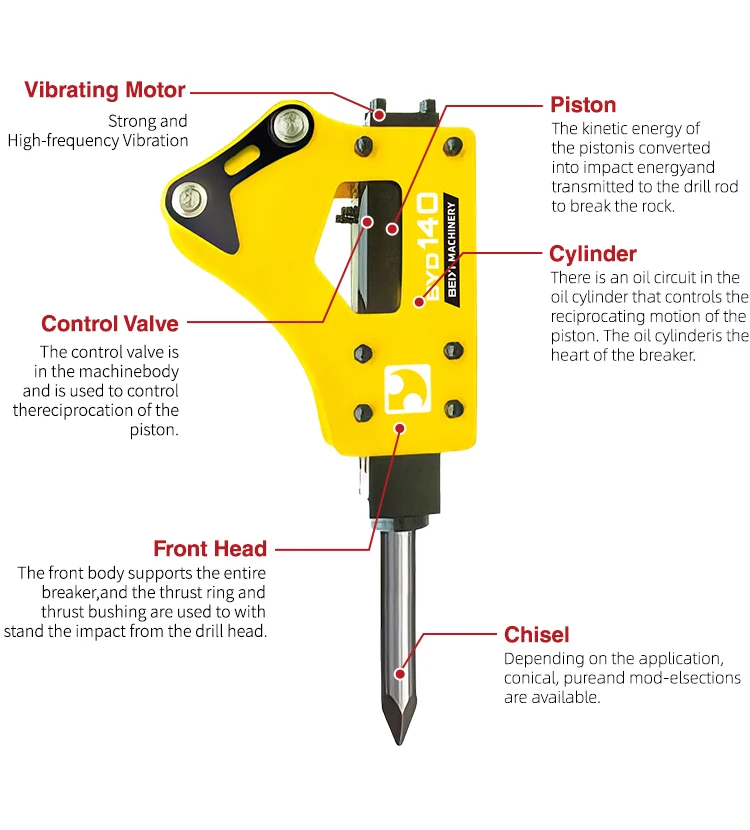

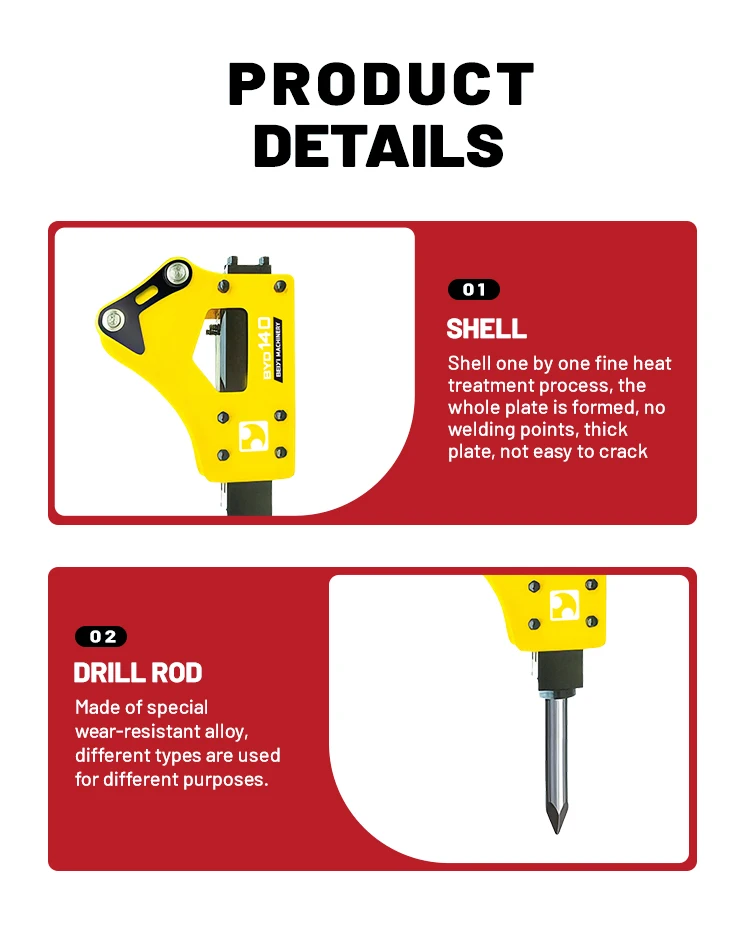

Product Details
Company introduction

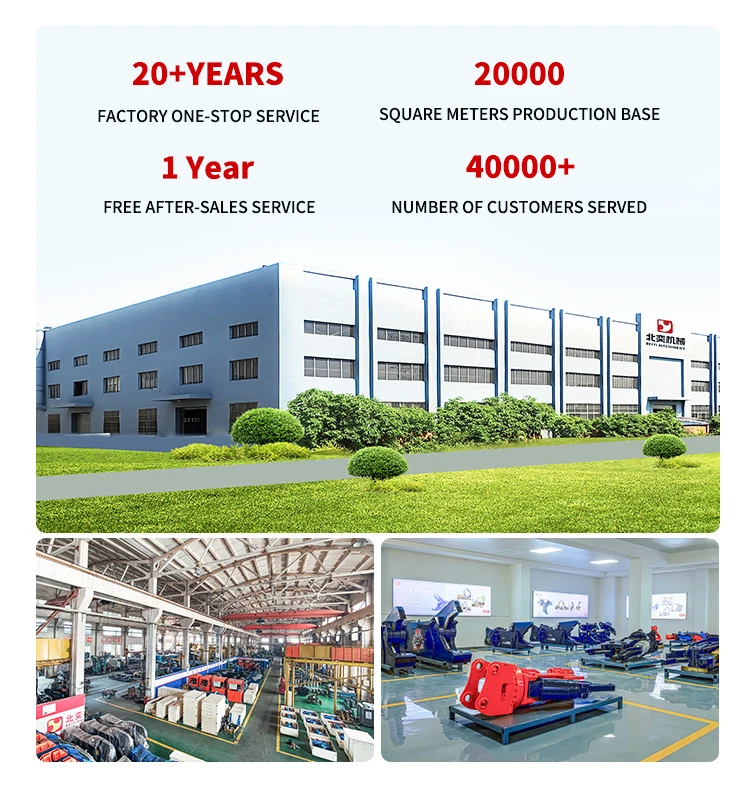

Company Profile
Wuxi Beiyi Excavator Parts Manufacturing Factory was established in 2000. It is a manufacturer specializing in the production of pile machinery, excavator accessories, excavator attachments and related construction machinery. The factory is located in Luoshe Town, Huishan District, Wuxi City . The sales headquarters is located in the Smart Building, Jianghai West Road, Liangxi District, Wuxi City. The main products include: hydraulic pile breakers (including detachable circular and fixed square hydraulic pile breakers), H-shaped steel pile pullers, hydraulic crushing tongs, auger drills, auger drill rods, and olecranons. Shears, double-cylinder hydraulic shears, car demolition shears, rail shears, gantry shears, vibrating pile drivers, hydraulic tongs, breaker hammers, vibrating tampers, quick connectors, lotus grabs, rotary stone grabbers/wood grabbers and various types of And domestic excavator large, medium and small arm cylinder assemblies, etc. The company has a complete self-research and production model, adhering to the business philosophy of "breaking conventions and embracing innovation", integrating design, research and development, manufacturing and sales, providing customers with a lot of convenience. At the same time, the company has a complete after-sales service system, always implements the service tenet of "customer first", adheres to the principle of "treating people with sincerity and serving with heart" to receive customers, and also provides product customization services to meet the diversification of the market. need.
The company's operators have 20 years of operating experience. They are constantly innovating and optimizing processes, improving and improving inspection processes, and strive to supply customers and serve the market with high-quality products. Through continuous hard work and accumulation, we have established production bases in many places. At the same time, we have a large number of cooperative customer resources, and the company's products are also widely used in many fields such as photovoltaics, construction, and water engineering. Our business radiates to many places, and we have become one of the most popular construction machinery companies in the industry.
The customers we cooperate with include: China Railway Group, China Railway Construction, China Railway Fourth Bureau Group, China Coal Jiangnan, Hengli Group, China 20th Group, Shanghai Metro, Shenzhen Metro, etc.
The company's operators have 20 years of operating experience. They are constantly innovating and optimizing processes, improving and improving inspection processes, and strive to supply customers and serve the market with high-quality products. Through continuous hard work and accumulation, we have established production bases in many places. At the same time, we have a large number of cooperative customer resources, and the company's products are also widely used in many fields such as photovoltaics, construction, and water engineering. Our business radiates to many places, and we have become one of the most popular construction machinery companies in the industry.
The customers we cooperate with include: China Railway Group, China Railway Construction, China Railway Fourth Bureau Group, China Coal Jiangnan, Hengli Group, China 20th Group, Shanghai Metro, Shenzhen Metro, etc.
Recommend Products
Exhibition display
certificate display
FAQ
1. Are you a businessman or a manufacturer?
We are an industry and trade integration enterprise, the factory is located in Wuxi, Jiangsu Province.
2. How do I determine if a part is right for my excavator?
Give the correct model/machine serial number/any number on the part. Or measure parts and give us size or drawings.
3. What about the terms of payment?
We usually accept telegraphic transfer or trade guarantee. Other terms may also be negotiated.
4. What's your minimum order quantity?
It depends on what you are buying. Typically, our minimum order is one 20-foot container and LCL containers (less than one container load) are acceptable.
5. What is your delivery time?
FOB Xiamen or any Chinese port: 20 days If there are any parts in stock, our delivery time is only 0-7 days.
6. What about quality control?
We have a perfect quality control system for the perfect products. team will carefully check product quality and specifications, monitor every production process until packaging is complete, and ensure that the product is safely placed into the container
