LDPE Flakes Semi plasticized Granules Reusing Pelletizer Granulator Granulating Single stage Strand Pelletizing Machine Line
- Category: >>>
- Supplier: Zhangjiagang Regulus Machinery Co. Ltd.
Share on (1601276147052):
Product Overview
Description

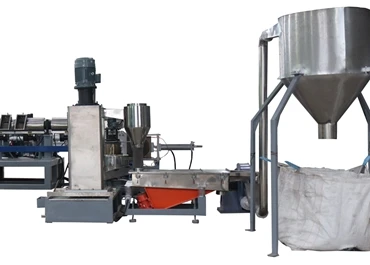

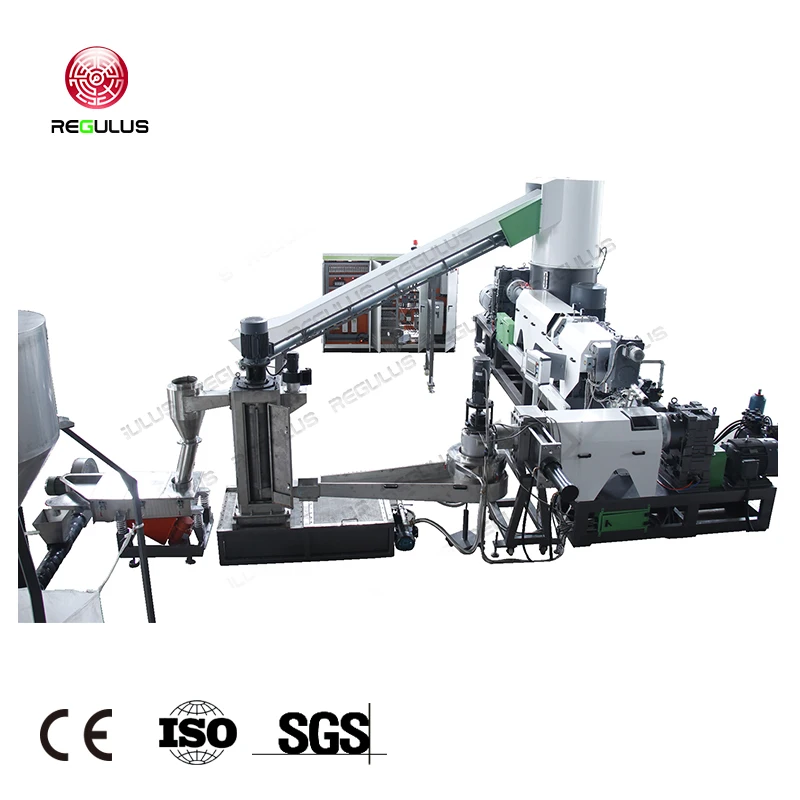

Water-ring Cutter Compactor Pelletizing Line
Suitable for PE HDPE LDPE PET Film, Bags, PP Woven Bags, Non-woven Fabric, PA66 Fishing Net, Carpet, PET Bottle Flakes, EPE EPS Crushed Foam, PC ABS Plastic Flakes, PE PP PVC PPR Pipes Flakes, ect.
High quality. Good perfomance.
Product Description
Main Features
Material feeding type | Two kinds feeding method optional: 1. Belt Conveyor 2. Screw Loader | ||||||
Compactor Type | Soft plastic bags, woven bags and waste film can be directly put into compactor granulation line without crushing. | ||||||
Extruder quantity | Single stage extruder and double stage extruders can be used according to user's requirement or raw material dirty moisture condition. | ||||||
Granules cutting type: | Three kinds pellets cutting method: 1. Water ring face cutting 2. strip noodle type cutting 3 hot cutting; | ||||||
Electric control | The main engine is equipped with full automatic control cabinet and PLC operating system. It is easy to operate and has stable | ||||||
Advantages | Low energy consumption, remarkable energy saving effect, high output, mechatronics. Plastic granulation | ||||||
Specification
Model | Screw diameter | Screw L/D | Main Motor power | Product capacity |
SJ-85 | 85mm | 28:1~33:1 | 55kw | 150-200kg/hr |
SJ-100 | 100mm | 28:1~33:1 | 75kw | 200-300kg/hr |
SJ-130 | 130mm | 28:1~33:1 | 90kw | 300-400kg/hr |
SJ-150 | 150mm | 28:1~33:1 | 110kw | 400-500kg/hr |
SJ-160 | 160mm | 28:1~33:1 | 132kw | 500-600kg/hr |
SJ-180 | 180mm | 28:1~33:1 | 160kw | 600-800kg/hr |
SJ-200 | 200mm | 28:1~33:1 | 200kw | 800-1000kg/hr |
Working Video

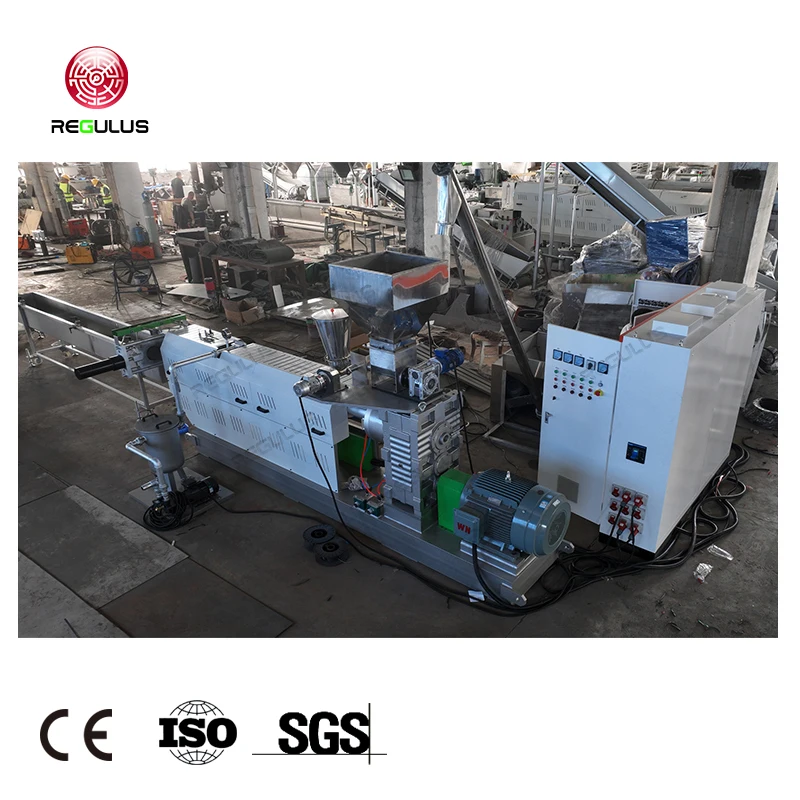

The belt conveyor transports the materials to the compactor, then through two-stage extruder to produce plastic pellets.
FEATURES AT A GLANCE

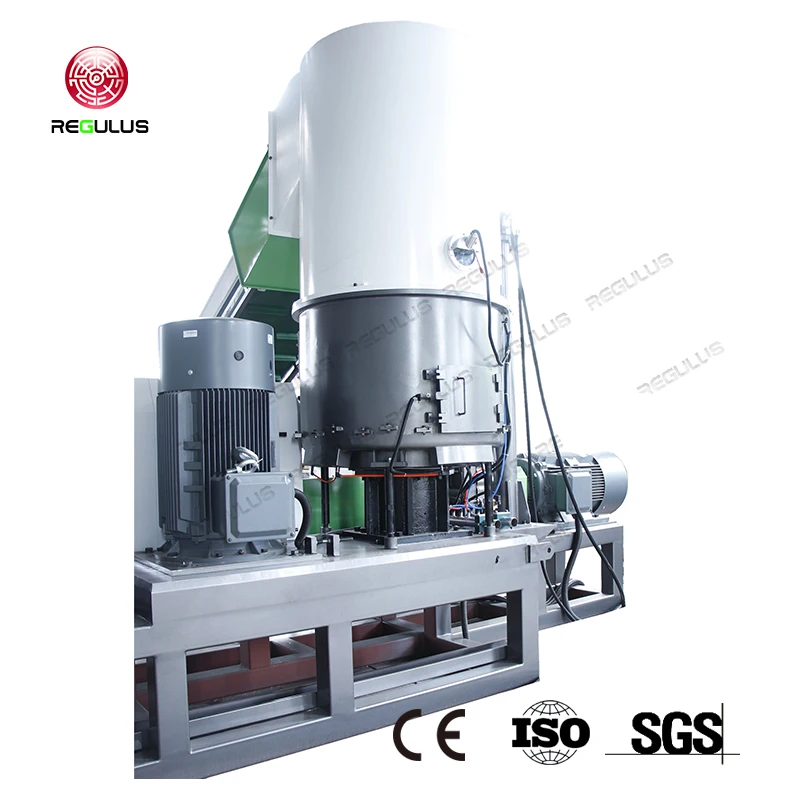

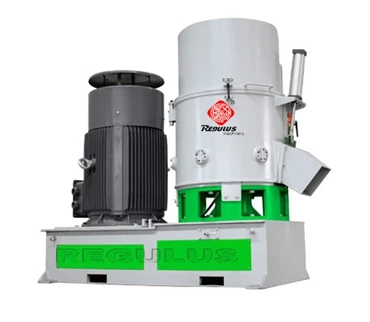

high speed rotary,compactor,plastify the film, bags, pieces, sheets.
Temperature protector, if the temperature is too high will automatic start the water cooling the compactor base With amper meter detecting the compactor motor amper, if the compactor amper too high it will automatic stop the feeding conveyor.
With water cooling system.
Temperature protector, if the temperature is too high will automatic start the water cooling the compactor base With amper meter detecting the compactor motor amper, if the compactor amper too high it will automatic stop the feeding conveyor.
With water cooling system.
Customizable blades confuguration.

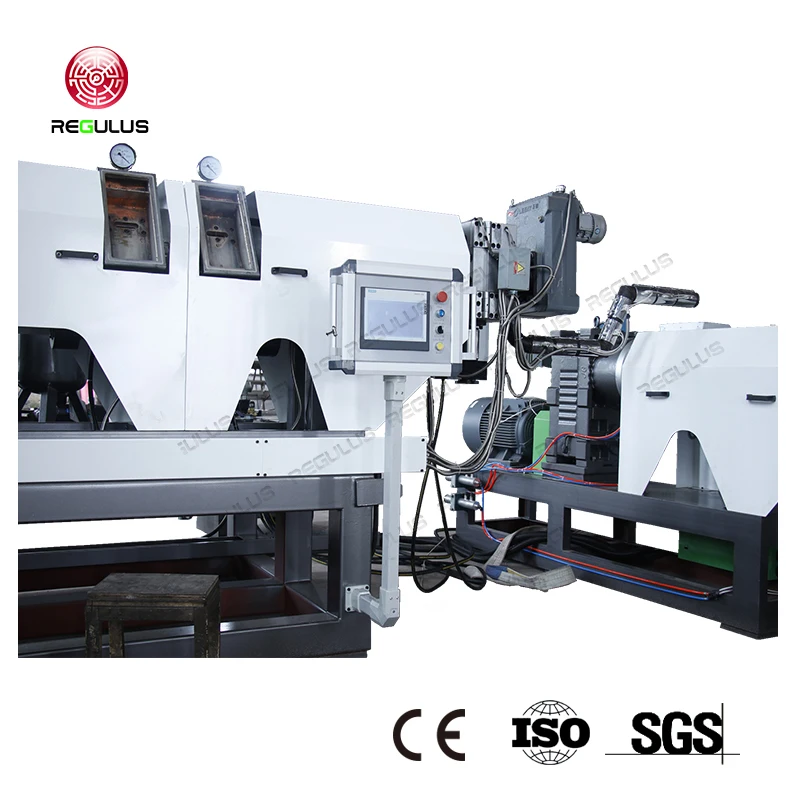

38CrMoAlA screw and barrel, nitrogen treatment, with temperature controller.
L/D customizable arrording to the raw materials and output.

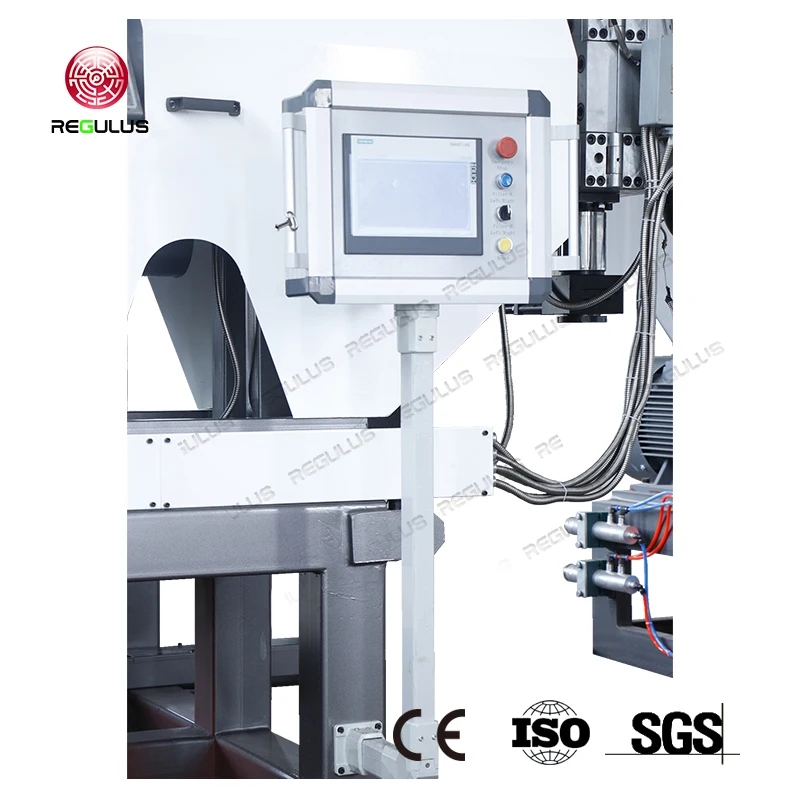

Parameter information can be set on the touch screen according to the user's needs.

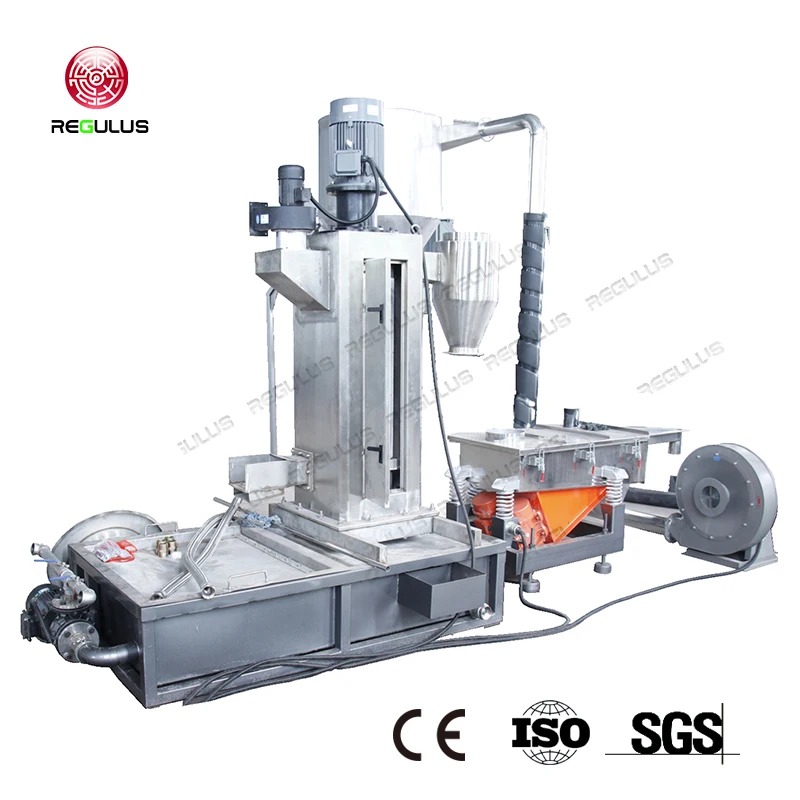

The vertical type dehydrator can effectively dehydrate plastic pellets.
Stainless steel material.
Volume: customizable.
Applicable Materials： | ||||||||
1.PE HDPE LDPE PET Film, Bags | ||||||||
2.PP Woven Bags, Non-woven Fabric | ||||||||
3.PA66 Fishing Net, Carpet | ||||||||
4.PET Bottle Flakes | ||||||||
5.EPE EPS Foam | ||||||||
6.PC ABS Plastic Flakes | ||||||||
7.PE PP PVC PPR Pipes Flakes | ||||||||
Reference Photos
ABS Flakes
PE Pipes Flakes
PET Bottles Flakes
PE Lumps Flakes
PP Bottles Flakes
PP Woven Bags
Final Products Reference Photos

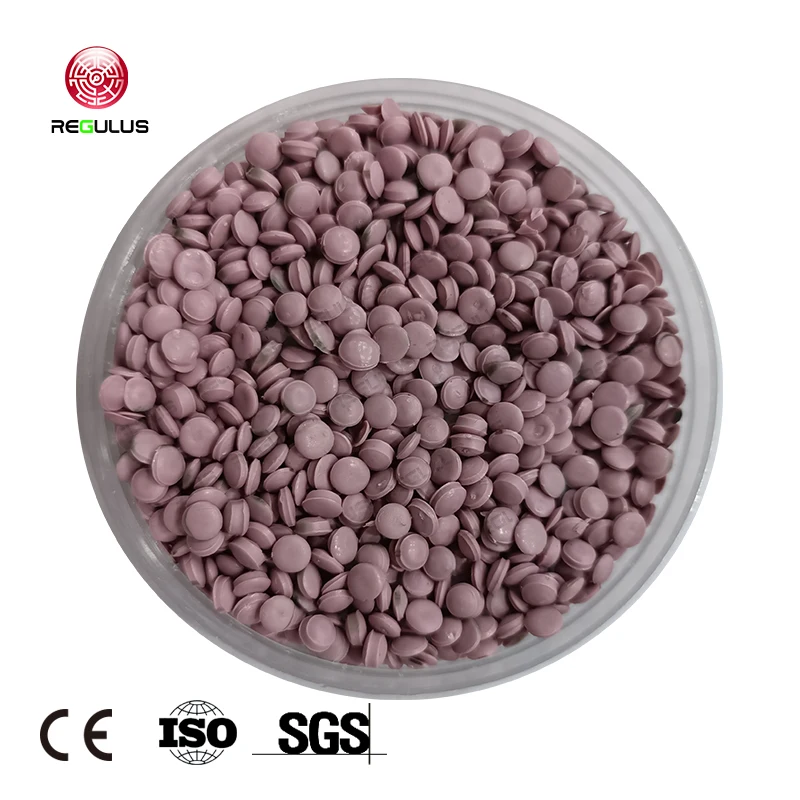

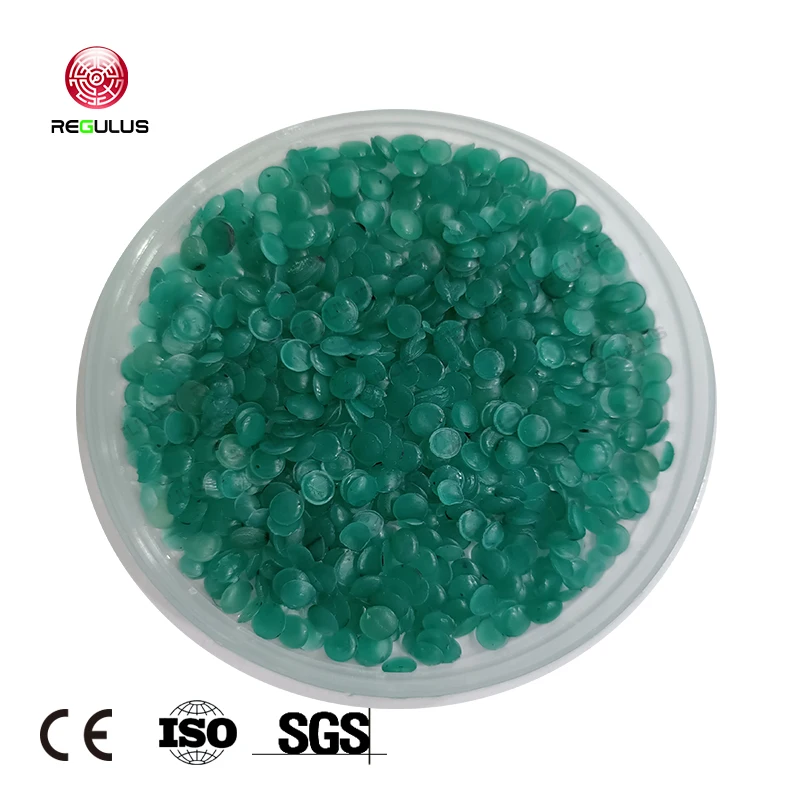

The pellets produced through water-ring Cutter have rounded shape and consistent size, and will present similar colors depending on the type of raw material.
Pellet's size customizable.
Pellet's size customizable.
Reference Photos of the Final Products
Uniform and Round Pellets

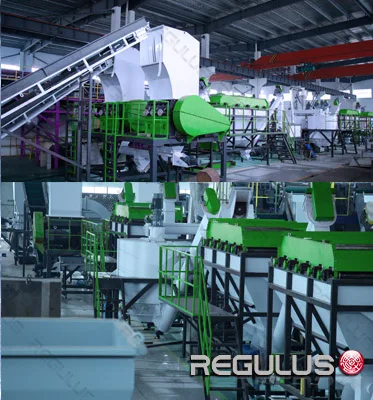

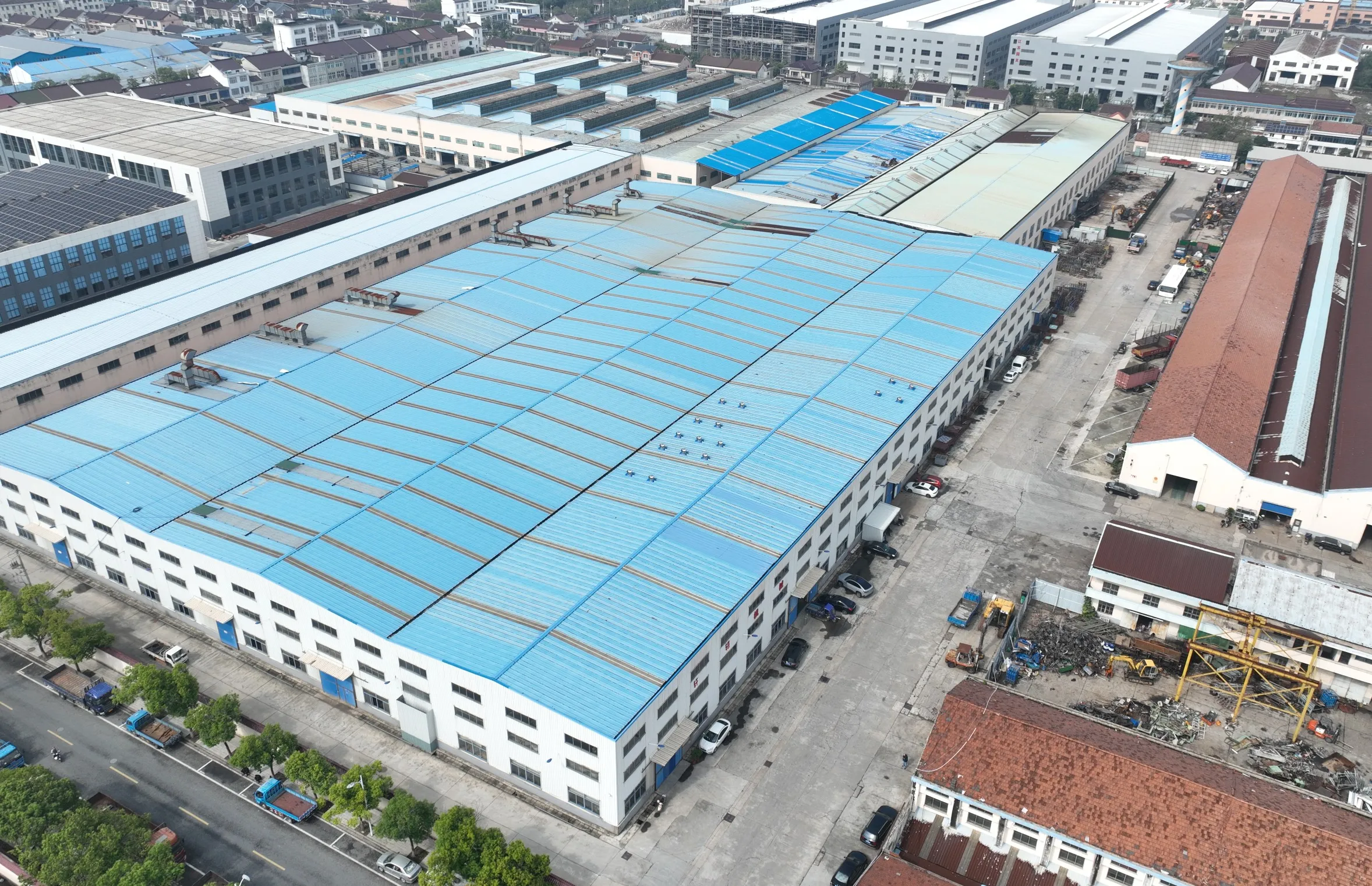

Factory
Packing & Delivery
Wooden Box Packing
Delivery Photo
Loading Photo
