Precise cleaning Removing paint from old furniture pulse laser cleaning machine
- Category: >>>
- Supplier: Jinan Hanteng Laser Technology Co. Ltd.Jinan Ltd.
Share on (1601276148419):
Product Overview
Description

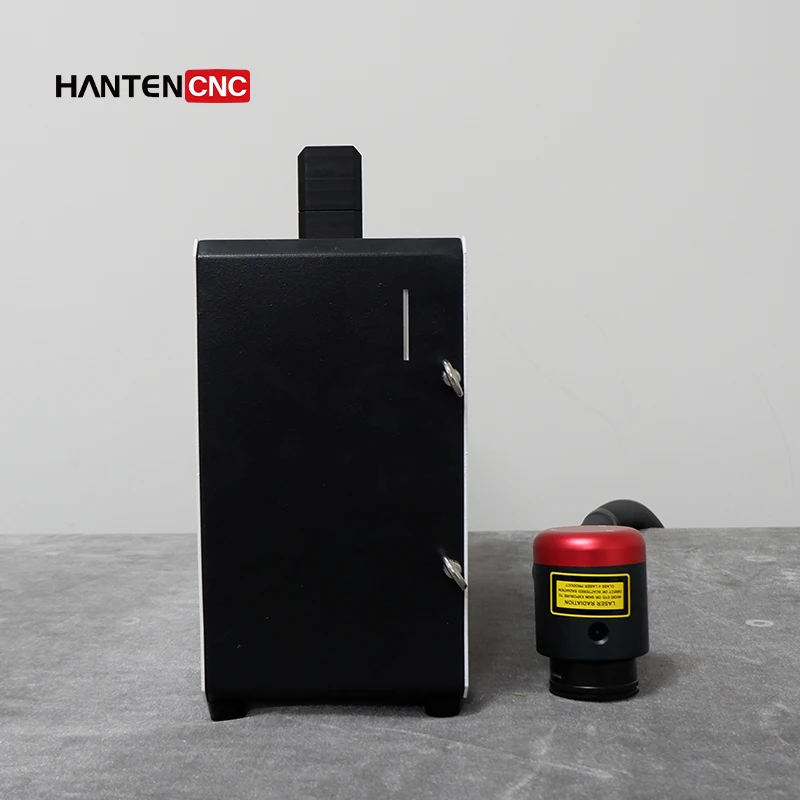

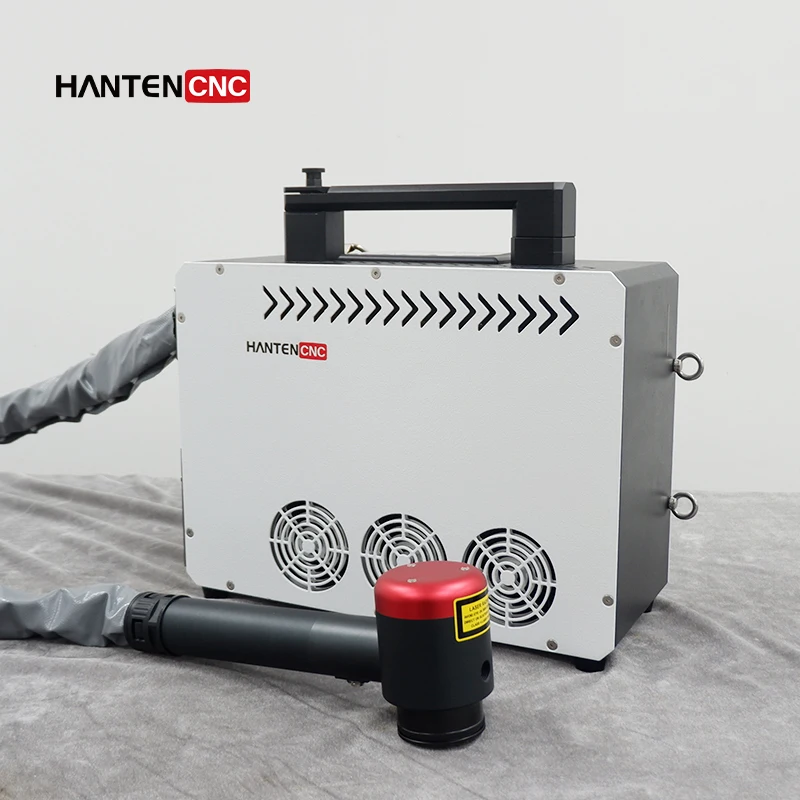

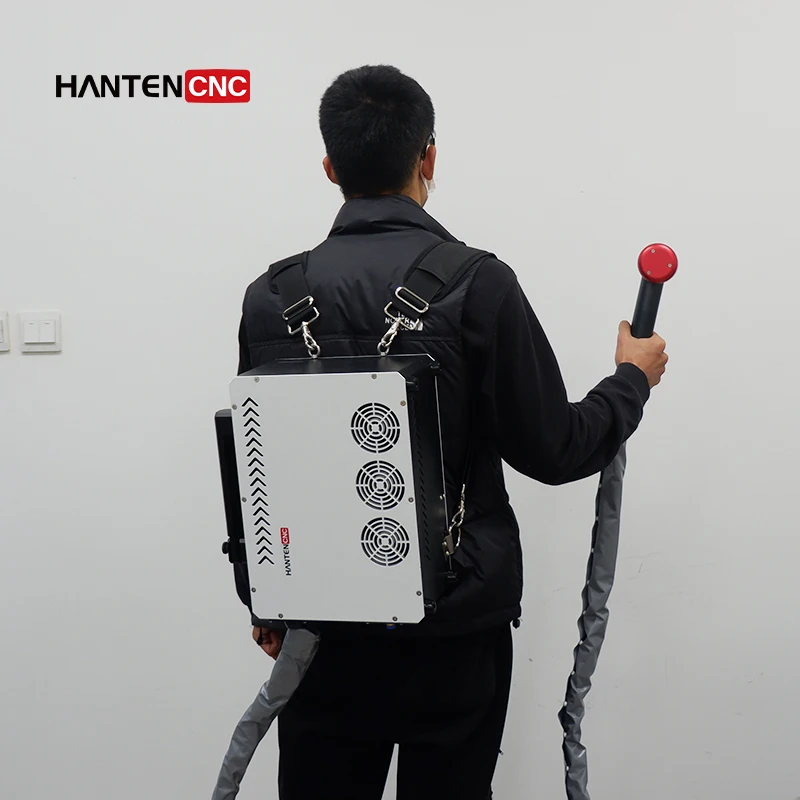

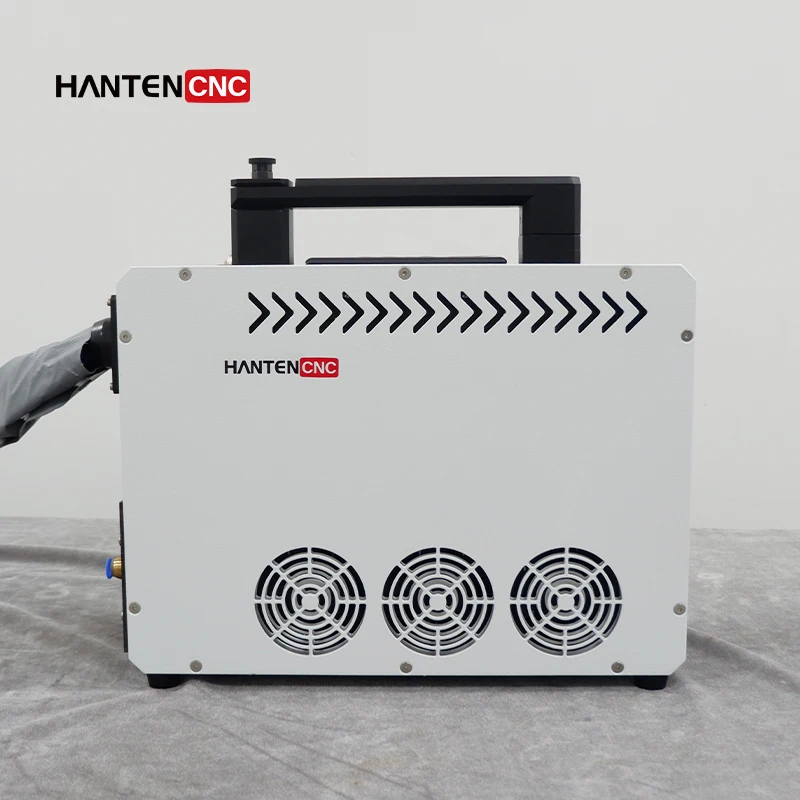

A laser power of 100W can quickly and effectively remove surface pollutants such as rust, oil stains, and oxides, improving cleaning efficiency. Pulse laser technology can precisely control energy output, avoid damage to the substrate, and is suitable for surface treatment of various materials. The backpack design makes the device more lightweight and easy to carry, suitable for situations that require frequent movement or operation in complex environments.
Laser Power | 100W |
Supply voltage | Single Phase 110V/220V± 10%, 50/60Hz AC |
Output armoured cable length | 1.5m |
Max pulse energy | 1.5mJ |
Frequency adjustable range | 1-3000kHz |
Cooling mode | air-cooled |
Power regulation range | 0~100% |
Scanning Width | 0nm-100nm Optional |
Scanning Frequency | Not Less Than 300Hz |
Maximum Scan Line Speed | About 30m/s |
Field Lens Focal Length | F160 |
Depth of Focus | About 10mm |
Weight | 22 kg |
Machine Dimensions | 430*190*420mm |
More Choose
Industrial Applications of Laser Rust Removal Machine
The backpack style 100W pulse laser cleaning machine has a wide range of applications in multiple fields, mainly including the following aspects:
1.Mold cleaning: removes residues and pollutants from the surface of the mold, prolongs its service life, and improves production efficiency.
2.Pre - and post welding treatment: Clean the oxide layer and oil stains before welding, as well as the residue and slag after welding, to ensure welding quality.
3.Aircraft maintenance and repair: Remove oil stains, oxide layers, and coatings from the surface of the aircraft, keep the surface clean, and ensure flight safety.
4.Engine cleaning: Clean aircraft engine components to remove surface dirt and oxides and improve engine performance.
5.Cultural relic cleaning: Non destructive cleaning of dirt, rust, and oxide layers on the surface of cultural relics to protect their original appearance and structure.
6.Medical device cleaning: Clean surgical instruments and medical equipment surfaces of dirt and residues to ensure medical safety.
7.Stone cleaning: Clean the stone dirt and pollutants on the surface of the building to restore its original appearance.
8.Metal structure cleaning: removes rust and corrosion layers on the surface of building metal structures, prolonging their service life.
1.Mold cleaning: removes residues and pollutants from the surface of the mold, prolongs its service life, and improves production efficiency.
2.Pre - and post welding treatment: Clean the oxide layer and oil stains before welding, as well as the residue and slag after welding, to ensure welding quality.
3.Aircraft maintenance and repair: Remove oil stains, oxide layers, and coatings from the surface of the aircraft, keep the surface clean, and ensure flight safety.
4.Engine cleaning: Clean aircraft engine components to remove surface dirt and oxides and improve engine performance.
5.Cultural relic cleaning: Non destructive cleaning of dirt, rust, and oxide layers on the surface of cultural relics to protect their original appearance and structure.
6.Medical device cleaning: Clean surgical instruments and medical equipment surfaces of dirt and residues to ensure medical safety.
7.Stone cleaning: Clean the stone dirt and pollutants on the surface of the building to restore its original appearance.
8.Metal structure cleaning: removes rust and corrosion layers on the surface of building metal structures, prolonging their service life.

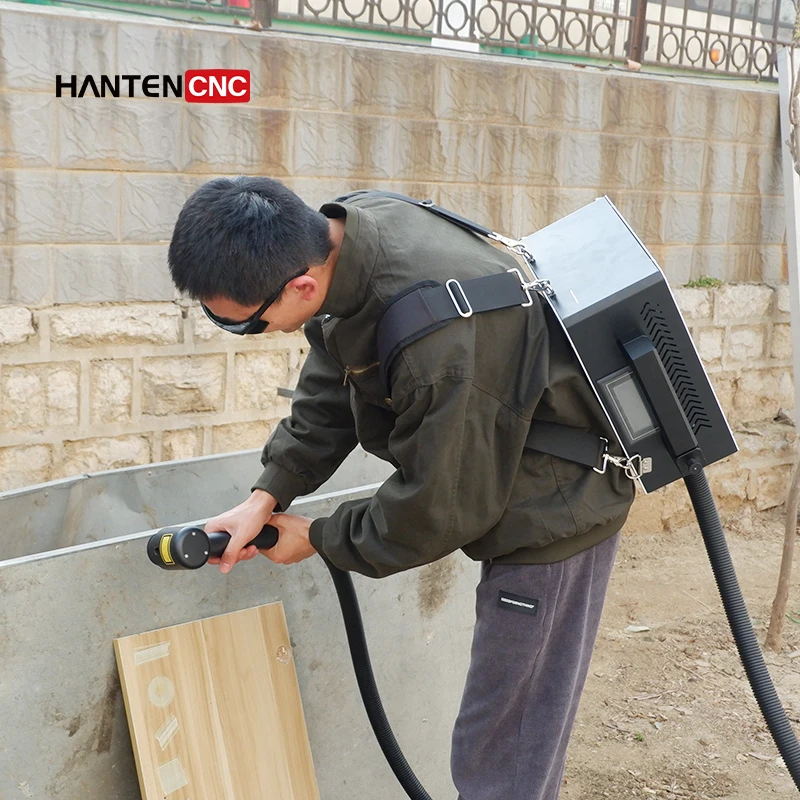

The laser cleaning gun is designed to be lightweight and easy to carry, making it easy to operate on various sites. It is particularly suitable for cleaning tasks that require frequent movement or limited space. Dust and anti-interference design can prevent external interference signals and impurities from affecting the normal operation of equipment, improving the reliability and stability of the equipment.
9 Cleaning Modes of Laser Rust Remover
The operation interface of the HANTENCN’s pulse laser rust remover offers 9 cleaning modes:
1. Straight Line Mode
2. Rectangular Mode 1
3. Rectangular Mode 2
4. Circular Mode
5. Sinusoidal Mode
6. Spiral Mode
7. Free Mode
8. Ring Mode
9. Rotation Mode
You can switch these modes by clicking on the “Scanning Mode” option on the interface.
Some cleaning modes are gentler, suitable for materials with higher surface requirements, and can reduce or eliminate traces after
cleaning. Some cleaning modes are more powerful and ideal for removing stubborn dirt or coatings.
Choosing the right cleaning modes ensures minimal traces and enhances the appearance and quality of the product, which is
especially crucial in industries like automotive manufacturing, aerospace, electronics, and more.
1. Straight Line Mode
2. Rectangular Mode 1
3. Rectangular Mode 2
4. Circular Mode
5. Sinusoidal Mode
6. Spiral Mode
7. Free Mode
8. Ring Mode
9. Rotation Mode
You can switch these modes by clicking on the “Scanning Mode” option on the interface.
Some cleaning modes are gentler, suitable for materials with higher surface requirements, and can reduce or eliminate traces after
cleaning. Some cleaning modes are more powerful and ideal for removing stubborn dirt or coatings.
Choosing the right cleaning modes ensures minimal traces and enhances the appearance and quality of the product, which is
especially crucial in industries like automotive manufacturing, aerospace, electronics, and more.
We have conducted in-depth system optimization of the machine. The HMI interface lets you quickly call up preset sets of process parameters via six process options. This is intended to improve the overall performance of the cleaning system. You will experience faster response and a smoother operating experience.
HANTENCNC’s 100W pulse laser cleaning machine currently supports Chinese, Traditional Chinese, English, Russian, Japanese,
Spanish, German, Korean, French, Polish and 15 other languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we
also provide customized language services.
Spanish, German, Korean, French, Polish and 15 other languages.
You can easily switch between these language options directly on the machine’s interface. If you require any other languages, we
also provide customized language services.
Company Profile
FAQ
1. How can I find the best machine for my needs?
To find the most suitable machine for your requirements, simply provide us with details about your working material and share pictures or videos of the work to be done. Based on this information, we will assess whether our machines can meet your needs and recommend the most suitable model based on our extensive experience.
2. how do you guarantee quality?
Before mass production, we always provide a sample for approval. This allows you to evaluate the quality and specifications of the product before full-scale production begins.
Additionally, a final inspection is conducted before shipment to ensure that each machine meets our stringent quality standards. This ensures that you receive a product that has been thoroughly checked for any defects or issues.
3. What products can I purchase from you?
Our product range includes laser marking machines, laser welding machines, laser cleaning machines, laser cutting machines and UV printers.
4. Why should I choose HANTENTENC over other suppliers?
HANTENCNC is backed by 19 years of experience in engineering and research and development. As a professional manufacturer, we are dedicated to the research, development, production, and service of laser machines. HANTENCNC’s company culture is “Result-oriented. We live for quality”. We pursue excellent product quality, pay attention to every detail of the machine’s part, and devote ourselves to providing customers with superior quality and reliable prices.
5. How can I be sure that I'm selecting the right machine for my needs?
To ensure that you choose the correct machine, you can send us samples of your materials via courier. We will then provide free marking services, along with pictures and videos of the results, helping you make an informed decision.
To find the most suitable machine for your requirements, simply provide us with details about your working material and share pictures or videos of the work to be done. Based on this information, we will assess whether our machines can meet your needs and recommend the most suitable model based on our extensive experience.
2. how do you guarantee quality?
Before mass production, we always provide a sample for approval. This allows you to evaluate the quality and specifications of the product before full-scale production begins.
Additionally, a final inspection is conducted before shipment to ensure that each machine meets our stringent quality standards. This ensures that you receive a product that has been thoroughly checked for any defects or issues.
3. What products can I purchase from you?
Our product range includes laser marking machines, laser welding machines, laser cleaning machines, laser cutting machines and UV printers.
4. Why should I choose HANTENTENC over other suppliers?
HANTENCNC is backed by 19 years of experience in engineering and research and development. As a professional manufacturer, we are dedicated to the research, development, production, and service of laser machines. HANTENCNC’s company culture is “Result-oriented. We live for quality”. We pursue excellent product quality, pay attention to every detail of the machine’s part, and devote ourselves to providing customers with superior quality and reliable prices.
5. How can I be sure that I'm selecting the right machine for my needs?
To ensure that you choose the correct machine, you can send us samples of your materials via courier. We will then provide free marking services, along with pictures and videos of the results, helping you make an informed decision.
