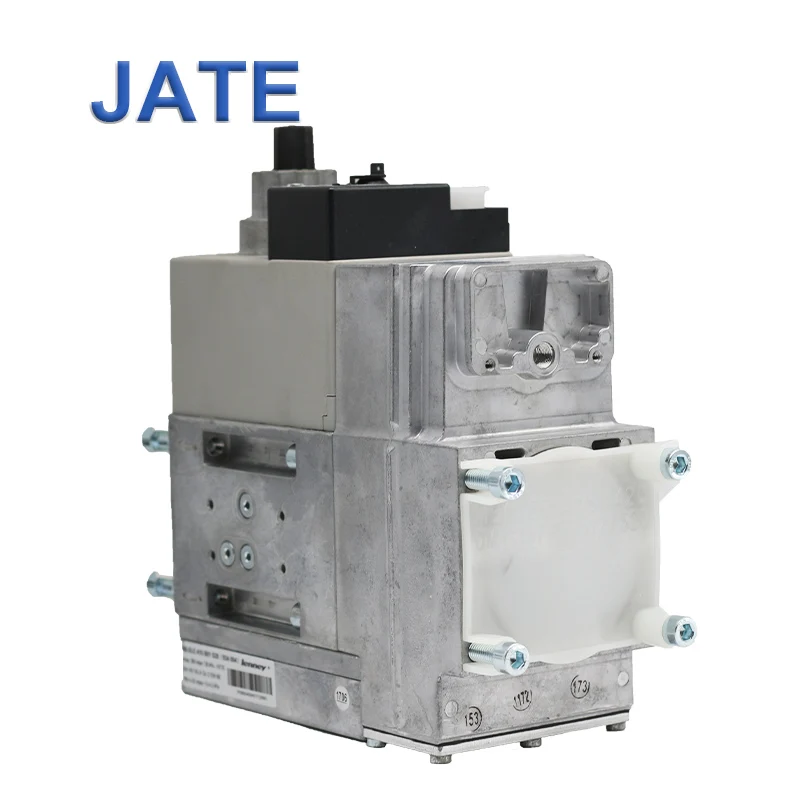

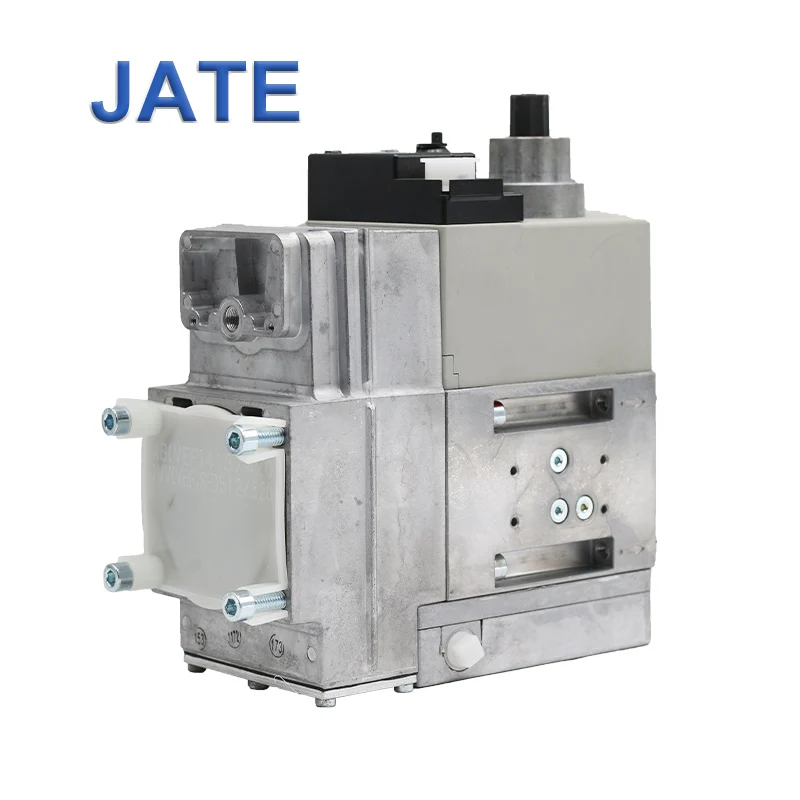

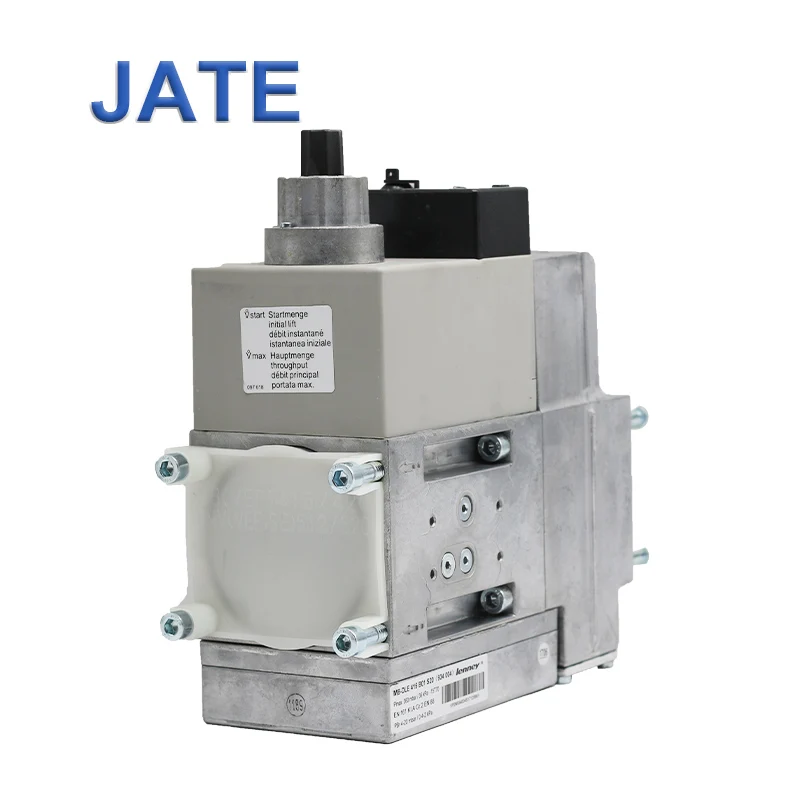

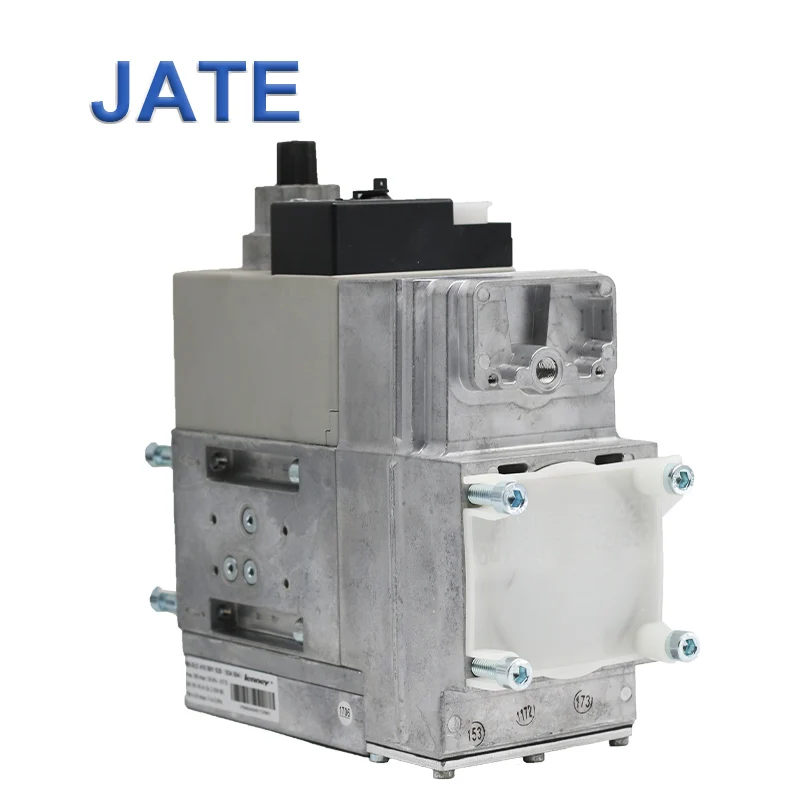

MADE IN CHINA JATE MB DLE415B01S20 230V GAS Proportional Solenoid Valve 3 IN 1 For industrial burners
- Category: >>>
- Supplier: Shenzhen Jate Burners Co. Ltd.
Share on (1601276152095):
Product Overview
Description
Products Description

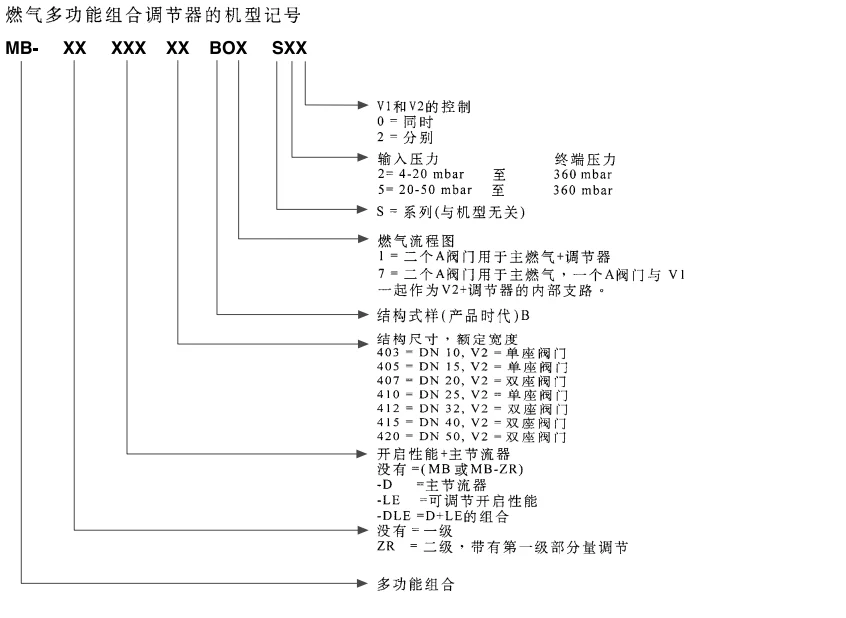

MADE IN CHINA MB-DLE415B01S20 230V GAS Proportional Solenoid Valve 3 IN 1
product detail
Applicable Industries | Manufacturing Plant | |||
Weight | 6.6KG | |||
Showroom Location | None | |||
Warranty | 1.5 years | |||
Brand | JATE | |||
Power Supply | 230 VAC,50- 60 Hz | |||
Max. operating pressure | 360 mbar (36 kPa | |||
Input pressure | 4-20mbar | |||
Opening time | <20 s | |||
Ambient temperature | -15°C ... +70C |
Key features
Ø EC type test approval as per EC Gas Appliance Directive: MB...405-412 B01 CE-0085 AP3156 EC type test approval as per EC Pressure
Equipment Directive: MB...405-412 B01 CE0036 Approvals in other important gas consuming countries.
Equipment Directive: MB...405-412 B01 CE0036 Approvals in other important gas consuming countries.

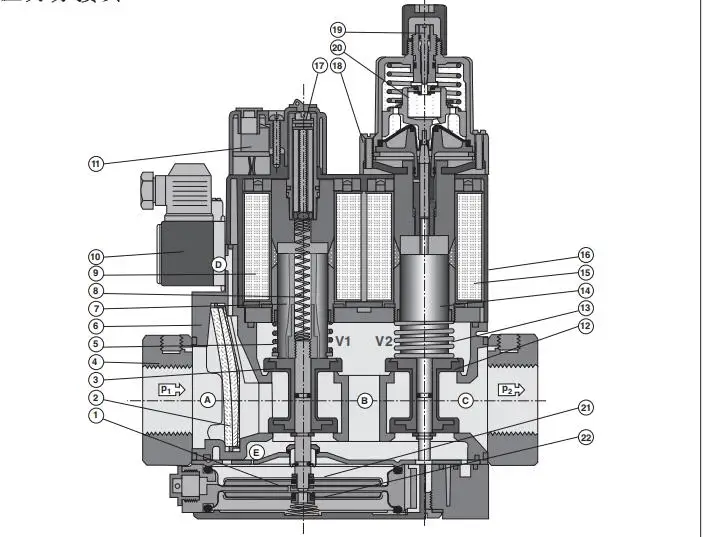

Functional description of gas flow
1. When the valvesV1 and V2 are closed, chamber A is under inlet pressure.
2. A hole D in the filter housing connects min. pressure switch with chamber A. If the inlet pressure applied to the pressure
switch exceeds the incoming reference value, it switches through to the automatic burner control.
3. After release by the automatic burner control, valvesV1 andV2 open.The gas flows through chambers A, B and C of the
GasMultiBloc.
4. On request, the second stage of valve V2 opens.
2. A hole D in the filter housing connects min. pressure switch with chamber A. If the inlet pressure applied to the pressure
switch exceeds the incoming reference value, it switches through to the automatic burner control.
3. After release by the automatic burner control, valvesV1 andV2 open.The gas flows through chambers A, B and C of the
GasMultiBloc.
4. On request, the second stage of valve V2 opens.
Ensure service and after-sales support
ØA complete industrial production system.
ØTwenty years of supplier service experience.
Øproviding remote video technology support
