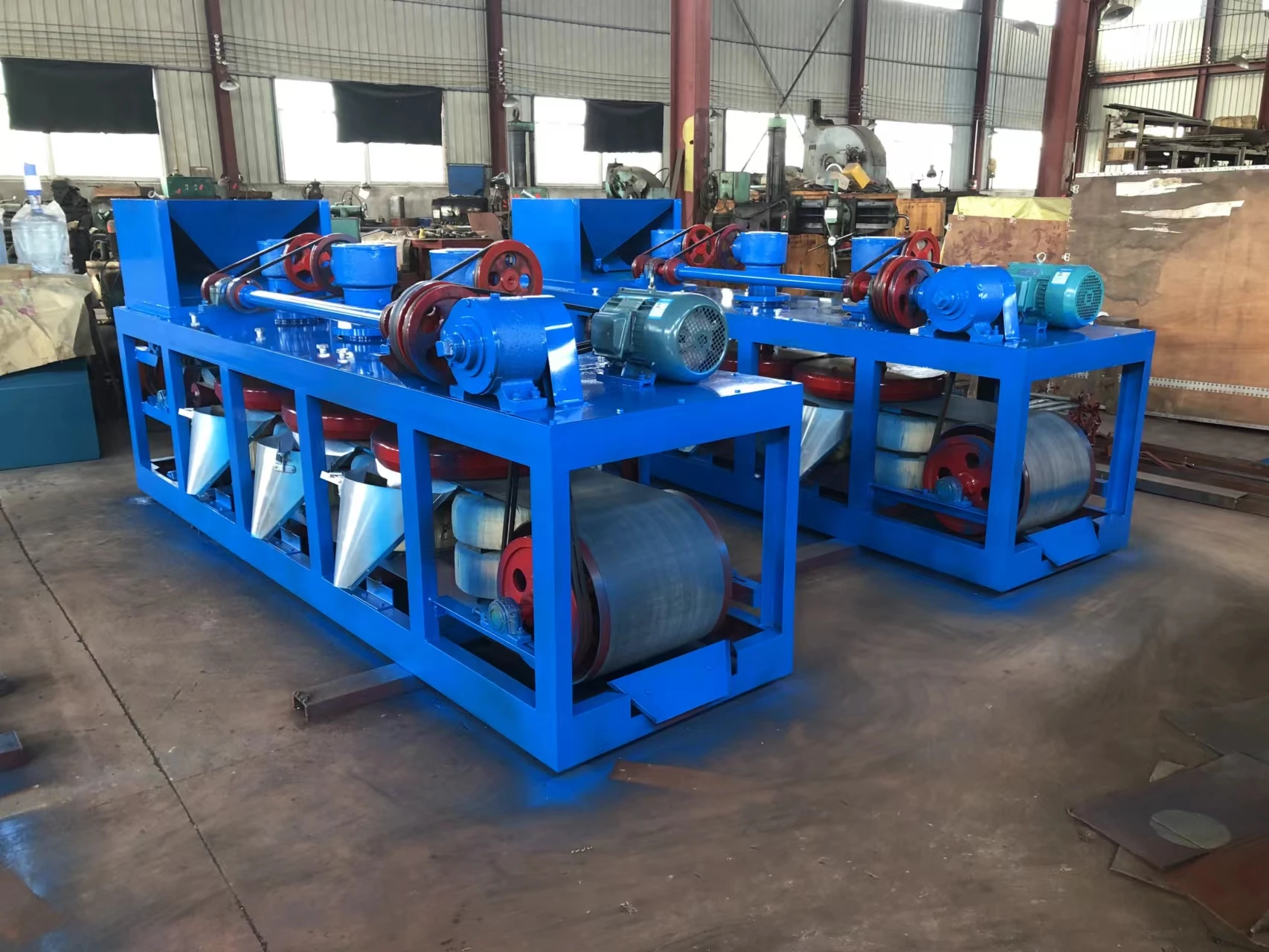

Dry Belt Magnetic Separator for Iron Tin Columbite Mineral Separator Customized Dry Magnetic
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. Ltd
Share on (1601276156324):
Product Overview
Description
Product Description
Description of Wet Process Low Intensity Iron Ore Separator Dry Drum Magnetic Separator
Three-disc Electromagnetic Separator is a Dry Intensified Magnetic Separator/High Intensity Magnetic Separator, applicable for separations of tin, tungsten, tantalum-niobium, ilmenite, rare earth ore, chromite ores, limonite, columbium, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
It can separate 4 different minerals in one time, the concentrate grade can reach 60%-70% by using this separator.
EASTMAN sell a lot of this dry magnetic separator to Burundi,Nigeria,Congo,Tanzania,Rwanda,Indonesia,Russia,Brazil and quite some other African countries, quite suitable for Coltan/Tin upgrading & enrichment.
It can separate 4 different minerals in one time, the concentrate grade can reach 60%-70% by using this separator.
EASTMAN sell a lot of this dry magnetic separator to Burundi,Nigeria,Congo,Tanzania,Rwanda,Indonesia,Russia,Brazil and quite some other African countries, quite suitable for Coltan/Tin upgrading & enrichment.
Model | Unit | 3PC-500 | 3PC-600 |
Magnetic | Hauteur | Distance to beltsurface 2mm | Distance to beltSurface 2mm |
intensity | Disk teeth 1700 | Disk teeth 1800 | |
Number of magnetic disk | Piece | 3 | 3 |
magnetic disk | |||
Diameter of magnetic disk | mm | 500 | 600 |
magnetic disk | |||
Revolution of magnetic disk | r/min | 25-40 | 22-38 |
Power supply | V | 380 | 380 |
Exciting coil | Unit | 4 | 4 |
Matching motor | kw | 0.75 | 1.5 |
Exciting power | kw | 1.5 | 1.6 |
Duty rating | Continuous | Continuous | |
Feed width | mm | 210 | 300 |
Feed size | mm | ≤2 | ≤2 |
capacity | kg/h | 100-500 | 120-800 |
Overall Size | mm | 2800×800×1220 | 3200×870×1160 |
Weight | kg | 1900 | 2200 |
Products Details
working principle

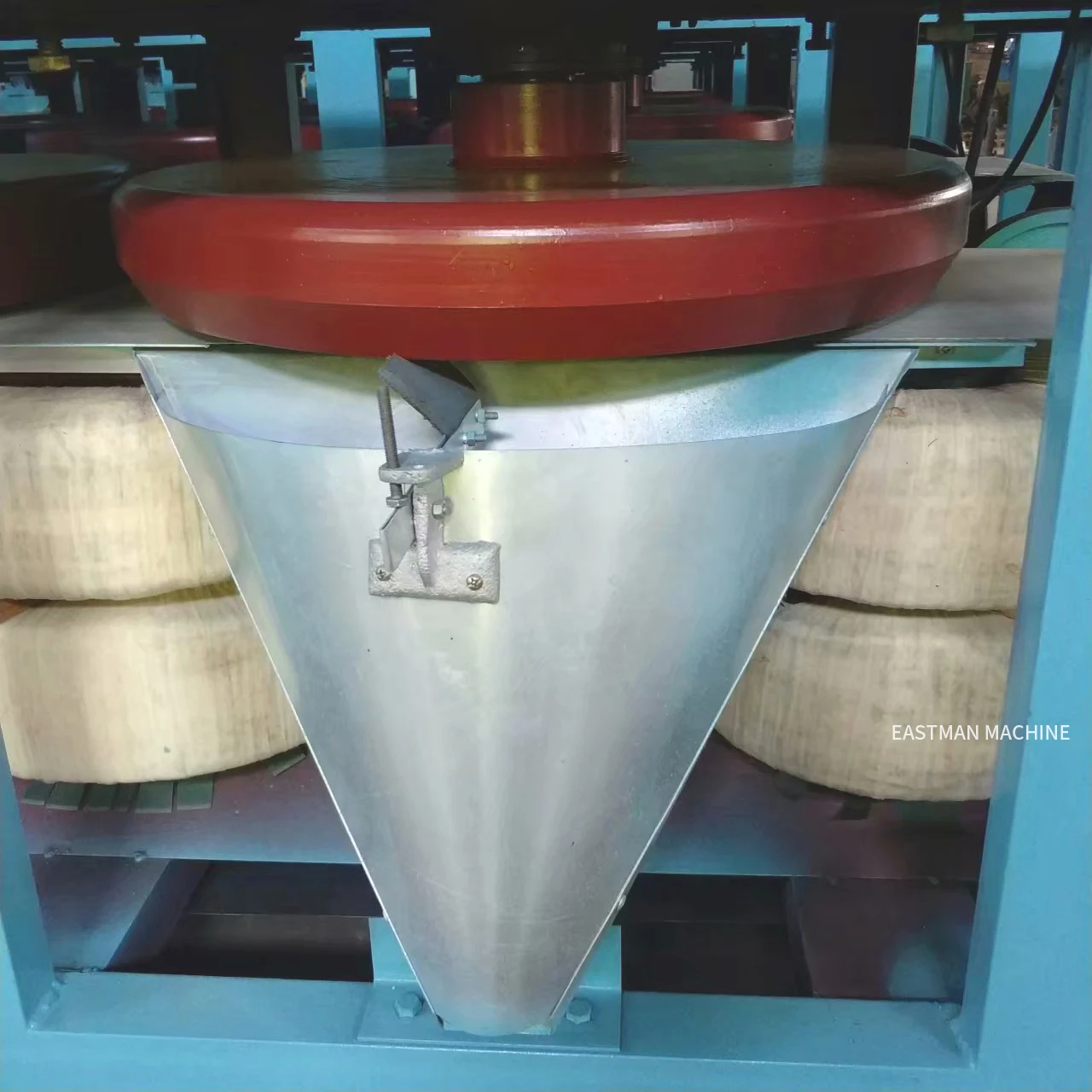

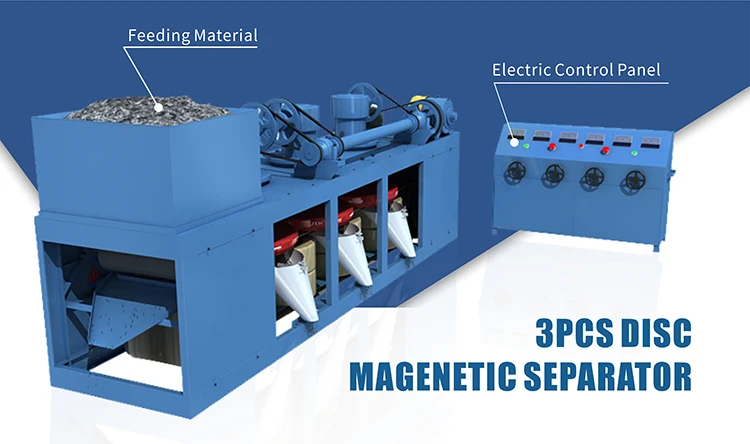

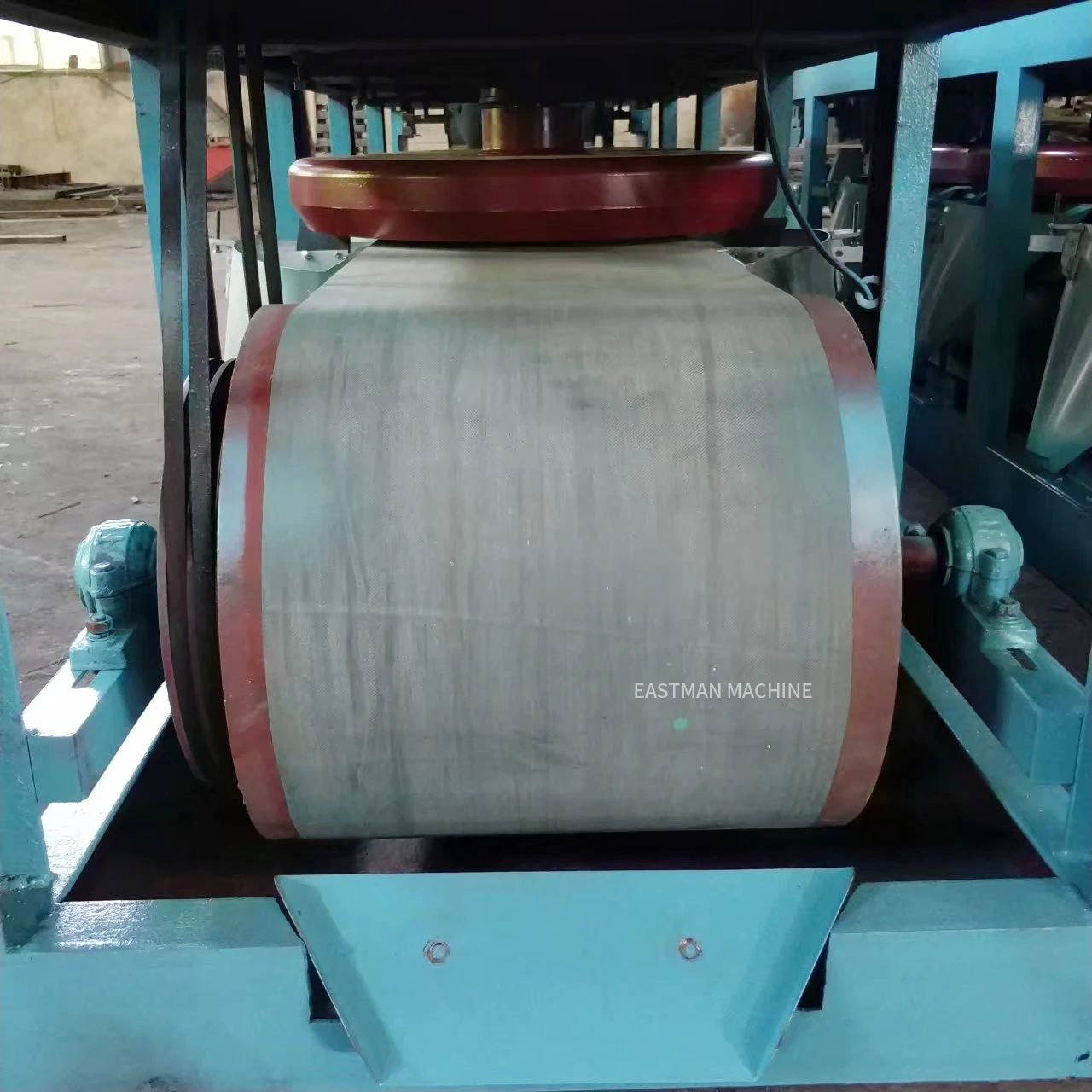

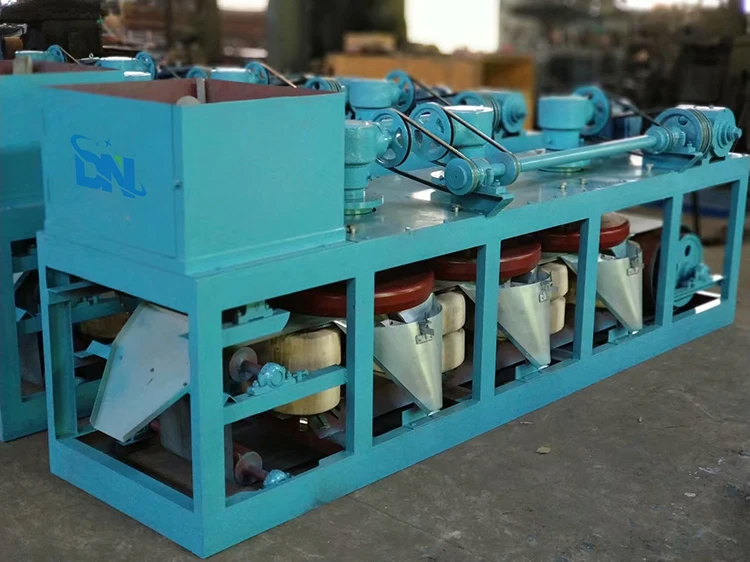

Three Disc Belt Separator /Belt Magnetic Separator Main device comprised feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.
Advantages
1. Very high magnetic field intensity 16000gauss - 20000gauss
2. This separator can separate four different minerals in one time.
3. This separator can get the final concentrate of three to four mineral.
4. Ta & Nb grade can reach 60% by using this separator.
5. it's easy to install, adjust, and operate.
6. The magnetic intensity of each disc is adjustable from 1000-20000 gauss, could be used for other mineral concentration.
2. This separator can separate four different minerals in one time.
3. This separator can get the final concentrate of three to four mineral.
4. Ta & Nb grade can reach 60% by using this separator.
5. it's easy to install, adjust, and operate.
6. The magnetic intensity of each disc is adjustable from 1000-20000 gauss, could be used for other mineral concentration.

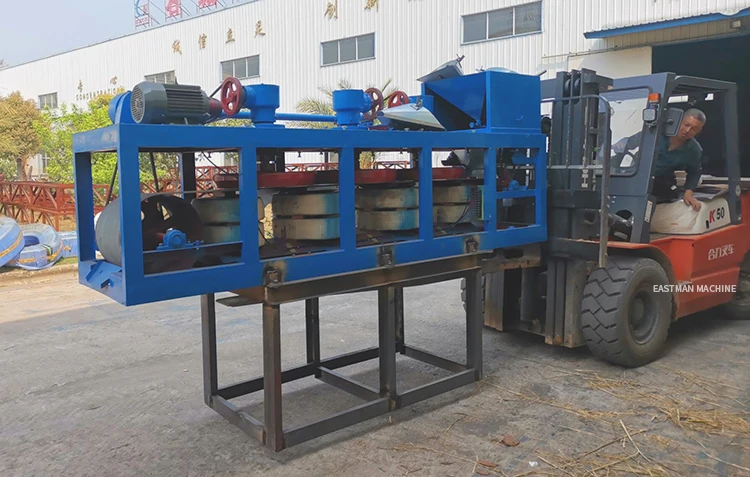

Packing & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Company Introduction
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
Questions customers asked
1.Q:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
1.Q:How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Q:How about the Guaranteed?
A : All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.Q:How about price?
A: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Q:How about the service and payment terms?
A: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
