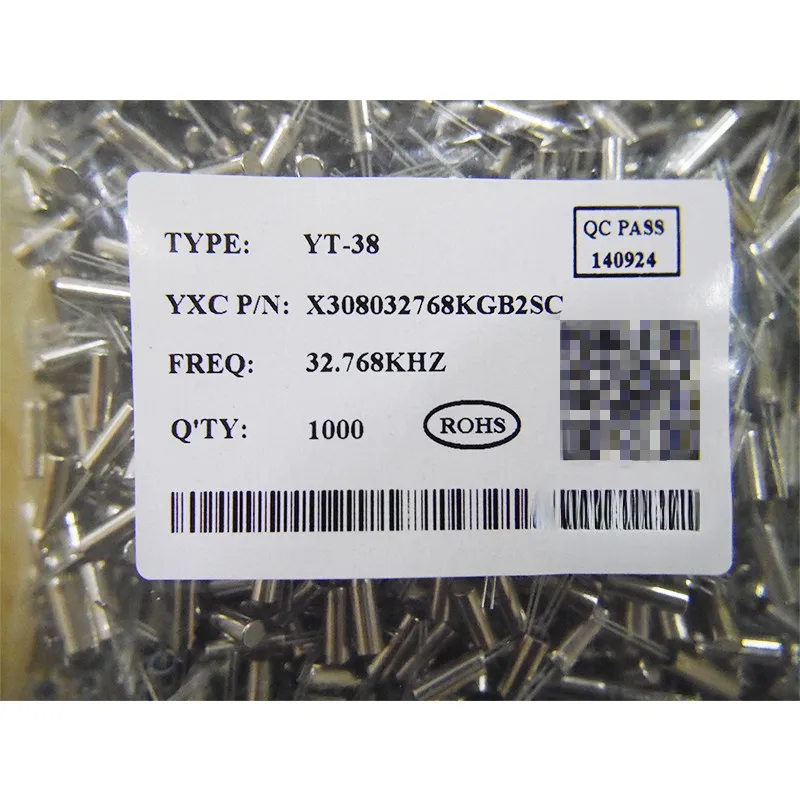

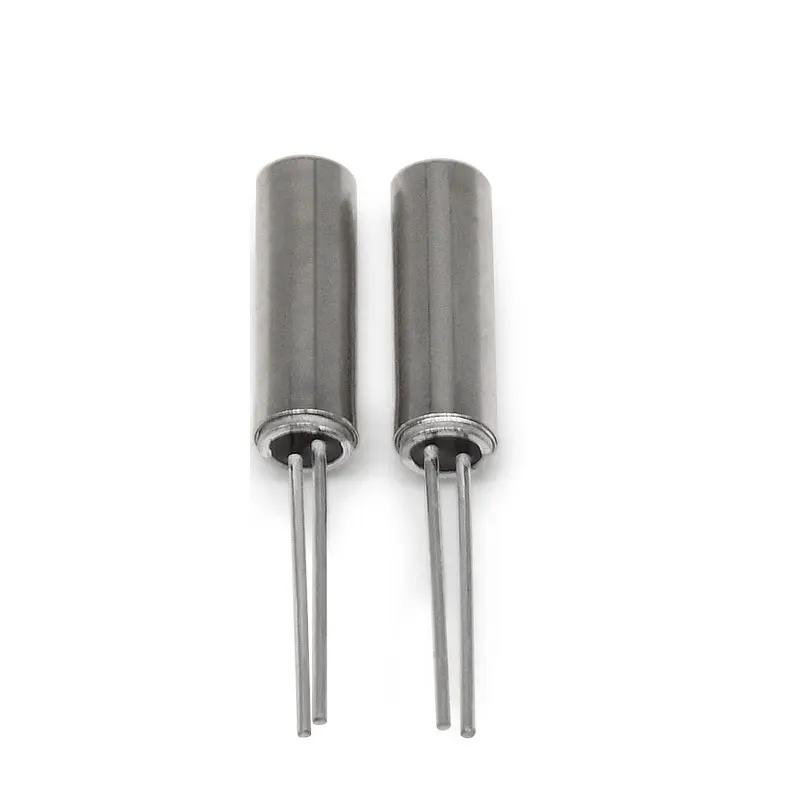

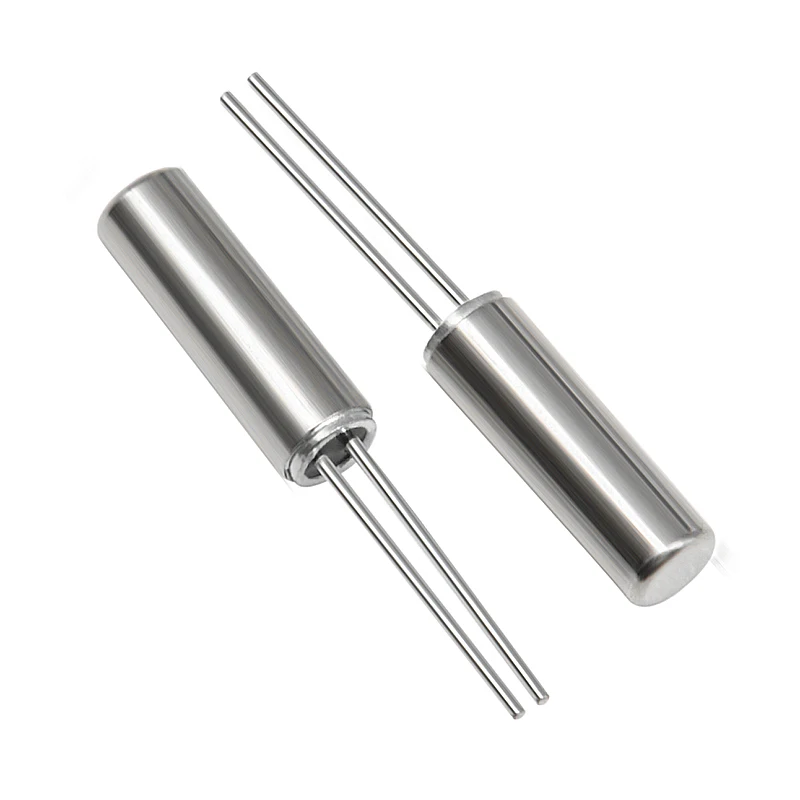

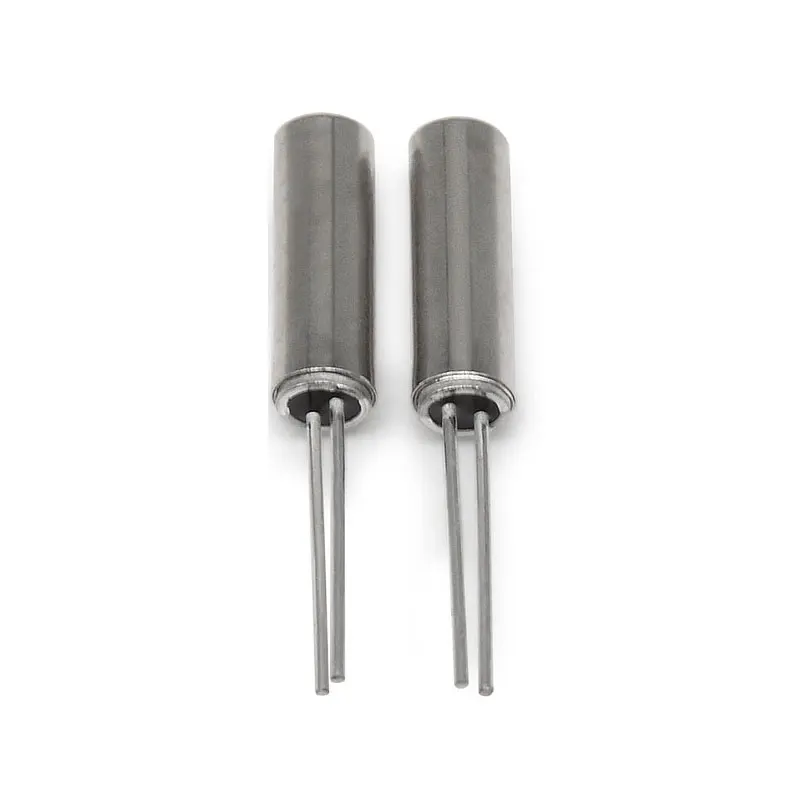

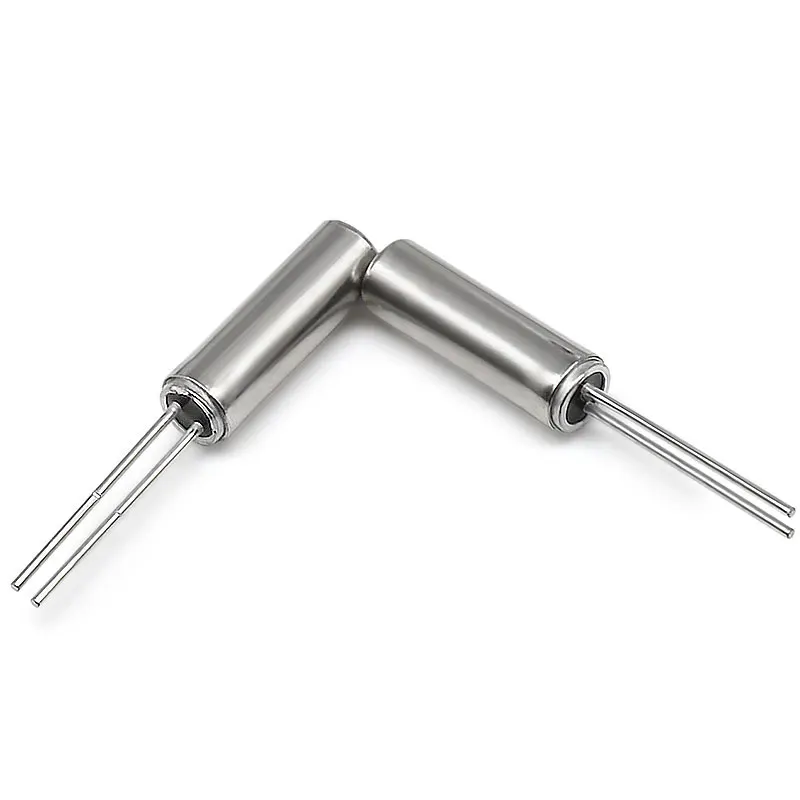

3080 32768KHz 12.5pF 10PPM DIP Cylinder Quartz Crystal Oscillator 32.768KHz
- Category: >>>
- Supplier: Ligabo Technology (shenzhen) Co. Ltd.
Share on (1601276178604):
Product Overview
Description
Specifications

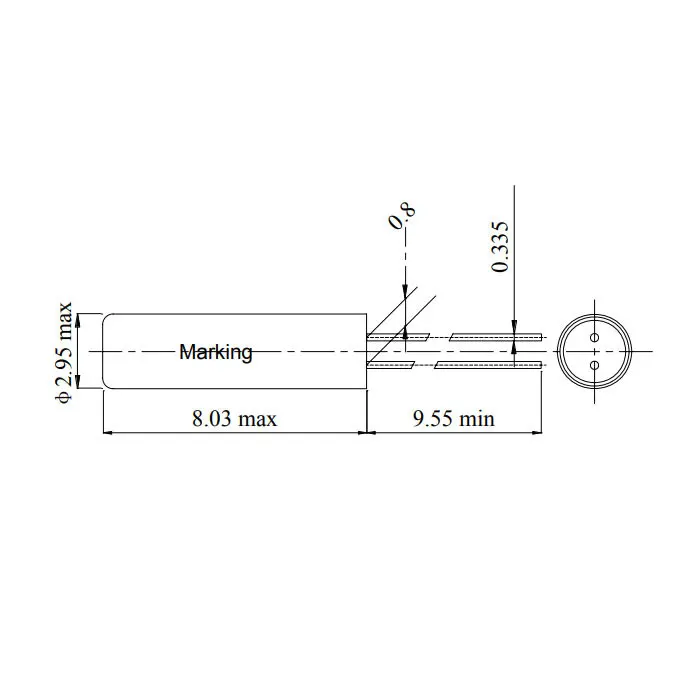

External Dimensions |
Electrical Specifications |
Item / Type | YT-38 |
Nominal Frequency Range | 32.768KHz |
Dimensions | 3.0 x 8.0 mm |
Load Capacitance | 12.5pF, or specify |
Frequency Tolerance (at 25 ℃) | ± 5 ppm , ± 10 ppm , or specify |
Frequency Versus Temperature Characteristics | 0-120ppm, or specify |
Turnover Temperature | -(0.036±0.01)*-6 /℃2 |
Operating Temperature | -20 ~ +70 ℃ , -40 ~ +85 ℃, or specify |
Storage Temperature | -55 ~ +125℃ |
Shunt Capacitance | 2.0pF Max |
Level of Drive | 1.0 μW Tvp |
Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
Insulation Resistance | More Than 500M at DC 100V |
Equivalent Series Resistance (ESR) | 40KΩ Max |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE. |
Applications
Why Choice Us

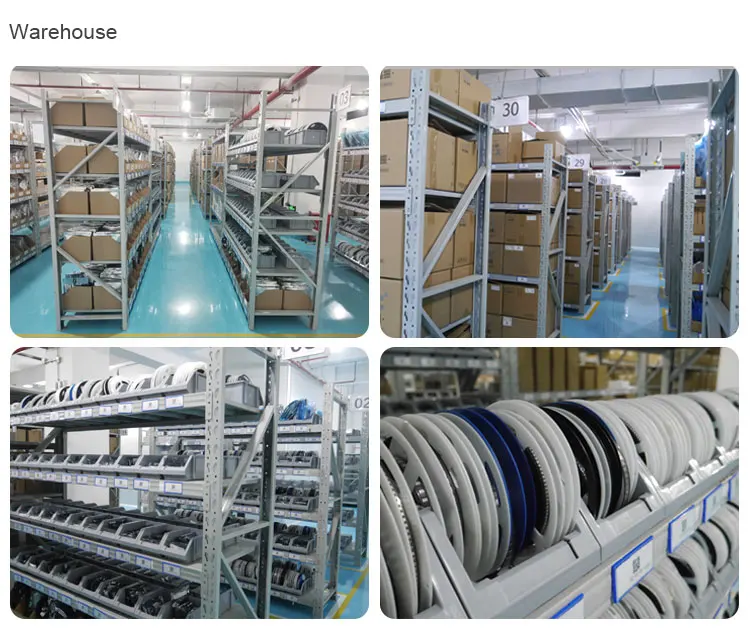

Warehouse & Shipping
Shipping: We have no shipping restrictions, you can specify the shipping method with your freight account, or use our express account. We supply products to customers all over the world, and also technical support is provided for customers to use our parts more conveniently. |
