CE RoHS High quality Factory Wholesale Circular Gold Plated Connector 4pin M12 D code Shielded Plug Panel Mount Cup IP67 for PCB
- Category: >>>
- Supplier: Dongguan Yuefeng Electronic Technology Co. Ltd.
Share on (1601276215962):
Product Overview
Description
Product Description
Specification

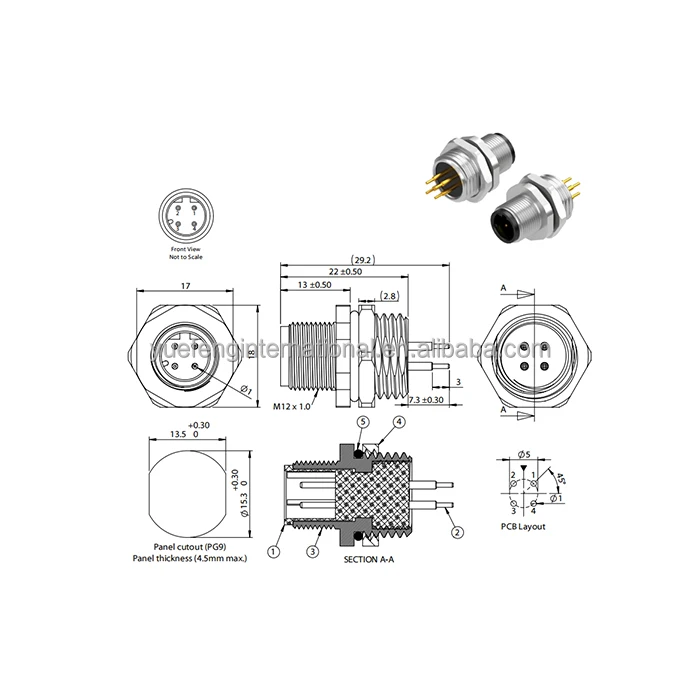

Product name | M12 Shielded Socket 4 pin D-coding PCB |
Ratings | Voltage: 250 V Current: 4 A |
Operating Temperature Range | -40 ~ 105 °C |
Materials | 1. Insulator: PA66glass fiber, UL94 HB, black 2. Pin: phosphor copper, gold plated 3 . Inner shielding: Zinc aluminum alloy, nickel plated 4 .Shell: C3604 brass, nickel plated 5 .O-ring: Nitrile rubber, black |
Electrical Requirements | 1.Dielectric strength: 1 min @ 500 Vac 2.Insulation resistance: 100 MΩ @ 500 Vdc 3.Contact resistance: 10 mΩ or less |
Mechanical Requirements | Life cycle: 1000 mating cycles minimum |
Environmental Requirements | Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl mist for 48 hrs. Wash parts after test. Maintain mechanical requirements and a contact resistance of less than 10 mΩ. |
Waterproof | IP67 |
Assembly Info | Wire gauge: 24 AWG max |
Certificate | CE,ISO9001,RoHS |
M12 Circular Connector
IP67 Compatible waterproof 3P/4P/5P/6P/8P/10P/12P/17PIN cable Electric field assembly circular automotive M12 soldered pcb connector
M12 Pre-molded PVC cable connectors with 12mm thread locking mechanism, rated IP67 protection degree,contacts configuration is 6 poles. 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
• M12 Circular connector according to IEC 61076-2-104
• M12 circular connector with M12*1.0 screw locking
• Equivalent to Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical
1.Cable length: customize
2. Degree of protection IP 67
3. 5 poles per connector is available
4. Operating voltage 60V; Current range: 4A
5. Anti-vibration locking screw design
M12 Pre-molded PVC cable connectors with 12mm thread locking mechanism, rated IP67 protection degree,contacts configuration is 6 poles. 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
• M12 Circular connector according to IEC 61076-2-104
• M12 circular connector with M12*1.0 screw locking
• Equivalent to Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical
1.Cable length: customize
2. Degree of protection IP 67
3. 5 poles per connector is available
4. Operating voltage 60V; Current range: 4A
5. Anti-vibration locking screw design
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Dongguan Yuefeng Electronic Technology Co., Ltd. was established in May, 2015 and is located in Yangwu, Daling Mountain, Dongguan.
The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty,efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminalcable, electrical wire, HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty,efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminalcable, electrical wire, HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
Our Team Work:
We have complete equipments and 200 employees with skilled exoerience so that quality and lead time can be guaranteed.
Certifications
Our Partner:
As below:
Why Choose Us
We has complete equipments and 200 employees with skilled experience so that quality and lead time can be guaranteed for yourorders.And also gains ISO9001:2017;ISO13485,GJB9001B Standard Equipment Certifications.
Lead time: 7- 15 days
Quality :All the goods 100% inspection before shipping.
Afer-sales service:Once issues for goods,your money will be returned to you completely.
Lead time: 7- 15 days
Quality :All the goods 100% inspection before shipping.
Afer-sales service:Once issues for goods,your money will be returned to you completely.
1.Lowest price with quality to save cost for you
2.OEM or ODM
3.Bend relief of plug are free
4.Free samples(MOQ/PCS)
5.Free cable solutions
6.Accept credit payment
2.OEM or ODM
3.Bend relief of plug are free
4.Free samples(MOQ/PCS)
5.Free cable solutions
6.Accept credit payment
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer specialized in connectors and wire harness products. And we trade our products with our clients directly.
Q2: Can you do OEM and ODM?
A2: Yes, OEM and ODM are both acceptable. The material, color, style can becustomize, the basic quantity we will advise after we discuss.
Q3: When can I get the price?
A3: Usually we quote within 1 hours after we get your inquiry.
Q4: What’s your MOQ?
A4: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q5: Do you provide sample ? Is it free?
A5: If the sample is low value, we will provide the free samples to test the quality. But for some high value samples, we need to collect the sample charge.We will send the samples by express. Please pay the freight in advance and we will refund the freight when you place a larger order with us.
Q6: What is the normal lead time?
A6: For stock products, we will send the goods to you within 7 days after receiving the payment.If we don't have inventory, the production time is usually 5-15 days.
Q7: What is your term of payment?
A7: Sample order: 100% prepayment before shipping;Bulk order:30% down payment before producing and 70% balance payment before shipping.
Q8: Which payment form you can accept?
A8: T/T, Mastercard credit card,VISA,e-Checking,Western Union, PayPal etc. We accept any convenient and swift payment term.For more details, Please free to contact the following information in detail,
A1: We are professional manufacturer specialized in connectors and wire harness products. And we trade our products with our clients directly.
Q2: Can you do OEM and ODM?
A2: Yes, OEM and ODM are both acceptable. The material, color, style can becustomize, the basic quantity we will advise after we discuss.
Q3: When can I get the price?
A3: Usually we quote within 1 hours after we get your inquiry.
Q4: What’s your MOQ?
A4: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q5: Do you provide sample ? Is it free?
A5: If the sample is low value, we will provide the free samples to test the quality. But for some high value samples, we need to collect the sample charge.We will send the samples by express. Please pay the freight in advance and we will refund the freight when you place a larger order with us.
Q6: What is the normal lead time?
A6: For stock products, we will send the goods to you within 7 days after receiving the payment.If we don't have inventory, the production time is usually 5-15 days.
Q7: What is your term of payment?
A7: Sample order: 100% prepayment before shipping;Bulk order:30% down payment before producing and 70% balance payment before shipping.
Q8: Which payment form you can accept?
A8: T/T, Mastercard credit card,VISA,e-Checking,Western Union, PayPal etc. We accept any convenient and swift payment term.For more details, Please free to contact the following information in detail,
More detaills,please do not hesitate to contact us!
